非常感谢设计方 heri&salli 将项目介绍和项目图片授权gooood发行。更多请至：heri&salli on gooood
Appreciation towards heri&salli for providing the following description:

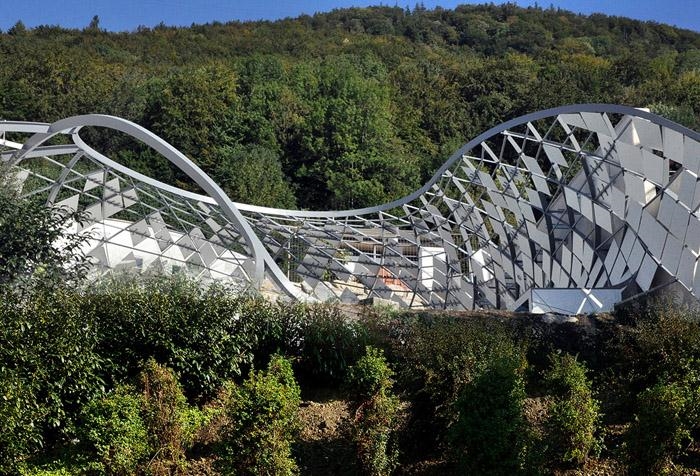

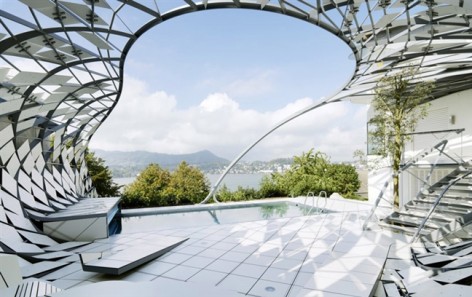

The architecture office heri&salli from Vienna conceived a steel structure similar to a cocoon round a swimming pool in the garden of a private builder-owner in Austria. With mounted panels and interior constructions which are more or less depending on their function the parametric organized spatial element describes possibilities of a usable and experienceable surface.

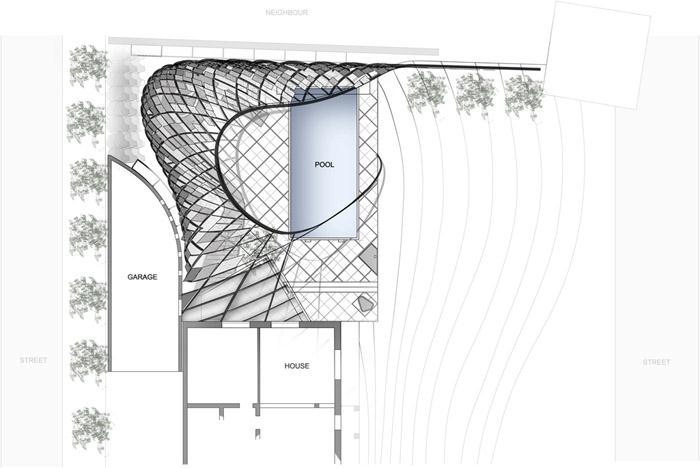

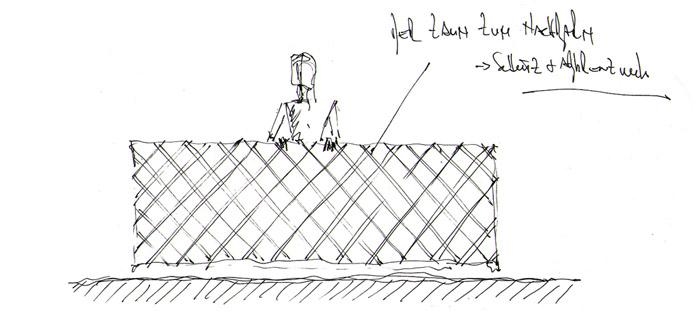

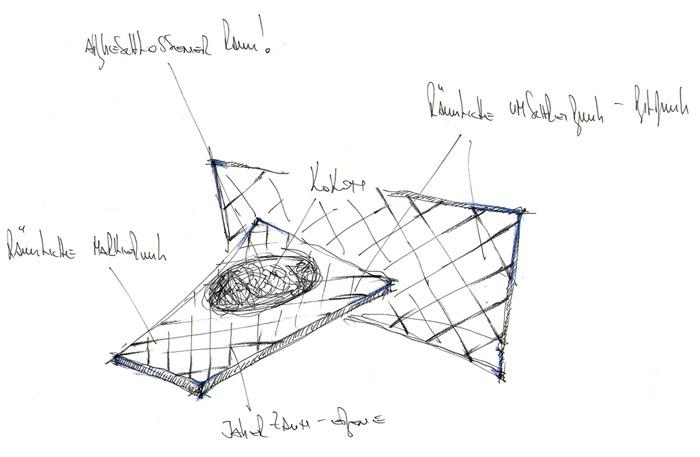

Proceeding from the task to redefine an existing garden property with view of the lake, and simultaneously create provisions on views and a demarcation in direction of the surrounding properties an neighbors the theme of the classic rustic fence was taken up. In the simplest case a fence functions as protection or demarcation, a visualization of a line that wasn’t visible before. In the further contest it serves as esthetic element or a representative sign and separates as a 2-dimensional element different areas. We formulate the fence based on different requirements as a 3-dimensional description of an existing garden. The fence itself becomes- proceeding from a diagonal constructional arrangement- therefore a possibility of space. With this in mind it doesn’t demarcate the space, but creates it and renders it experienceable , the function as a demarcation slides into the background and is only a byproduct.

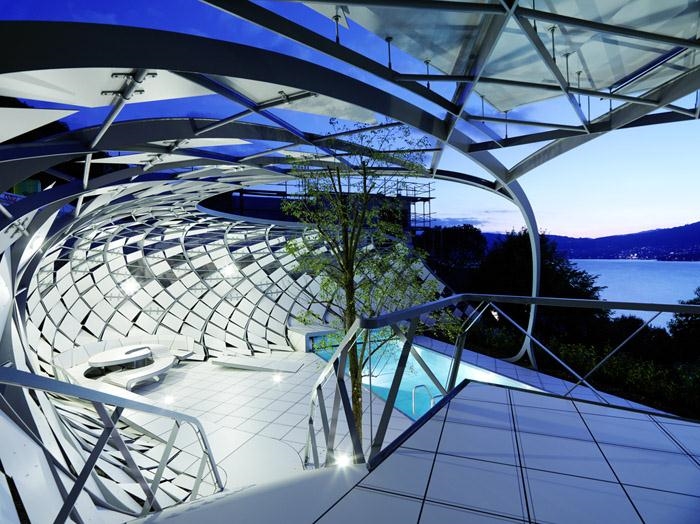

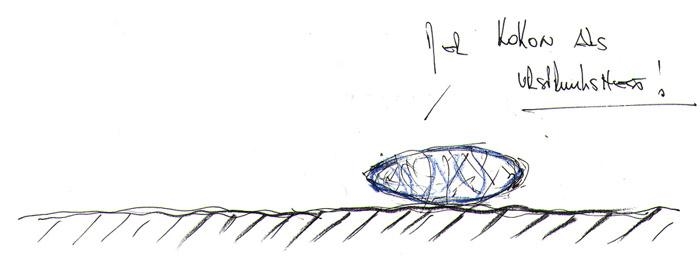

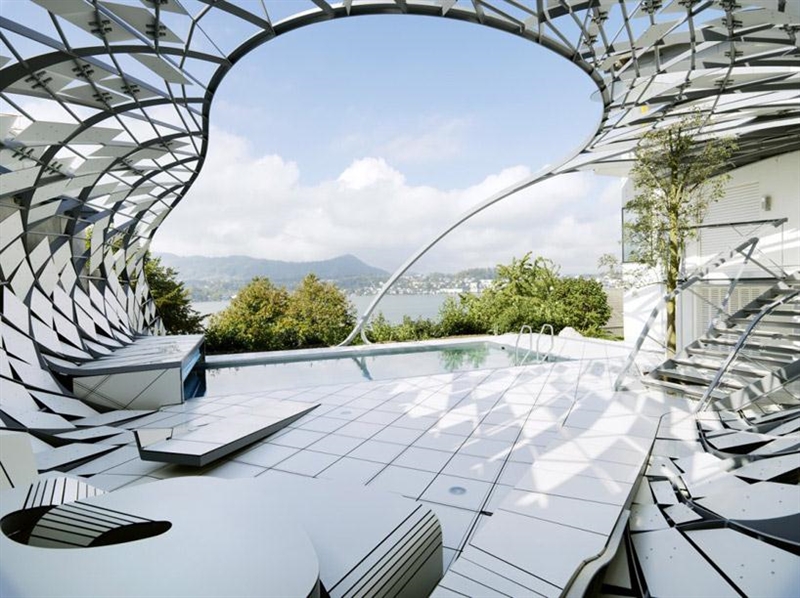

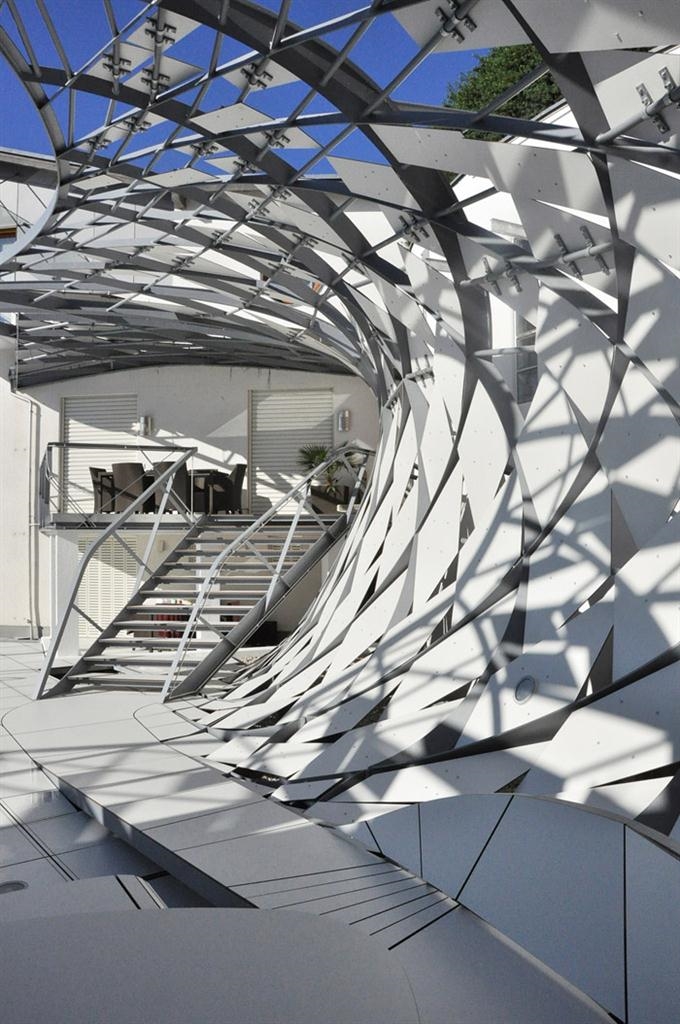

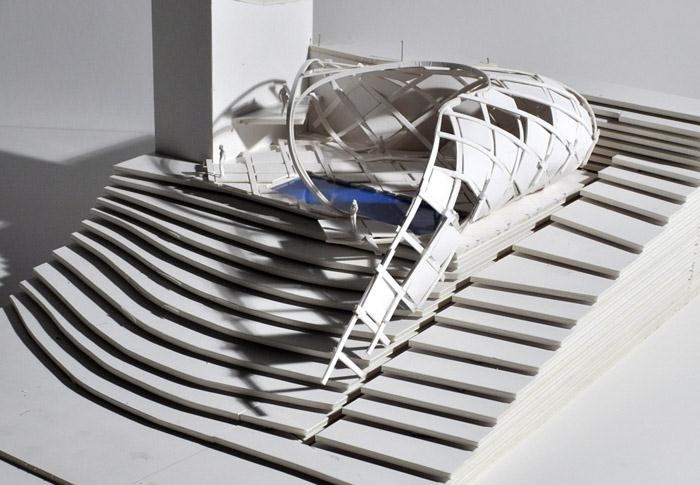

The objective of the opening element similar to a cocoon is to create different spatial qualities and experience space. Partly covered, withdrawn and protected, then opening and finally in the middle or in the end in the water of the pool where you can swim out of it. The curves convey a feeling of vastness- make the space bigger than it is-and create in the inside of the house an optimal resonant behavior. Different integrated constructions like stairs, seats, lying areas or a table with backrest and pool covering are in its definition in a geometrical relation with the original construction; they emerge only to become part of the structure again. The integrated panels follow a dynamic course from the orthogonal edge into the described space, to develop in the central parts in relation to the steel structure from the inside to the outside or to dissolve more and more along the vertical. In this case architecture is an accumulation of possibilities in a described space and creates only the edges for a vast land in between.

Construction:

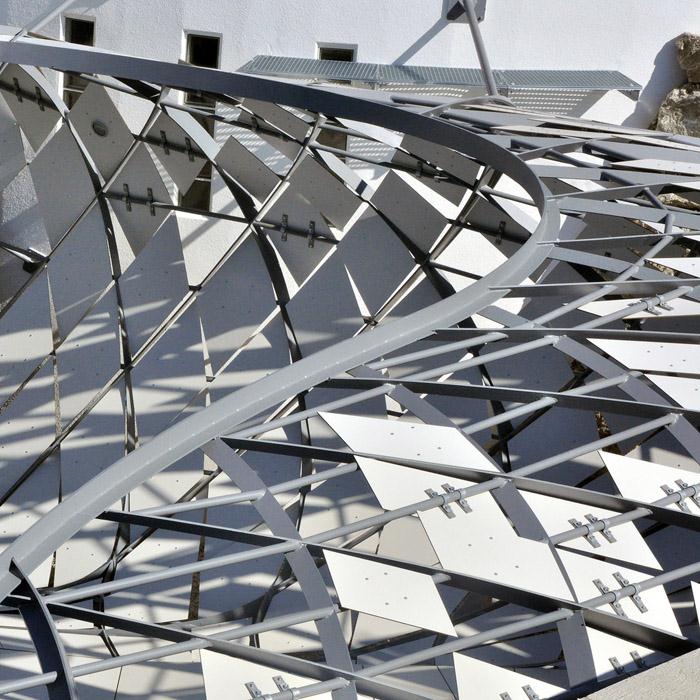

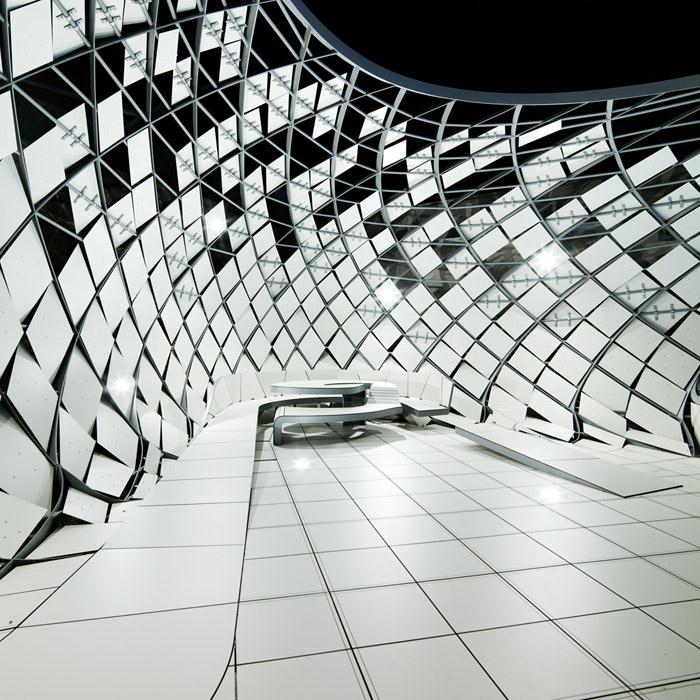

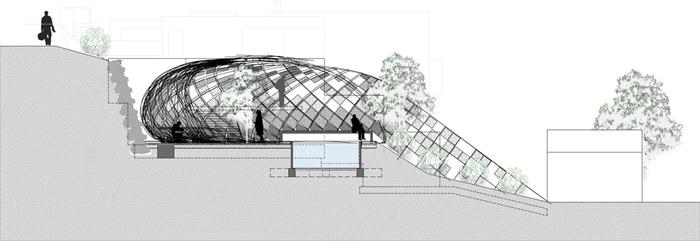

The construction of the supporting structure can be described as an overhanging free concave form that is designed as frame construction with diagonally running circular tube profiles for outcrossing and plate attachment. The frames consist of solid welded flat steel profiles. The not entirely closed shell is constructed with diamond shaped plates which are fixed by tabs on the diagonals and in case can be turned around their axis. (Bollinger- Grohmann-Schneider/Wien)

维也纳建筑事务所heri&salli设计了这个滨临湖泊，轻轻包裹住泳池的景观构筑。构筑表面采用参数化设计，并对恰当的空间与功能有恰当的反应。构筑保护了住户的隐私，也让他们能看到外面的景色，最后以极强的存在感，不可思议的消融在环境之中。构筑物进入空间，并非划定空间，而是创建空间。如同一个开放的茧，有着绝非不同的空间品质和体验空间。倍具张力的曲线创建一个最不可思议的最大化空间。楼梯，座椅，靠背和表面以几何定义形式出现，成为结构的一部分，形成一体化的流动空间。结构不过是广袤空间的一个边缘而已。结构是圆形管材以扁钢对角相交的形式作为基本框架，上方覆盖的金属板固定在轴上并可绕轴旋转。

Architecture: heri&salli
Team: Lukas Allner, Monir Karimi
Finished: Oktober 2011
Structural Engineering: Bollinger-Grohmann-Schneider; Wien
Metallbau: Metallbau Fischer; Klagenfurt
Surface: SFK Tischler GmbH; Kirchham
photography: paul ott

MORE: heri&salli，更多请至：heri&salli on gooood
