非常感谢 格境设计 将以下内容授权gooood发行。更多关于他们： GED on gooood.
Appreciation towards GED for providing the following description:

“在有限的场地里，
以璀璨的童心激发每位大小朋友，
让一个社区公园像星星一样向整个城市绽放活力。”

“In a limited space,
With dazzling childlike innocence, we inspire every child and adult,
Turning a community park into a vibrant force that blossoms like stars across the entire city.”

▼视频，video © 许立南

在银星公园的实践中，格境设计的成果丰富多元。我们不单主持了公园的景观与建筑设计，还深度参与了一部分标识设计、灯具设计、文化展示设计和大量有趣的“第五立面”设计等。
设计过程中经历了感性与理性想法的激烈碰撞，也伴随着无数细节的推敲与反复。最终，满怀的童心与创意的设计师让这小块平地成为了一个多维多彩的欢乐花园，一个充满童趣与活力、又深受大小朋友共同喜爱的互动空间。

In the practice of Yinxing Park, GED has achieved rich and diverse results. We not only took charge of the park’s landscape and architectural design but also deeply participated in some signage design, lighting design, cultural exhibition design, and a large number of interesting “fifth facade” designs, among others.
The design went through a fierce collision of emotional and rational ideas, accompanied by countless refinements and repetitions. In the end, the designers, full of childlike innocence and creativity, turned this small plot of flat land into a multi-dimensional and colorful garden of joy, an interactive space full of childlike fun and vitality, deeply loved by children and adults alike.

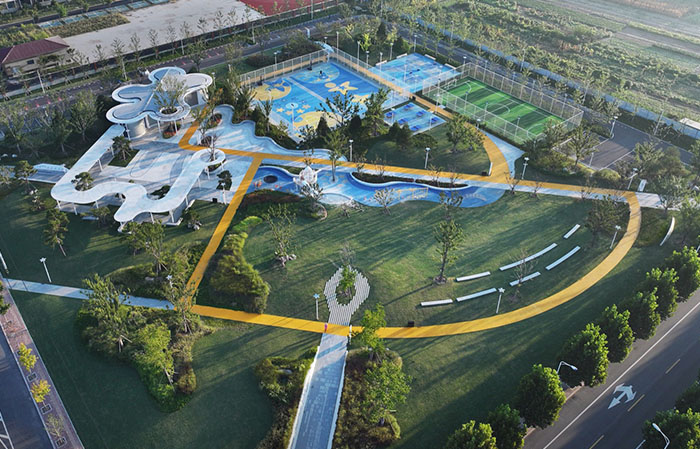

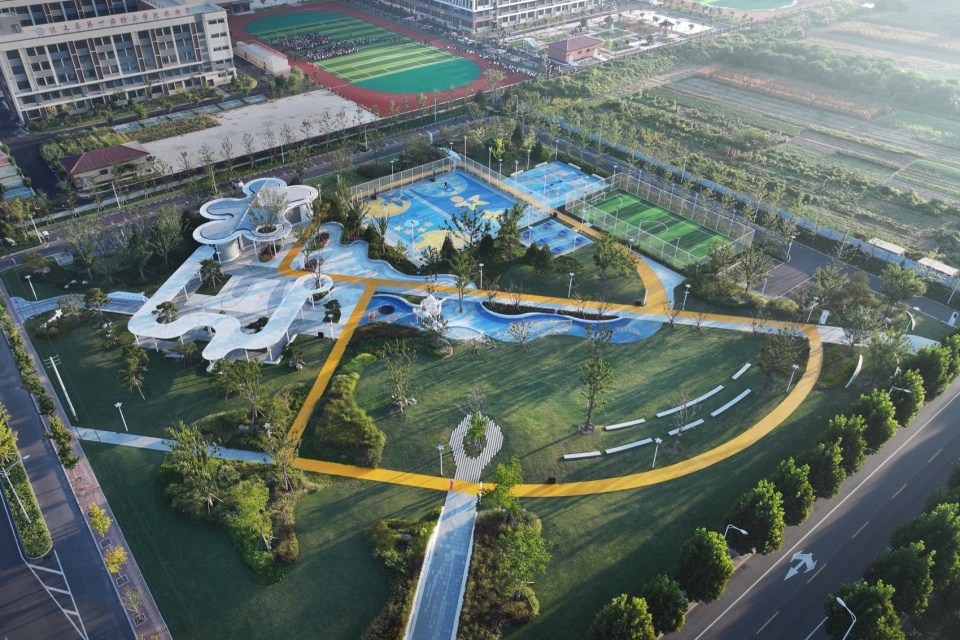

▼鸟瞰图，Aerial view © 许立南

01
项目背景
Project Background

城市与区位｜City and Location

项目位于山东省济宁市汶上县，地块位于主城东南的新城区域。场地周边主要为学校和居住用地，其中东侧为三个中小学校，西侧为大片待建居住区。

The project is located in Wenshang County, Jining City, Shandong Province, on a new urban area southeast of the main city. The surrounding area is mainly schools and residential land, with three primary and secondary schools on the east side and a large undeveloped residential area on the west side.

▼鸟瞰图，Aerial view © 许立南

场地与需求｜Site and Requirements

地块面积18241㎡，场地平坦、边界方整。业主从城市建设角度提出三个核心需求：

·解决运动和儿童活动两个主题需求
·为周边学校接送提供临时停车配套
·开放共享，塑造城市形象

The project covers an area of 18,241㎡, with a flat site and regular boundaries. The client proposed three core requirements from the perspective of urban construction:

· Solving the two thematic needs of sports and children’s activities
· Providing temporary parking facilities for school transportation nearby
· Making the park Open and shared, to shape the city image

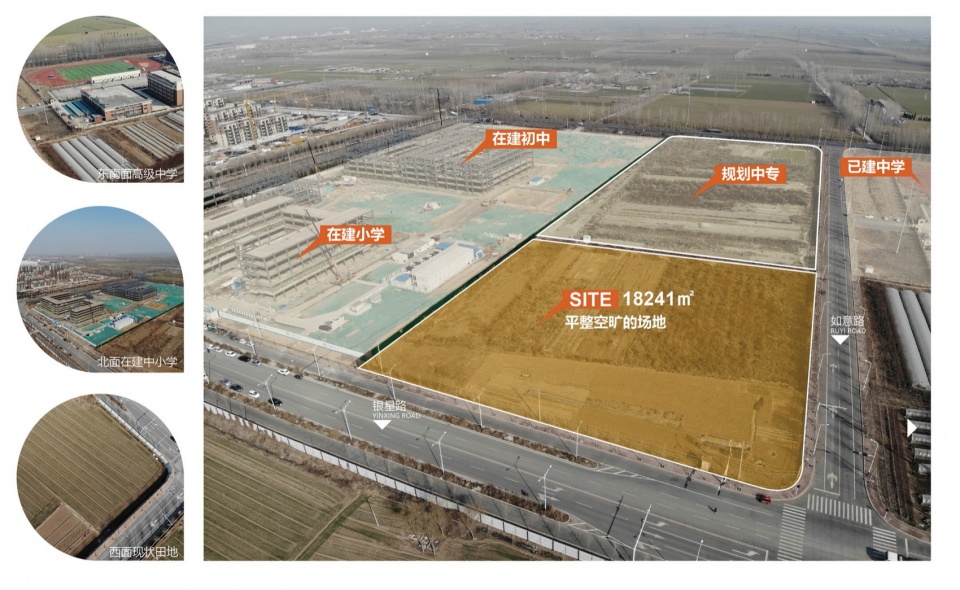

▼场地现状，Site Current Situation © 格境设计

02
理念与设计
Concept and Design

设计以“童星绽放，活力无边”为理念展开，希望在有限场地内，以璀璨的童心激发每位公园使用者，让一个社区公园像星星一样向整个城市绽放活力。设计师以汶上市花月季为原型，为项目创作了一个“一语三关”的Logo，在三个角度看分别是张开双臂的儿童、带球奔跑的少年和自然飞舞的蝴蝶，正好寓意本项目的三个主题——儿童、运动和自然。

The design is based on the concept of “Childishness blossoms, vitality unbounded,” hoping to inspire every user with dazzling childlike innocence within a limited space, allowing a community park to burst with vitality like stars across the entire city. Designers use the local flower of Wenshang, the rose, as a prototype to create a logo for the project that has “three meanings in one” from three different perspectives: a child with open arms, a running youth with a football, and a fluttering butterfly, symbolizing the three themes of the project—children, sports, and nature.

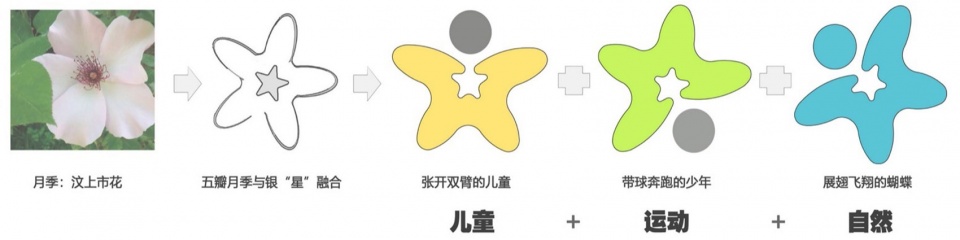

▼项目Logo推演，Project Logo Deduction © 格境设计

03
空间布局：
Spatial Layout:

设计以对角线走向的便捷通道通行划分场地，东北半区侧集中布置运动区，西南片区配置开放草地与儿童活动区，将临街界面整体开放。将周边市民临停需要的车行道与停车位靠东、北两侧靠边放置。通过微地形结合复层绿化，进一步减少行车与停车对公园活动的影响。西北主入口区域设置主题构筑围合，即界定入口、围合活动区，又塑造趣味形象。

The site is divided by convenient diagonal pathways, with the sports area concentrated on the northeast half and the southwest area equipped with open grasslands and children’s activity areas, opening up the street interface entirely. The vehicle lanes and parking spaces needed for nearby residents’ temporary parking are placed along the east and north sides. By combining micro-terrain with multi-layered greening, the impact of driving and parking on park activities is further reduced. The northwest entrance area is set up with a themed structure to enclose and define the entrance and activity area, but also creates an interesting image.

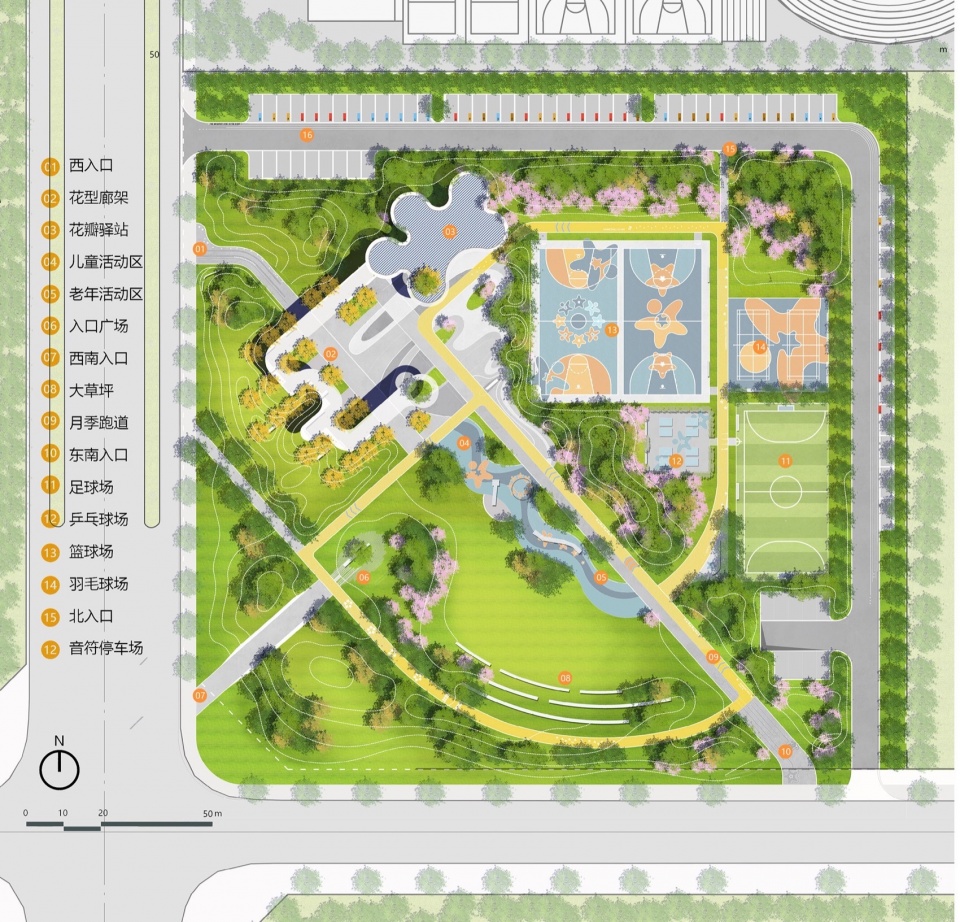

▼总平面图，General Plan © 格境设计

04
实景与亮点
Real Scenery and Highlights

童趣盎然的互动乐园｜A Child-Friendly Interactive Playground

滑梯、蹦床、秋千等活动设施与周边开放草地相结合，与自然融为一体。蓝色铺地寓意星空、黄色logo寓意星星点缀其间。活动设施周边设置波浪形坐凳，为小朋友家长提供休息空间。

Slides, trampolines, swings, and other activity facilities are combined with the surrounding open grasslands, integrating with nature. The blue paving symbolizes the starry sky, and the yellow logos represent stars scattered among them. Wave-shaped benches are set around the activity facilities to provide resting space for children’s parents.

▼充满星星图案的通道将小朋友从入口引导到场地中部的童心乐园，
Star-patterned passages guide children from the entrance to the central childlike paradise © 许立南

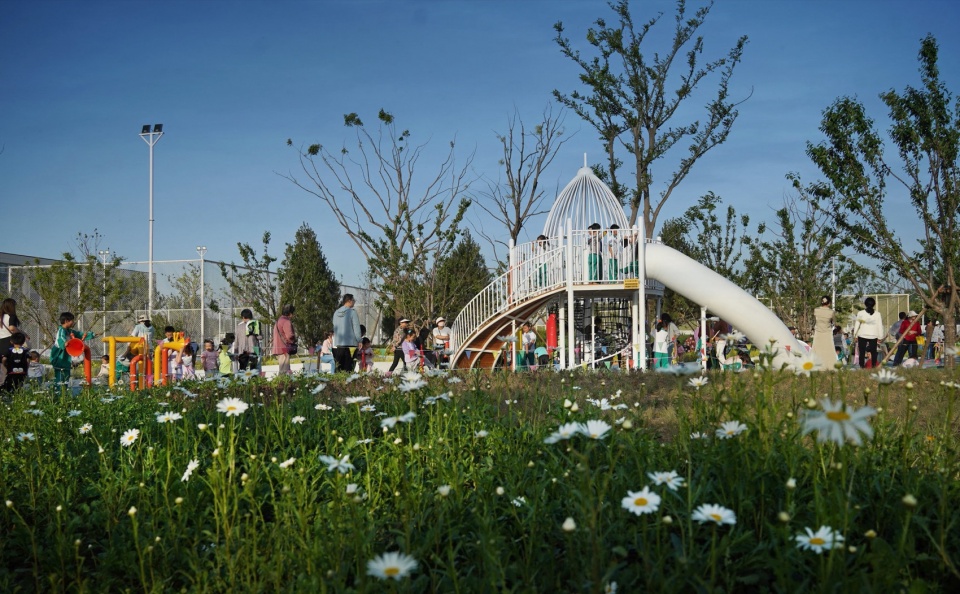

▼童心乐园与周边的自然植物融为一体，Childlike paradise integrates with the surrounding natural plants © 许立南

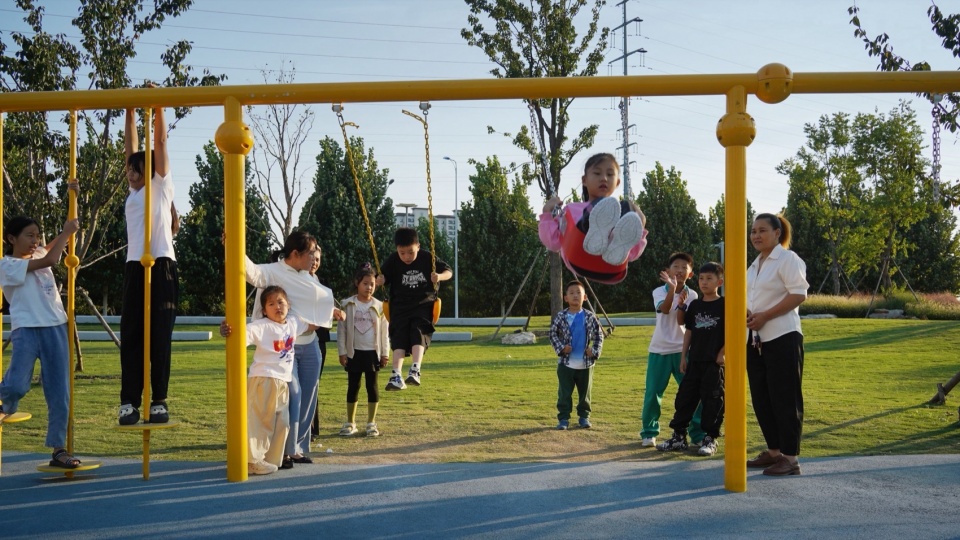

▼活动器材与开放草地结合一体，Activity equipment combines with open grassland © 许立南

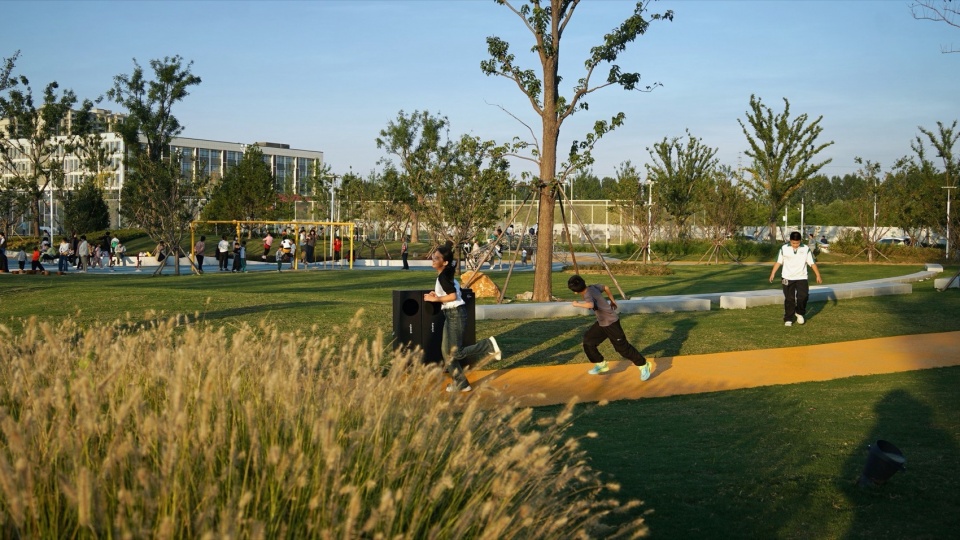

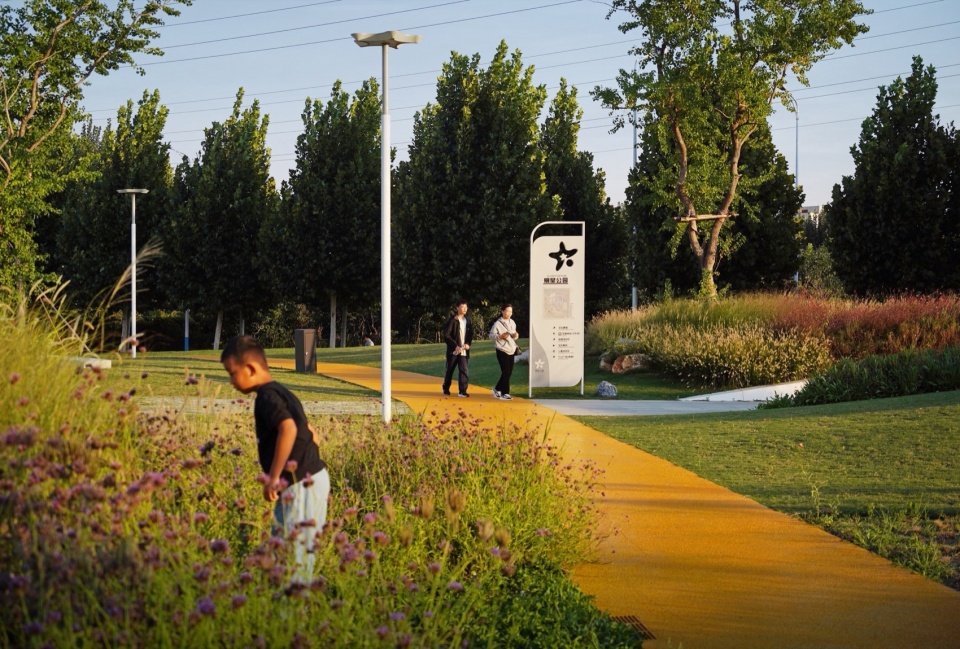

▼环形月季花跑道将活动场地串联一体，
Circular rose flower running track connects the activity areas © 许立南

▼沿街开放的微地形草地，方便市民进出场地，
Open micro-terrain grassland along the street for easy access © 许立南

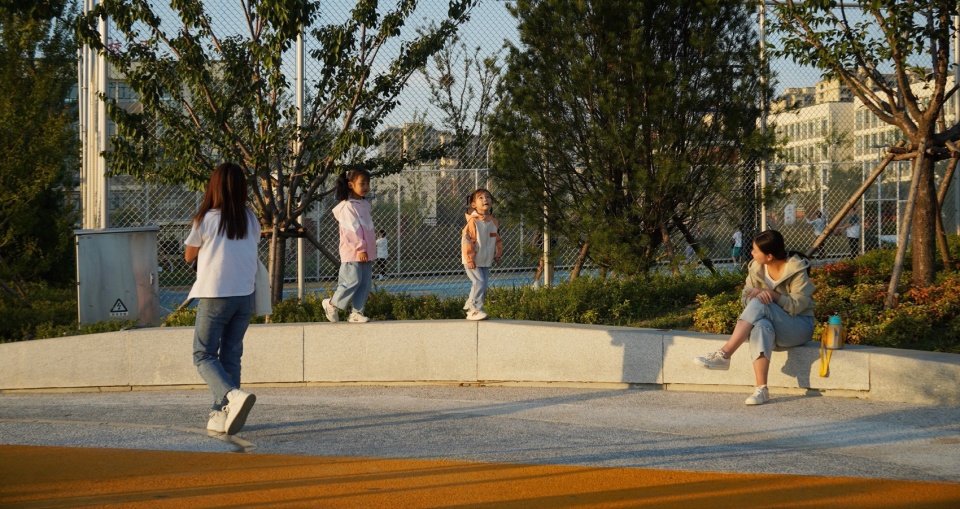

▼波浪形起伏的坐凳打造有趣味的休憩设施系统，
Wave-shaped undulating benches create an interesting rest facility system © 许立南

朝气蓬勃的运动氛围｜A Vibrant Sports Atmosphere

设计精心打造了适合各年龄段运动爱好者的场地与设施，并以环形运动步道将其串联。星星图案的篮球场、绿树环抱的足球场、人气爆棚的乒乓球场和羽毛球场和周边开放草地都成为热爱运动的大小朋友的乐园。

The design meticulously creates venues and facilities suitable for sports enthusiasts of all ages and connects them with a circular sports trail. Star-patterned basketball courts, football fields surrounded by green trees, popular table tennis and badminton courts, and the surrounding open grasslands all become paradises for sports-loving children and adults.

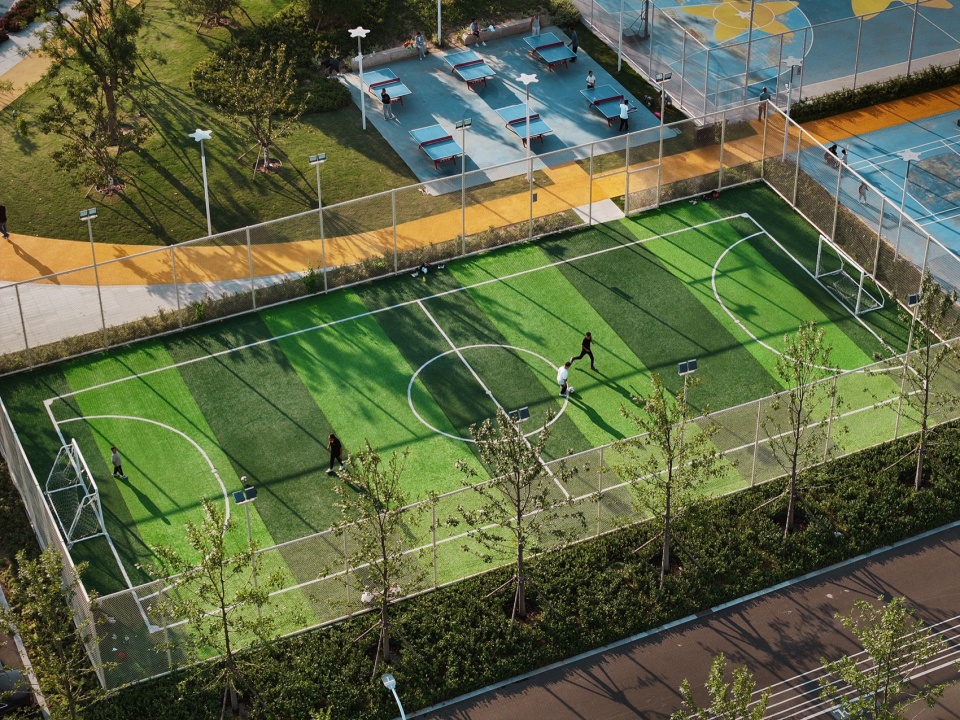

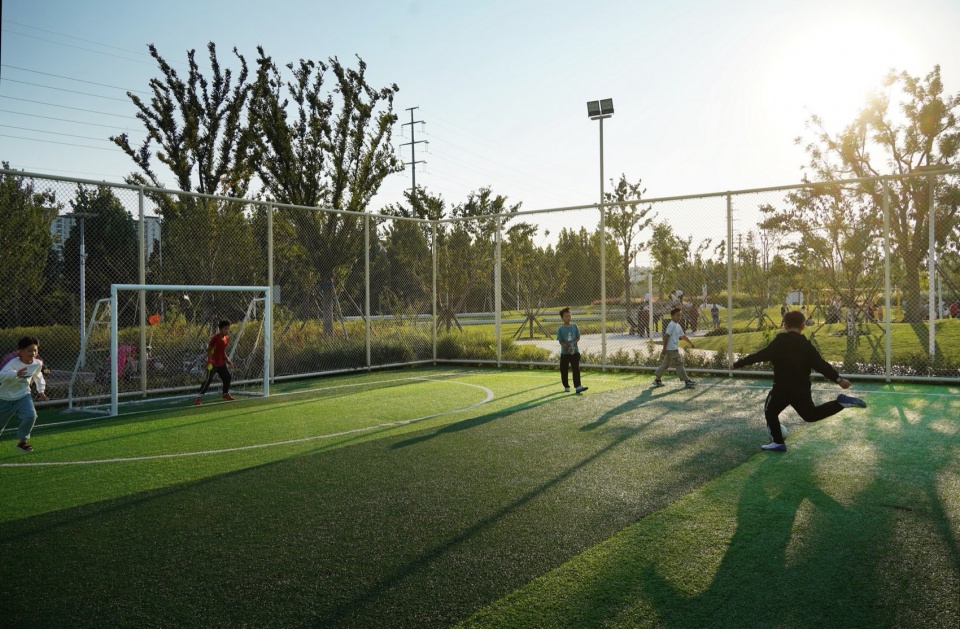

▼绿树环抱的足球场与周边活动场地，
Football field surrounded by green trees and surrounding activity areas © 许立南

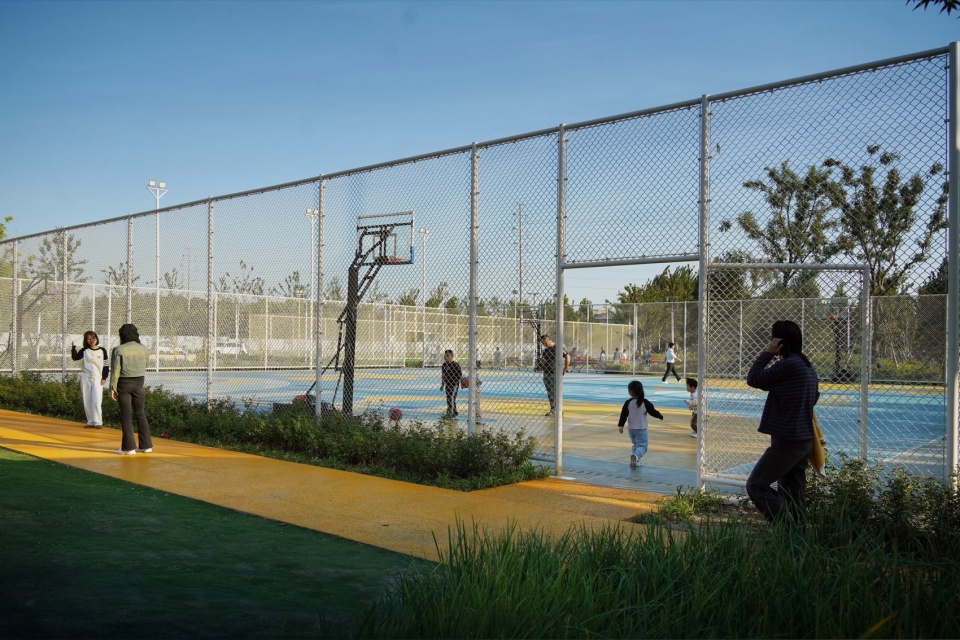

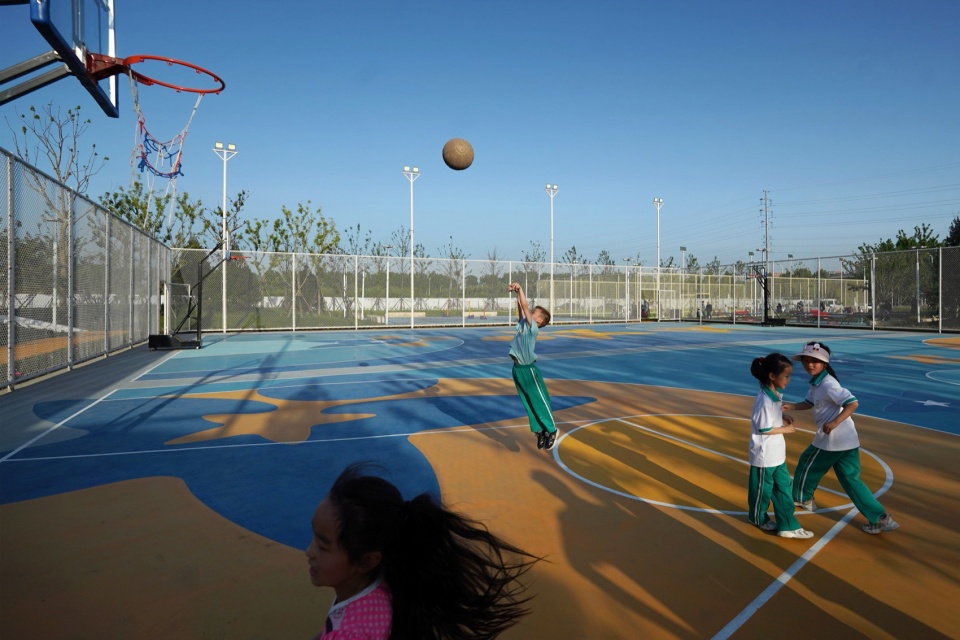

▼星星图案的篮球场营造活泼的运动氛围，
Star-patterned basketball court creates a lively sports atmosphere © 许立南

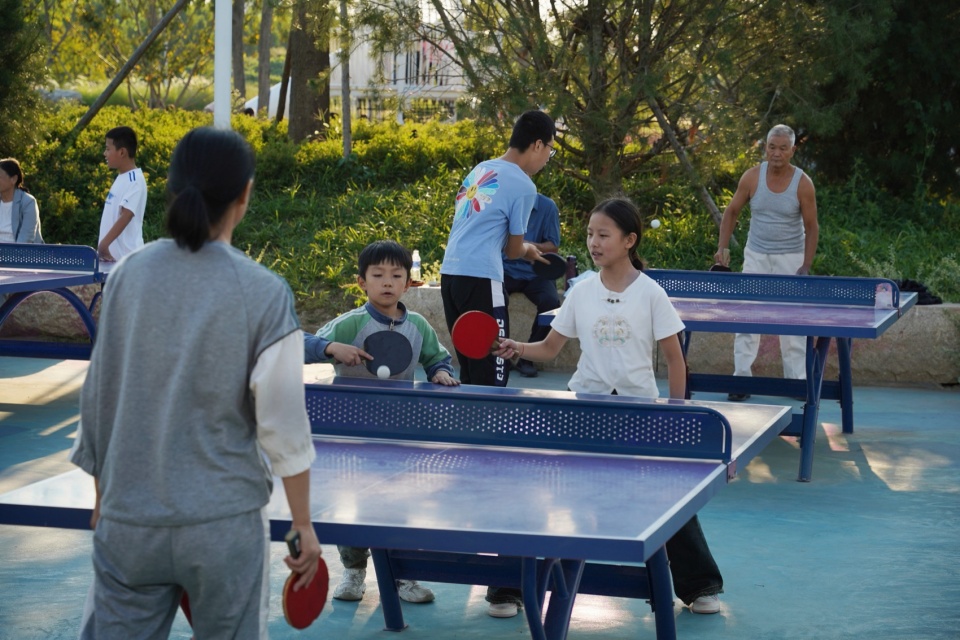

▼乒乓球场受到大小朋友的共同欢迎，
Table tennis courts is welcomed by children and adults © 许立南

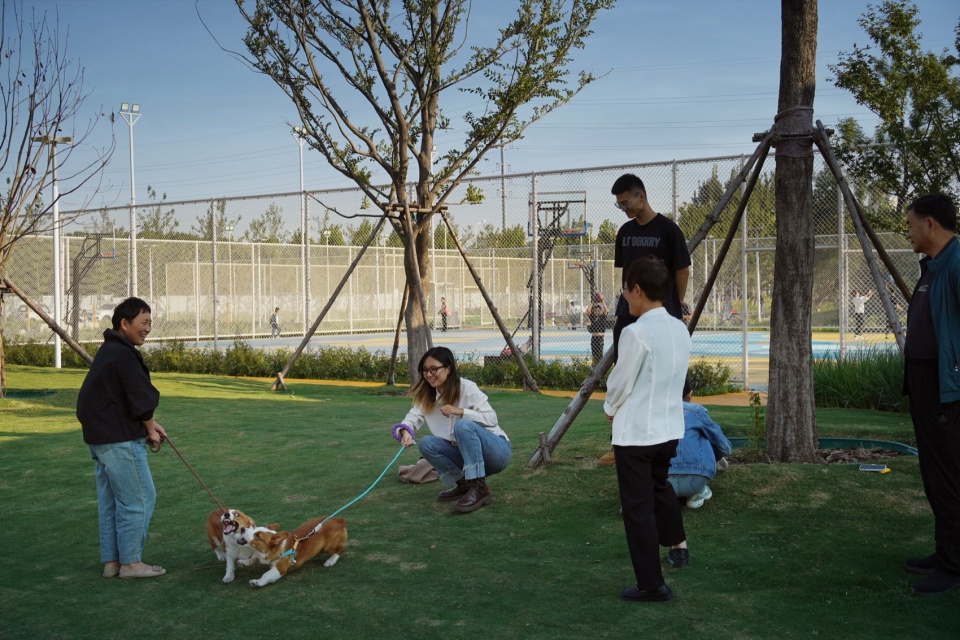

▼开放草地成为宠物交流的乐园，
Open grassland becomes a paradise for pet communication © 许立南

花瓣演绎的景观构筑｜Landscape Structures Interpreted by Petals

廊架与驿站采用市花月季的花叶形态做演绎，并与周边环境充分互动。

The pergola and station are interpreted using the flower and leaf shapes of the local rose and fully interact with the surrounding environment.

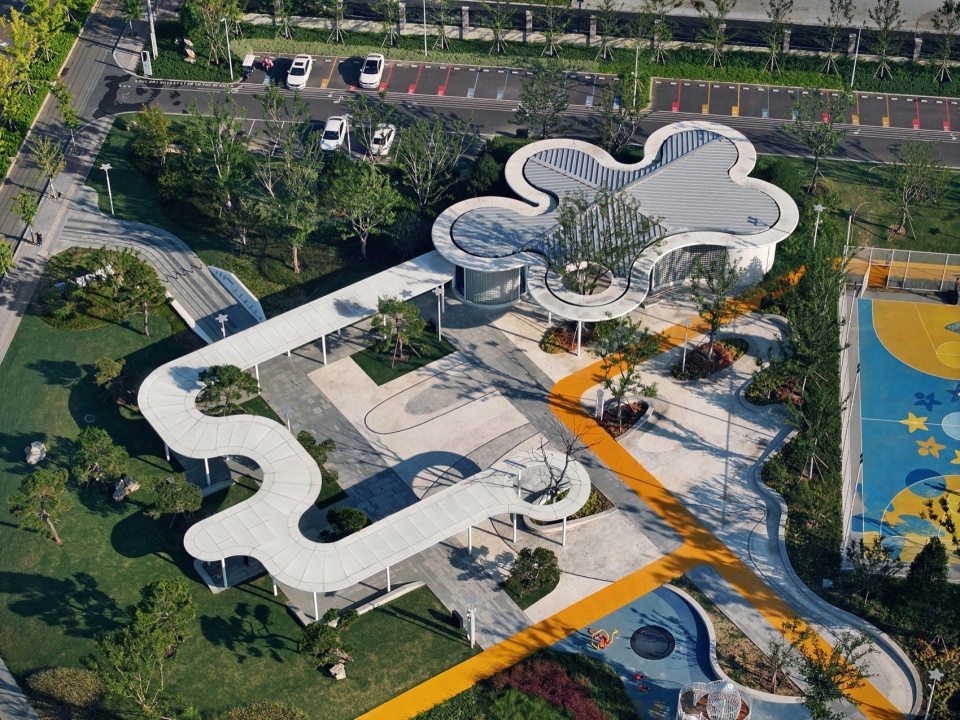

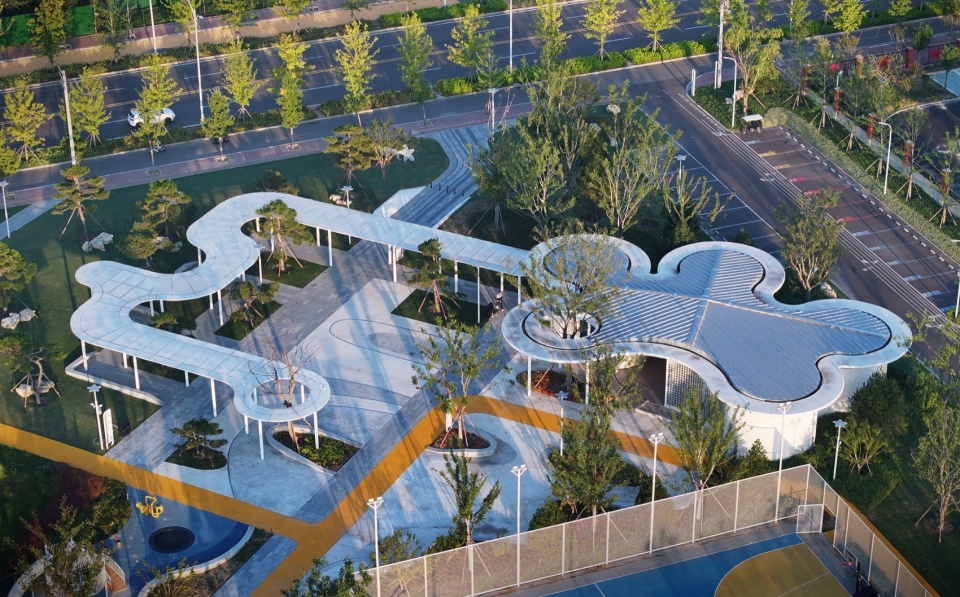

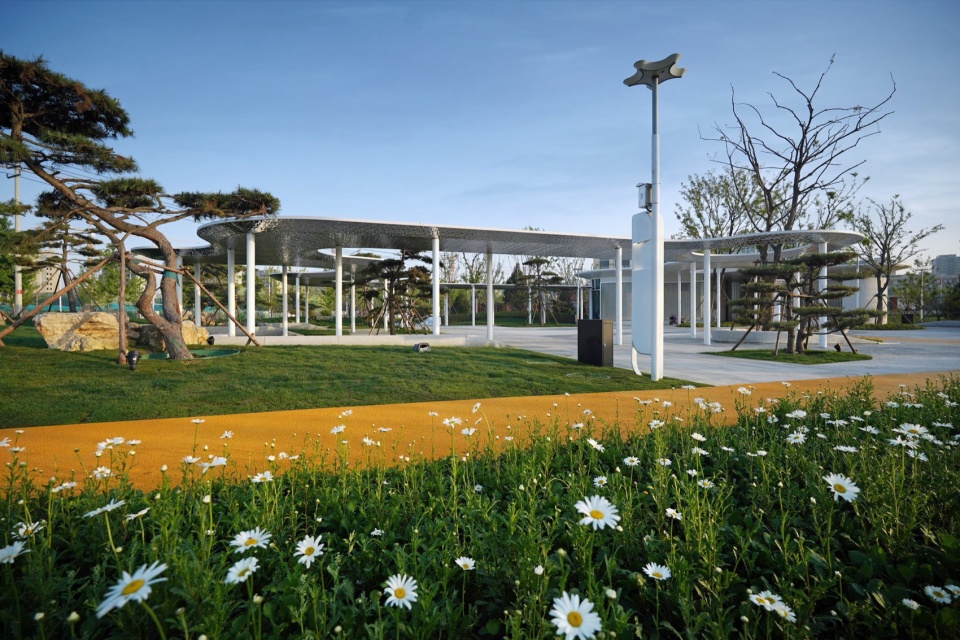

▼廊架、驿站与周边环境的关系，
The relationship among the corridor, the station and surrounding environment © 许立南

驿站以“花开五瓣”的主题造型与周边植物相穿插，玻璃砖立面和轻薄的出挑屋顶实现了轻盈通透的效果。花蔓廊架蜿蜒伸展，与周边松石草坡相互结合，廊架顶部采用水波纹不锈钢，使空间更显舒展。

The Station is interspersed with surrounding plants with a “flowering five petals” shaped design, and the glass brick facade and lightweight cantilevered roof achieve a light and transparent effect. The vine pergola stretches gracefully, combining with the surrounding pine stone grass slope, and the top of the pergola uses wavy stainless steel, making the space appear more expansive.

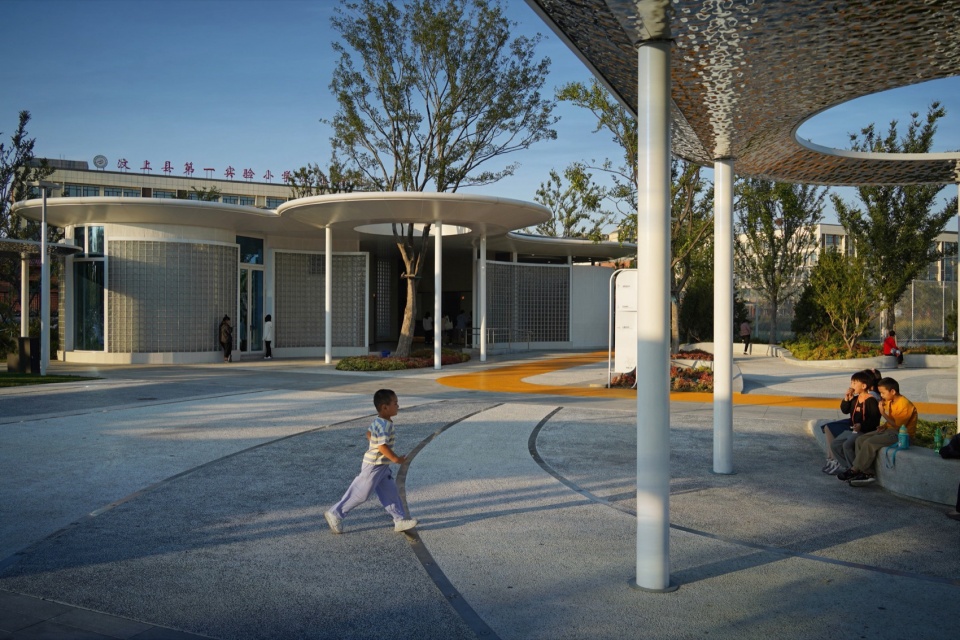

▼“花开五瓣”主题造型的驿站与周边植物相穿插，
“Flowering five petals” themed station interspersed with surrounding plants © 许立南

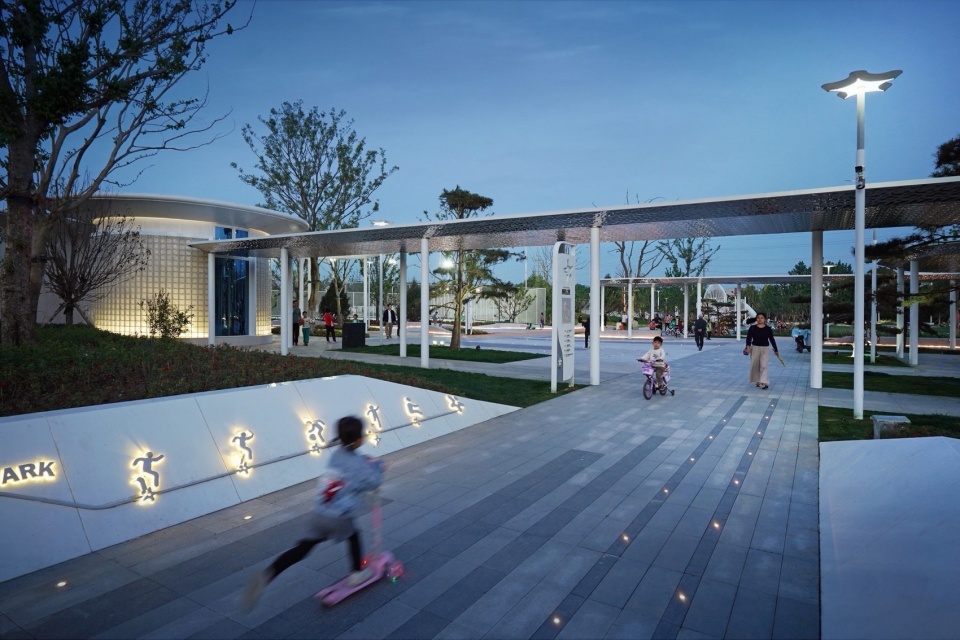

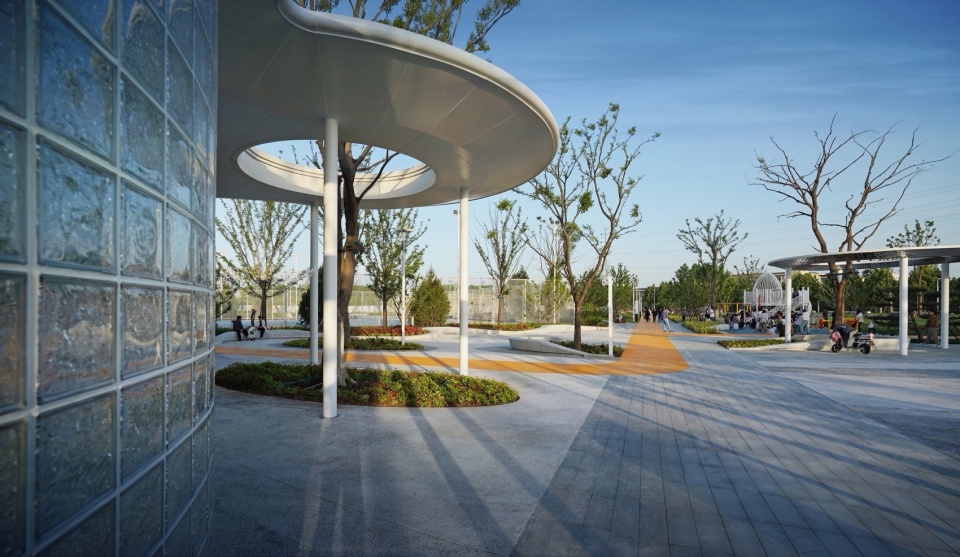

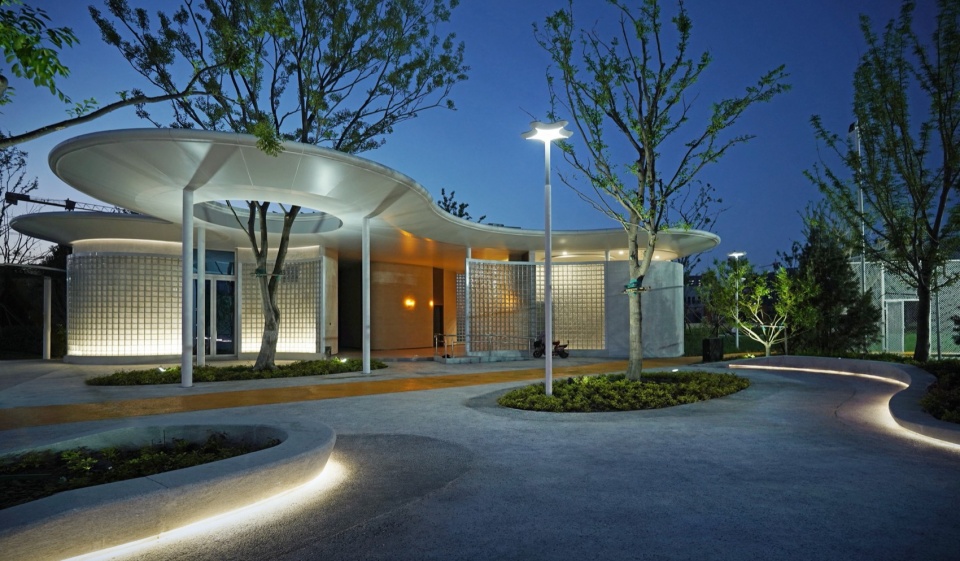

▼驿站采用玻璃砖立面和轻薄的出挑屋顶，营造轻盈通透的效果，
Station uses glass brick facade and lightweight cantilevered roof to create a light and transparent effect © 许立南

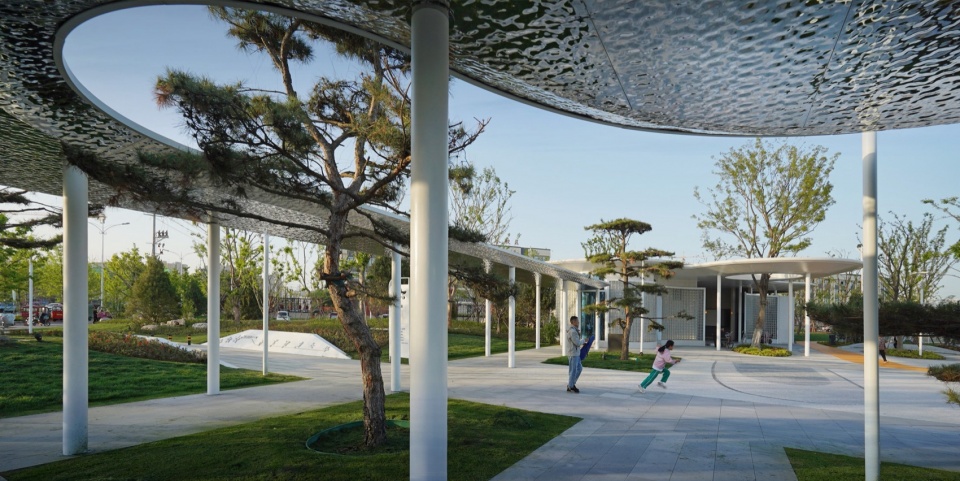

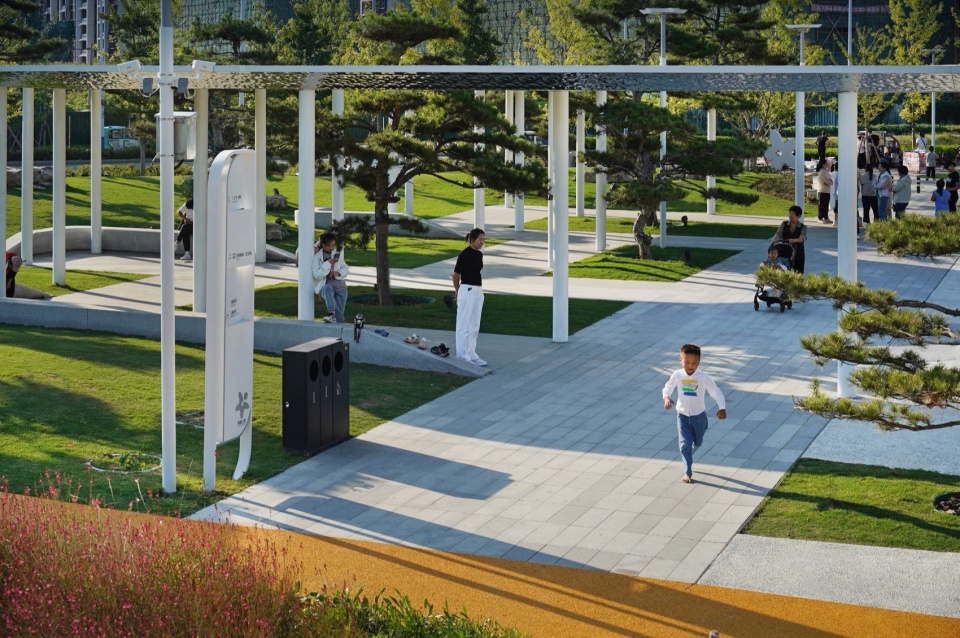

▼花蔓廊架蜿蜒伸展，与周边松石草坡相互结合，
Vine pergola stretches gracefully, combining with the surrounding pine stone grass slope © 许立南

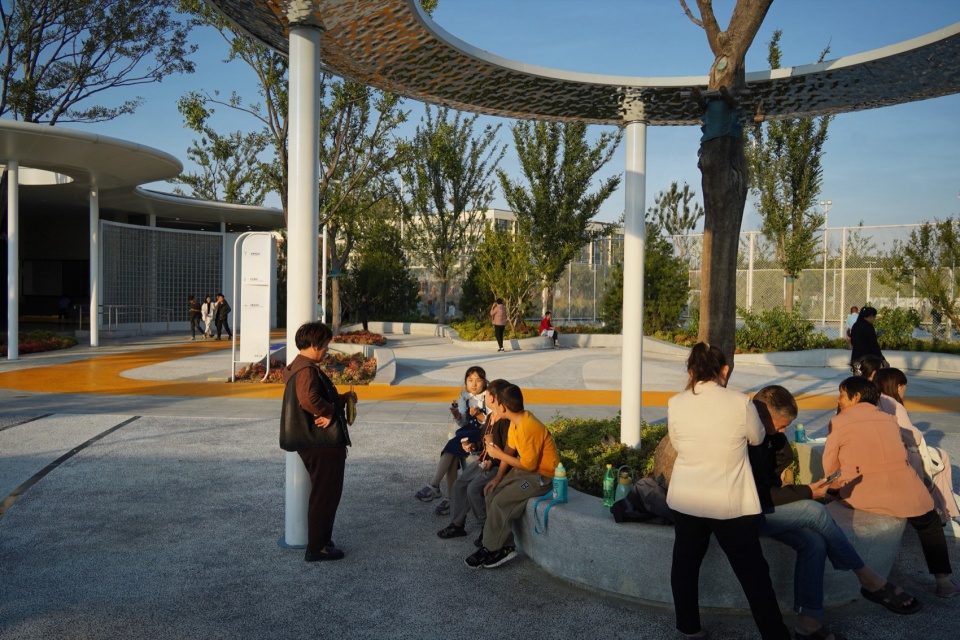

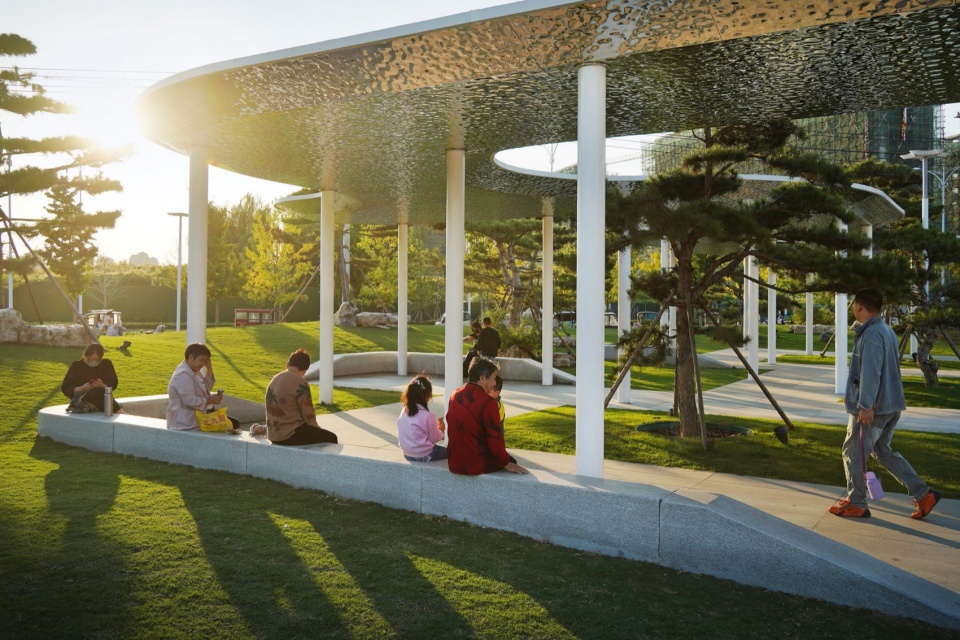

▼廊下空间成为小朋友和家长游乐之余的休息场地，
Space under the pergola becomes a resting place for children and parents after playing © 许立南

阳光多彩的植物景观｜Sunshine Colorful Plant Landscape

以中央活动大草坪为为中心统领整个软质空间，结合地形与景墙配置低养护的下层观赏草花，重点营造开放、多彩的自然空间。常绿乔木以油松和白皮松为骨干，搭配乌桕、沙朴和纳塔栎为特色的秋色叶乔木和吉野樱为主题的春花乔木。

The central activity lawn serves as the core of the entire soft space, combined with terrain and landscape walls to arrange low-maintenance lower-level ornamental grass flowers, focusing on creating an open and colorful natural space. Evergreen trees are dominated by Pinus tabuliformis and Pinus bungeana, complemented by characteristic autumn-colored leaf trees such as Sapium sebiferum, Celtis sinensis, andQuercus texana buckley, and spring-flowering trees themed around Prunus yedoensis.

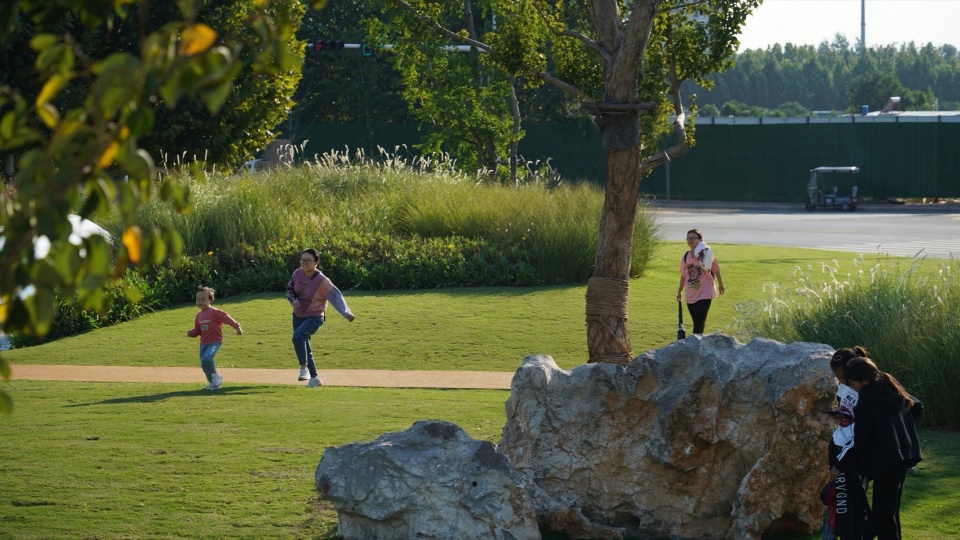

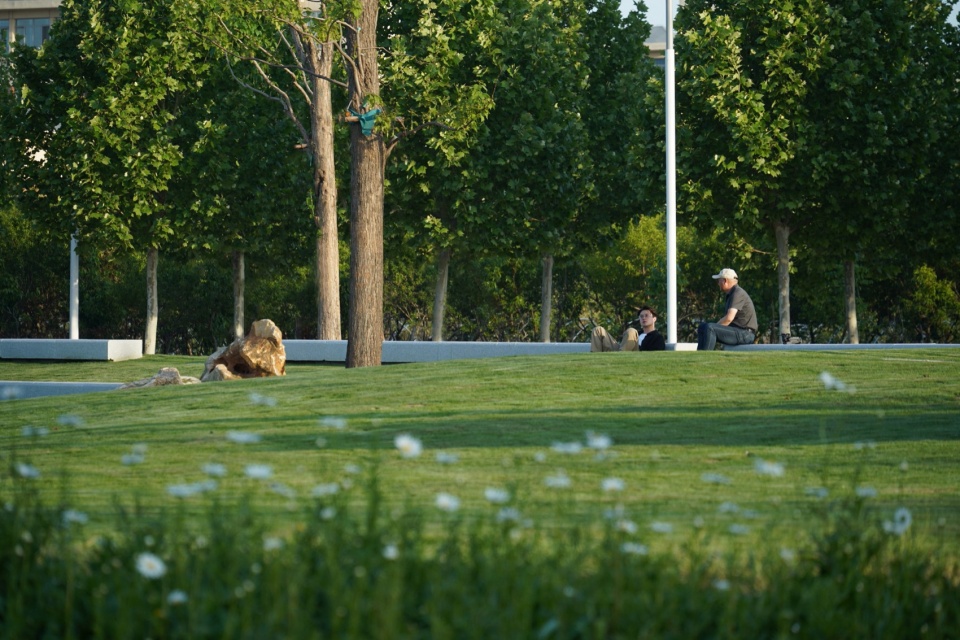

▼微坡草地与营造阳光开放的环境基调，
Micro-slope grassland creates a sunny and open environmental tone © 许立南

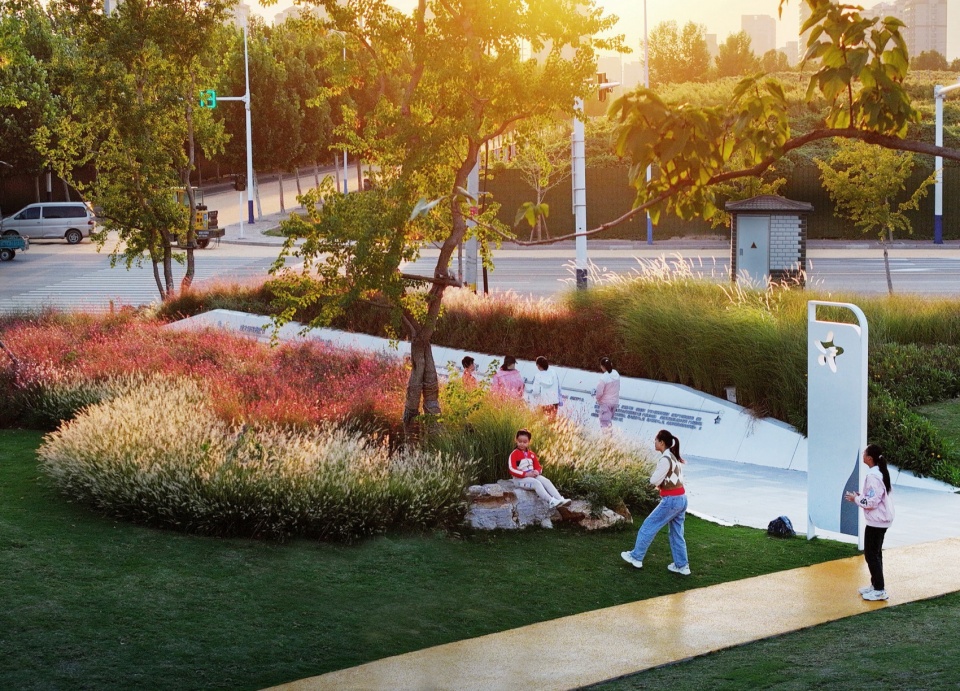

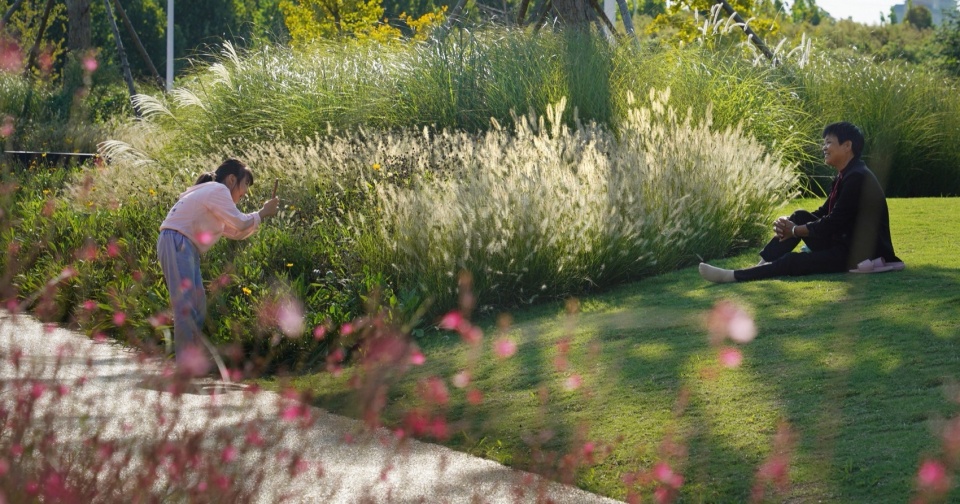

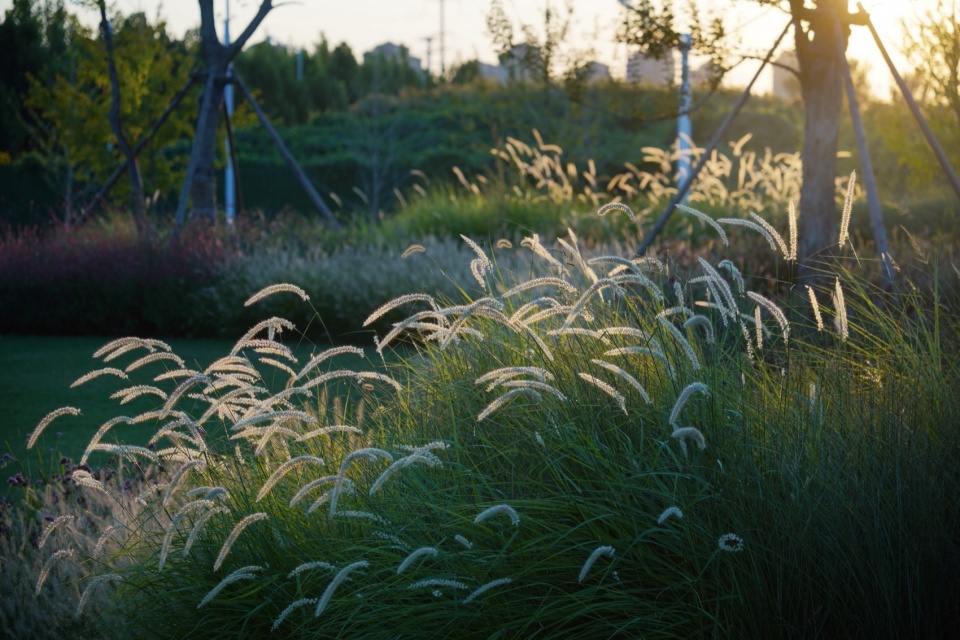

▼观赏草结合地形与挡墙，在开放的草地上划分空间并塑造有趣的游赏体验，
ornamental grass combines with terrain and retaining walls to divide space and create interesting sightseeing experiences on the open grassland © 许立南

童“星”绽放的细部设计｜Childishness “Star” Blossoming in Detail Design

设计以星星为灵感主线，串联停车场、地面铺装、标识系统、灯具系统和其他各处细部设计。停车场以五线谱编织串联，以《夜空中最亮的星》乐谱为内容，将乐符和色彩装点到每个车位。篮球场、乒乓球场、儿童活动场地面也以星星为图案主题进行统一创作，标识牌、庭院灯和相关装置细节都采用星星主题的原创设计。

The design takes stars as the main inspiration, connecting the design of parking lots, ground paving, signage systems, lighting systems, and other details. The parking lot is woven together with a musical staff, with the musical score of “The Brightest Star in the Night Sky” as the content, decorating each parking space with musical notes and colors. The basketball court, table tennis court, and children’s activity area also use stars as the pattern theme for unified creation, and the signage, courtyard lights and related device details all adopt original designs themed around stars.

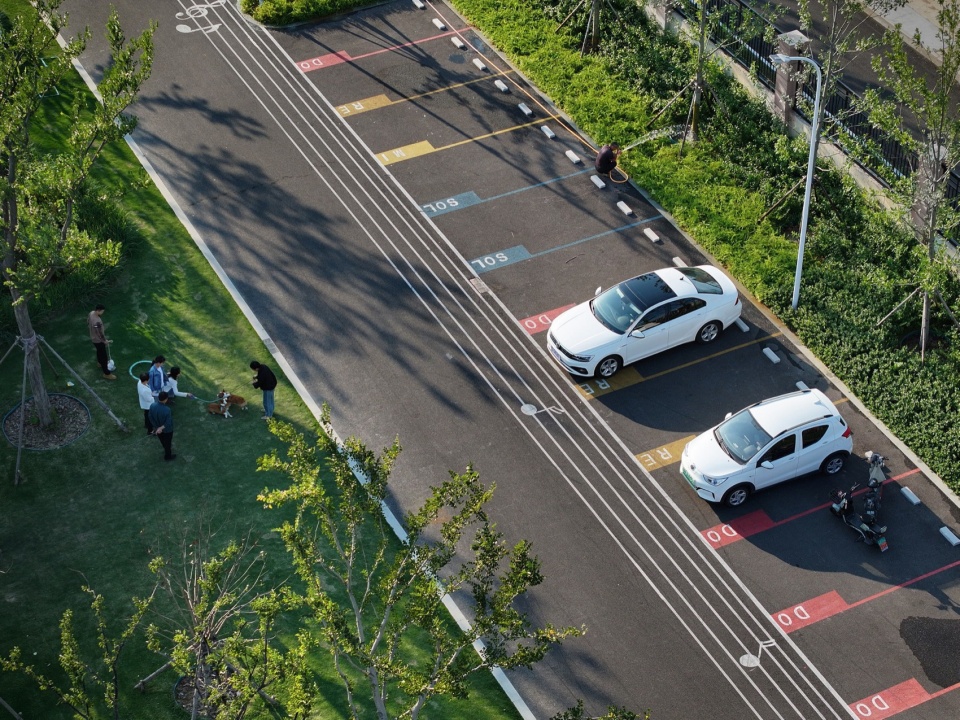

▼以《夜空中最亮的星》乐谱为内容，将乐符和色彩装点到每个车位，
Decorate each parking space with musical notes and colors based on the musical score of “The Brightest Star in the Night Sky” © 许立南

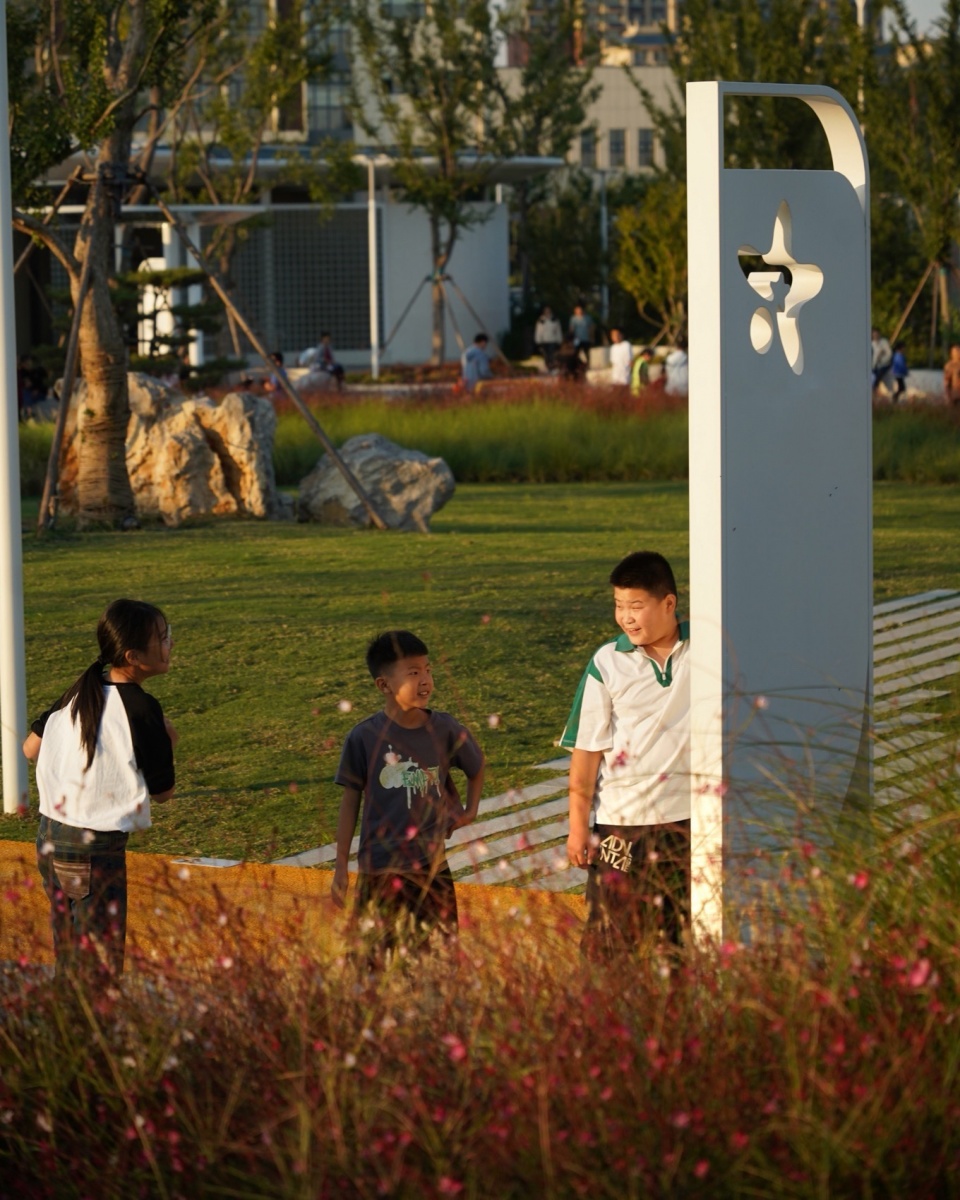

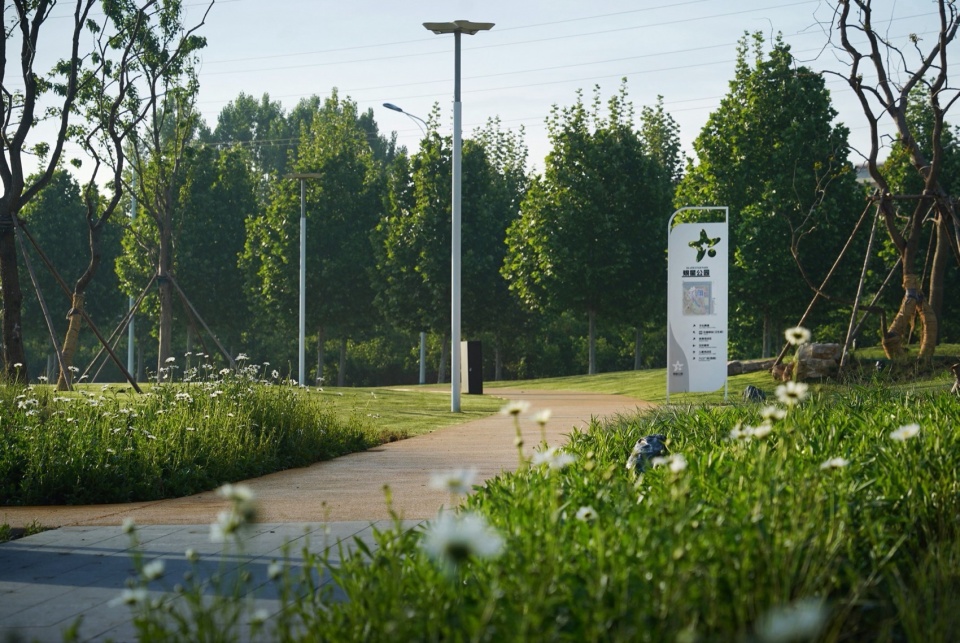

▼星星细节贯穿场地的标识系统，
Star details run through the site’s signage system © 许立南

▼标识系统， signage system © 许立南

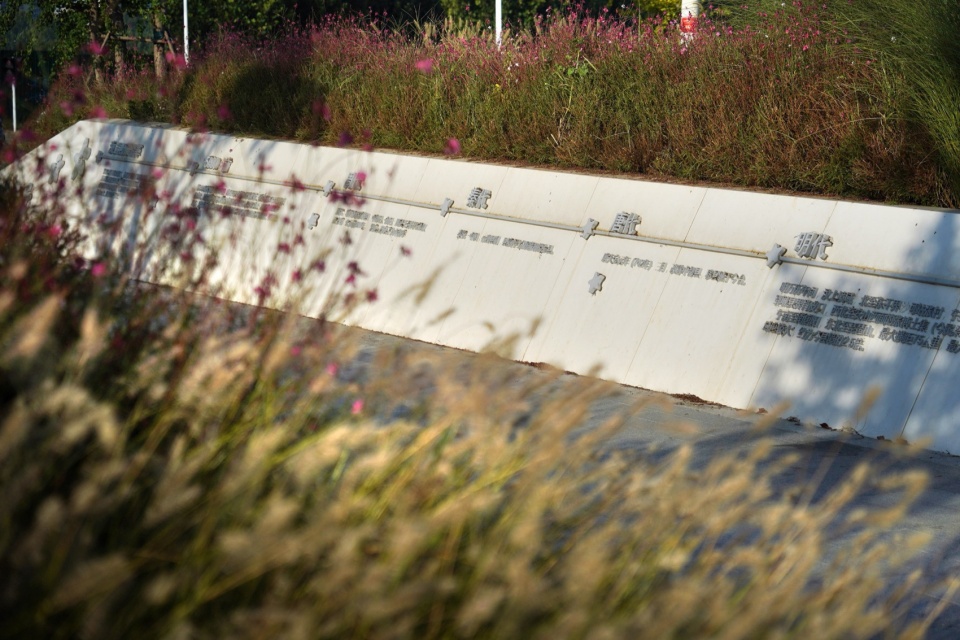

▼星星形态的汶上文化长廊，Star-shaped Wenshang Cultural Corridor © 许立南

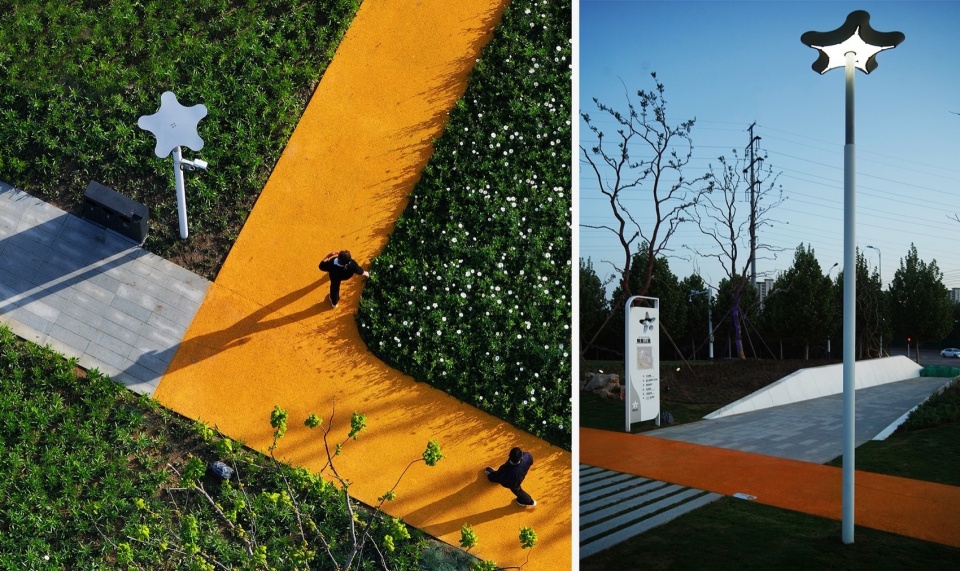

▼原创的星星造型庭院灯，Original star-shaped courtyard lights © 许立南

项目名称：（济宁）汶上银星公园
项目类型：城市公园
设计方：GED格境建筑景观设计有限公司
公司网站：http://www.gedesign.com.cn
联系邮箱：office@gedesign.com.cn
项目设计：2023年-2024年
完成年份：2024年
设计主持：江哲炜
设计团队：许立南、陈灵斐、常宽、张云英、吴均易、黄跃贵、姚枚妗、贾国心、周静宜、徐涛、潘洋洋
项目地址：山东省济宁市汶上县
项目面积：18241㎡
摄影版权：许立南
合作单位：杭州园林设计院股份有限公司
施工单位：上海山水青园林建设有限公司
客户：济宁正元建设投资有限公司

Project Name: Wenshang Silverstar Park, Jining
Project Type: Urban Park
Design: Grasp Earth Architecture & Landscape Design Co., Ltd.
Website: http://www.gedesign.com.cn
Contact E-mail: office@gedesign.com.cn
Design Period: 2023-2024
Completion Year: 2024
Chief Designer:Jiang Zhewei
Design Team: Xu Linan, Chen lingfei, Chang Kuan, Zhang Yunyin, Wu Junyi, Yao Meijin, Huang Yuegui, Jia Guoxin, Zhou Jingyi, Xu Tao, Pan Yangyang
Project Location: Wenshang ,Jining, Shandong
Project Area: 18,241㎡
Photography Credits: Xu Linan,
Cooperative Design: Hangzhou Hangzhou Landscape Design Institute Co., Ltd
Construction Company: Shanghai Shanshuiqing Landscape Architecture Construction Co., Ltd
Client: Jining Zhengyuan Construction Investment Co., Ltd
