非常感谢 偏离设计（联系邮箱：H2design@126.com) 予gooood分享以下内容。更多关于他们：DPAA DESIGN Studio on gooood
Appreciations towards DPAA DESIGN Studio (contact: H2design@126.com) for providing the following description:

千墨（HOUSE OF MO）位于上海浦东川沙新镇，临近迪士尼度假区，周边建筑多为上世纪七八十年代所建，几经变迁，整个镇子呈现混乱与无序的状态。

HOUSE OF MO is located in Chuansha New Town, Pudong district, Shanghai, close to Disney Resort. Most OF the surrounding buildings were built in the 1970s and 1980s. After several changes, the whole town presents a state OF chaos and disorder.

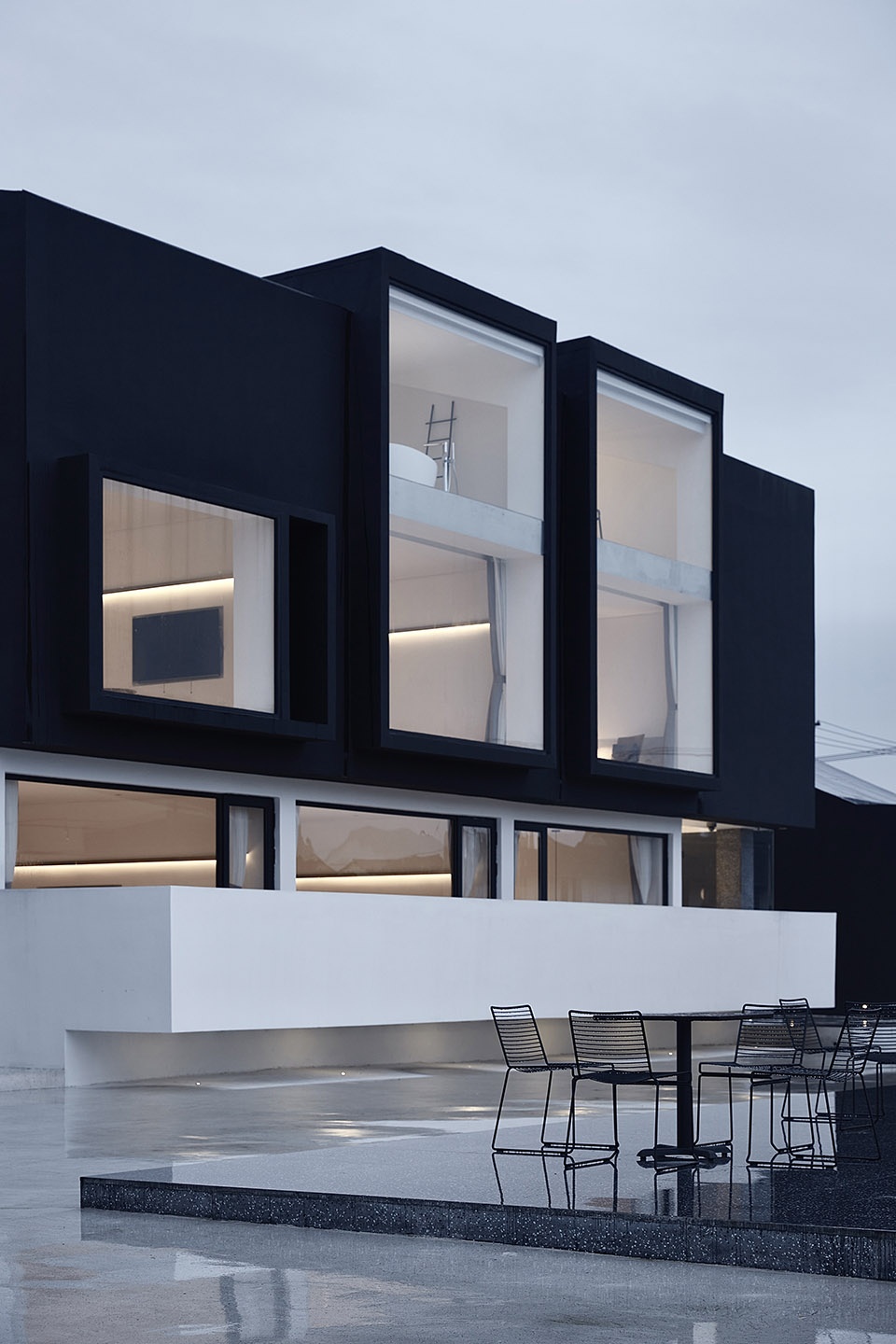

▼项目外观，external view of the project ©邵炜亮

第一次勘察场地，门前巨大的稻田占据了整个视野，田边水杉的竖向线条与稻田所形成的几何感呈现出塞尚般的画面。建筑所占据的独特地理位置给这个场地提供了一个很好的景观支撑。

原建筑为4幢上世纪80现代居民楼，砖体预制板结构，外加东西各一幢两层瓦房，原有的宅基地限定出了建筑的红线范围，也使整个建筑边界框定在了长条形的体积内。

The site is located on a slope in the middle of a mountain, and the building covers an area of 20m×6m. The construction of 4 relatively independent accommodation Spaces is the only functional requirement of the site.

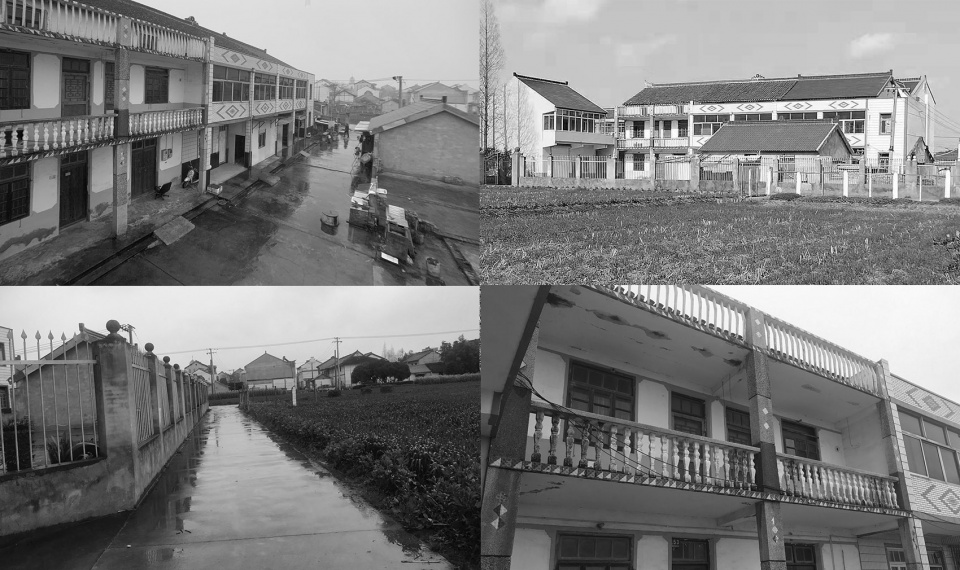

▼改造前基底原状，site condition before renovation ©偏离设计

设计之初，希望最终矗立在稻田尽头的不单单只是个民宿，而是带有某种精神性感知的建筑物。因此摒弃了传统民宿的固有概念，选用带有凝聚性力量的黑色作为建筑的主基调，极简的建筑形态与周边混乱的建筑肌理形成对立美学，以守望者的姿态出现在稻田尽头，打开一种全新的日常体验。

From the beginning, it was hoped that what would eventually stand at the end of the rice field would be not just a b&B, but a building with a sense of spirituality. Therefore, the inherent concept of traditional home stay is abandoned, and the black with cohesive power is chosen as the main keynote of the building. The minimalist architectural form forms an aesthetic contrast with the chaotic surrounding architectural texture. It appears at the end of the rice field as a watchman, opening a brand new daily experience.

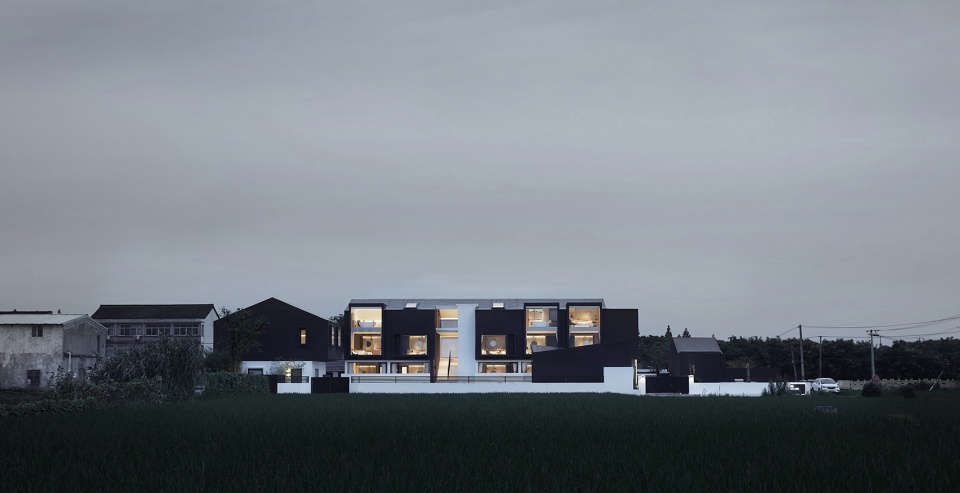

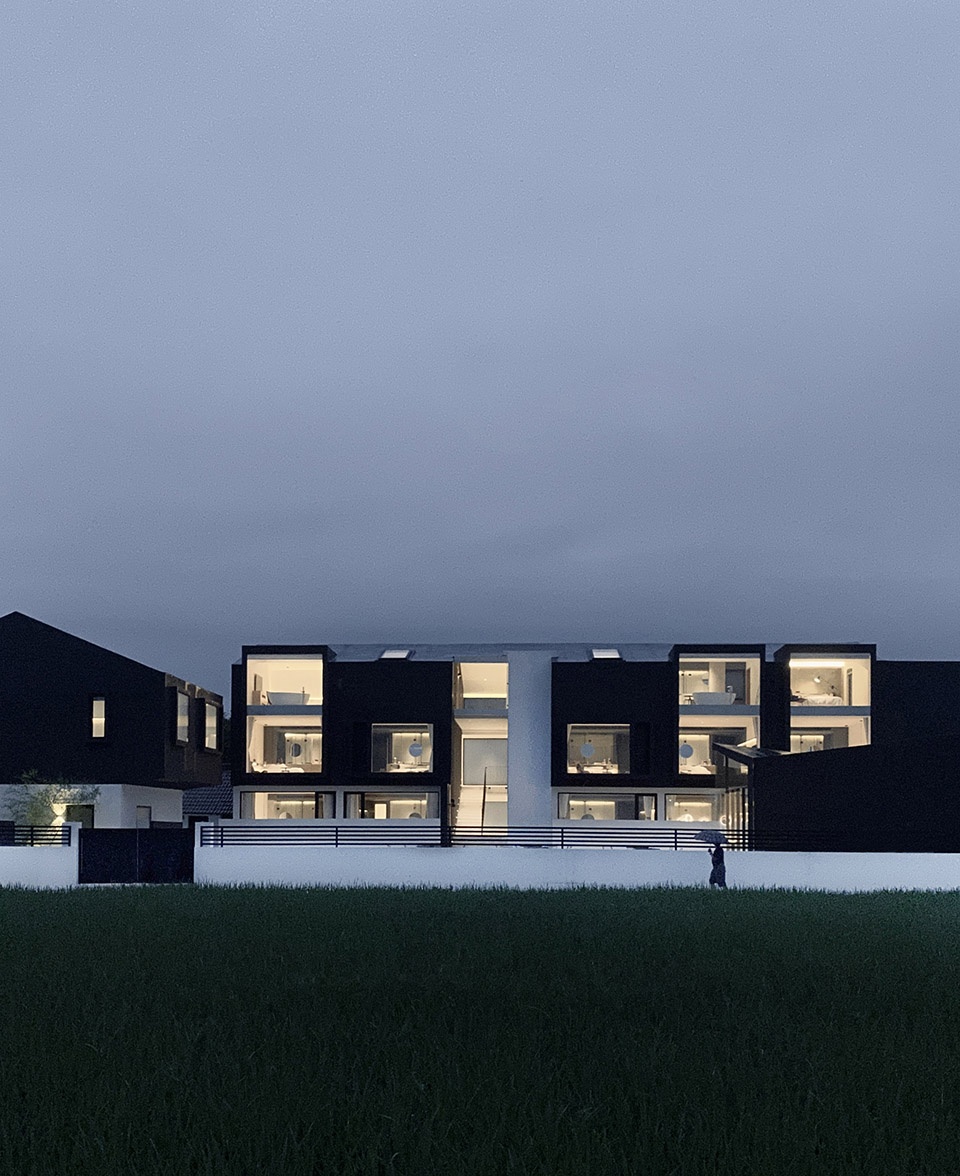

▼简洁的黑色建筑立于稻田之上，simple building in black tone appears at the end of the rice field ©邵炜亮

考虑到原有建筑结构的脆弱性和混乱的表皮肌理，决定从建造这一思考逻辑出发，对建筑进行由结构至形体的整体改建。强化结构保证建筑稳定性，简化形体，以纯粹回应眼前的这片稻田。

Considering the fragility of the original building structure and disordered skin texture, it is decided to reconstruct the building from structure to form from the logic of construction. The strengthened structure ensures the stability of the building and simplifies the form to purely respond to the rice field in front of us.

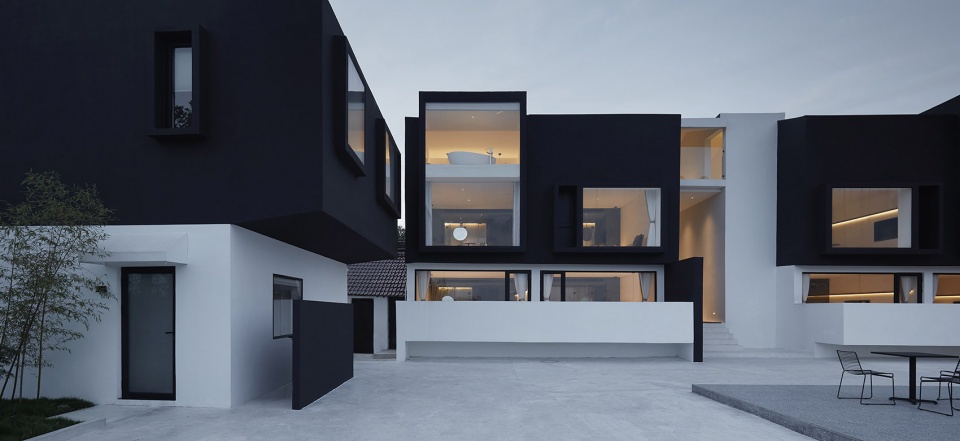

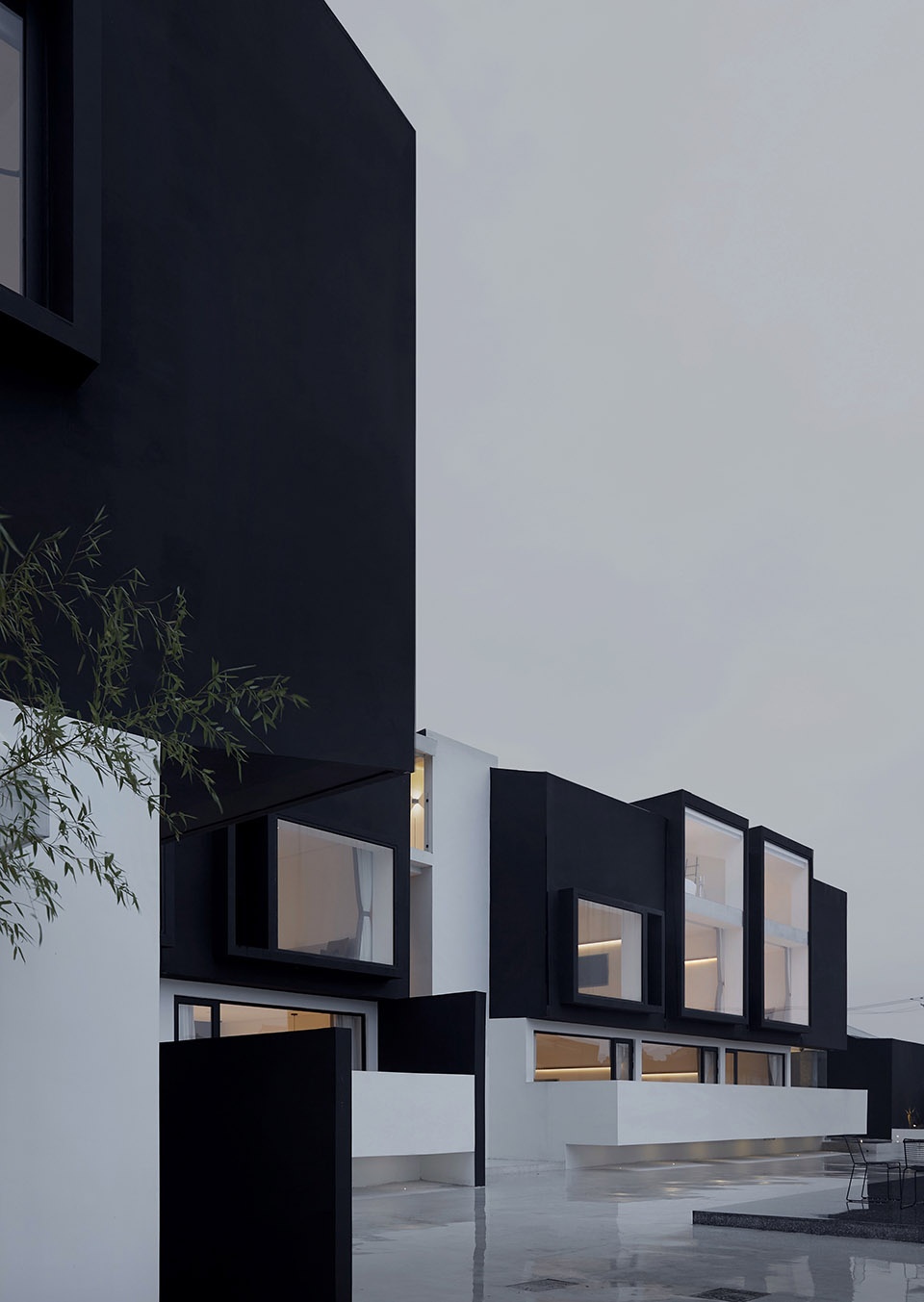

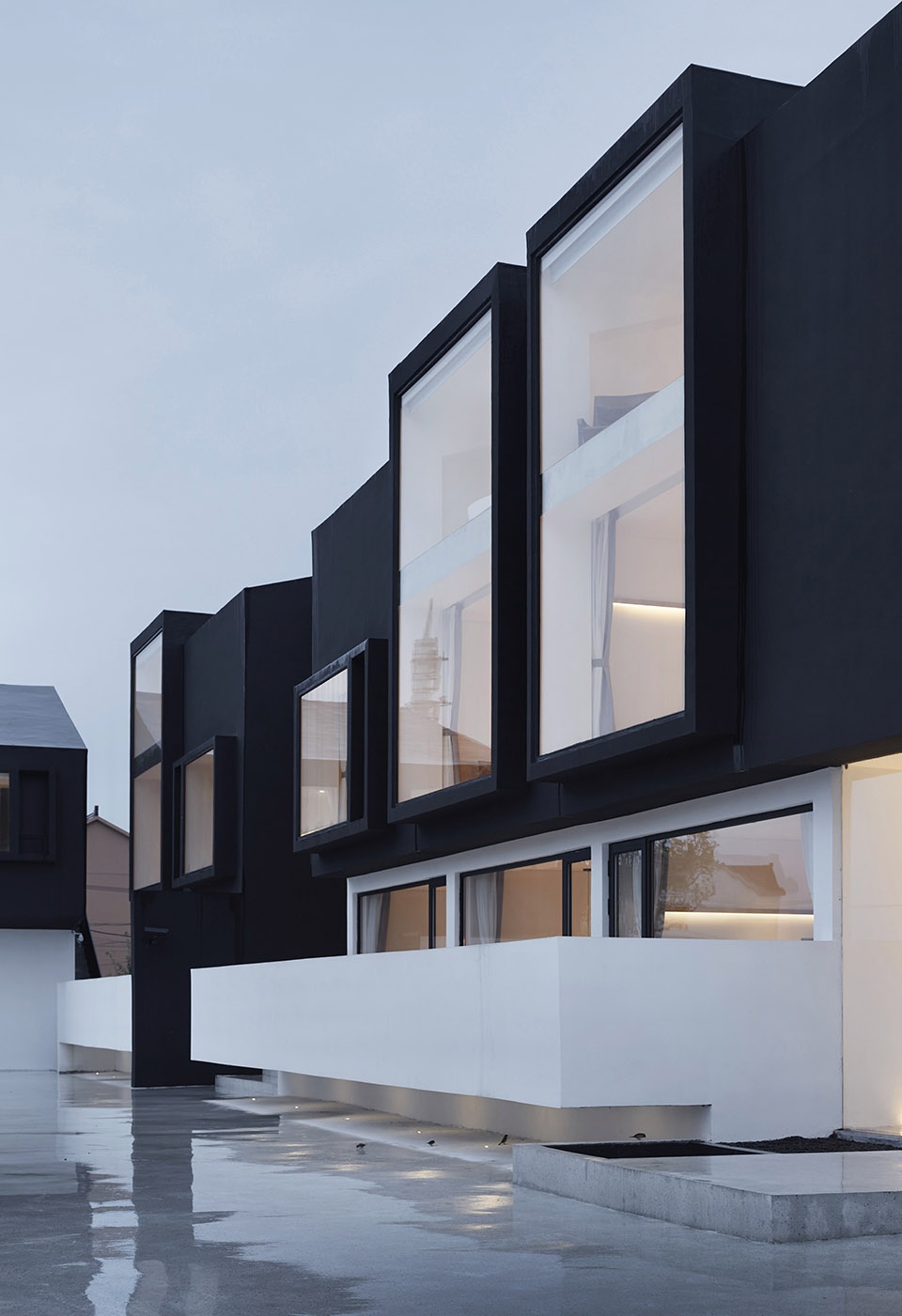

▼建筑由简洁的体块组成，building composed of simple blocks ©邵炜亮

作为主体的长条形建筑体，在4m*9m的开间模度下，强化地基，增加钢筋混凝土立柱作为结构支撑，同时依据南北方位界定出辅助空间与使用空间两大区域，将房间按4m的柱间距模度在南面依次排开，给入住者提供最佳的景观支持。

The strip building as the main body strengthens the foundation and adds reinforced concrete columns as structural support under the 4m*9m split modulus. At the same time, the two areas of auxiliary space and use space are defined according to the north-south orientation. The rooms are arranged in turn in the south according to the 4m column spacing modulus to provide the best landscape support for the occupants.

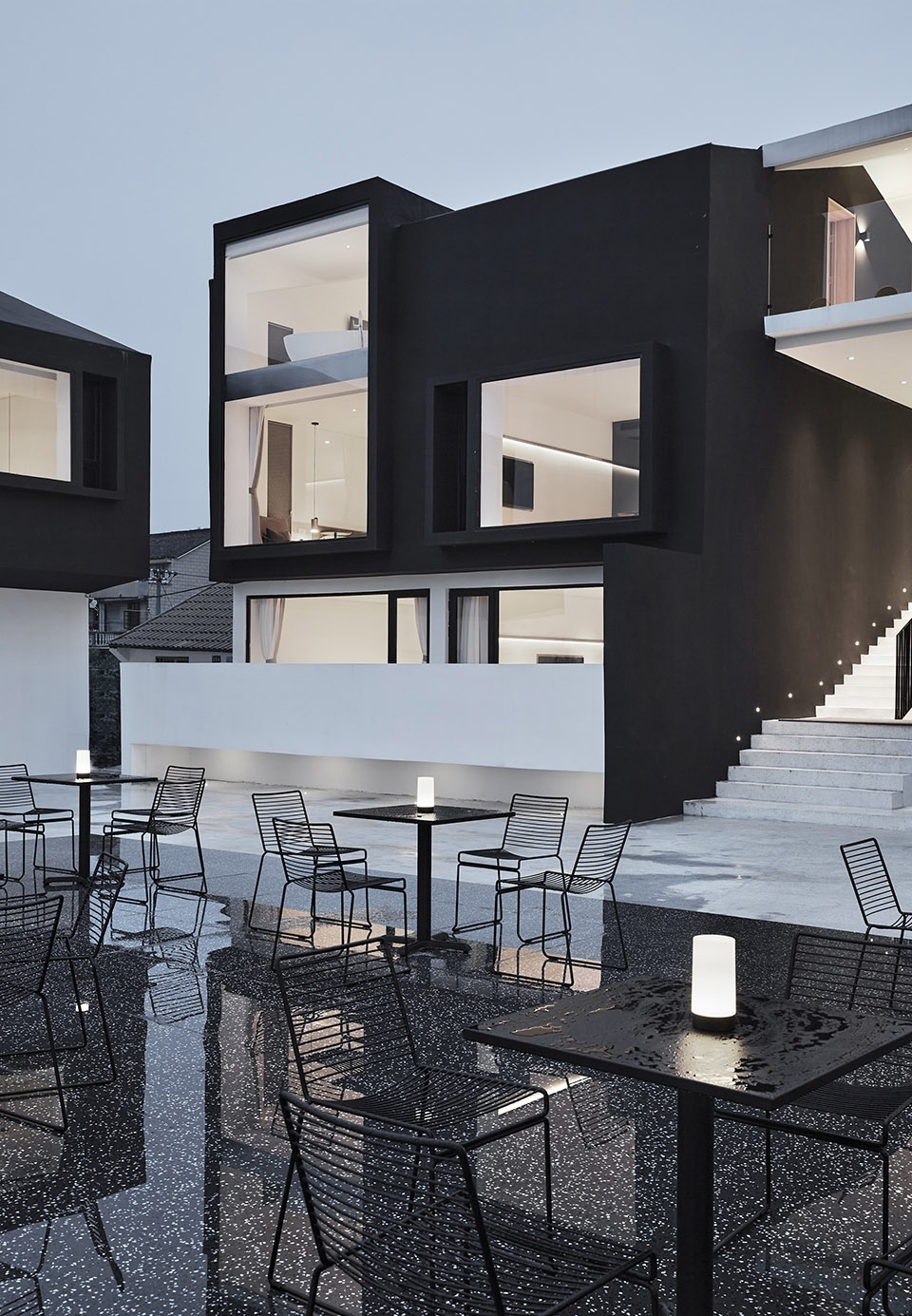

▼玻璃立面提供良好的景观视角，glass facade providing panoramic view to the surroundings ©邵炜亮

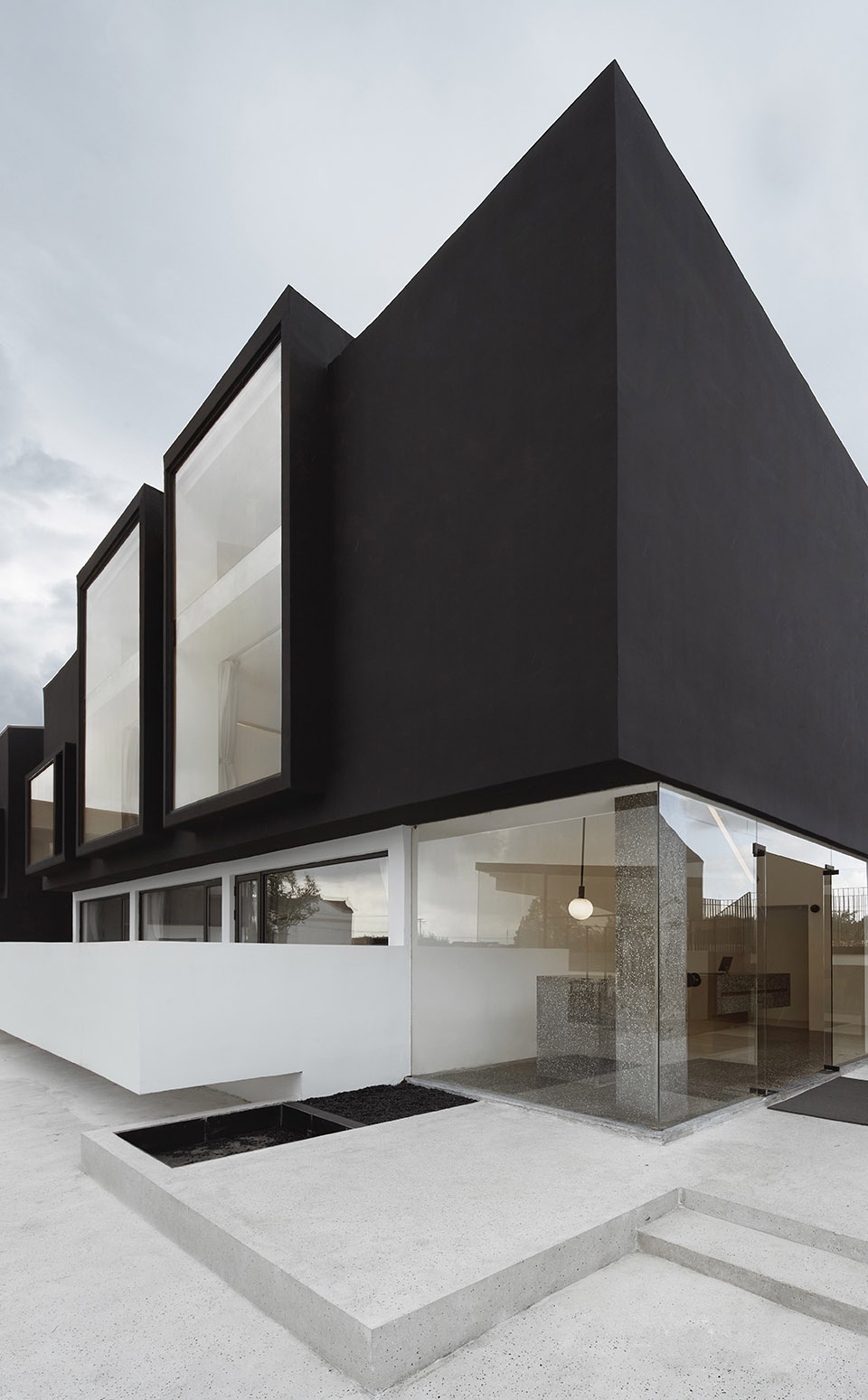

▼建筑入口，entrance ©邵炜亮

餐厅部分沿用整体的黑色基调，在8m*8m的建筑红线内，利用对角拉出整个屋面的受力结构体，使整个屋面呈现悬浮感，斜面的处理也弱化了由于尺度限制所带来的空间局促感，在视觉上形成多维度的空间纵深感。

Part of the restaurant follows the overall black keynote. Within the building red line of 8m*8m, the stressed structure of the whole roof is pulled out diagonally to make the whole roof appear suspended. The treatment of the inclined plane also weakens the spatial constraint caused by the scale restrictions, forming a multi-dimensional spatial depth perception visually.

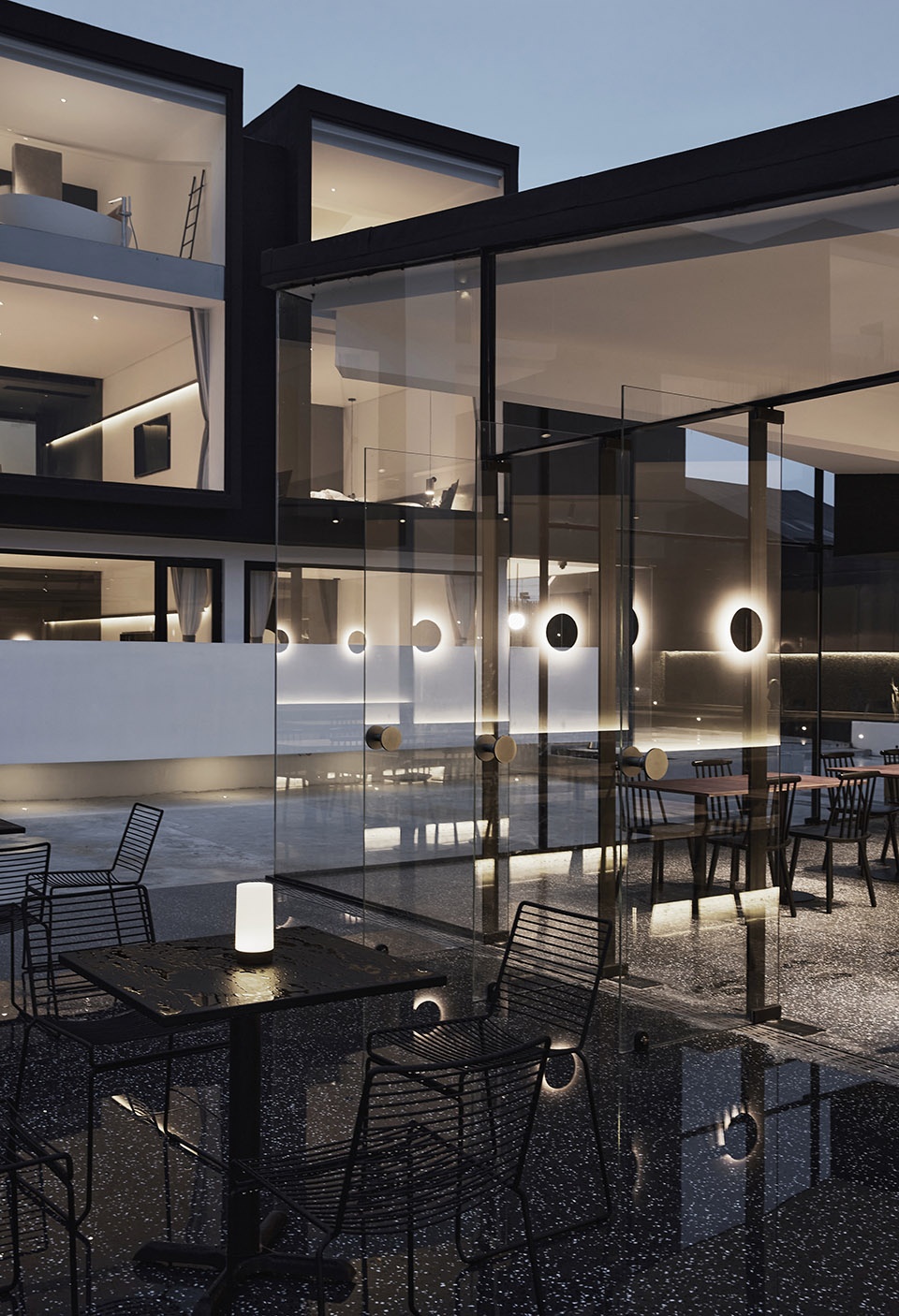

▼玻璃围合的餐厅，restaurant enclosed by glass ©邵炜亮

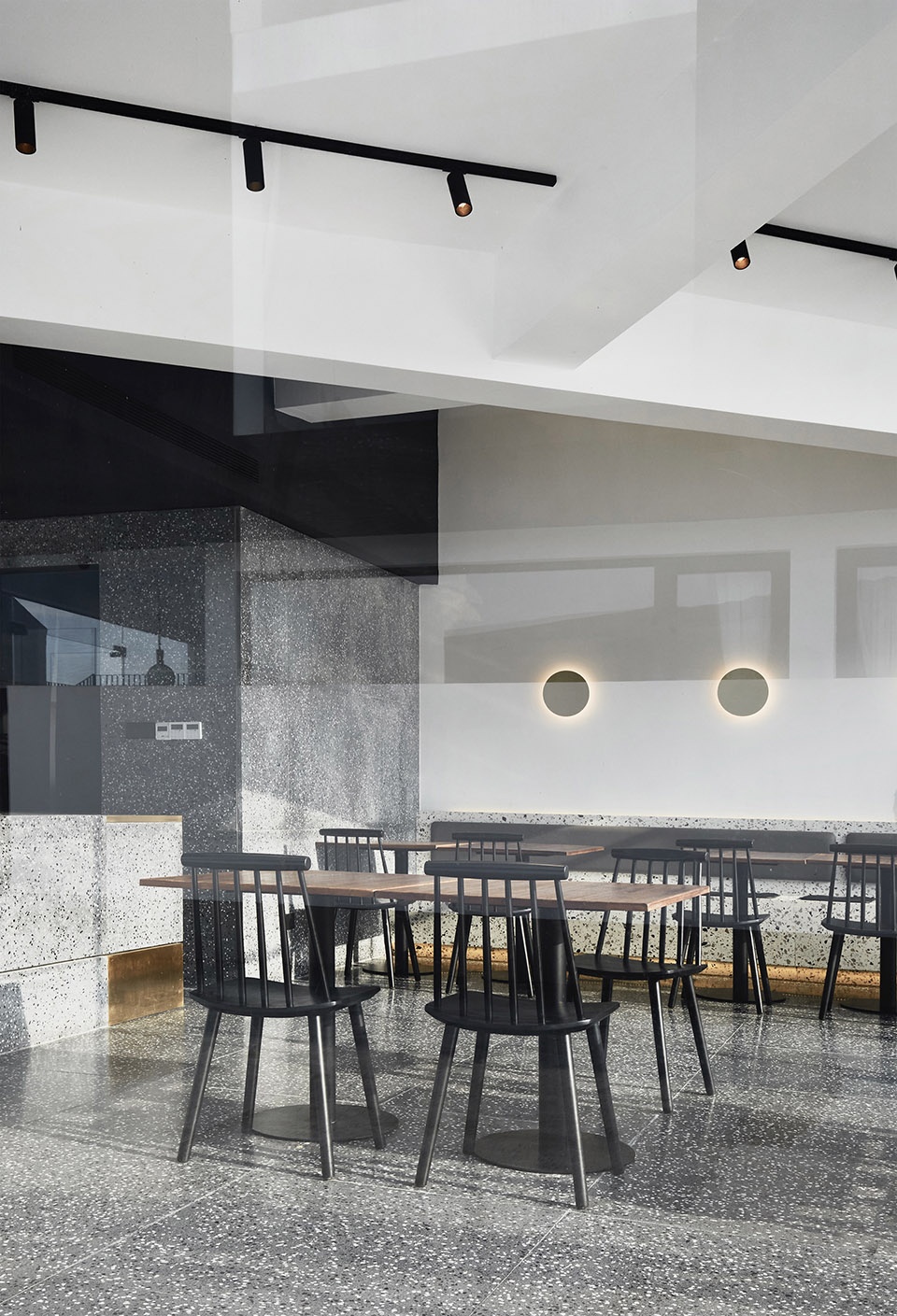

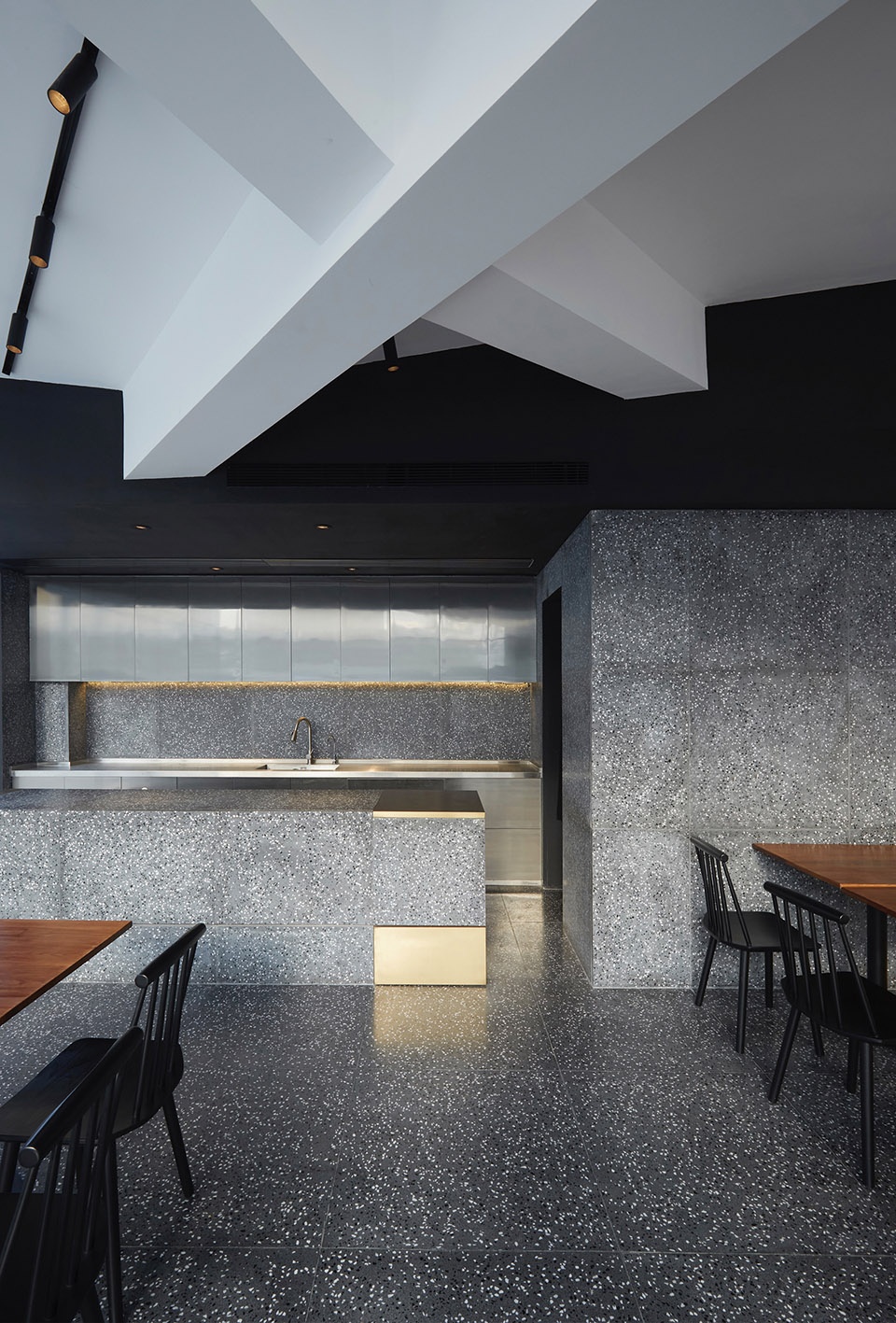

▼餐厅内部，interior of the restaurant ©邵炜亮

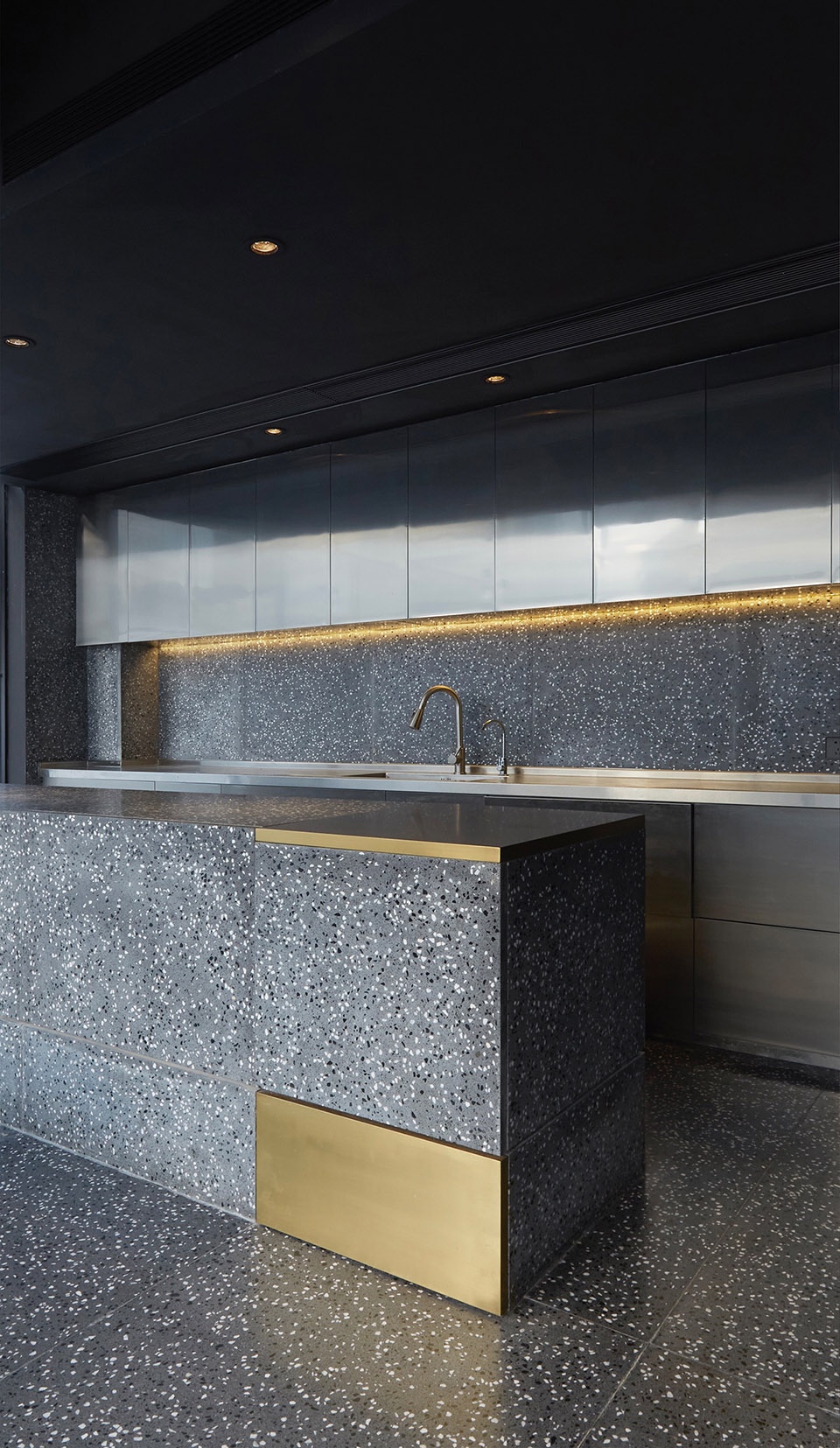

▼以黑色为主色调，black palette used in the space ©邵炜亮

将辅助空间作为整个建筑的通道路径，串联起各个功能区，受制于场地条件，通道呈现狭长的形态，设计上，以纯白色柔和光线不足带来的幽闭感，二层部分使用了挑高处理，增加空间的层次，顶面狭长的天窗将自然光线引入通道，给行走的路径带来一份不确定的惊喜。

Ancillary space for the whole building of channel path, series connection has the various functional areas, subject to the site conditions, channel very elongated form, design, pure white downy light inadequacy of claustrophobia, second part USES the high processing, increase the level of the space, the top of the long and narrow skylight introducing natural light channel, bring to walk the path of an uncertain surprise.

▼入口接待区，reception area ©邵炜亮

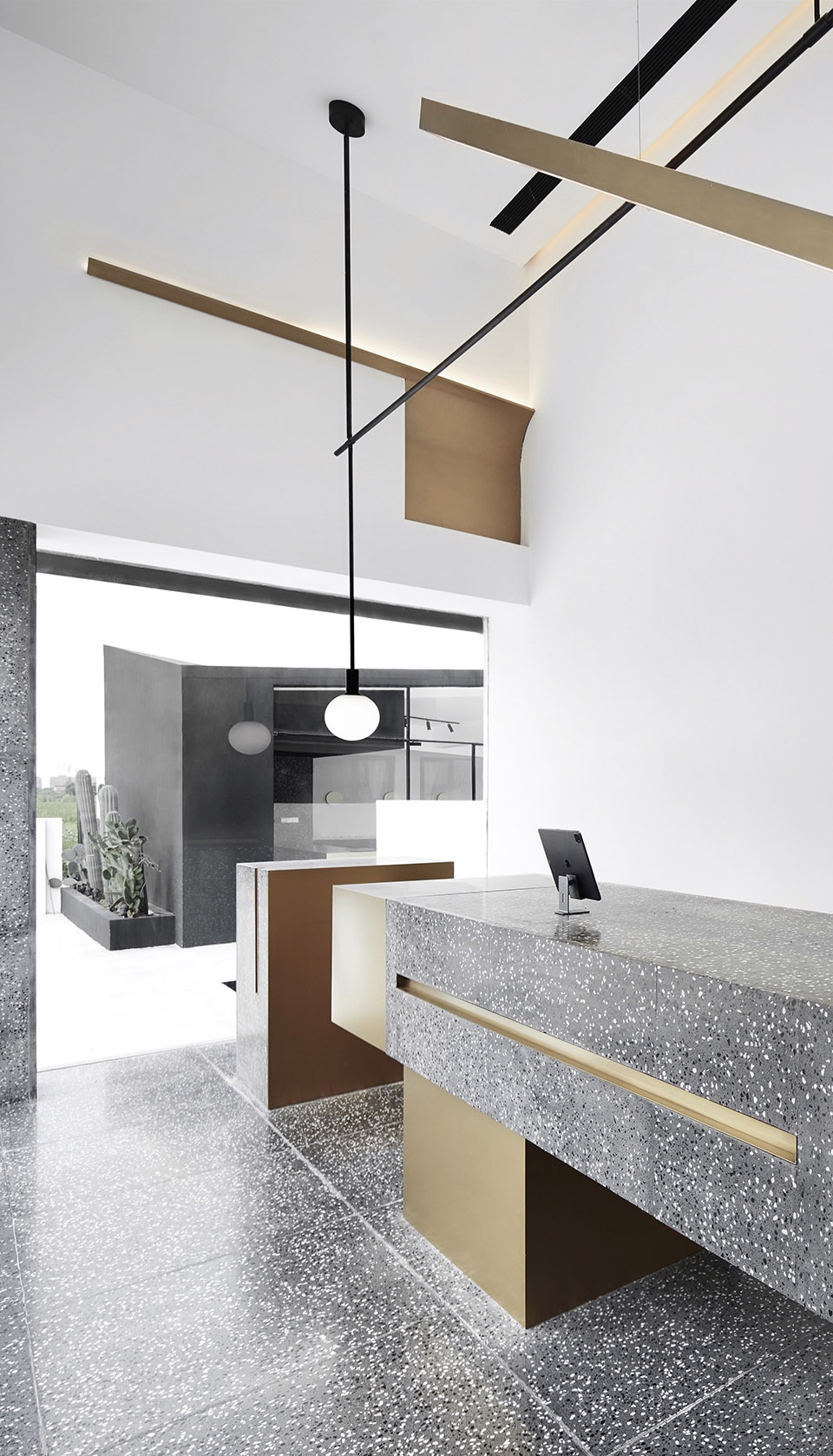

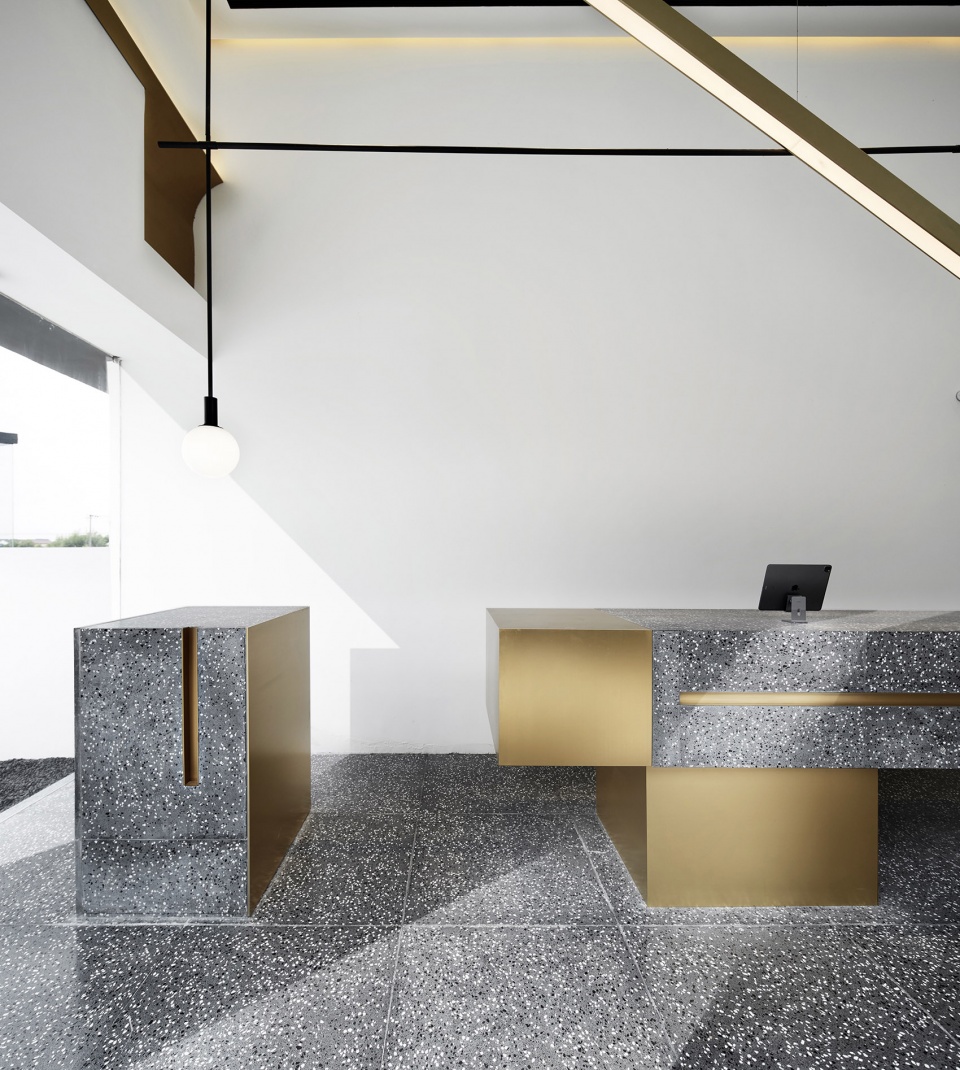

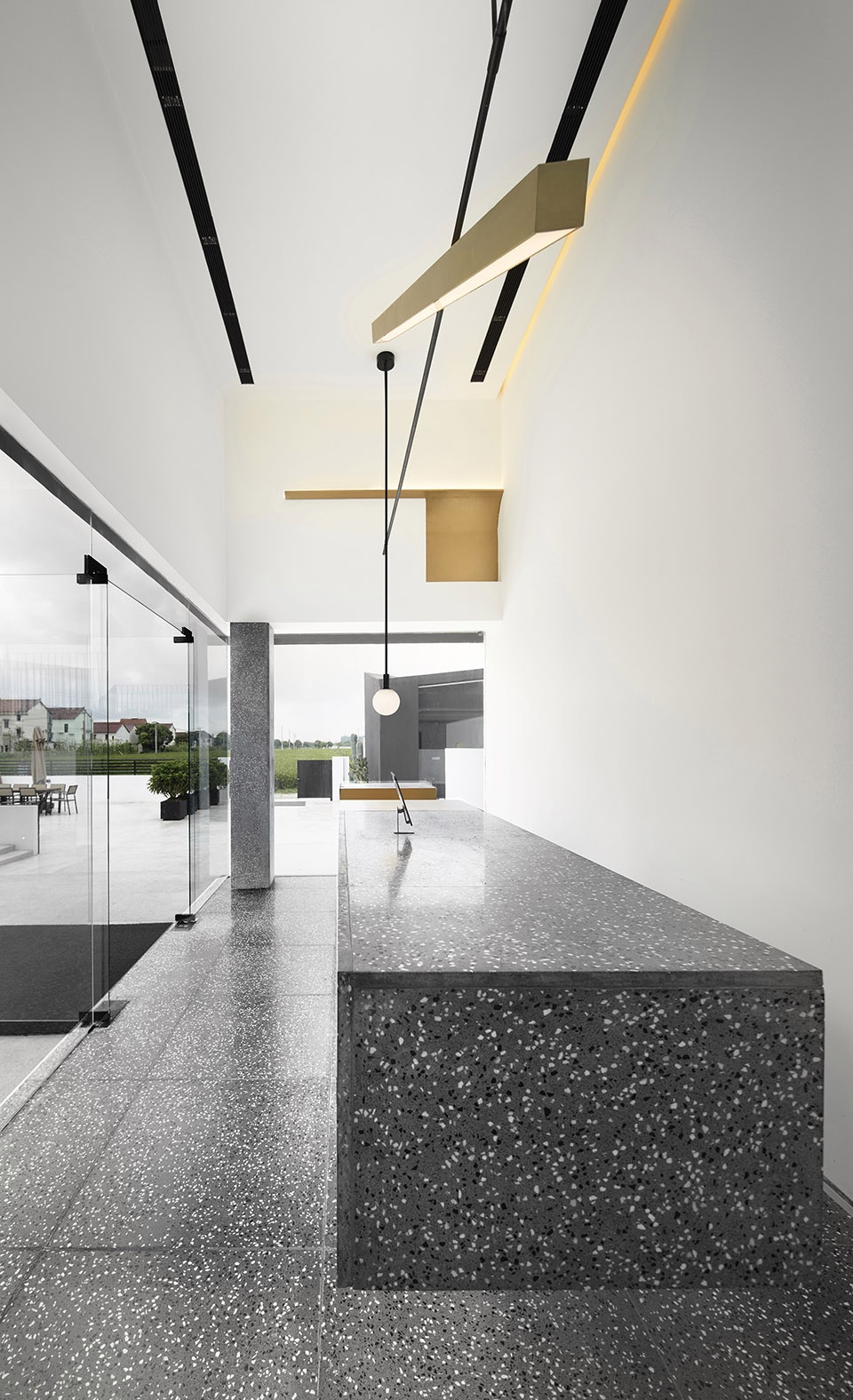

▼前台，reception table ©邵炜亮

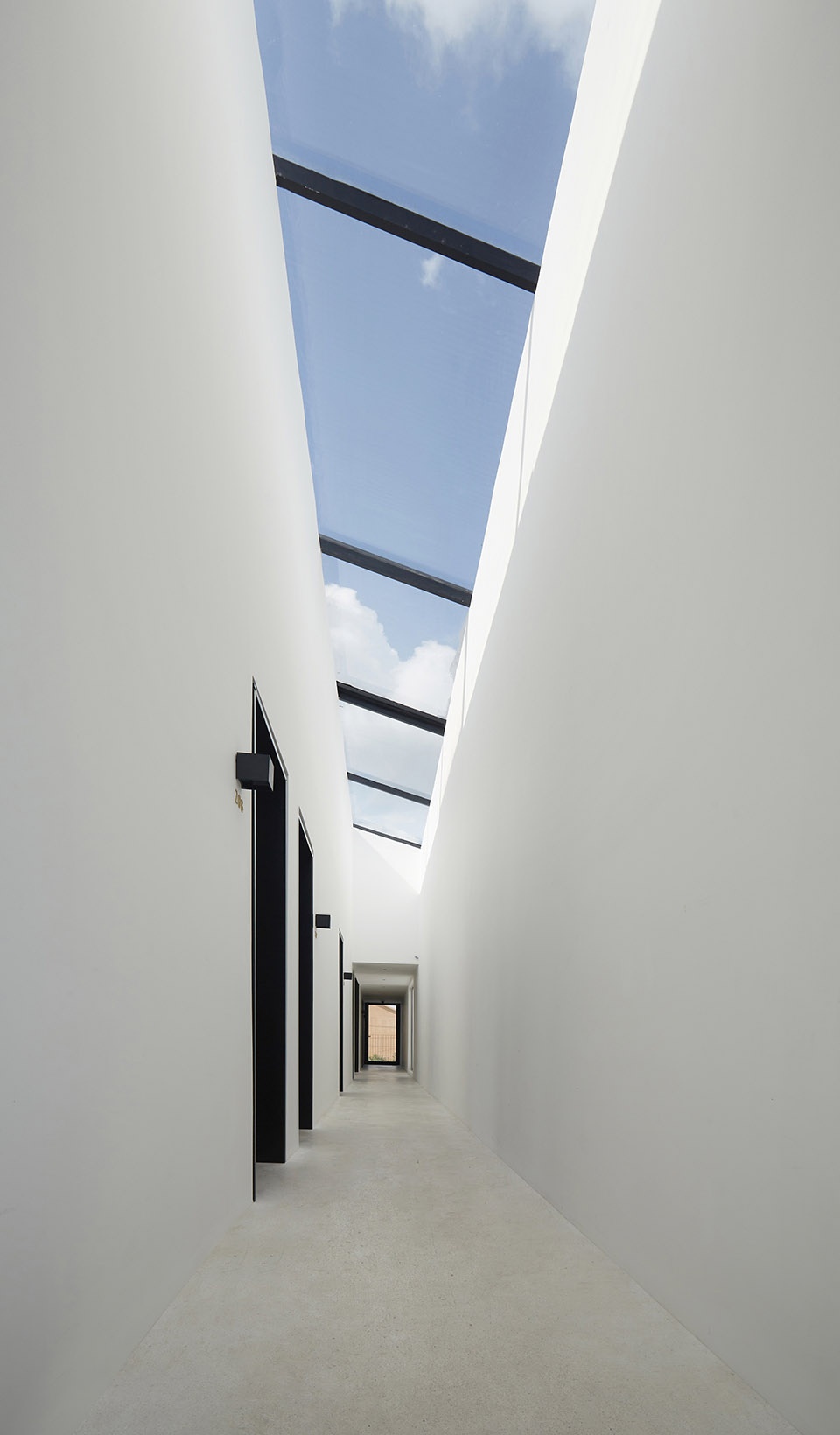

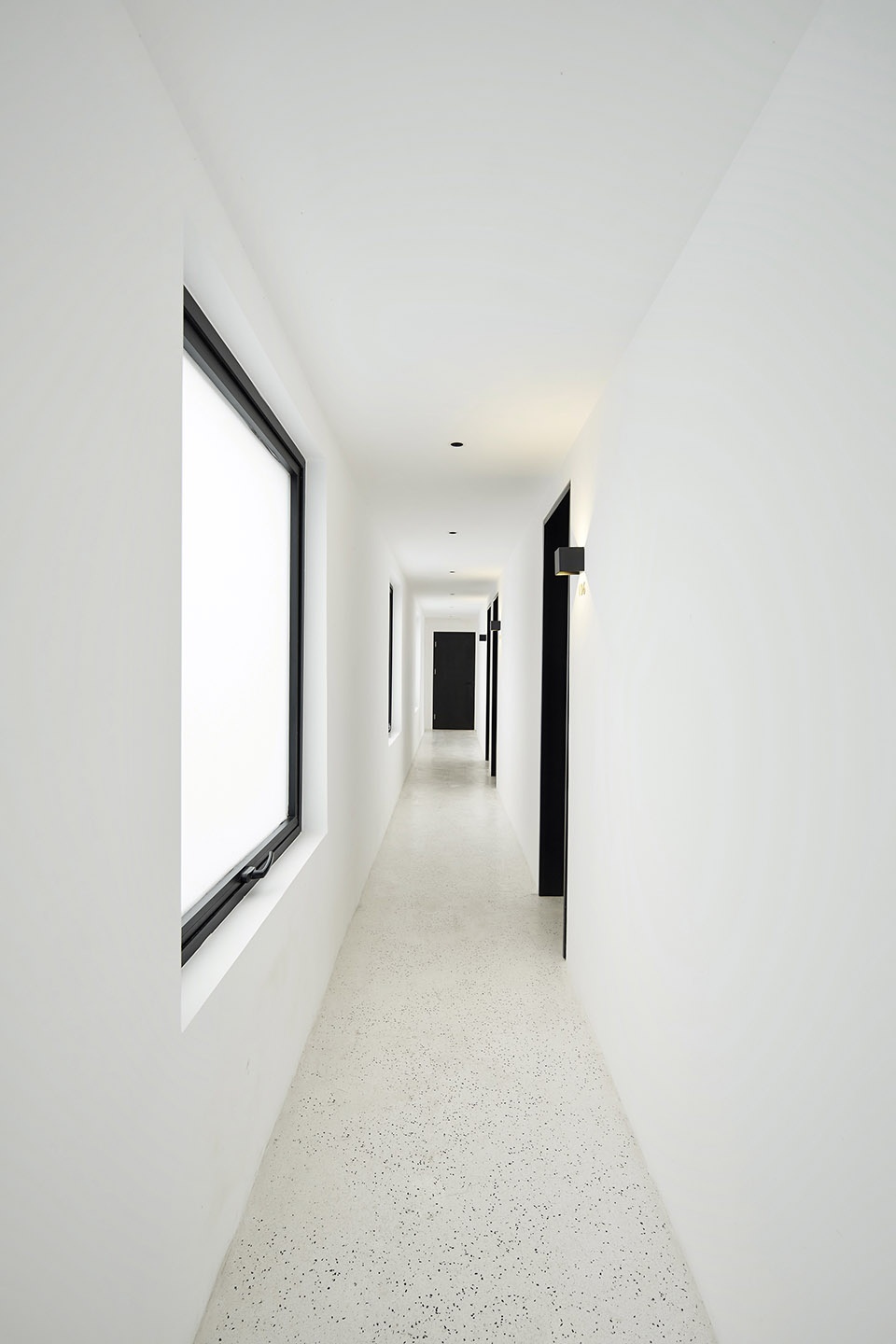

▼走道，corridor ©邵炜亮

作为主体的住宿空间，采用模块化设计方式，在节约成本的同时方便施工管理，17个房间共分5个模块处理，用极简的手法与建筑形成统一关系。

As the main accommodation space, modular design is adopted to save cost and facilitate construction management at the same time. The 17 rooms are divided into 5 modules, and the minimalist approach is adopted to form a unified relationship with the building.

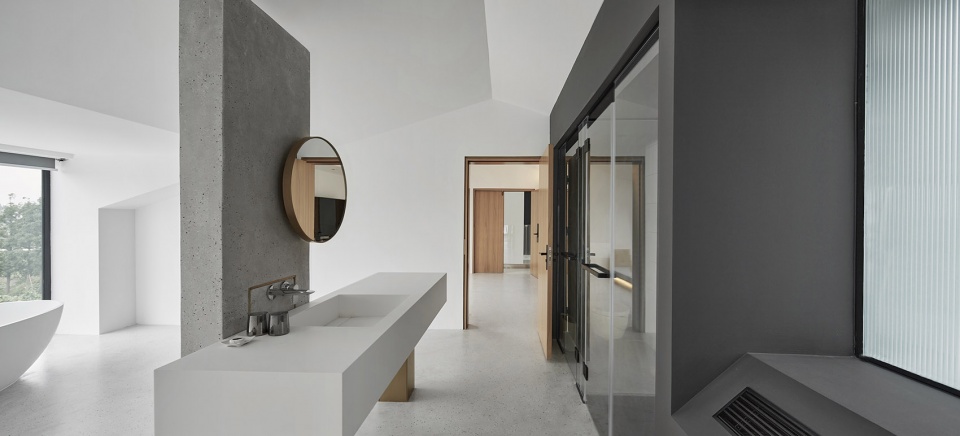

▼顶层客房，guest room on the third floor ©邵炜亮

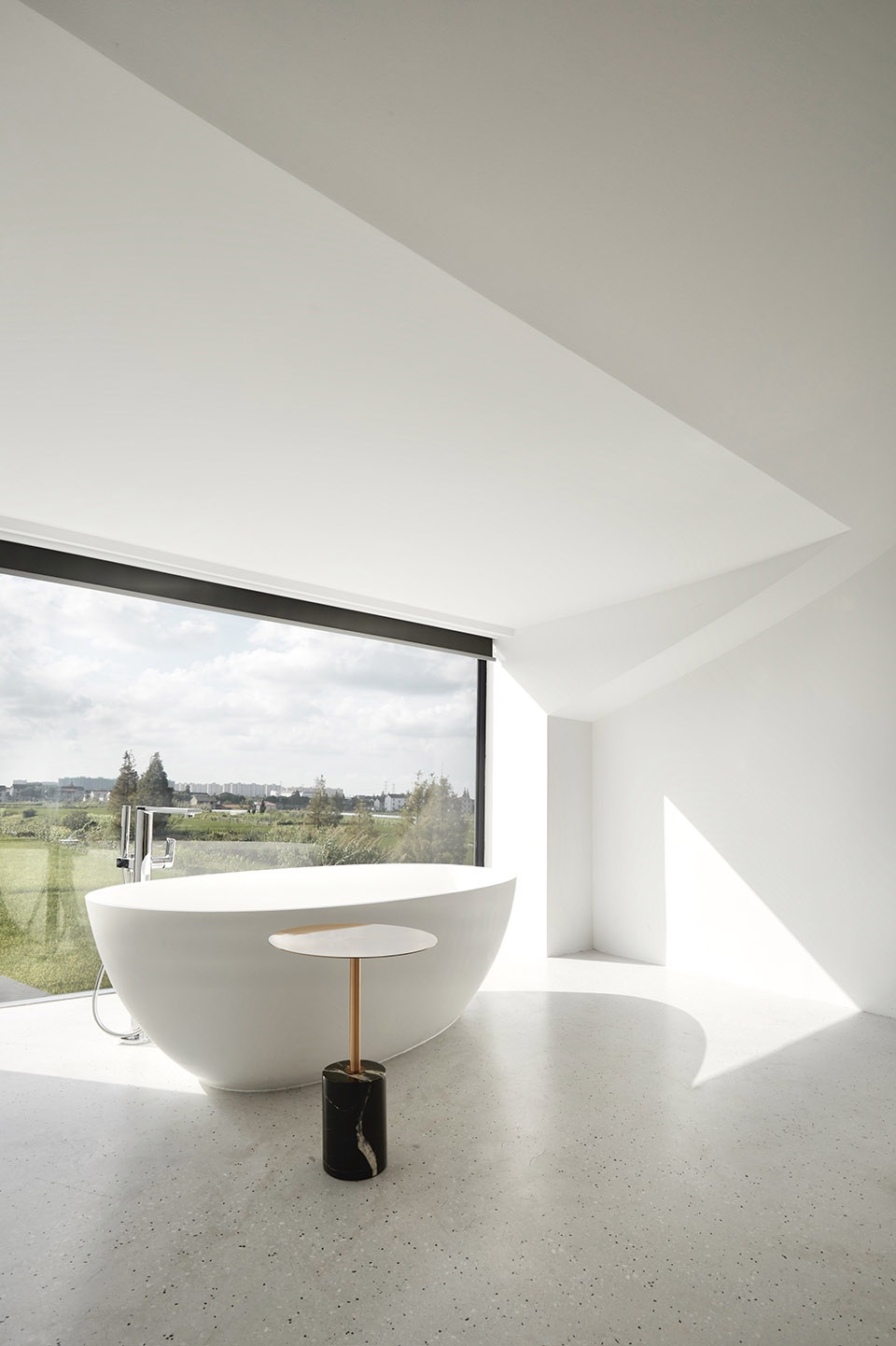

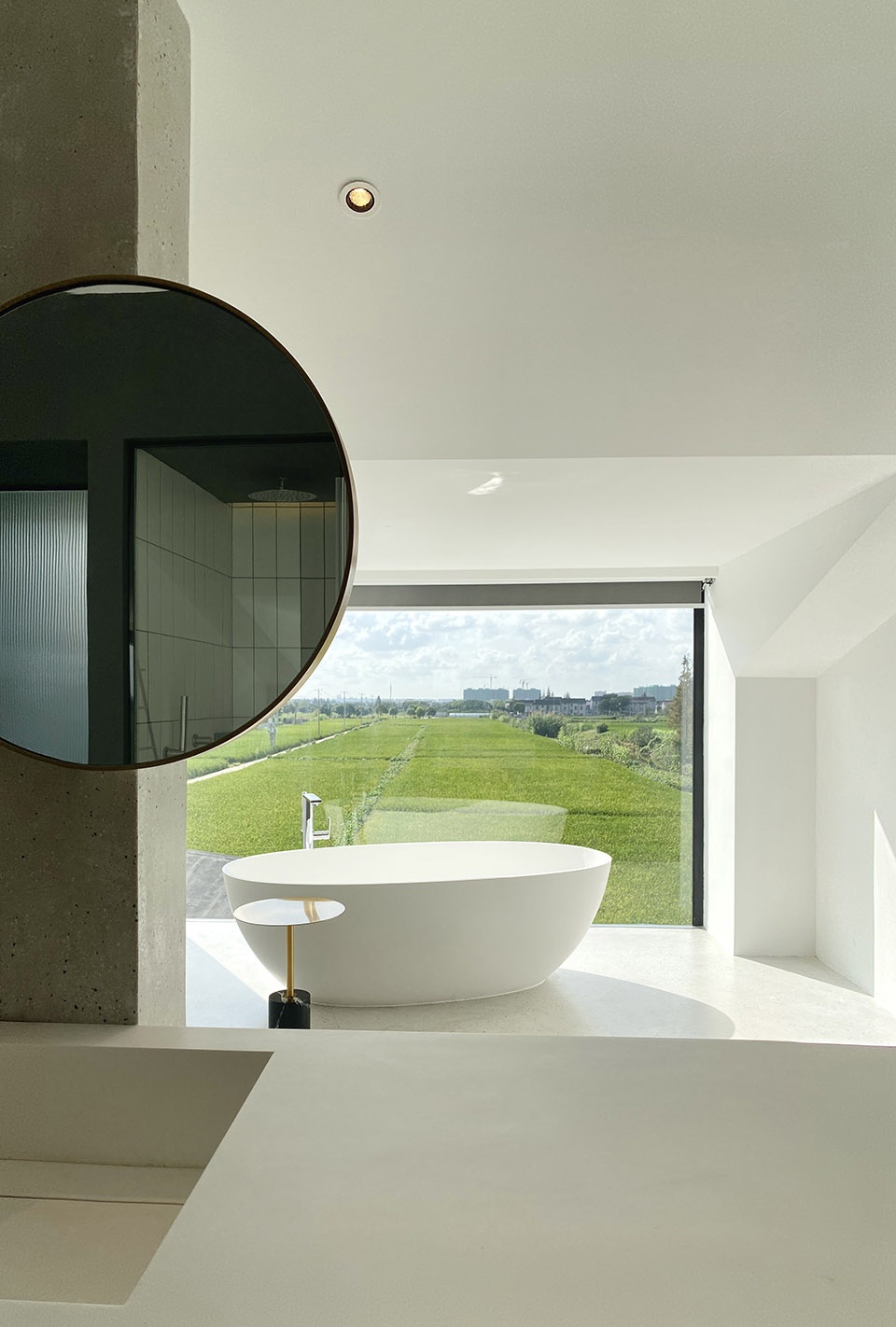

▼落地窗前的浴缸可以欣赏室外全景，bathtub beside the French window providing panoramic view ©邵炜亮

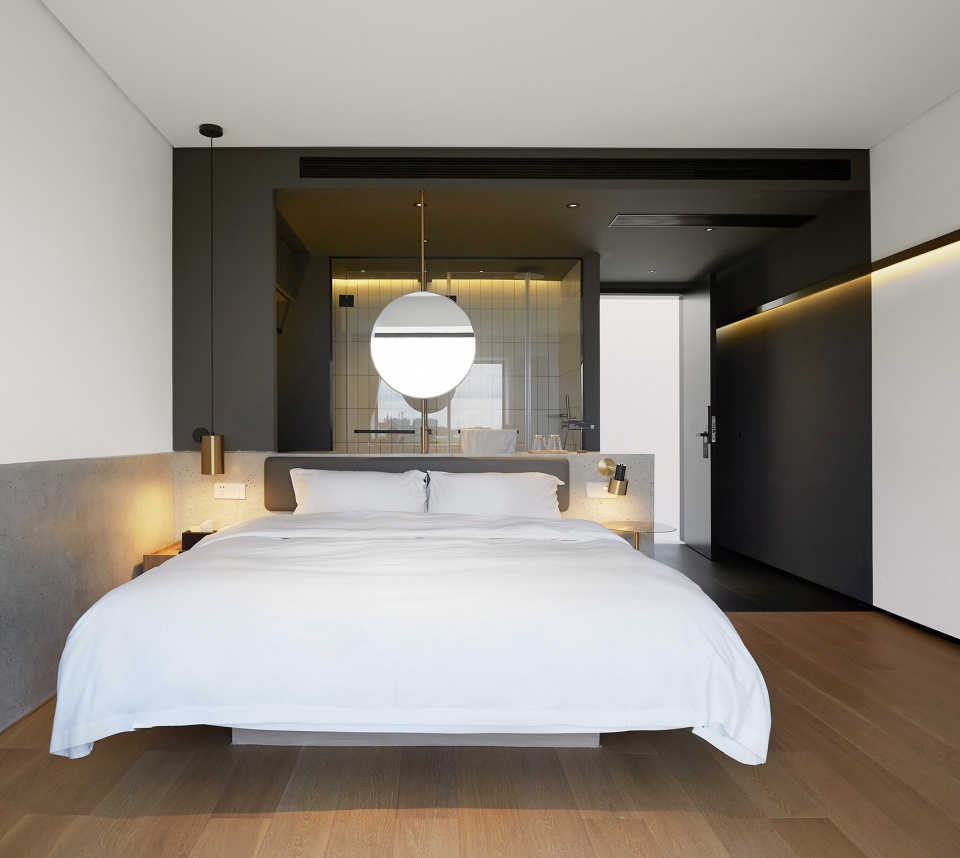

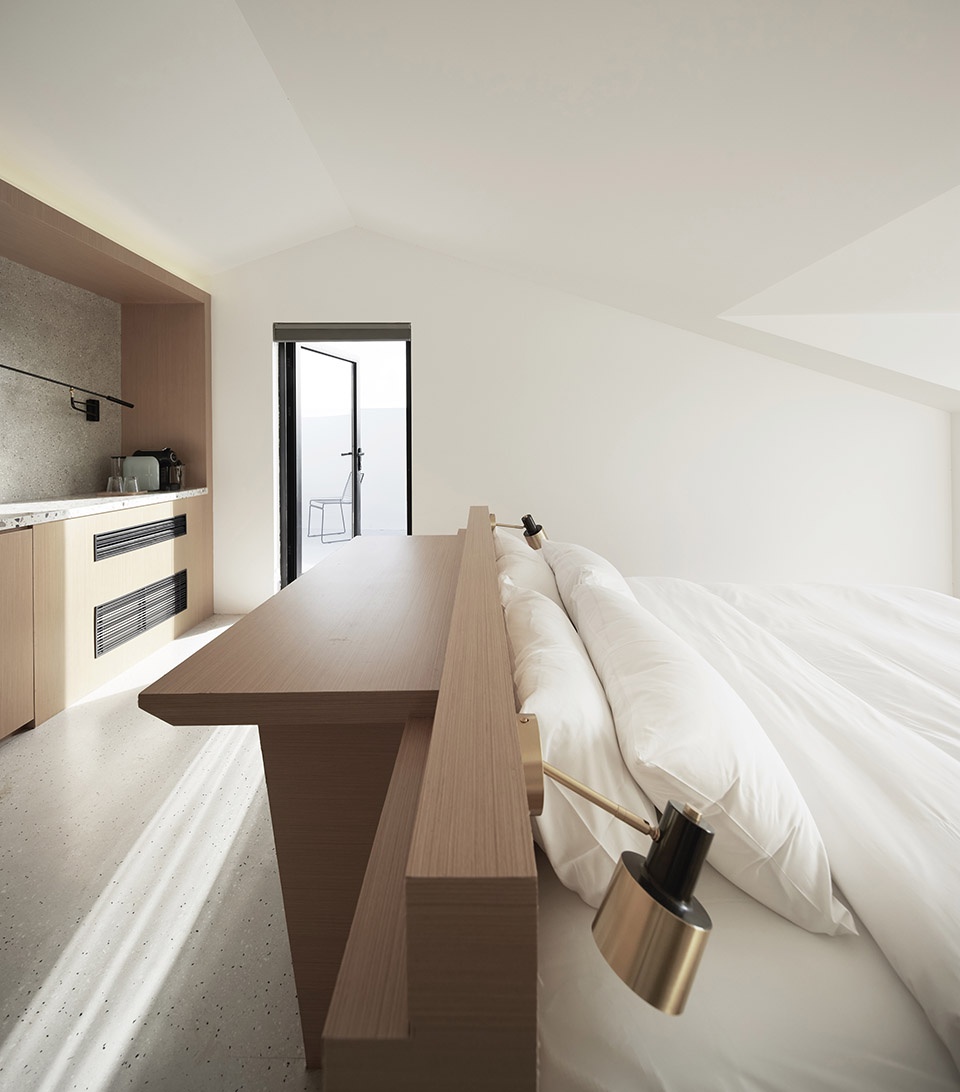

▼标准客房，typical guest room ©邵炜亮

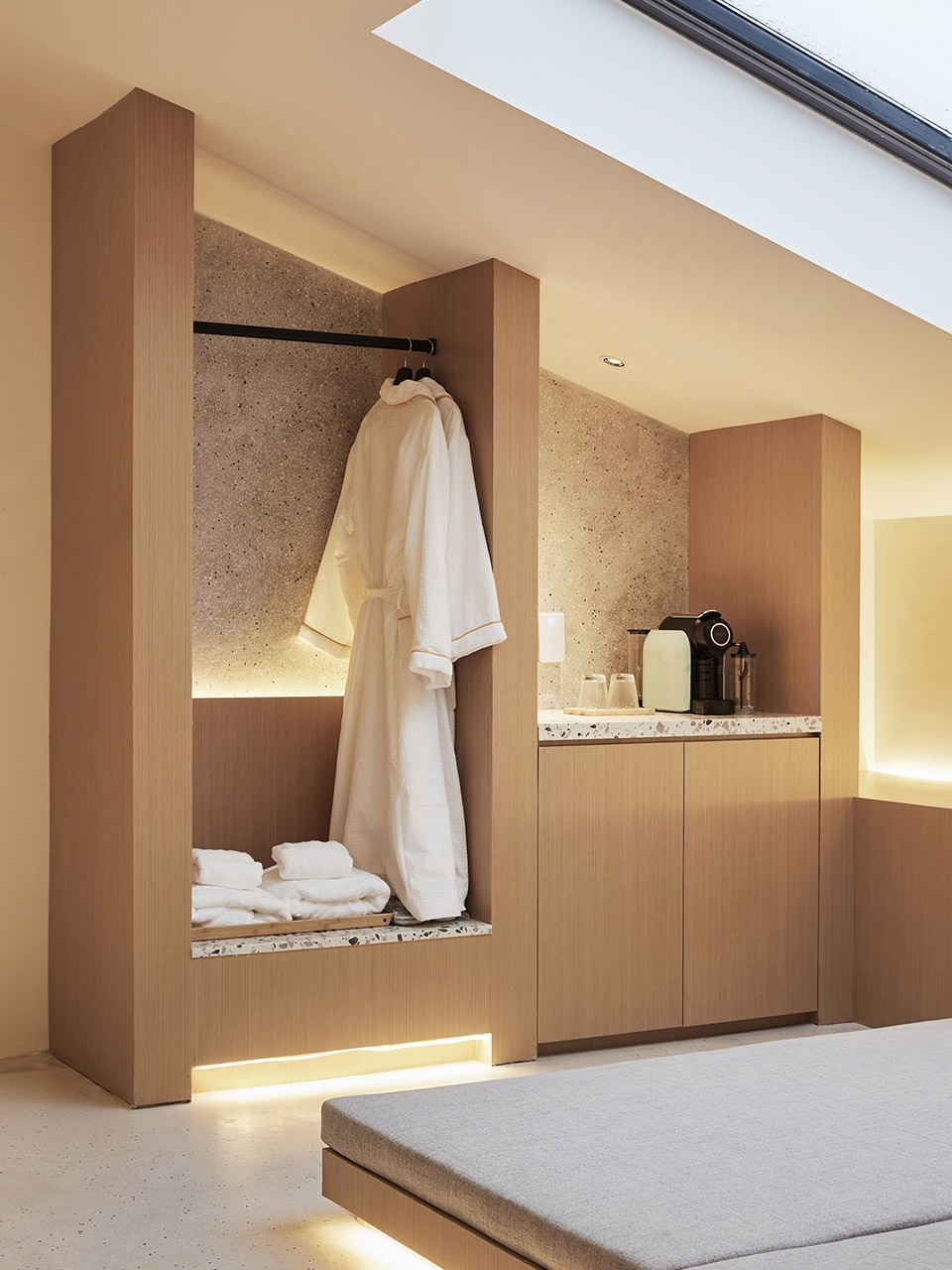

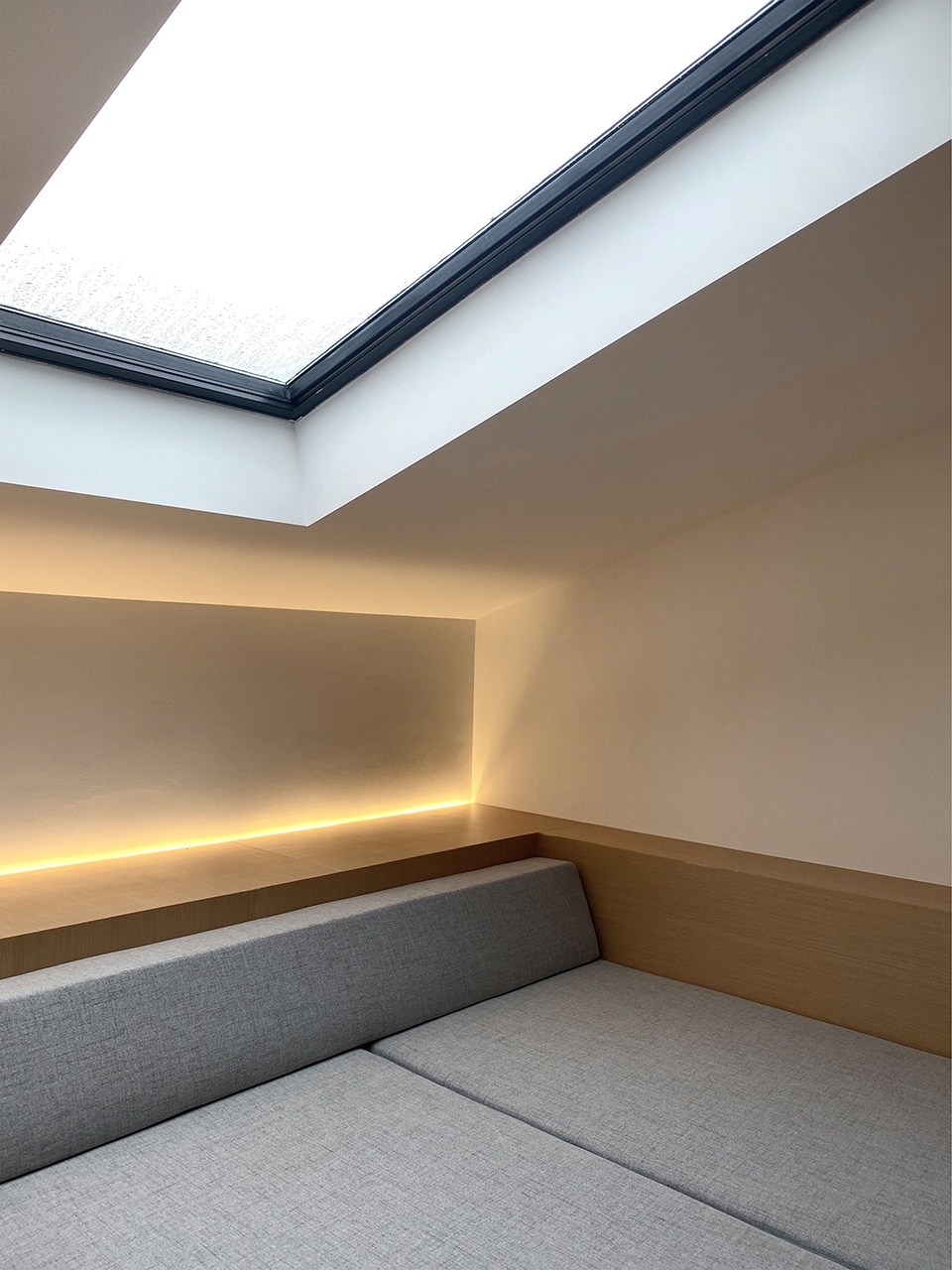

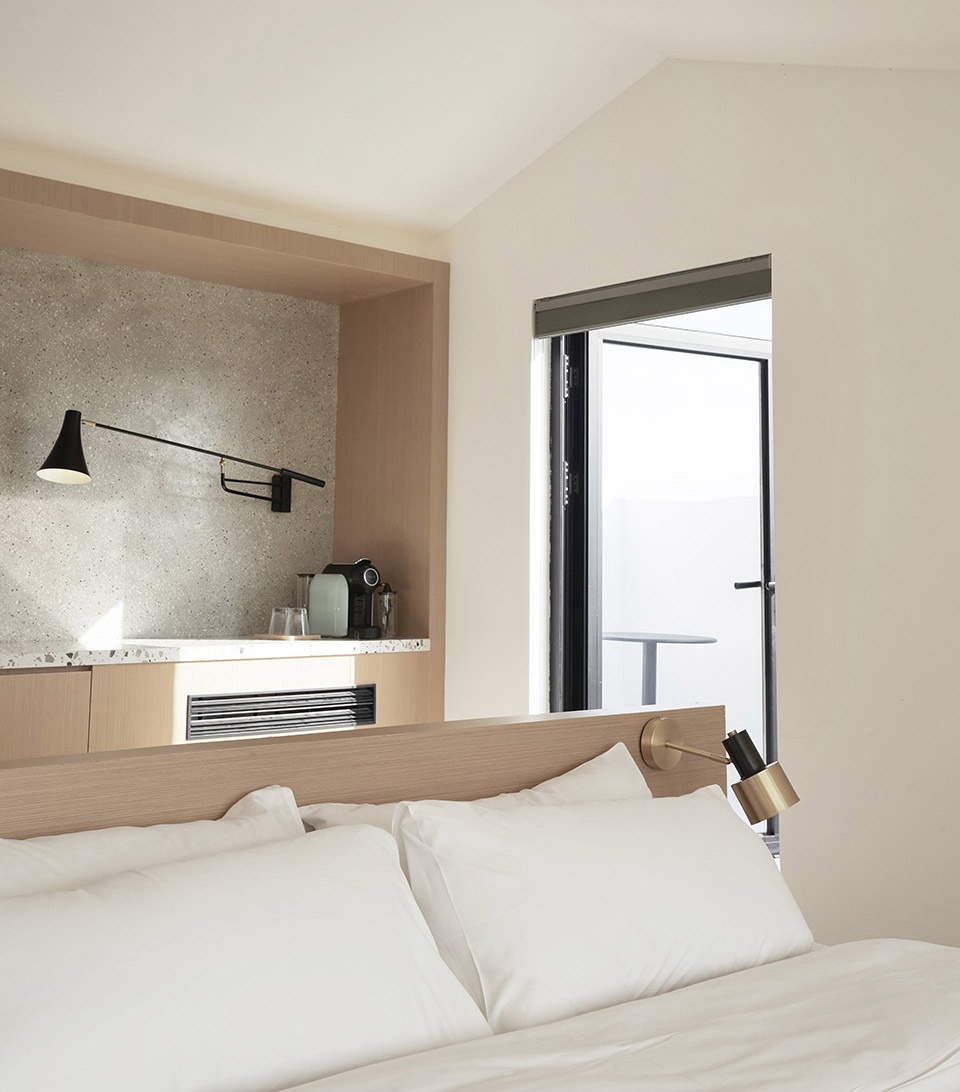

▼客房细部，details of the guest room ©邵炜亮

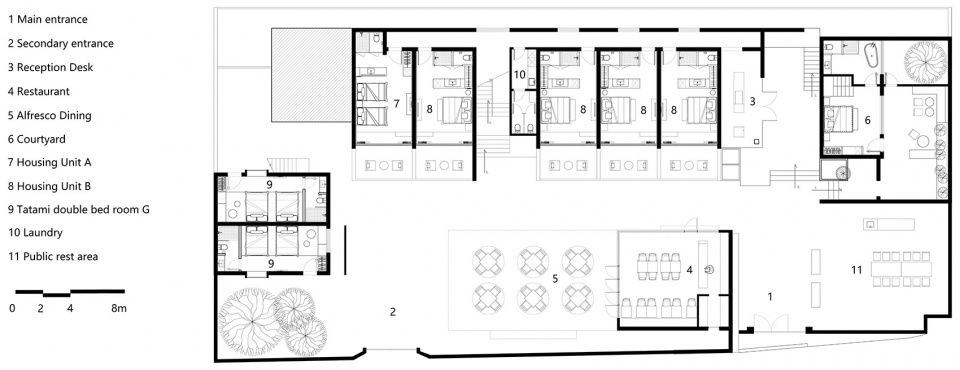

▼一层平面图，first floor plan ©偏离设计

▼二层平面图，second floor plan ©偏离设计

▼三层平面图，third floor plan ©偏离设计

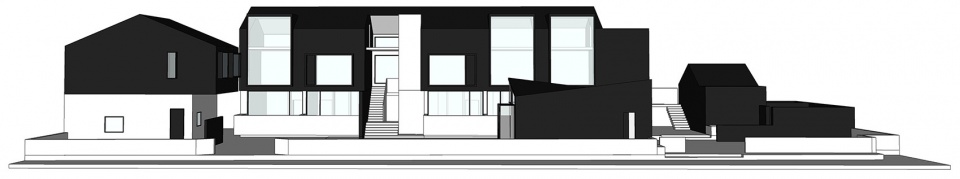

▼立面图，elevation ©偏离设计

项目名称：千墨·（HOUSE OF MO）
设计公司：偏离设计
公司网址：www.dpaadesign.com
联系邮箱：H2design@126.com
设计时间：03/2019—06/2019
竣工时间：06/2019—07-2020
主创设计：小岛
设计团队：李钢、戚帅奇、徐俊彪
项目地址：中国上海川沙镇
项目面积：1200㎡
结构设计：介直设计工作室
灯光设计：上海博纵照明
建筑施工：启劲建筑装饰工程有限公司
装饰施工：千墨装饰工程有限公司
项目摄影：邵炜亮
设计撰文：小岛
项目业主：米维科（上海）酒店管理有限公司
主要材料：混凝土、纳米涂料、超白玻璃、白橡木、水磨石

Project Name: HOUSE OF MO
Company: DPAA Design Studio
Website: www.dpaadesign.com
Contact e-mail: H2design@126.com
Design Time: 03/2019—06/2019
Completion Time: 06/2019—07-2020
Leader Designer: Dao
Team: Li Gang, Qi Shuai qi,Xu Junbiao
Project Location: Shanghai Chuansha， China
Gross Built Area: 1200㎡
Structure Design: Jiezhi Design Studio
Lighting Design: Shanghai Bo longitudinal lighting
Building Construction: Qijin Architectural Decoration Engineering Co., LTD
Decoration Construction: Qianmo Decoration Engineering Co., LTD
Photographer: Shao Weiliang
Writer: Dao
Clients: Mivico (Shanghai) Hotel Management Co., LTD
Material: Concrete, nano coatings, glass, oak, terrazzo
