非常感谢设计方 Mizuishi Architect Atelier 将项目介绍和项目图片授权gooood发行。更多请至： Mizuishi Architect Atelier on gooood
Appreciation towards Mizuishi Architect Atelier for providing the following description:

/wp-content/uploads/2011/10/f71db27899e94ecda16cf5d6d0a87274.jpg

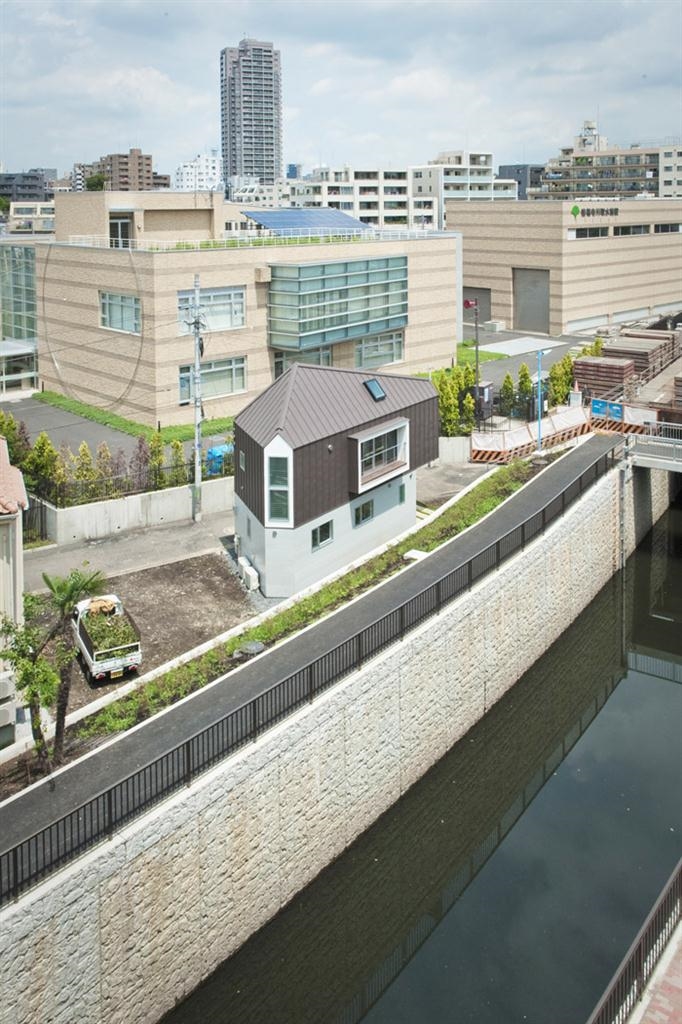

▲ bird’s-eye view1 Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/0fc28ec1c7cb311cfc6b89bd2e38489d.jpg

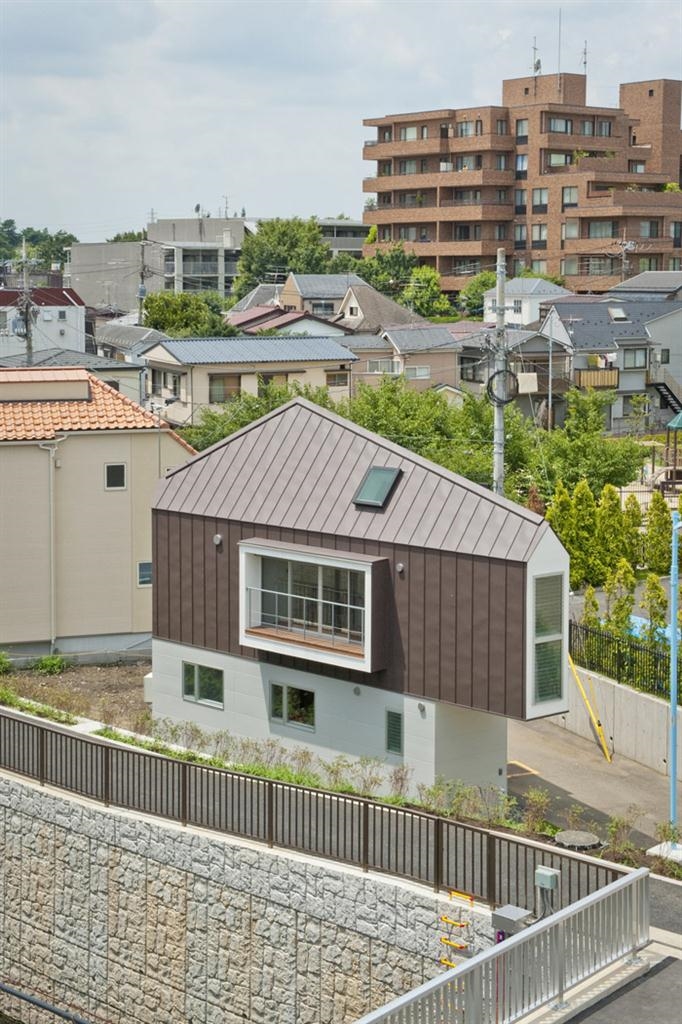

▲ bird’s-eye view2 Photo © Hiroshi Tanigawa

This is a very small house built on the triangle site which the river and the way were crossed and made to the acute angle.For the dead-end road, it became a plan in various regulations for obtaining special permission.

Residents are husband and wife and a little girl. Although it was a novel site of a limited area, since a river was faced through a bank and a promenade, I would like to build various relations with the river. The building is the form that cut an acute angle part on a triangle plan derived from the site. Furthermore,it got the maximum volume of hip roof of three planes in restriction of setback-line.

Although the level 0 floor was a private space,it limits for dividing with the curtain of a race in the door, stairs, storage, etc. except for a bathroom. It enabled it to feel a spread. The level+1 floor is devided into small areas by structural narrow walls,being connected with one by the ridgeline of a roof. So there are different open feelings and the relations with the river each.

That is
1. dining&kitchen／The west side space up the stairs is the largest planarly, and has high ceiling with a feeling of rise towards the roof top.
2. living／The central space is low ceilinged,and has full-opening windows on both sides as a balcony and the bay window that spreads outward with a feeling of floating
3. spare room／The east side space in the deepest is a form which is narrowed down to the direction of flow of the river,and is a space watching the light to insert earlier of the abyss.
4. loft／The space with two skylights is a space looking down at the river and looking up at the sky.

The limited volume snuggles up to the river, and I think that I was able to make various space that can live while looking for a favorite place to stay.

/wp-content/uploads/2011/10/0be1b31591e7aaf768fa8427b49facf8.jpg

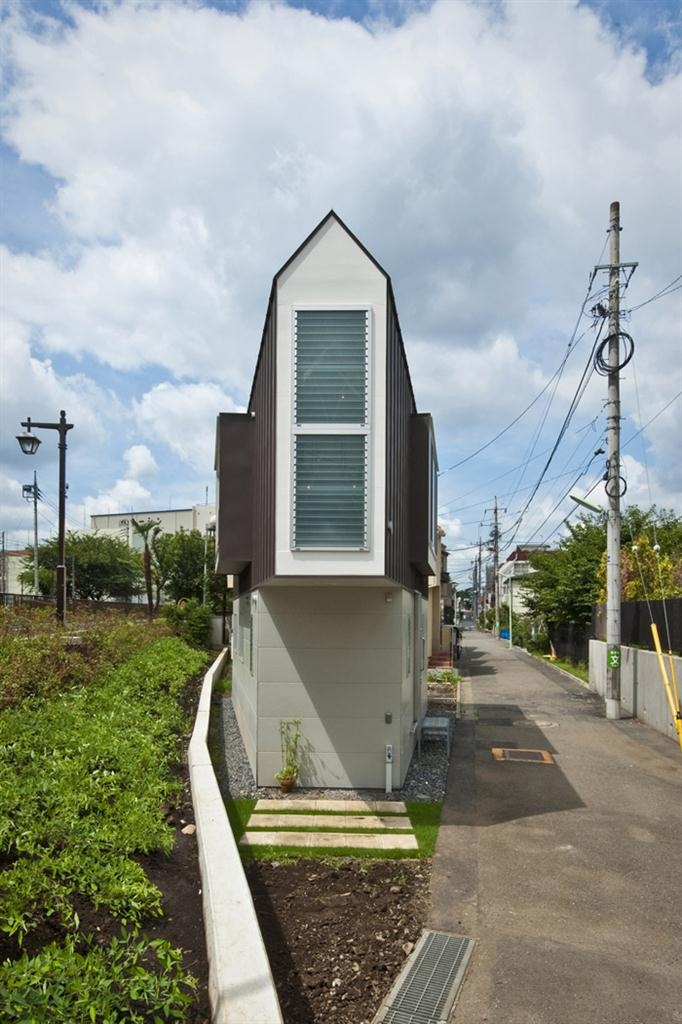

▲ east elevation Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/fb6f57e9bd91db77c981788a52e27d12.jpg

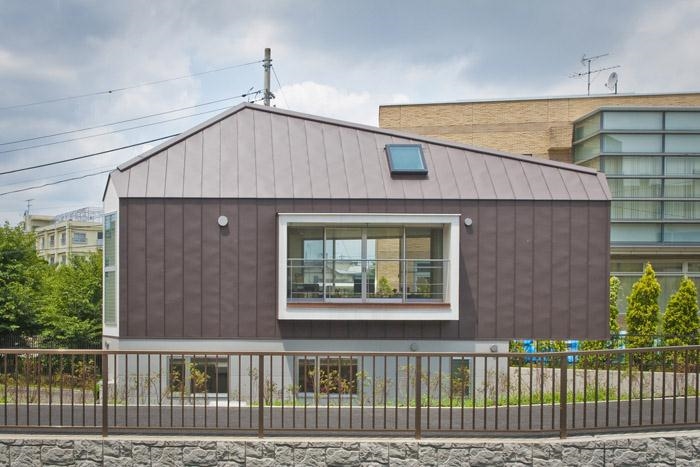

▲ south elevation Photo © Hiroshi Tanigawa

这栋超小型住宅位于河流边，道路端头的一个锐角三角形场地之中，是一个特别许可建设的建筑。业主是夫妇和他们的女儿。虽然场地是如此的狭窄，但是建筑师还是希望建筑与河流建立某种关系。体量采用消减掉锐角部分的三角形式。

一层是私人空间，除浴室外，只通过帘子来划分楼梯及储藏空间等等，这样的处理保证了开放感。楼上有一个薄壁空间，与阁楼相连，这让空间的开放感加深并与河流取得联系。餐厅和厨房占据了最大的房间，这里有高高的天花板。起居室天花板较低，窗台和阳台无缝连接，两面整面窗户加深这种漂浮感。多功能房位于最内部的东侧，位于体量探出的部分。阁楼有两个小窗户，朝下看是河流，朝上看便是天。

在这个具有诸多限制的临河空间之中，建筑师依然努力做出各种不同的空间，让住户能在这里找到欢享之处。

/wp-content/uploads/2011/10/6c8d657da8212b4b7e41e41d0aa8d4ec.jpg

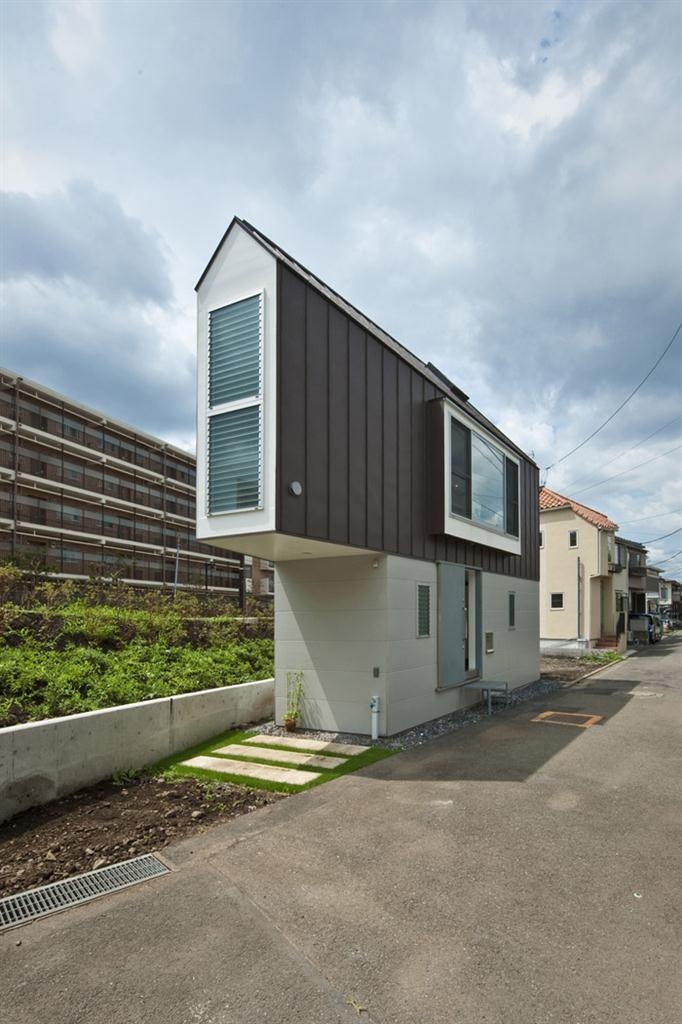

▲ exterior view Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/0c45f168459900546fd65edefacd2966.jpg

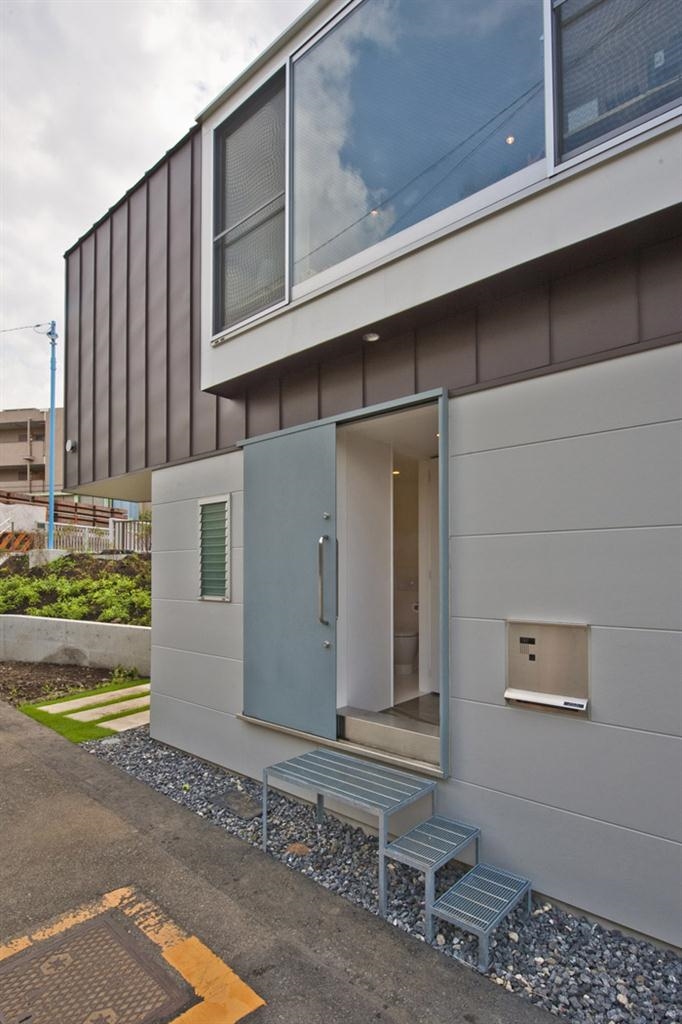

▲ entrance Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/379828643f281e53779a02aaeea70a46.jpg

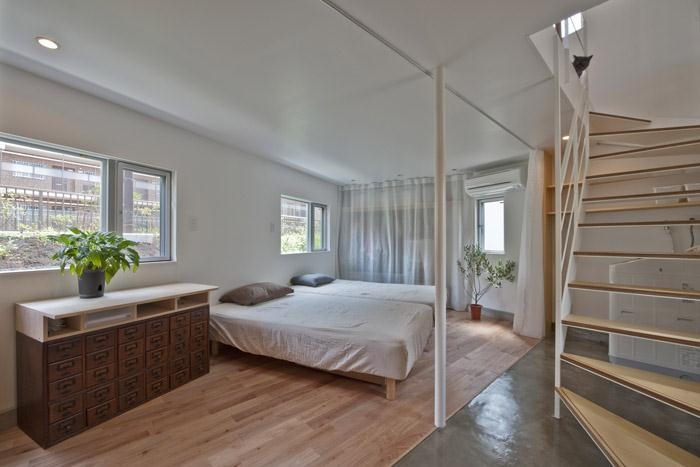

▲ view fron hall Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/9b7ed4746007a299cef3037672b30d45.jpg

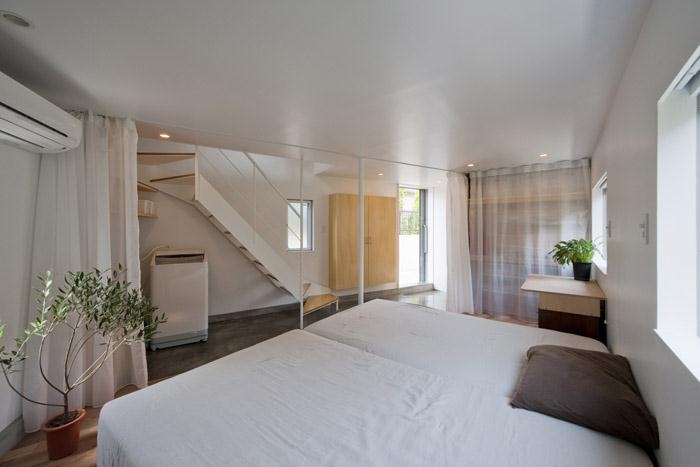

▲ room1 Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/f6f0ff818cc1f7daebfd587fe1a8543e.jpg

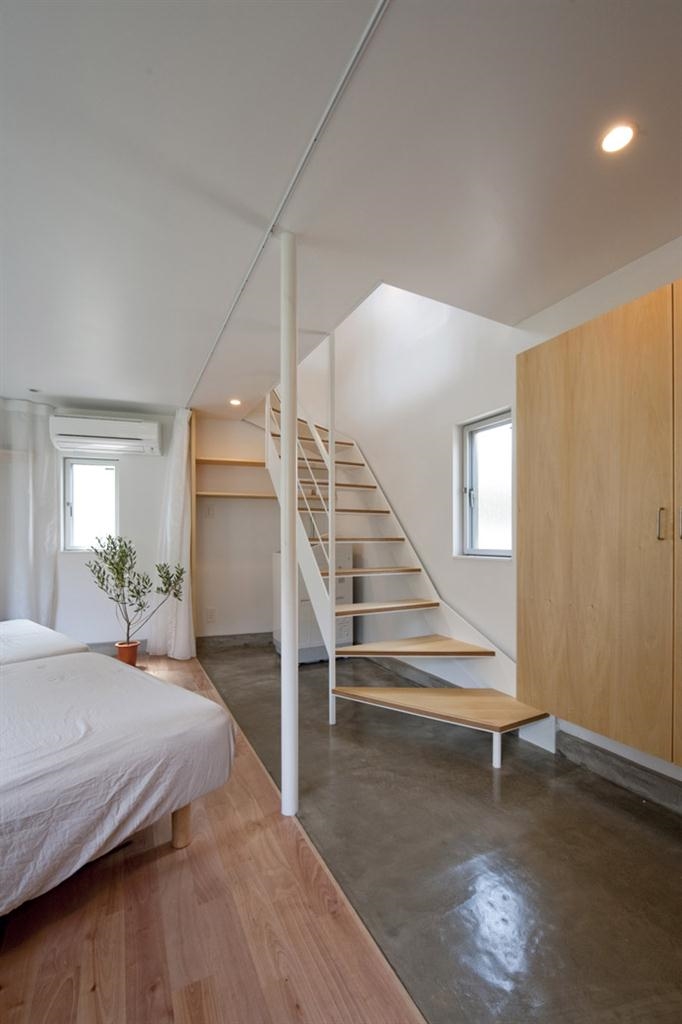

▲ stairs Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/13ddb0fbb368c4917713e5cbe2f5e8d8.jpg

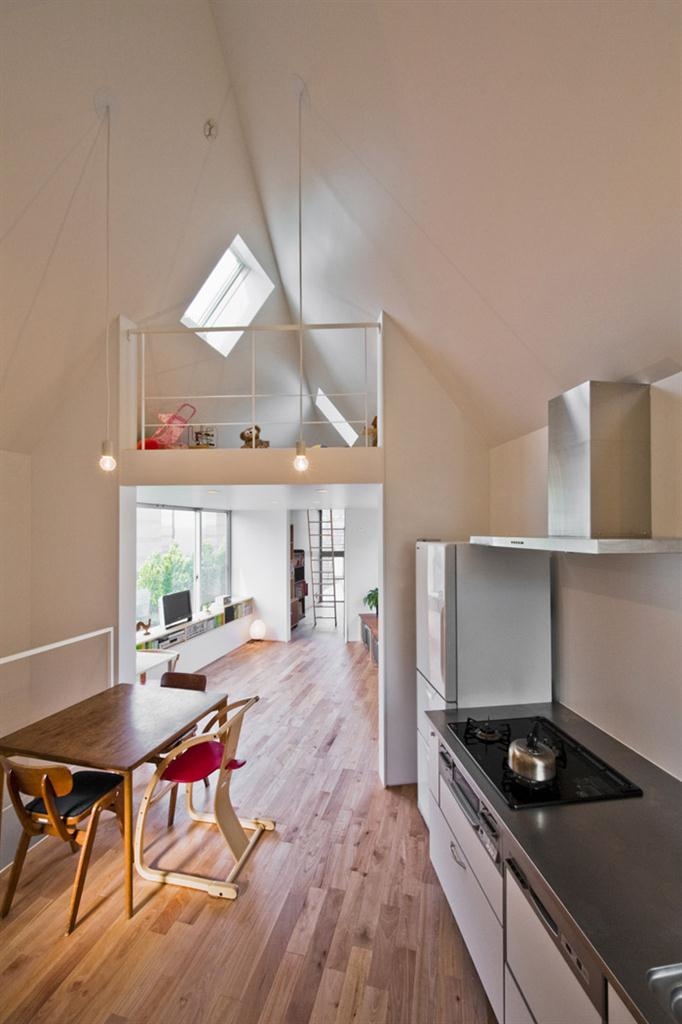

▲ view from kitchen Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/1fbea400ed10a14b29b322202dadbdde.jpg

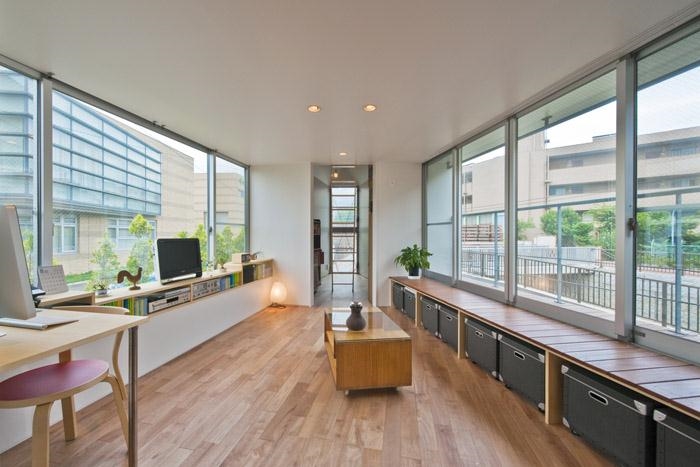

▲ living Photo © Hiroshi Tanigawa
/wp-content/uploads/2011/10/10bc33c7f1240a18e2cef721a78ea664.jpg

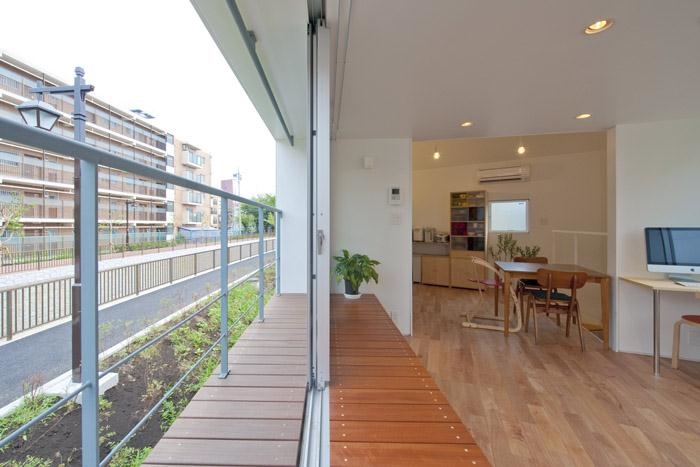

▲ balcony&bench Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/6340abe26a4ce560eab26f2bf2d2c312.jpg

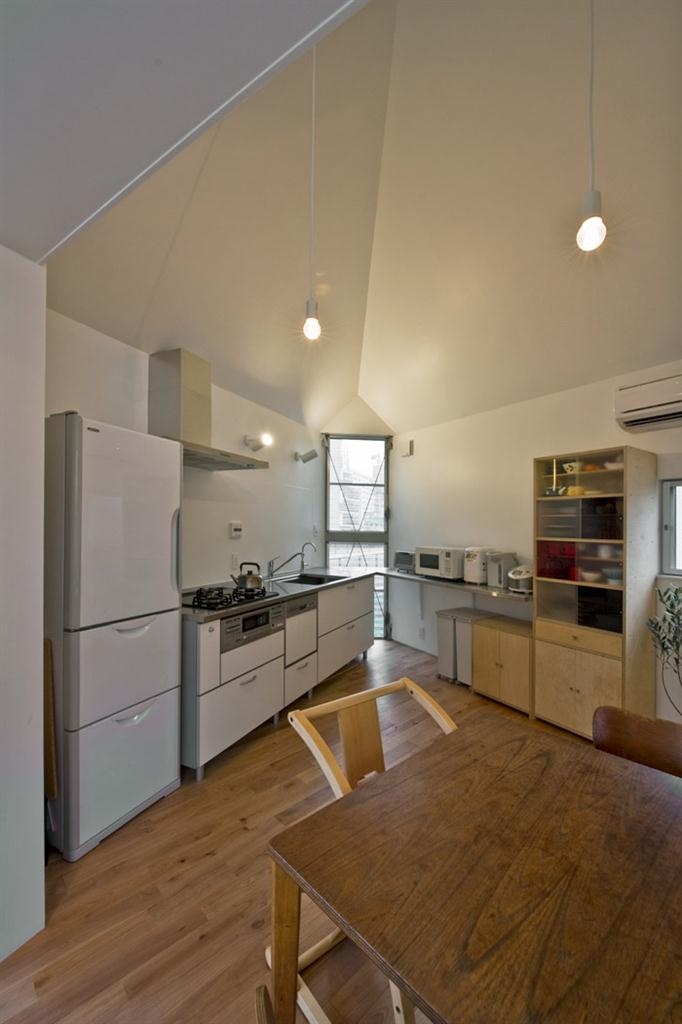

▲ kitchen&dinning Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/e4b61788d8d382b4166ed891edbddb81.jpg

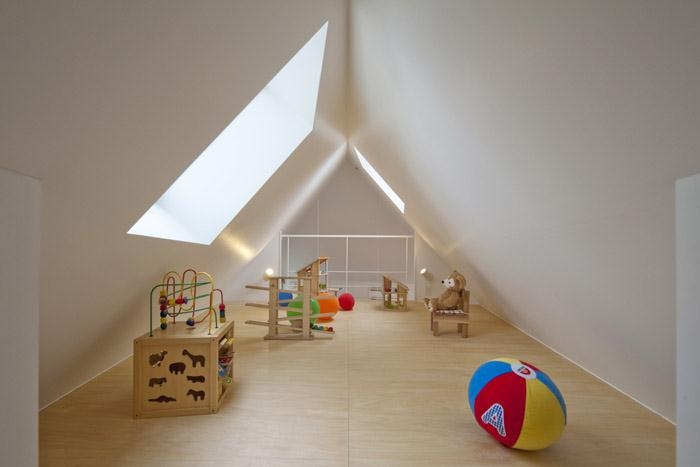

▲ loft Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/0cceb4c4cf6490df4f209c3b362f506e.jpg

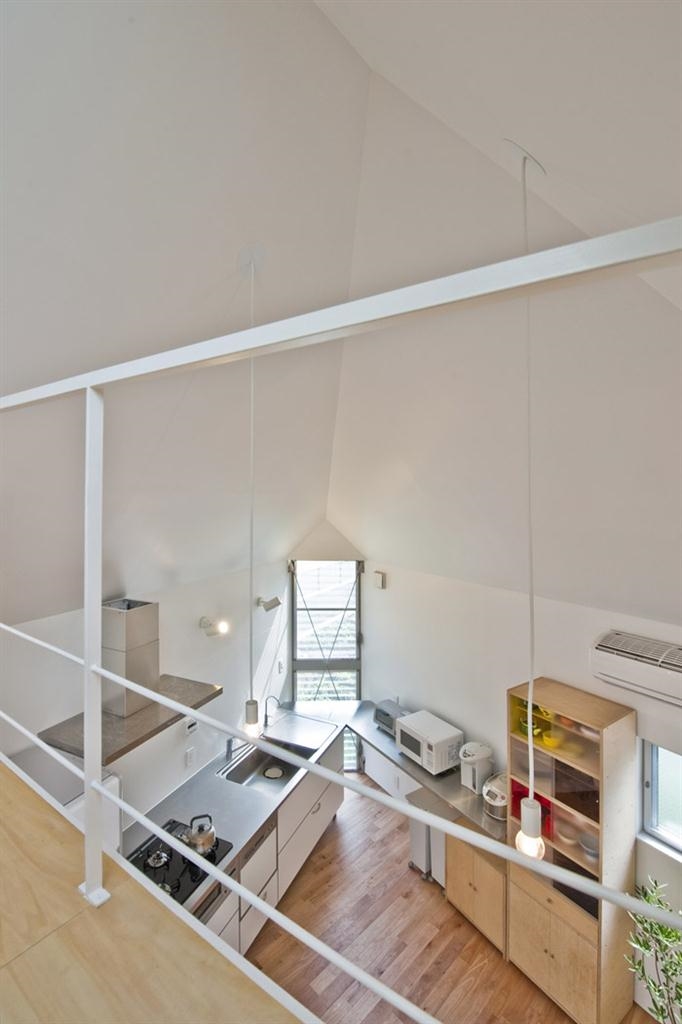

▲ view from loft1 Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/6e71881445fb4c3b377710aebb9c53f8.jpg

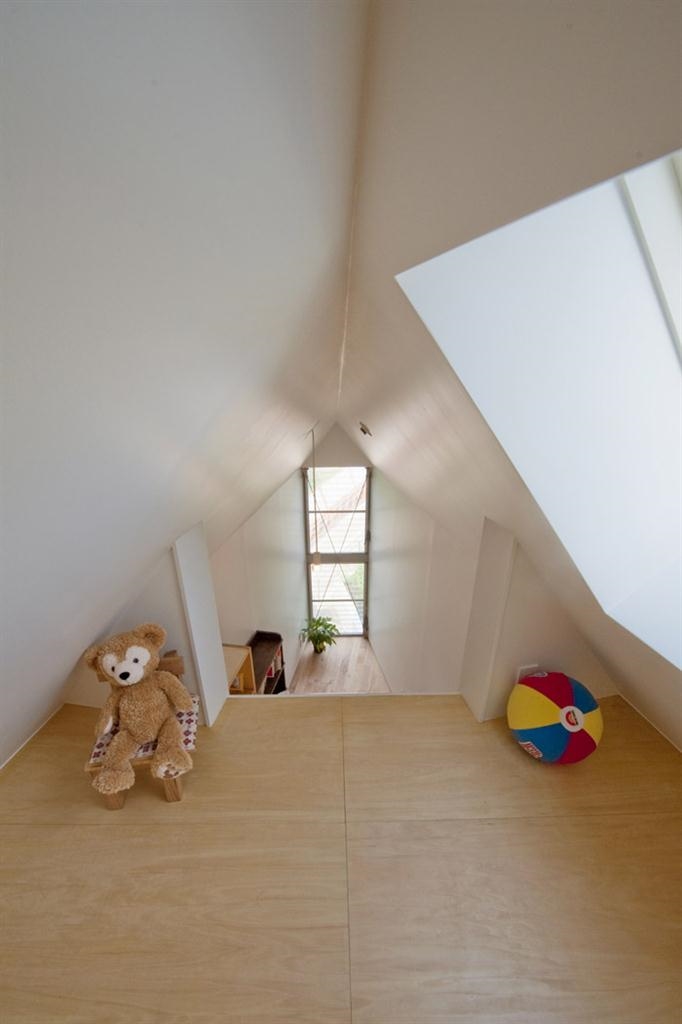

▲ view from loft12 Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/6db6867bb2c85167d7de5648f17a2185.jpg

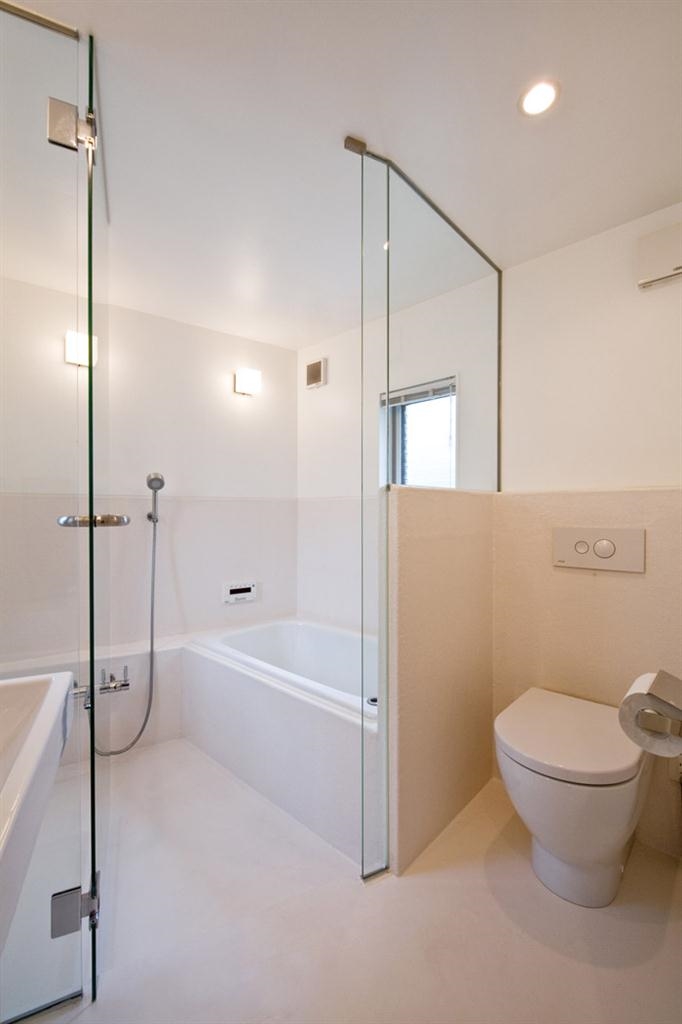

▲ bathroom Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/e8045f30ca4f2390b8b19d68059c2ca1.jpg

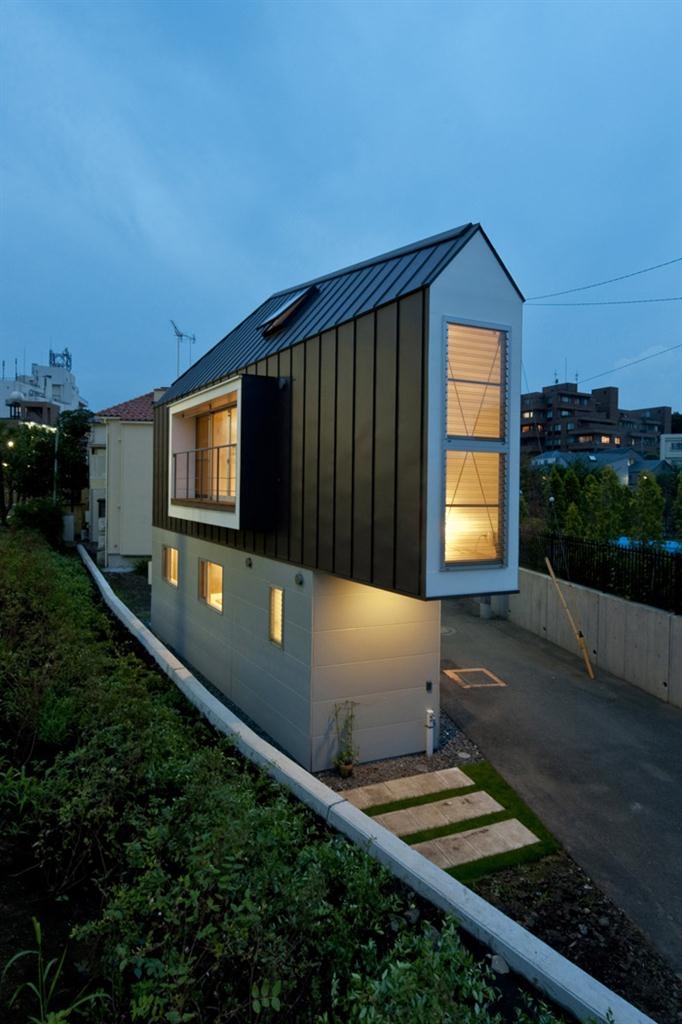

▲ exterior view at naight Photo © Hiroshi Tanigawa

/wp-content/uploads/2011/10/5e8675d62a244eacd8f6686ec4547f94.jpg

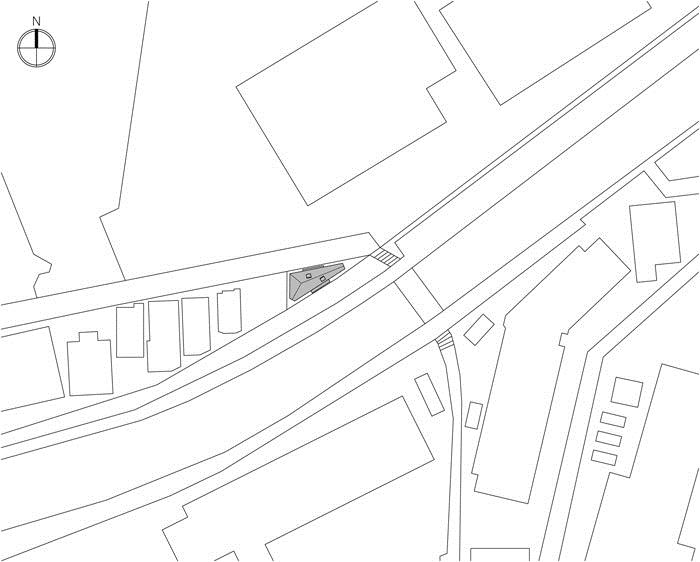

▲ site plan

/wp-content/uploads/2011/10/c9815fec55915f22a72ad48bfbe7d979.jpg

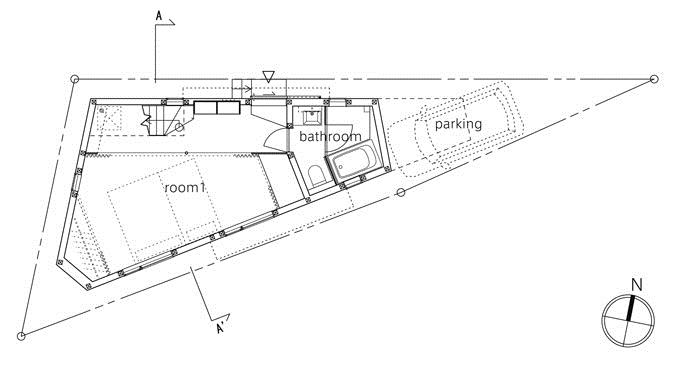

▲ floor plan_level0

/wp-content/uploads/2011/10/4c407e8d28402842882248bc9cae2037.jpg

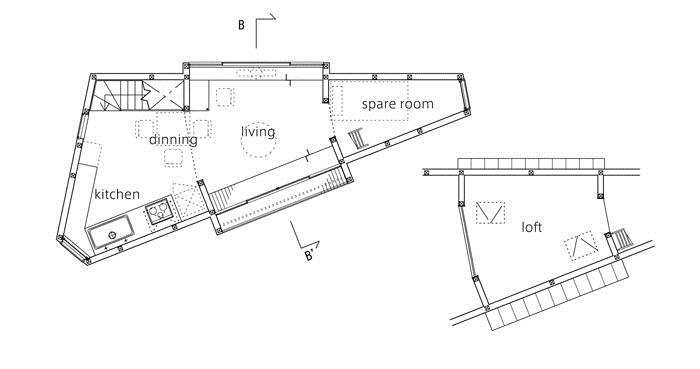

▲ floor plan_level+1&+2

/wp-content/uploads/2011/10/f63280e72c2dc1e0fce1082a5932f932.jpg

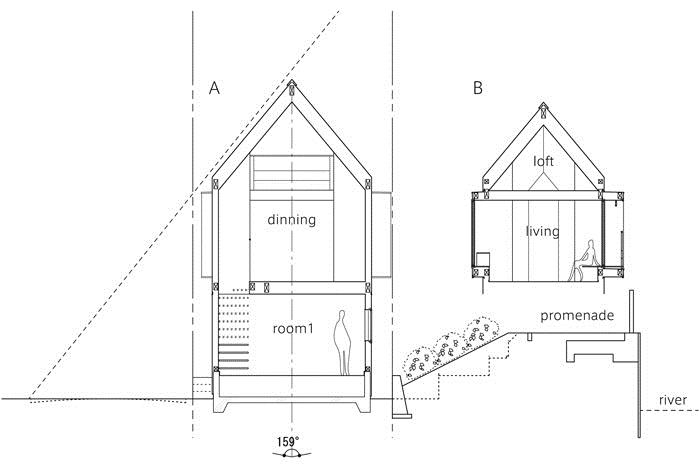

▲ section-A&B

location : suginami,Tokyo, Japan
type : residential house
architect : kota mizuishi／mizuishi architects atelier
structural engineer : kentaro nagasaka
lighting designer : tatsuoki nakajima
contractor : hirano–kensetu
site area : 52.14m2
building area : 29.07 m2
total floor area : 55.24 m2
structure : wood
story : 2
