非常感谢设计方Dominique Coulon Architecte予gooood分享以下内容。更多关于：Dominique Coulon Architecte on gooood
Appreciation towards Dominique Coulon Architecte for providing the following description:

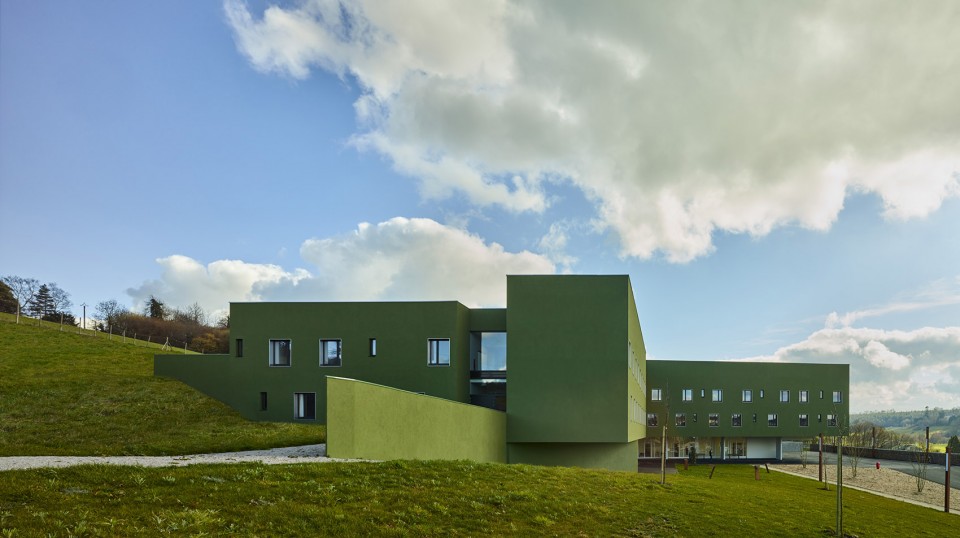

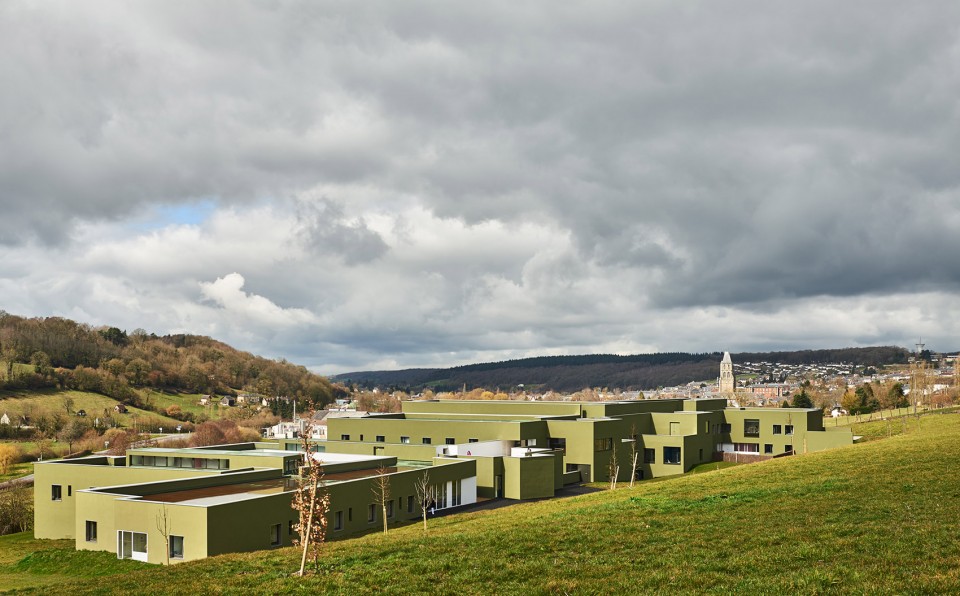

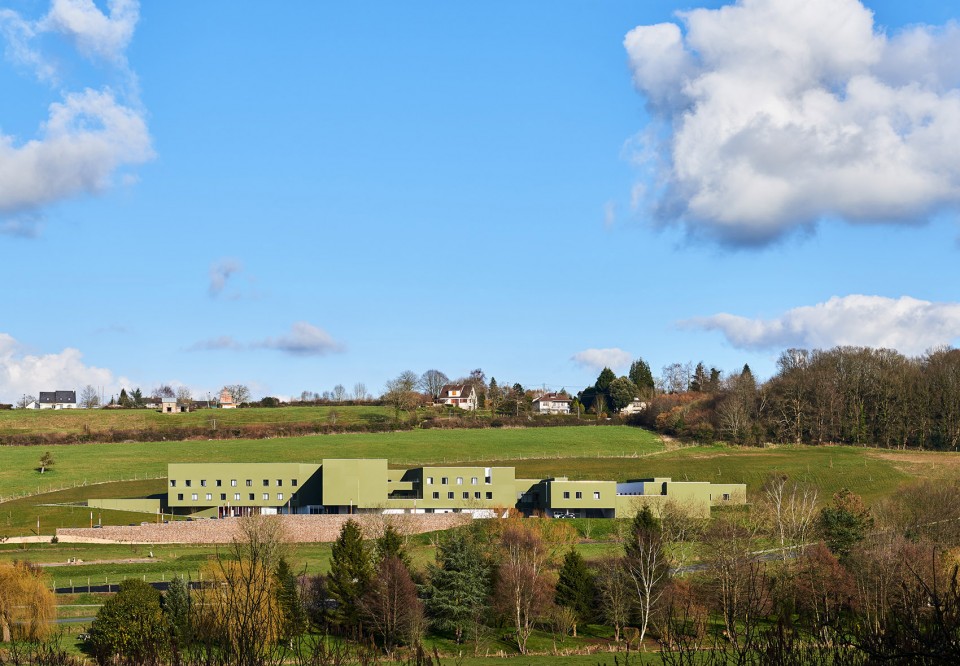

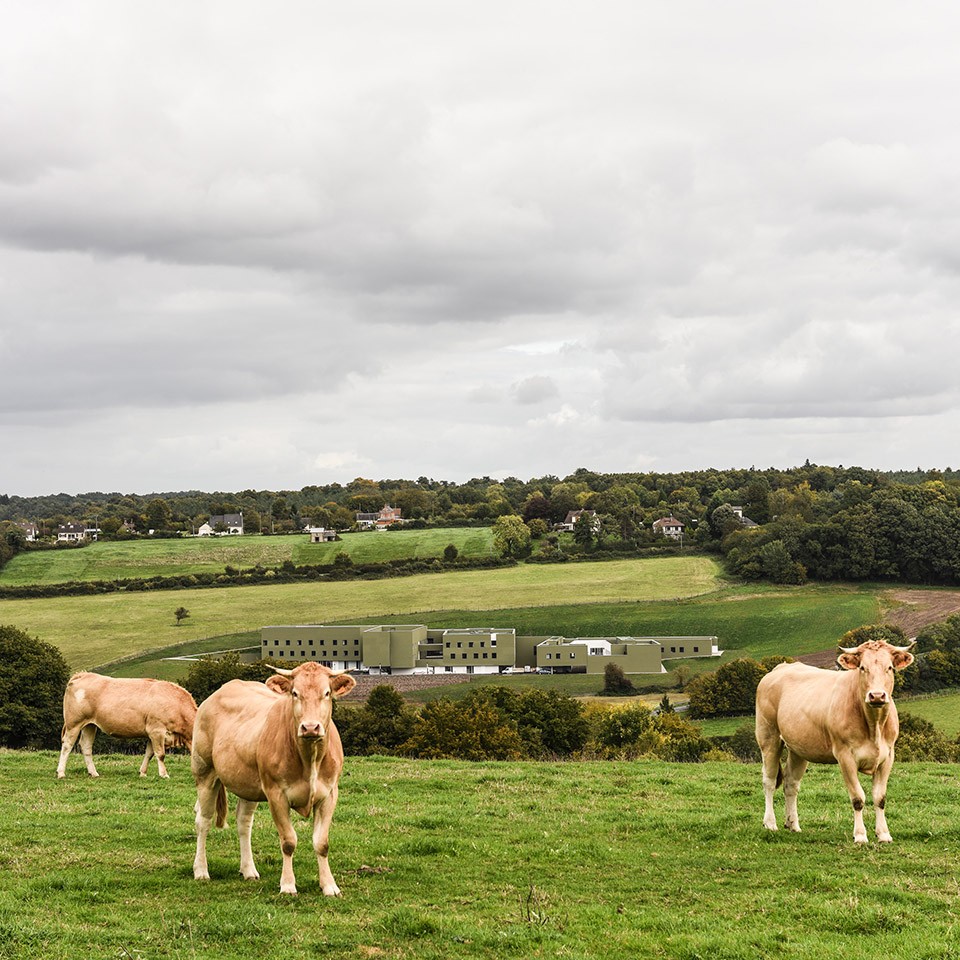

这家养老院盖在澳尔贝克村附近的诺曼底林区中央。养老院依山而建，即便是在山谷里也一眼就能看见。依山而建的养老院扩大了生活区和散步区，优化了对于景观的利用。

This care and retirement home has been built in the heart of the Normandy bocage near the village of Orbec. The building follows the sloping curve of the hillside, and is visible from the valley. The building has been designed to enhance the living and walking areas. Its strength lies in its relationship with the landscape.坐落于山峦之间景色秀丽处，绿色撞红色的炫彩动感养老院

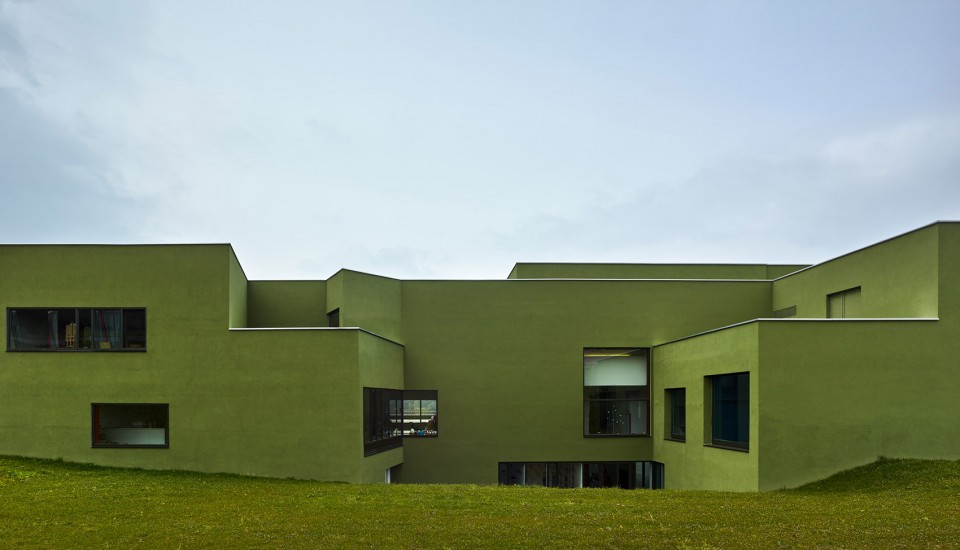

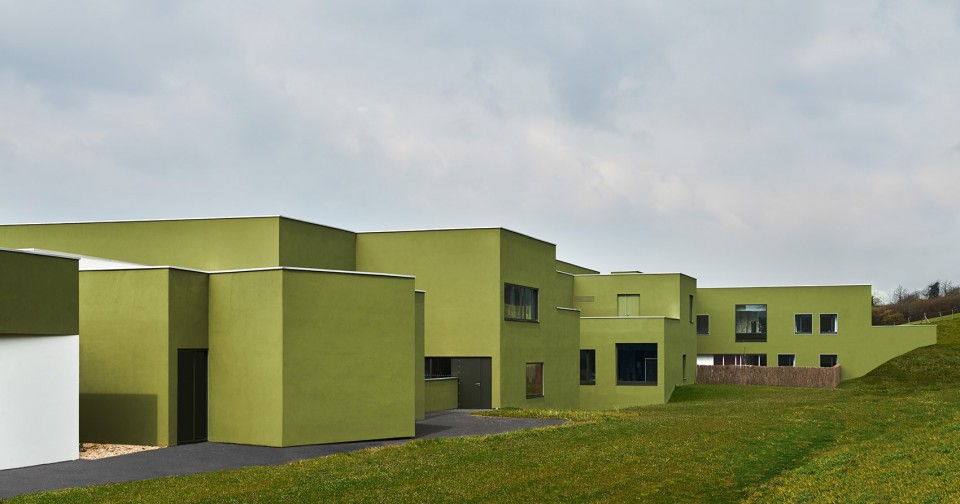

为了让养老院显得不那么突兀，减少视觉上的冲击，建筑师将其拆分为几部分建造。建筑师在项目中使用了绿色的元素，使养老院和周围风景融为一体的同时也体现出了周边环境的乡土自然气息。悬挑下方的外表皮和底部的白墙营造出了轻盈的感觉。

To reduce the visual impact of this imposing building, we felt it preferable to divide it up. We achieved the desired effect by using the colour green, with the result that the building both blends into the larger landscape and reflects the rural nature of the site. The under-faces of the overhangs and the white walls of the base produce a feeling of lightness.

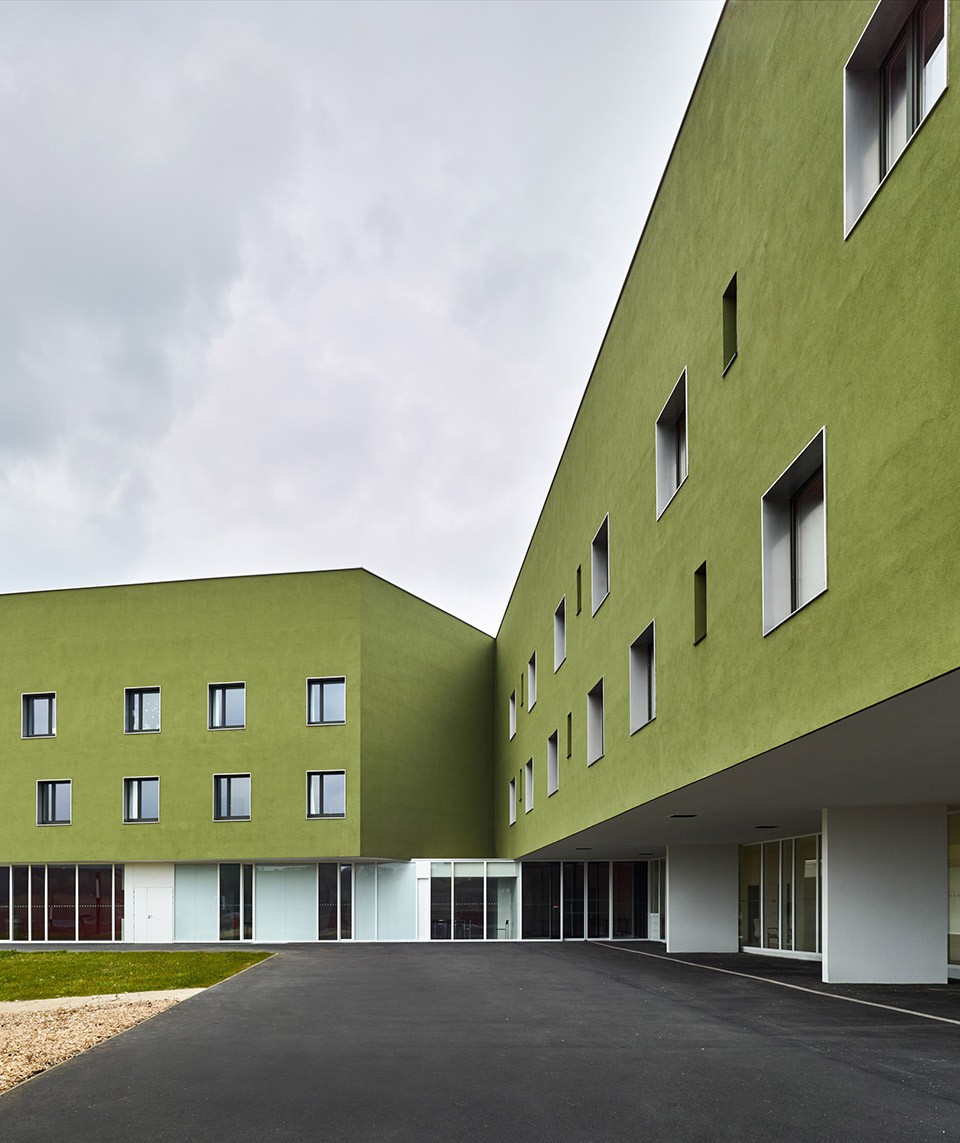

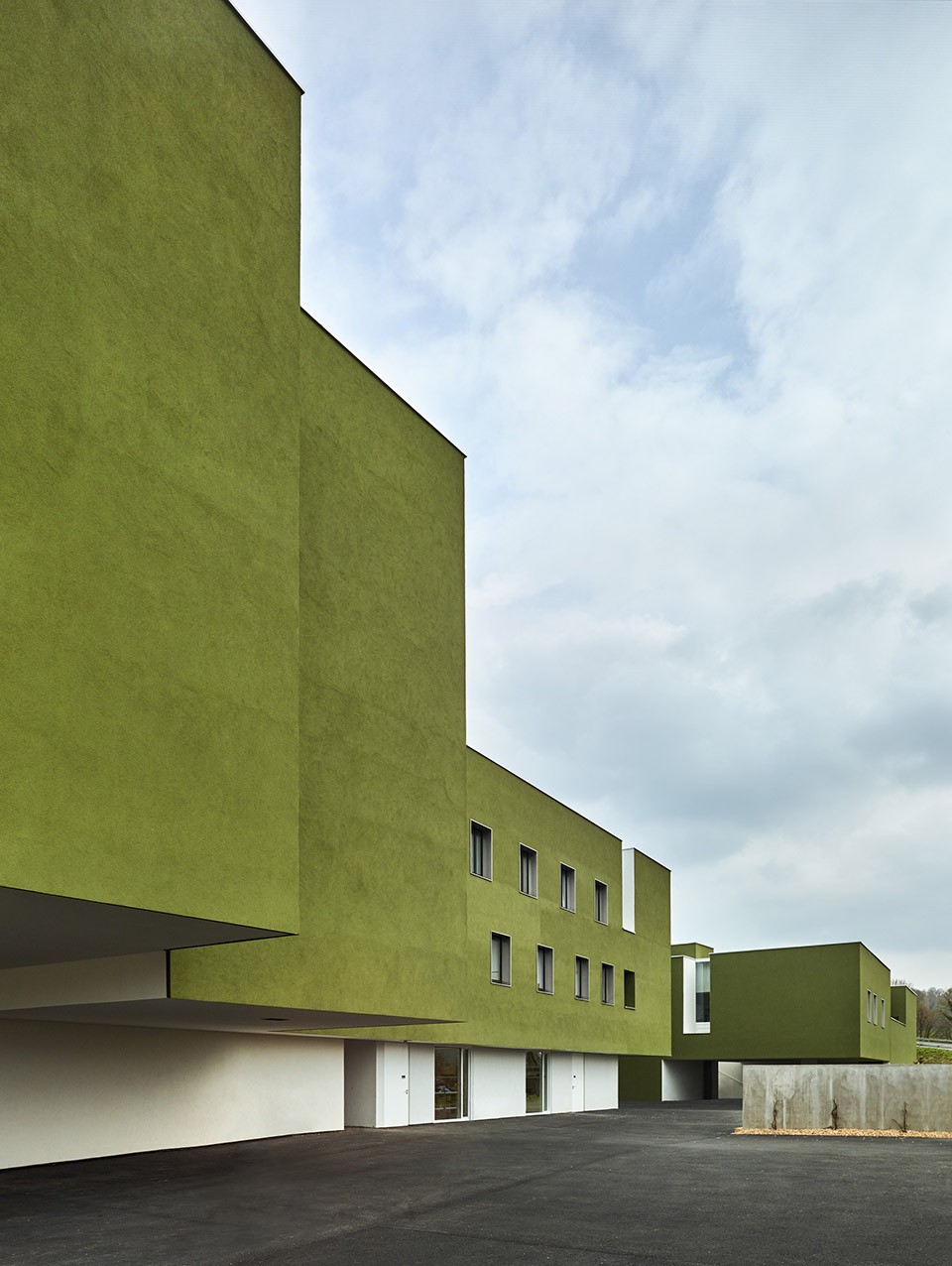

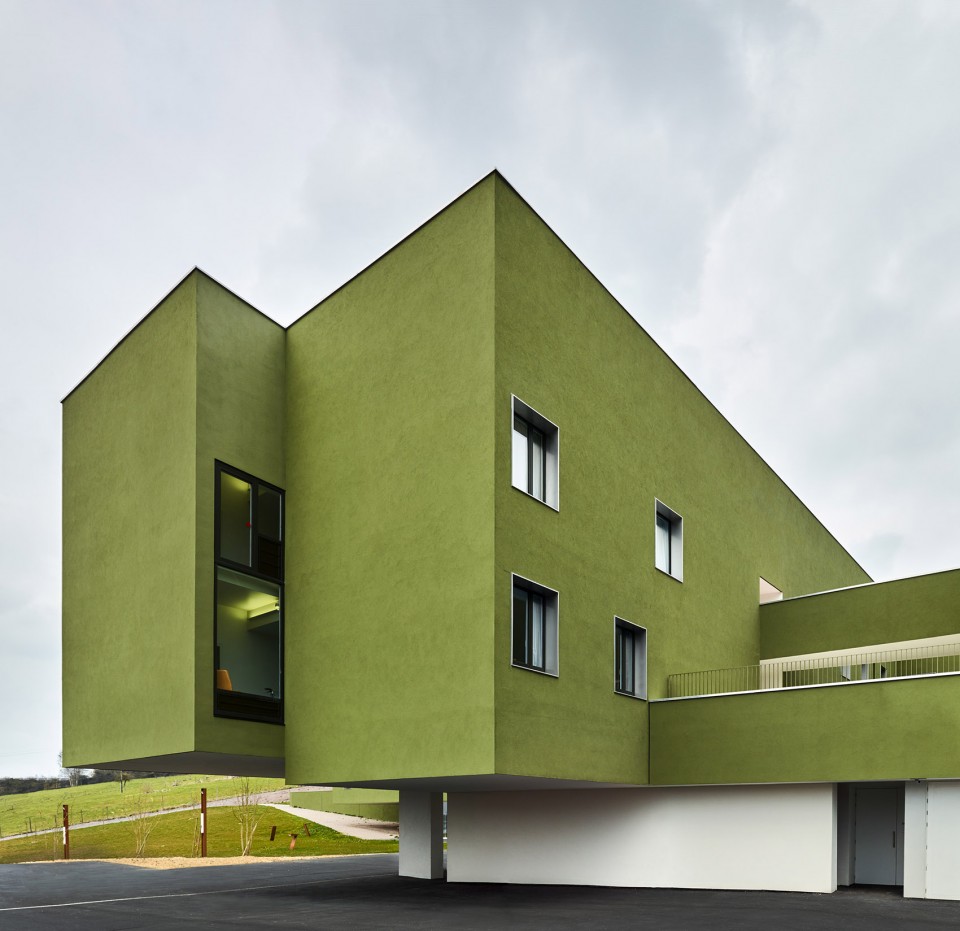

▽悬挑下方的外表皮和底部的白墙营造出了轻盈的感觉, The under-faces of the overhangs and the white walls of the base produce a feeling of lightness.

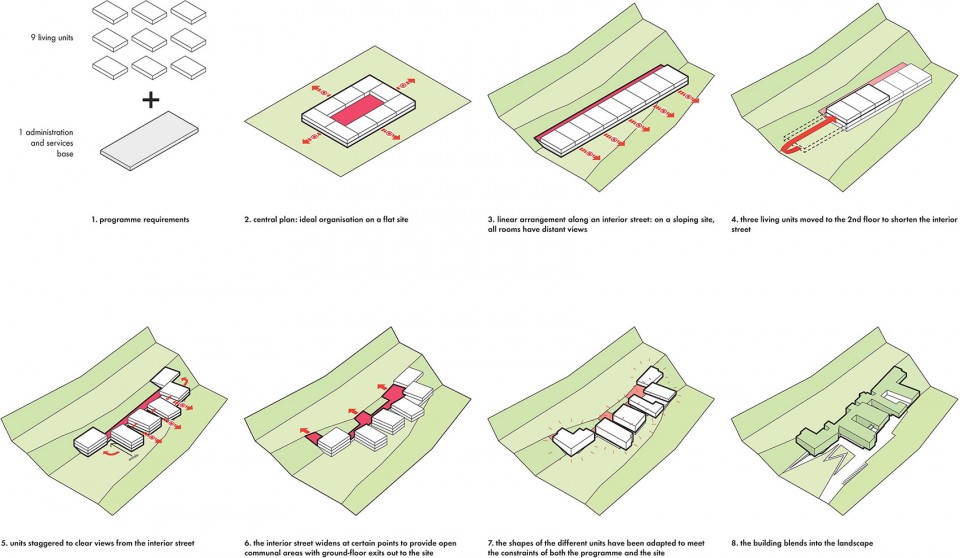

▽ 形体生成分析图，Form Transformation Diagram

每个生活单元都是建筑不可分割的一部分，并且所有的生活单元都与朝南的山边街道相衔接。这样的布局使得建筑两边都能看见风景，光线在交通流线中穿梭，丰富了景观。

Each of the living units fits into one section of the building, and all are connected to a south-facing street, backed by the hill. This arrangement gives views through the building from one side to the other, with light punctuating the traffic routes and achieving maximum variety.

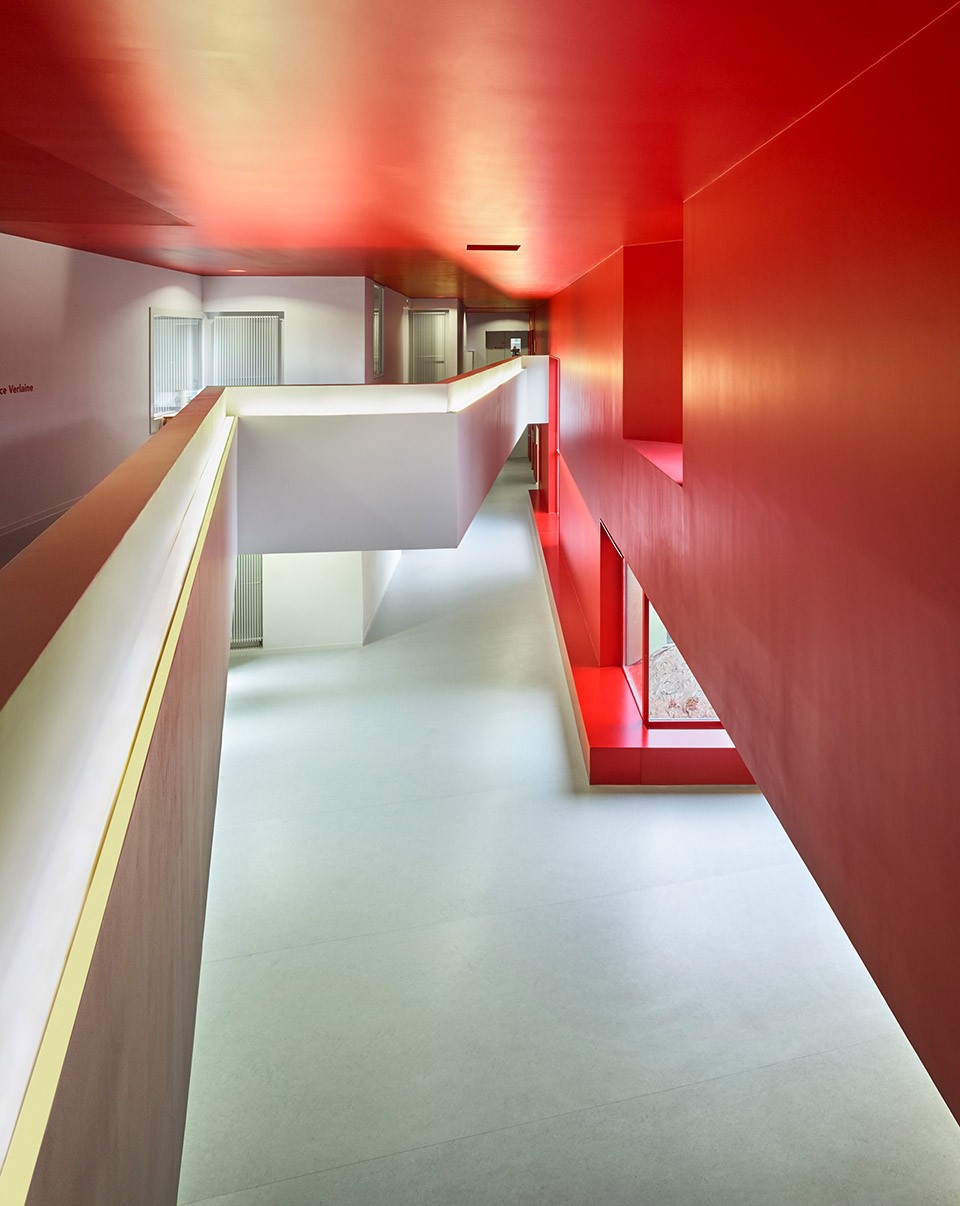

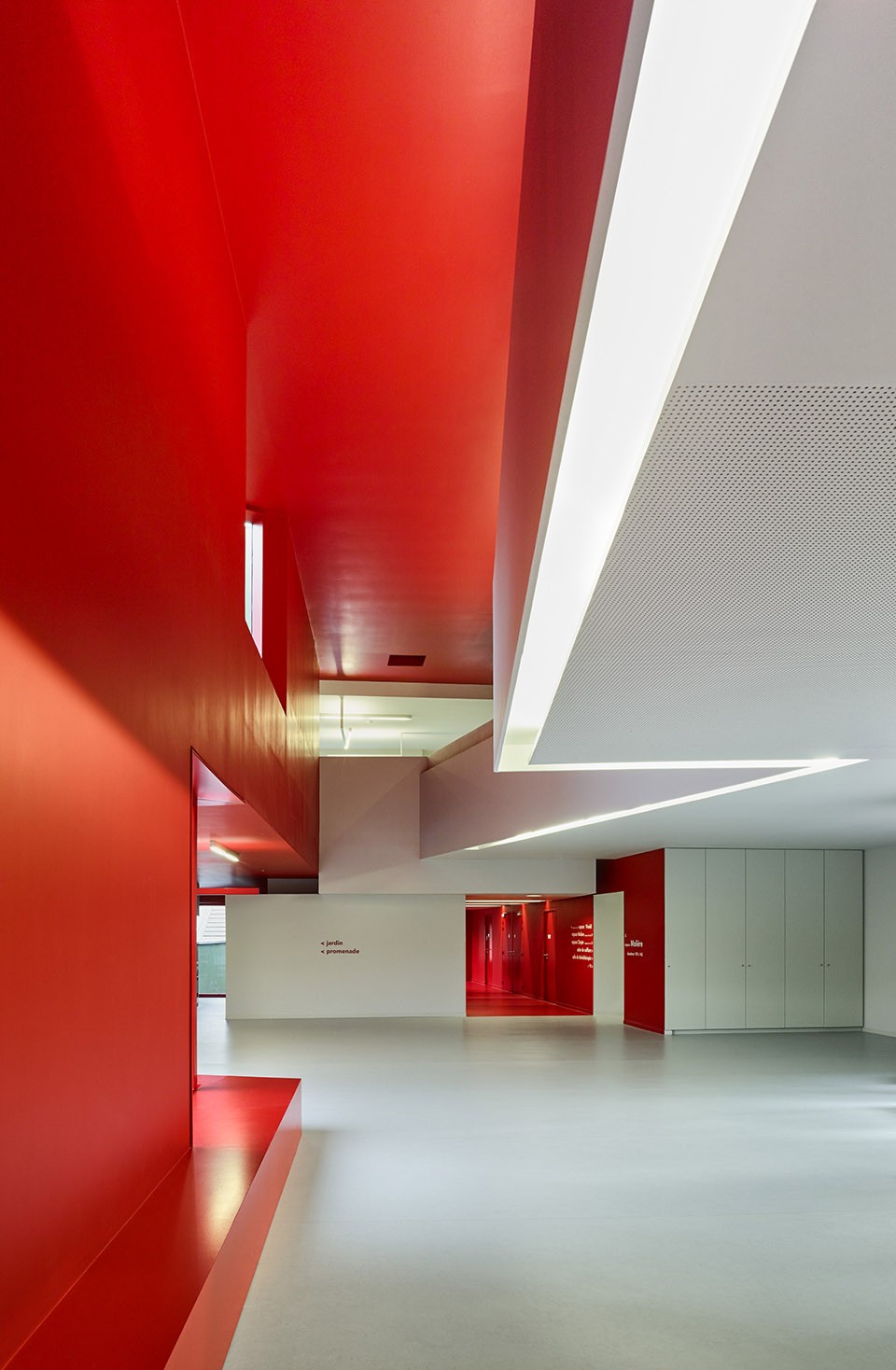

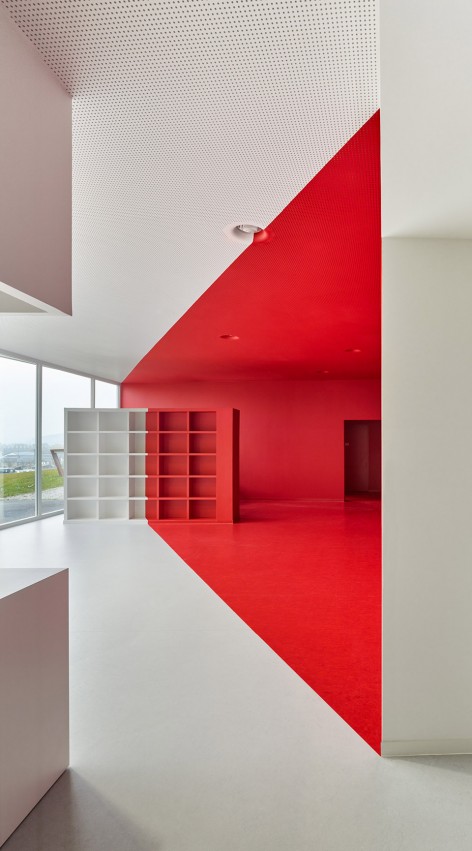

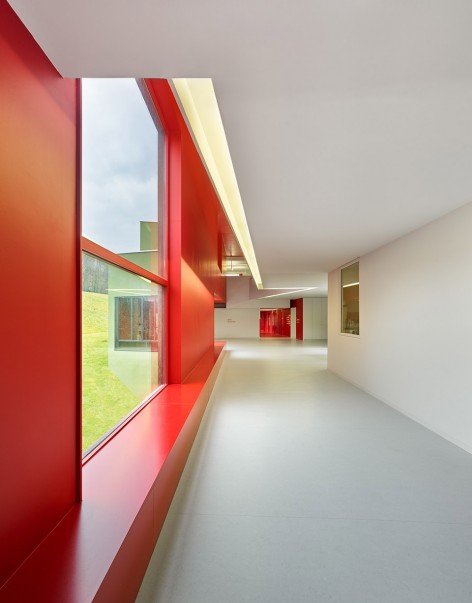

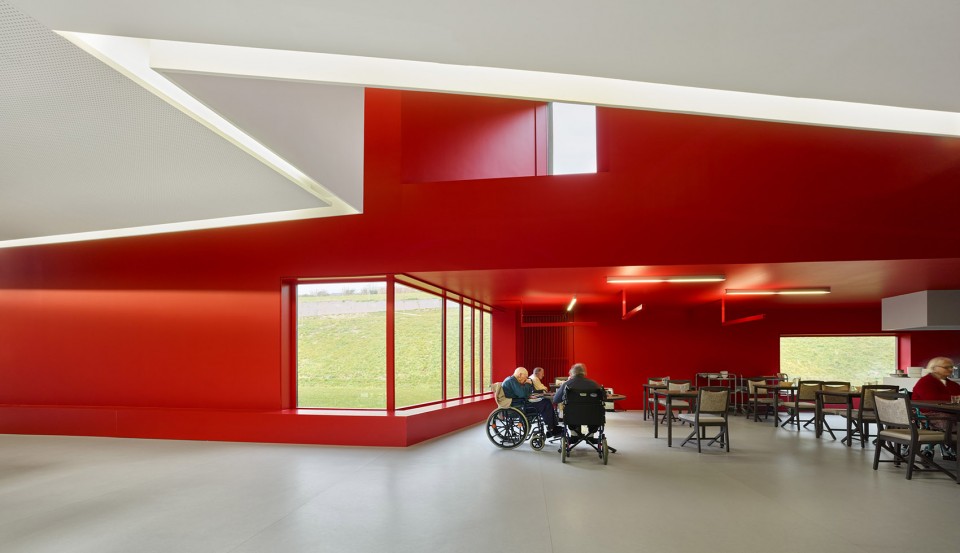

建筑师使用红色分隔空间的同时还增添了空间的活力。建筑师避免了使用传统医疗环境用色以创造更温馨的环境。
The colour red destruct the space and adds dynamic. We have avoided using the conventional colours of the hospital environment.

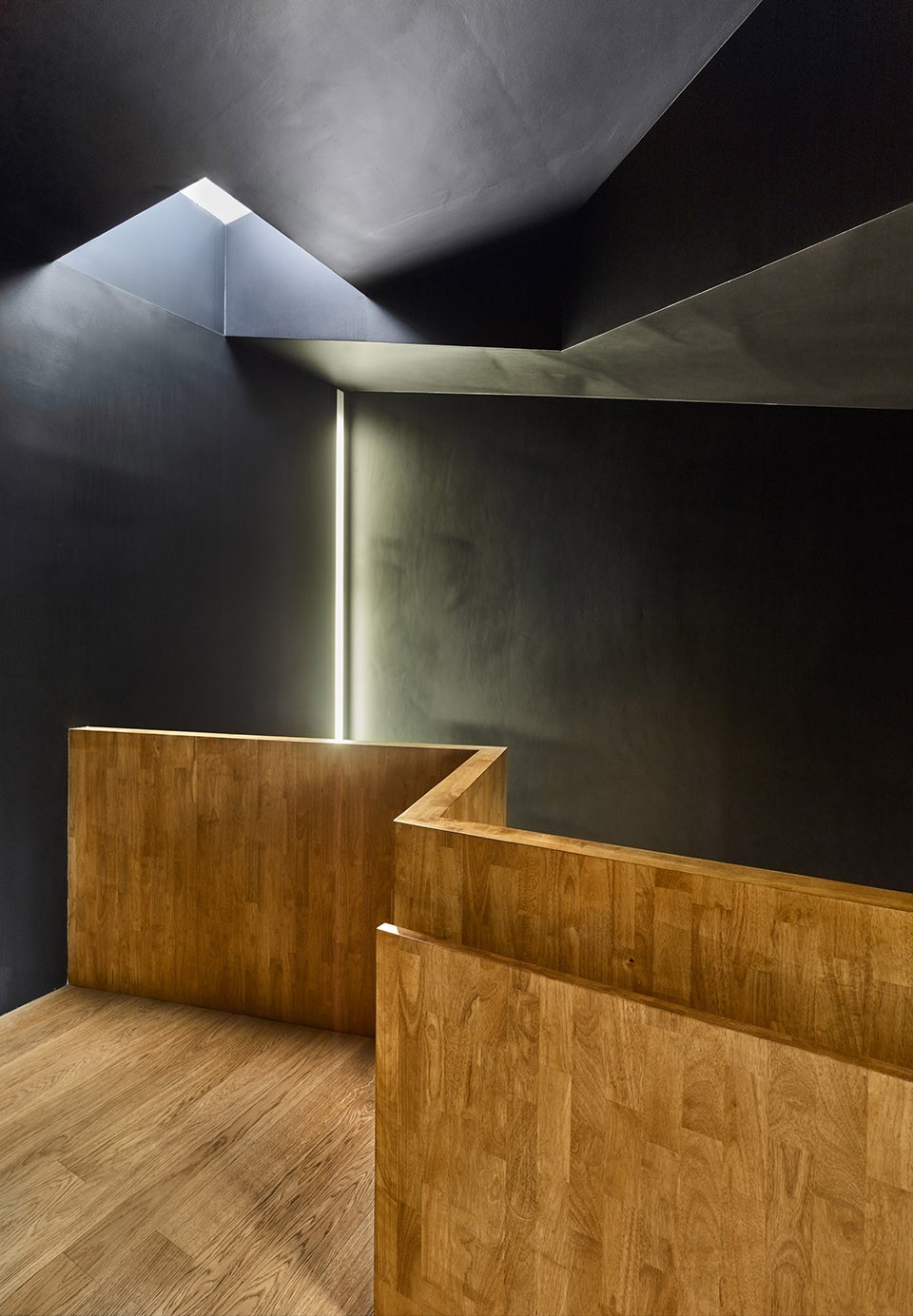

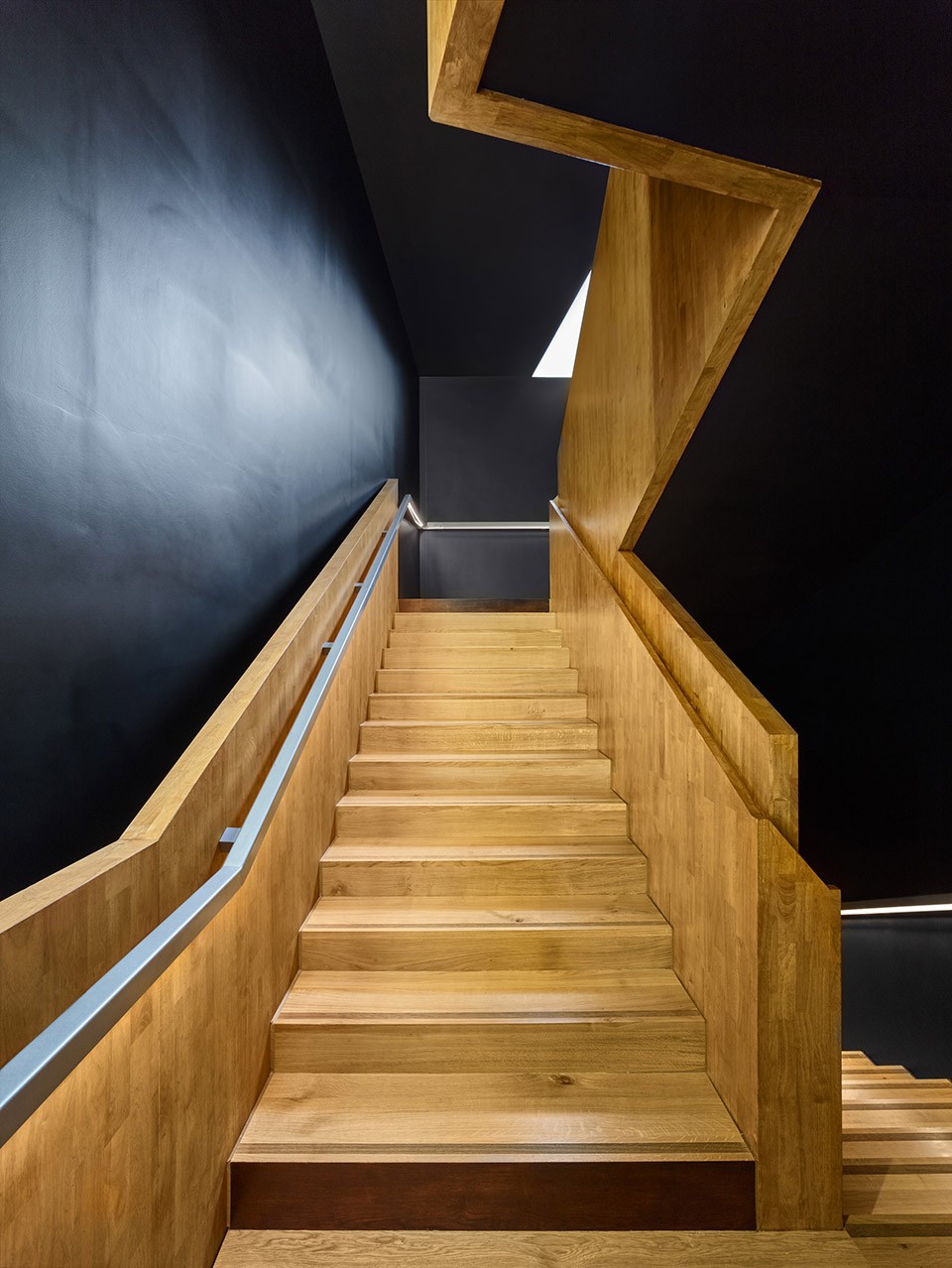

▽运用黑色与木色打造交通空间，Architect use black and wood in circulation space

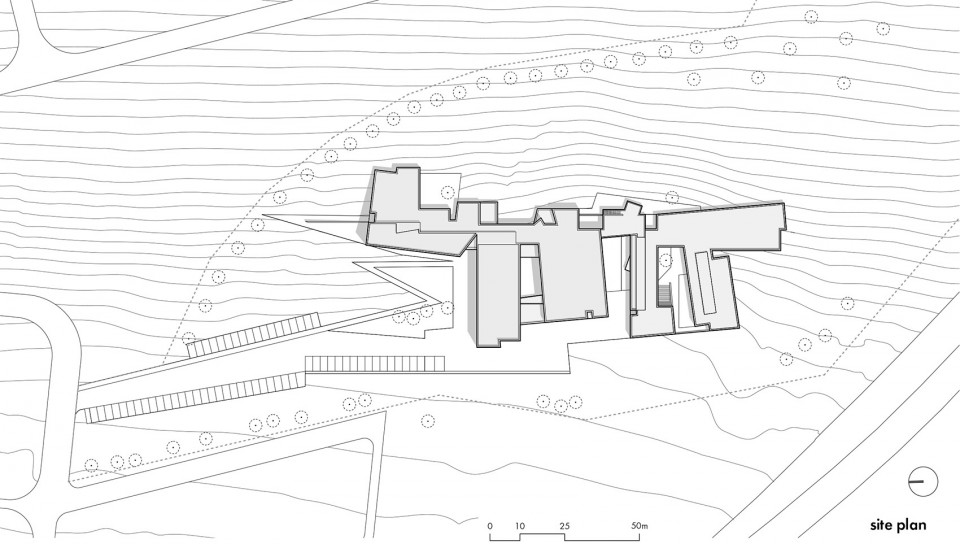

▽总平面，Site Plan

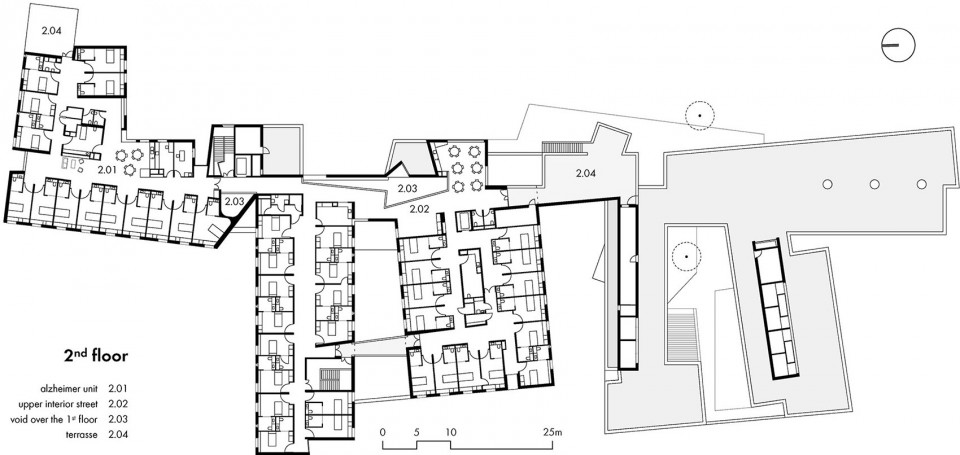

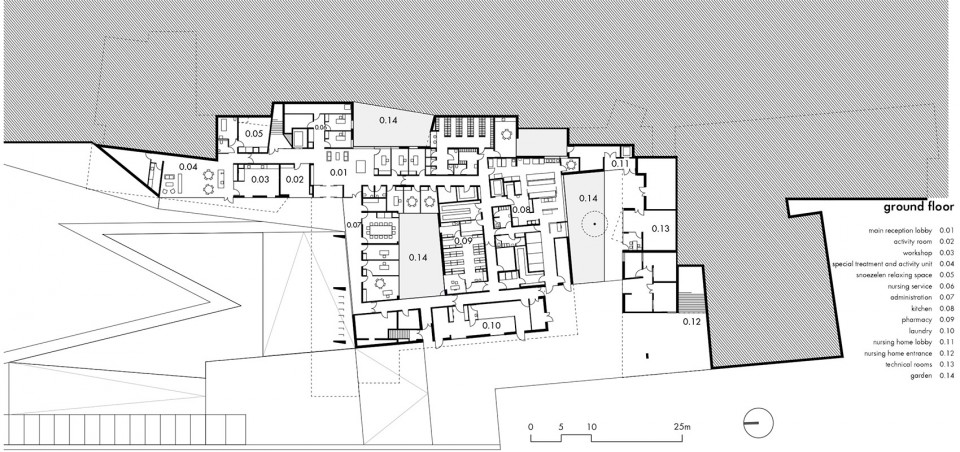

▽平面图，Floor Plans

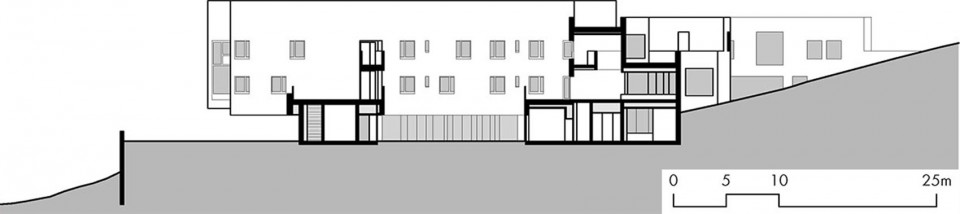

▽剖面图，Sections

Client : EPMS Marie du Merle in Orbec
Architect : Dominique Coulon & associés
Dominique Coulon, Benjamin Rocchi
Architects assistants : David Romero-Uzeda, Olivier Nicollas, Chang Zhang, Javier Gigosos Ruipérez, Pedro Rodríguez Ruipérez, Ania Klukowski, Gautier Duthoit
Construction site supervision : Emilie Brichard, Jean Scherer
Engineers and consultants :
Structural Engineer : Batiserf Ingénierie
Mechanical Plumbing Engineer : BET G.Jost
Electrical Engineer : BET G.Jost
Cost Estimator : E3 économie
Acoustics : Euro sound project
Kitchen expert : Ecotral
Landscape : Bruno Kubler
Program : 115-room unit in Orbec, combining a home for dependent elderly people and a nursing home : 85-bed home for dependent elderly people / 30-bed nursing home / Day-centre providing specially adapted activities and treatment / Catering kitchen / Administrative offices / Treatment department
Address : 8 rue de la Source, 14290 Orbec, Calvados / Localisation GPS : 49.012285, 0.411406
Surface : 5833 sqm
Budget : 12 279 536 € H.T
Schedule :
Competition : September 2008
Plans and technical phases : from october 2008 to january 2012
Construction : from january 2012 to september 2015
Construction companies :
Earthworks (LANGEVIN TP), special foundations, poles (PIEUX OUEST), Structure + sewerage networks (GAGNERAUD Construction), road works (COLAS) water proofing roofing (SEO), exterior joinery (ACD ERNOULT), facades (DSA ATLANTIQUE), green areas (LEBLOIS ENVIRONNEMENT), metalworks (R2C), interior joinery (PERRIN), plastering (JOBIN PLÂTRE MODERNE), elevator (OTIS), glued floors (PATRIZIO), tiled floors (REVNOR), painting (DURAND), electricity (EIFFAGE ENERGIE), heating, ventilation, plombing and drainage (SANICHAUFFAGE), kitchen and frozen chamber (MBI).
Photography : ©Eugeni Pons, Photographer
