近日，HASA Architects将位于伦敦北部Highgate Bowl区域的一座废弃的园艺温室改造为一个聚会场所。

HASA Architects has completed works to transform a derelict horticultural glasshouse at Highgate Bowl in North London into a new event space.

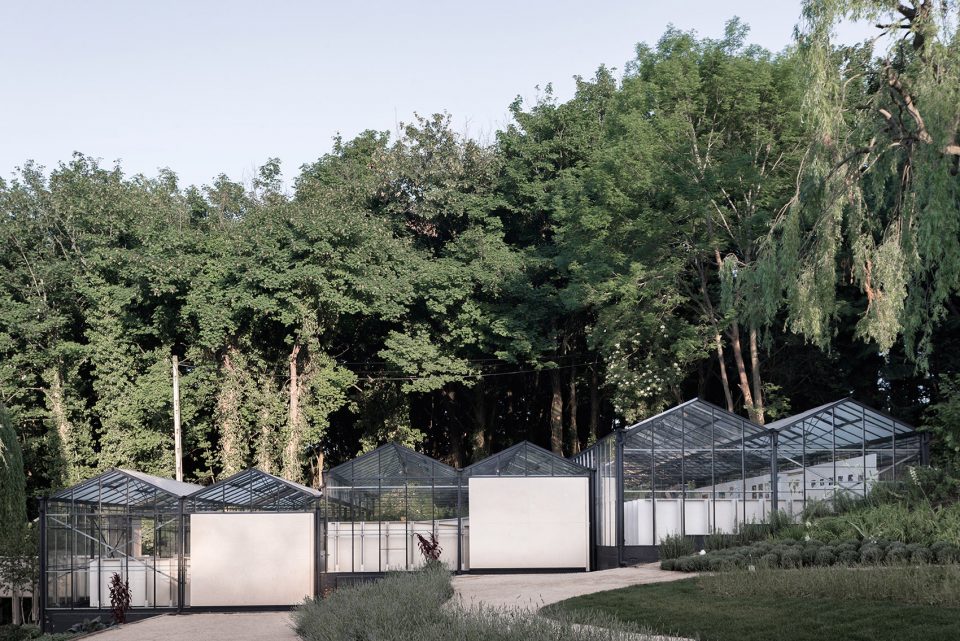

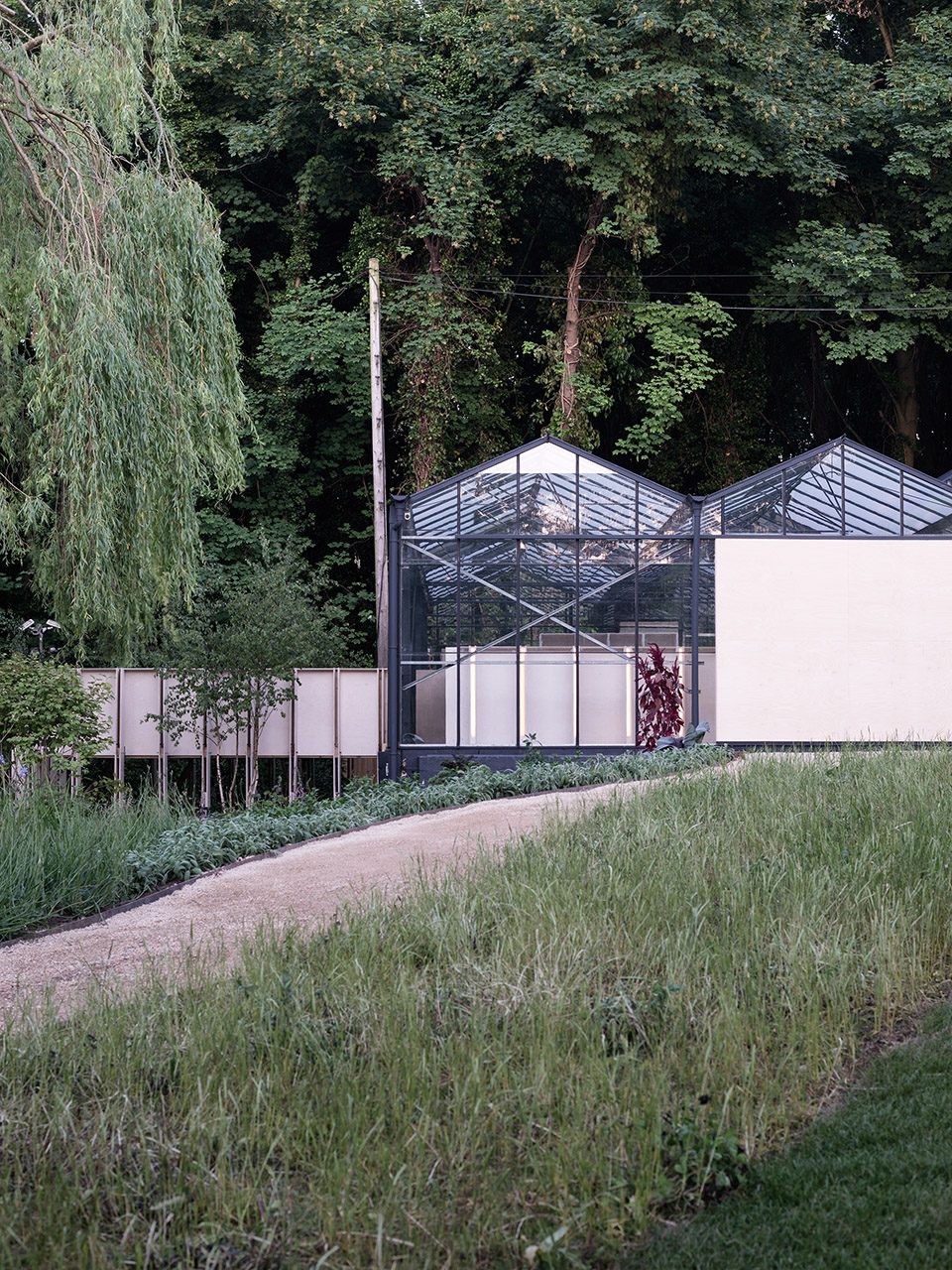

▼建筑外观，exterior view

该项目的灵感来自原始建筑的框架结构和建设过程。作为对于可能性的一种探索，建筑师通过一系列小尺度的干预让建筑获得新生。这些措施包括增加新的外部入口，重新规划内部的通道，并增加了一些房间和家具，以引导访问者的路线，穿越温室开放的可以一直望向周围的景观。事务所于2017年一月勘察基地，并提出了将废弃的温室改造为多功能活动空间的方案。新的活动空间将可以举办展览和演出。建筑师于2017年2月向业主展示了改造计划的前景，此后不久就开始了正式工作。

The project, inspired by the frame and construction of the original building, explores the possibilities of this forgotten piece of the city by bringing it back into use through a series of small-scale interventions. These sensitive interventions take the form of new external and internal pathways, as well as rooms and furniture pieces that guide visitors through the large open bays of the glasshouse while framing views of the surrounding landscape and Bowl beyond.

The practice visited the site in January 2017 and set about devising a proposal that would result in the restoration of the derelict glasshouse, creating a versatile event space that could be used for a range of activities including exhibitions and performances. They presented their vision for the glasshouse to the client in February 2017 convincing them of the site’s potential and work began shortly thereafter.

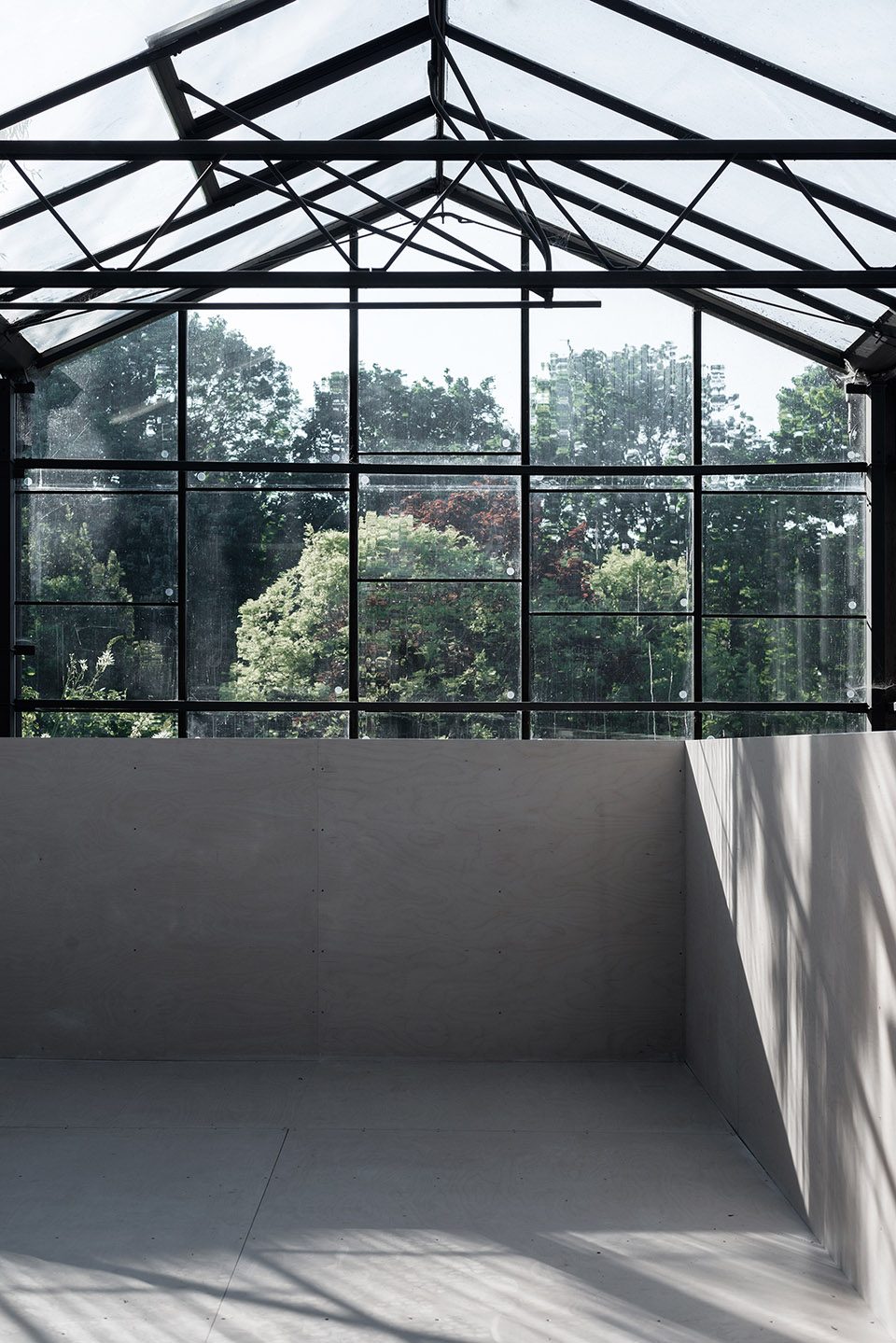

▼通过一系列小尺度的干预让建筑获得新生，the forgotten piece is brought back into use through a series of small-scale interventions

受到原始建筑的框架和面板结构启发，建筑师用胶合板打造了一个折叠空间。新的通道、房间和家具用模块化的方法进行设计和安装，以协调不同开间之间的高度变化，并为游客和纤细的玻璃幕墙之间提供缓冲。

桦木胶合板的表面以奥斯莫油作为涂层，用于制作新的平台和细木工部件。原来的推拉门被新的胶合板门替代，后者带有大号门把手。采用同一种材料的做法创造了空间的连续性，并加强了不同分区之间的联系。与此同时，胶合板表面的浅色调木纹与温室玻璃和周围花园的景观形成了对比。原有结构被漆成黑色，以强调新与旧的对照。

The design’s plywood skin creates a folded landscape that is inspired by the original structure’s frame and panel construction. The new pathways, rooms and furniture pieces are designed in a modular configuration to negotiate the change in levels between each bay and provide separation between visitors and the fragile glass outer skin.

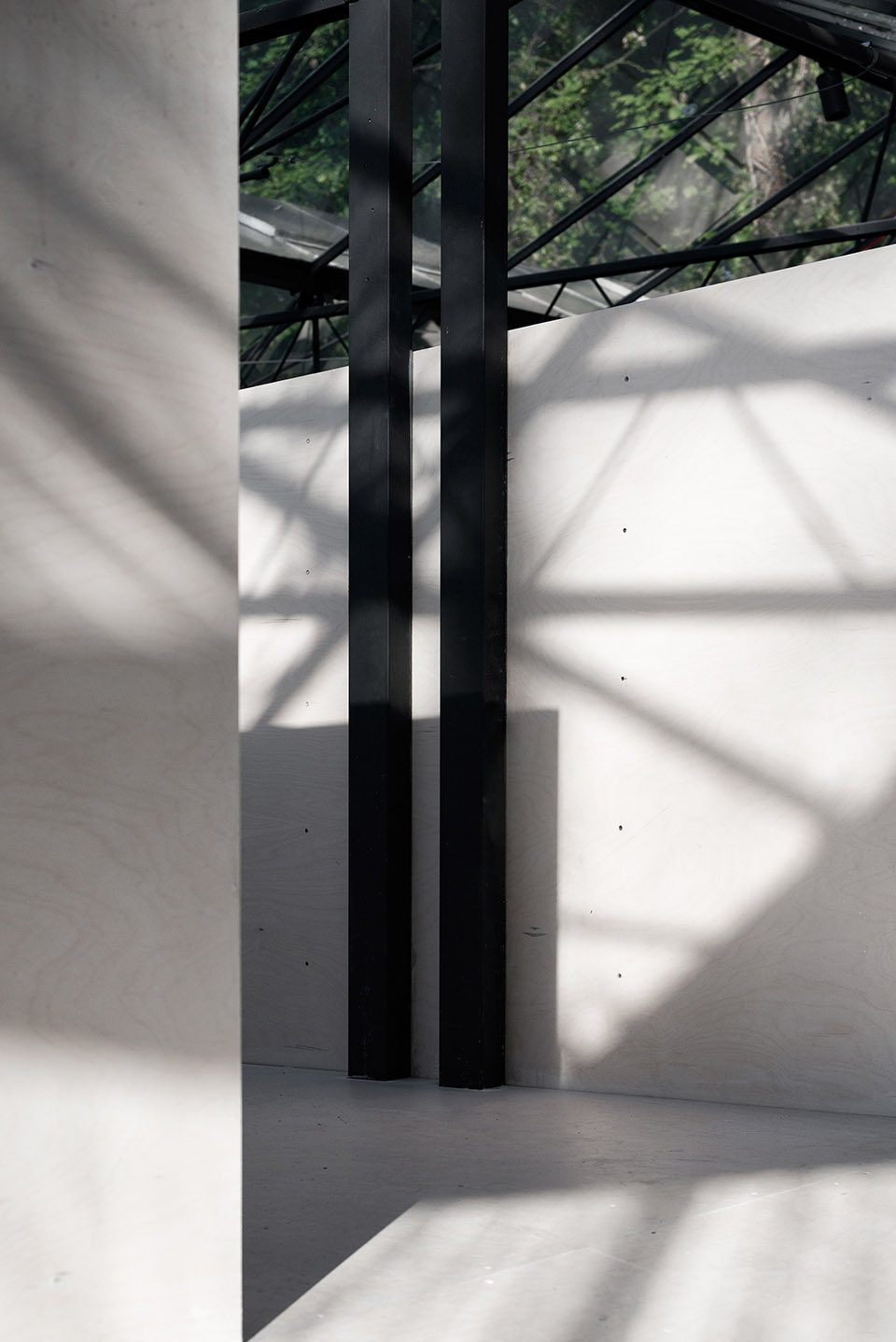

Birch plywood, finished in a white Osmo oil, is used to form the new platform and joinery components. The original sliding doors are replaced with new plywood doors with oversized handles that mimic the structural fins that form the sides to the platform. The use of one material throughout creates continuity and reinforces the connection between each bay while the light tone of the plywood finish offers a subtle contrast against the glasshouse and the landscape. To provide contrast, the application of a dark finish is applied to the existing structure creating a distinction between old and new.

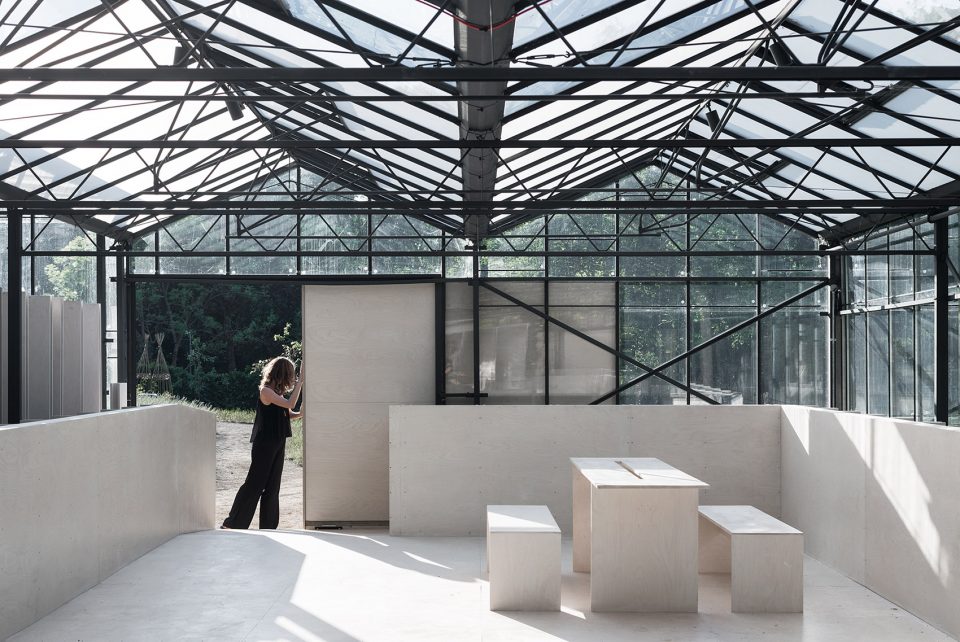

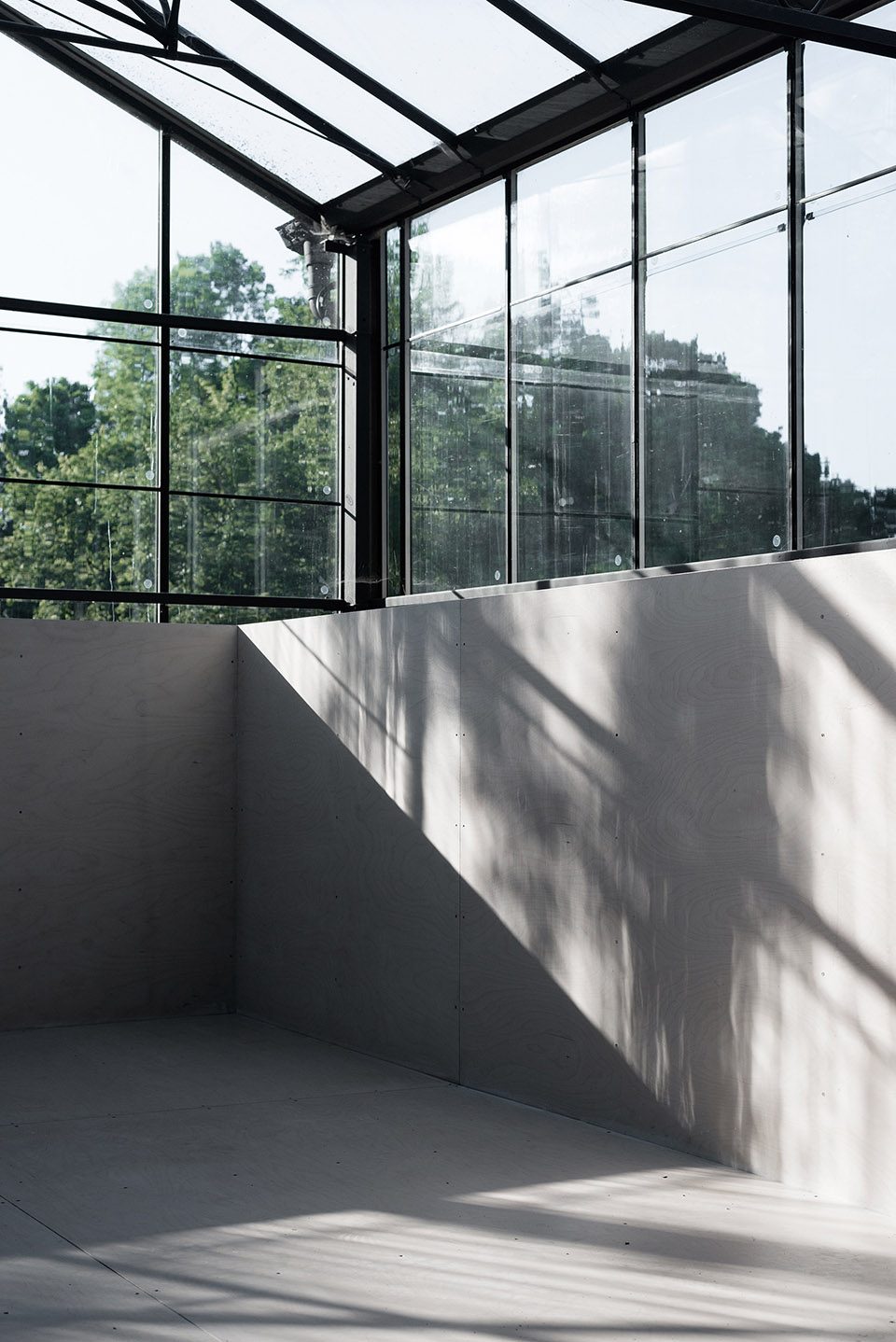

▼新建结构完全由胶合板打造，创造了一个整体空间，the new structure is entirely made up of plywood, creating a whole space

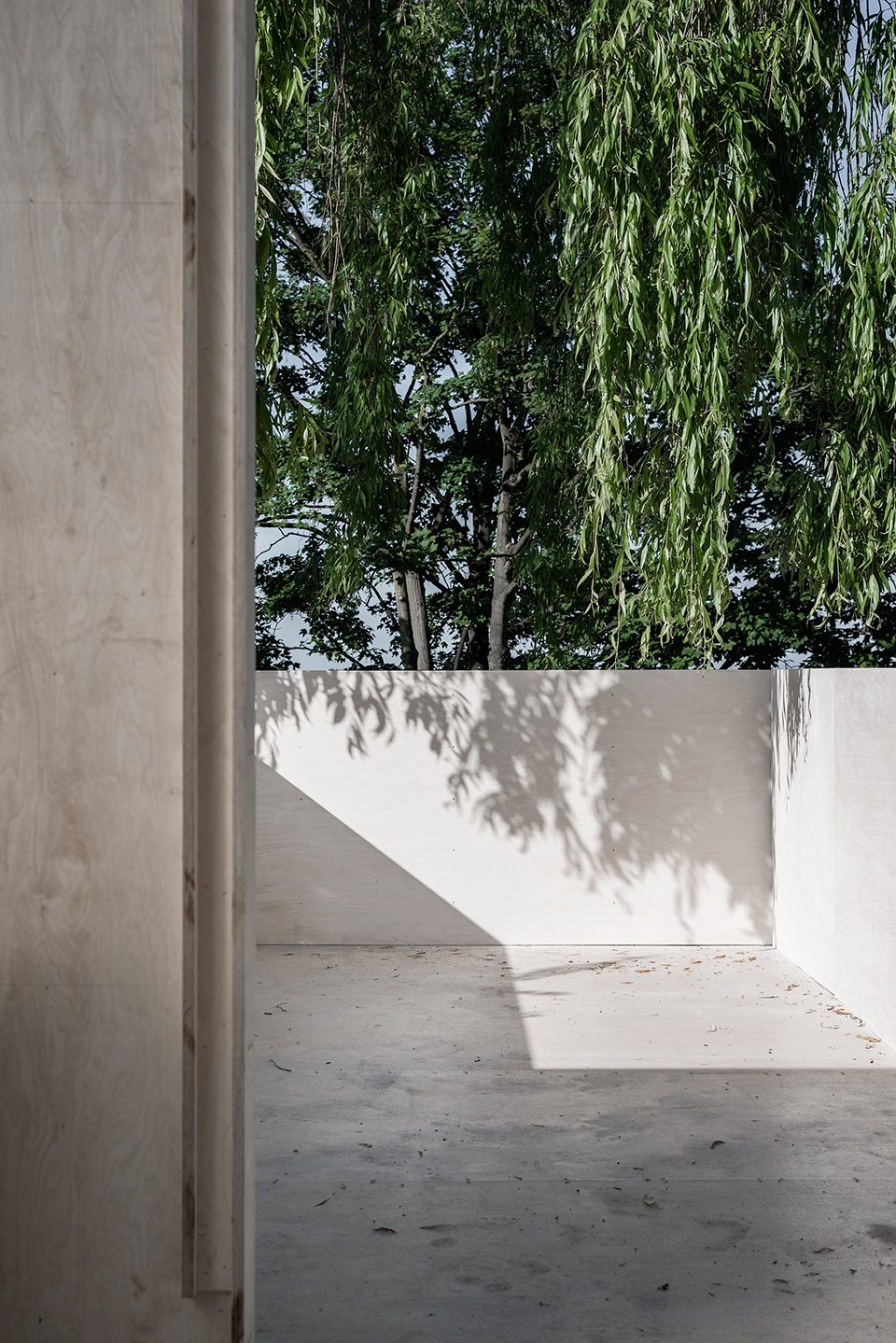

▼开敞的露台与自然紧密联系，the open terrace is in close contact with nature

为了确保建筑在五月的切尔西花卉展览会之前完工，细节采用了物理模型和1:1的结构模型辅助设计。现场施工仅用了六周，并分为三个阶段：1. 温室的复原；2. 玻璃涂装保护膜；3. 安装细木工部件。胶合板部件的制作采用了计算机数控技术在工厂制作，并在十天内组装完成。最后，木板表面涂上了白色的奥斯莫油以保证整个结构的和谐一致。

To ensure completion by the opening of the Chelsea Flower Show in May, the detail design was developed using physical models and 1:1 mock-ups of the structural elements. The works were carried out on site within a 6-week period, phased into three separate packages: i) restoration to the glasshouse; ii) application of protective film to the glass; and iii) installation of the joinery elements.

The plywood components were manufactured off site using CNC (computer numerical control) cutting services and assembled within a 10-day period. The white Osmo oil was applied to the wood once the components were on site to ensure consistency throughout the structure.

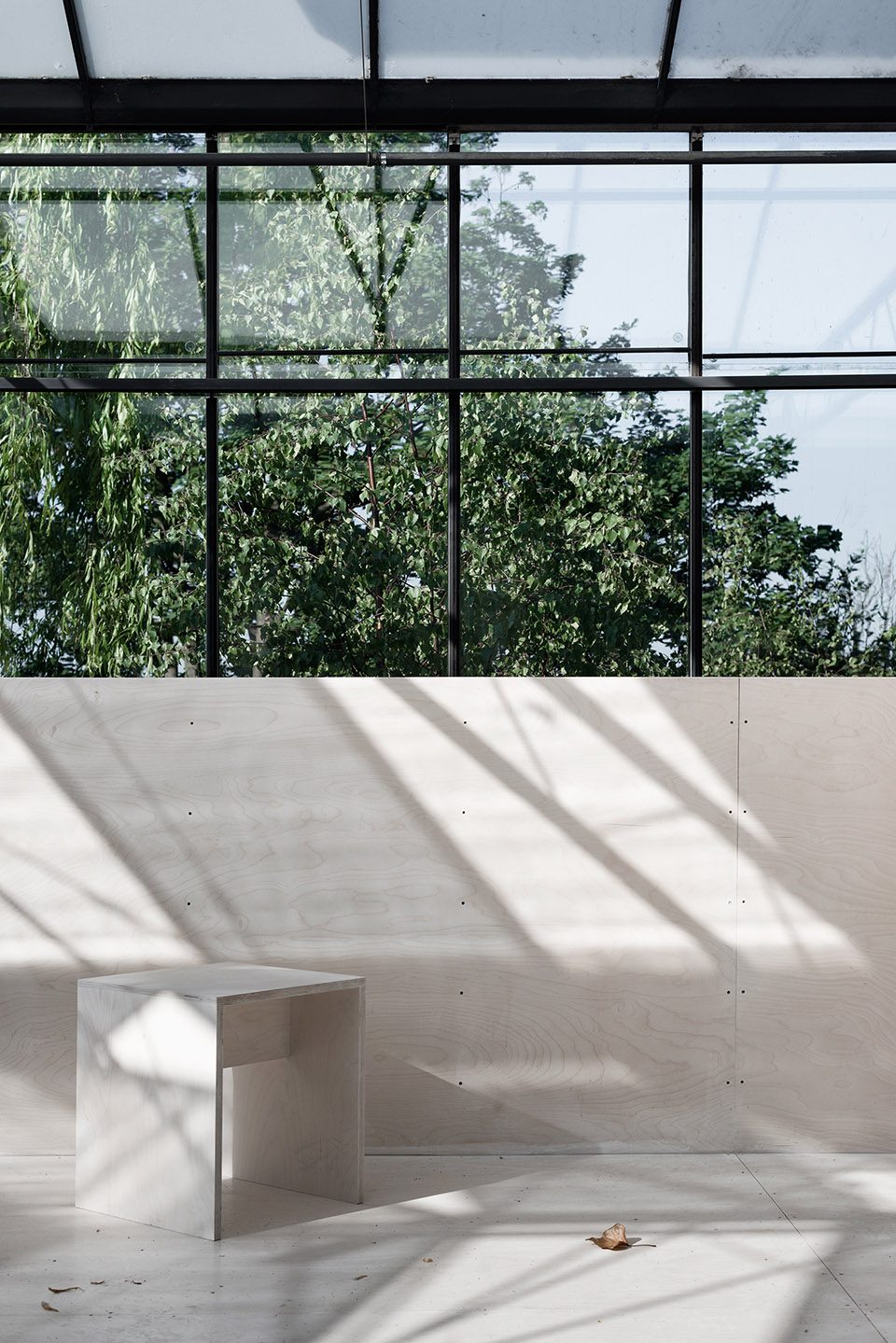

▼细节采用了物理模型和1:1的结构模型辅助设计， the detail design was developed using physical models and 1:1 mock-ups of the structural elements

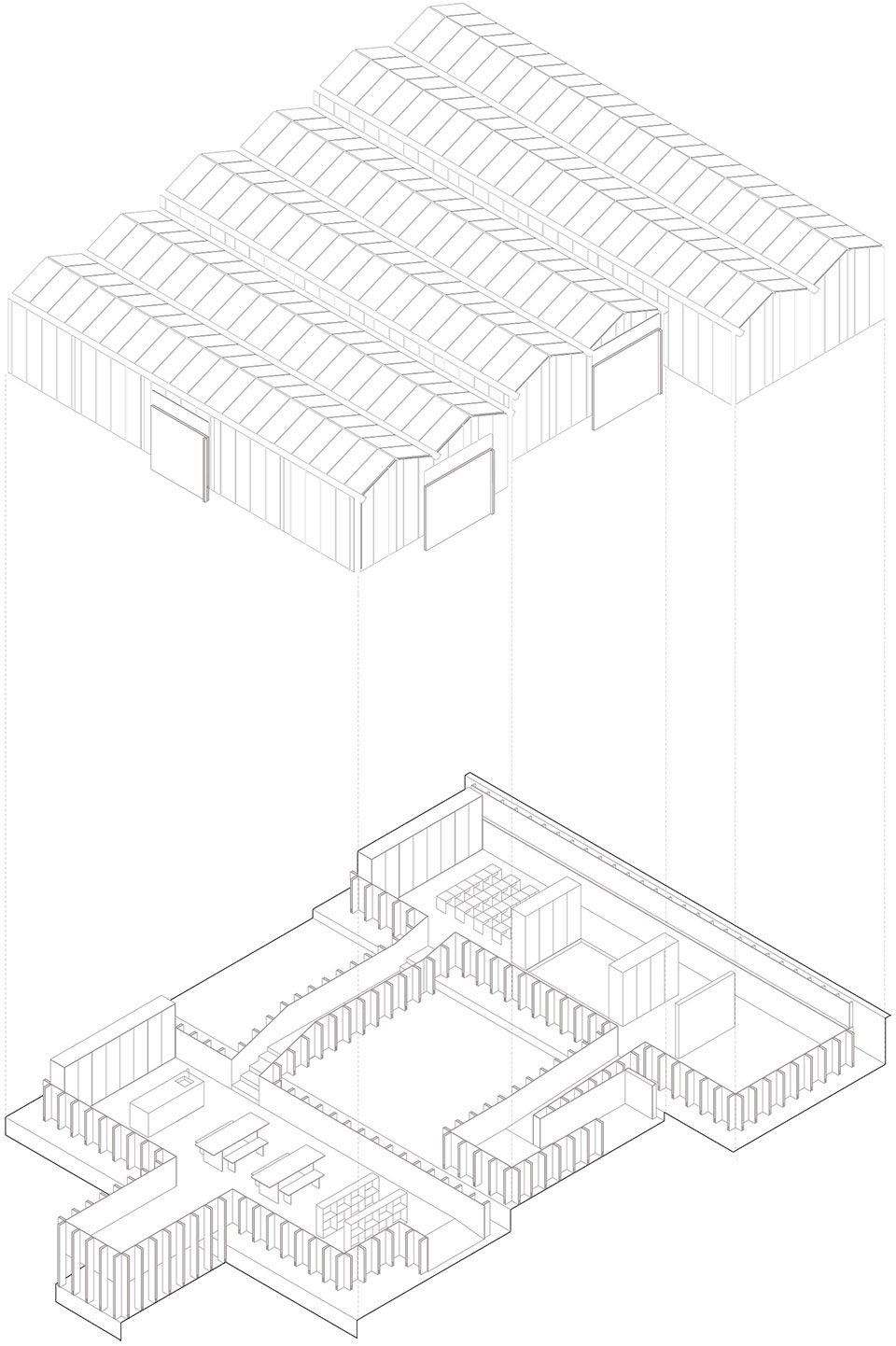

▼轴测图，axonometric view

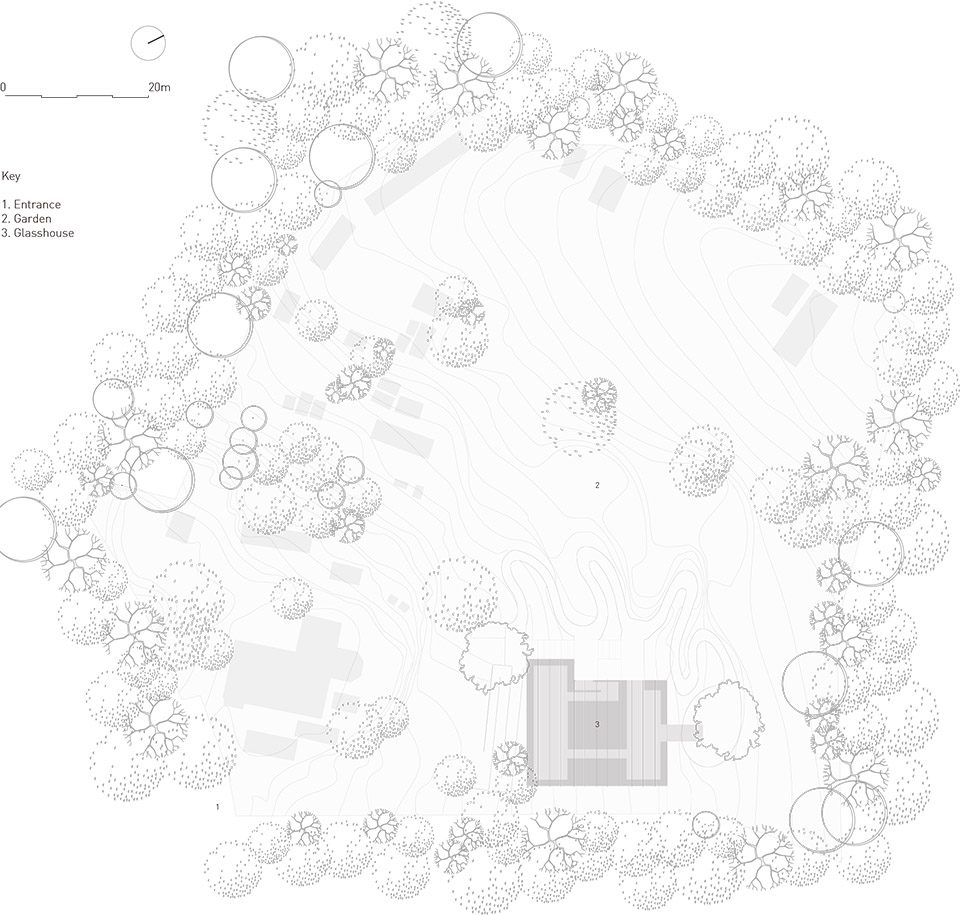

▼总平面图，siteplan

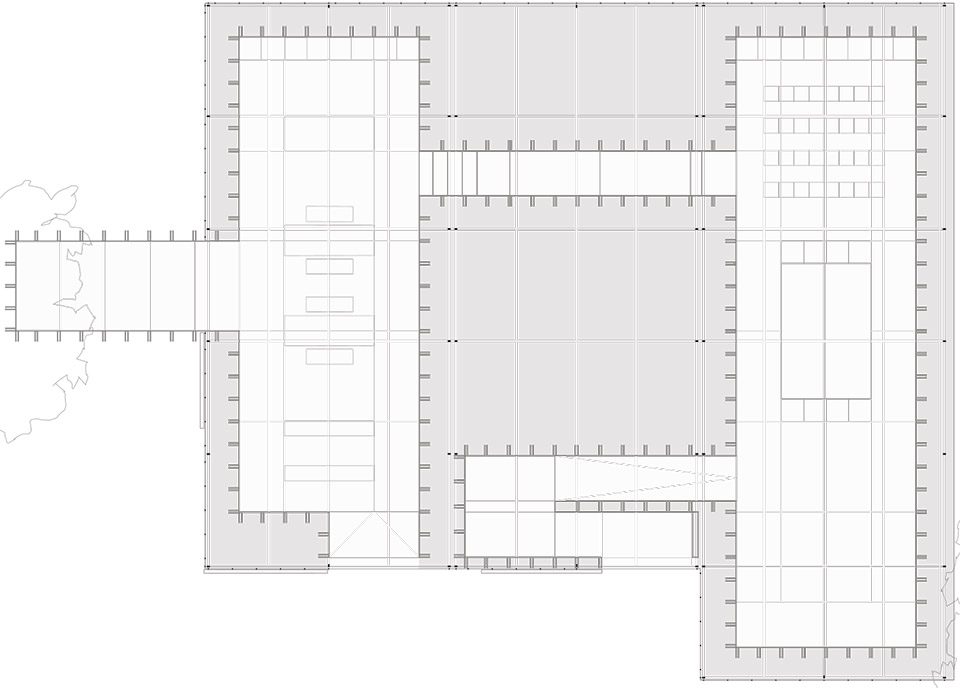

▼平面图，plan

Photographer: Simone Bossi
Location: Highgate, London, UK
Start on site date: April 2017
Completion date: May 2017
Gross internal floor area: 320 sqm
