感谢 SOM 予gooood的分享。更多关于他们：SOM on gooood
Appreciations towards SOM for providing the following description:

望朝中心是杭州新兴开发区钱江世纪城的又一地标性建筑，扩大了杭州繁华商业中心的版图。望朝中心大楼高度为280 米，是区域内第二高的建筑，迎接着从庆春隧道和盈丰路地铁站出来的通勤族和游客，它既是钱江世纪城的门户建筑，又是公共交通导向型开发的典范。

The Wangchao Center is a prominent addition to Hangzhou’s new Qianjiang Century Town development, an expansion to the city that has emerged as a bustling center of commerce. Rising 280 meters as the district’s second tallest building, the tower celebrates the arrival of commuters and travelers as they emerge from the Qingchun Tunnel and the Yingfeng subway station—serving as a gateway to this part of the city, and a model for smart, transit-oriented development.

▼项目概览，Project overview © 朱清言

将结构效率、可持续性和针对各种复杂挑战的应对能力集中体现在一个独特的流线型设计中，是SOM建筑与结构团队协作整合的典范。建筑首层高流动性且友好的开放空间将为该地区打造一个新的公共聚会空间。建成之后，望朝中心将成为一个经典永恒的的地标，重新定义这个城市未来几十年的天际线。

The coalescence of structural efficiency, sustainability, and resiliency into a singular, streamlined design is an exemplar of what an integrated architecture and engineering team can accomplish. At the street-level, the site’s porous and welcoming open space will create a new gathering place for the district. Above, the Wangchao Center will serve as a timeless landmark, one that will mark the skyline for decades to come.

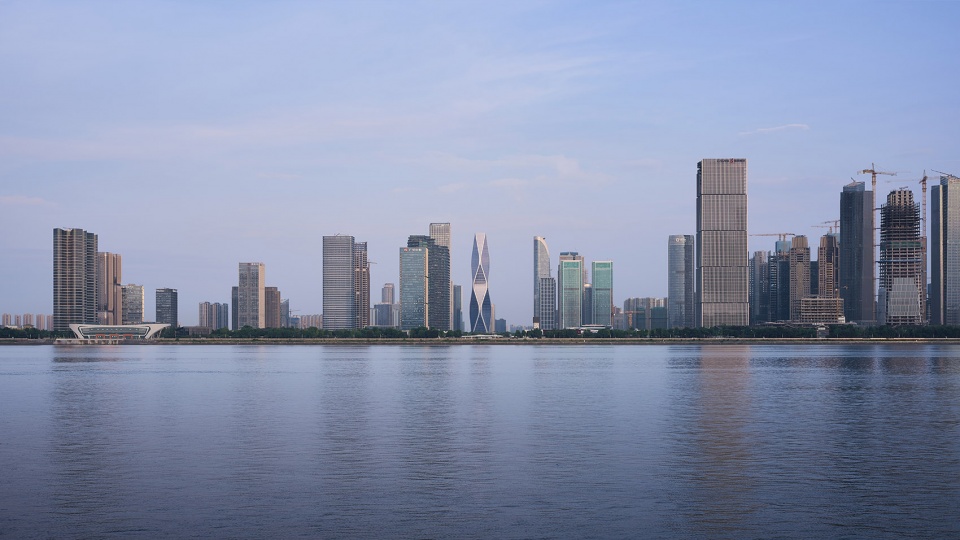

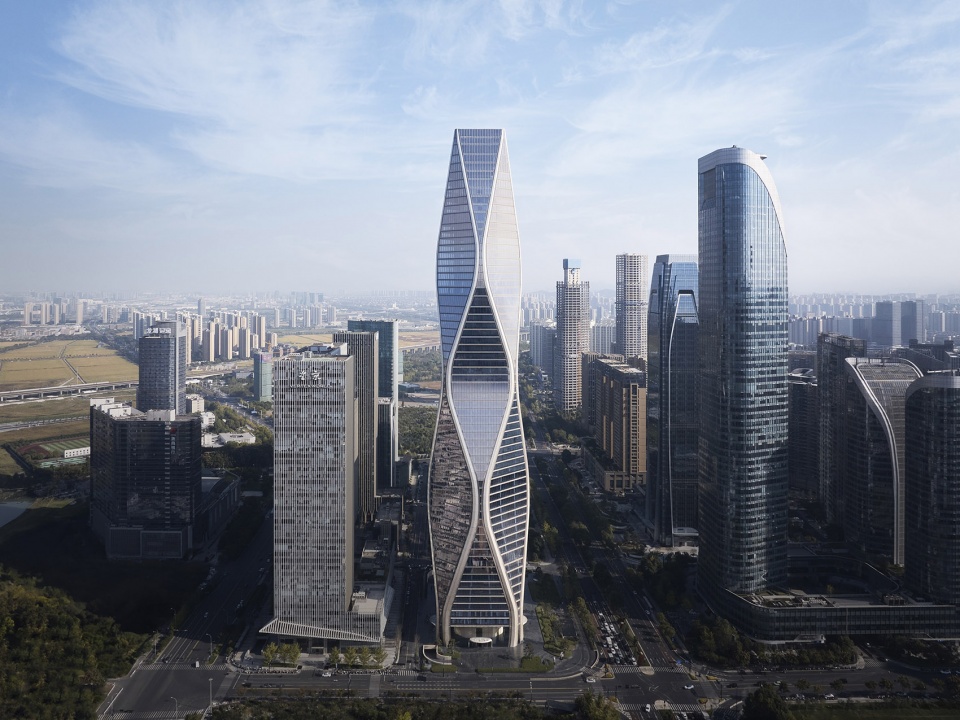

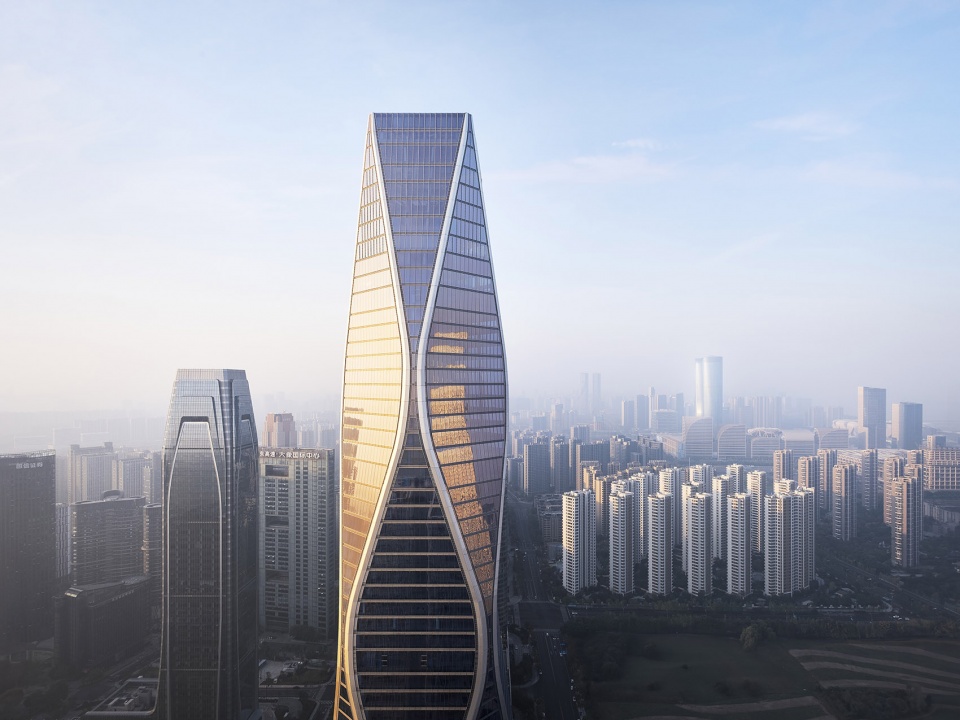

▼城市天际线，The city skyline © 朱清言

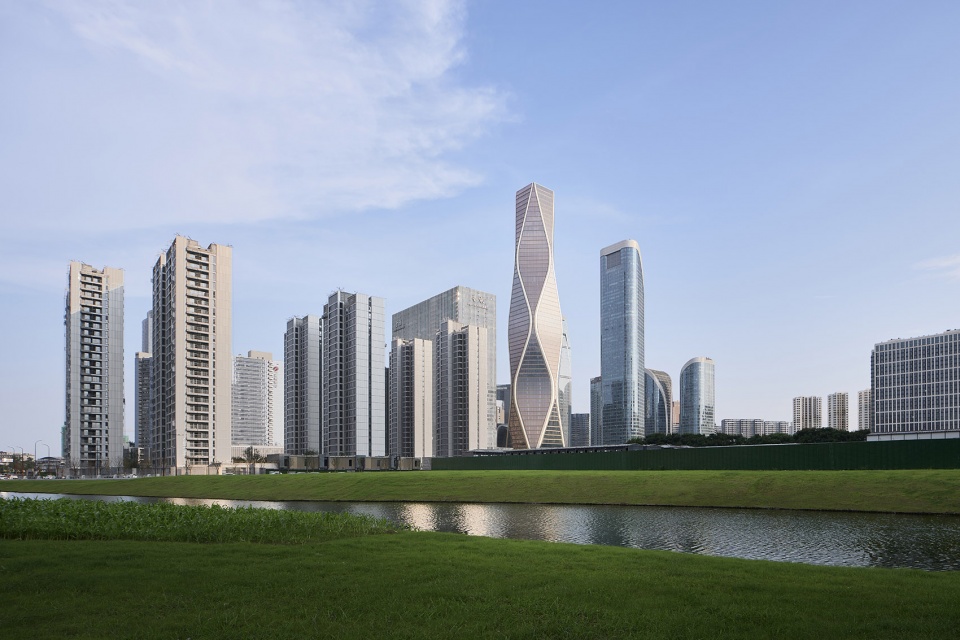

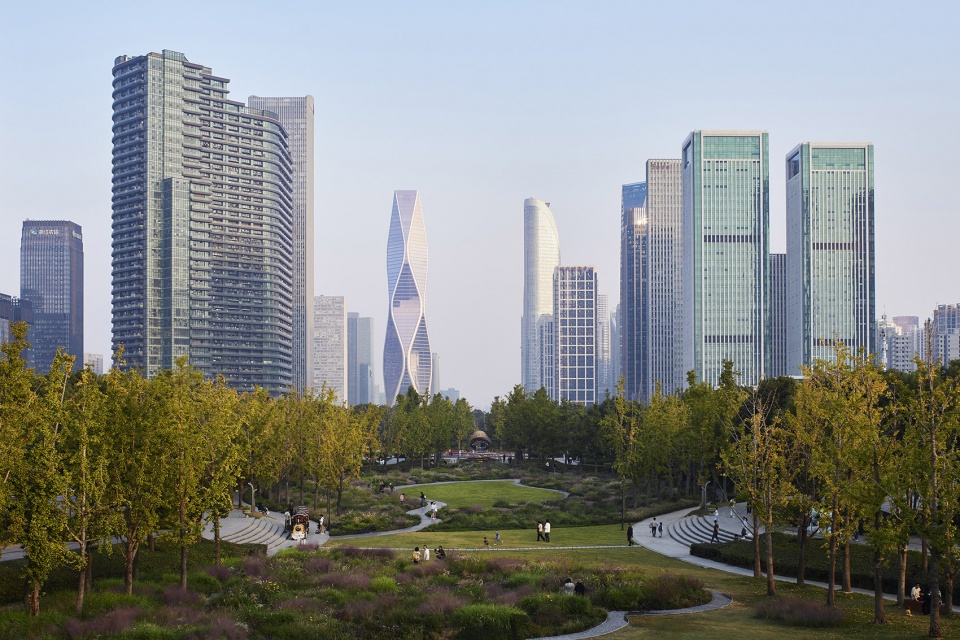

▼由周边城市公园绿地看建筑，View of the building from the surrounding city park green space © 朱清言

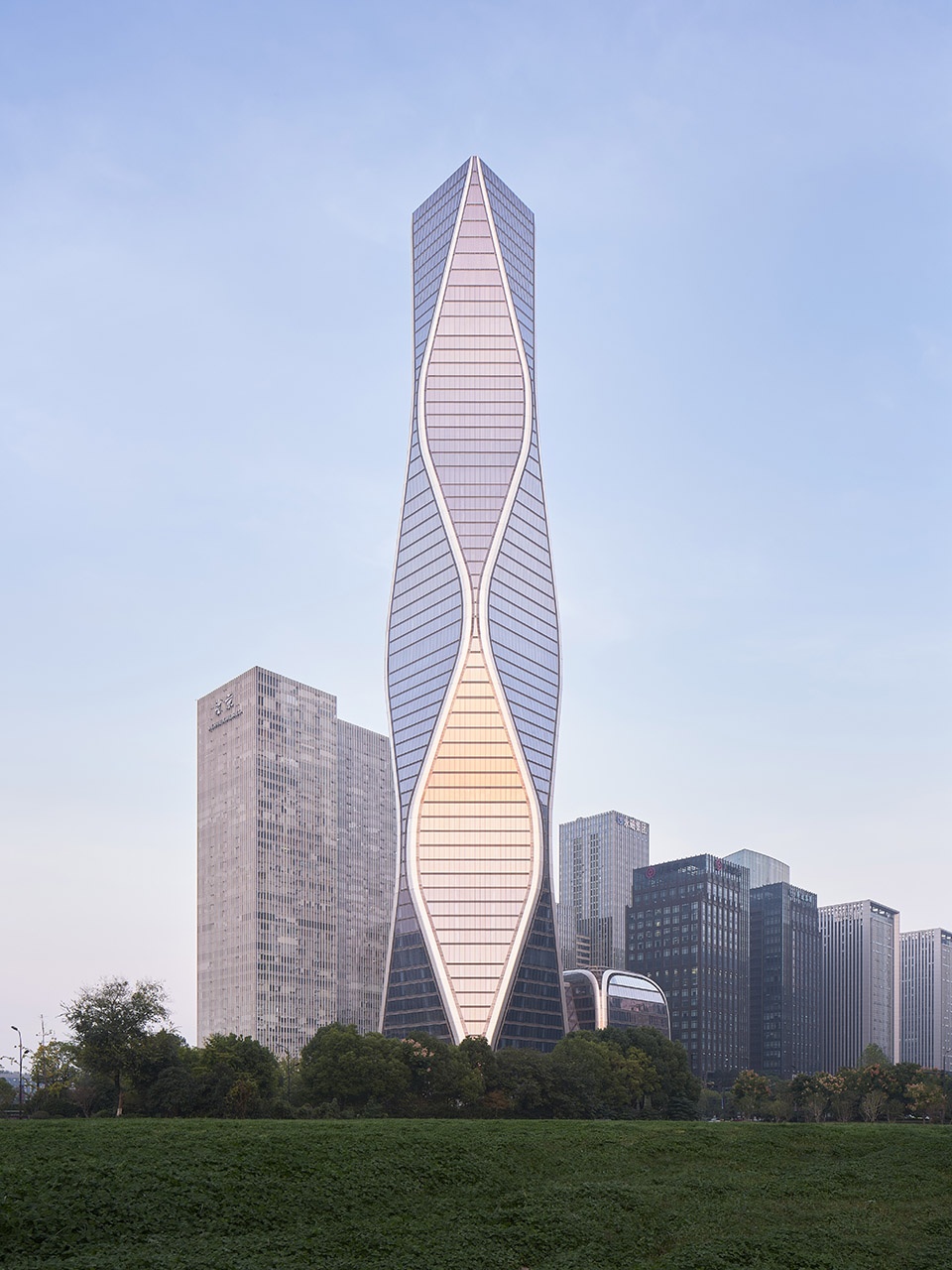

▼由城市环境看建筑，Looking at tower from the urban environment © 朱清言

作为项目的建筑、结构与机电设计师，SOM打造了一座既高效又具凝聚力的标志性办公塔楼。12.5 万平方米的塔楼，造型独特，沿着脉动的曲线向着云端升腾，让人联想到周边茶园中连绵起伏的丘陵和西湖涟漪的波纹。八根巨型角柱，拔地而起，打造了 54 层高、连绵起伏的建筑轮廓，让整栋塔楼仿佛在不断地流动之中。这个处理手法，既是建筑形式表达的重要组成，也是最有效的结构解决方案。

As the architect and both the structural and MEP engineer, SOM was charged with creating a cohesive office tower that is both iconic and highly efficient. The 125,000-square-meter building is eccentric in its form, with a dramatic, skyward curvature evocative of the rolling hills of the region’s tea plantations and the rippling waves of Hangzhou’s West Lake. An essential part of the architectural expression, as well as the most efficient structural solution, eight mega-columns rise upward from the ground, resulting in an uninterrupted, undulating 54-story silhouette that appears as if in constant motion.

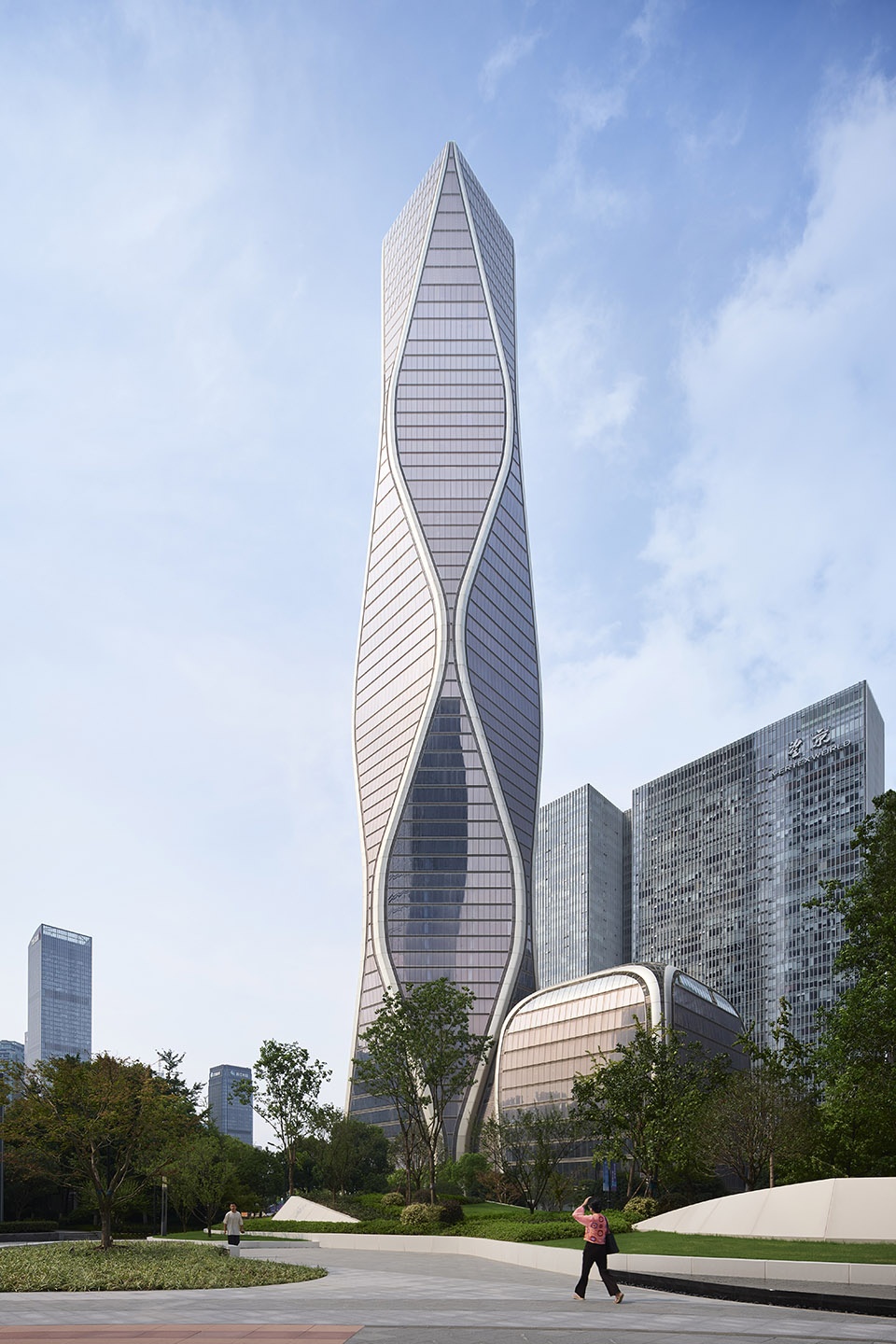

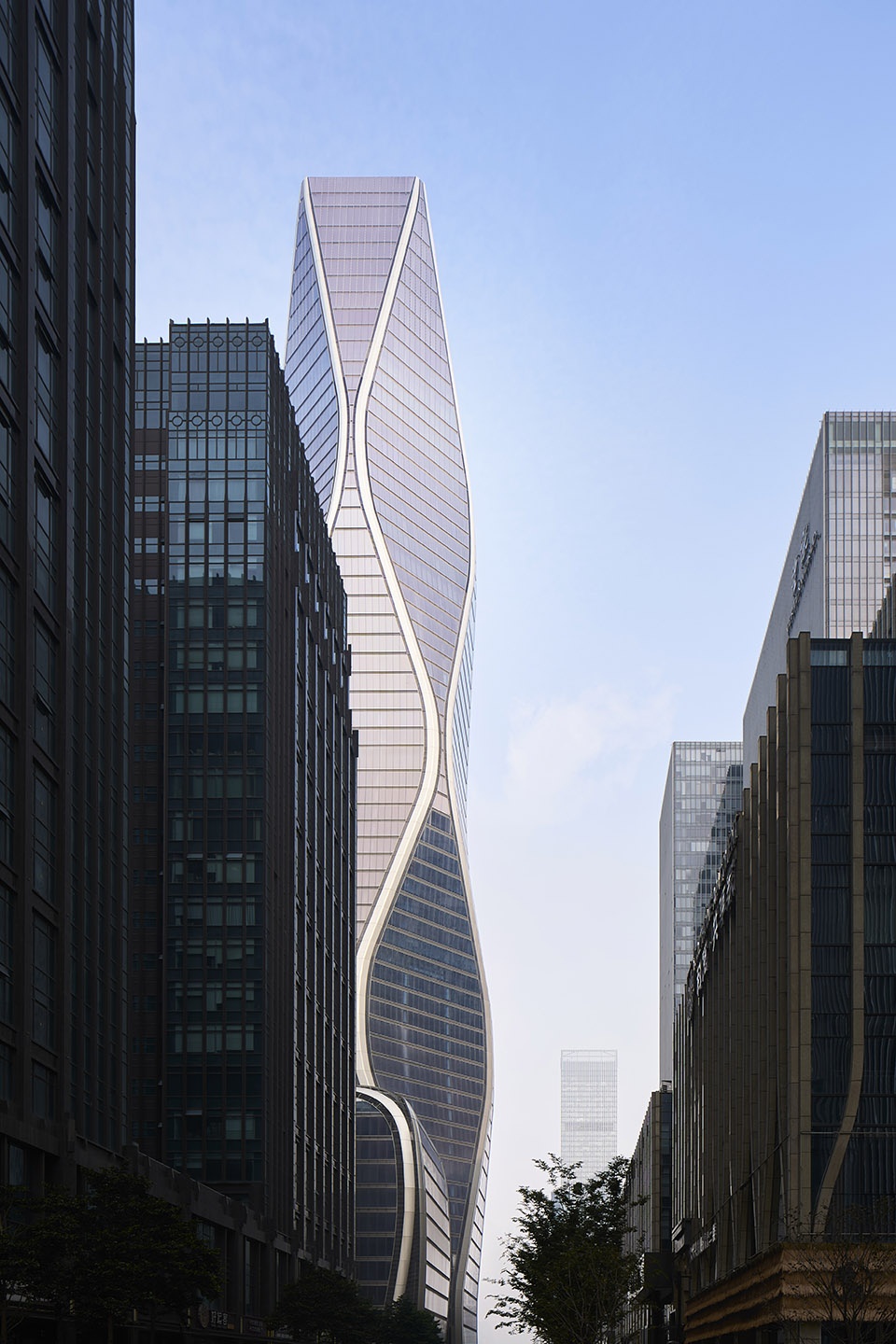

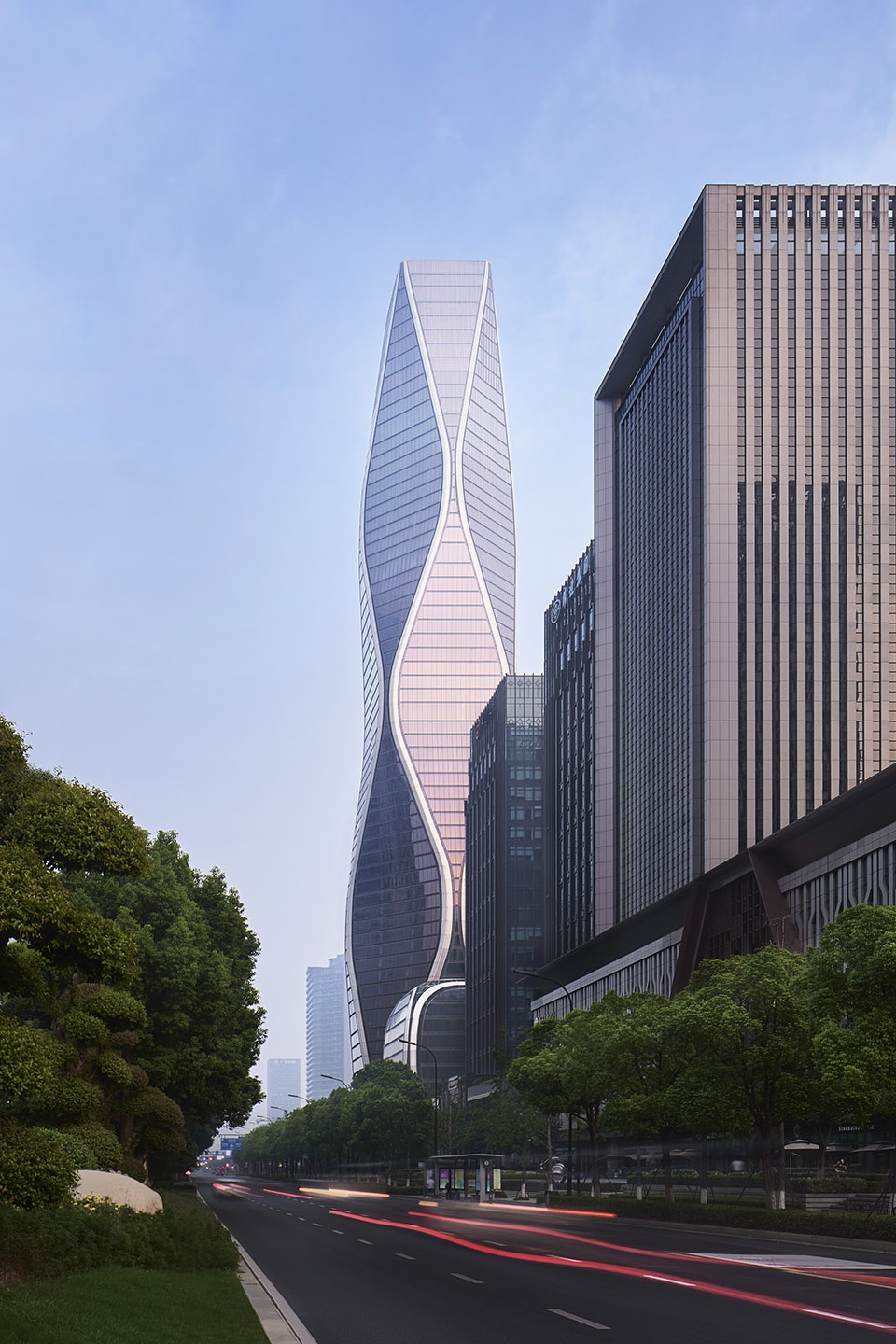

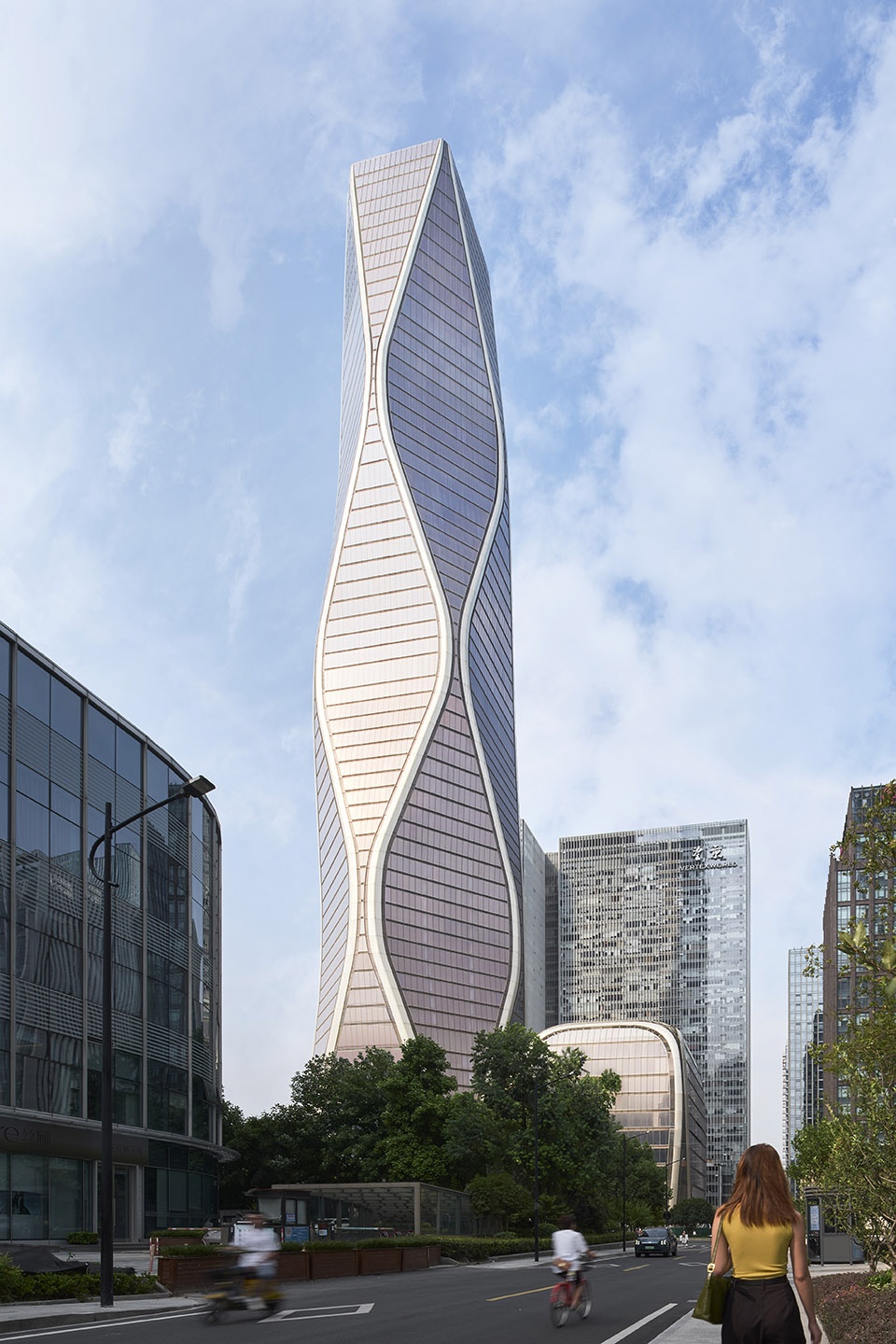

▼街道视角，Street perspective © 朱清言

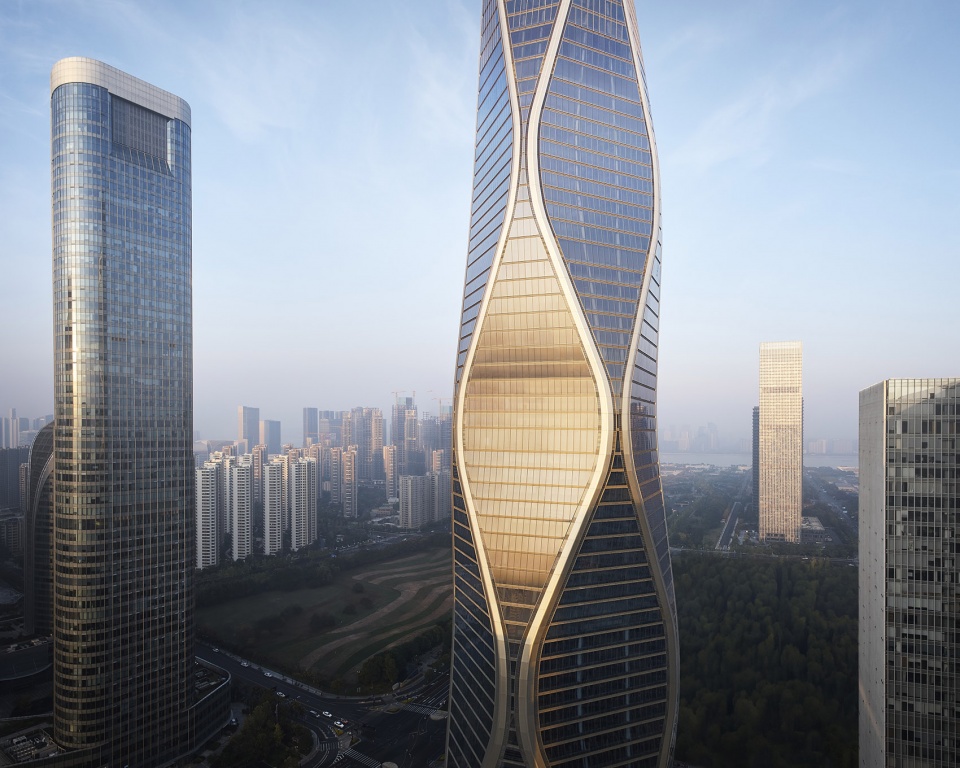

▼独特的曲线造型，Unique curved shape © 朱清言

▼连绵起伏的建筑轮廓，The undulating outline of the building © 朱清言

望朝中心地处中烈度地震区，其结构系统设计具有足够的延性以抵抗地震作用。中央混凝土核心筒和倾斜的外围柱支撑着楼面钢梁和组合楼板，与香槟色铝板包覆的八根钢管混凝土巨柱协同工作。随着巨柱逐渐倾斜分开，外围次柱则向外伸展以维持相等的柱间距。巨柱沿塔楼造型倾斜，虽然每两根巨柱只是相互靠近而不汇聚与一点，但是它们起到了巨型斜撑的作用而提高了侧向刚度，从而使大楼能够高效地抵抗地震力。

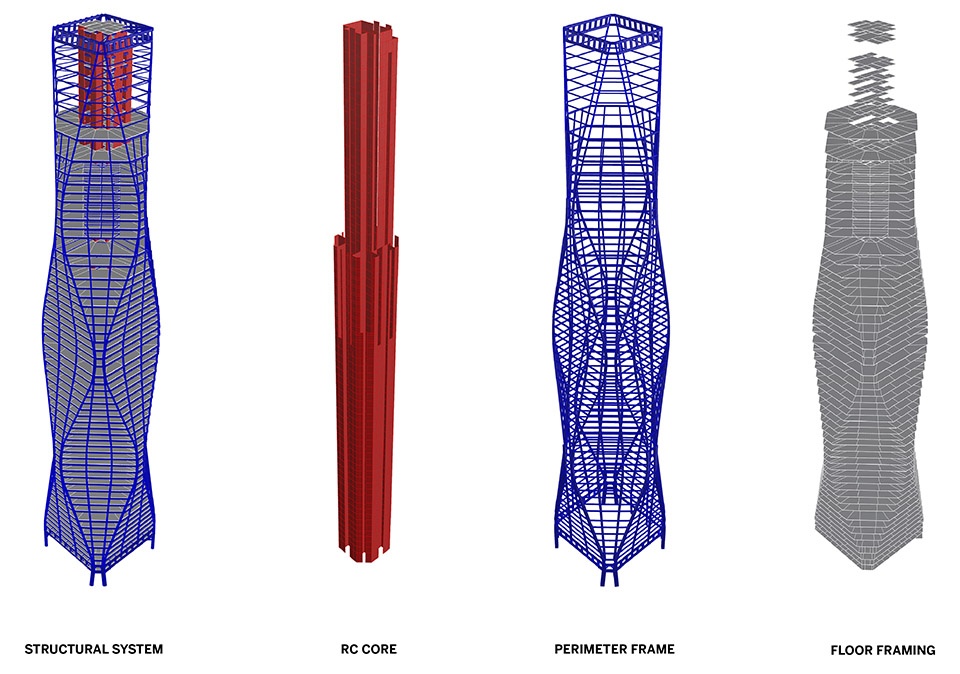

▼结构分析图，Structure analysis diagram © SOM

The Wangchao Center exists in a moderate seismic region, and its structural system is designed with enough ductility to resist an earthquake. A central concrete core and inclined perimeter columns support composite steel floor framing and truss deck slabs, and work in tandem with the eight mega-columns, which consist of concrete filled tubes clad in champagne-colored aluminum. As the mega-columns slope apart, secondary perimeter columns branch out to maintain equal column bays. All the inclined columns follow the tower’s form and act as mega-braces, without ever converging on one location—empowering the building to resist seismic forces effectively.

▼半鸟瞰，Half-bird ‘s-eye view © 朱清言

▼立面，Facade © 朱清言

脉动起伏的立面形态不仅实现了建筑形态与结构系统的和谐统一，还为机电系统的整合提供了独特的条件。所有设备都隐藏在选定楼层的角落内。外围护系统设计还整合了水平建筑格栅与其背面的定制窗间墙，租户可通过通风器将新鲜空气引入室内空间。

▼分析图，Analysis diagram © SOM

In addition to the holistic integration of architecture and structure, the rippling building form presented a unique opportunity to seamlessly integrate the mechanical systems. All of the equipment is concealed within the corners of select floors. The enclosure design also integrates a bespoke spandrel behind a horizontal architectural grille that allows tenants to mechanically open up their interior spaces through ventilators to bring in fresh air.

▼由塔楼看城市，View of the city from the tower © 朱清言

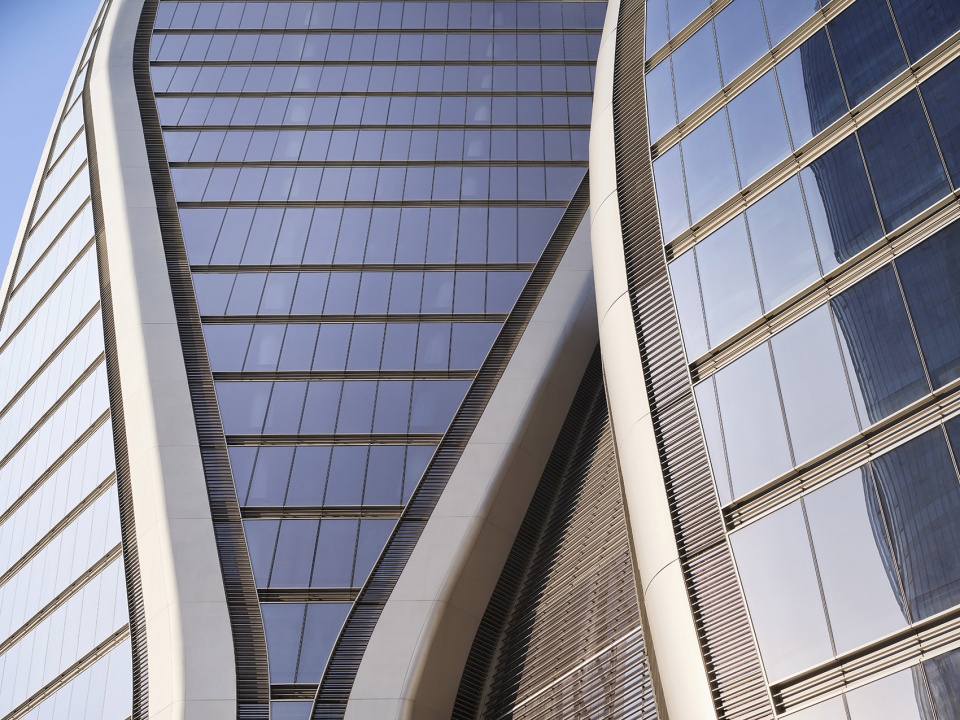

▼外立面近景，Closer view of the facade © 朱清言

▼塔楼顶部外观，Tower top appearance © 朱清言

塔楼独特的几何造型和结构设计为各个楼层都营造出一种开放感——这对办公体验来说十分重要。由于建筑独特的造型，每个楼层的平面有细微差异，我们的设计力求每层室内空间布局和风格保持一致，以打造温馨氛围。位于 23 楼和 44 楼的两个空中大堂为办公用户打造了公共休息区，而连接结构的可见部分与中央核心筒的塔冠部分则为聚会和活动提供了额外的活动空间。

▼分析图，Analysis diagram © SOM

The unique geometry and structure of the tower create a sense of openness at every level—an essential feeling to the office experience. While floor plates vary from floor to floor with the undulating shape of the building, each follows the same interior rhythm, revolving around the central core clad in travertine to establish a warm atmosphere. Two sky lobbies at the 23rd and 44th floors serve as communal lounges for tenants, while the crown—which connects the visible parts of the structure back to the central core—offers an additional amenity space for gatherings and events.

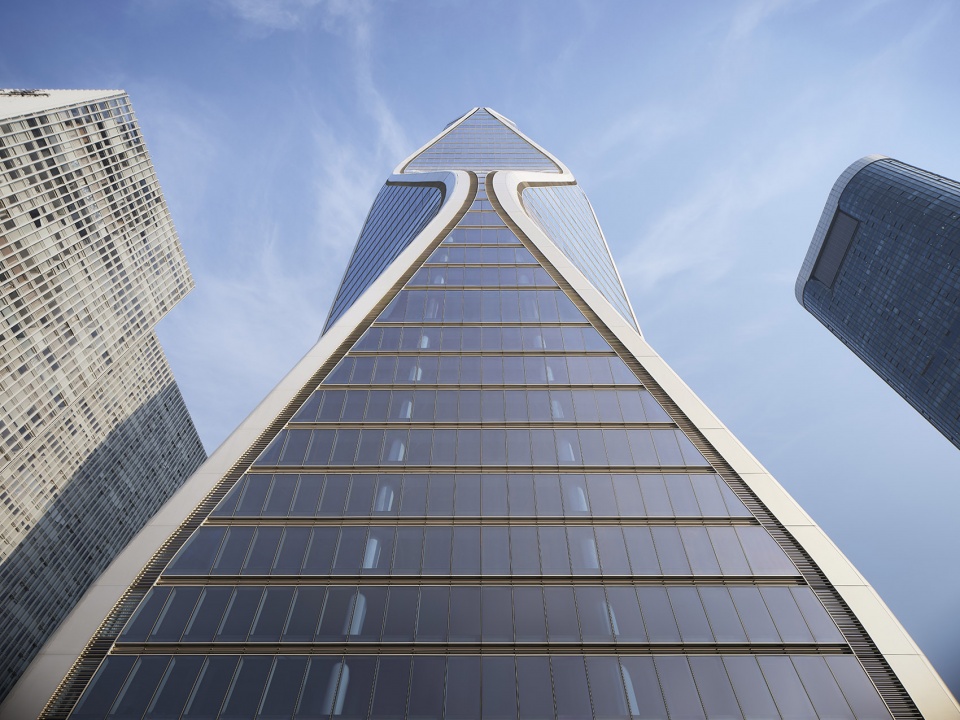

▼仰视立面，Looking up at the facade © 朱清言

▼建筑细部，Architectural details © 朱清言

建筑的首层设计旨在促进人员流动。相较于钱江世纪城大多数占据整个城市街区的办公楼，望朝中心拥有高流动性的且友好的首层设计。塔楼以及其配套的10层裙楼，在整片10,500 平方米用地面积中，建筑覆盖率相对较低行人可以在布满花池和绿植的宁静公共空间和建筑之间穿行。大堂的设计环绕核心筒360度的展开，前台则设置在巨柱前方的角位空间。超透玻璃幕墙包裹着首层，将大理石包裹的的核心筒区域烘托为公共空间中的视觉焦点。

The layout of the ground level is designed to promote movement. While most office towers in Qianjiang Century Town occupy full city blocks, the Wangchao Center possesses a porous and welcoming base design. The tower, as well as a complementary, 10-story building, occupies just a fraction of the development’s 10,500-square-meter footprint. Pedestrians can walk between and around the buildings across a serene public space designed with ponds and lush vegetation. The lobby likewise enables a 360-degree flow of foot traffic around the core, with reception desks pushed to the corners in front of the mega-columns. An ultra-clear glass curtain wall also surrounds the ground level, positioning the travertine-clad core as the architectural focal point from the public space at all hours of the day.

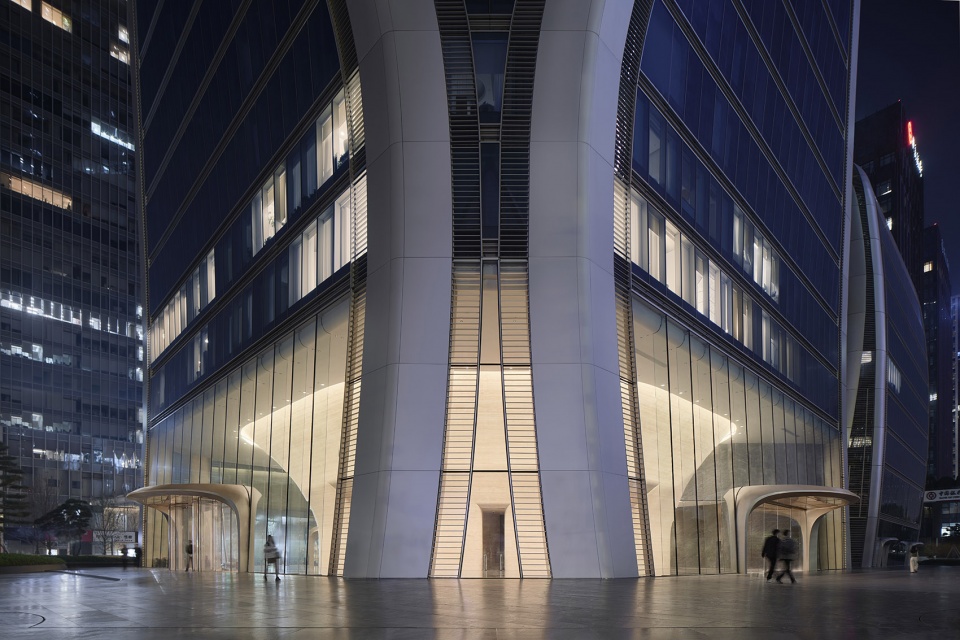

▼底部楼层夜景，Night view of the ground level © 朱清言

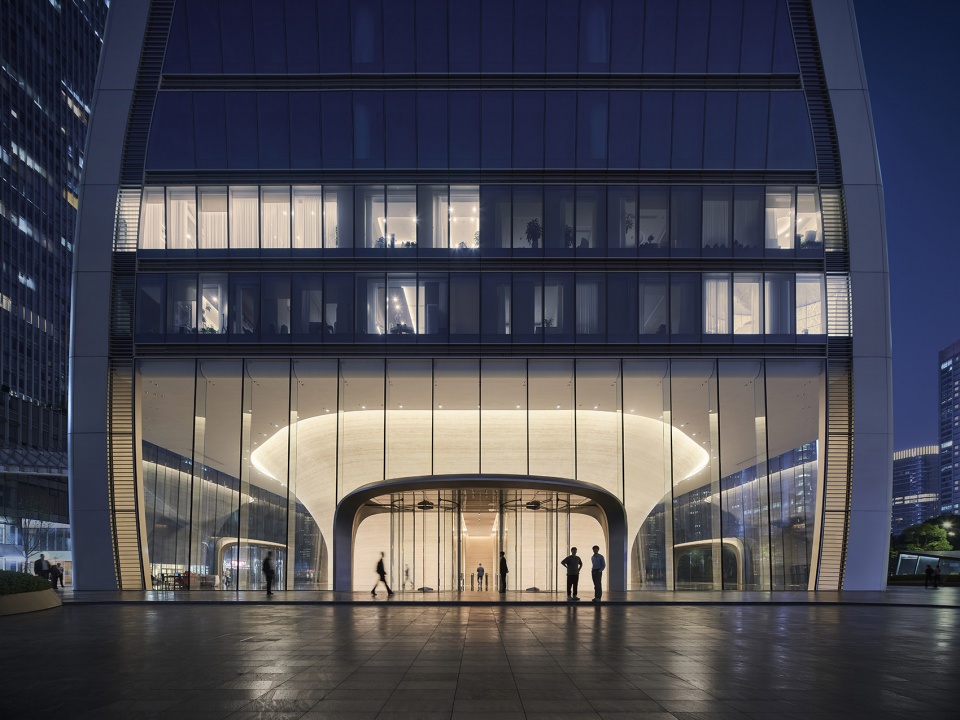

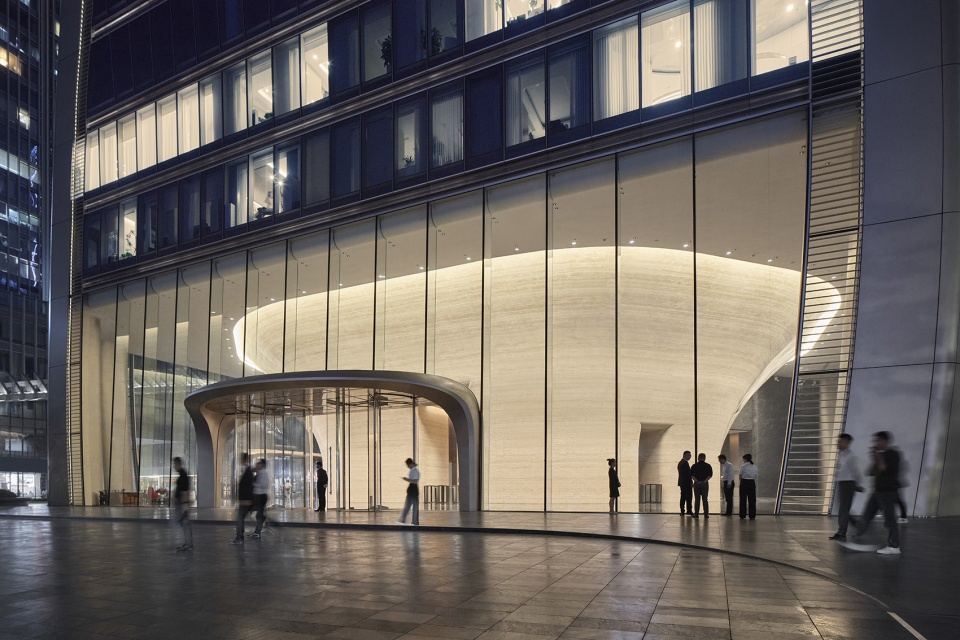

▼主入口夜景，Night view of the main entrance © 朱清言

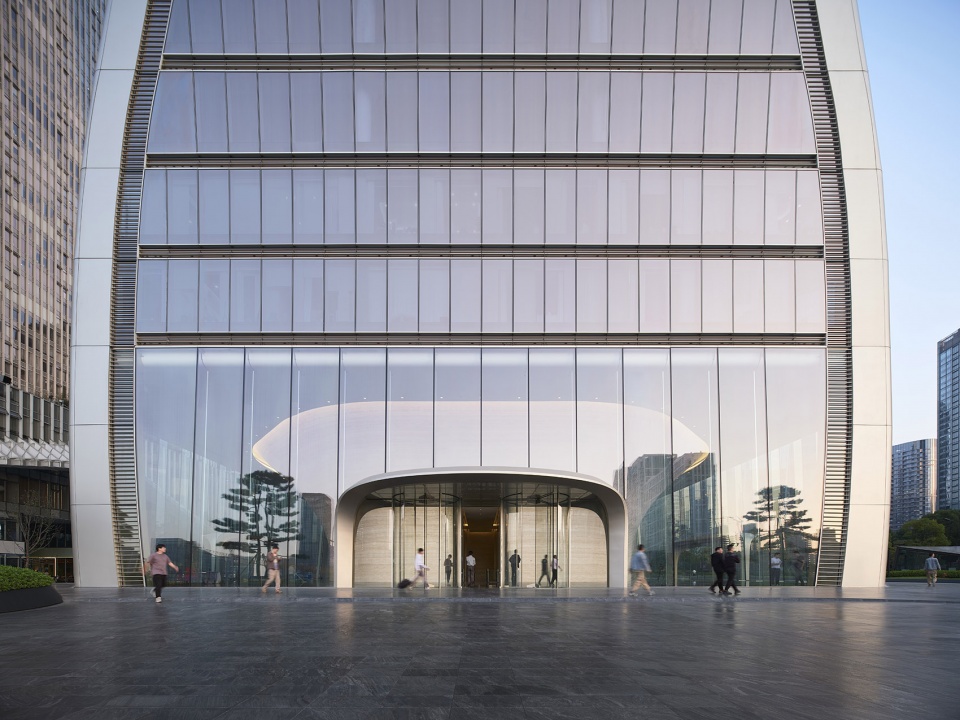

▼底部楼层日景，Day view of the ground level © 朱清言

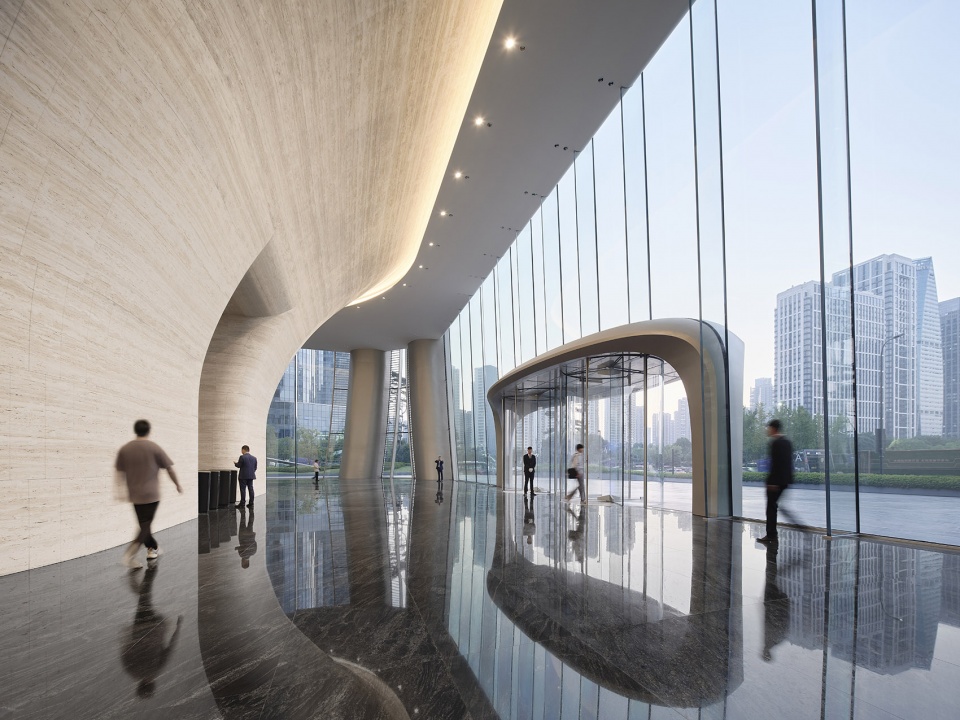

▼入口大厅，Entrance hall © 朱清言

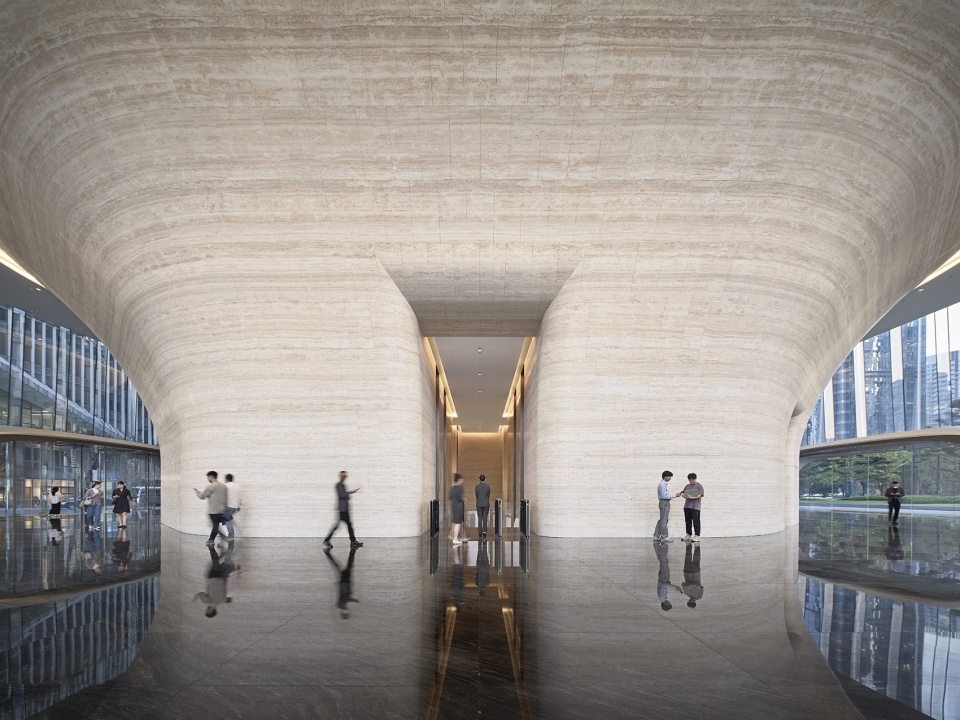

▼电梯厅入口，Elevator hall entrance © 朱清言

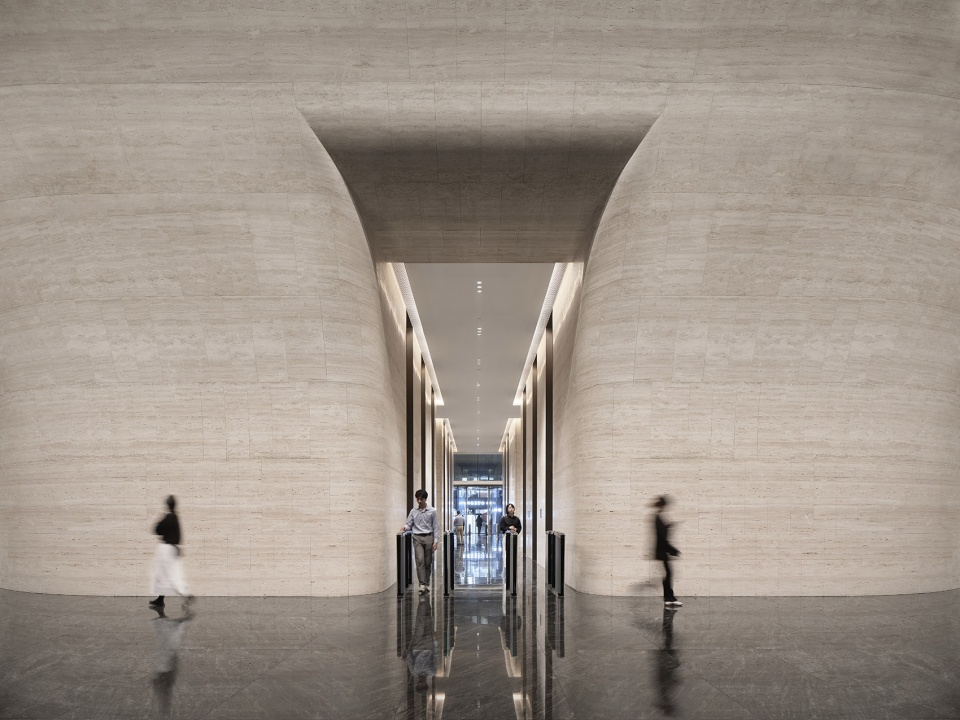

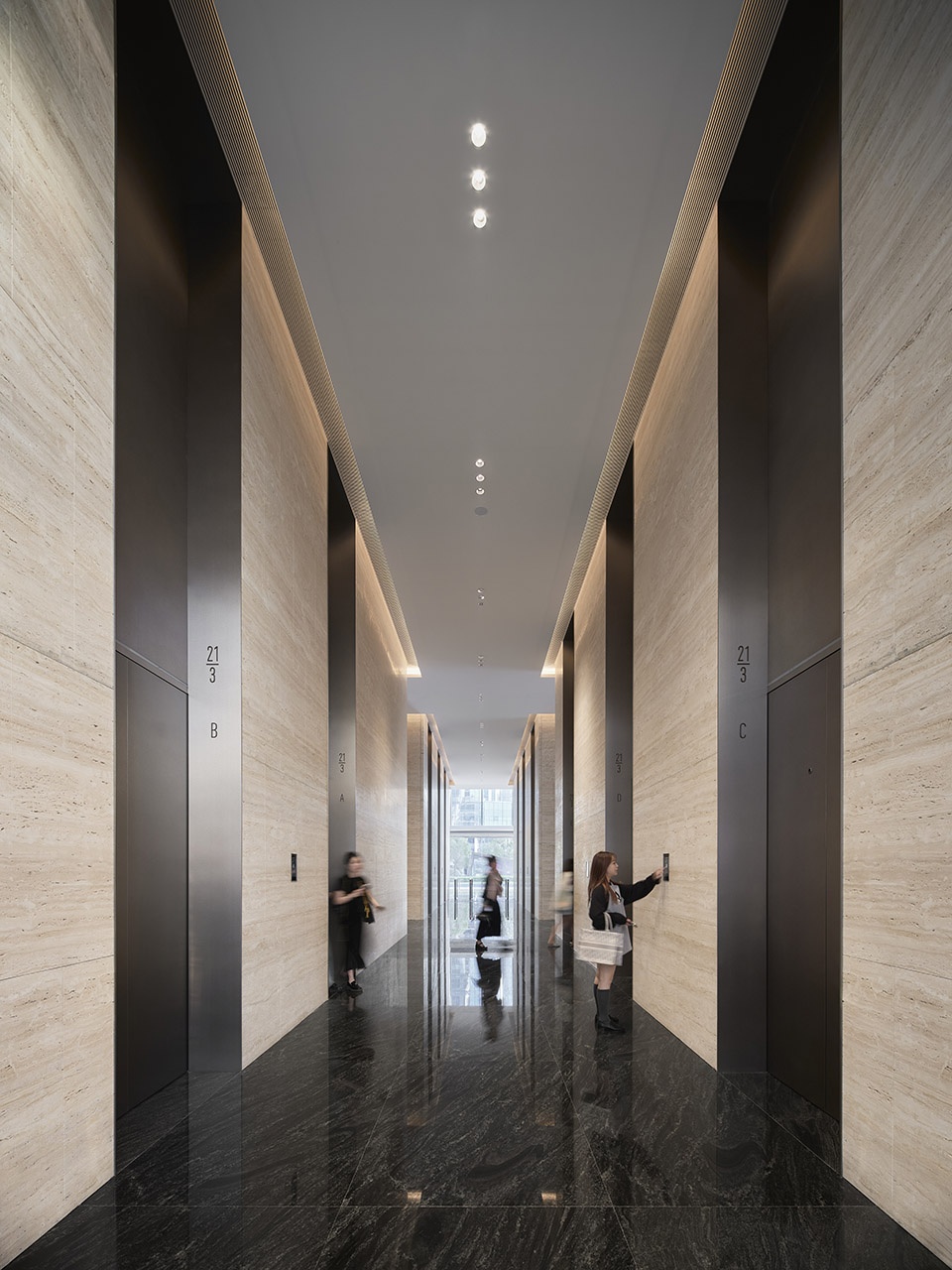

▼电梯厅，Elevator hall © 朱清言

望朝中心采用了一系列策略，力求达到中国绿色建筑三星认证。塔楼的大部分区域采用高性能玻璃，将自然光引入室内；建筑的屋面和首层景观中融入了雨水收集系统，用于场地的灌溉。此外，SOM的整合设计策略在打造独特的几何造型的同时，也显著地减少了材料用量。

The Wangchao Center is designed to target China Green 3-Star certification, through a variety of strategies. High-performance glass covers much of the tower and pours natural light inside during the day, while the roof and the street-level landscape collect rainwater for on-site irrigation. Additionally, the integrated design strategy that yielded the project’s unique geometry significantly decreased material use.

▼由大厅看室外，View outside from the hall © 朱清言

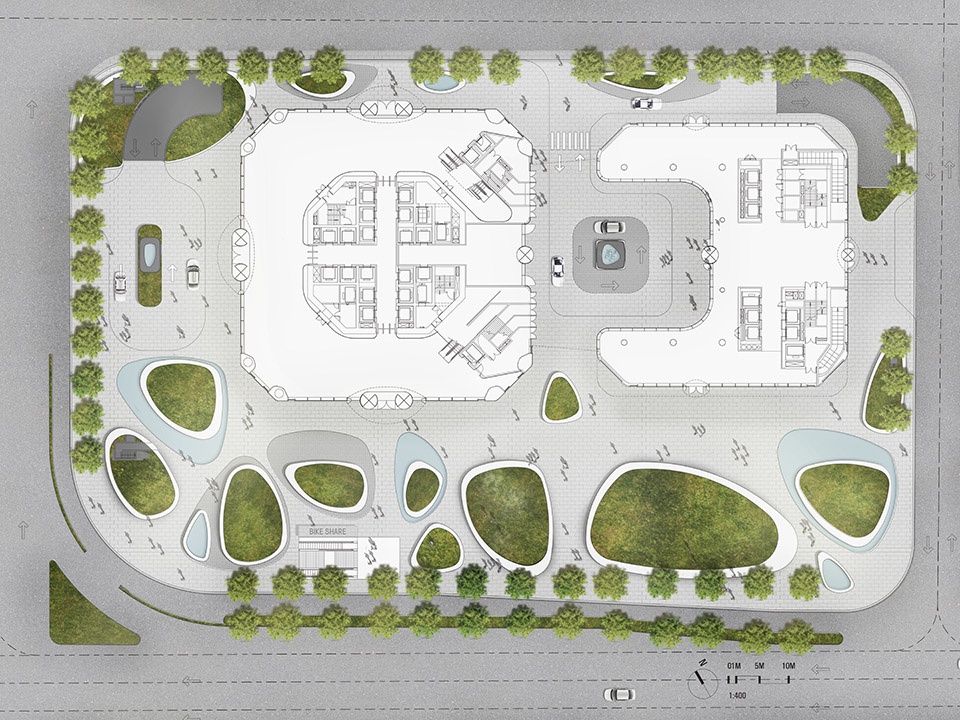

▼总平面图，Master plan © SOM

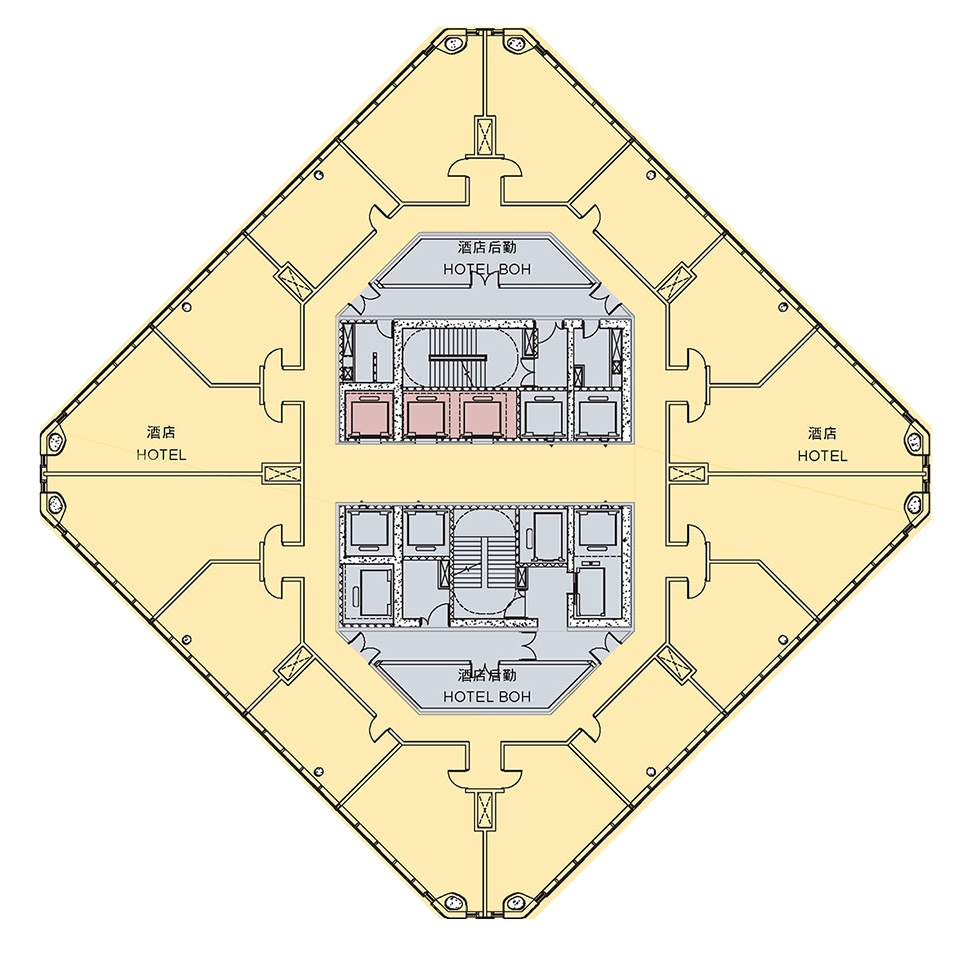

▼酒店楼层平面图，Hotel floor plan © SOM

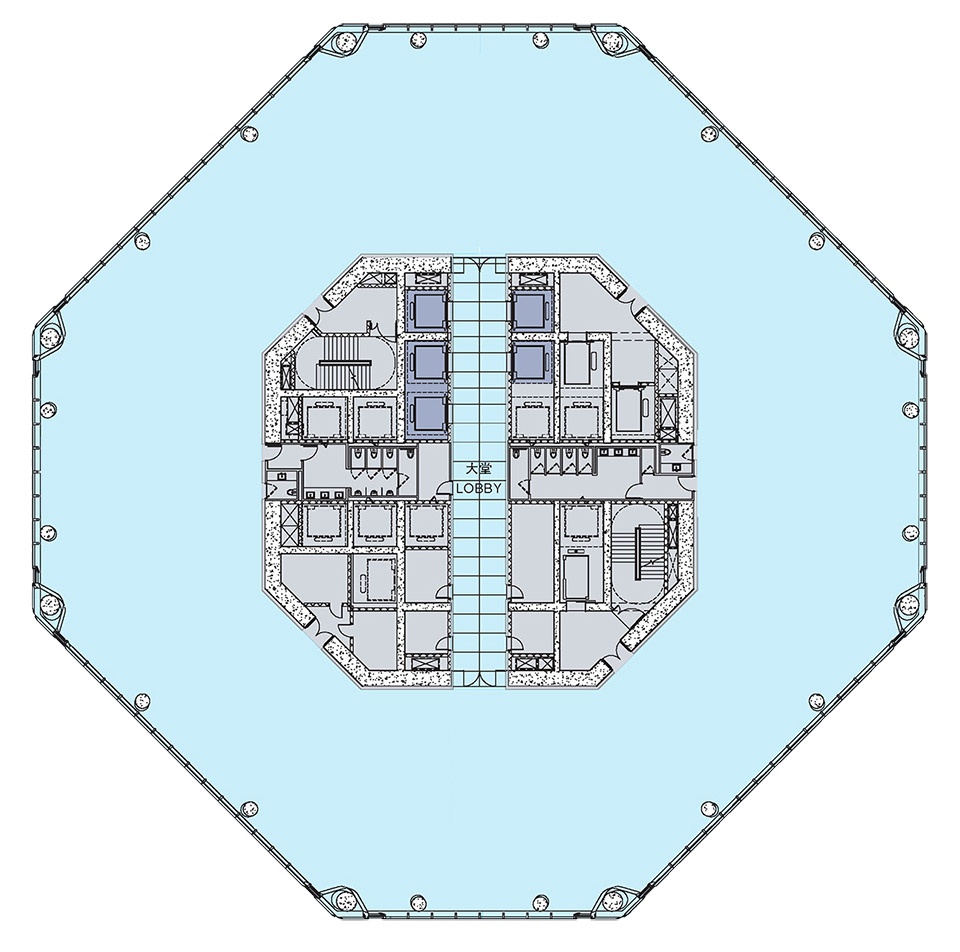

▼办公楼层平面图，Office floor plan © SOM

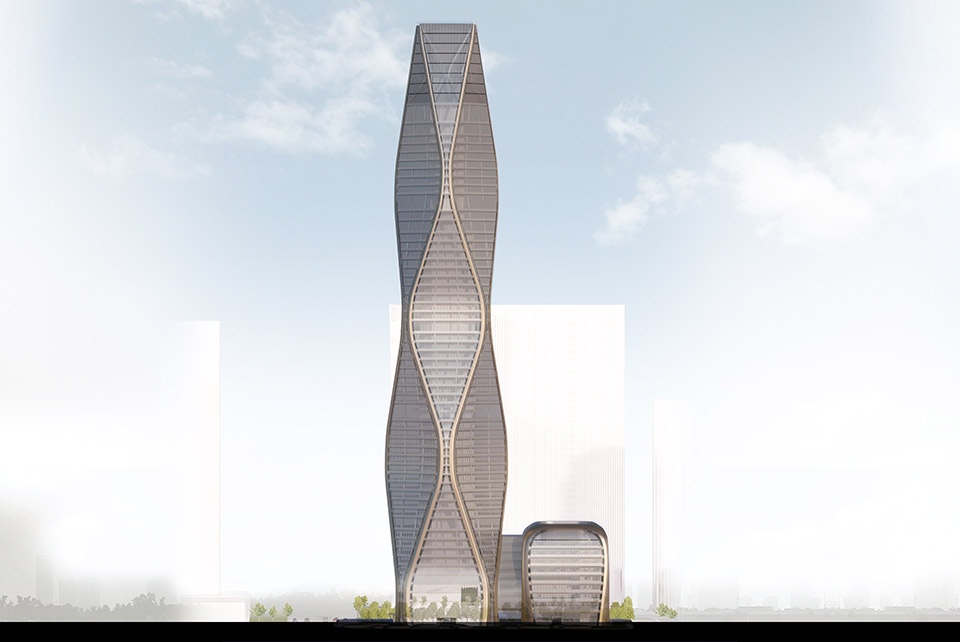

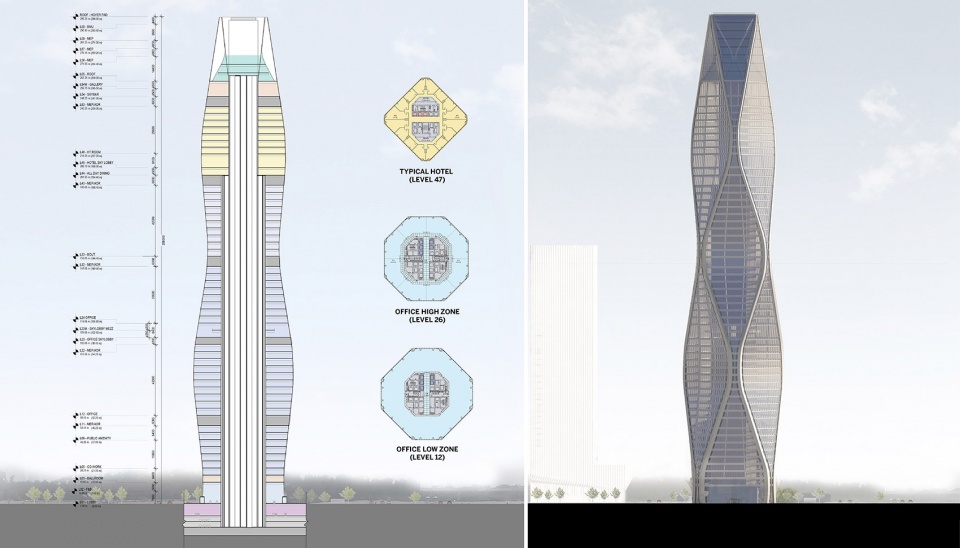

▼立面图，Elevation © SOM

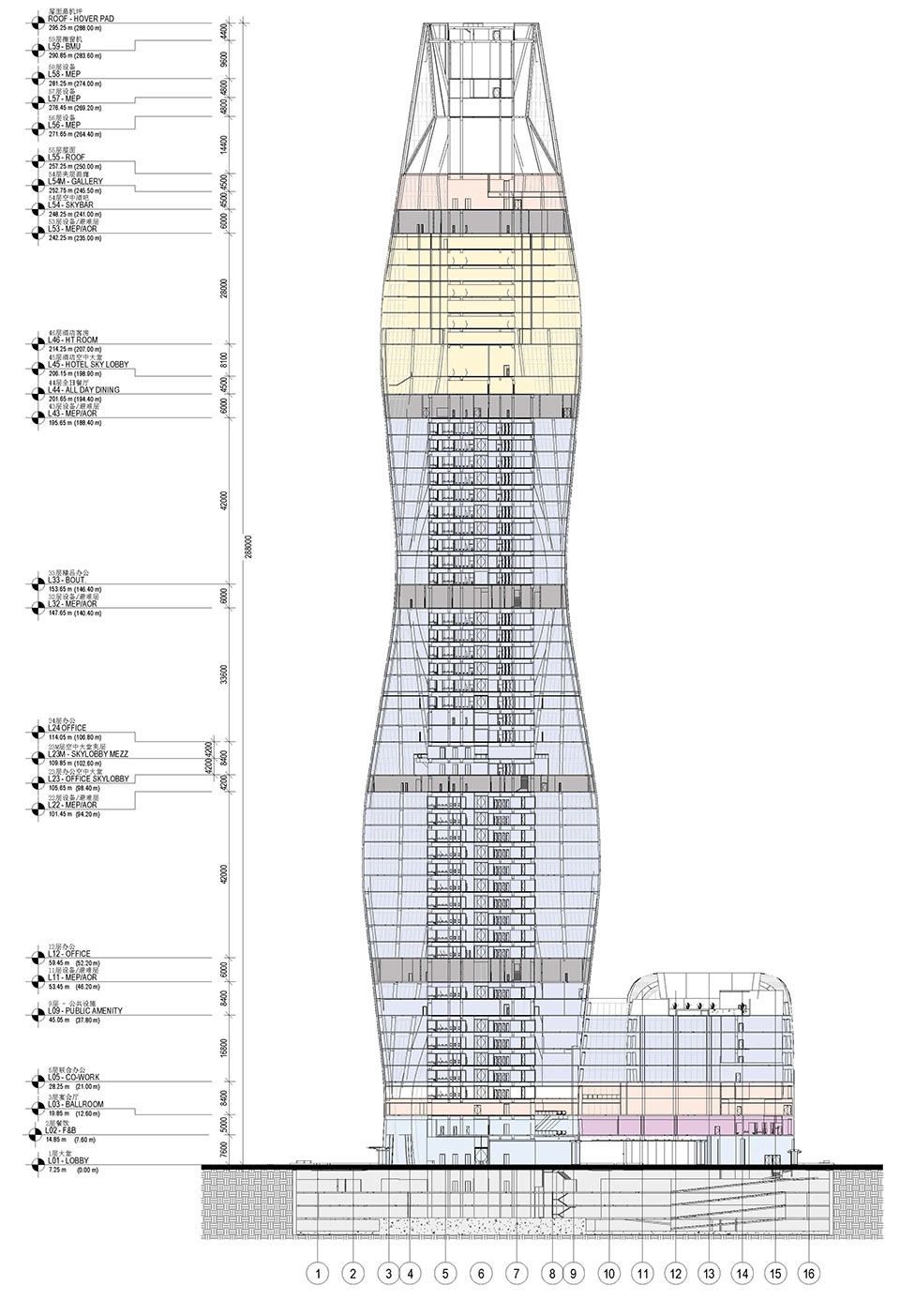

▼剖面图，Section © SOM

项目名称：杭州望朝中心（Hangzhou Wangchao Center）
地点：杭州，中国
网站：www.som.com
主创建筑师： Gary Haney, Daniel Cashen, Charles Besjak, Brant Coletta
设计团队完整名单：Eric Van Epps, Kwong Yu, Cong Ye, Qinghua Fan, Sharon Liu, Wayne Chen, Xiaohan Wen, Chris Yu, Angela Huang, Alex Ward, Samuel Jiang, Luke Leung, Shirley Lu, Alex Thewis
可持续性认证：LEED BD+C CS (Core & Shell) Silver, BD+C, Silver, 1
业主：大稻启运
建成状态：2023年9月完工
设计时间（起迄年月）：2017年4月- 2018年11月
建设时间（起迄年月）：2019年3月 -2023年9月
用地面积（平方米）：10418 sqm2
建筑面积（平方米）：12.5万平方米
高度：280米、54层
建筑：SOM
结构&MEP：SOM
景观：t.r.o.p terrains + openspace
室内： Golden Mantis Design Institute
照明：Brandston Partnership
摄影师：朱清言
