感谢 LOVE architecture and urbanism 予gooood分享以下内容。更多关于他们，请至：LOVE architecture and urbanism on gooood
Appreciations towards LOVE architecture and urbanism for providing the following description:

Dahme水域环境品质出众，景色优美。在这里，自然空间、休闲娱乐设施与工业魅力一起，与平静流淌的河水融为了一体。

The Dahme waterscape is of exceptional quality and beauty. Here, natural space, recreational quality and also industrial Charm are combined with the peace and serenity that rivers generally exude.

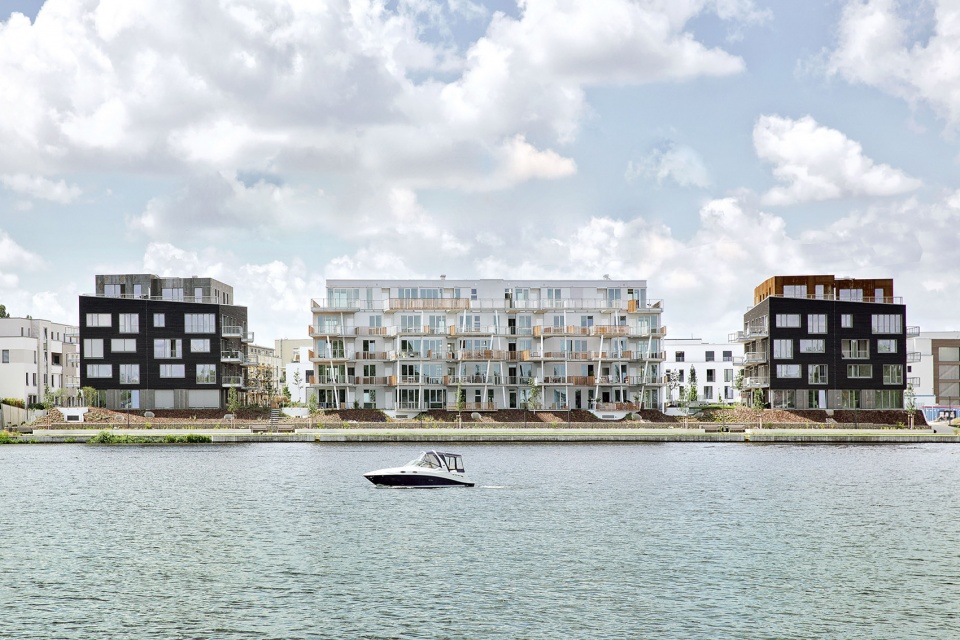

▼从河对岸看向建筑，view to the building through the river ©Jasmin Schuller

住宅设计的核心理念是最大化展现基地独特的自然品质，因此在建筑前部设置了一道连接每间公寓的巨大步桥。步桥深八米，贴近水面，使得公寓与河水几乎融合在一起。伸出的廊道中混合私人阳台和公共空间，同时也是一个发展元素。这里不仅是一个供人享乐的观景和休闲空间，还可以促进社会交往和社区建设，带给人亲密无间的感受。它代表了某种湖泊效应。你可以说这座步桥便是建筑本身，因为它塑造了住宅的外观和内部。它既是建筑的外表，也是其灵魂。

To stage this unique natural quality to the maximum is the central design idea of the residential building: A large-scale, eight-meter-deep pier in front of the actual Building leads the individual apartments very close to the water – so that Apartment and water seem to merge. The jetty is a hybrid of private balconies or open spaces and at the same time a development element. Thus, the footbridge stands for view, leisure, recreation, pleasure, enjoyment, but also for social interaction, community, and sense of togetherness. It “stands” for a kind of bathing lake effect. You can say: This footbridge IS the building, because it shapes the house visually and also in terms of content. He is both the face and the soul of the building.

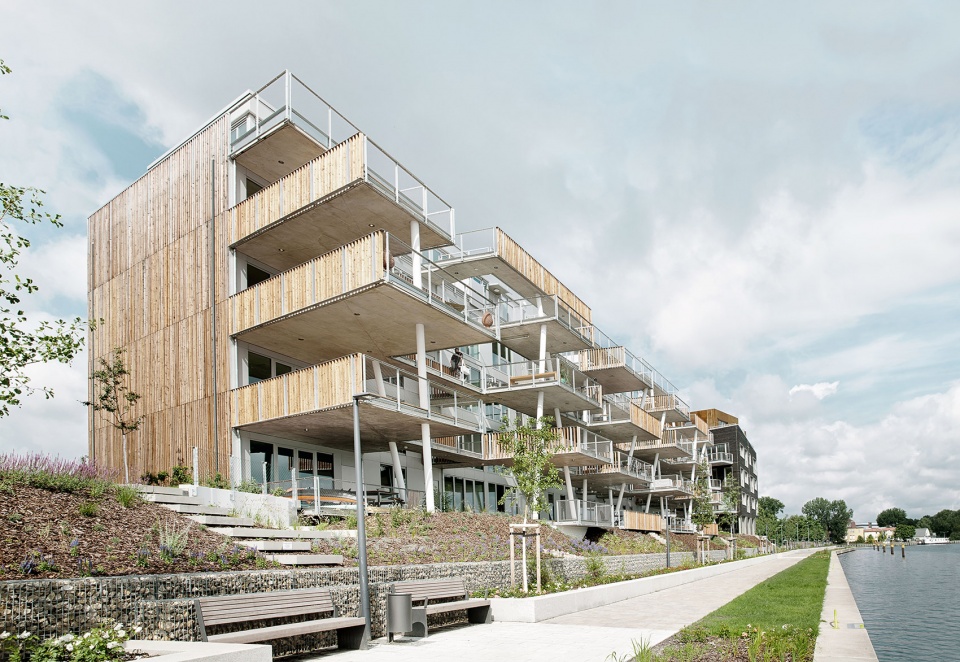

▼建筑外观，朝向河面的步行桥，external view of the building with a footbridge facing the river ©Jasmin Schuller

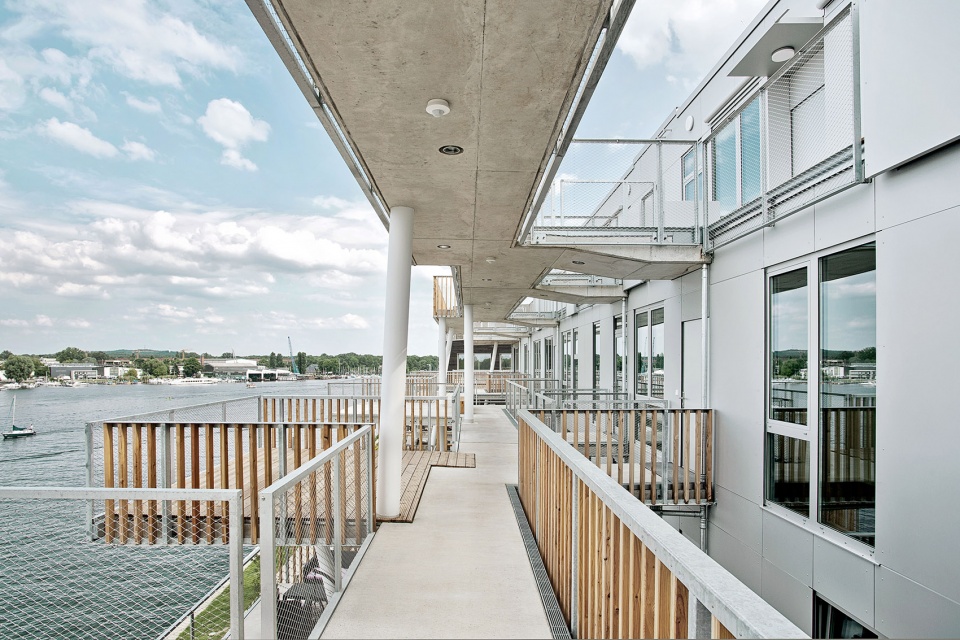

▼走廊与休闲平台，corridor and leisure platform ©Jasmin Schuller

▼每层步行桥布局不同，可以欣赏不同的河面风光
different levels of the footbridge have different layouts, enjoying different river views ©Jasmin Schuller

建筑主要使用三种材料，分别是木材、铝和混凝土。木材本身便会让人联想到湖水、栈桥、竹筏、划独木舟等主题。铝是一种卫生的材料，在这个项目里，建筑师尤其看重其反射周围环境的光与颜色的能力，与周边形成互动。想象一下水天相接时的场景，必是美不胜收。混凝土是一种把不同基料完美混合在一起的自然材料，它与木材类似，也有一定的深度的自然感，象征安全和持久。所有公寓均沿步桥设置，居民可以亲密体验不同季节的美景。

Three materials characterize the building: wood, aluminum and concrete. Wood in itself is synonymous with themes such as water, jetty, raft or canoeing. Aluminum is factual-serious has a hygienic effect. In this case, we especially appreciate its ability to easily mirror light and color moods of its environment and thus interact with its surroundings. And then when water meets sky……..!!! Concrete as another natural material rounds off the mix. Similar to wood, concrete has a certain depth and naturalness, stands for safety and durability. All apartments are designed through and therefore have two cardinal points. This allows the residents to experience daytime but also seasons intensively.

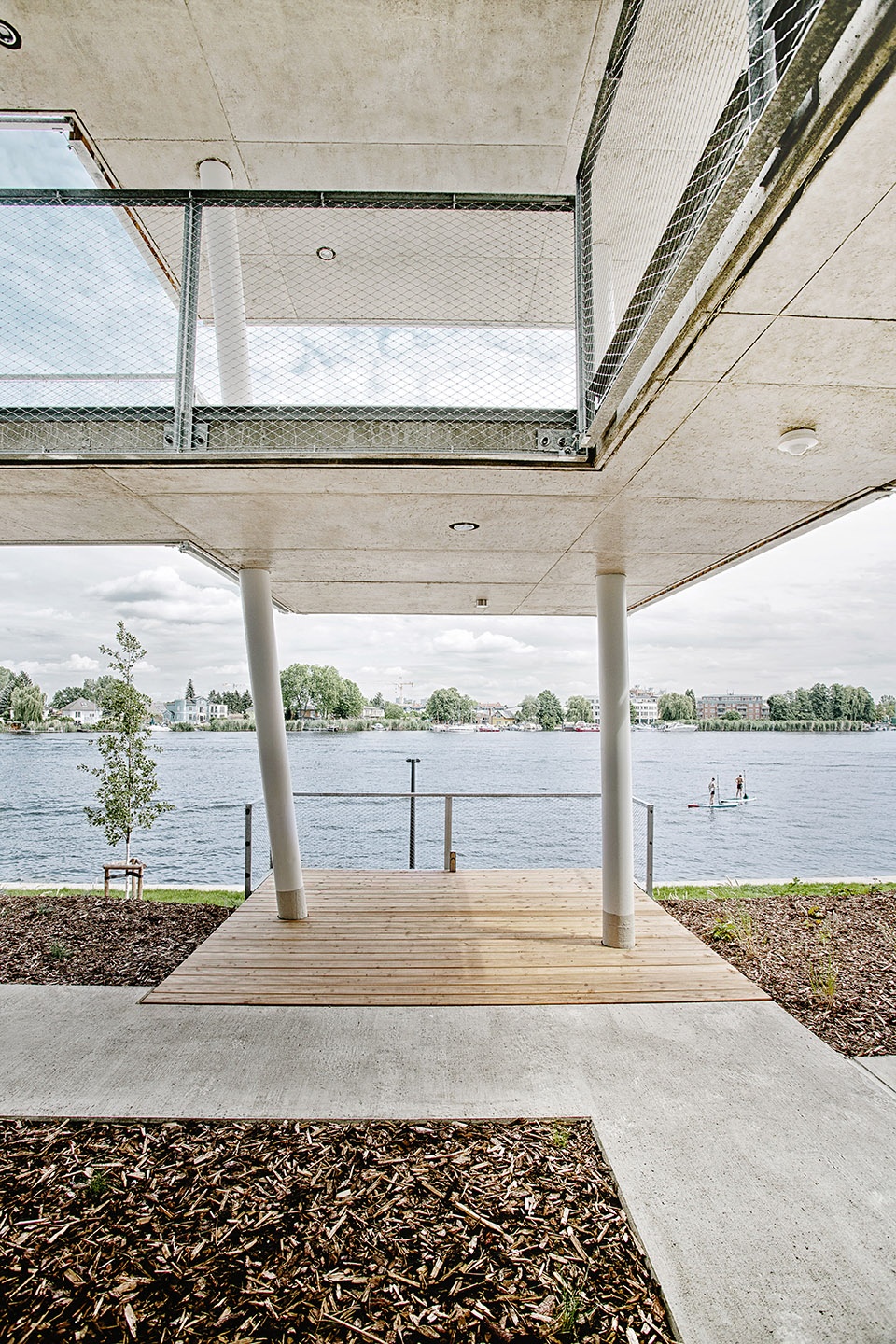

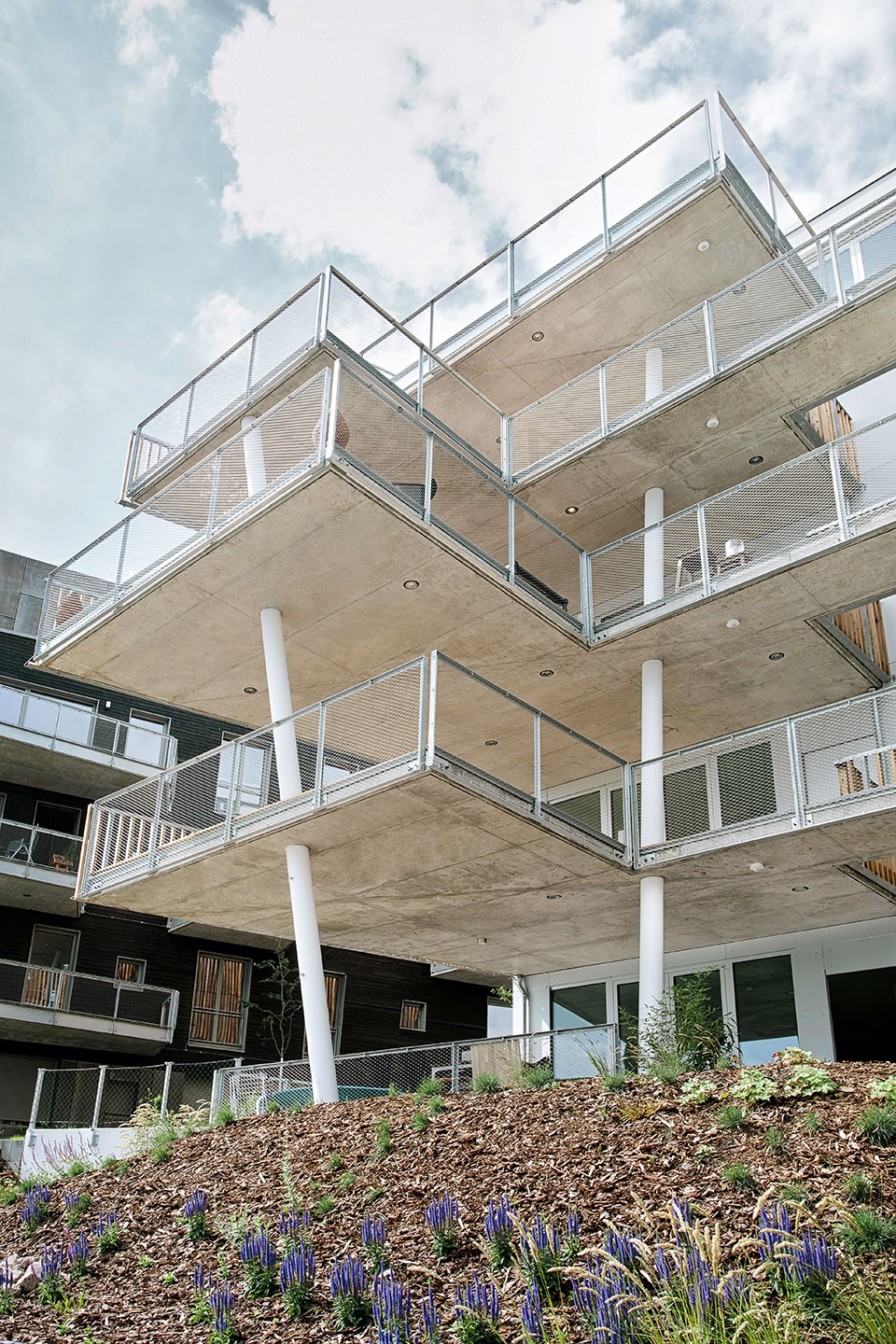

▼混凝土楼板、倾斜的支柱和金属网护栏
concrete floor, inclined columns and mesh fence ©Jasmin Schuller

▼贴近水面的木制平台
wooden platform close to the river ©Jasmin Schuller

建筑位于柏林Grünau地区，由四层楼和一个夹层组成，包含28个居住单元。房屋中部是垂直入口，与步桥直接相连。步桥与建筑脱开约两米，居民不仅可以从这里直接进入自己的公寓，也可以去到宽敞的室外空间，欣赏河面风光。步道每层平面布局不同，不仅形成了丰富的垂直视线关系，还带来了有趣的光影体验。

The building, with its 28 residential units in the Grünau district of Berlin, has four full floors and one stacked floor. In the center of the house is the vertical access, which is directly connected to the footbridge. The footbridge, which is set back about 2 meters from the house, leads the residents not only directly to their apartments but also to their spacious outdoor areas with their spectacular view over the river. The individual levels of the walkway have different floor plan layouts. Thus, in addition to the diverse vertical view relationships, there is also an interesting and always new shadow play.

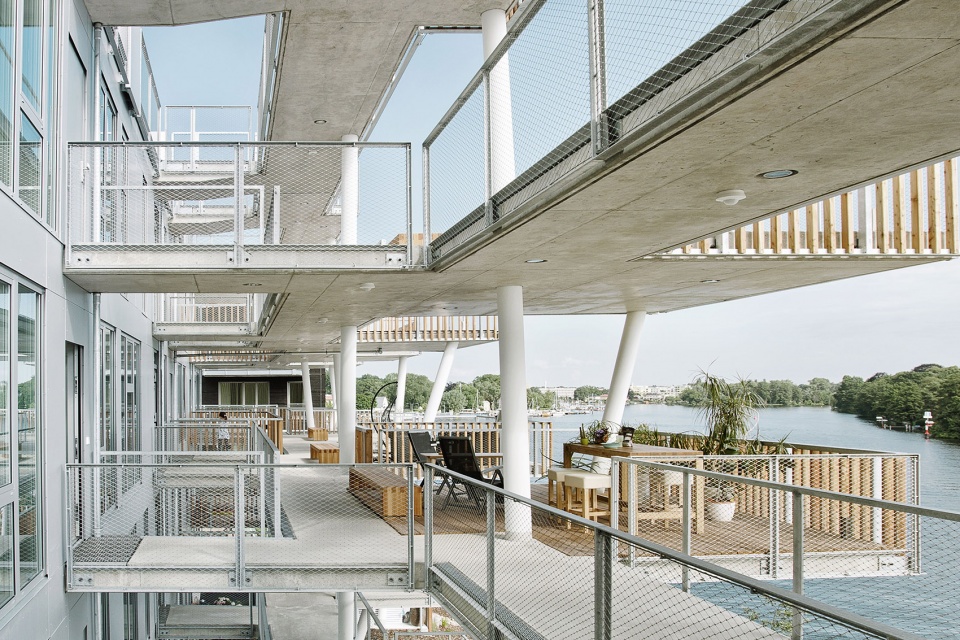

▼步桥连接公寓，footbridge connected to the residential units ©Jasmin Schuller

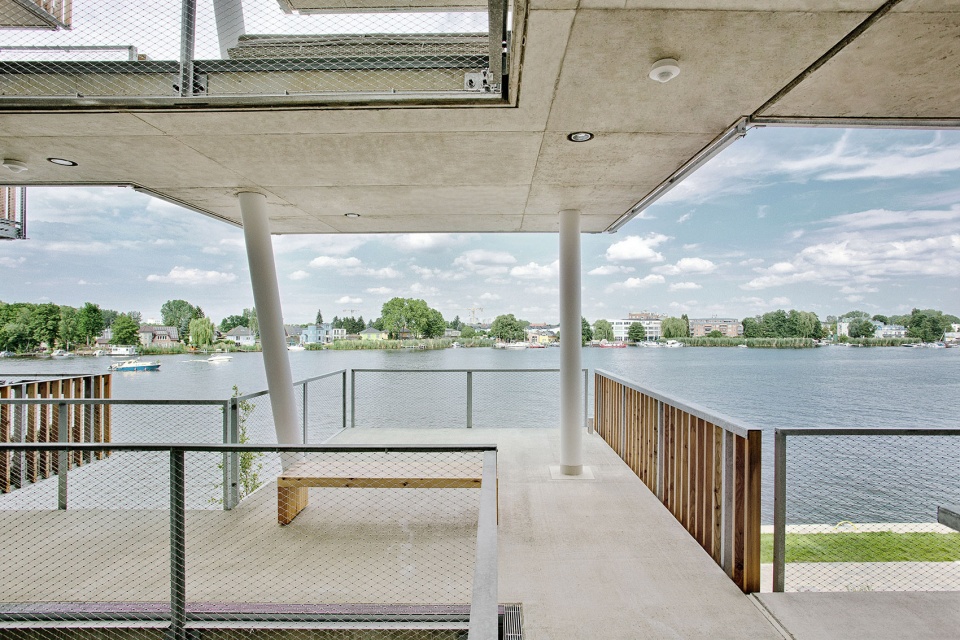

▼从步桥望向河景，river view from the footbridge ©Jasmin Schuller

所有居住单元均采用通透式的户型设计，可以看到东北侧的河流和南侧的街道，后者设有大面积种植槽，供居民自由种植花草。这意味着在这里生活的人们既不会错过东北方向的Dahme河美景，也可以享受西南方向的充沛阳光。大量可折叠-滑动墙面的使用让公寓可以最大程度对外开放，将室内外空间连接成为一个整体，步道也变成了居住环境的一部分。

All the residential units of the building are designed in an interconnected way and thus have two sky directions each: the north-east located pier and a south side, which is equipped with large-format plant troughs for free planting by the residents. This means that residents do not have to forego the remarkable view of the Dahme to the north-east or a light-giving south-west side. By means of generous folding- sliding walls, the apartments can be opened to the outside spaces to the maximum – interior and exterior thus combine to form a single unit and the entire. Depth of the walkway becomes an integral part of the living landscape.

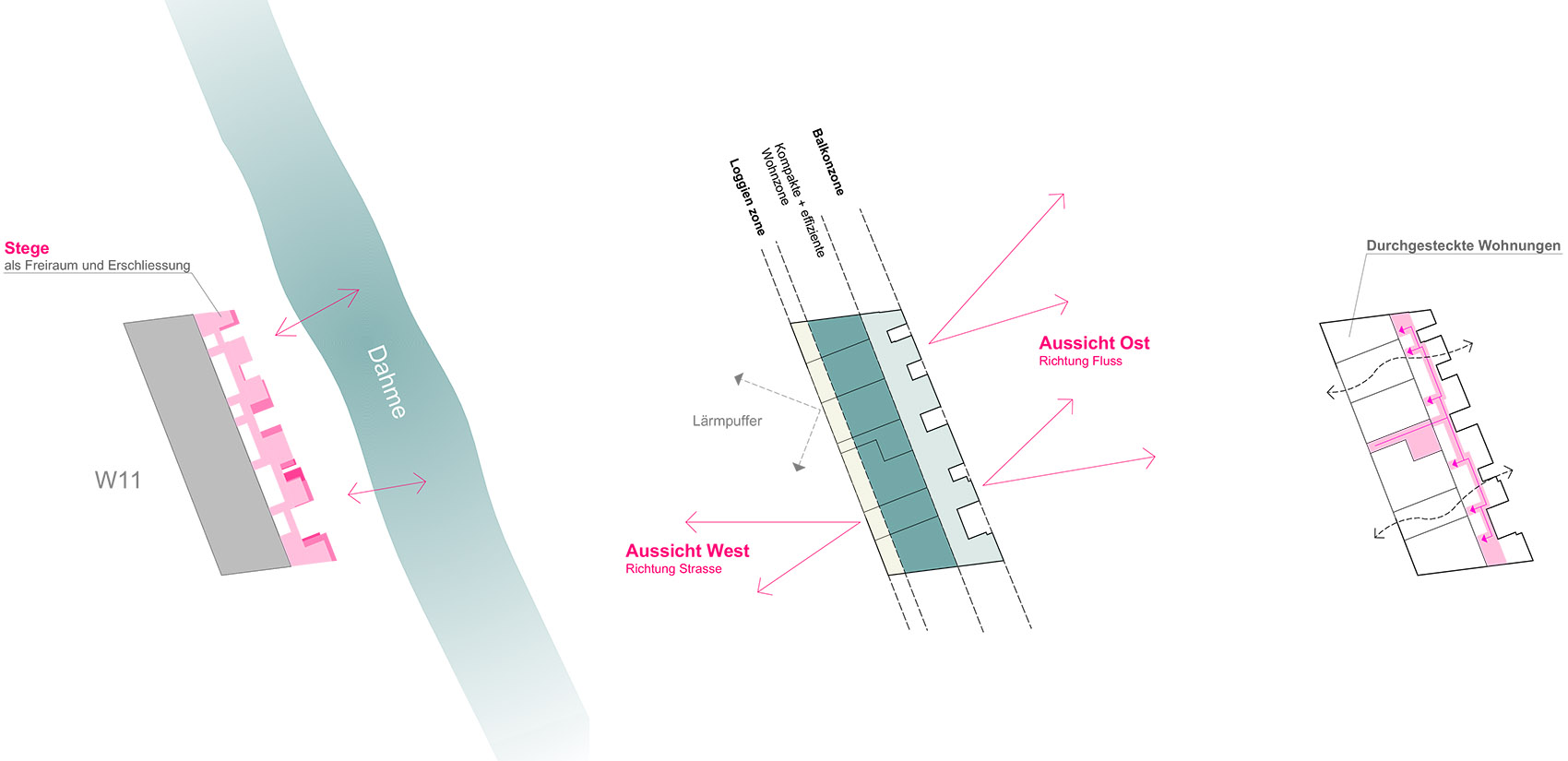

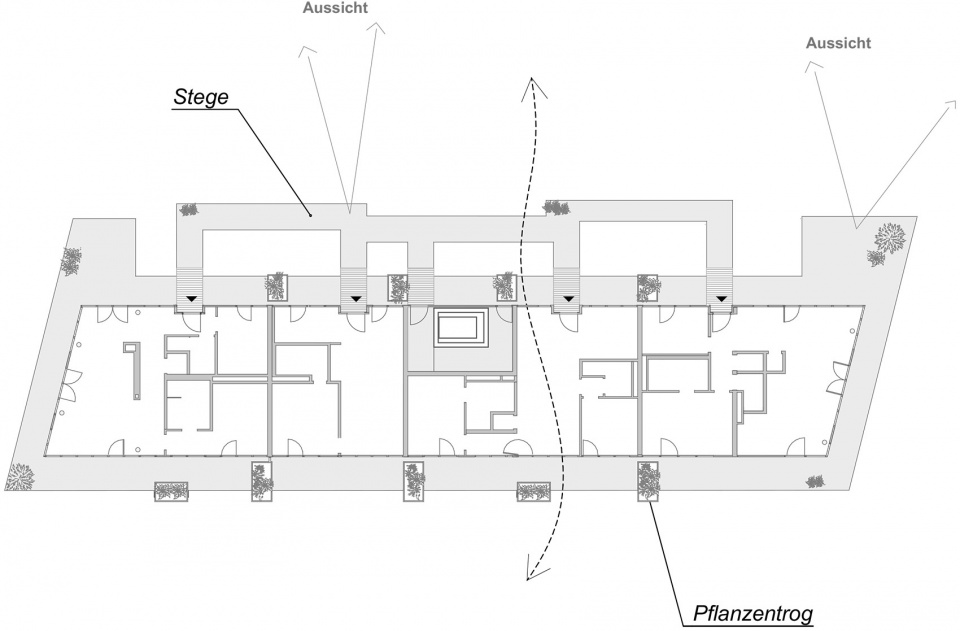

▼单元设计分析，design analysis of the residential units ©LOVE architecture and urbanism

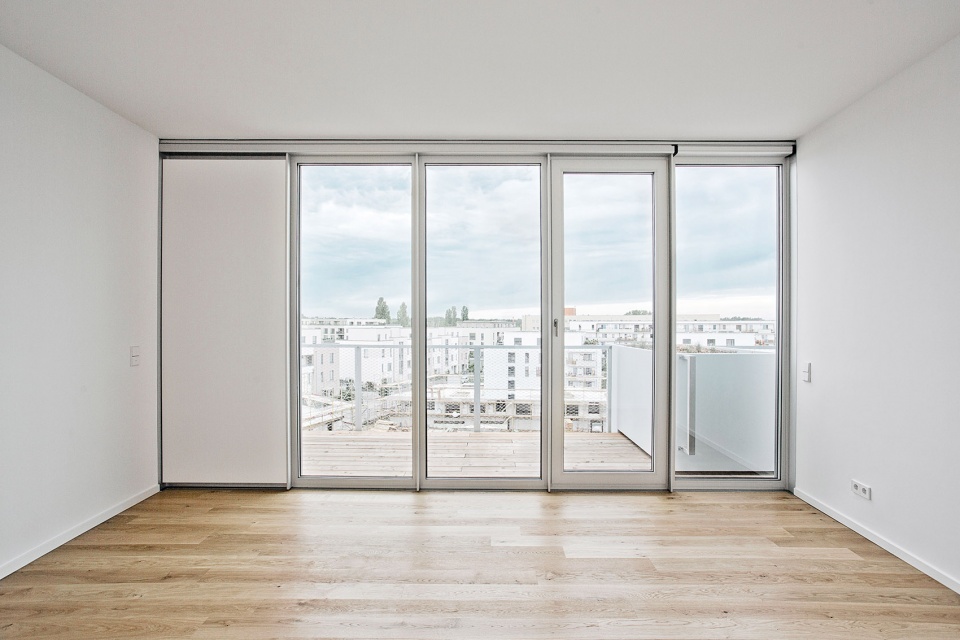

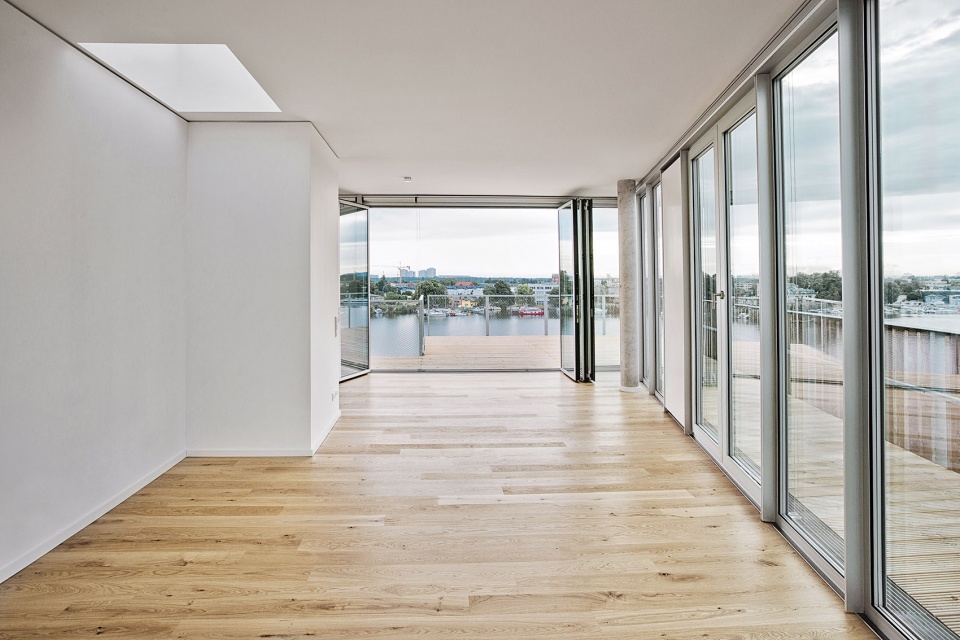

▼公寓室内，interior of the apartment ©Jasmin Schuller

▼室内外连接成一个整体，the interior and exterior connected into an entire space ©Jasmin Schuller

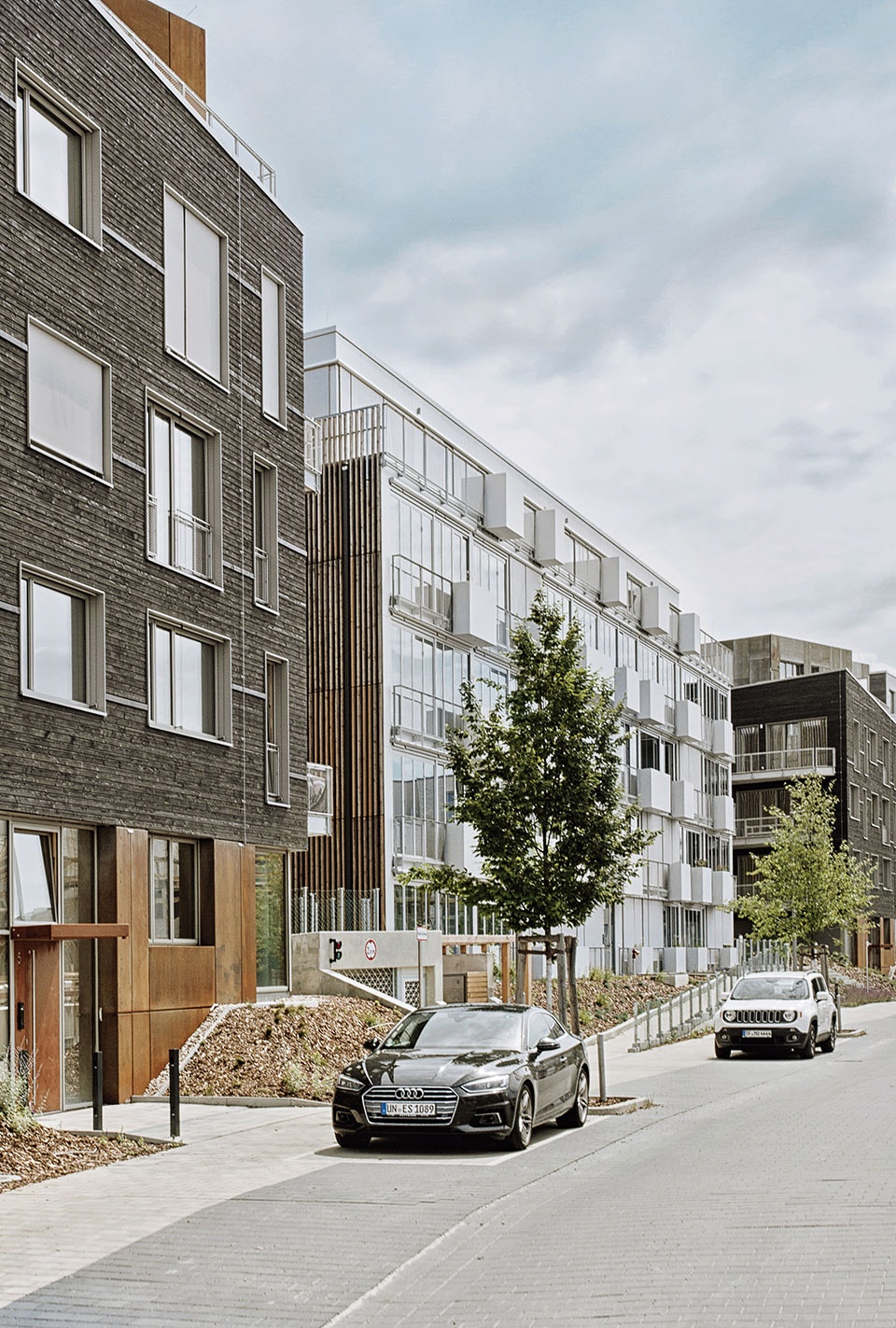

▼建筑沿街面，设有种植槽
building facade along the street with plant troughs ©Jasmin Schuller

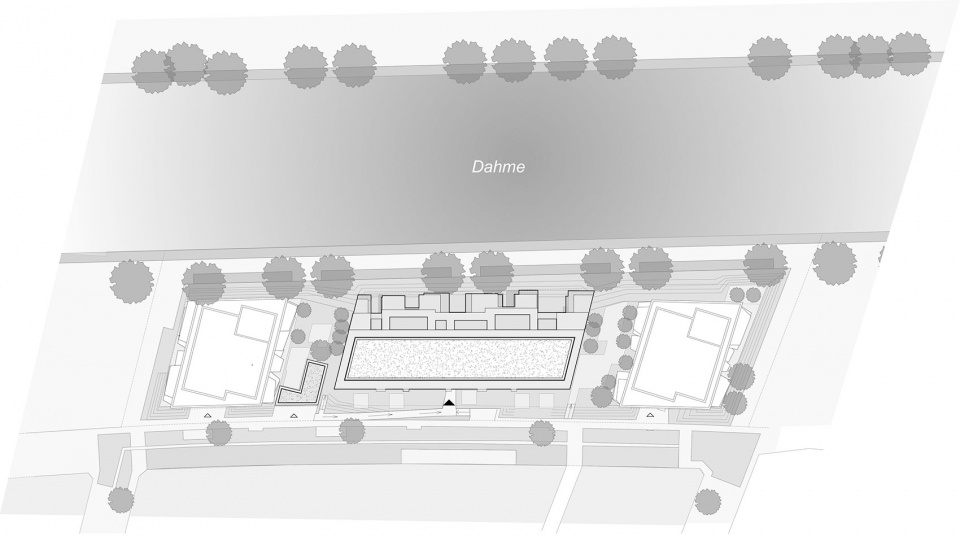

▼总平面图，site plan ©LOVE architecture and urbanism

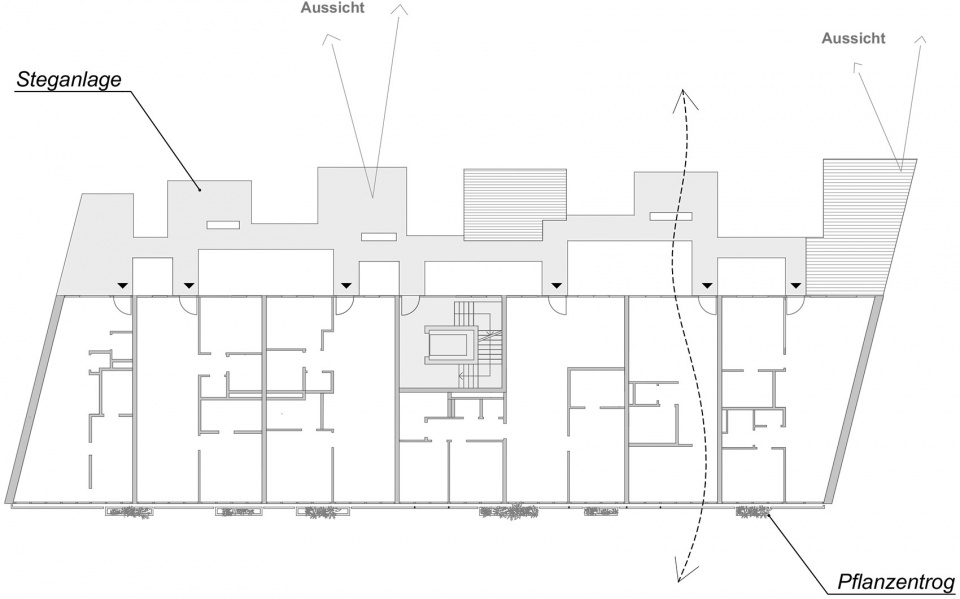

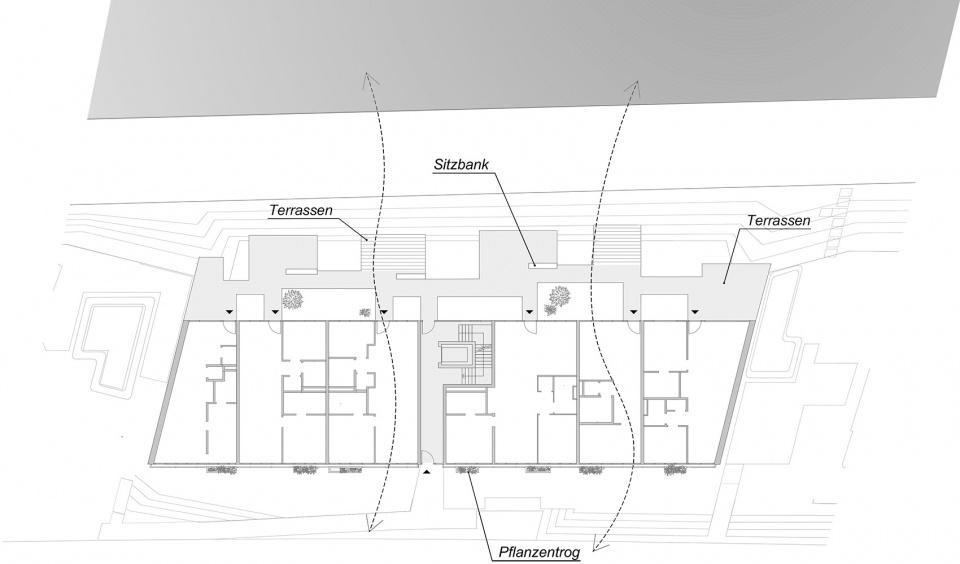

▼一层平面图，first floor plan ©LOVE architecture and urbanism

▼二层平面图，second floor plan ©LOVE architecture and urbanism

▼四层平面图，fourth floor plan ©LOVE architecture and urbanism

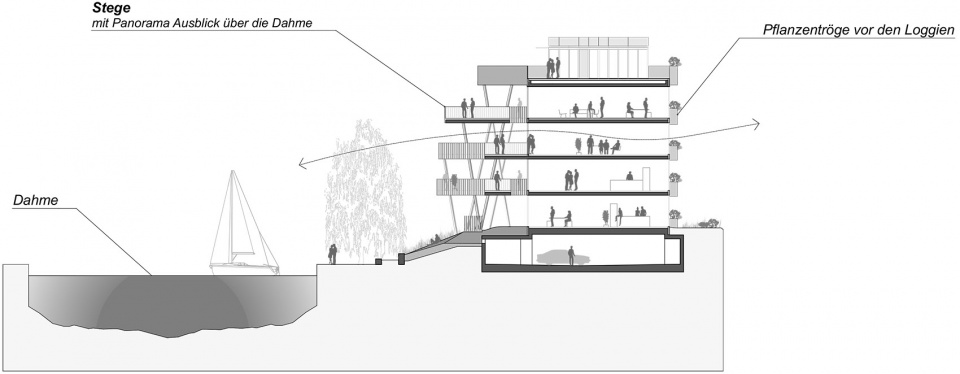

▼剖面图，section

Completion: 2021
Size: 2.780 m²
Photographs: Jasmin Schuller
Client: BUWOG Group GmbH
