感谢 上海彦文建筑工作室（联系邮箱：aone27@163.com）予gooood分享以下内容。更多关于他们，请至：Atelier A + Be opposite architecture on gooood
Appreciations towards Atelier A + Be opposite architecture (contact: aone27@163.com) for providing the following description:

Fine咖啡位于北京西城区柳荫街，临近恭王府，由胡同旧宅改造而成。设计师希望咖啡馆既能融入周边传统住宅区的环境，又能突出传统与现代元素的冲突，老北京建筑与欧式风格的反差。

Fine Café is located in a traditional Hutong area near Gong Wang Fu, a prince’s mansion of the Qing Dynasty. In this renovation project, the architects intend to highlight the contrast between history and modern life, and between traditional Beijing architecture and European style.

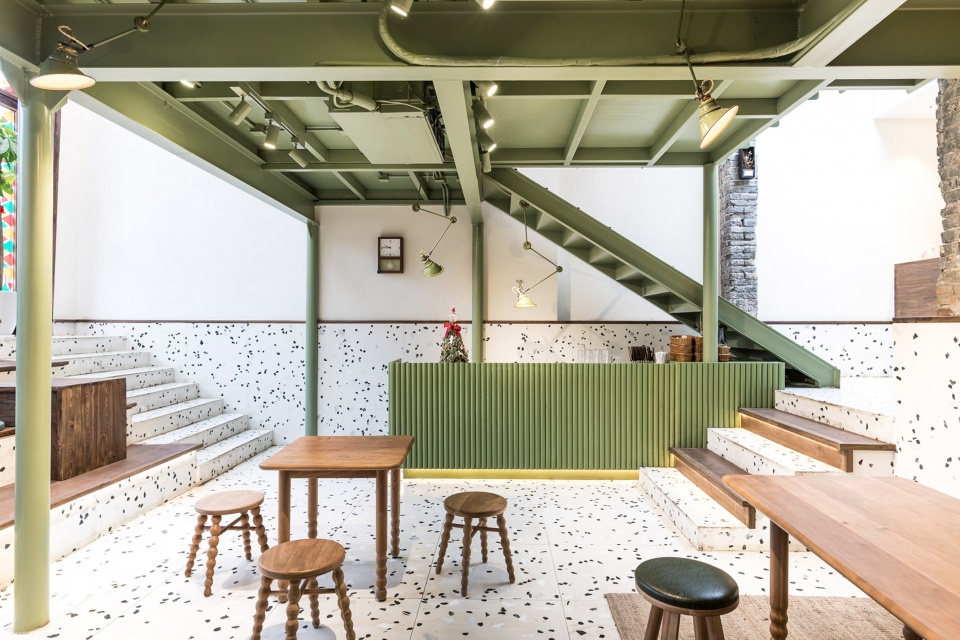

▼一层空间一览，overall view of the first floor space

利用原老宅地面下挖所产生的高度，设计师用loft将咖啡馆分为两层，下层以老北京传统风格为主，上层则以欧式元素为主。

Like many old residences in Beijing, the building is dug on level ground, descending about one metre. To take advantage of this extra space, a loft is builtto divide the café into a lower space dominated by traditional Chinese style and an upper one by European elements.

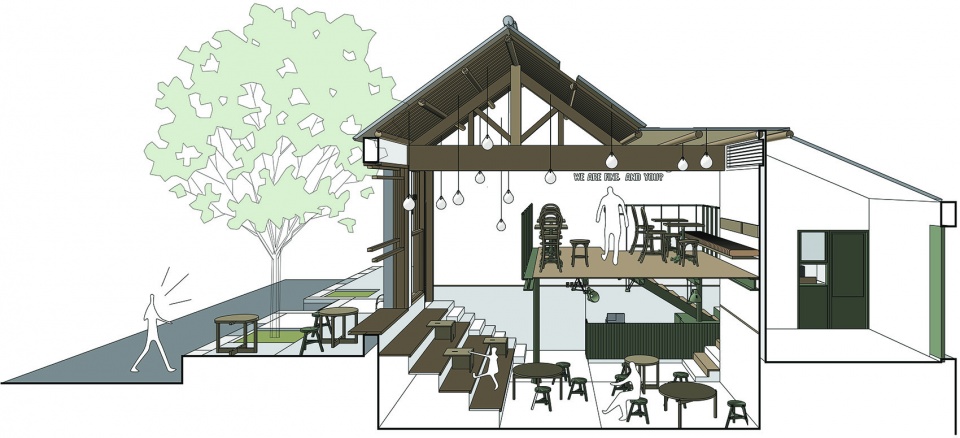

▼剖面图，section

第一层采用木制桌椅，均经手工打磨，以保留木头的肌理。定制的低桌及矮凳，使顾客能够体验传统的胡同生活方式。地面则为充满现代感的水磨石，特制的图案中加入了大块墨绿色大理石骨料，与咖啡馆的主色调墨绿色相呼应。二层风格截然不同，采用Art Deco风格的钢筋和19世纪古董欧式椅子，让顾客仿佛置身巴黎露台品味咖啡。而木制地板与保留的屋顶木梁，又与一层的风格有机融合。

The first floor is furnished with lowwood tables and stools specially designed to recreate the traditional Hutong lifestyle. The tables are all manually polished so as to preserve the texture of the wood. Against the traditional furniture is the customer-made terrazzo, the dark green marble aggregates in which echoes the same colour extensively used in the café. The atmosphere upstairs is entirely different. With the Art Deco rebar and the antique European furniture, one might feel like sitting in a terrace in Paris.

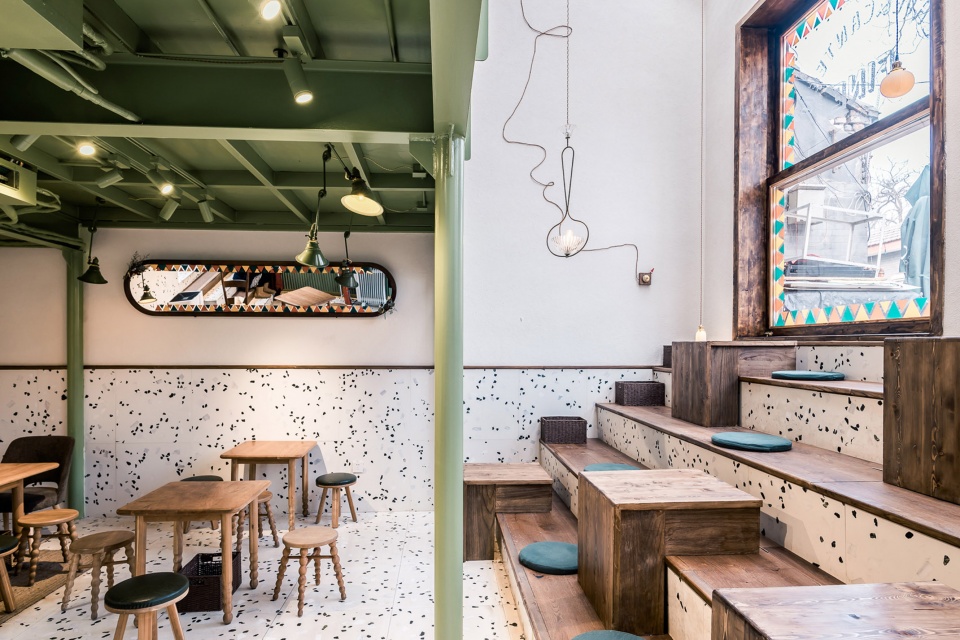

▼一层空间，采用特制水磨石，木台阶通向沿街窗面，first floor space with customized terrazzo, wooden steps raised to the window alongside the street

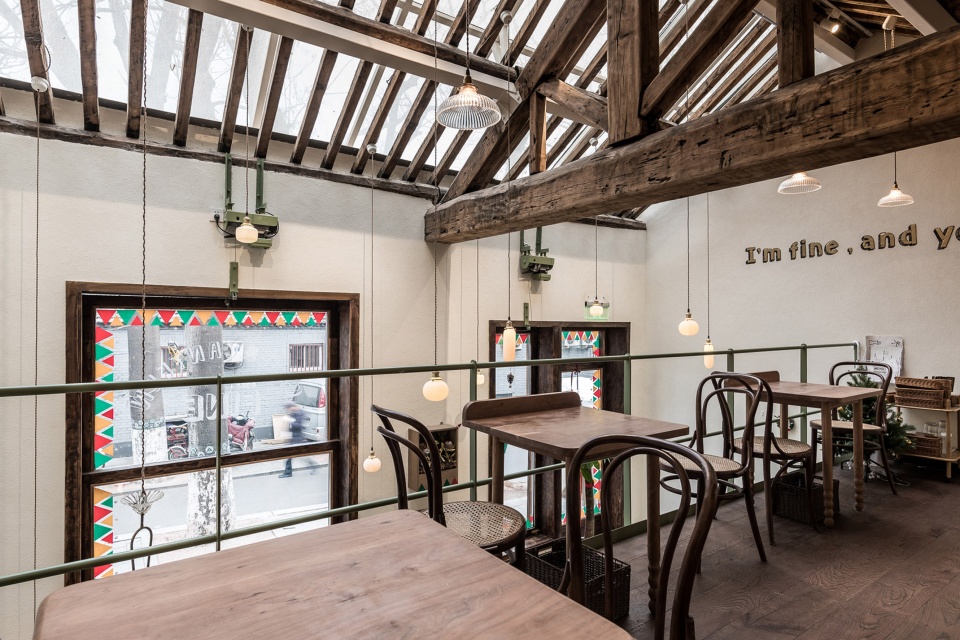

▼二层空间风格与一层截然不同，second floor space with entirely different atmosphere

连接上下层的楼梯转角处，有一传统青砖拱门格外显眼。这本不在最初的设计方案中，但设计师在现场发现老宅里的承重拱门无法拆除后，决定予以保留。青砖广泛用于老北京胡同建筑，保留的拱门使得咖啡馆的周围环境在内部得到了延伸，又与其现代元素形成了惊喜而有趣的对比。

On their way to the second floor, customers will pass by ahistorical archway of grey bricks. This was not in the original design. When realizing that the load-bearing arch could not be demolished, the architects decided to preserveit so that the café blends with the environment, for the grey bricks are widely used in the surrounding Hutong area. Imbedded in a shop serving coffee and pancakes, the arch gives quite a surprising effect.

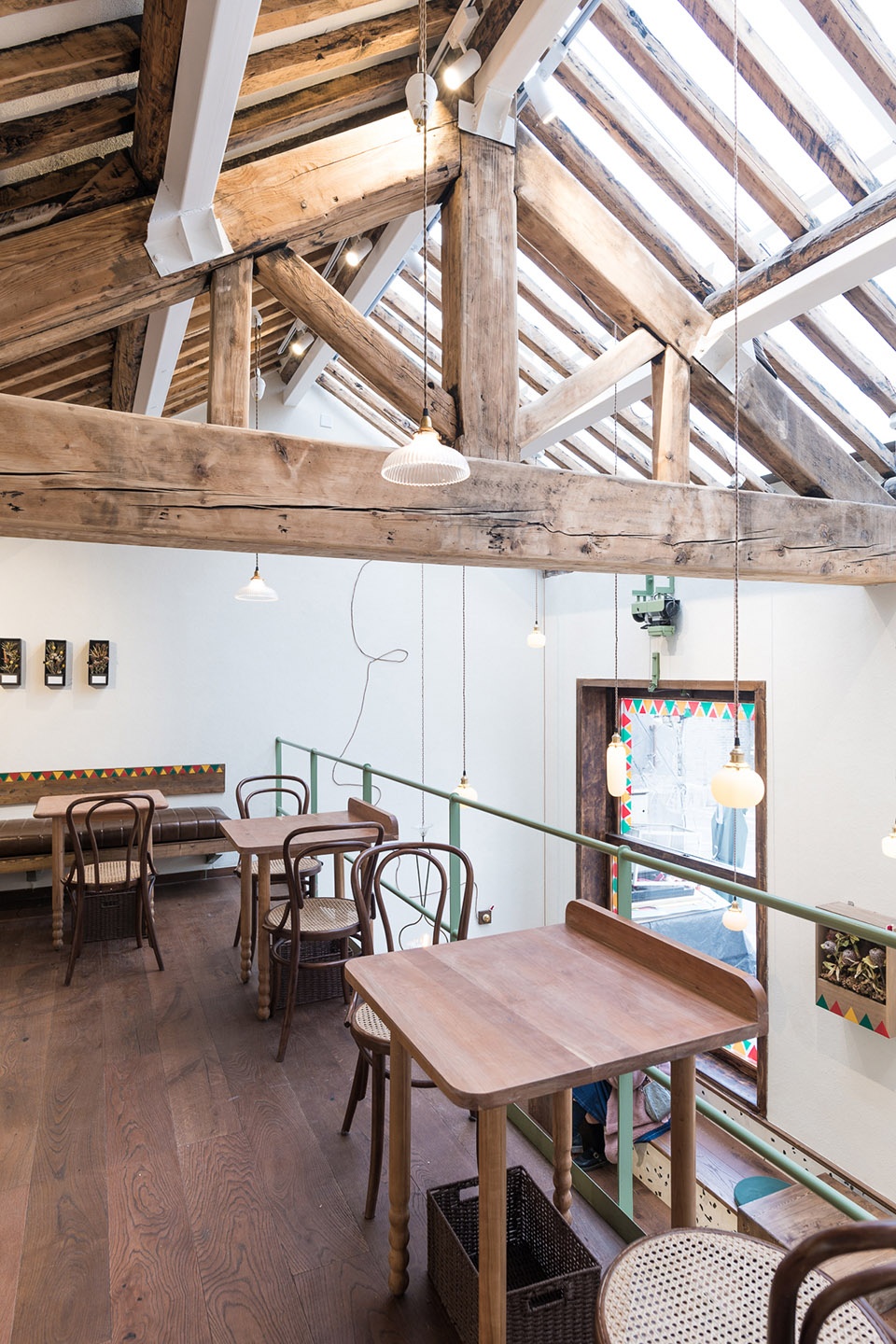

▼保留原本的木制屋架，original wooden truss was remained

因咖啡馆地面与室外地面有近一米落差，设计师设计了木制台阶连接通向街面的落地窗，即是台阶，同时也是座位。落地窗到了夏秋天可以上推打开，与街面空间连通；店内多处安装了装饰镜，使空间得到延展。整个咖啡馆空间层次丰富，且互相联通，创造了一个开放灵活的环境，为顾客与商家，顾客与顾客之间的交流提供便利。

Wood steps are installed as both sitting places and stairs leading to the French windows. In summer and autumn, the windows can be opened so that the interior of the café extends to the exterior. The split-level design, reinforced by multiple decorative mirrors, creates a complex, yet open and communicative space.

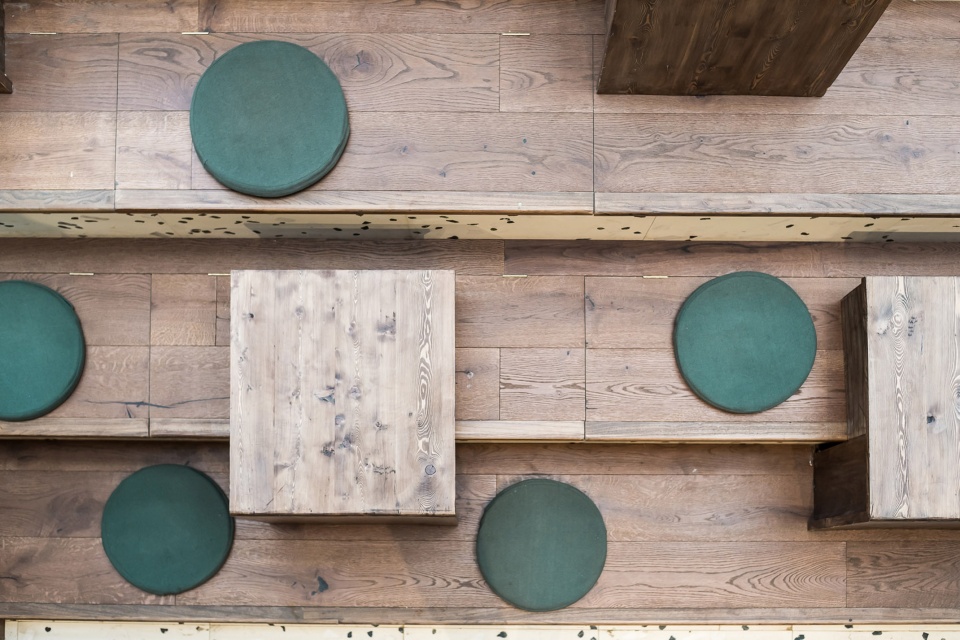

▼木制台阶细部，details of the wood steps

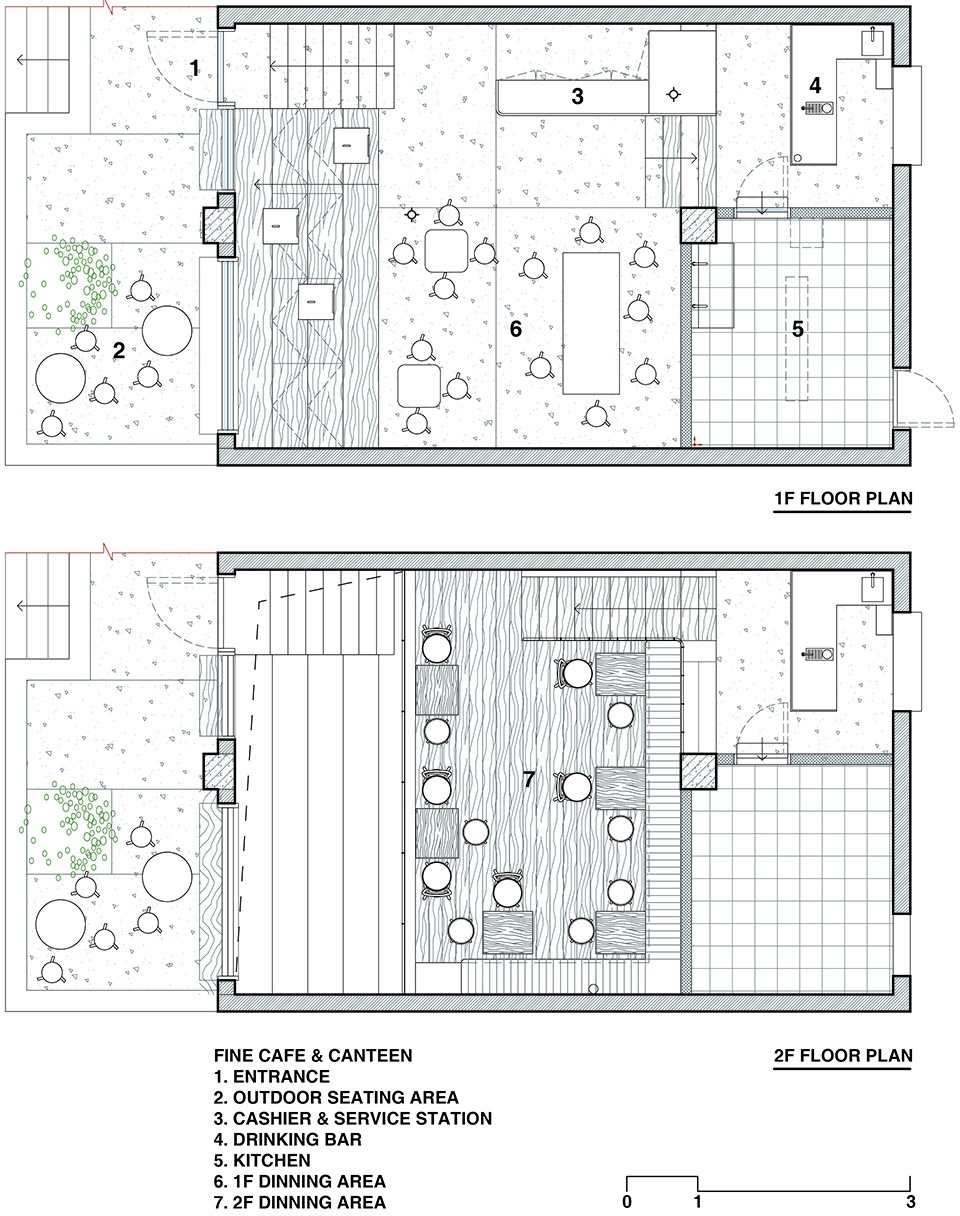

▼平面图，plans

项目名称：Fine咖啡
设计方：上海彦文建筑工作室
联系邮箱：aone27@163.com
项目设计&完成年份：2018
主创及设计团队：朱彦文，田炳珉
项目地址：中国北京西城区柳荫街
建筑面积：77.2平方米
摄影版权：田炳珉
客户：上海燊席餐饮管理有限公司

Project Name: Fine Cafe
Design: Atelier A + Be opposite architecture
Contact E-mail: aone27@163.com
Design & Completion Year: 2018
LeaderSesigner & Team: Lily Zhu, Tian Binming
Project Location: Liuying street, Beijing, China
Gross Built Area: 77.2 m2
Photo credits: ian Binming
Clients: Fine Café and Cateen
