西班牙马德里建筑事务所Rafael de La-Hoz给gooood分享了他们在西班牙阿尔科文达斯的最新项目–一个由三个相互关联的体量组成并漂浮在地面上的综合体Espacio Miguel Delibes。该建筑包含Popular大学，PhotoEspaña总部，媒体图书馆以及一个市民服务中心。更多请至：Rafael de La-Hoz Arquitectos on gooood on gooood

他们的更多项目 Rafael de La-Hoz other projects on gooood：
新医疗空间—–雷伊胡安卡洛斯医院 Rey Juan Carlos Hospital
“巨型字母”外表皮 The Hercules Towers
梯形之切 — Cordoba大学教育中心 Education Centre for the University of Cordoba
军营变身文化中心 Daoíz y Velarde Cultural Centre
升起的盒子 Refurbishment of the Teatro Gongora
Castellana 79 Building
“白板”–班牙普尔塔翁布里亚大区高速铁路站 Puerta Umbría High Speed Rail Station

A cultural area composed of three interrelated volumes, highlighting a wide central cube-shaped glass lantern

Rafael de La-Hoz completes the Espacio Miguel Delibes in Alcobendas

The new building hosts the Universidad Popular, the headquarters of the PhotoEspaña International Centre in Alcobendas, as well as a media library and a citizen’s advice service of the City Council .

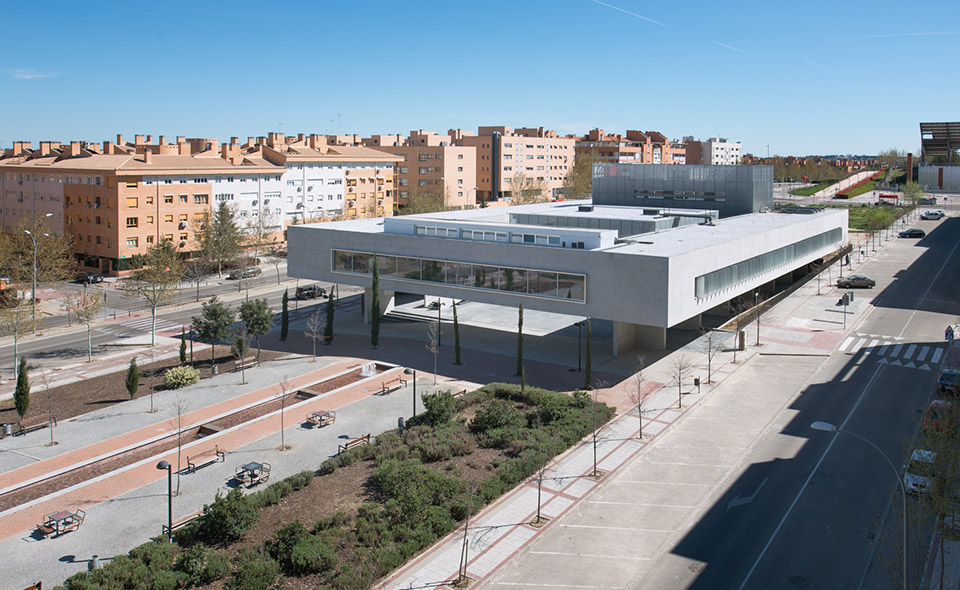

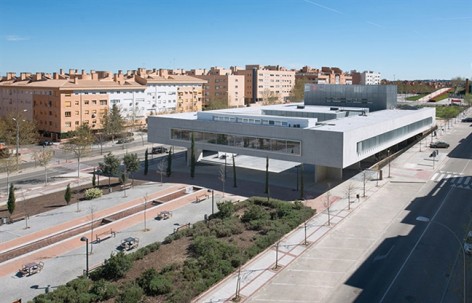

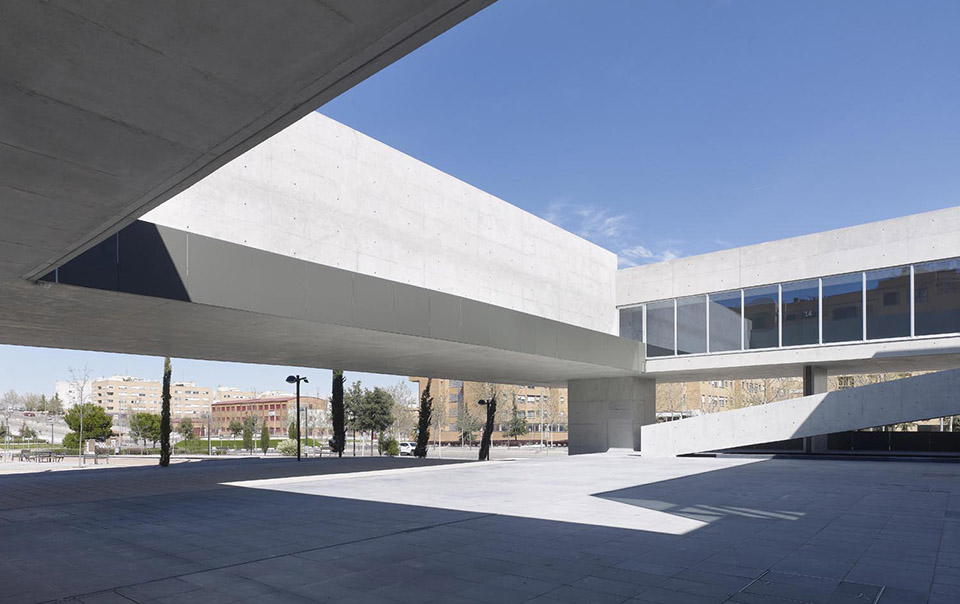

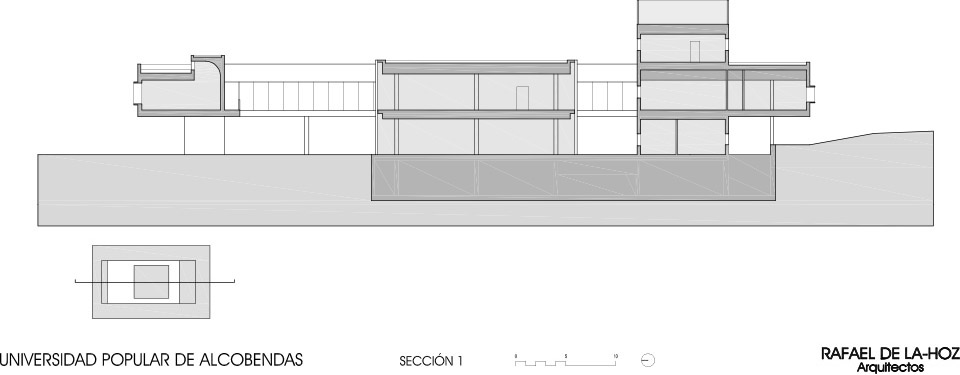

建筑漂浮于西班牙阿尔科文达斯新开发区中一块6000平米的用地上，以开放的姿态应对城市。综合体的三个体量风格迥异但又彼此关联。最外围是一个长方形框状体量，在这个框中有一个瘦高的长方体体量和一个矮壮的正方形体量（其为玻璃立方体）。外围框体建筑被结构支撑，悬浮于地面上，人们可以从开放的两面无阻挡的直接进入框体范围内的院落。体量之间，较大的院落是充满阳光的冬季庭院，而较小的院落则是充满荫凉的夏季天井庭院。

Inaugurated with the name of the famous Castilian writer Miguel Delibes, the new building is erected on 6,000 square meters in the Avenida Pablo Iglesias of Alcobendas, one of the youngest areas of the city. This results from the express will of the developer to create an open and dynamic centre so as to generate a singular volumetry.

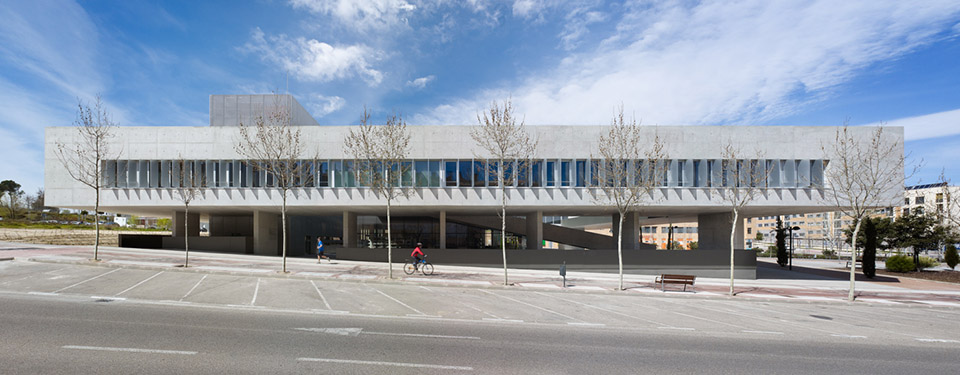

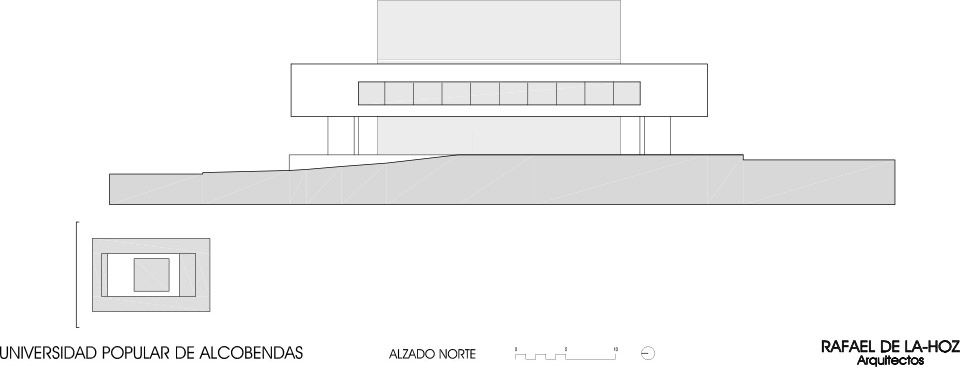

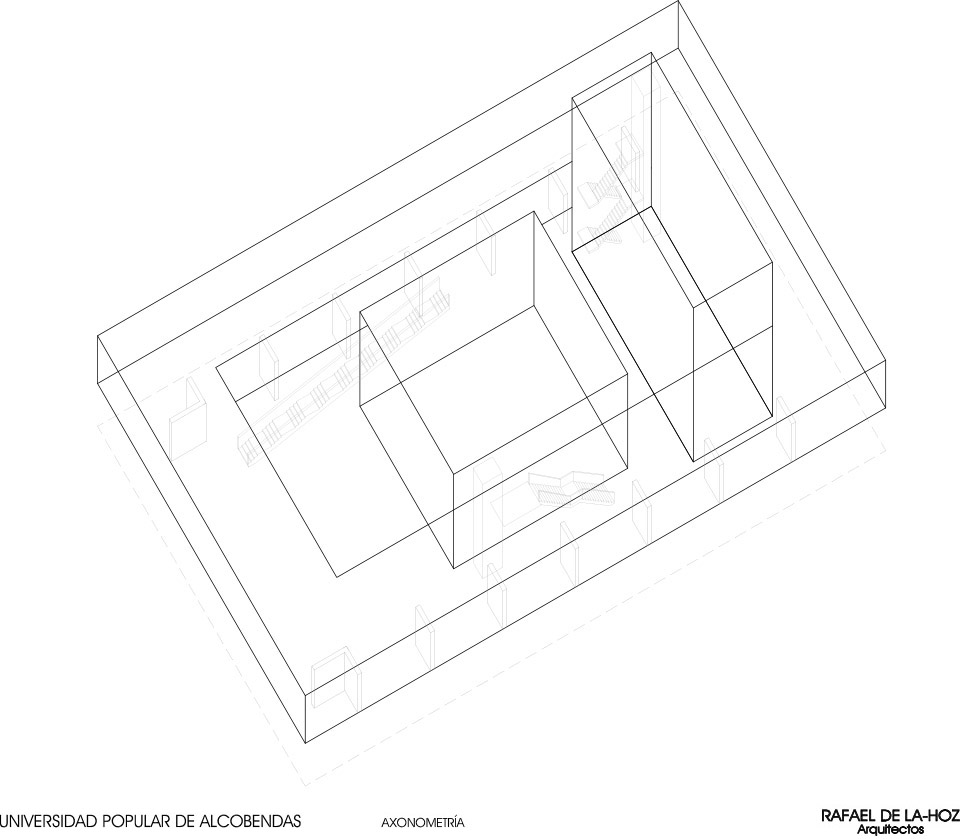

Rafael de La-Hoz proposes a building with three bodies that clearly differ from each other but are completely interrelated: a glazed cube, a massive volume of greater height and a horizontal perimeter crown, which rises from the ground and creates another space, a place of convergence and exchange.

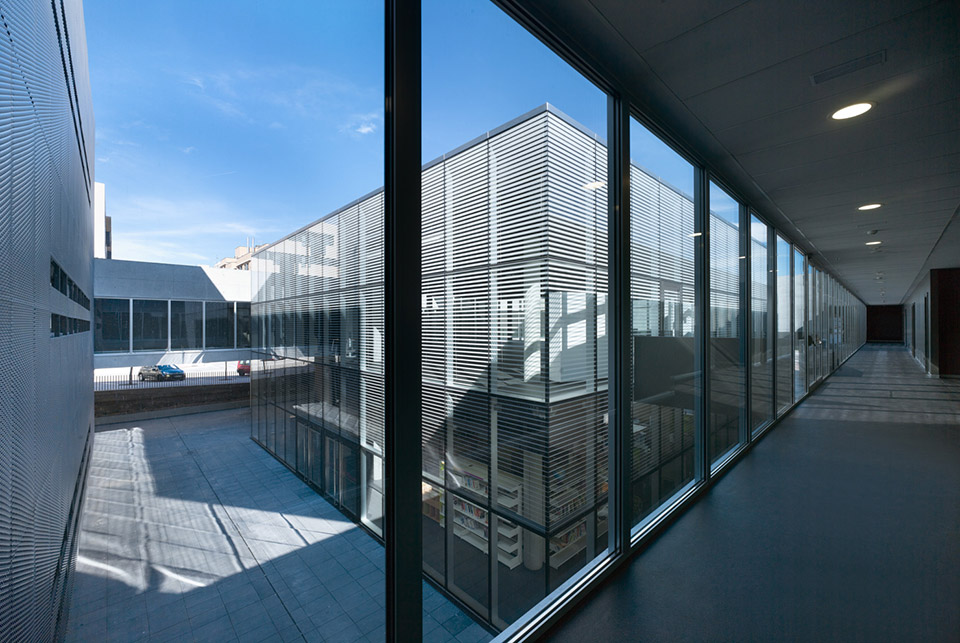

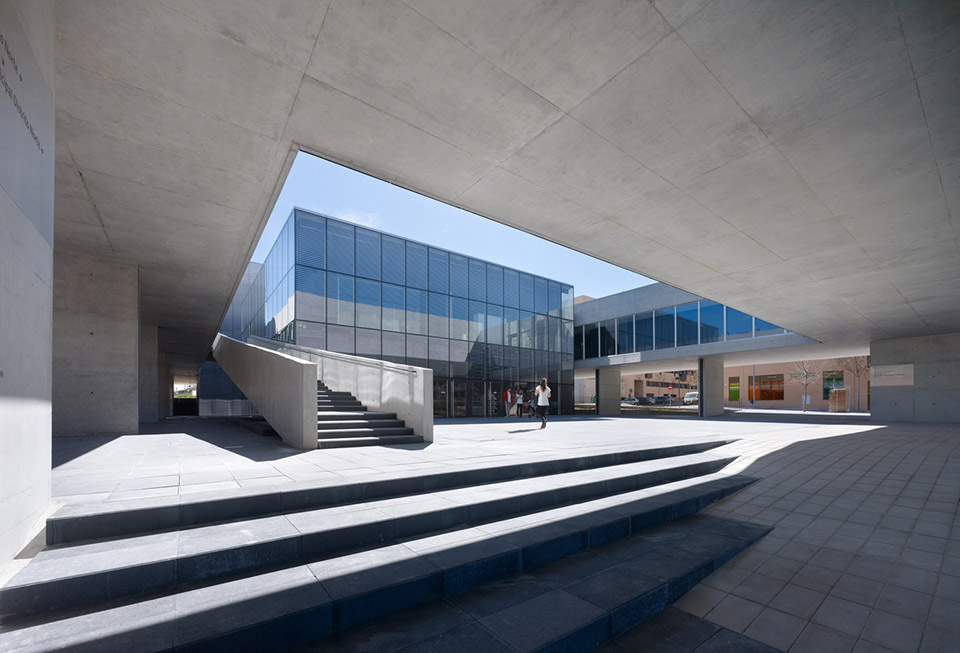

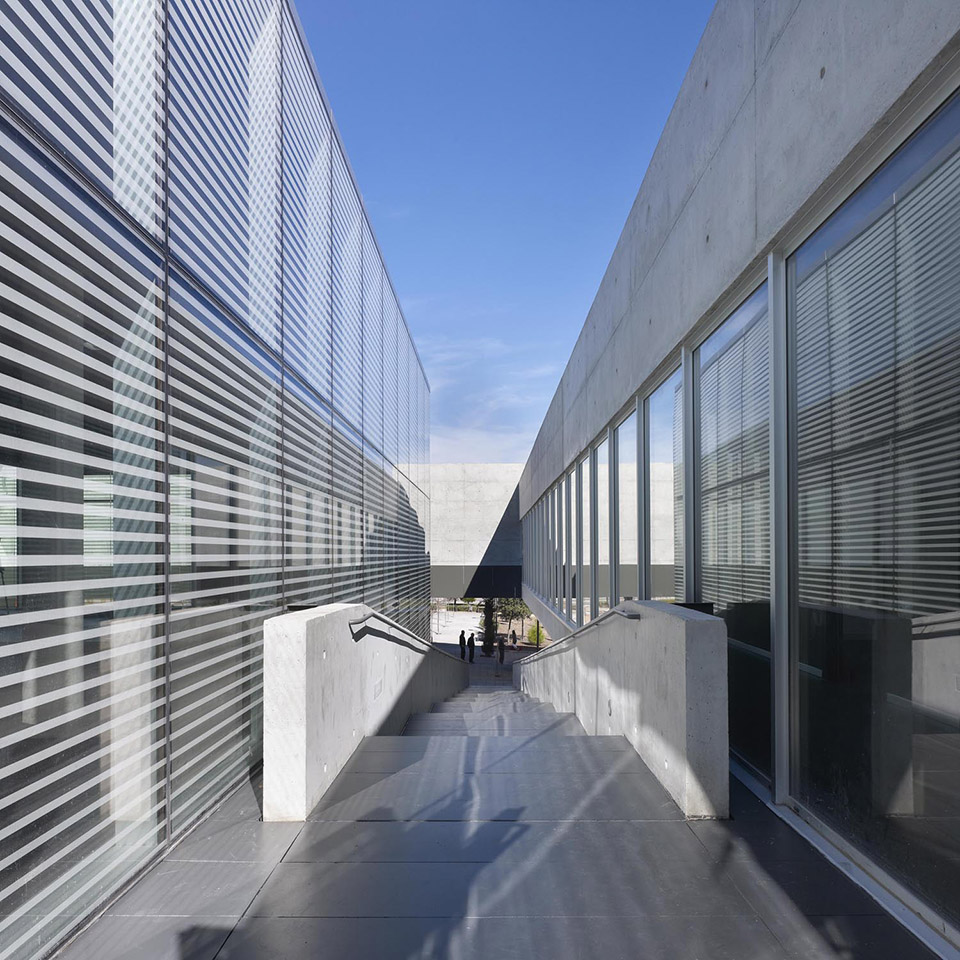

The gap generated by the perimeter crown forms a large void, a spacious patio in which the other two volumes are inserted, leaving spaces filled with air and light between them. This results in two opposed patios in terms of size, proportions and orientation. The bigger one is a landscaped and sunny winter patio. The second is a vertical summer patio that provides shade in the summer.

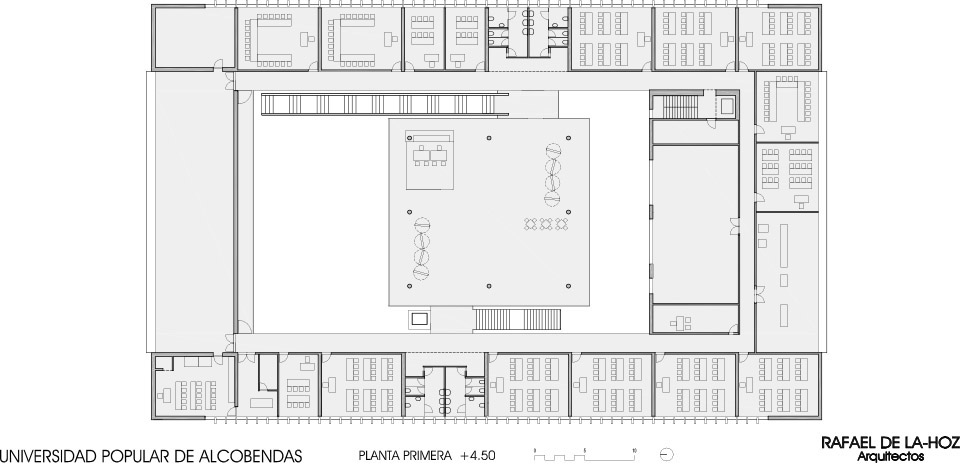

中心的玻璃立方体是媒体图书馆，四周的框体建筑连同瘦高的体量则包含演讲厅，大学工作室，公民咨询服务，PhotoEspaña国际中心，教师办公室。

这三个体量每个体量都可在不同的时间以不同的方式单独使用，都拥有自己面对街道的入口和门径。建筑以灵活的方式应对了复杂的功能需求，并像一个开放的灯笼迎接各有所需的人们。

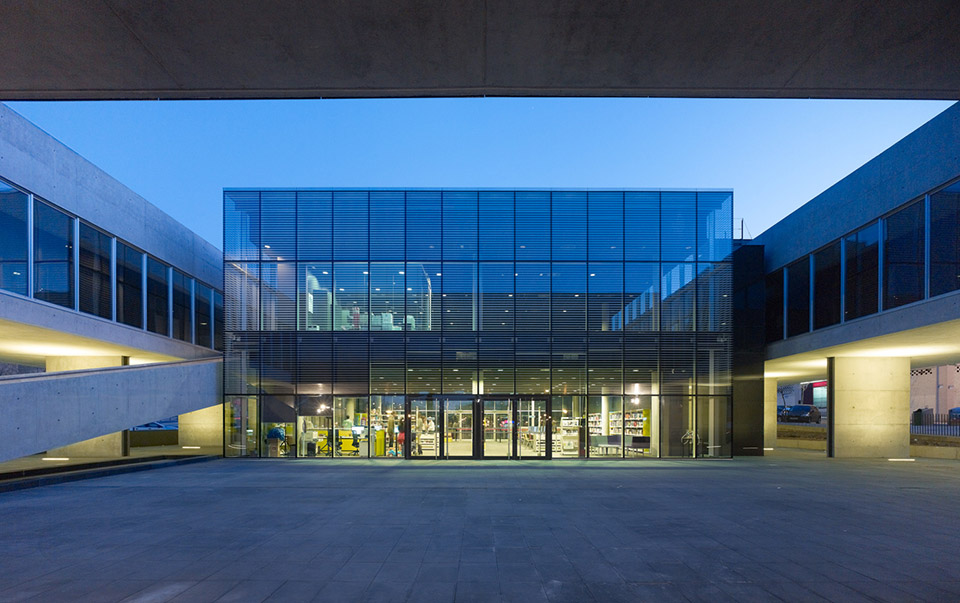

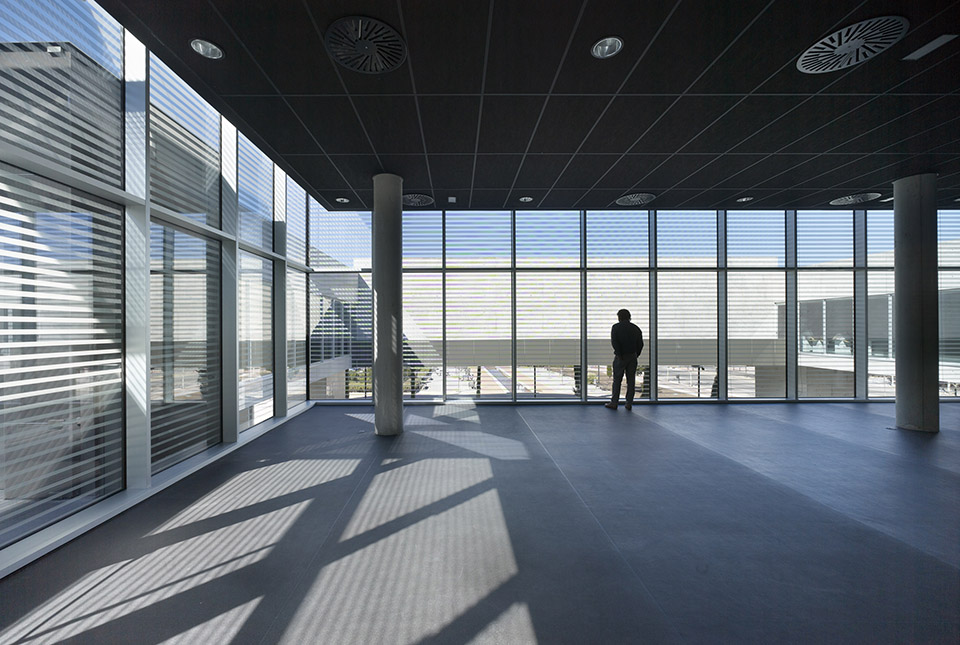

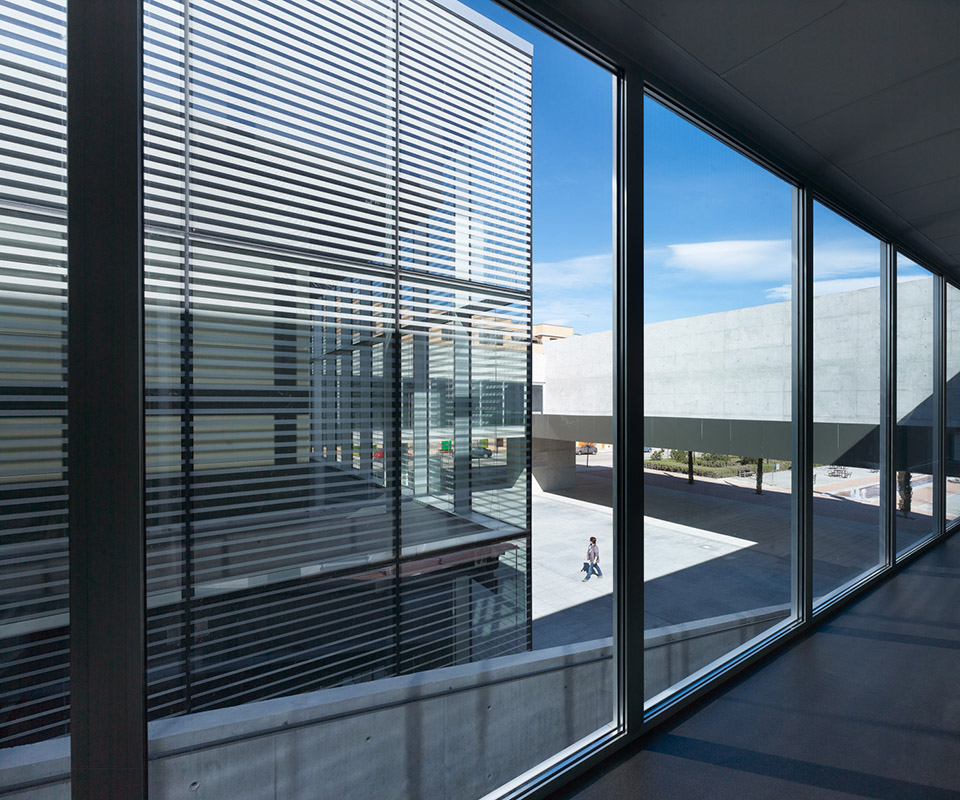

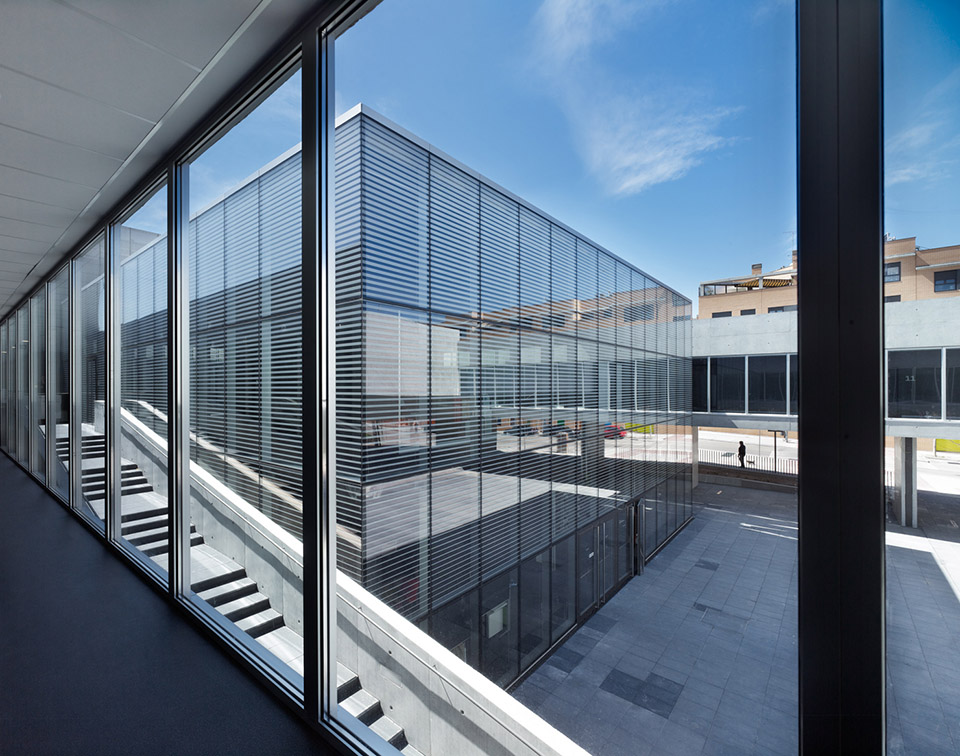

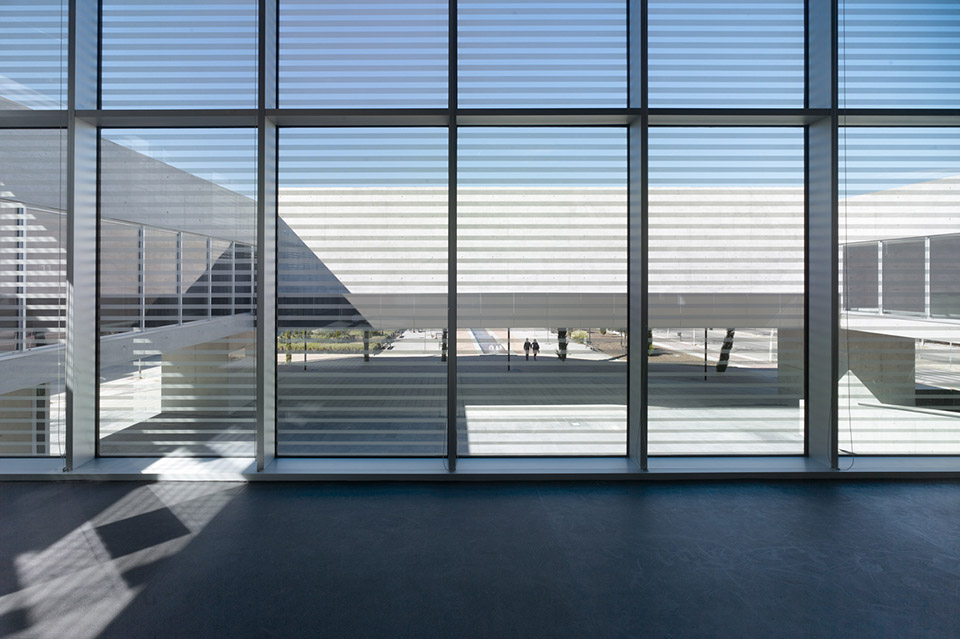

The glazed central volume represents the core of the concept. It will host the multipurpose hall on the ground floor and the general vestibule of the building together with the exhibition and rest area on the first floor. Its centred position in the complex, between the two patios and tangential to the perimeter volume, turns it into an isolated body which, thanks to its crystalline materiality, looks like a huge night lantern from the outside.

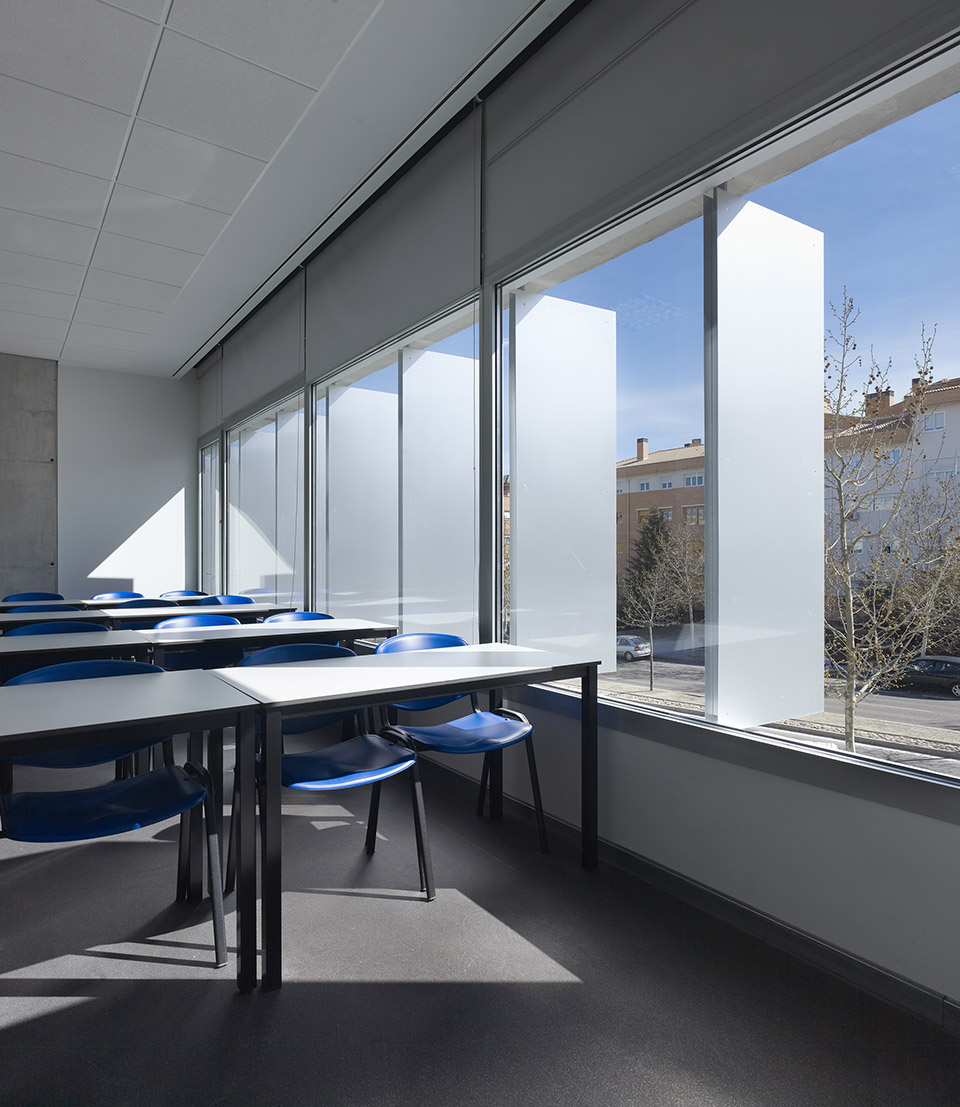

The perimeter crown includes the lecture halls and workrooms of the University. The citizen’s advice service (SAC), the PhotoEspaña International Centre, the teacher’s room and the direction are included in the massive volume.

Each of these volumes have independent use and access from the street. They can thus be used at different times and in different ways, which allows for a completely flexible use of the complex.

Project:Espacio Miguel Delibes
Location:Avenida de Pablo Iglesias, sector ‘Fuente Lucha’, Alcobendas
Client:Empresa Municipal de la Vivienda de Alcobendas (EMVIALSA)
Architect:Rafael de La-Hoz

Team RAFAEL DE LA-HOZ Arquitectos:
Diseño de Proyecto: Carolina Fernández, Francisco Arévalo y Hugo Berenguer
Director de proyecto y ejecución de obra: Belén Rivera, Ángel Rolán
Project Team: Belén Rivera, Marta Tobías, Silvia Villamor y Saúl Castellanos
Graphic design: Luis Muñoz, Carlos Ripoll y Daniel Roris
Models: Fernando Mont y Víctor Coronel Benítez

Project Management: DPS, Javier Poole Derqui

Quantity Surveyor: Yolanda Pérez Basanta y Cristina Nicolás

Contractor:
UTE: ACCIONA- OBENASA (estructura)
UTE: PEYBER-FOSHIDRO (acabados e instalaciones)

Structure engineering:NB-35 S.L.
Service engineering:Pérez-Barja S.A.
Telecomunications:Pérez-Barja S.A.
Start-End of Works:2011-2015
Photographs:Alfonso Quiroga
