相对于以往，公共建筑的功能复合化在今天的城市建设中越来越成为共识，图书馆也不例外。“东台”这一名称已在中国历史上沿用了八百余年，位于黄海畔的这座城市具有悠久的历史，深厚的人文底蕴，强劲的经济实力，正努力建设人文与自然景观相融合的宜居环境。

Multi-purpose has become a “hit-word” in today’s urban planning and construction, so as the traditional Library. The name “Dongtai” has been used in Chinese history for over 800 years, the city adjacent to the Yellow Sea owns a long history, a deep cultural heritage and a rising economy, as well as a strong will to build a livable environment that blends cultural and natural aspects together.

▼视频，video ©上海和睿规划建筑设计有限公司

东台新图书馆位于范公北路西侧、黄海路南侧，紧邻片区核心，位于城市主轴之上，属于低开发强度的城市重要节点区域。在我们接手方案的时候，图书馆的土建结构已然成形，但设计已时过境迁，原设计从硬件设施到软件配套，都滞后于高速发展的时代。虽是新城新馆，却已经面临更新改造的局面。

The new Dongtai Library is located on the west side of Fan Gong North Road and the south side of Huang Hai Road, sitting on the main urban axis and adjacent to the city core, thus it is one of the key areas within low-development intensity area of the city. The scheme was taken over after the construction of the primary structure, however the original design had fallen behind the age, either on facilities or the service. Therefore, although the library was rather new in the new town, it had been facing a situation of the potential renovation back at the time.

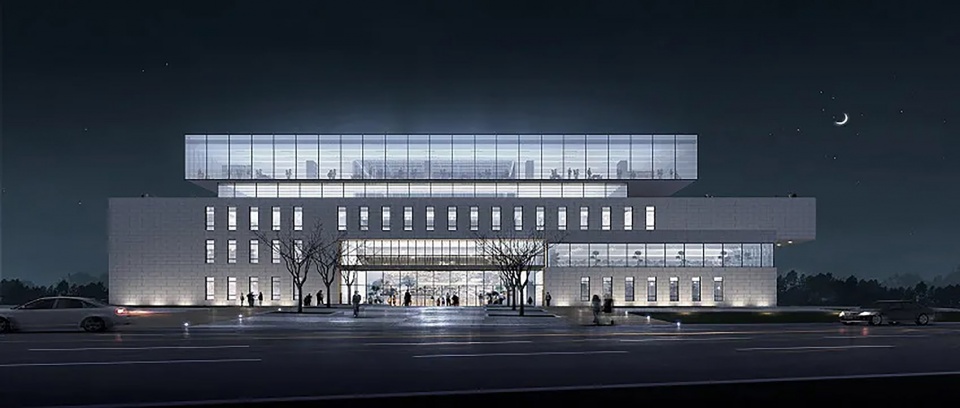

▼改造前效果图，Before the renovation ©上海和睿规划建筑设计有限公司

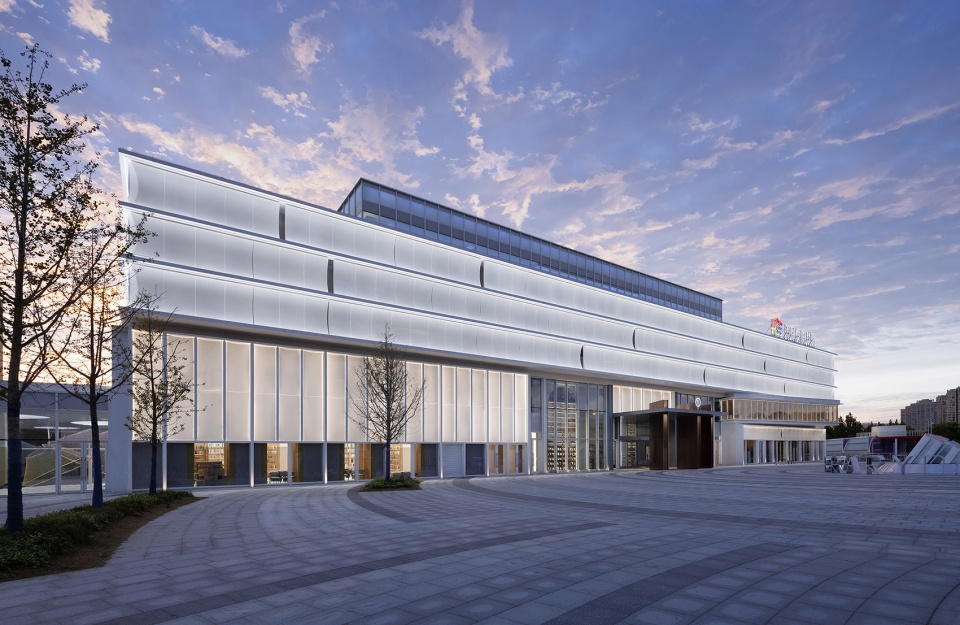

▼改造后实景，After the renovation ©是然建筑摄影

建筑设计
Architectural Design

“一本书像一艘船，带领我们从狭隘的地方，驶向生活的无限广阔的海洋”。
A new book is like a ship, leading us from a narrow place to an infinitely vast ocean.

—— 海伦-凯勒 Helen keller

传统意义上，图书馆是历史记录的载体，文化传承的场所，是一个功能指向特别明确的建筑类型。但是应运时代发展，东台市政府希望它能够体现城市空间的开放精神，提供以图书阅读为基础核心的种类齐全的多样性功能服务，同时创造低碳绿色的优质环境。如何才能将这个图书馆从一个厚重严肃的形象改造为一个崭新的，开放的，对当代人有吸引力的公共场所，如何凸显与周边严肃的政府建筑的强烈反差，从而制造一种戏剧的冲突性？这些都是我们思考图书馆改造的设计出发点。

Traditionally, a library is a carrier of historical records and a place of cultural heritage, a building type with a particularly clear functional orientation. However, in response to the development of the times, the Dongtai Municipal Government wanted it to embody the spirit of openness of urban space, providing a wide variety of functional services based on reading, while creating a low-carbon and green quality environment. How can the library be transformed from a serious figure to a new, open and attractive public space for the modern society, and how can it highlight the relationship with the serious government buildings within the context, thus creating a dramatic effect? These are the initial questions we held for the transformation.

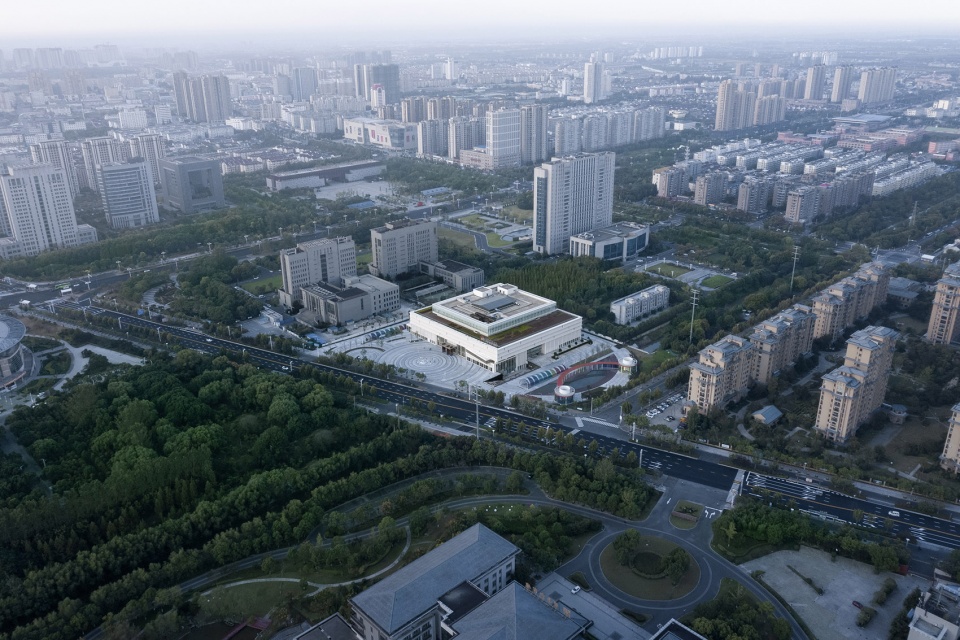

▼图书馆位于城市核心政务区，打破这种严肃气氛，是吸引市民的关键 ©是然建筑摄影
The library is located in the heart of the city’s government district and breaking up this serious atmosphere is key to attracting the public

我们以“书帆”为概念为建筑形象立意，意指以书籍为船帆，文化为希冀航向未来的东台。另一个设计主旨在于提升整体建筑立面的通透性，打破原有建筑严肃封闭的立面状态，加上外部灯光及室内光线的运用，以更包容和开敞的立面形象提升建筑的昭示性与公共性。

The concept of ‘Book Sail’ was used on the concept of the design, signifying that books are the sails of the ship that carries the hope of culture sailing to the future of Dongtai . In addition, another design intention was to break the seriousness of the original closed façade and to enhance the permeability of the overall building façade, as well as to improve the public cognition and public character of the building through a more open façade with the support of both artificial and natural light within the context.

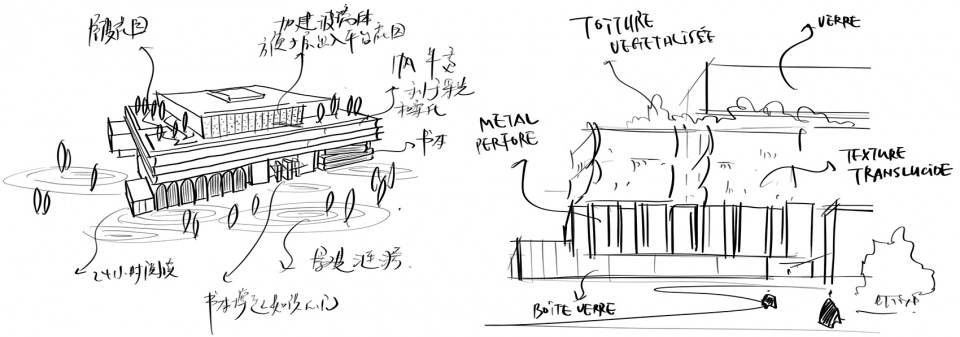

▼手绘概念草图：诠释多样化使用场景，表皮层次与透明性©上海和睿规划建筑设计有限公司
Hand-drawn concept sketches: interpreting diverse usage scenarios，interpreting diverse usage scenarios

建筑立面沿为经典的三段式，一至五层分别采用通透的玻璃幕墙、外挂冲孔压型铝板以及内衬遮阳帘的玻璃幕墙，形成了三个清晰的横向体量，造型简洁纯净，犹如书籍堆叠在城市核心建筑群之中。

The façade applied a classic format of three sections, using transparent glass curtain wall, perforated pressed aluminium panels as well as curtain wall lined with sunshades respectively from the ground to fifth level, forming three clean horizontal volumes that’s minimal and pure, like books stacked at the heart of the city.

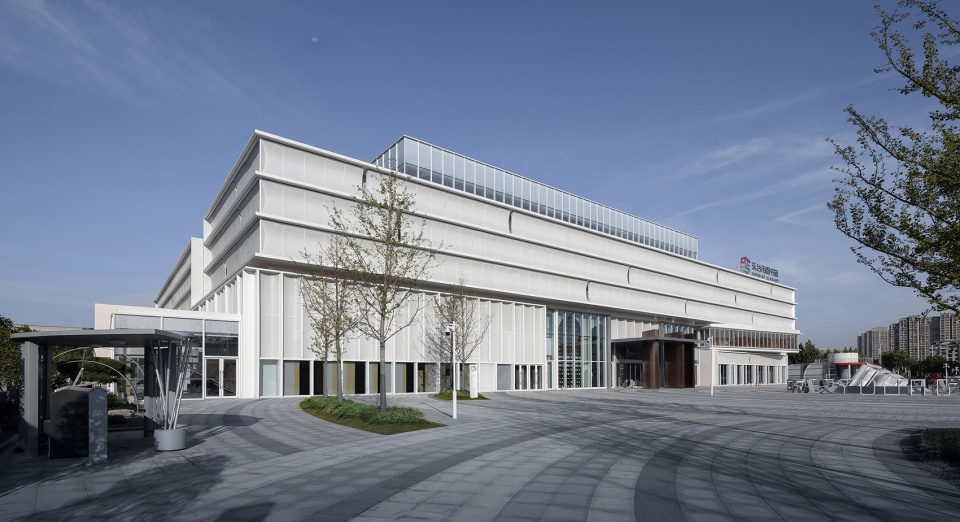

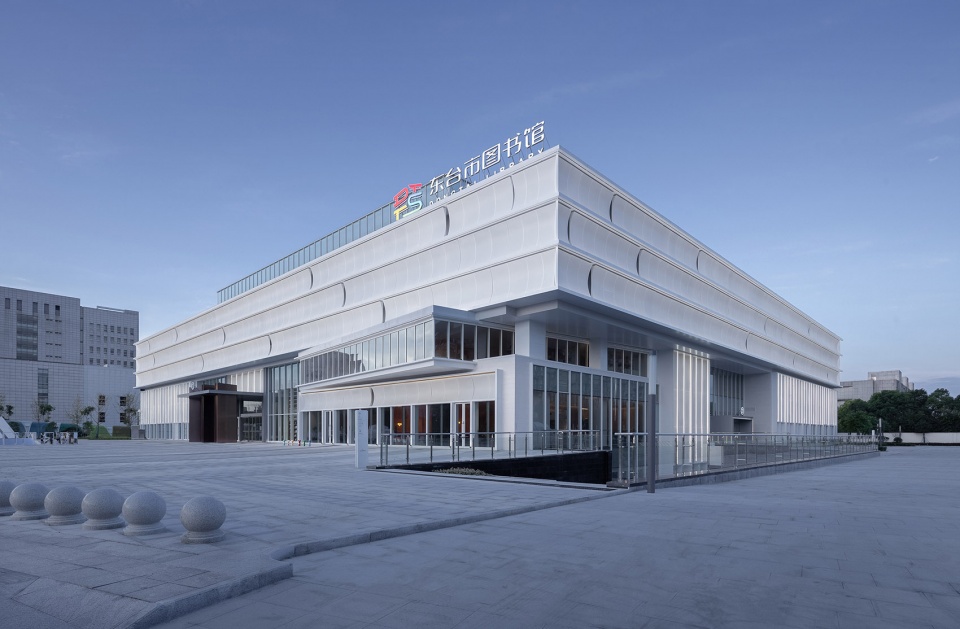

▼三段式建筑立面和材料运用，既呼应了政务区建筑的稳重形象，也为整个区域带来一点活力 ©是然建筑摄影
The three-section façade and use of materials responded to the robust image of the buildings within the government district, but also bring a hint of vitality to the whole area.

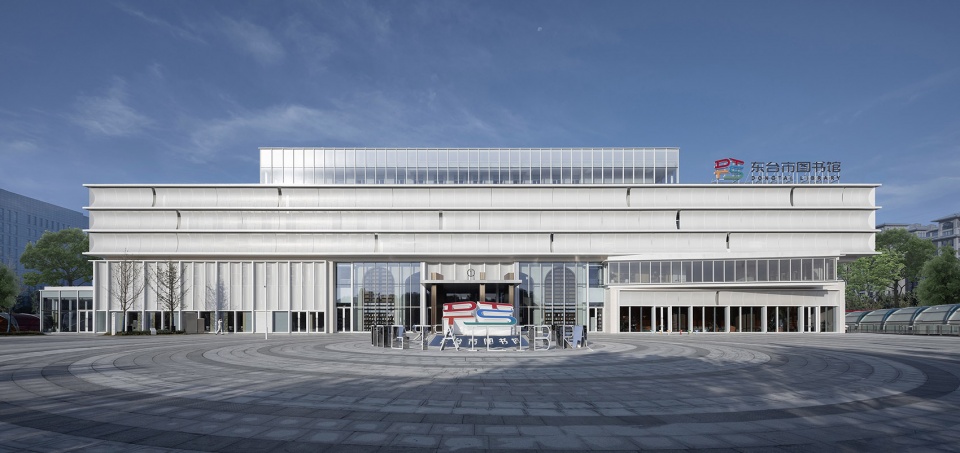

▼不同时段的建筑入口立面，the entrance facade in different time of the day ©是然建筑摄影

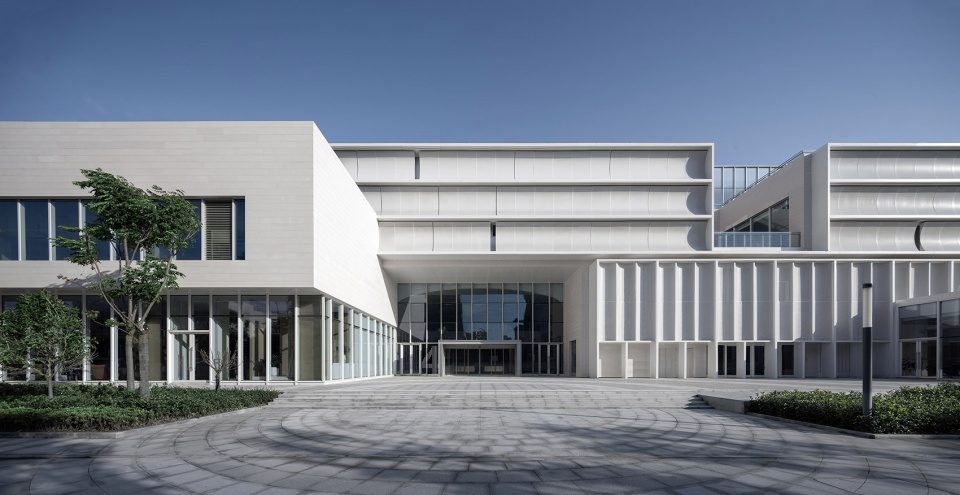

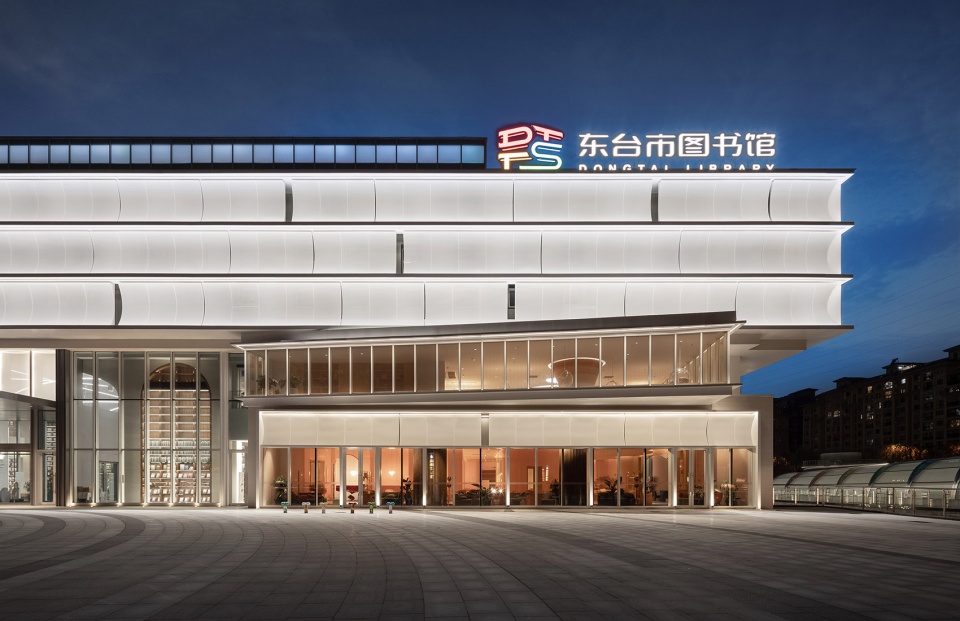

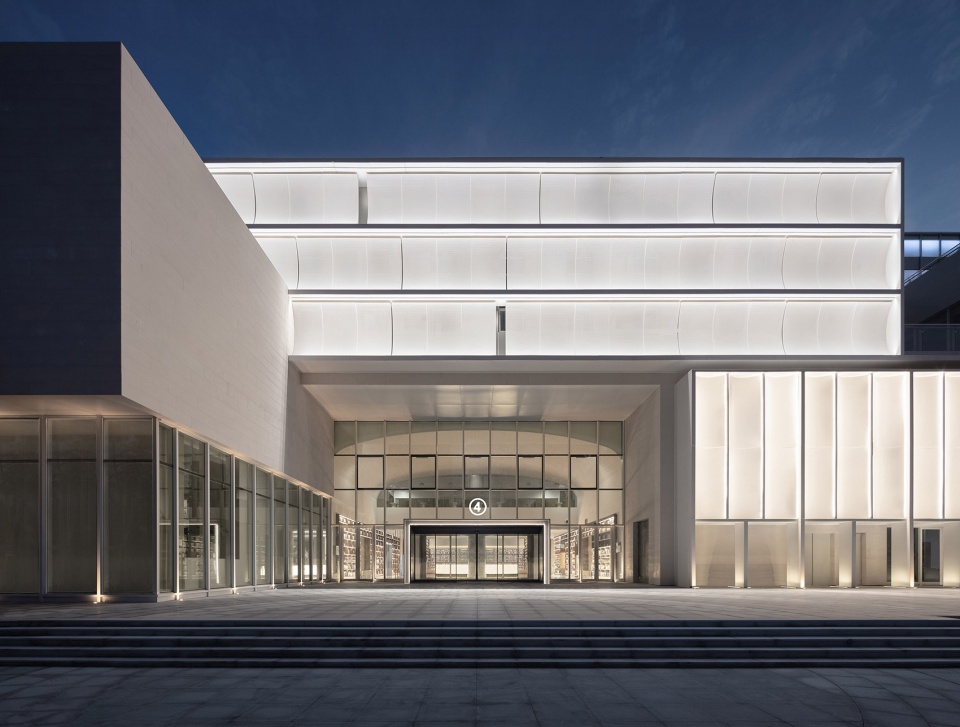

▼主入口，main entrance of the library ©是然建筑摄影

▼三段式建筑立面和材料运用，既呼应了政务区建筑的稳重形象，也为整个区域带来一点活力 ©是然建筑摄影
The three-section façade and use of materials responded to the robust image of the buildings within the government district, but also bring a hint of vitality to the whole area.

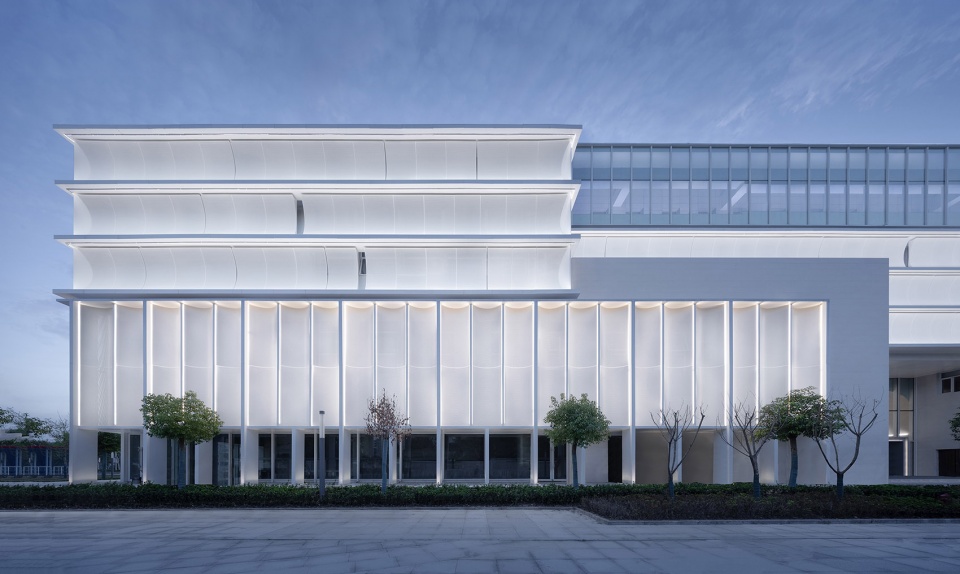

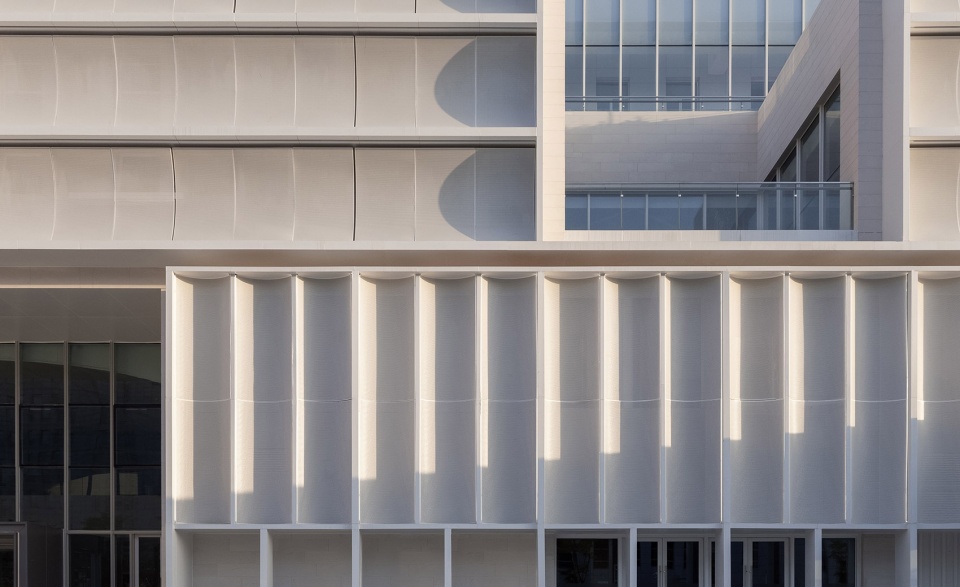

▼立面细部，detail of the facade ©是然建筑摄影

首层采用现代的幕墙体系，形体简明，色调纯净。二三层为采用外挂冲孔压型铝板的幕墙构造，在满足自然采光的前提下将建筑的原有外墙遮蔽，同时又形成了双层立面的叠加效果和虚实变化。通过对冲孔范围的控制，沿街立面引入一系列跳跃的圆弧，即丰富了视觉体验，又隐喻了船帆及打开的图书。

The first floor adopts a modern curtain wall system with a simple form and pure colour palette. On the second and third floors, the curtain wall is constructed using perforated aluminium panels, which covers the original façade of the building while allowing for natural light, while at the same time creating a double-layered façade with a superimposed effect and variation in reality. By controlling the extent of the perforations, a series of jumping arcs are introduced along the street façade, which enriches the visual experience and metaphorically represents the sails of a ship and an open book.

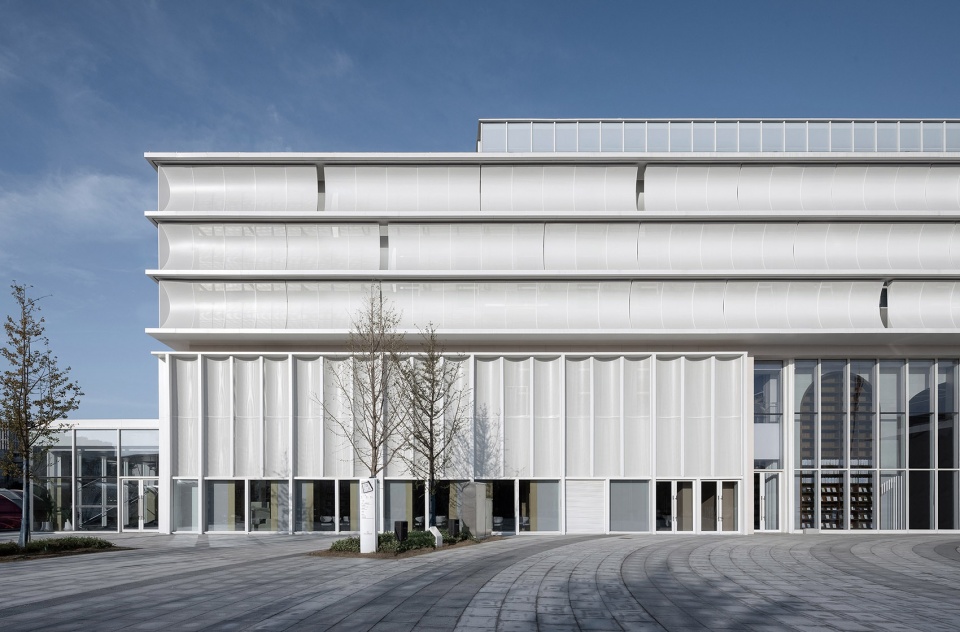

▼横竖放置的穿孔铝板统一了立面，也带来了丰富的隐喻 ©是然建筑摄影
The horizontal and vertical placement of perforated aluminium panels unifies the façade and brings out a rich metaphor

四五层为内衬遮阳帘的玻璃幕墙盒子。每当夜晚时分建筑照明亮起，玻璃幕墙的直白透亮和冲孔铝板的细腻朦胧，为建筑笼罩了一层圣洁的光晕。特别是图书馆置身于严肃庄重的行政办公区，随之而来的强烈对比，带来了意想不到的戏剧性和冲突性。不同的风格和跨度，出现在同一场所，宛若一场超现实的时空错位。在这个新与旧，轻盈与庄重对比之中，对比的双方反衬彼此，进而同时获得了存在的意义，形成一种对立共生关系。

On the fourth and fifth floors are glass curtain wall boxes lined with sunshades. When the building is illuminated at night, the straight white light of the glass curtain wall and the subtle haze of the perforated aluminium panels create a halo over the building. Particularly as the library is situated in the serious and dignified administrative offices, the sharp contrasts has created an dramatic scene in the context. The variation in styles and spans appearing in the same scene enabling a surreal dislocation of time and space. In the contrast between the old and the new, the light and the solemn, the two counter parts reflected each other creating a meaning of existence simultaneously, and thus envisioning a rival relationship of co-existence.

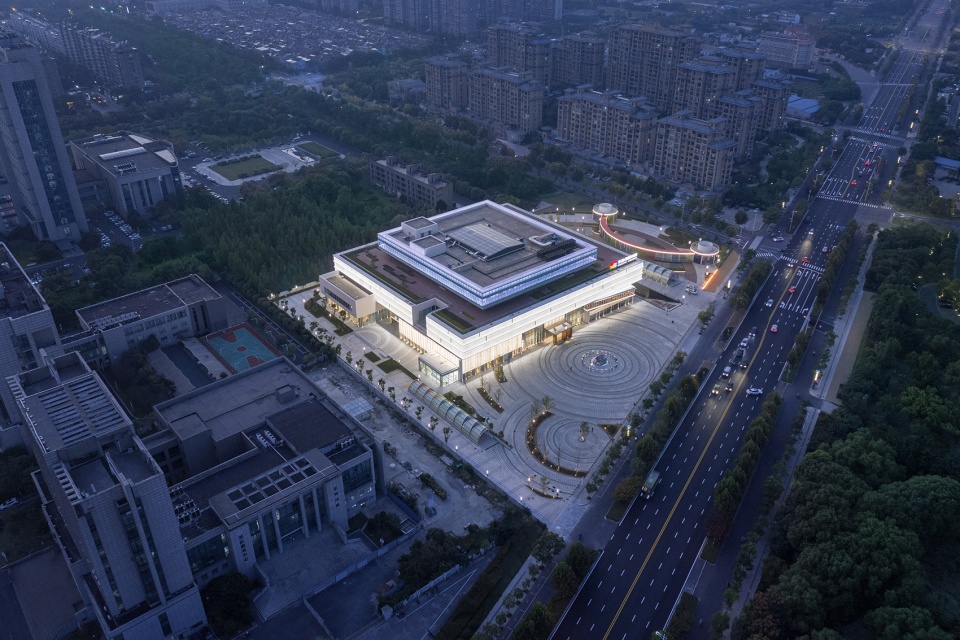

▼图书馆夜景鸟瞰，一个城市光盒和它的场域 ©是然建筑摄影
Aerial view of the Library at night, an urban light box and its context

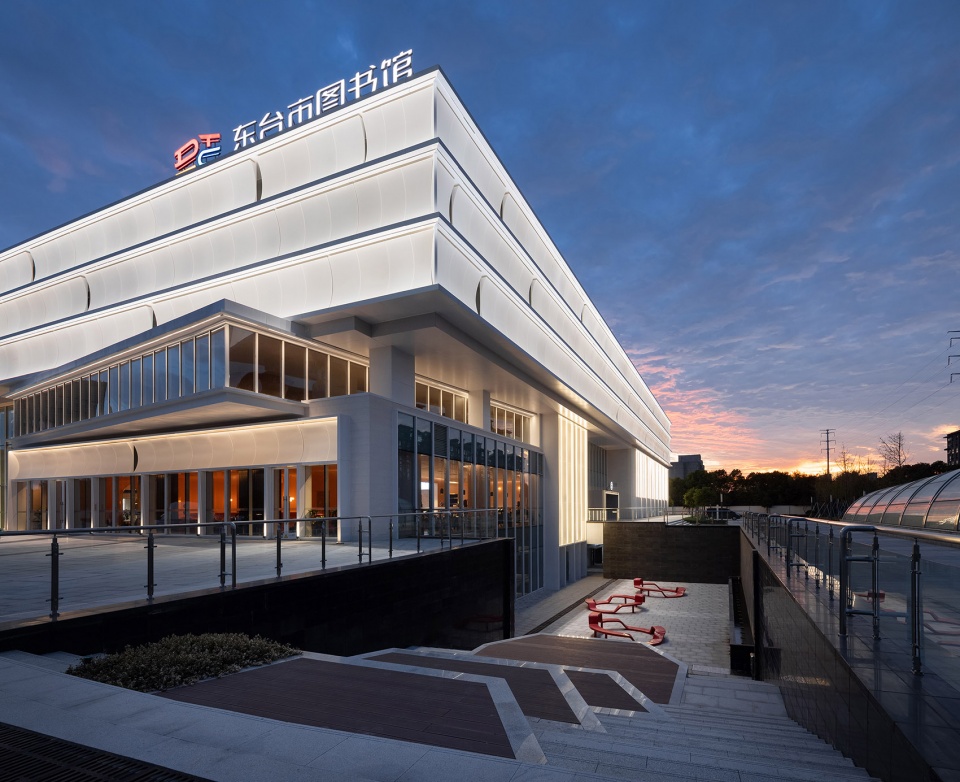

▼不同楼层的不同灯光。使得建筑体量更加分明 ©是然建筑摄影
Different lighting on different floors. Making the building volumes more distinguishable

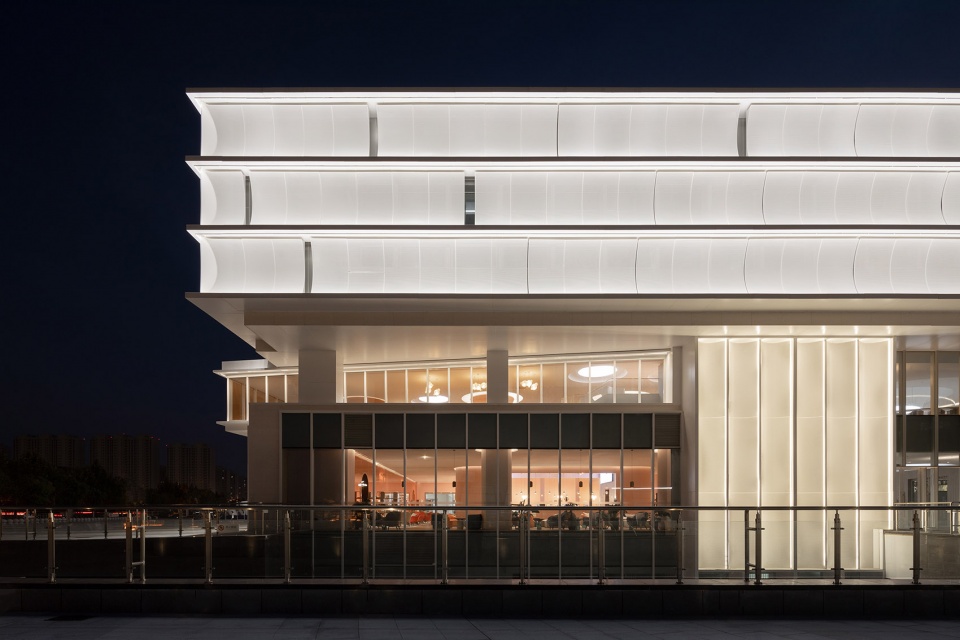

▼立面夜景，night view of the facade ©是然建筑摄影

室内设计
Interior Design

室内延续以书为帆的概念，结合建筑结构关系，我们构想在共享大厅通过一条富有活力及秩序美感的轴线进行贯通，结合空间流线形成集展示，体验，休闲与一体的立体长廊，有机串联各个区域，形成一条全方位有活力的轴线。让图书馆不再是一座传统意义上宏大严肃的建筑。

The interior continues the concept of the book as a sail, and well-integrated with the original building structure, the design intended to deliver a dynamic and coherent axis through the shared lobby, the circulation was tightly integrated with the media, experience and recreational functions that formed a three-dimensional corridor which organically formed a comprehensive and dynamic axis. The library is thus no longer a brutal volume in the inherent perception.

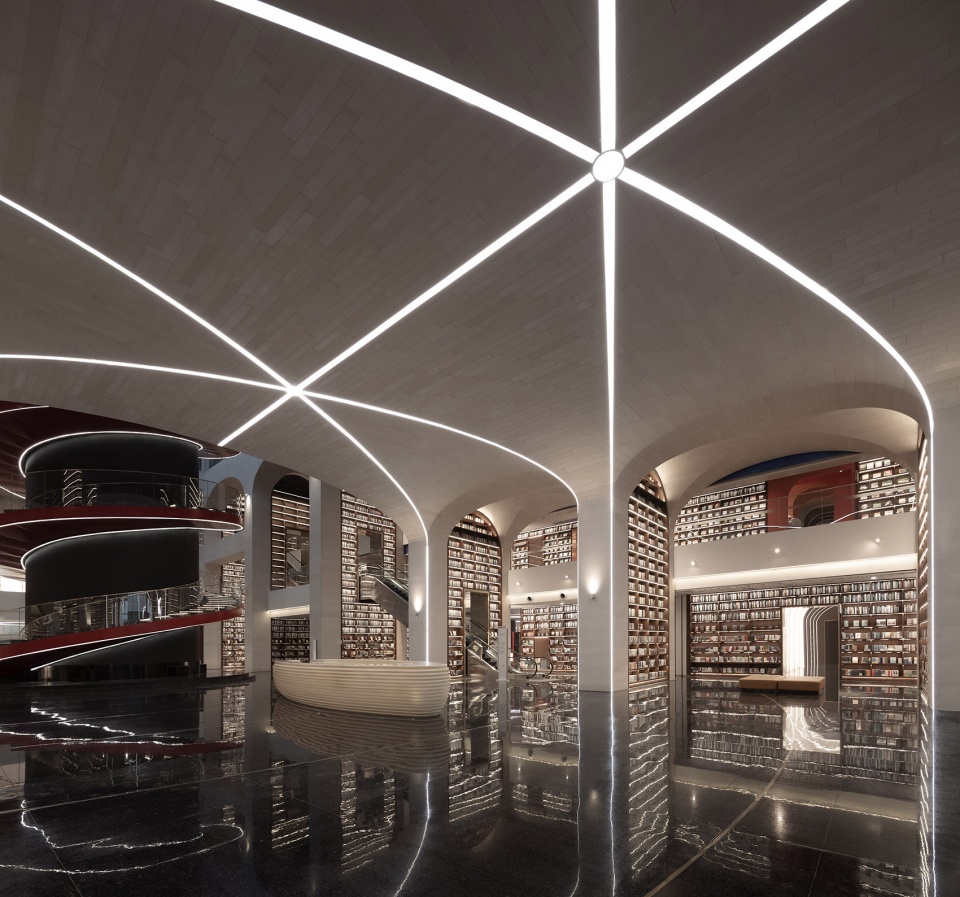

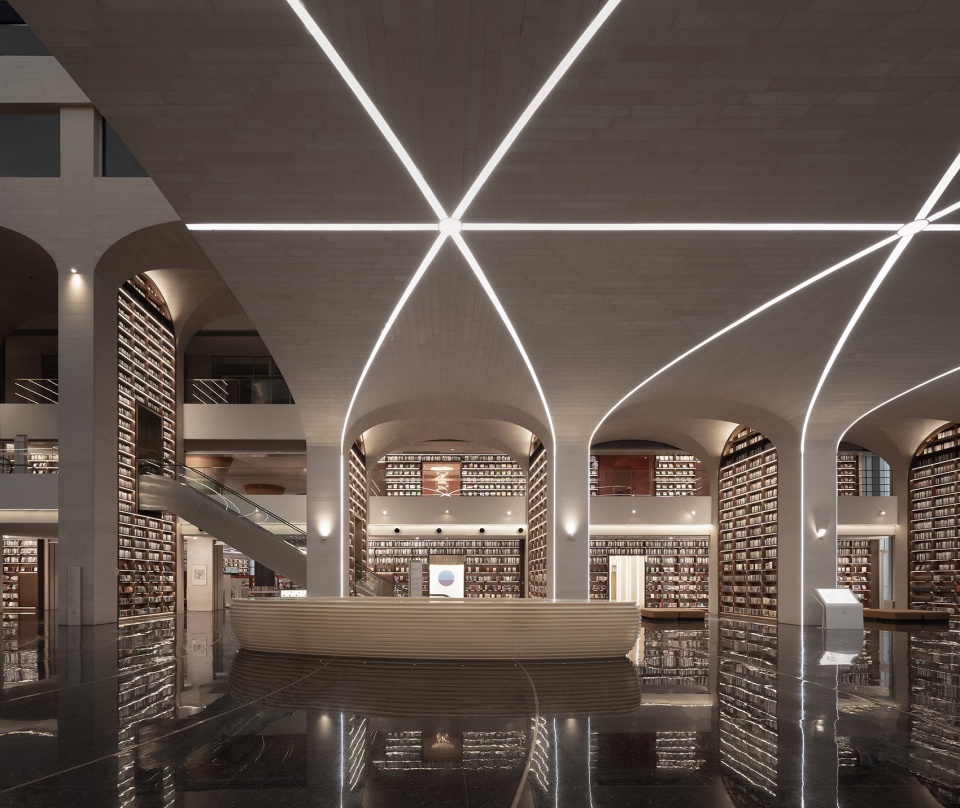

▼一楼共享大厅，光带和书墙构建氛围 ©是然建筑摄影
Different lighting on different floors. Making the building volumes more distinguishable

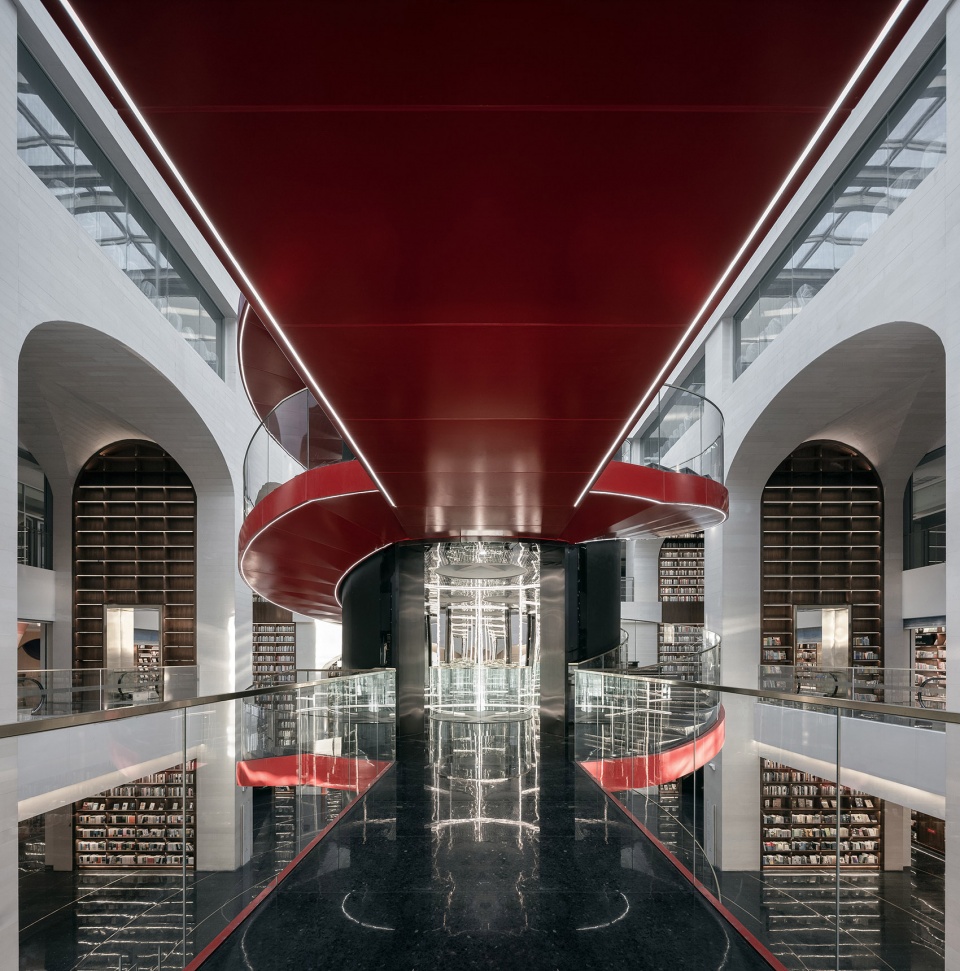

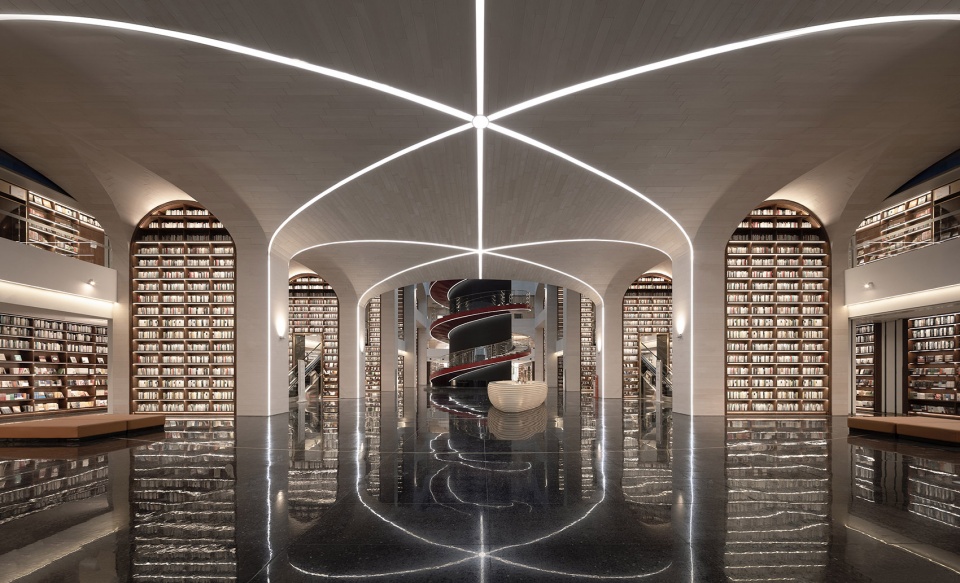

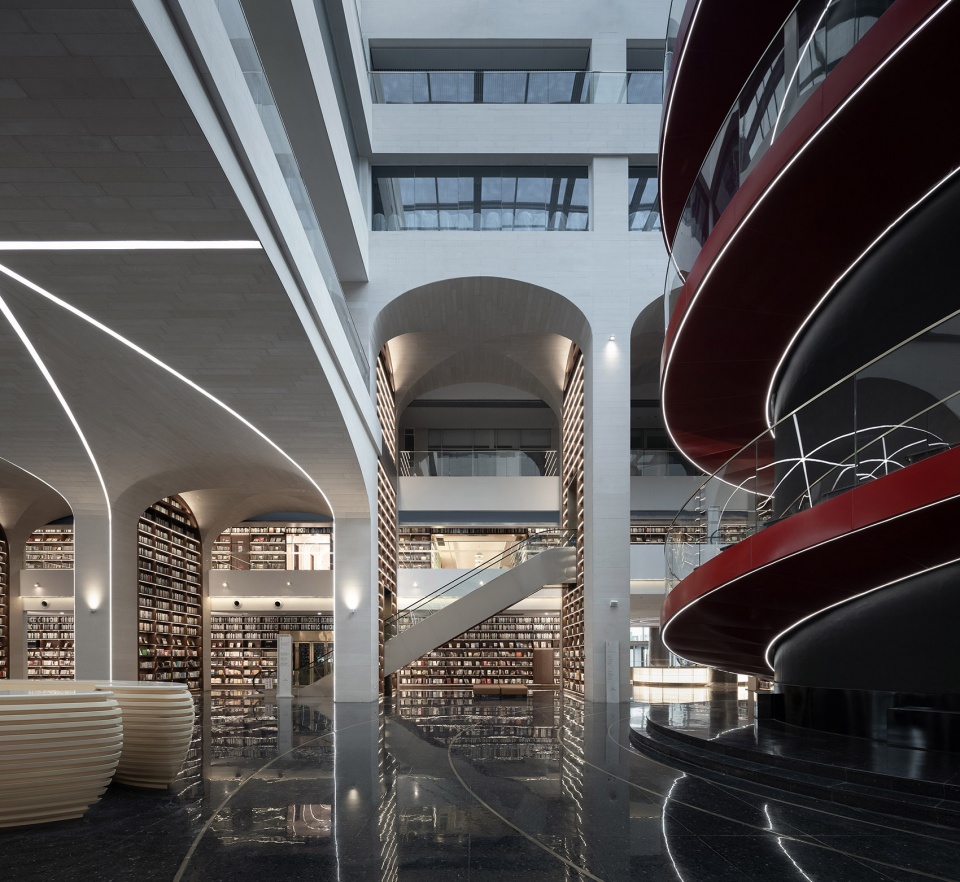

▼共享大厅，the shared lobby ©是然建筑摄影

▼灯带有机串联了各个区域，The light strips connect the areas organically ©是然建筑摄影

从功能排布上，我们在一二层引进了与图书相关的多业态功能，希望它成为充满活力的公共空间和活动场所，希望人们在阅读时间之外也可以在这种建筑里找到停留的理由。首层空间和室外的广场以及景观有着无缝连接，室内外的通透进一步加强了其公共属性。而三层及以上，则是安静阅览，查找资讯，沉浸学习的场所，与下部的活力场所形成了鲜明对比。书山和外部的屋顶露台则为空间提供了更加宜人的空间层次和选择。

In regards to the programme, a book-related multi-functional programme was introduced to the ground and first level, in hopes for a vibrant public space that’s not merely for reading. The first level seamlessly connects to the outdoor plaza and the landscape, the ambiguous boundary between the interior and exterior further highlights its public purpose. Above the second level are spaces for information, reading and immersive learning, in contrast to the vibrant lower levels. The hill of the books and the roof terrace provide a richer spatial experience as well as an alternative choice for the reading activities .

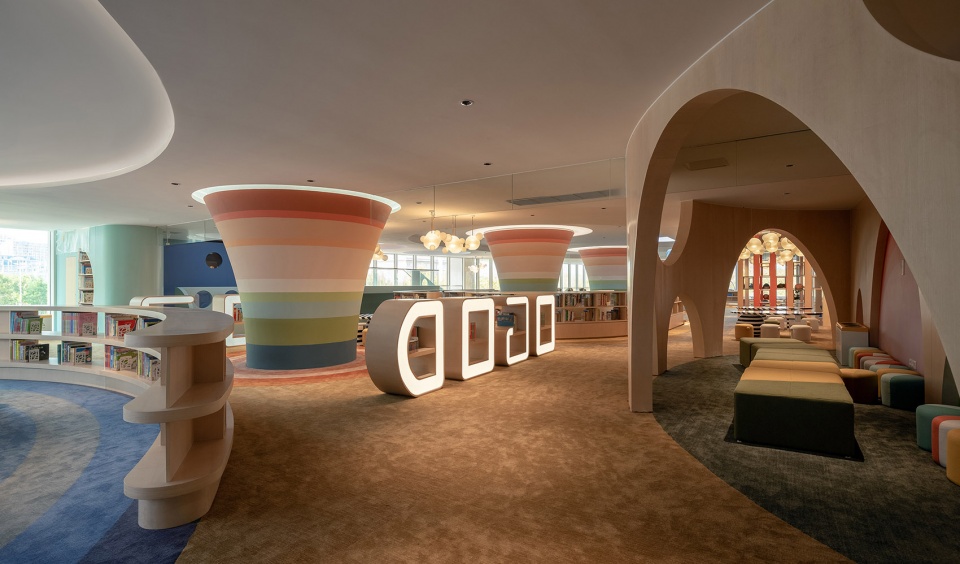

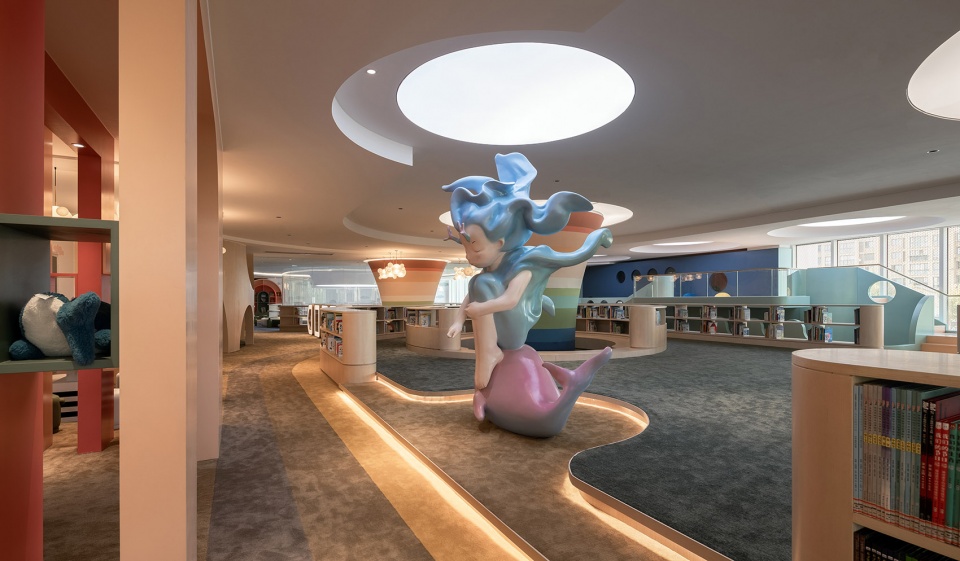

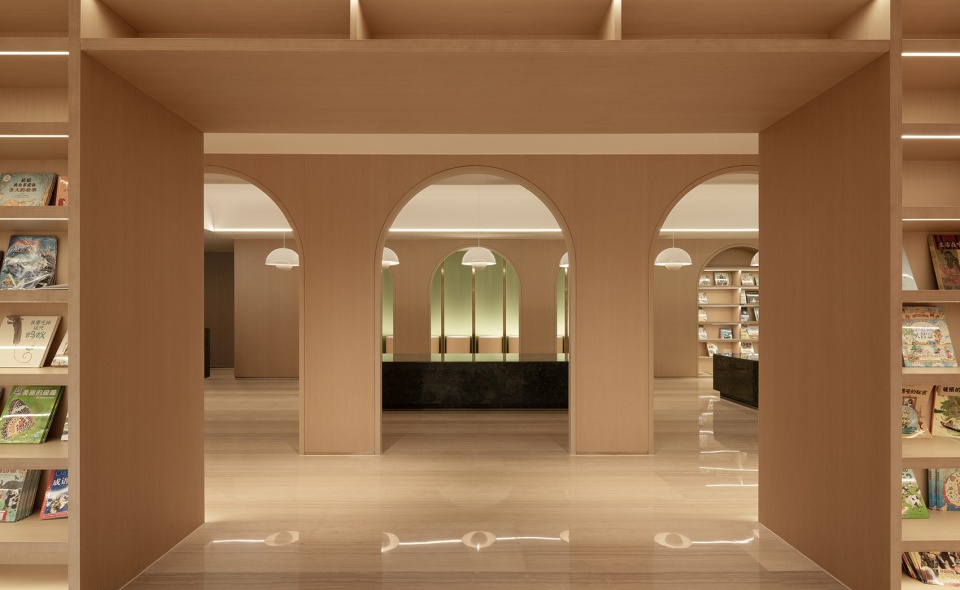

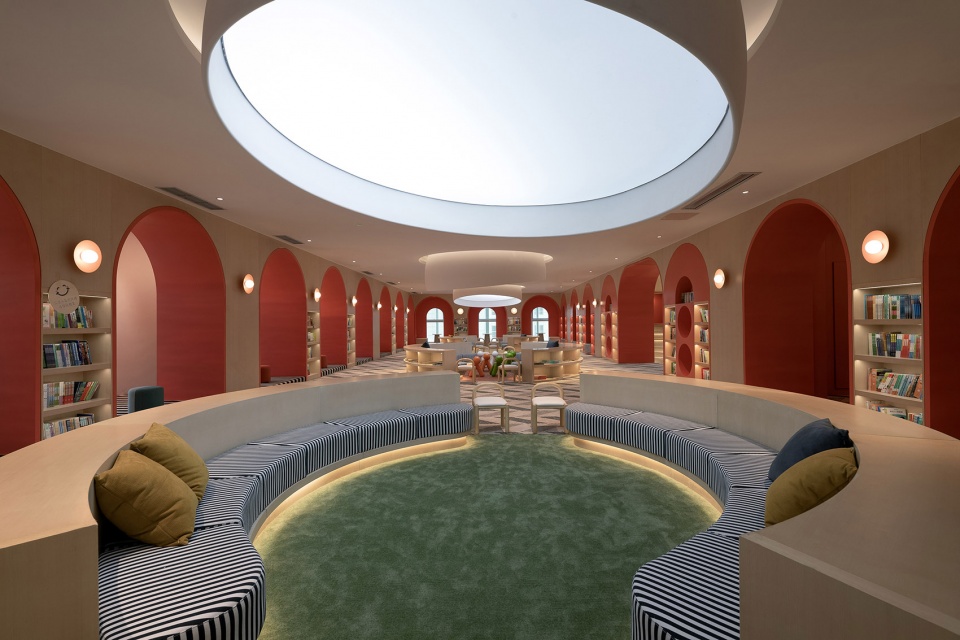

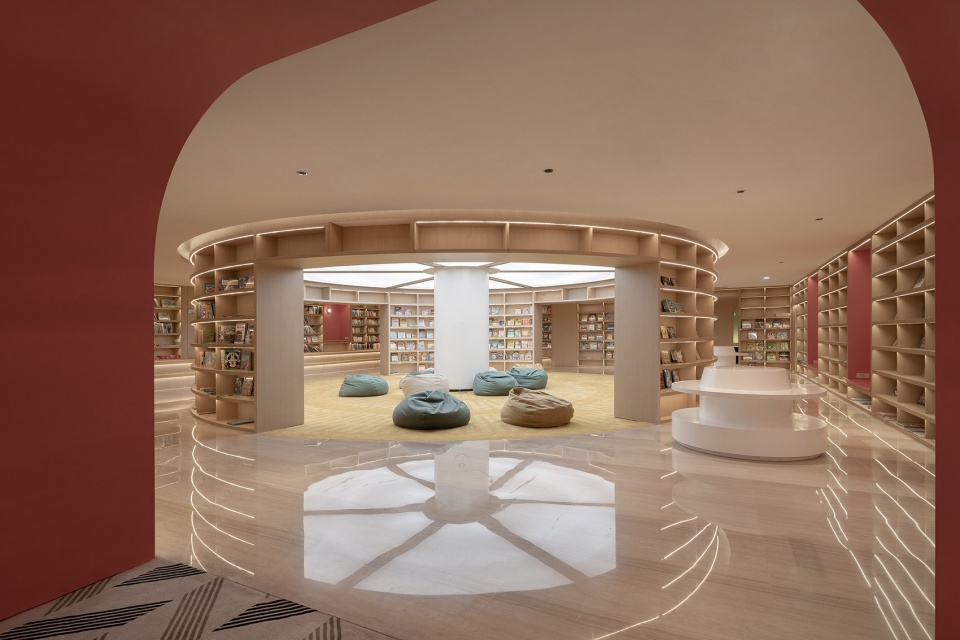

▼充满活力和趣味的儿童阅览区和其他阅读场景 ©是然建筑摄影
A vibrant and fun children’s reading area and other reading scenes

▼充满活力的公共空间和活动场所，a vibrant public space that’s not merely for reading ©是然建筑摄影

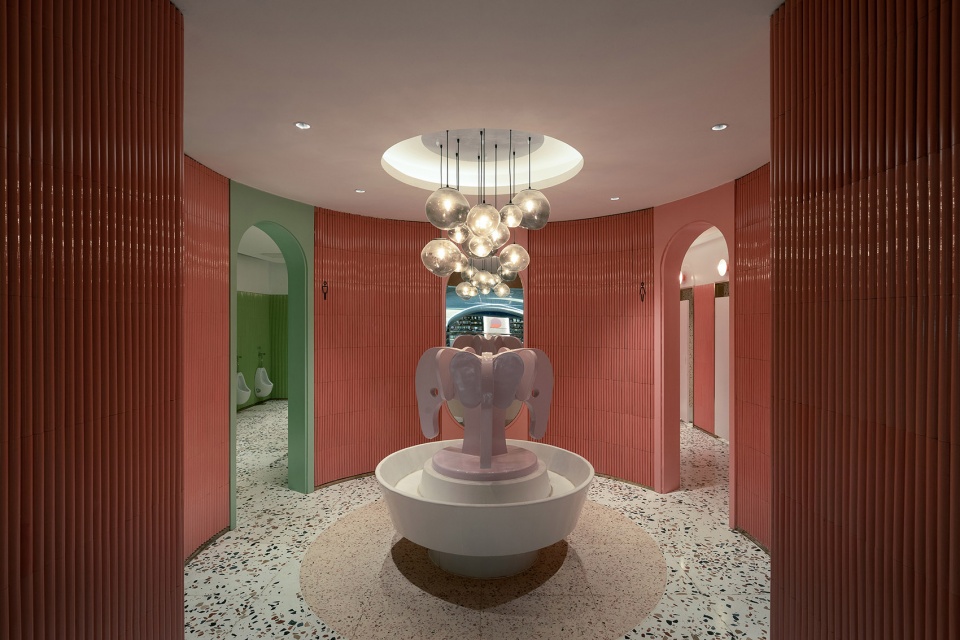

▼与楼层同主题的卫生间区域，Bathroom area with the same theme as the floor©是然建筑摄影

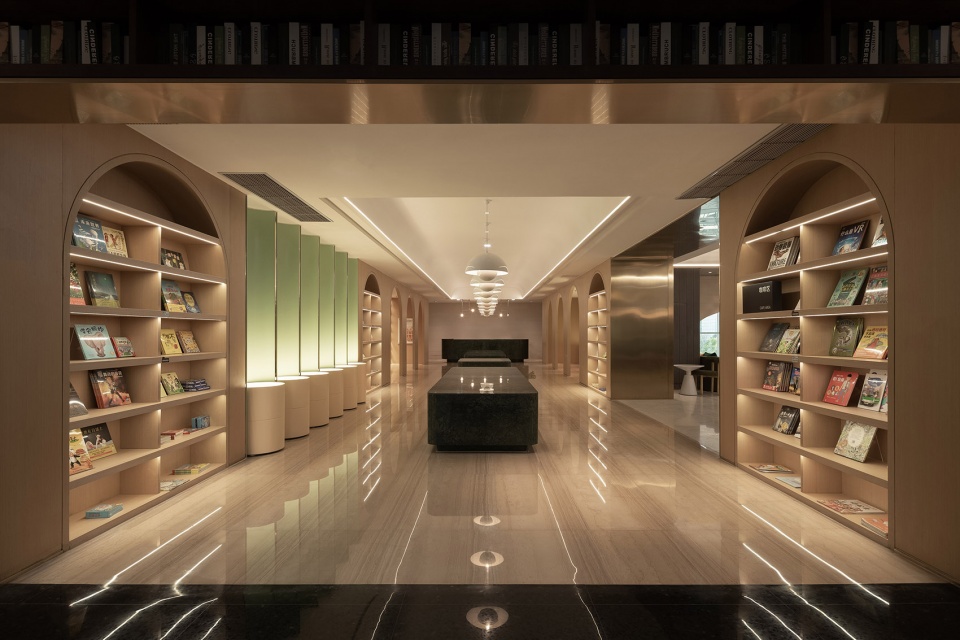

▼安静阅览，查找资讯，沉浸学习的场所，spaces for information, reading and immersive learning ©是然建筑摄影

后记
Afterword

这个项目让我们再一次思考公共建筑应以何种姿态存在：让空间和细节成为手段，从目的的第一线后退，支撑起功能使用，让位于场景氛围，为市民和游客提供一个可以自由出入休憩的主题性空间，一个城市里的自在场所。这个场所既是容纳，也是归还。

The project has evoked a contemplation on how a public building exists in the public view: the space and detail once again become the method, not just serving for the basic function but to provide an atmospheric scene within which the visitors can choose the purpose of use. It will be a place of freedom with enough tolerance on multi-purpose utility, it will also be a public era returned to the city.

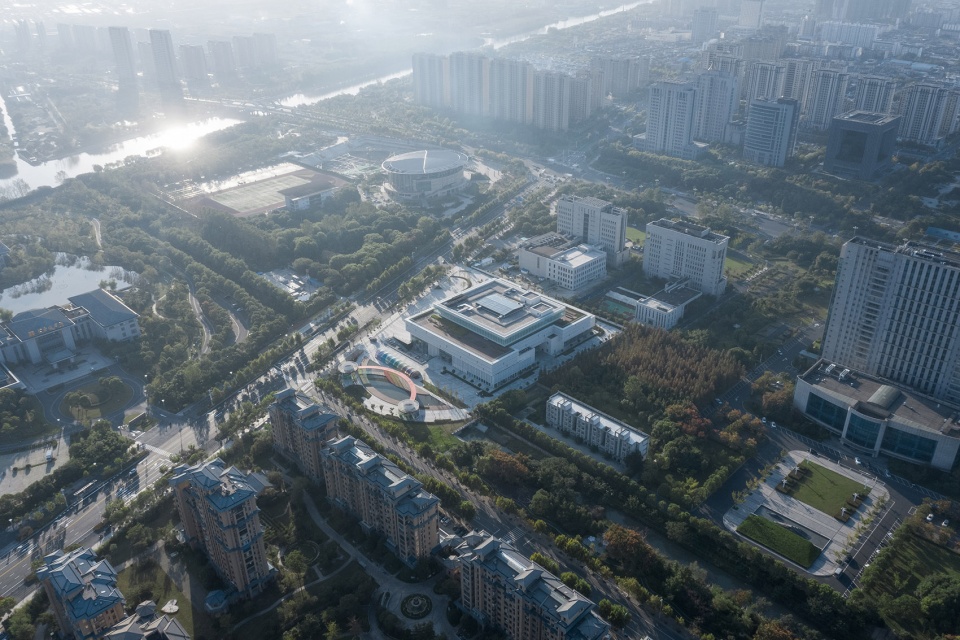

▼清晨的光洒在城市里和图书馆上，Early morning light floods the city and the library ©是然建筑摄影

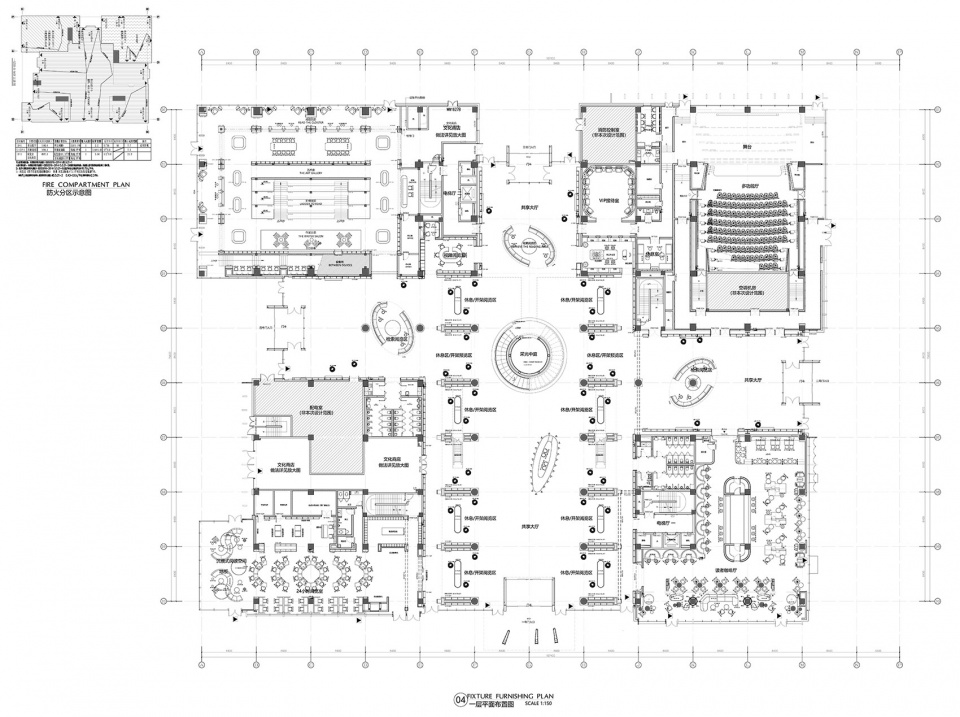

▼一层平面图，first floor plan ©上海和睿规划建筑设计有限公司

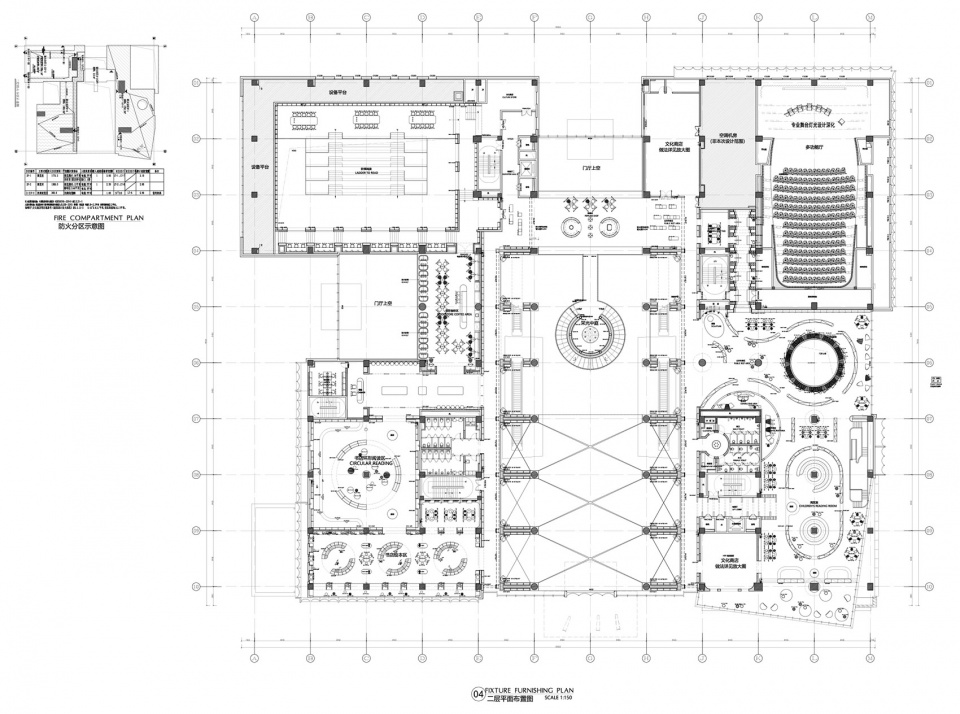

▼二层平面图，second floor plan ©上海和睿规划建筑设计有限公司

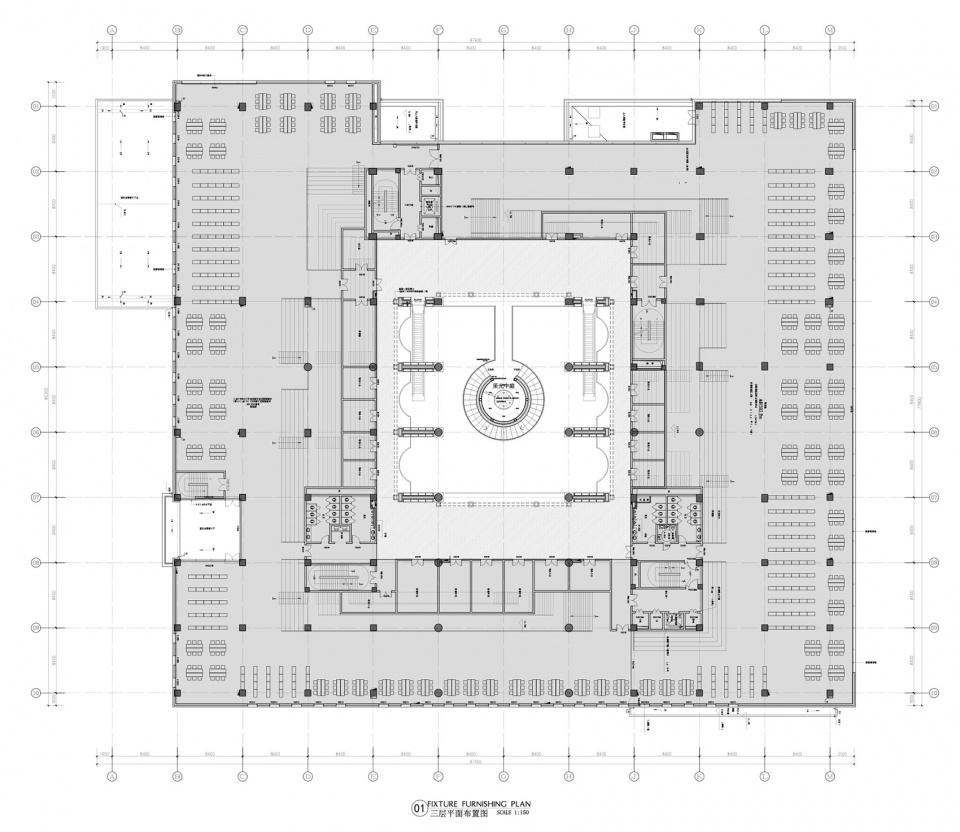

▼三层平面图，third floor plan ©上海和睿规划建筑设计有限公司

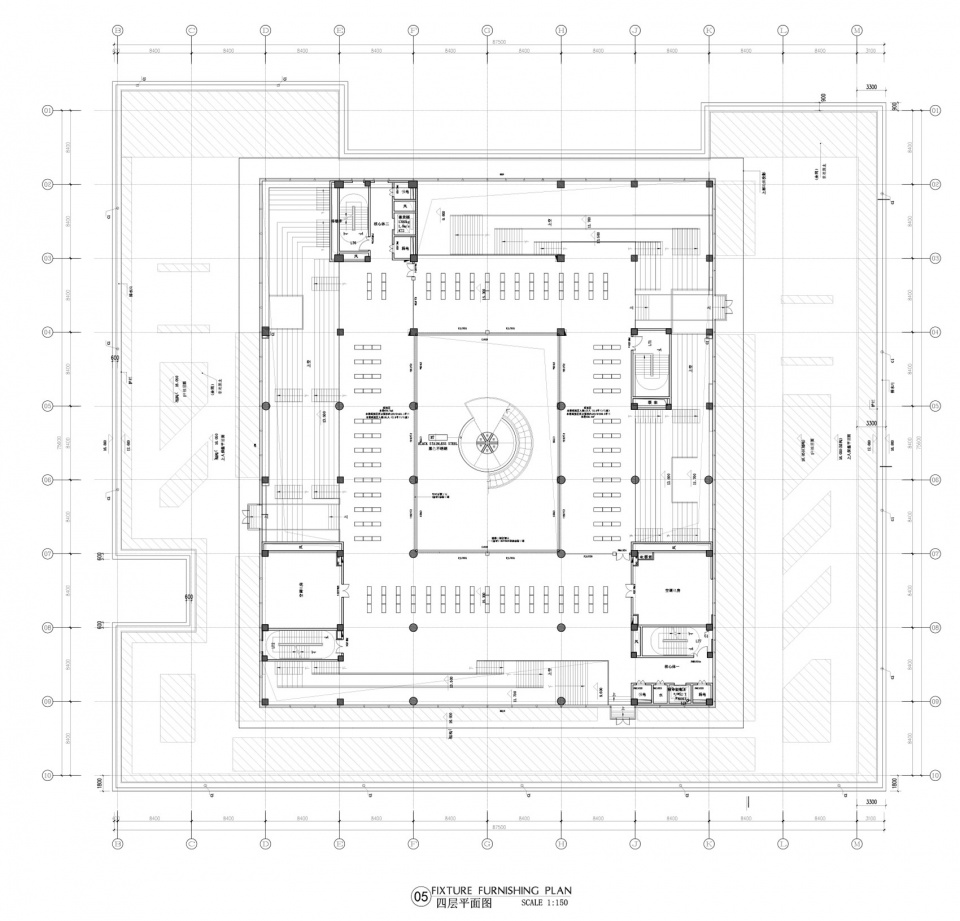

▼四层平面图，4th floor plan ©上海和睿规划建筑设计有限公司

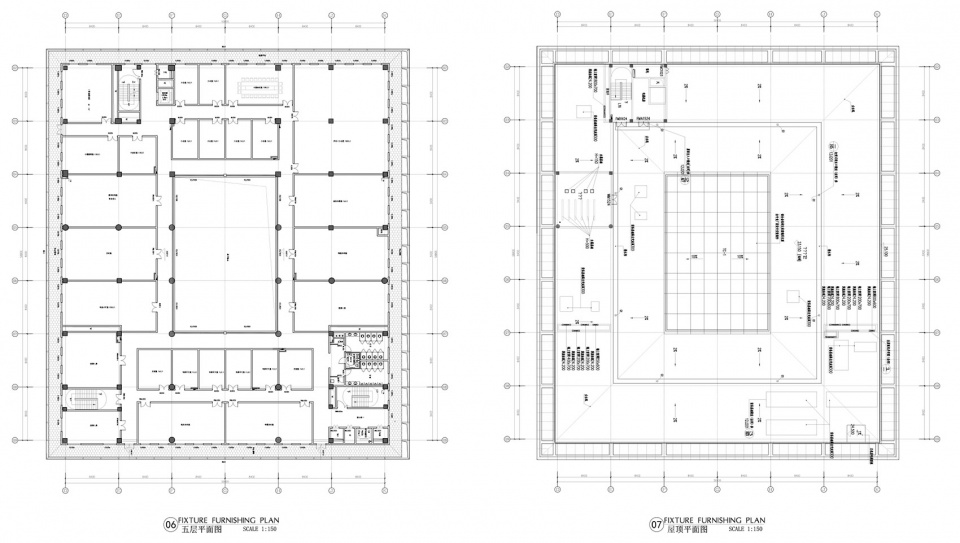

▼五层与屋顶平面图，5th floor and roof plan ©上海和睿规划建筑设计有限公司

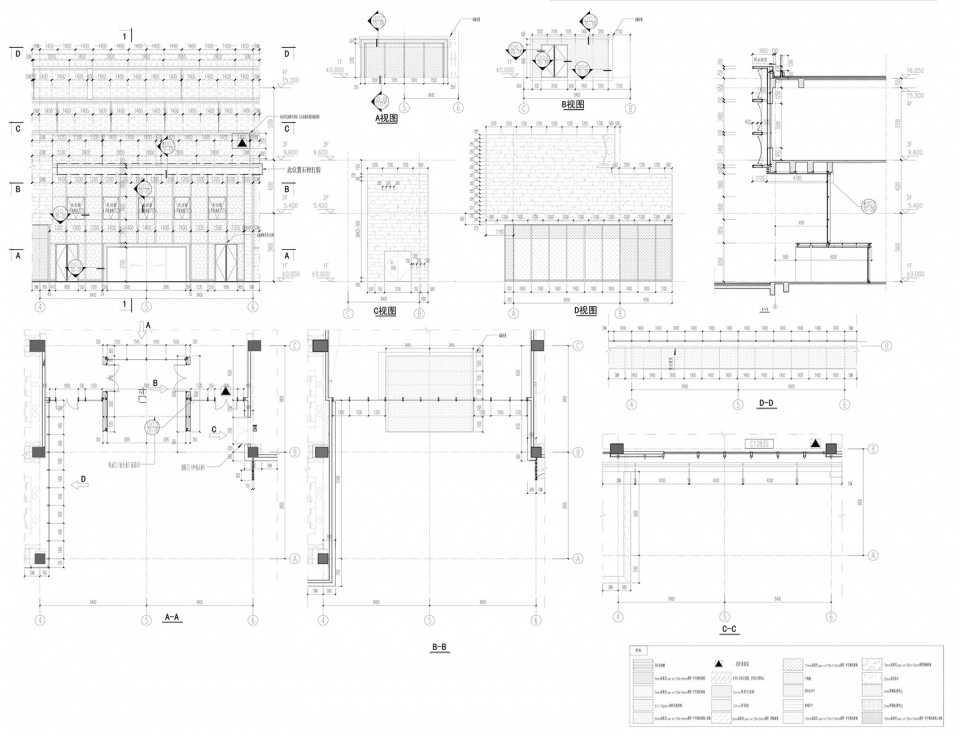

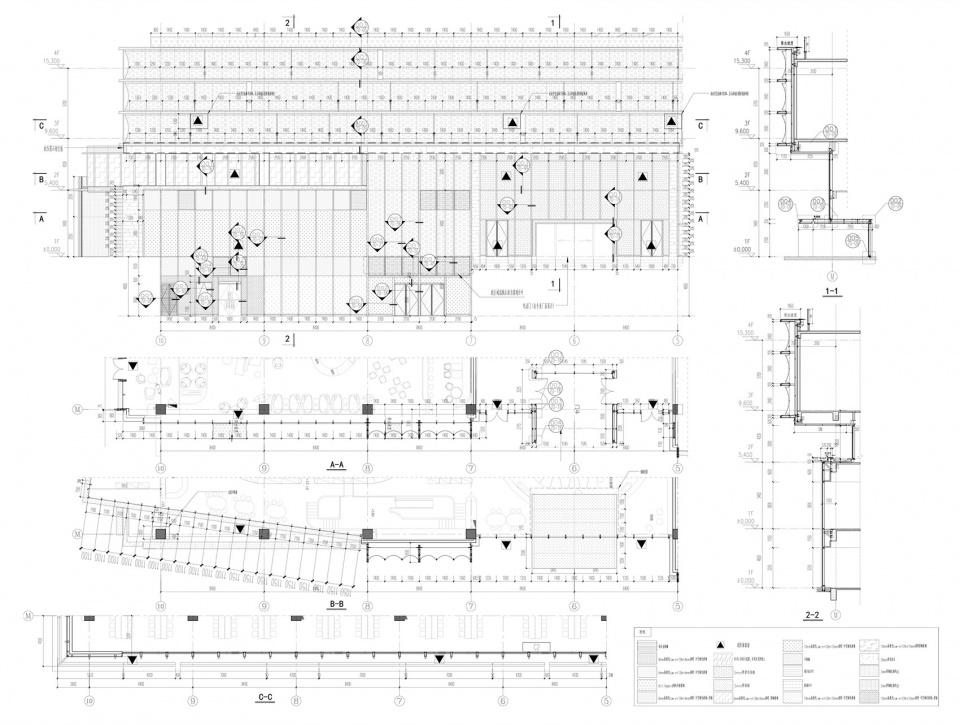

▼结构细部详图，construction details ©上海和睿规划建筑设计有限公司

项目名称：东台图书馆综合体改造
业主单位：东台市人民政府
项目地点：江苏省东台市
建筑面积：29974.2平米
设计时间：2020
施工时间：2020-2021
建筑改造设计：上海和睿规划建筑设计有限公司
项目团队：张滨、张宇豪、黄若蓉、陈涵非、问羽琪、刘晔
项目负责人：张滨
方案设计负责人：张宇豪
深化设计负责人：黄若蓉
室内设计：成都象上空间设计有限公司上海和睿规划建筑设计有限公司
景观设计：上海伍鼎景观设计咨询有限公司
灯光设计：上海博纵照明设计有限公司
幕墙深化设计：重庆长厦安基建筑设计有限公司
结构改造设计：重庆长厦安基建筑设计有限公司
二次机电设计：重庆长厦安基建筑设计有限公司
项目摄影：是然建筑摄影

Project Name: Dongtai Library Complex Renovation
Owner: Dongtai Municipal People’s Government
Project Location: Dongtai, Jiangsu Province
Building area: 29974.2 sqm
Design date: 2020
Construction period: 2020-2021
Building renovation design: Shanghai ORIA Planning & Architectural Design Co., Ltd.
Project Team: Bin Zhang, Yuhao Zhang，Ruorong Huang, Hanfei Chen, Yuqi Wen, Ye Liu
Project Manager: Bin Zhang
Head of Programme Design: Yuhao Zhang
Head of Deepening Design: Ruorong Huang
Interior Design: Chengdu Xiangshang Space Design Co., Ltd.
Shanghai ORIA Planning & Architectural Design Co., Ltd.
Landscape Design: Shanghai Wuding Landscape Design & Consulting Co., Ltd.
Lighting Design: Shanghai Bozong Lighting Design Co., Ltd
Curtain wall design: ARCH-AGE DESIGN CO.,Ltd
Structural renovation design: ARCH-AGE DESIGN CO.,Ltd
Secondary M&E design: ARCH-AGE DESIGN CO.,Ltd
Project Photography : schranimage
