非常感谢Ripoll Tizón将项目介绍和项目图片授权gooood发行。更多请至：Ripoll Tizón on gooood
Appreciation towards Ripoll Tizón for providing the following description:

Consell幼儿园为3—5岁的孩子提供了6间教室。一层的建筑与周围环境建立紧密关系。幼儿园主要分为三个体块，这三个独立的体块中间间隔有院子和各种各样的空间，一条彩色的路径蜿蜒经过各个教室，贯穿整个建筑。这条“路径”是该项目的核心，旨在凝聚力和调动孩子们的感知。路径从高耸的主入口开始，途径每个教室，中途形成大厅，结束向外探出形成遮阳屋顶，为操场提供荫凉。每两个教室成组并置，面向内庭院采光，保证实现互不干扰的情况下，获得充足良好的自然光。

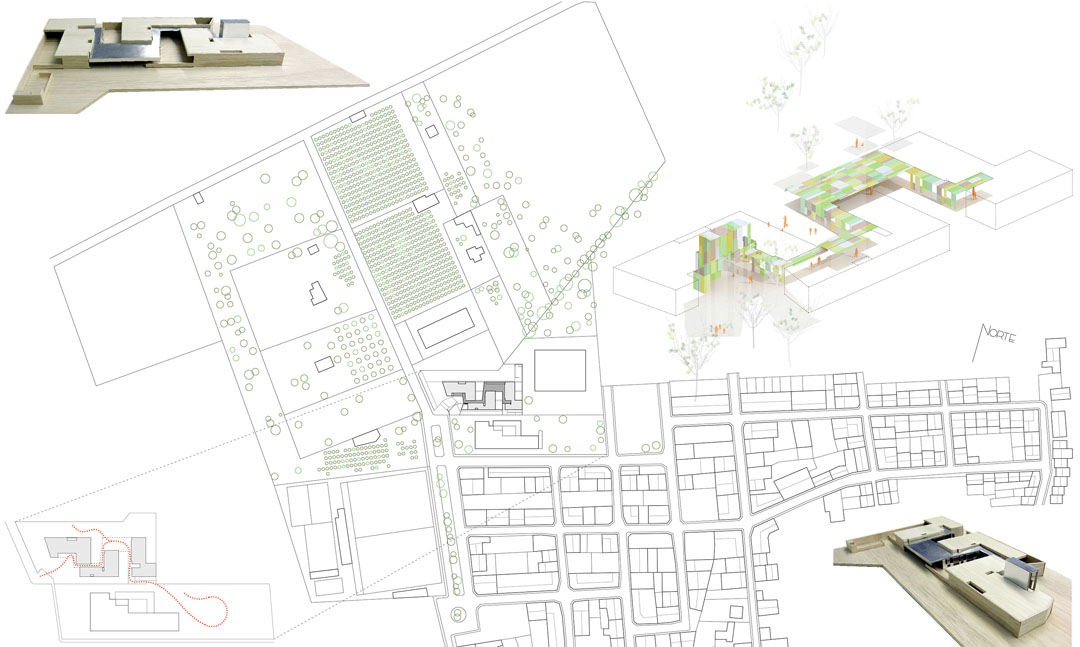

Consell Kindergarten is the extension of the School Complex “Bartomeu Ordines” in Consell, Mallorca (Spain). The new building is composed of: six classrooms (for children between 3 and 5 years old), one psychomotor classroom and a dining area including kitchen.

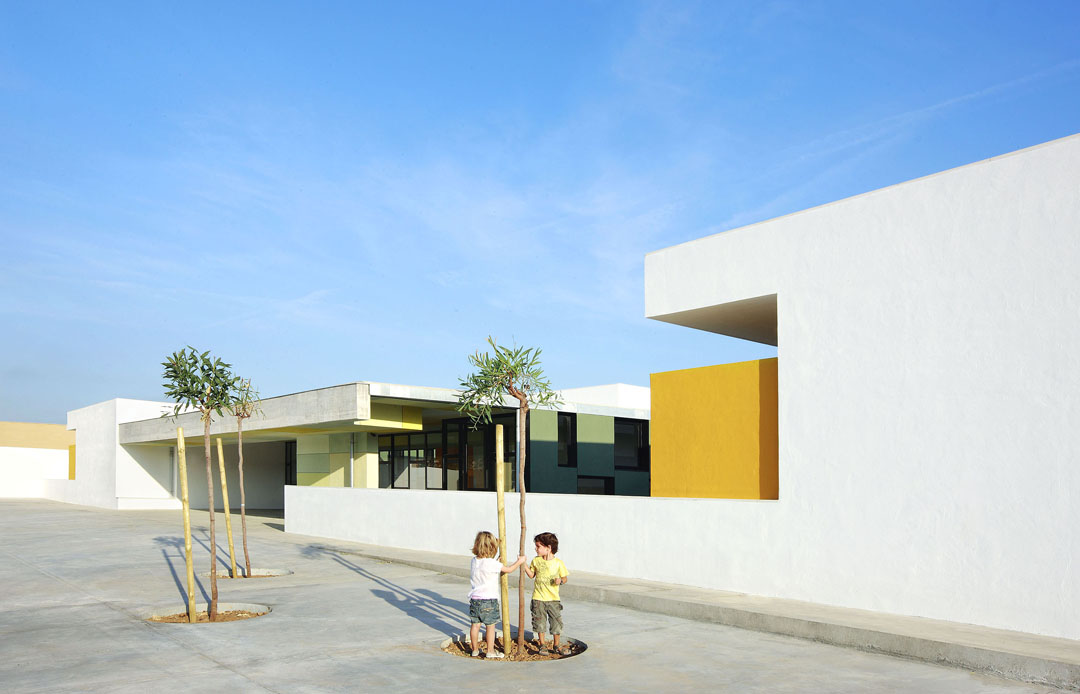

The design strategy intends to accommodate the whole building area in the ground floor and thus create a fluid relation between the interior and the play grounds. In addition to this, the need of creating the access to the building from the main avenue, and the need to establish a pedestrian connection with the existing building, led us considering a building to be crossed, to be traversed. The building will be a path.

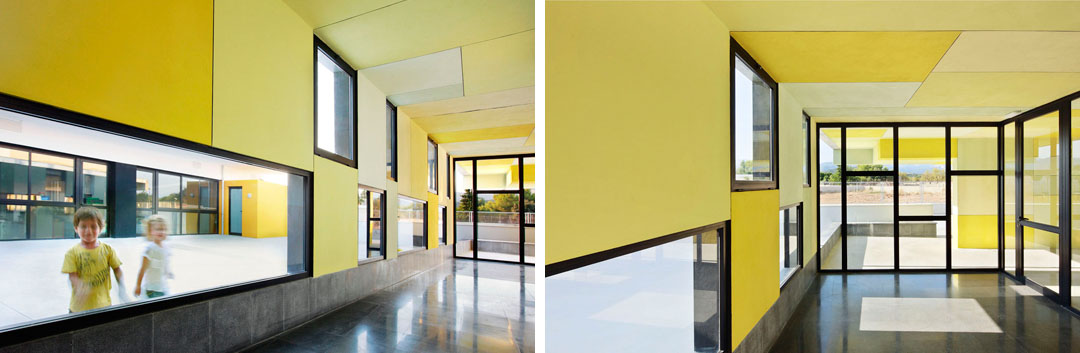

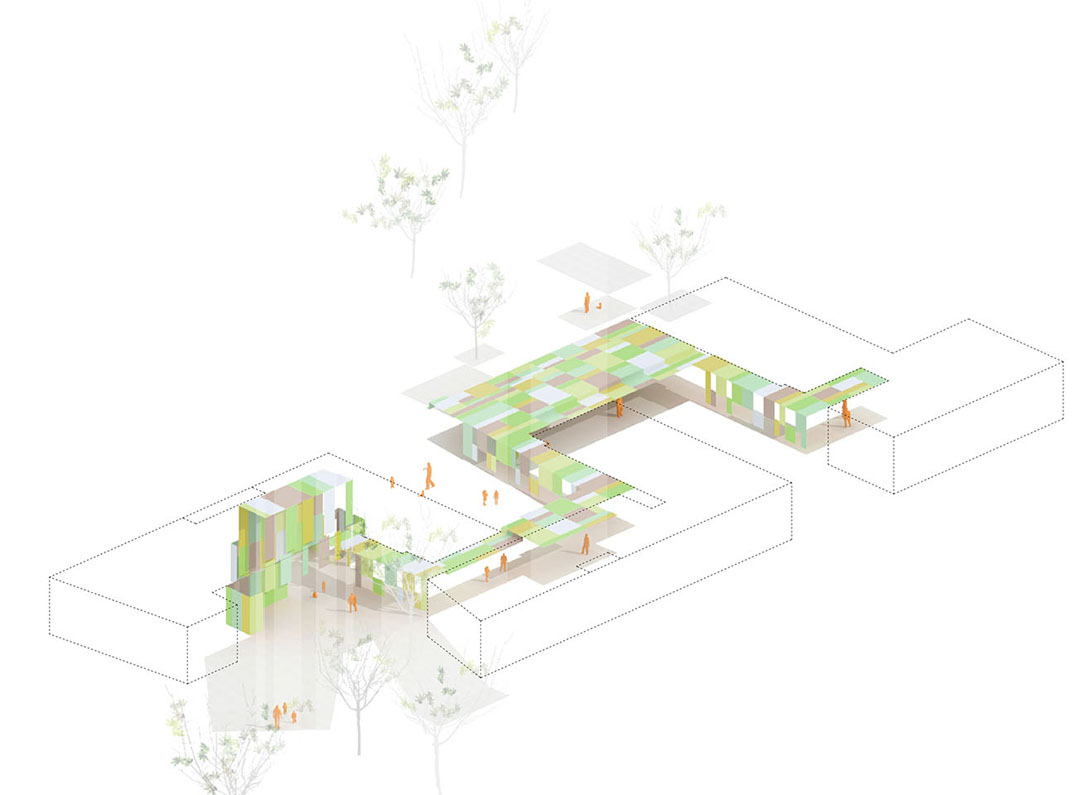

We like to think on this ‘path’ as the starting point of the project. A colorful route in zig-zag that drives the children through the building while it organizes the different ‘classroom clusters’ and functional areas.

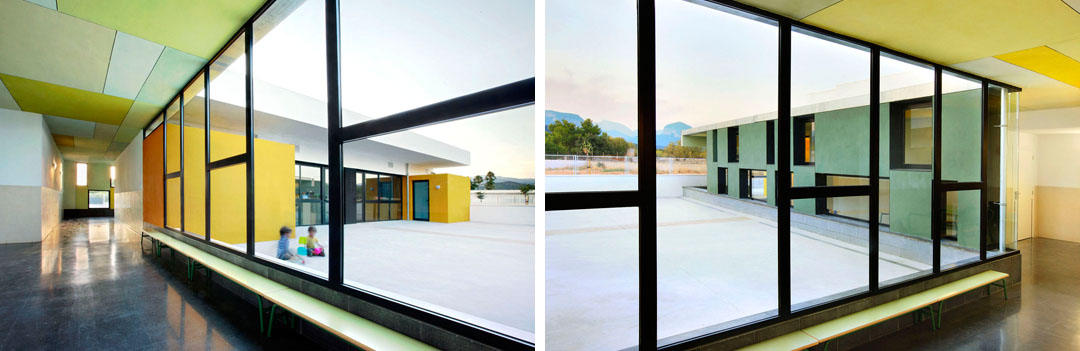

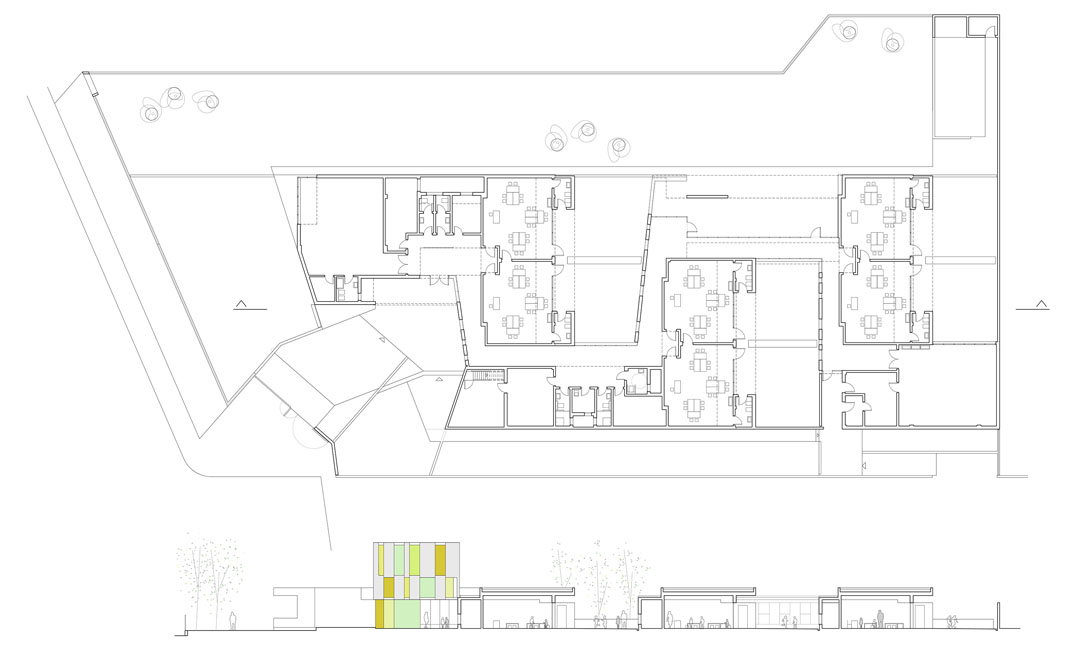

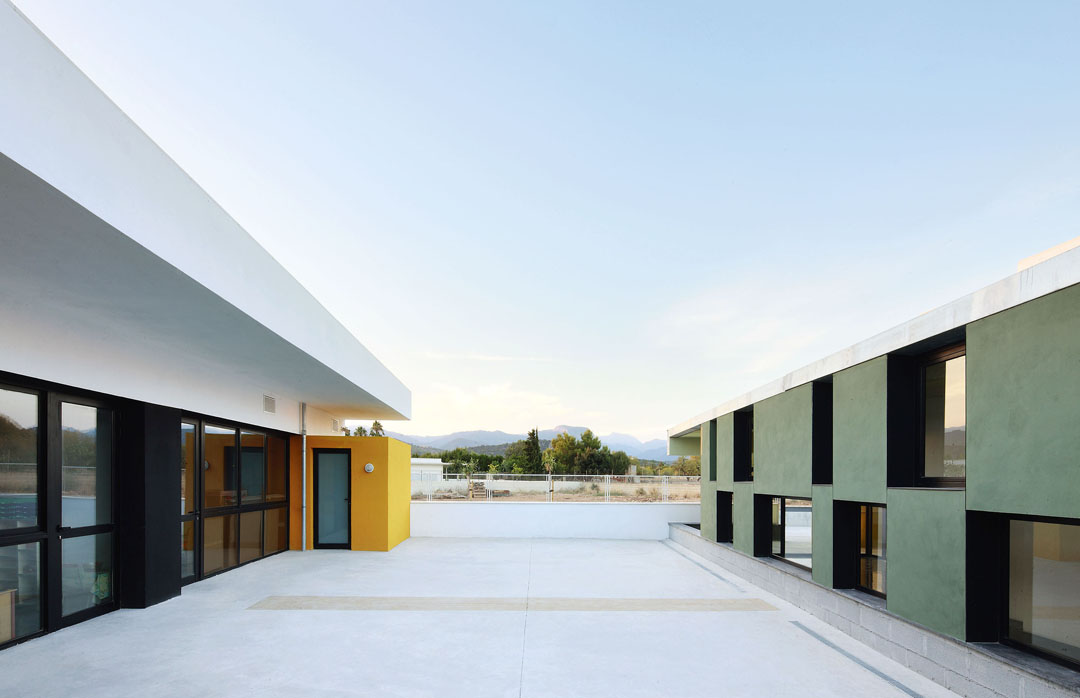

During the design we developed a typology of ‘classroom cluster’ that is composed by: 2 classrooms connected together that are opened with a glazed facade and a porch towards a private courtyard that serves as the outdoor extension of the classroom. The clusters are oriented east, what ensures good natural light quality for each of them, and avoids the visual relationship with the north facade of the existing school building.

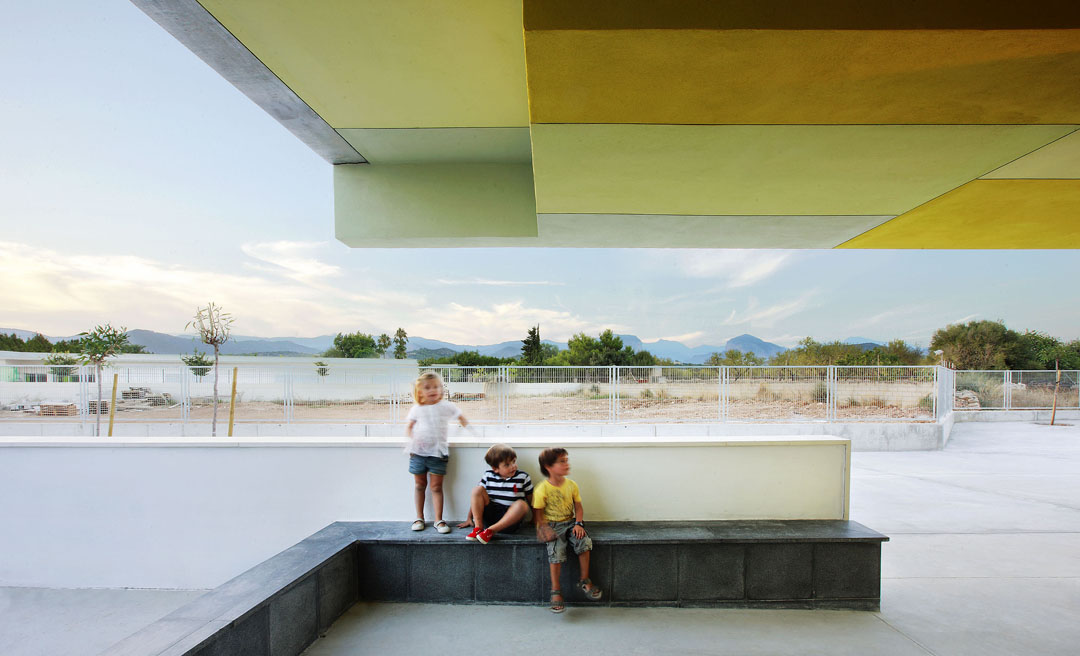

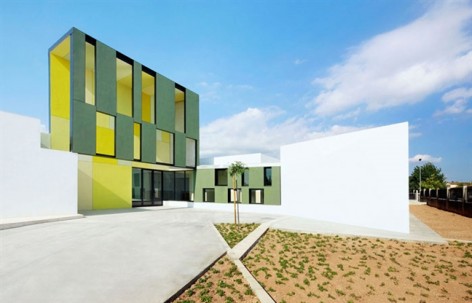

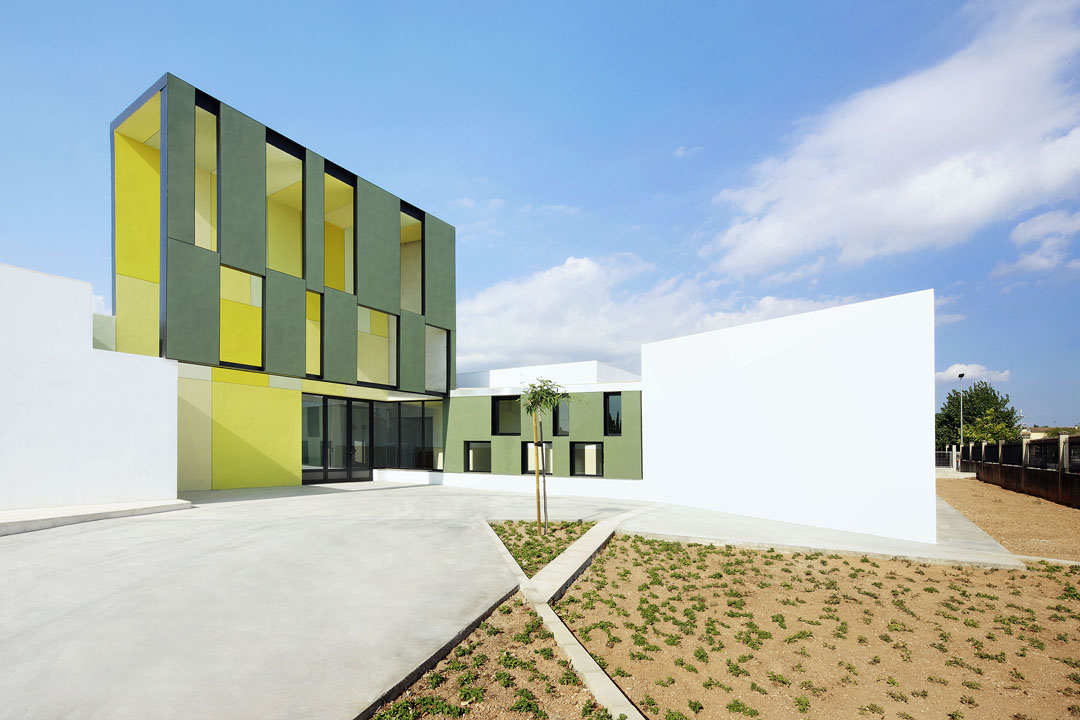

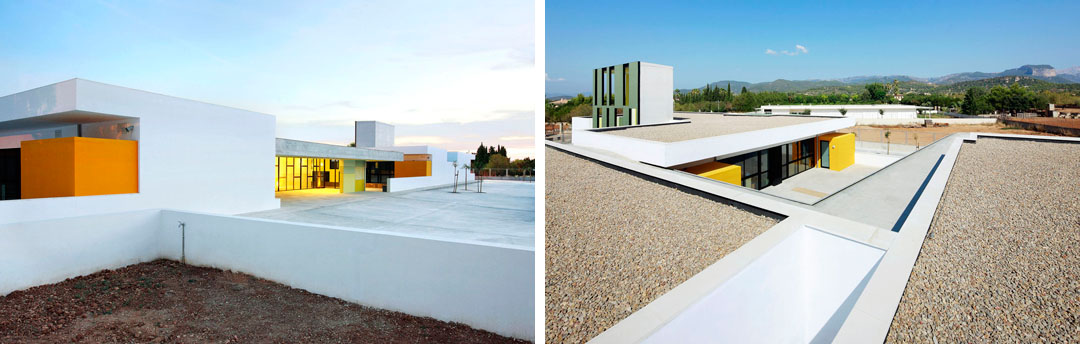

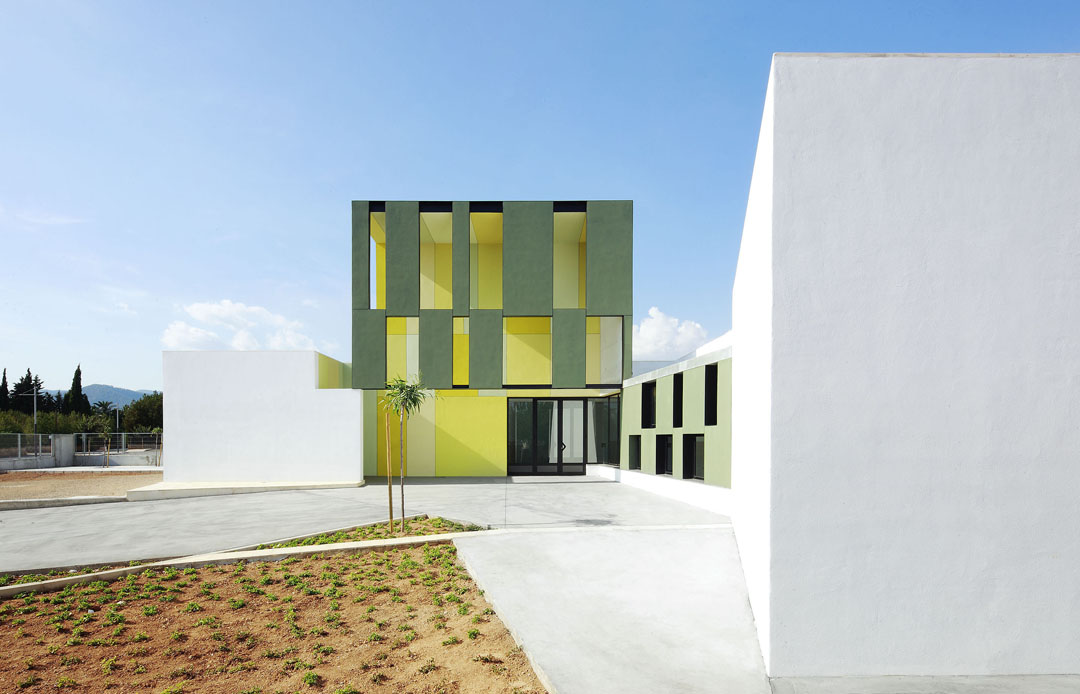

A roof follows and protects the ‘path’ in its zig-zag route, rising to greet us at the main access from the Avenue, driving us to the classrooms, and offering us a sheltered area next to the playgrounds… a vibrant and folded shadow roofing that covers and embraces us borrowing the colors of the orange groves nearby.

CREDITS

Architects: Pep Ripoll – Juan Miguel Tizón
Collaborators: Pablo García (architect)
Claudia Bacci (architect)
Luis Sánchez (architect)
Quantity Surveyor: Toni Arqué
IBISEC Collaborators: Juan Vanrell (architect IBISEC)
José Juan Amengual (quantity surveyor IBISEC)
Structural Engineer: Jorge Martín
Building Services: TIIS Ingeniería
Photographers: José Hevia

Client: Institut d’Infraestructures i Serveis Educatius i Cultural (IBISEC)
Contractors: Ferrovial
Project Area: 996,05 sqm
Budget: 1.369.167 EUR
Start of Design: 2007
Year of Completion: 2010
Location: Francisca Homar Pascual Av. – Consell. Mallorca. Spain

Awards: 2011 – Mallorca Architectural Awards 2007-2010 | SHORTLISTED

MORE: Ripoll Tizón，更多请至：Ripoll Tizón on gooood
