感谢 Kokaistudios 予gooood分享以下内容。更多关于他们，请至 Kokaistudios on gooood
Appreciation towards Kokaistudios for providing the following description:

Kokaistudios的最新改造项目充满活力与未来感，将一个拥有20年历史的商业中心转变为一个激情澎湃的摩登新奢地标。通过充满视觉漂浮感的像素元素打破商场原有四四方方的轮廓，让更新后的建筑与其历史环境相得益彰，并开辟了全新的前景与无限可能。

Dynamic and futuristic, Kokaistudios’ latest renovation transforms a twenty-year old shopping mall into a modern lifestyle destination. By breaking up the mall’s boxy silhouette through seemingly floating pixels, the new architecture complements its historic surroundings, opening new vistas and possibilities.

▼项目概览，overview of the project ©张虔希

由Kokaistudios执笔设计的中信泰富广场改造项目现已落成，该项目成为上海内在二元性的缩影。结合了多媒体元素和未来主义美学，并入驻了多个时下最受欢迎的品牌，它与这座城市中历史悠久而保存最完好的传统示范性的巷道住宅无缝衔接。位于静安区精华段的南京西路上，中信泰富广场的立面改造设计灵感来源于“像素”，设计以精心拣选的材料打破了商业固有的“方盒子”造型，更模糊了城市环境与商业空间、公共与私属领域的界限。

Kokaistudios’ recently completed architectural renovation project of CITIC SQUARE shopping mall epitomizes Shanghai’s inherent duality. With a futuristic aesthetic combining multimedia elements and some of today’s most sought-after brands, it sits seamlessly alongside one of the city’s best-preserved examples of traditional, historic lane housing. Located in Jingan district on main thoroughfare Nanjing West Road, the transformed building’s pixel-inspired facade and carefully selected materials break the traditional ‘box’ shape to blur the boundaries between city and mall, public and private.

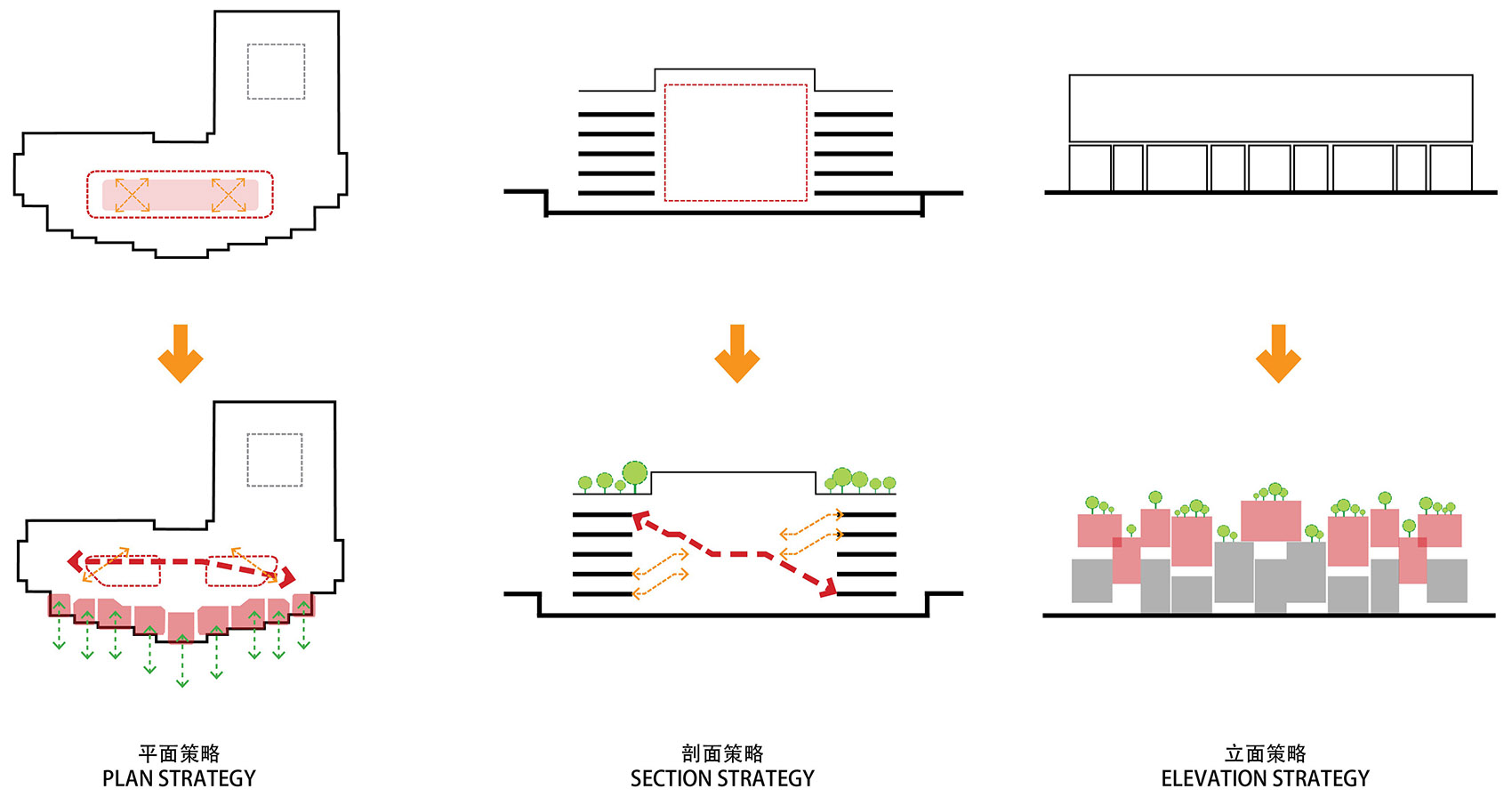

▼改造策略，renovation strategy ©Kokaistudios

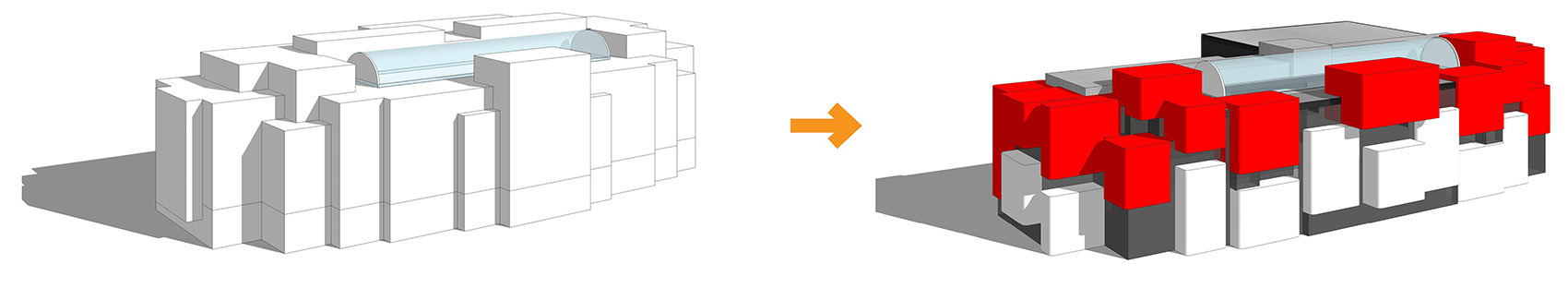

▼改造体块分析，block analysis ©Kokaistudios

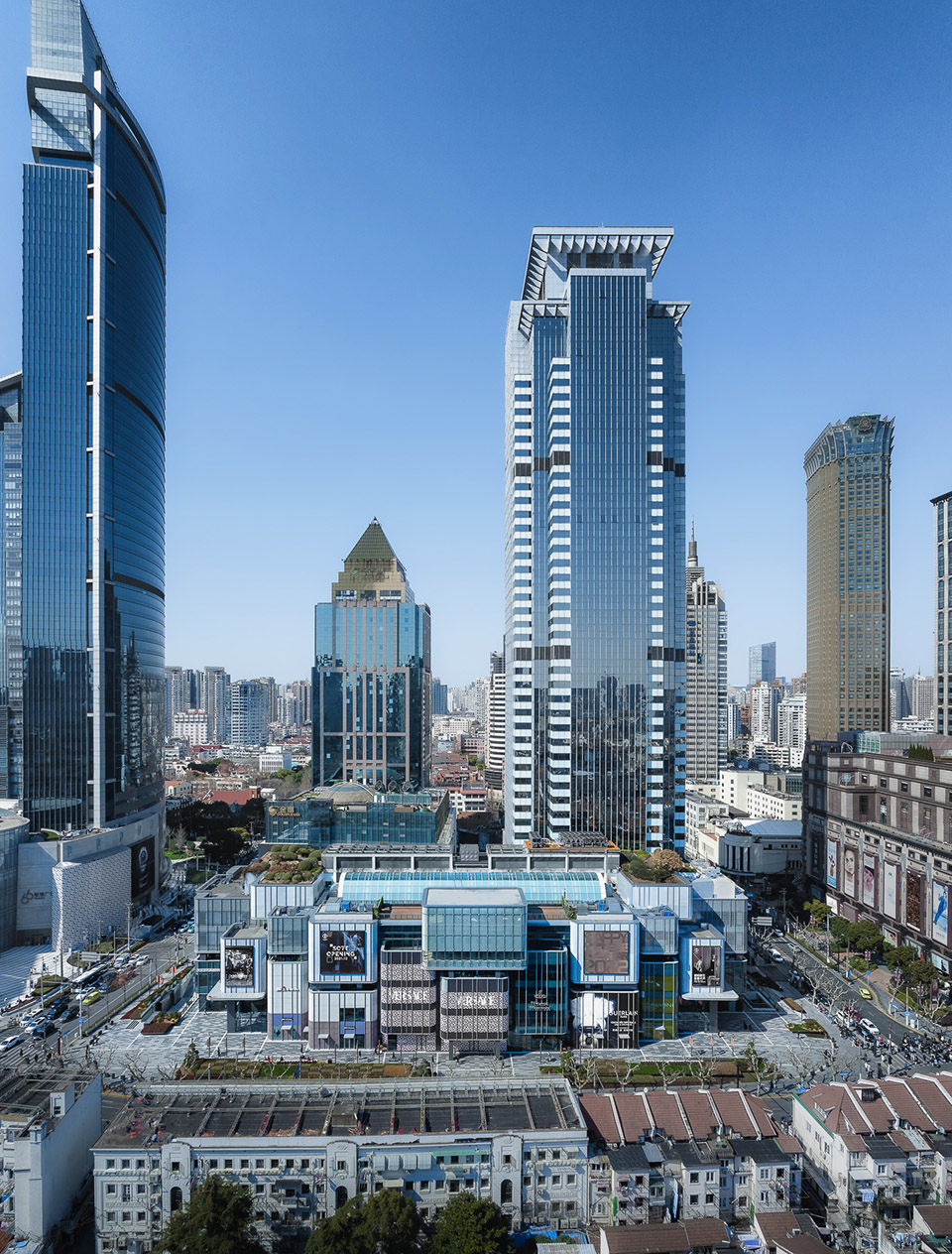

▼鸟瞰图，bird eye view ©张虔希

该购物中心最初于2000年竣工，但彼时缺乏符合现代生活方式的零售环境要素：灵活的多媒体装置、极具吸引力的户外空间、与高端奢侈品牌及餐饮相衬的引人注目的室内环境设计……Kokaistudios对其室内外进行整体的改造，不仅使它作为购物体验目的地与时俱进，更通过打开从前被隐藏的景观，使之成功融入上海的城市肌理并在层次感上相辅相成。

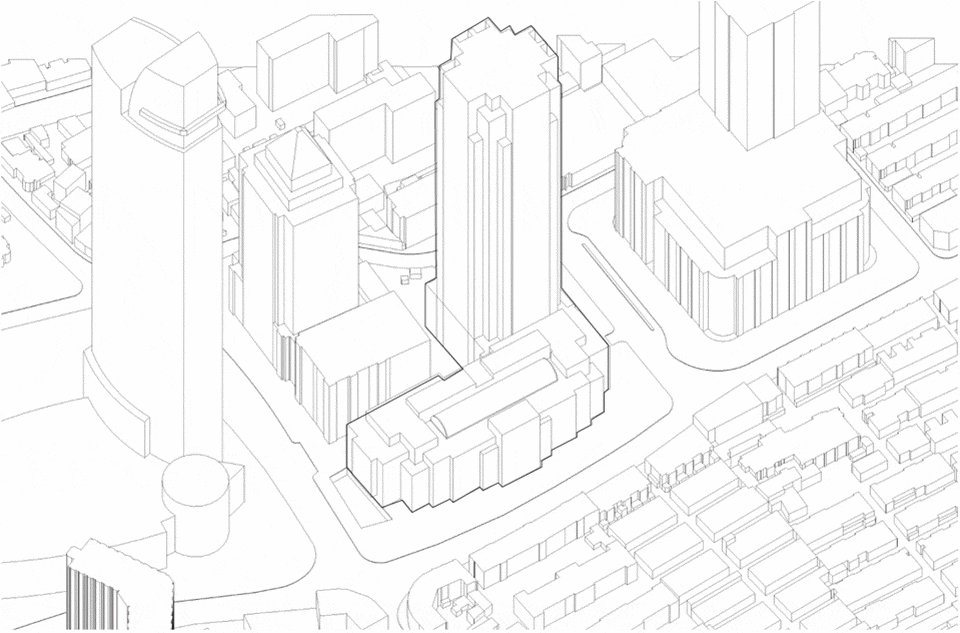

▼左：外部条件分析，右：交通条件分析；left: external condition; right: traffic-analysis ©Kokaistudios

Completed in 2000, the mall lacked several of the elements demand by today’s lifestyle-led retail environment: flexible multimedia components; attractive outdoor spaces; and eye-catching interiors for high-profile, luxury F&B outlets. Kokaistudios’ interior and exterior renovation not only brings the mall up to date in terms of a destination shopping-hospitality experience, it successfully reintegrates CITIC SQUARE into the fabric of Shanghai by opening up previously hidden vistas, and playing on scale to complement the mall’s layered urban context.

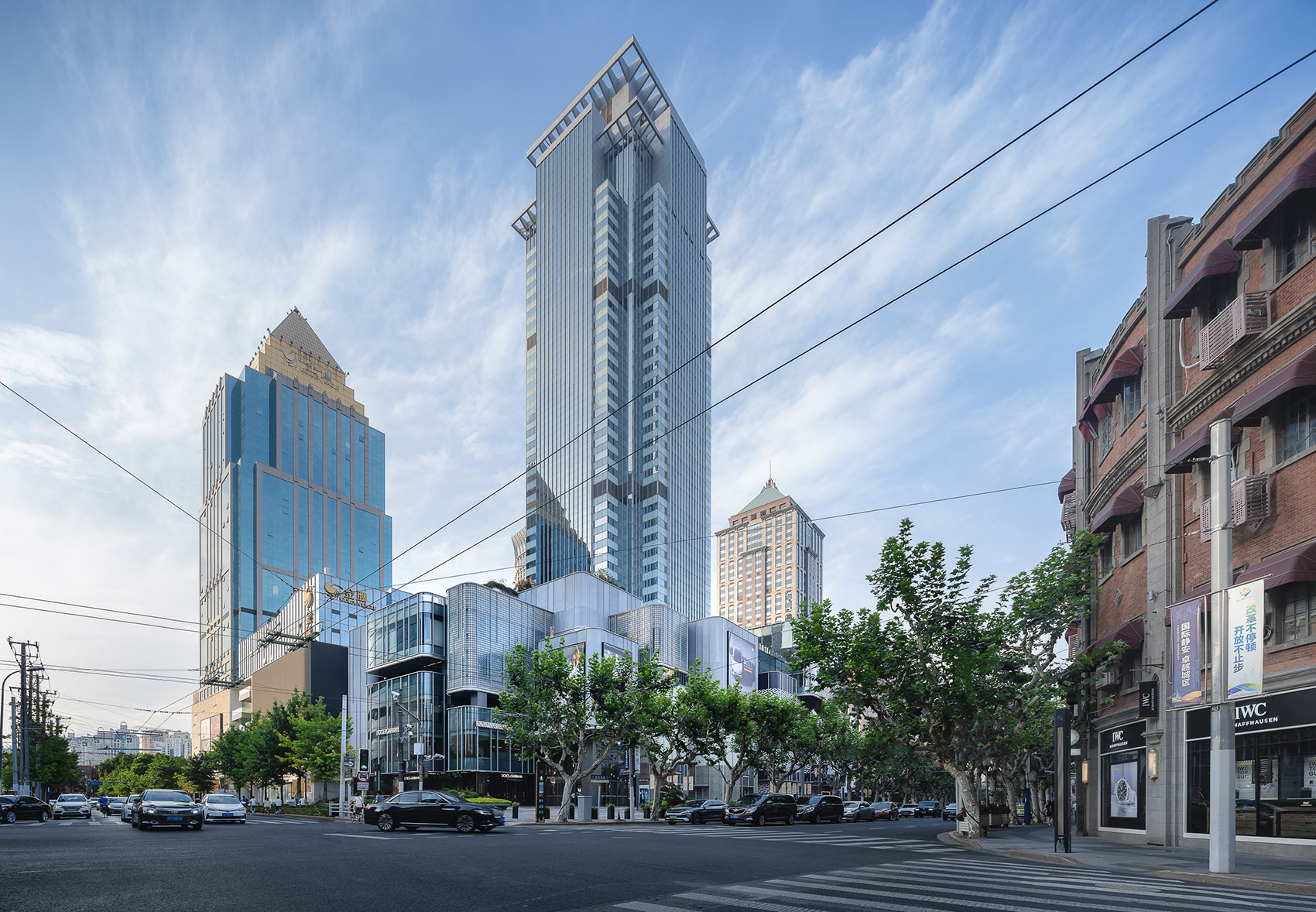

▼商场与周边环境，the CITIC and the surrounding environment ©张虔希

“像素”是Kokaistudios设计概念的核心，它的解释既是字面含义也是概念上的：建筑立面本身有着像素格栅的透明形态，而立面众多单独的方形单元相组合，更创造了一个具有凝聚力的整体。这些“像素盒子”从南京路的正面看去最是显眼，那曾经破旧的玻璃和石材立面如今被一系列不同尺寸、渐变透明的矩形和正方形体块所取代，每个“盒子”都从建筑的整体形态中突出，营造出漂浮的感受。不仅如此，这些“像素盒子”也可有效作为单独的品牌橱窗，并给予租户自行定制设计的可能性；因为每个立方体都是从建筑主体突出出来的，所以城市的沿街界面更会感受到品牌展陈的立体印象。

Pixels are central to Kokaistudios’ design approach. Their interpretation is both literal – such as the mall’s transparent grid facade – as well as conceptual: individual units that come together create a cohesive whole. They are most visible on the mall’s Nanjing Road frontage where an outdated glass and stone facade has been replaced by a series of large-sized rectangles and squares of varying dimensions and gradated opacities, each protruding from the building’s core volume to create the impression of floating. Effectively acting as individual shop windows, this ‘pixel’ approach allows tenants to customize their own vitrines. Because each cube juts out from the building, passing street traffic is subject to three-dimensional impressions of the storefronts’ exterior.

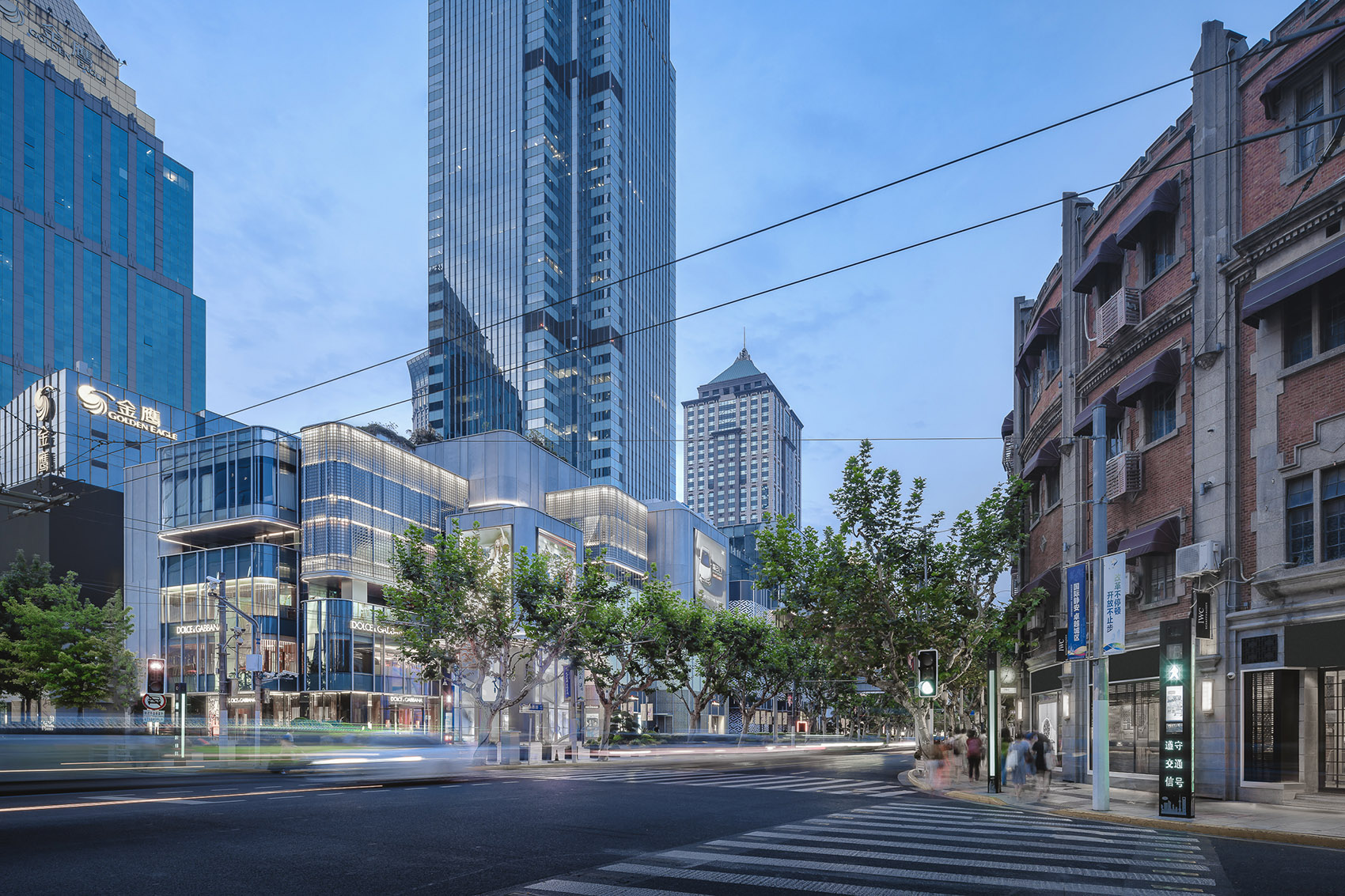

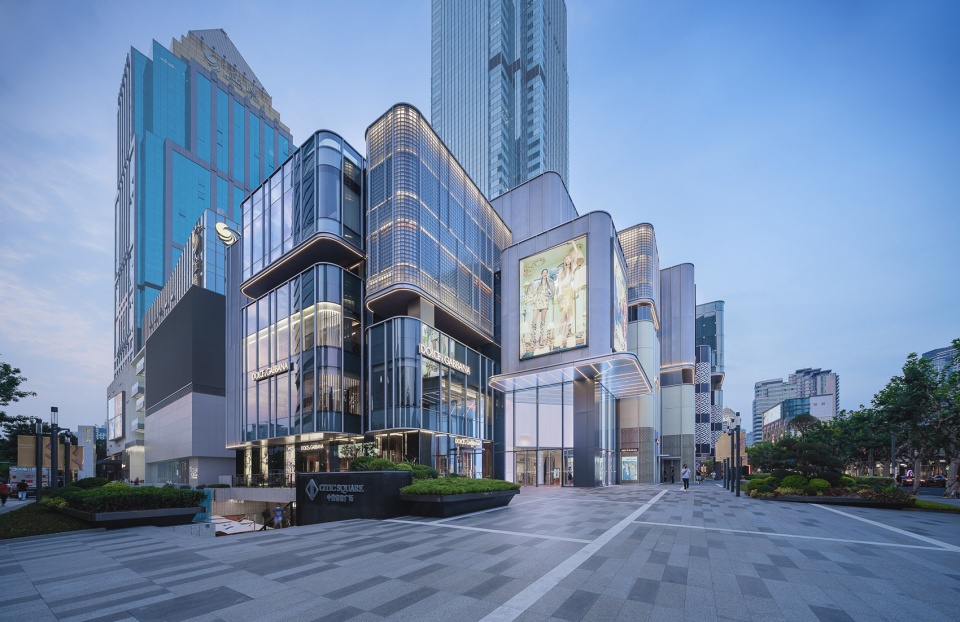

▼从西南街角看向中信泰富广场，from southwest street corner to the CITIC ©张虔希

▼东南面透视，southeast perspective view ©张虔希

▼商场南立面，south facade of the shopping mall ©张虔希

“像素”不仅具有当代内涵，也将该商业空间与其周边悠久的城市历史环境联系起来：中信泰富广场的正对面就是这里保存最完好的弄堂之一，弄堂是由传统巷道房屋的围起来的建筑群，通常有两到三层楼高，可追溯至20世纪初，代表着典型的老上海风貌。像素立面消解了整个体块，使其与对面的旧建筑在规模上保持一致性；而全透明或半透明的玻璃幕墙与UHPC混凝土板则让新旧之间产生了对话。

Despite their contemporary connotations, the ‘pixels’ connect the mall to its historic urban context. Directly opposite is one of the city’s best-preserved lòngtáng: typical of Shanghai and dating from the early twentieth century, they are walled compounds of traditional lane housing, usually two- to three-storeys in height. CITIC SQUARE’s pixels facade create a scale in keeping with the older architecture opposite. The dialogue between old and new continues through the frontage’s materials of fully transparent glass panes, semi-opaque glass bricks, and UHPC concrete panel.

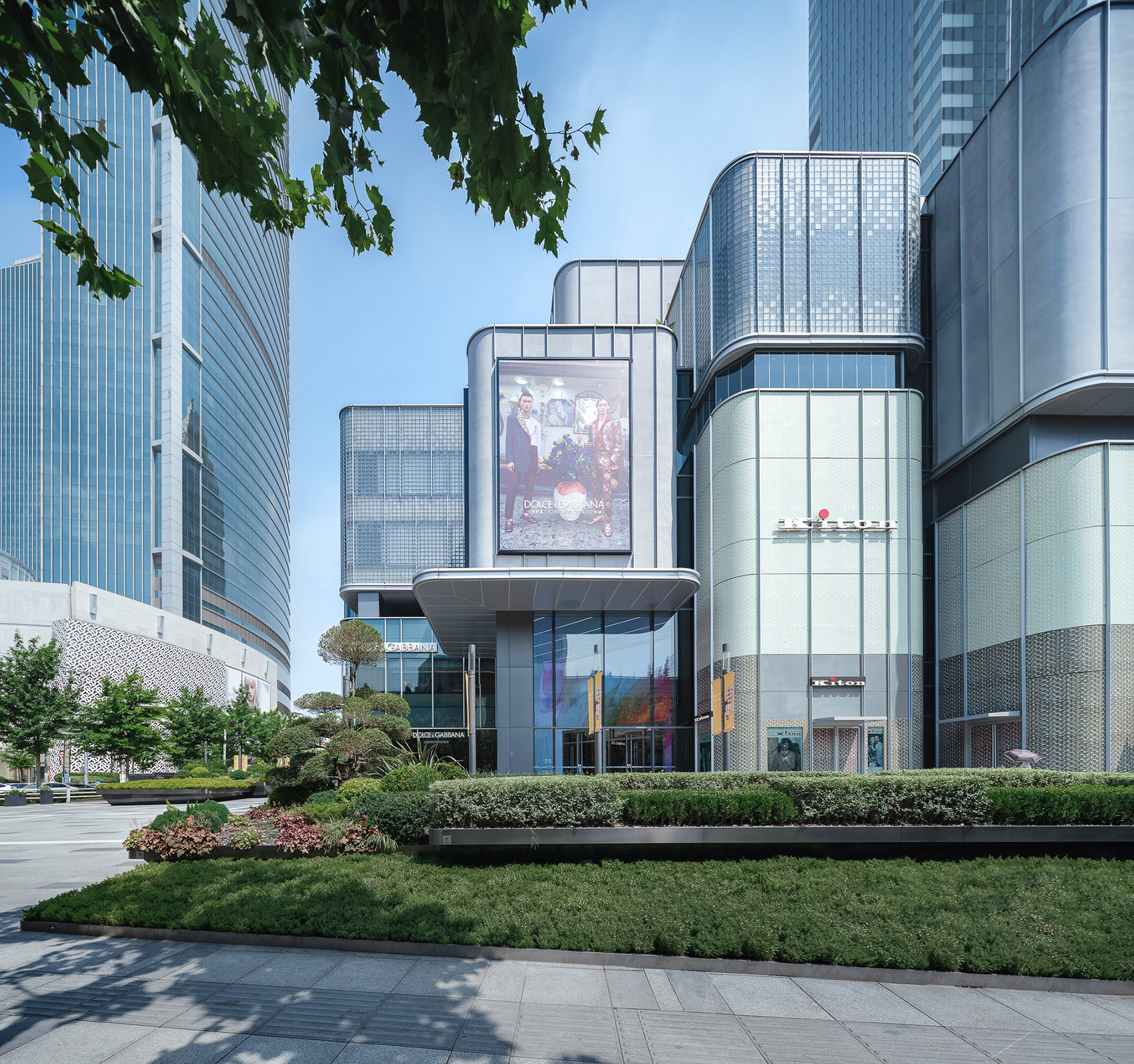

▼商场入口近景，close shot of the entrance ©张虔希

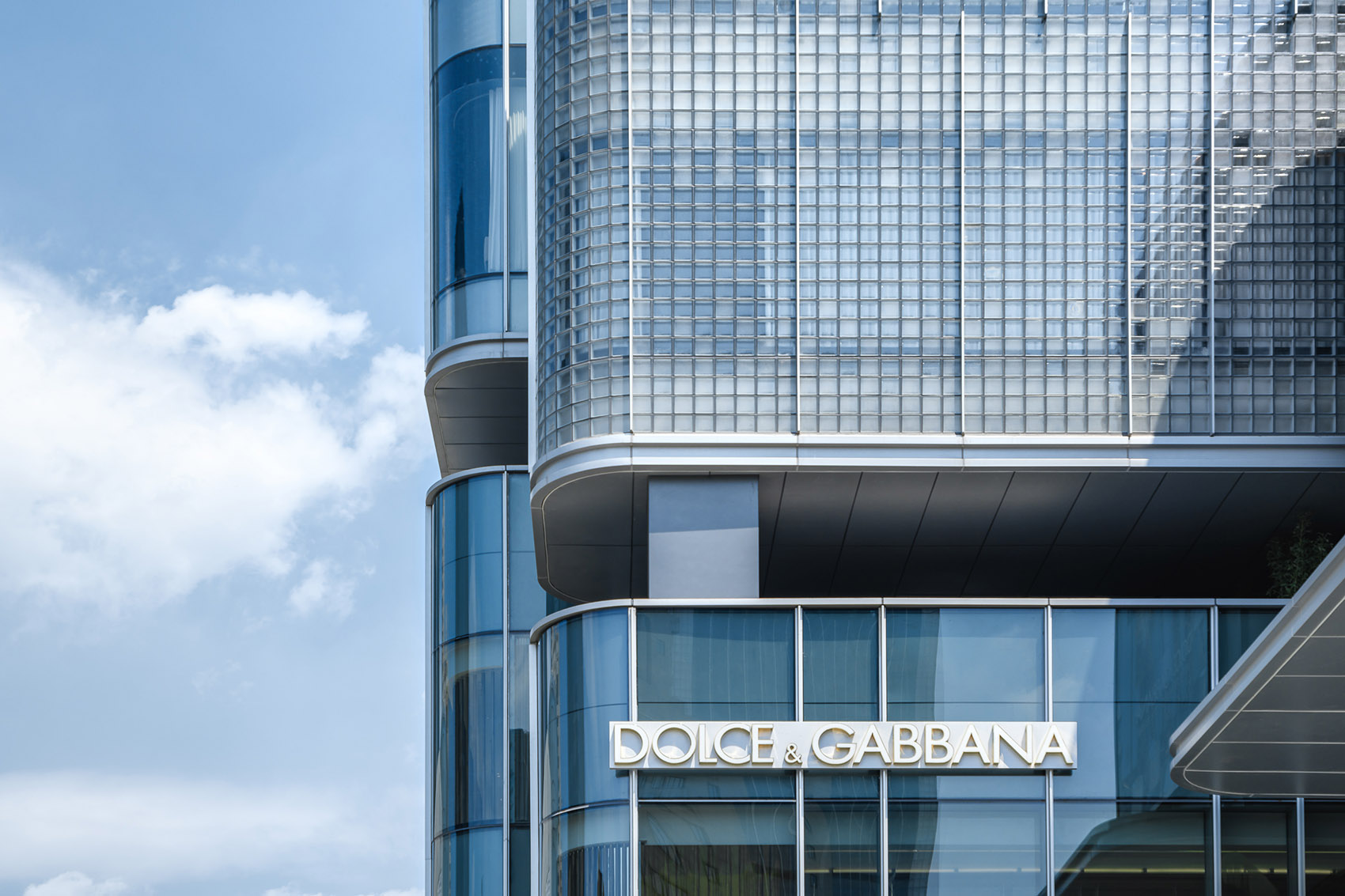

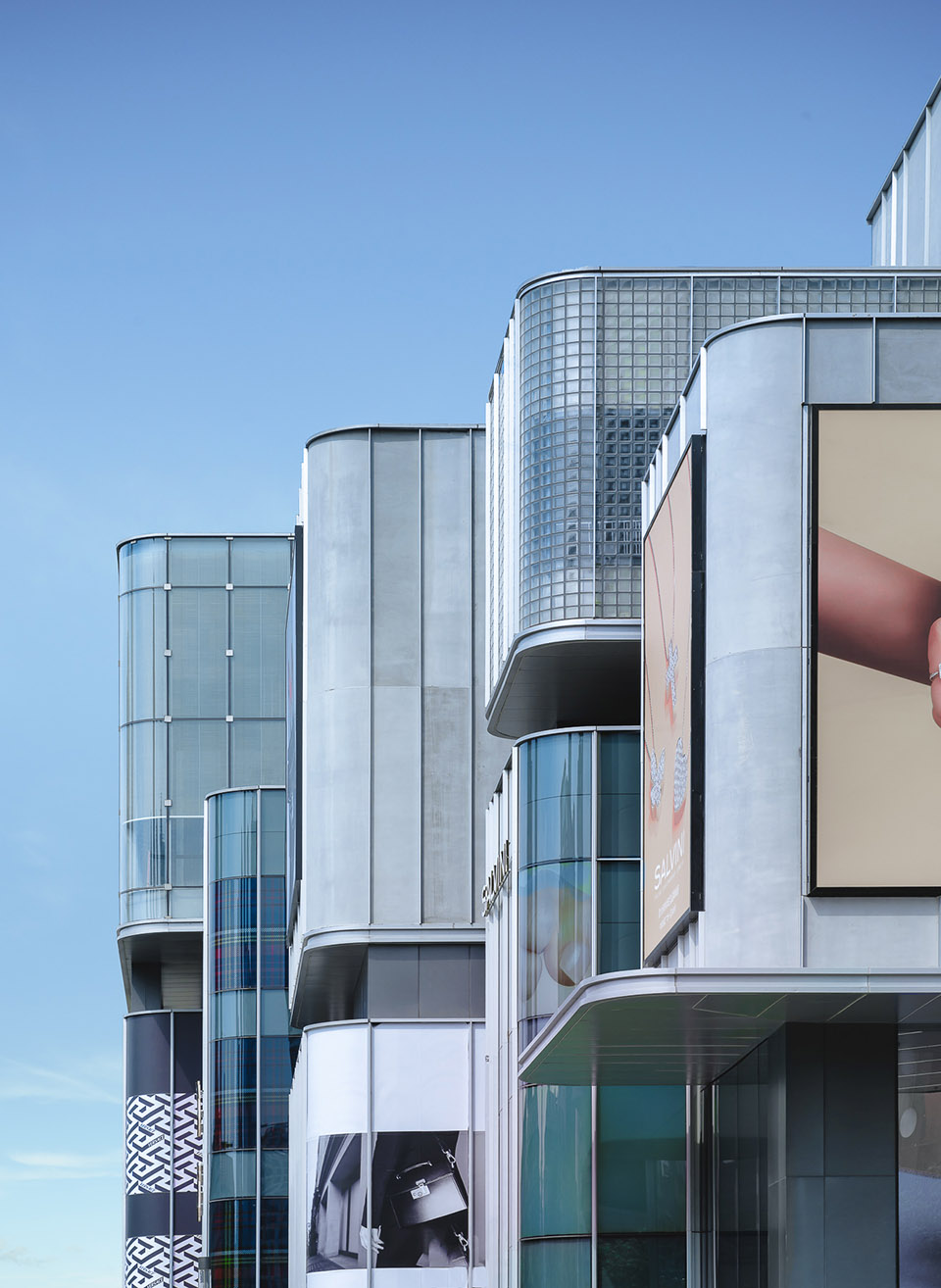

▼建筑外立面局部近景，close shot of the building facade ©张虔希

▼玻璃幕墙近景，close-up of glass curtain wall ©张虔希

下沉广场和空中花园进一步模糊了私人和公共空间、中信泰富广场和上海这座城市之间的界限。其中包括每个立面像素盒子顶部的露台，通过其独特景观，显著地增强了商业空间对购物者的吸引力。改造前的屋顶原本用于置放机电设备，现在成为了主力餐饮租户的户外用餐区及广场户外活动区域。为了扩大购物中心的占地面积，在东侧设计了双下沉式花园，这也是对现有西侧花园的对映，可以激活聚焦生活方式的地下空间的流动性。

A network of gardens both sunken and floating further blur the boundaries between private and public space, CITIC SQUARE and the city of Shanghai. These include terraces atop each of the facade’s pixel windows, significantly enhancing stores’ attractiveness to shoppers by the unique views. Previously a repository for the mall’s mechanical functions and equipment, the roof has also been transformed into an outdoor dining area for CITIC SQUARE’s anchor F&B tenant and the square outdoor activity area. In an expansion of the mall’s footprint, a twin sunken garden has been installed on its eastern side, mirroring an existing one to the West. The intervention facilitates flow through CITIC SQUARE’s basement level which will focus predominantly on lifestyle.

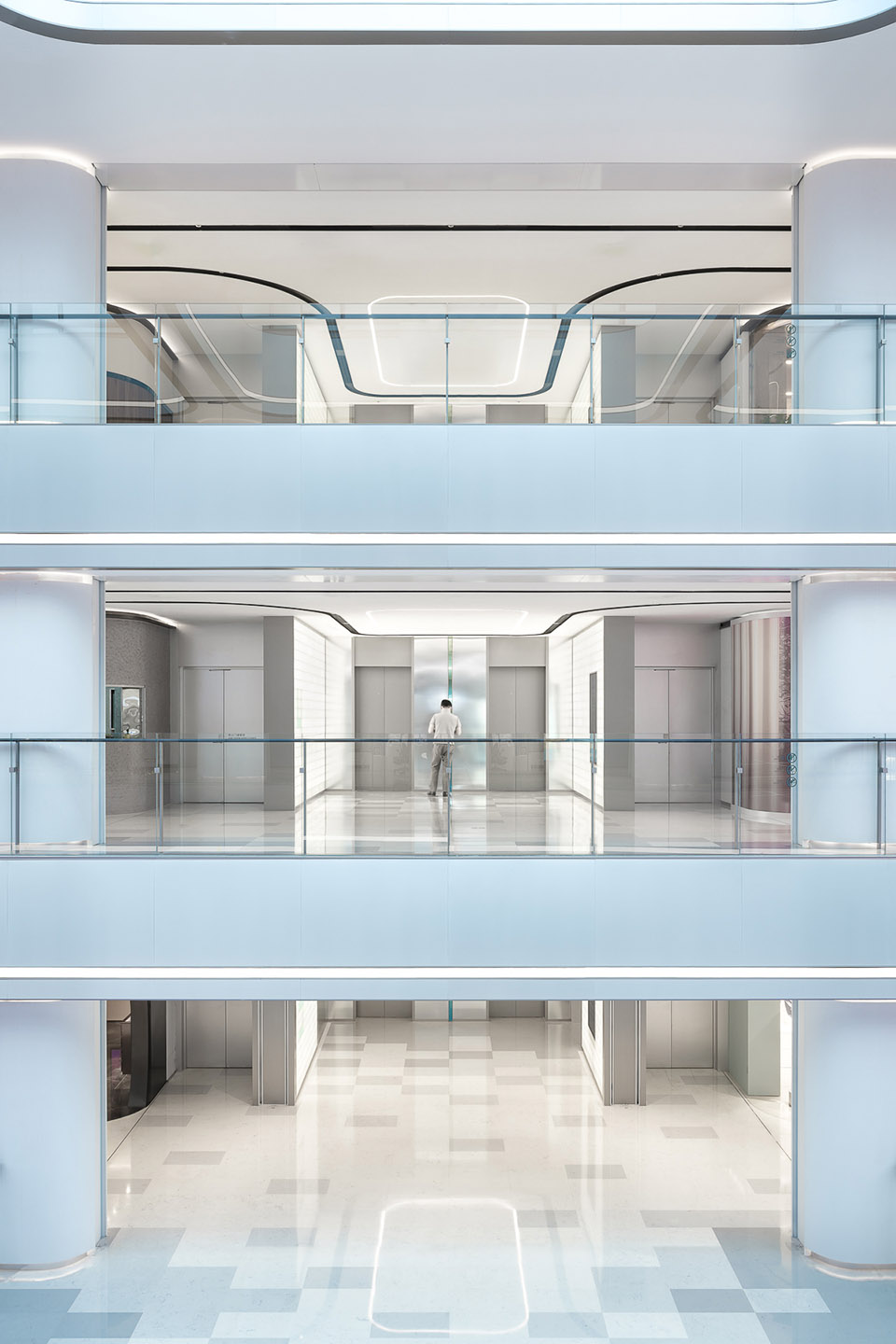

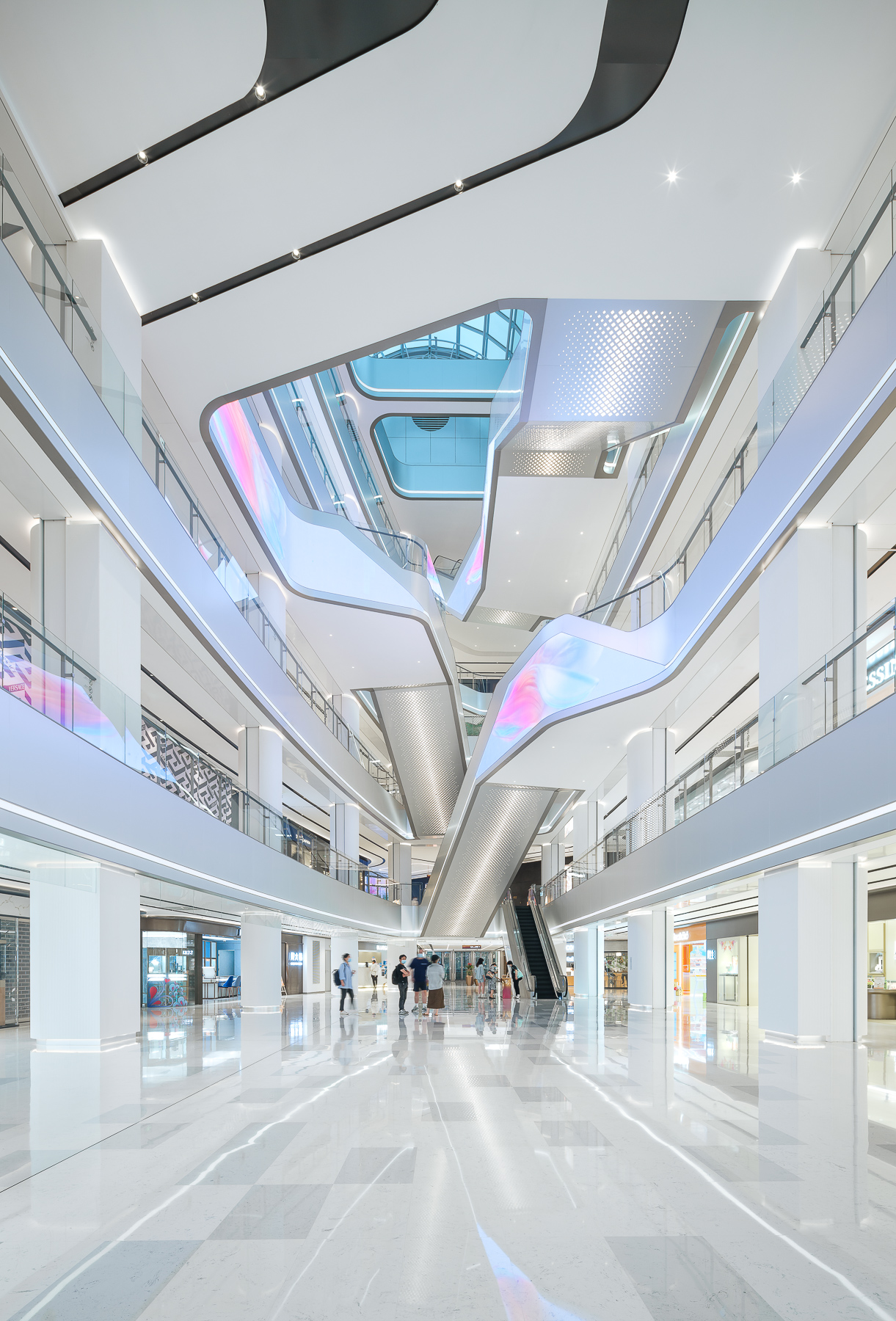

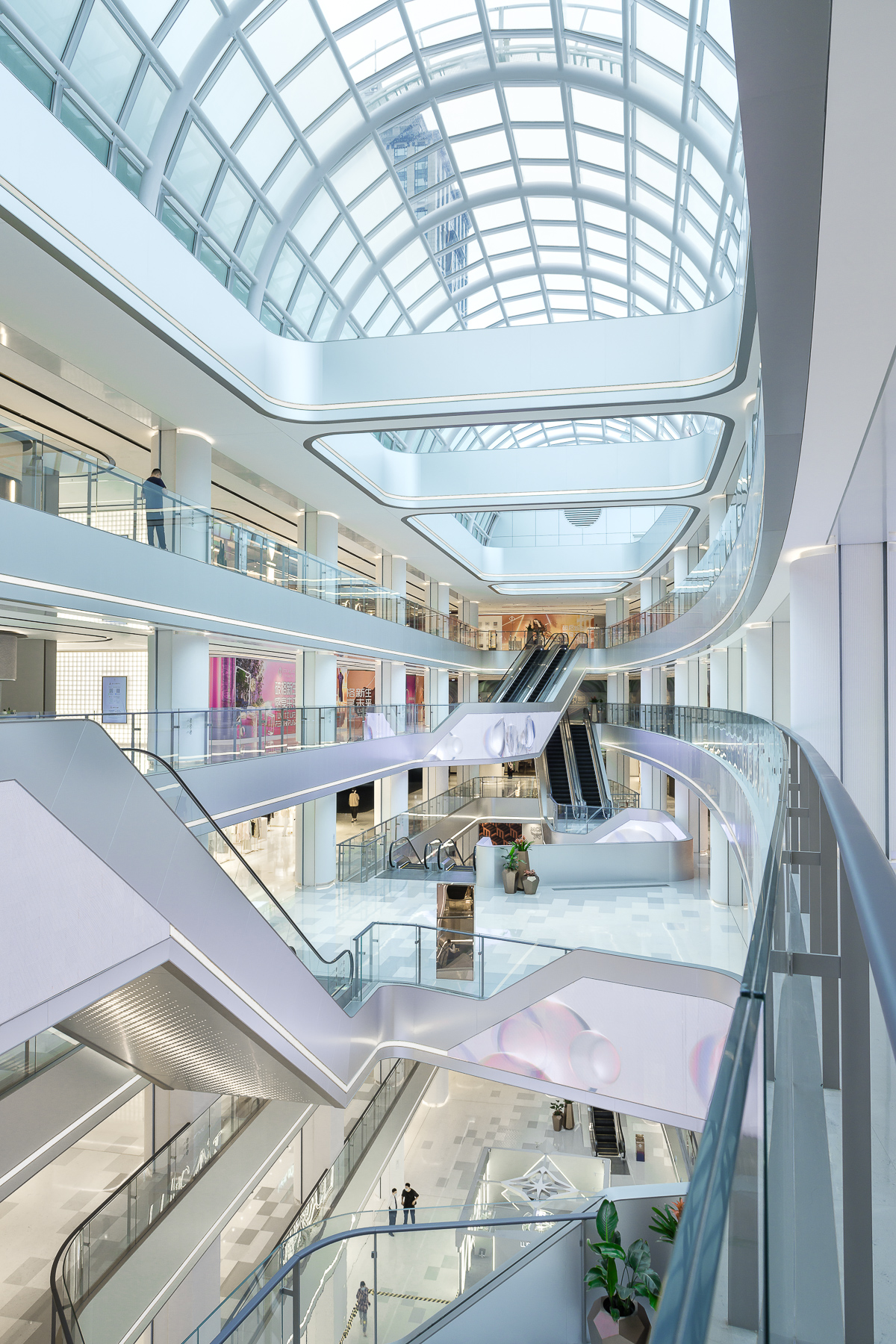

▼商场中庭，the atrium ©张虔希

打破传统大型购物中心的设计方法在室内改造中依然奏效，从前巨大的中庭被如今的夹层空间分解。较低楼层允许租户定制化设计商铺立面，保证了更好的光线控制调节，而低楼层的餐饮与高楼层的时尚购物旅程，也为来访者创造出两种截然不同的氛围。改造后的两个入口处的自动扶梯可以让游客从上至下自由游弋在整个空间中，而入口设计也前置预测了来访者可能的目的地。例如，东侧入口靠近南京西路地铁站，于是东入口通向生活方式空间；而西侧入口靠近附近的奢侈品购物目的地恒隆广场，因而西入口将引导人们去往主题相似的高端时尚空间。

The design approach of breaking up the big-box mall continues inside the space, where a formerly vast atrium is now dissected by a mezzanine. Because lower levels’ flagship custom made facades allows for greater light control as opposed to upper floors’ abundance of transparent glass, the platform creates two distinct atmospheres, signalling shoppers’ journey between fashion below, and F&B above. The renovation also shifts visitor flow from up and down, to through the space thanks to escalators at the mall’s two entrances, both of which have been configured to anticipate their likely demographic. For example, the East entrance opens into a lifestyle space due to its proximity to Nanjing Xi Lu subway station. The West entrance is close to nearby luxury shopping destination Plaza 66, and guides visitors towards thematically similar high-end fashion.

▼电梯厅，elevator hall ©张虔希

如同是跟随购物者的双重流线一般，可定制的LED屏幕以无限循环的方式贯穿整个中庭，让商城成为一个全新动态的多媒体空间。它们仿佛是脉动的数据流一般，将中信泰富广场的像素主题强化为充满未来感可读可观的效果。同时，在引人注目的电梯大堂中，玻璃砖墙壁上的像素化数字也再次强调了设计的概念。

Like a secondary circulation tracking that of shoppers, LED screens run throughout the atrium in an infinite loop. Fully customizable, they update the mall into a dynamic multimedia space. Resembling a pulsating data flow, they reinforce CITIC SQUARE’s pixel theme to digital, literal, and futuristic effect. The design trope is revisited in an abstract way in striking lift lobbies, where walls of glass bricks create impactful pixelated numbers.

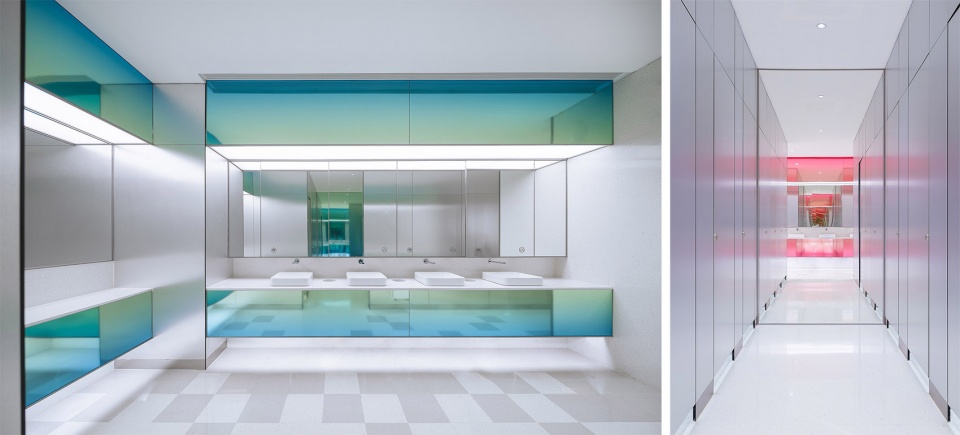

▼洗手间，washroom ©张虔希

为在上海这样竞争日益激烈的零售环境中脱颖而出，购物中心必须与时俱进，并让这些大体量的建筑全面无缝地融入城市公共空间。Kokaistudios对中信泰富广场的精确改造便实现了这种平衡：作为一个全然灵活具备多媒体功能的时尚生活方式场所，它并没有突破静安区的天际线，而是补充丰富了城市肌理，使之更加多元而活力满载。

In order to stand out in Shanghai’s increasingly congested retail landscape, malls must move with the times. At the same time, these large-footprint buildings must be comprehensively and seamlessly incorporated into public spaces. Kokaistudios’ smart renovation of CITIC SQUARE achieves just this balance: now a fully flexible multimedia, lifestyle venue, it doesn’t dominate the Jingan skyline; rather it complements a rich, varied urban fabric.

▼商场夜景，night view of the shopping mall ©张虔希

▼商场外立面局部夜景，night view of the shopping mall ©张虔希

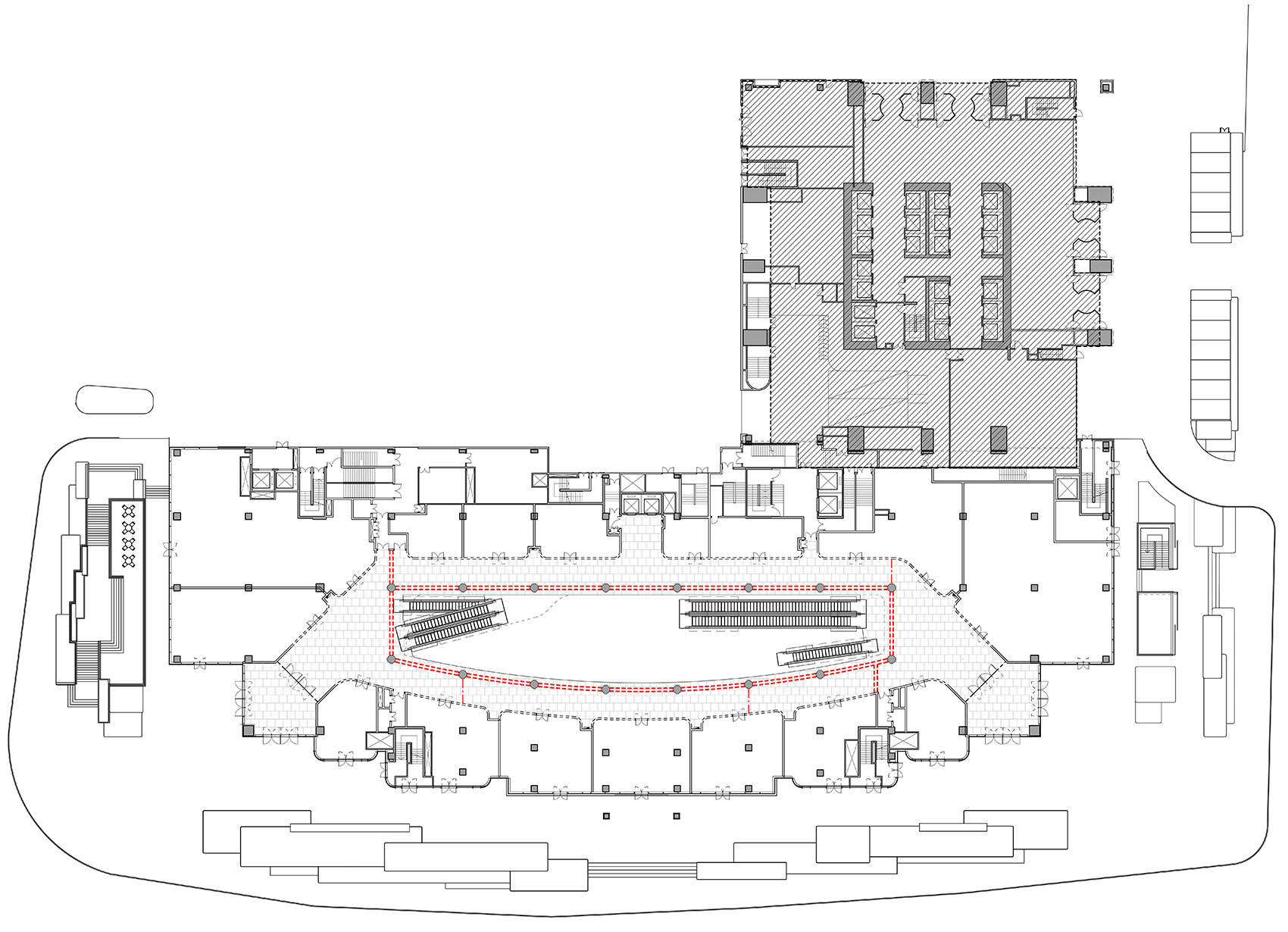

▼一层平面，level 1 plan ©Kokaistudios

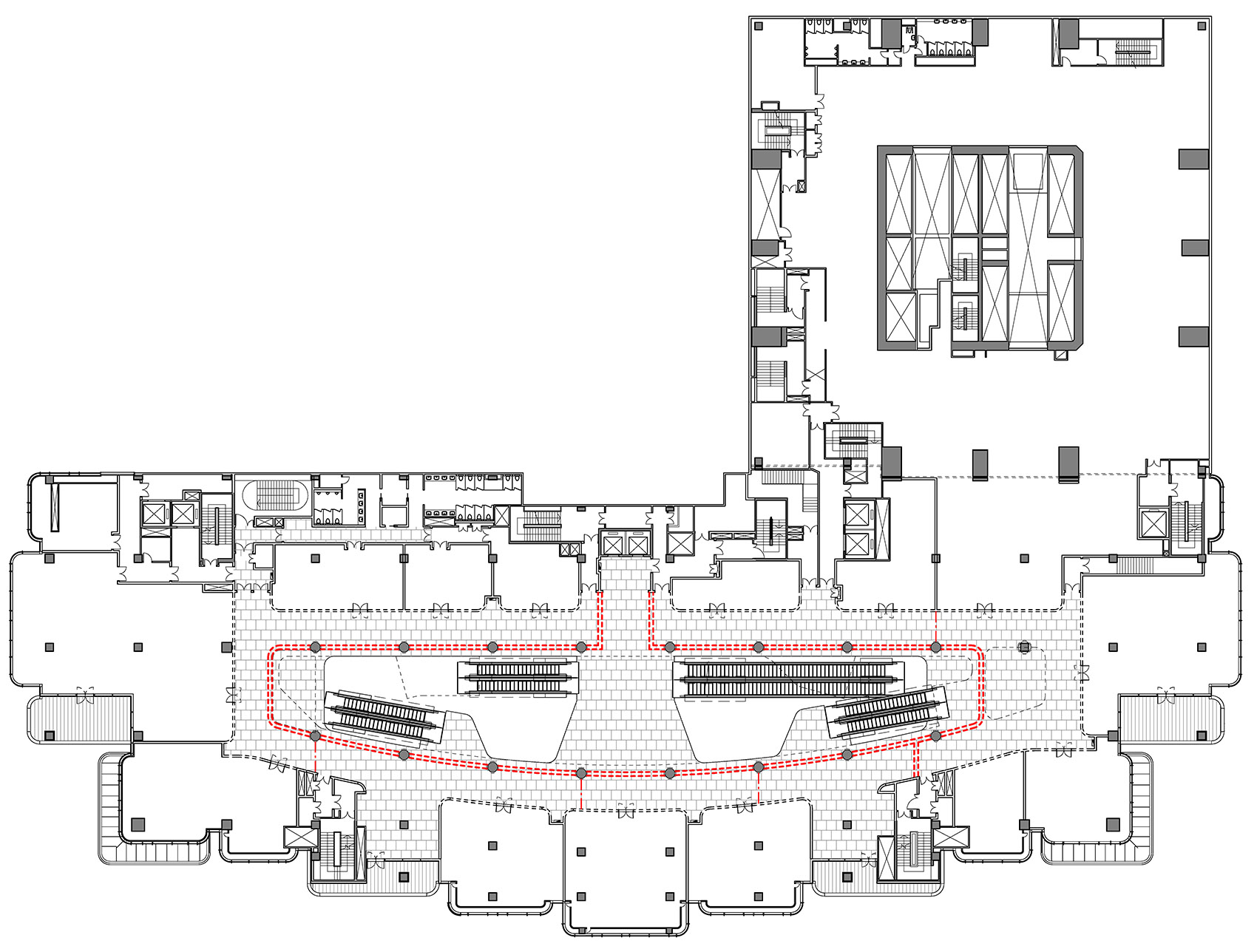

▼三层平面，level 3 plan ©Kokaistudios

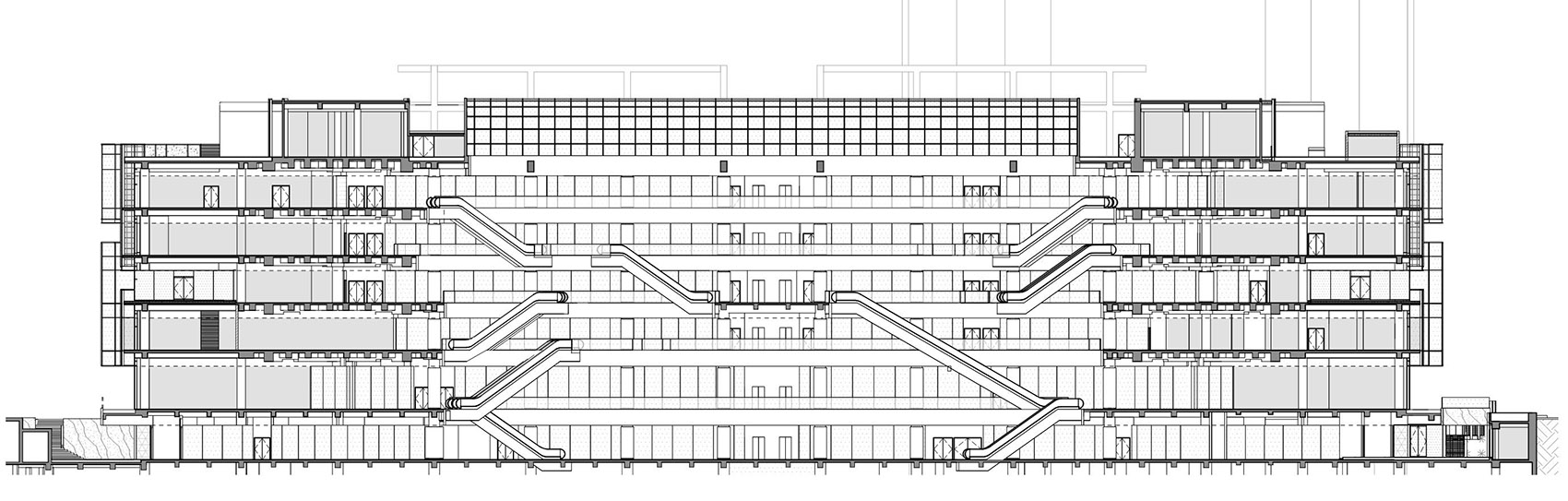

▼剖面图，section ©Kokaistudios

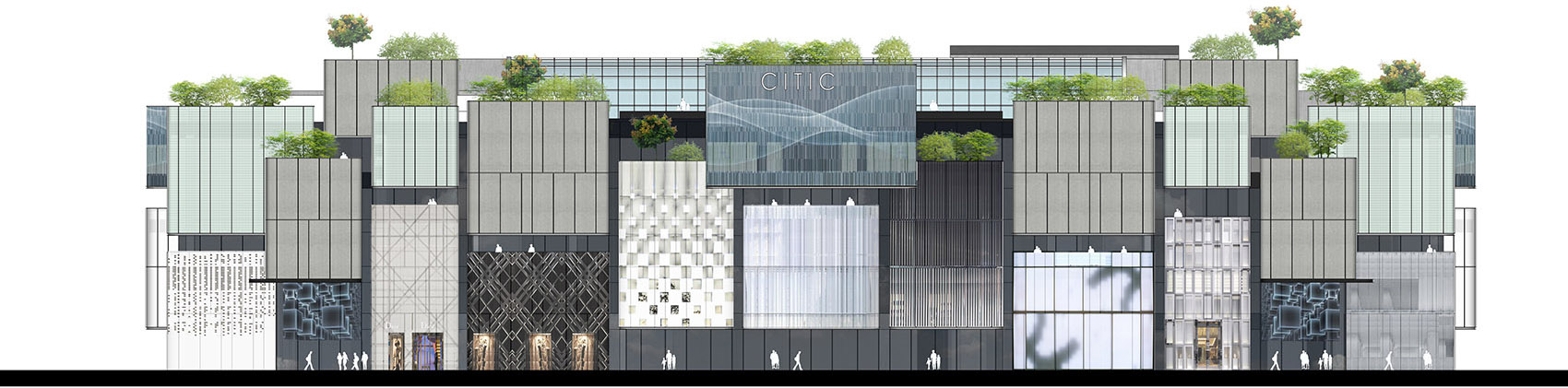

▼南立面，south elevation ©Kokaistudios

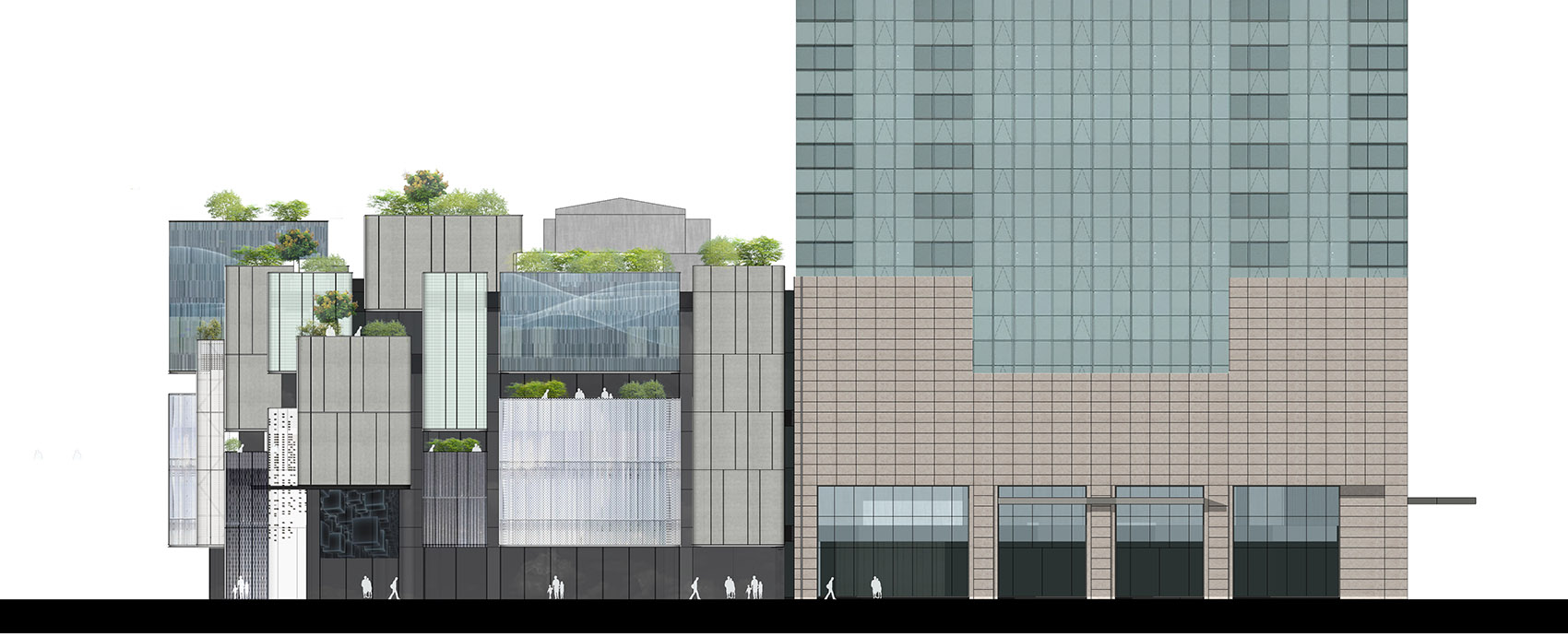

▼东立面，east elevation ©Kokaistudios

▼剖透视图，section perspective ©Kokaistudios

项目名称：中信泰富广场改造
设计方：Kokaistudios
项目设计 & 完成年份：2022年
主创及设计团队，首席设计师：Andrea Destefanis, Filippo Gabbiani
建筑设计总监：李伟
建筑设计团队：赵牧云，Eva Maria Paz Taibo，李冬吟，谢诚儒
室内设计总监：王思昀
室内设计团队：赵牧云，谢诚儒，沈晓婉，张丛桑，黄晨宇
合作设计院、结构设计、机电设计：上海建筑设计研究院有限公司（隶属于华建集团）
项目地址：中国，上海
建筑面积：34,500 平方米
摄影版权：张虔希
合作方（撰文）：Frances Arnold
客户：中信泰富广场

Project name：CITIC SQUARE Renovation
Design：Kokaistudios
Design year & Completion Year：2022
Leader designer & Team Chief Architects: Andrea Destefanis, Filippo Gabbiani
Architecture Design Director: Li Wei
Architecture Design Team: Muyun Zhao, Eva Maria Paz Taibo, Dongyin Li, Ru Chen
Interior Design Director: Rake Wang
Interior Design Team: Muyun Zhao, Ru Chen, Xiaowan Shen, Sara Zhang, Chenyu Huang
LDI, Structure Design, MEP Design: Arcplus Institute of Shanghai Architectural Design & Research(Co.,Ltd.)
Project location：Shanghai, China
Gross Built Area (square meters)：34,500 sqm
Photo credits：Terrence Zhang
Partners Text: Frances Arnold
Clients：CITIC SQUARE
