非常感谢 gmp 予gooood分享以下内容。更多关于他们请至：gmp on gooood.
Appreciations towards gmp for providing the following description:

由gmp·冯·格康，玛格及合伙人建筑师事务所和中国建筑科学研究院有限公司合作设计实施的这一国家级博物馆将两座博物馆的功能集为一体，它的落成为北京奥林匹克公园新文化区增添了又一座重要的新建筑。建筑外观设计与其内容相辅相成，雕塑般的幕墙结构富于色彩、深度与光泽效果的变化，使博物馆无论从近处还是远处看都极具特色。

With the National Museum, which combines two new museums for the display of China’s cultural heritage, the architects von Gerkan, Marg and Partners (gmp) have completed an important component of the new cultural quarter in the Olympic Green in Beijing. The external design makes reference to the function of the building, which – with its changing color and light effects created by the sculptural structuring of the facade – is clearly visible from near and far.

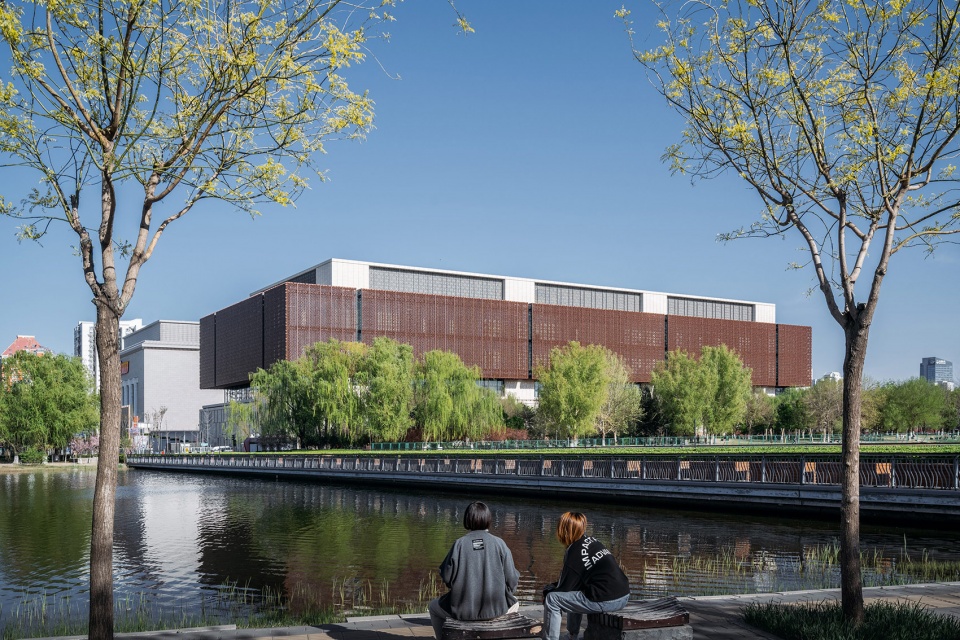

▼博物馆外观，Exterior view © CreatAR_Images

新的博物馆建筑比邻国家体育场（鸟巢）以及由gmp于2021年设计建成的亚洲金融大厦暨亚洲基础设施投资银行总部，并与这些新建筑一起重构了北京中轴线的北端。在新的博物馆中，众多的中国工艺美术品和非物质文化遗产的珍品首次以国家级高度向公众展示。

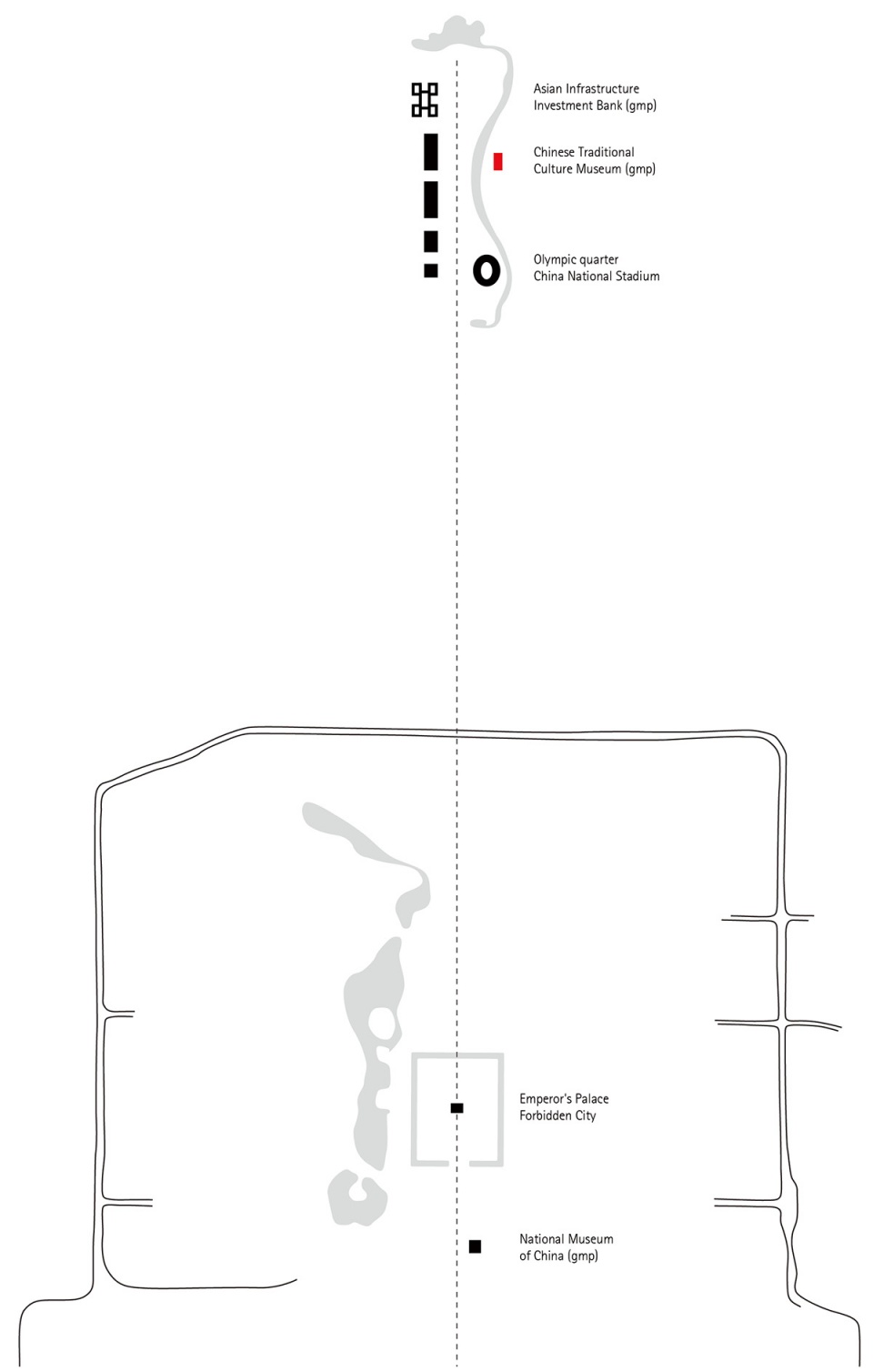

▼位置示意，Location © gmp Architekten

The museum building marks the northern end of Beijing’s Central Axis and is not far from the National Stadium, the Bird’s Nest, and the Asia Financial Center & AIIB Headquarters completed by gmp in 2021. For the first time, an opportunity is provided to present valuable collections of Chinese arts and crafts and items of intangible cultural heritage at national level.

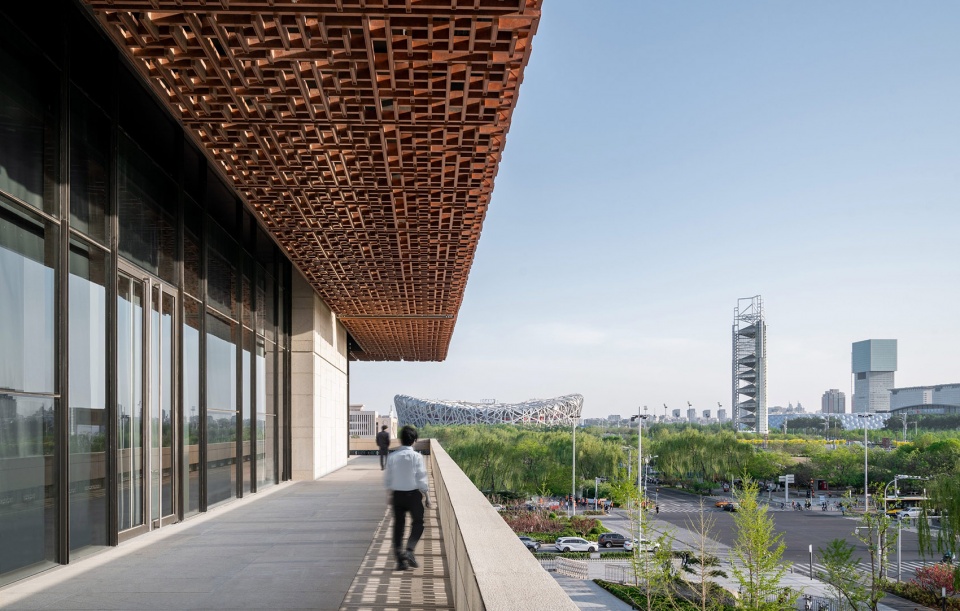

▼从博物馆露台望向国家体育场（鸟巢），Overlook to the National Stadium, the Bird’s Nest from the museum’s terrace © CreatAR_Images

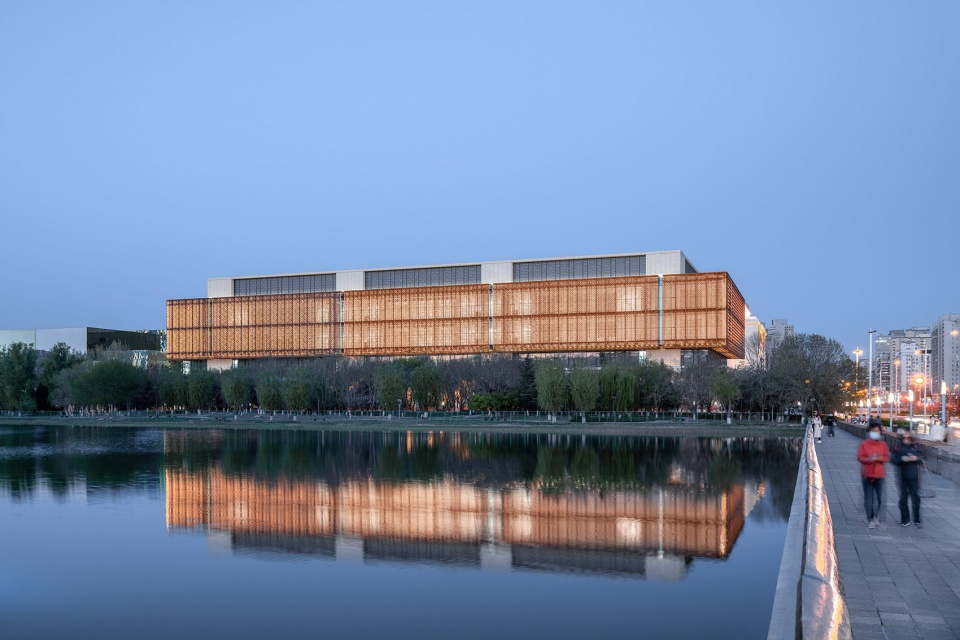

▼夜间，整个博物馆熠熠生辉，The structure seems to float above the Olympic Green by night © CreatAR_Images

新建筑高50米、长201米、进深75米，体量比例源于对原仰山文化带上的城市更新，即奥林匹克公园文化综合区的城市规划设计要求。建筑在结构和尺度上被划分为彼此贴合的三部分：浅色锈石花岗岩基座、玻璃幕墙的透明平台层和漂浮在上方的铜色主体建筑。通过这种三段式布局，在13.5米的高度上形成了一个有屋顶的城市露台，以公共空间的形式环绕着建筑。6米悬挑的屋顶也为玻璃幕墙后面的展览区提供了遮阳保护。

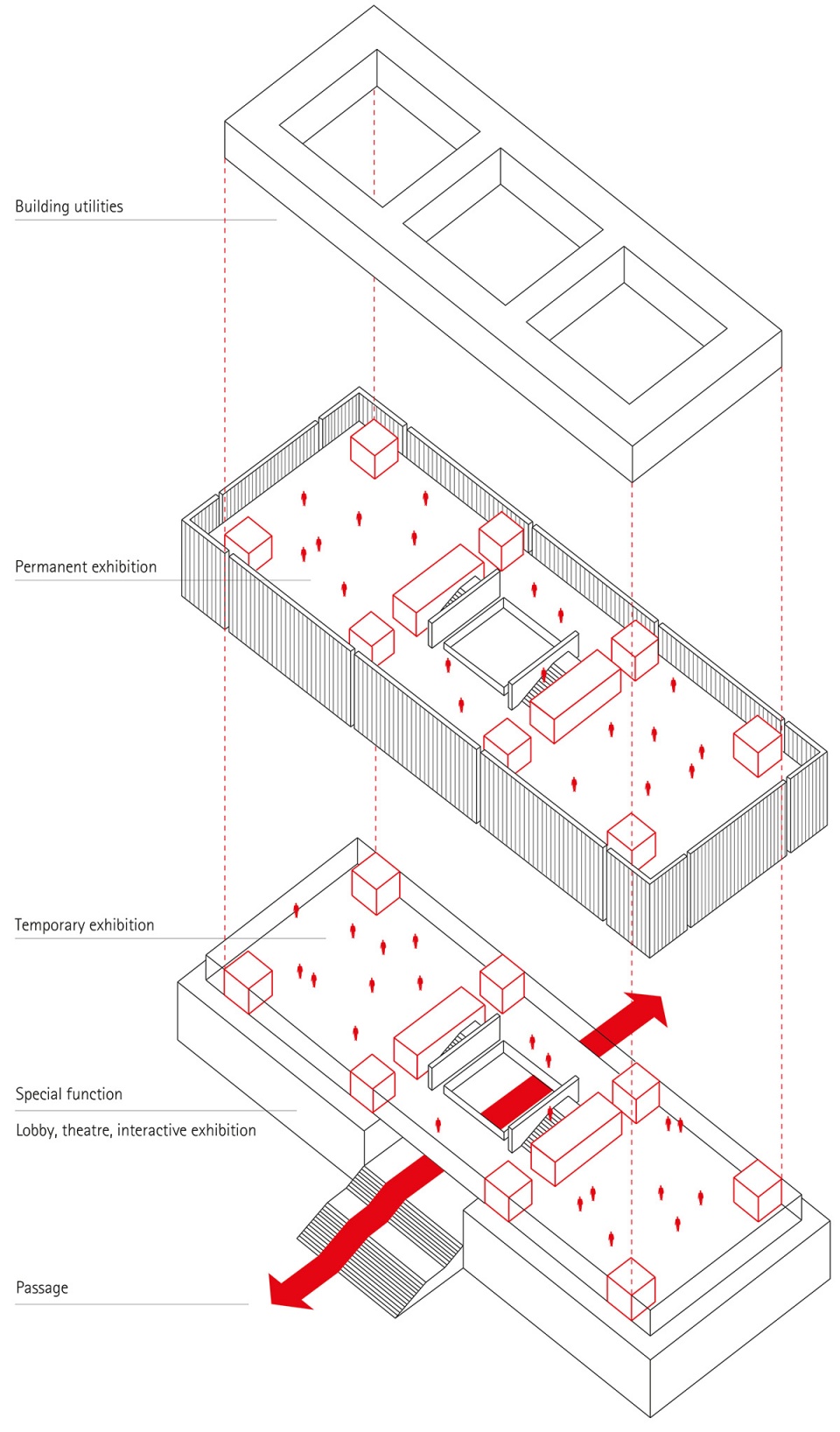

▼轴测图，Axon © gmp Architekten

The dimensions of the new building, which is 50 meters high, about 200 meters long, and 75 meters deep, result from the urban design guidelines for cultural buildings along the River Yangshan. The building comprises three distinct dimensionally and structurally coordinated parts: the plinth built with light-colored Xiu Shi granite, the glazed intermediate area, and the copper-colored main body floating above. This division into three parts means that a roofed-over terrace is created at a height of 13.50 meters, providing public space all round the building. It is protected by the six-meter cantilever of the roof, which also functions as solar screening for the exhibition areas behind the glazed facade.

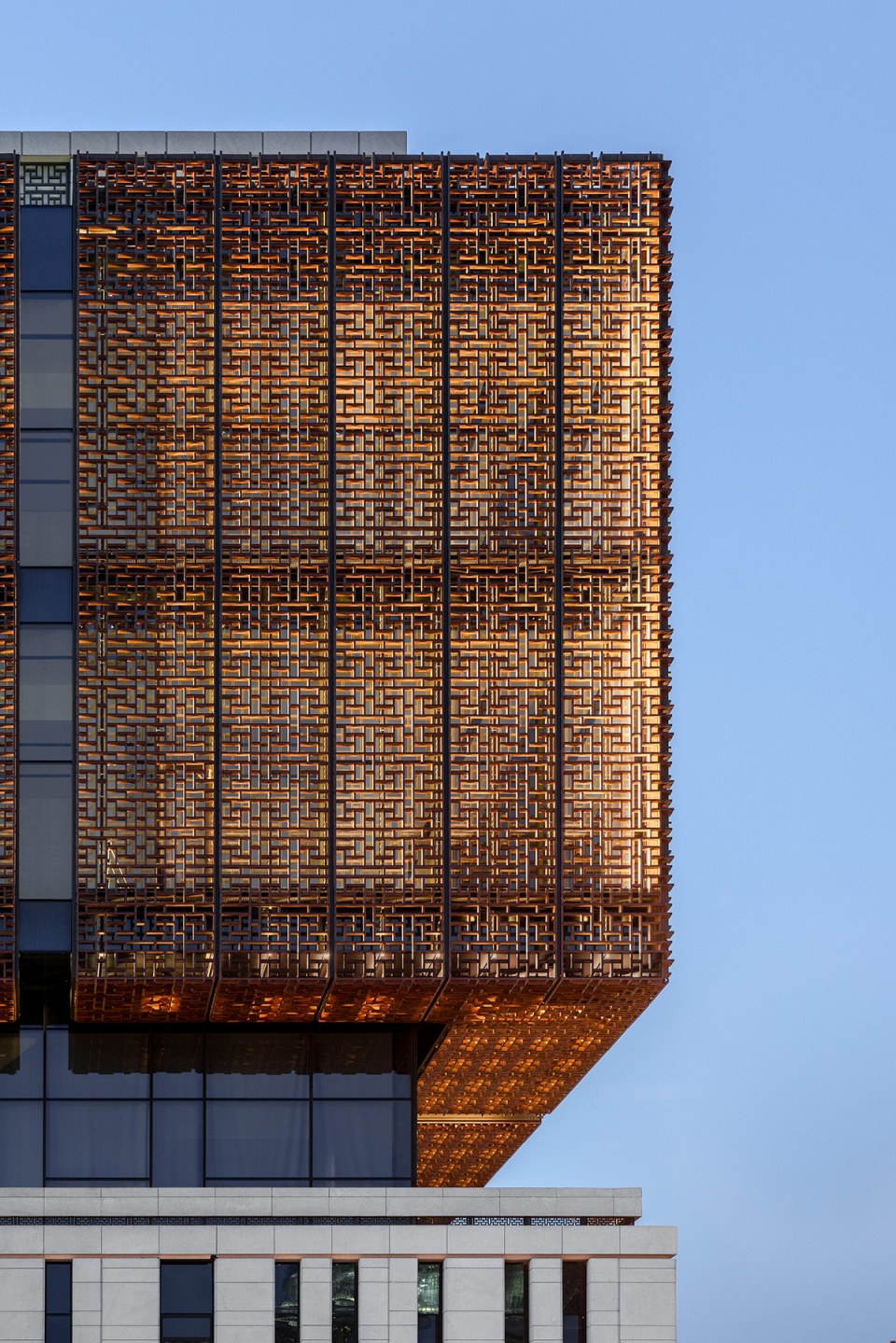

▼建筑立面近景，A close view to the facade © CreatAR_Images

博物馆的两个入口位于建筑的中轴线上。博物馆既面向东侧的广场、也面向西边的河岸开放。两个入口通向共同的中央入口大厅。毗邻大厅的是有约400个座位的大型多功能报告厅，以及可灵活使用的互动体验展厅。

The two entrances to the museum are placed along its central axis, thus providing access points to the square to the east as well as to the river bank to the west. They lead to the shared central foyer and on to a multifunctional hall with about 400 seats and the exhibition hall for the temporary display of interactive formats.

▼入口门廊，Entrance © CreatAR_Images

中央大厅通高的开放空间通过屋顶的正方形天窗自然采光。在前往展厅的路上，可以从环绕大厅的公共环廊获取更宽阔的视觉体验。公共环廊的墙面和吊顶的设计，从节点构造、色彩造型上都与建筑外幕墙的设计元素相呼应。环廊上六边形的背光吊顶让人联想到中国传统手工艺的编织结构，为走廊带来静谧的空间效果。

The space is open through the height of the building and receives daylight through square roof lights. As visitors make their way along the balconies to the exhibition halls they enjoy varying vistas of the space. The detailing of the wall and ceiling elements resonates with the design of the building envelope in terms of structure and color. The back-lit hexagonal ceiling panels are reminiscent of woven patterns in Chinese crafts and create a calm atmosphere along the access corridors.

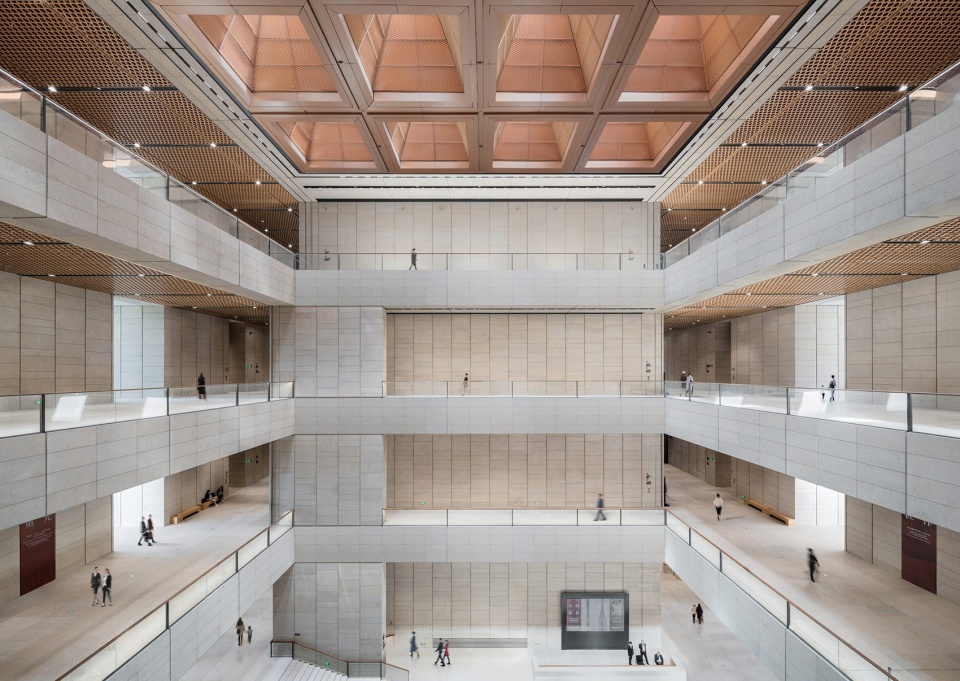

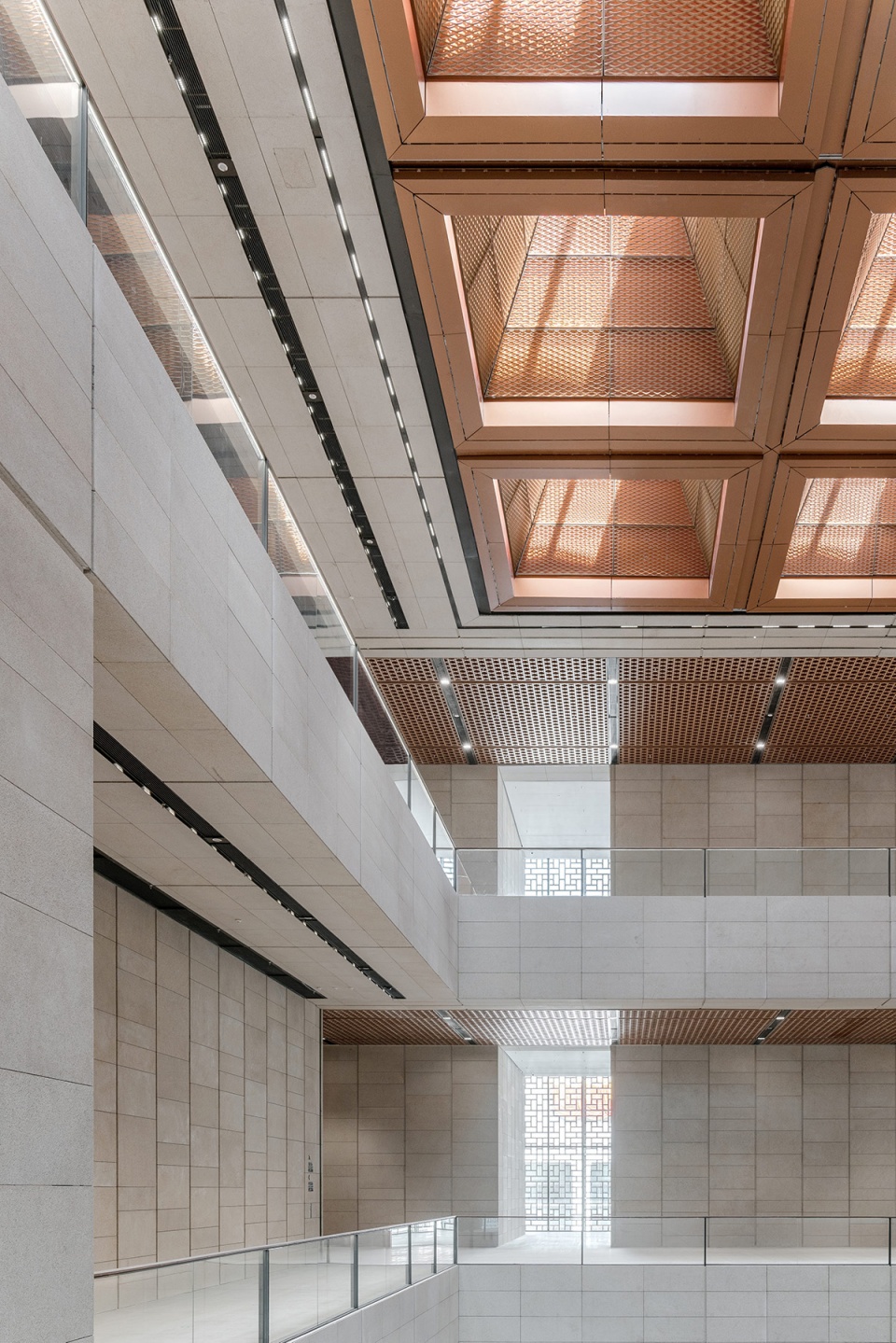

▼中央大厅，Central lobby © CreatAR_Images

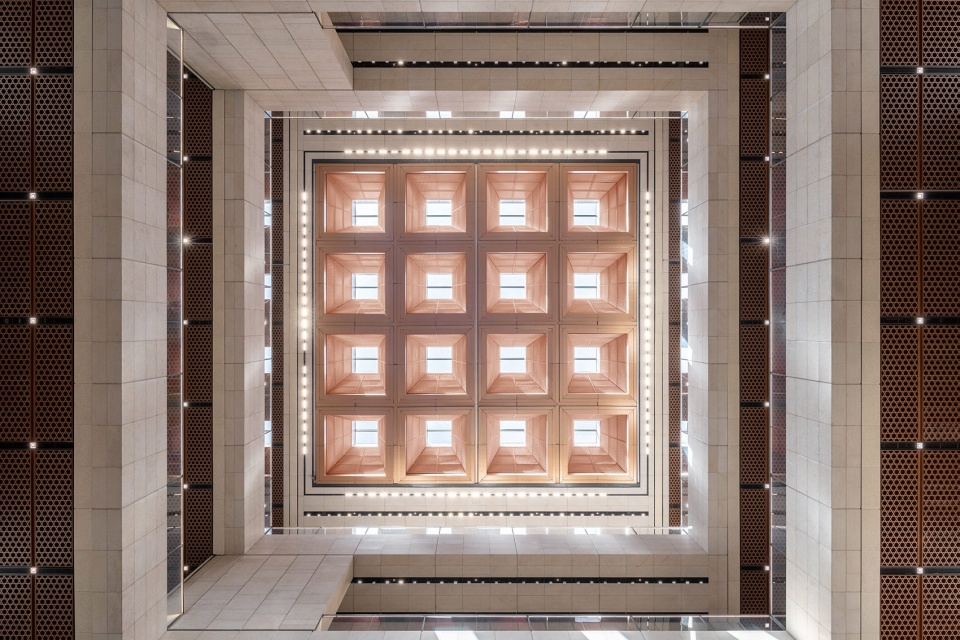

▼正方形天窗自然采光，Square roof lights © CreatAR_Images

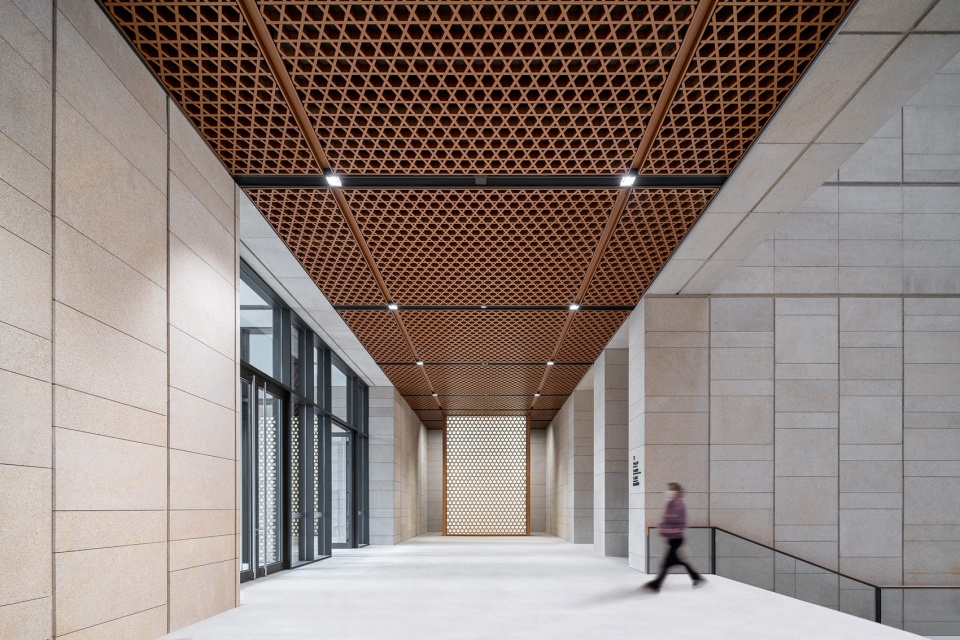

▼环绕大厅的公共环廊 © CreatAR_Images
The public gallery surrounding the lobby

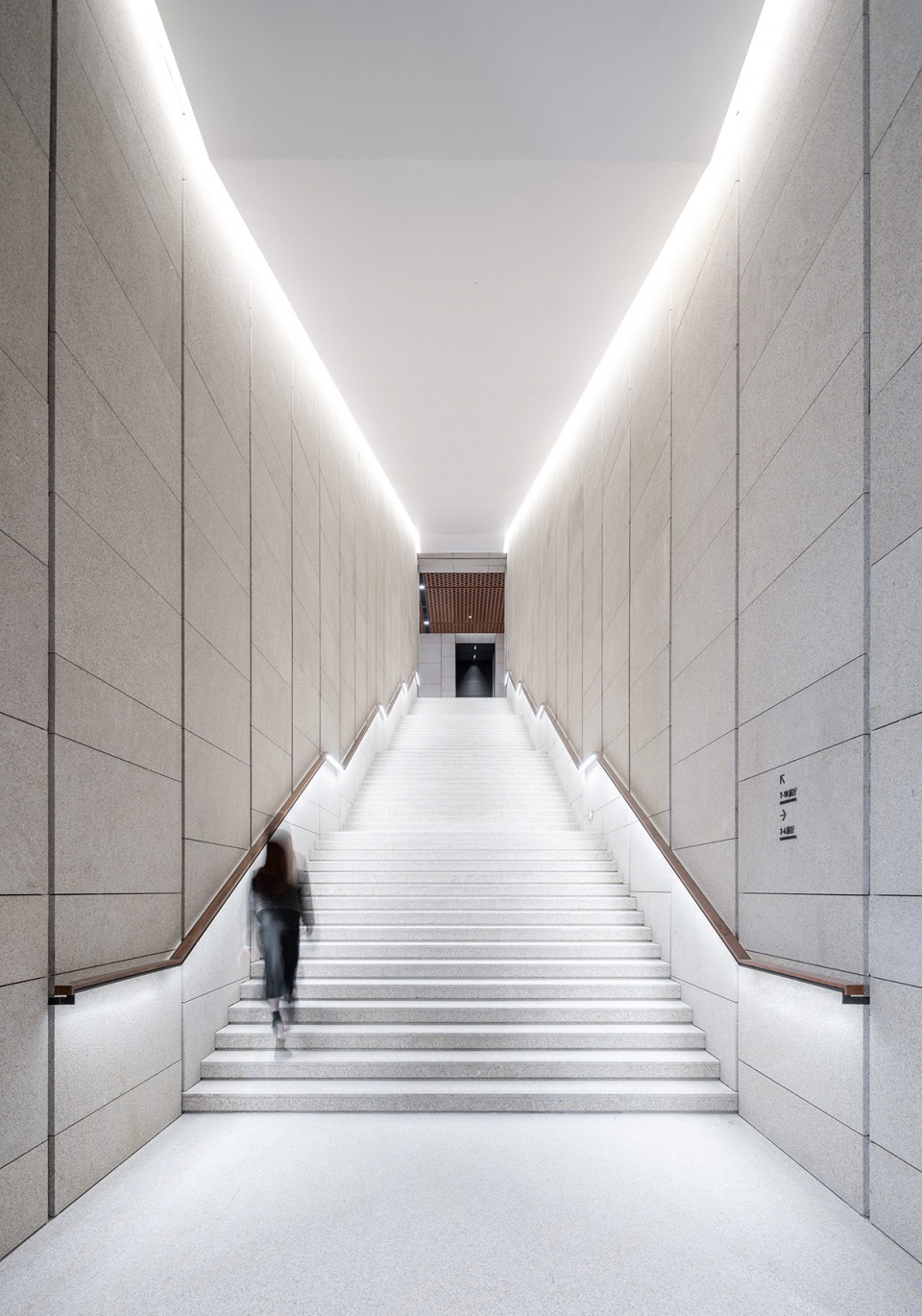

▼楼梯，Staircase © CreatAR_Images

博物馆区分布在三个楼层，临时展厅设置在玻璃幕墙的平台层，常设展厅在两层高的主体建筑里。建筑结构采用大面积无柱空间，可以容纳多样化的展览方式。落地展墙单元可以灵活划分展览区，这也使得这两个主题迥异的博物馆可以在同一个屋檐下和谐共存：一方面是传统技艺等门类的非物质文化遗产展览，另一方面是琳琅满目、典雅精致的中国工艺美术展览。

The museum functions are arranged over three stories, with the temporary exhibitions allocated to the glazed intermediate level and the permanent exhibitions to the two stories of the main building volume. The structural design of the building with its large column-free areas lends itself to a great variety of exhibition scenarios. Space is flexibly subdivided with room-high partition elements, which means that the two museums can easily be combined under one roof, even though they cover quite distinct subjects: on the one hand intangible cultural heritage such as dance and music, and on the other hand Chinese arts and crafts with numerous, sometimes quite small, objects.

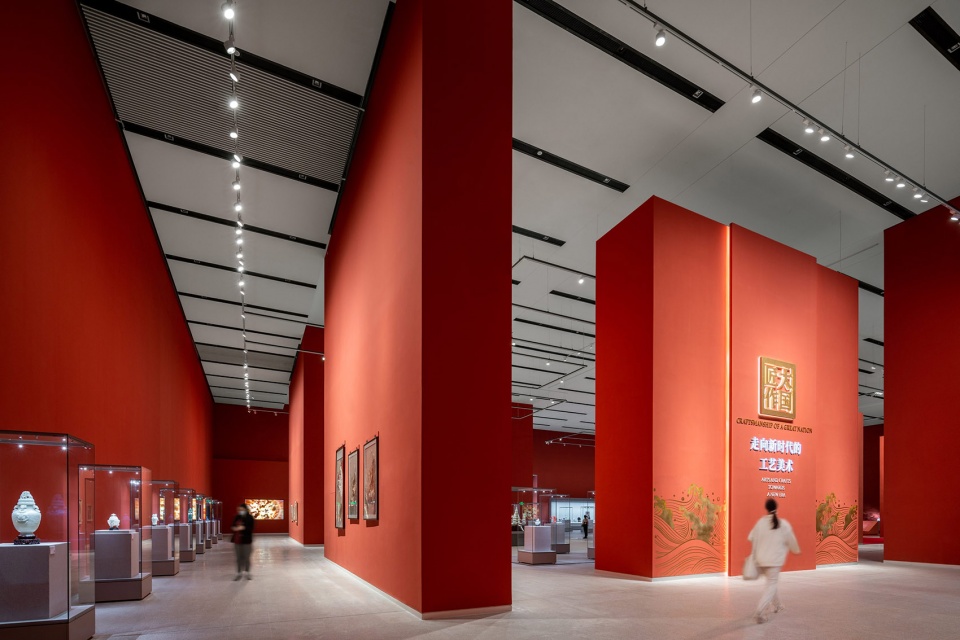

▼展厅，Exhibition hall © CreatAR_Images

具有遮阳效果的外立面幕墙通过光影效果创造出一个新的光影空间，这个新的光影空间是对中国古代建筑花窗、中式室内空间氛围的转译。外层幕墙与内层幕墙之间近1.5米的灰空间一起营造了有深度的建筑外表皮。

外层立面本身由带有哑光铜色涂层的铝型材制成，这些型材交织在一起，构成了格栅状的浮雕。格栅型材的水平构件向外突出、竖向构件向内偏移，双向叠加实现了立体的三维效果。

The structural pattern employed in the curtain wall facade relates to the patterns and structures found in the art and craft exhibits. With its solar screening it generates a distinct atmosphere with dappled light that is reminiscent of traditional Chinese interiors.

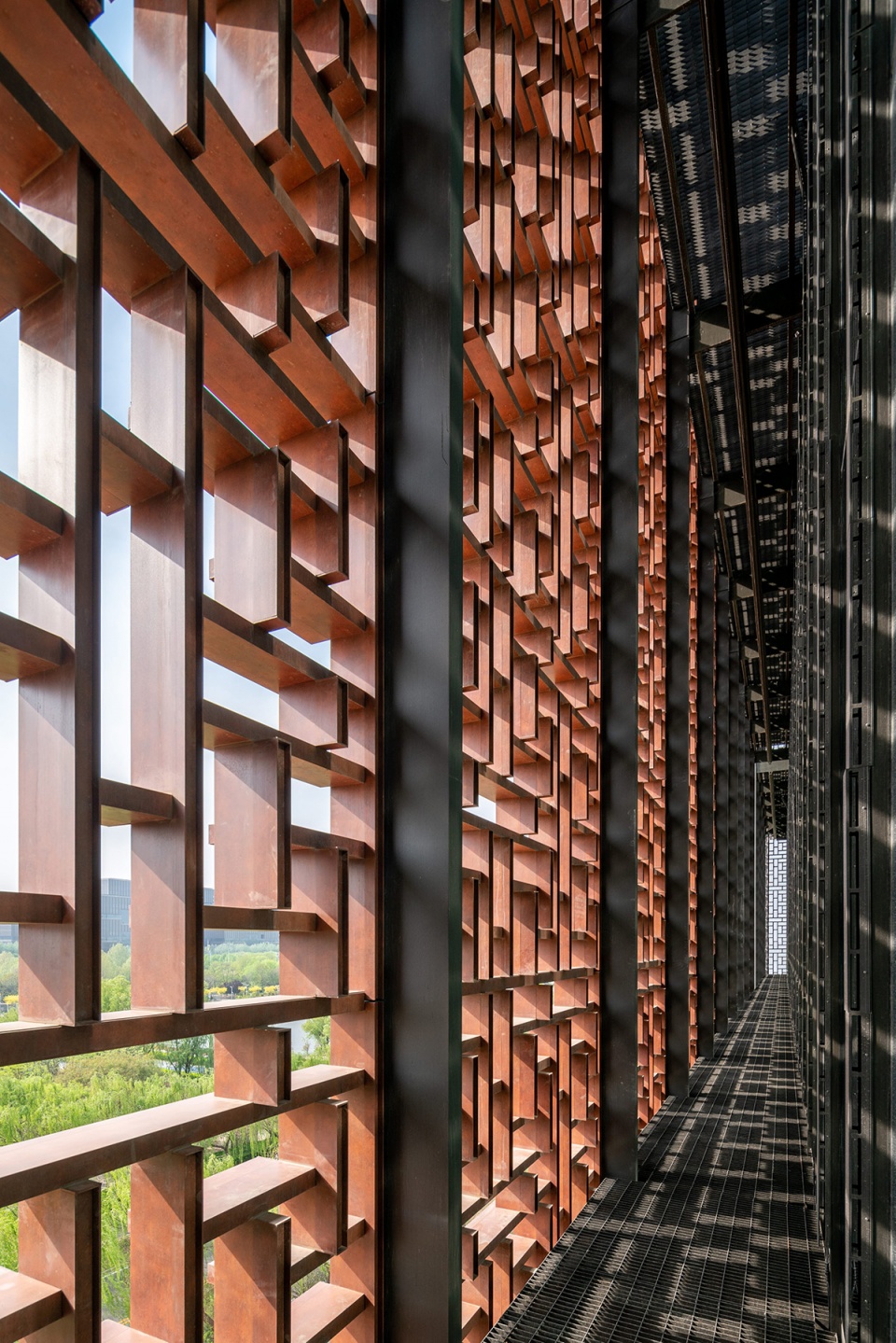

The three-dimensional effect of the building envelope is achieved with the large gap of almost one-and-a-half meters between the outer and inner facades and by a space structure consisting of pultruded profiles with a mat copper-colored coating that have been woven into a grid-like relief, projecting outward in the horizontal and inward in the vertical planes.

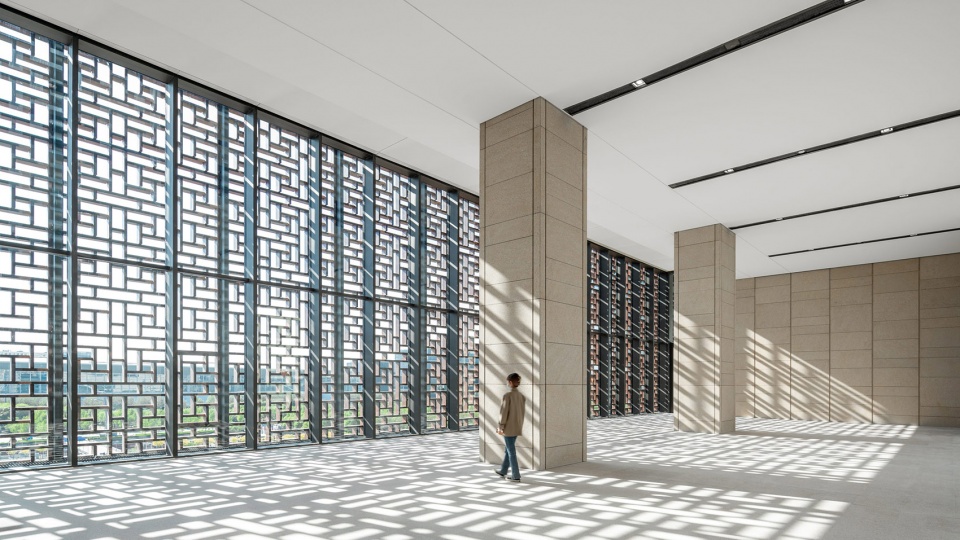

▼遮阳幕墙创造的光影空间是对中国古代建筑花窗、中式室内空间氛围的转译，With its solar screening it generates a distinct atmosphere with dappled light that is reminiscent of traditional Chinese interiors © CreatAR_Images

幕墙格栅图案是由一个3.00 x 2.20米的基本模块生成的，通过模块竖向的有节奏的重复延展成22米高的两层顶部建筑，由此产生了面子和里子既统一又各具特点的外立面效果。

The homogenous facade pattern is made up of repetitions of a basic module of 3.00 by 2.20 meters to form vertical elements across the entire height of 22 meters of the two upper stories. This creates a facade without front and back.

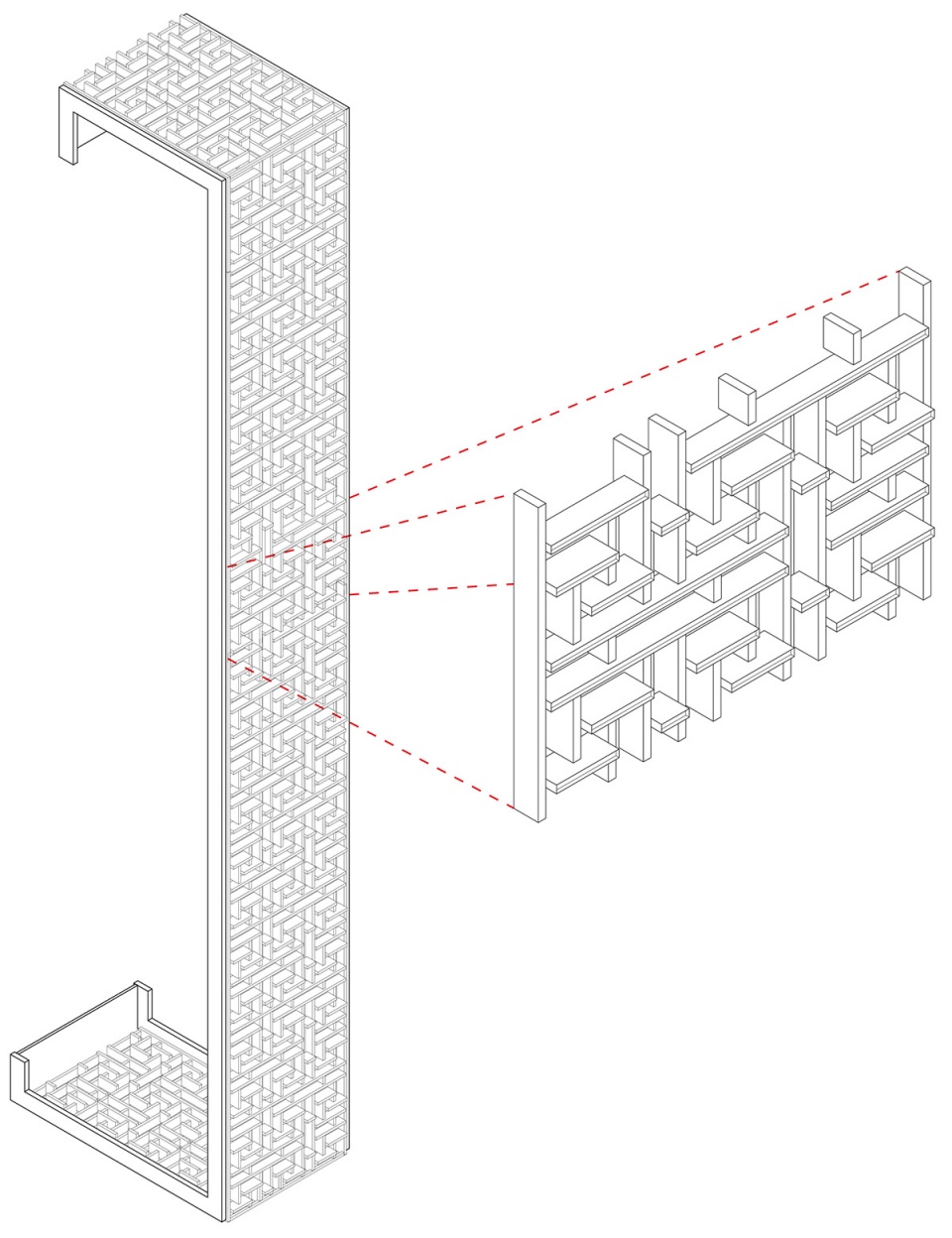

▼幕墙设计示意，Facade detail © gmp Architekten

▼格栅状的浮雕，The grid-like relief © CreatAR_Images

夜间，在背光照明的作用下，立面装饰格栅的结构和深度显得格外突出。从远处观望，整个博物馆熠熠生辉，像是漂浮在奥林匹克公园之上。

Owing to the backlighting, the structure and depth of the facade can be best appreciated at night when the radiant structure can be seen from afar, seeming to float above the Olympic Green.

▼幕墙夜间点亮效果，Facade lighting effect © CreatAR_Images

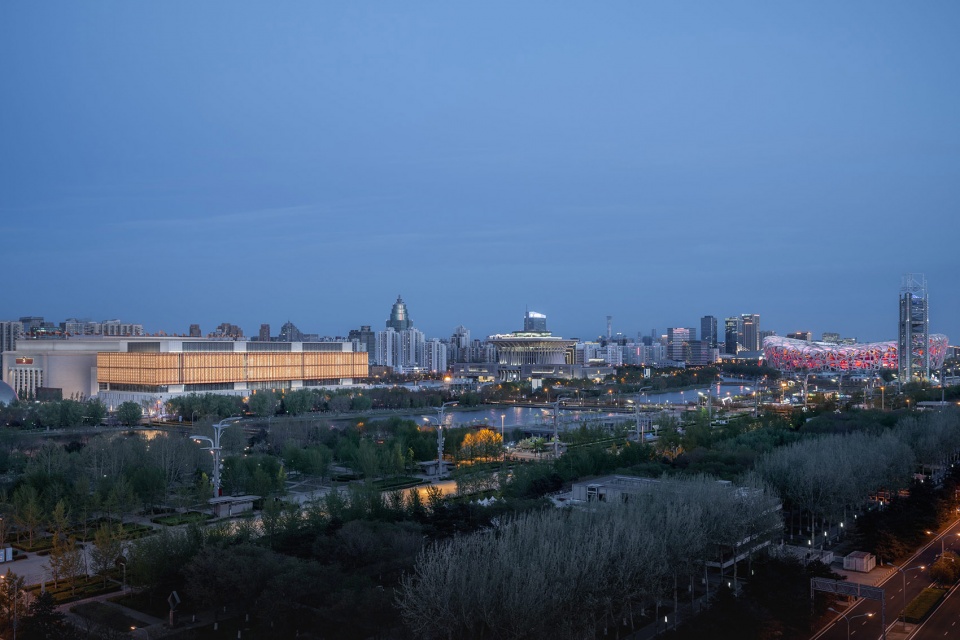

▼奥林匹克公园夜景，Aerial view to the Olympic Green © CreatAR_Images

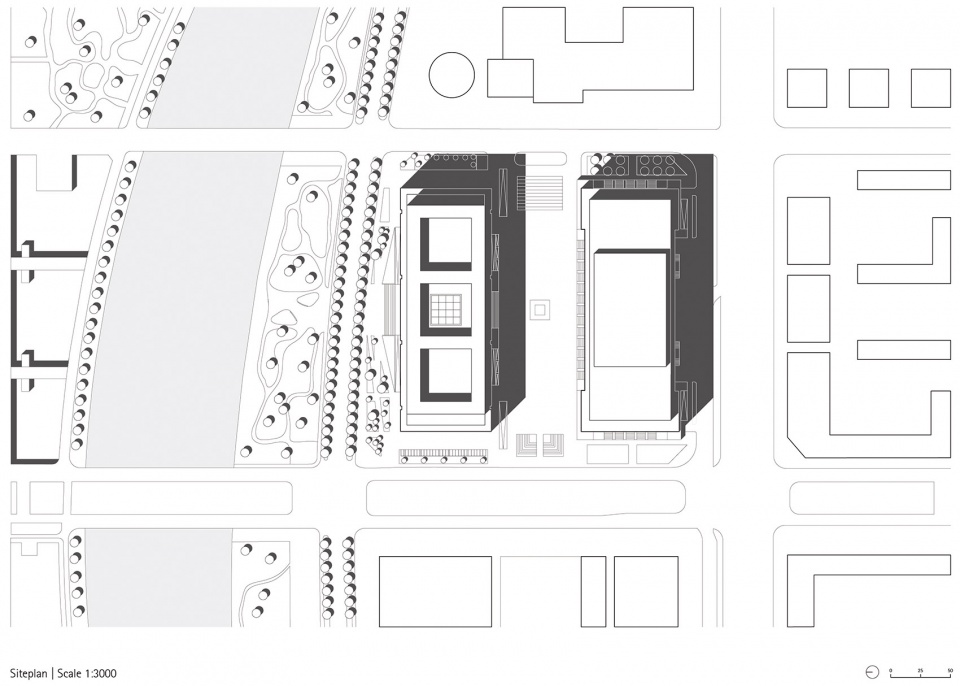

▼场地平面图，Site plan © gmp Architekten

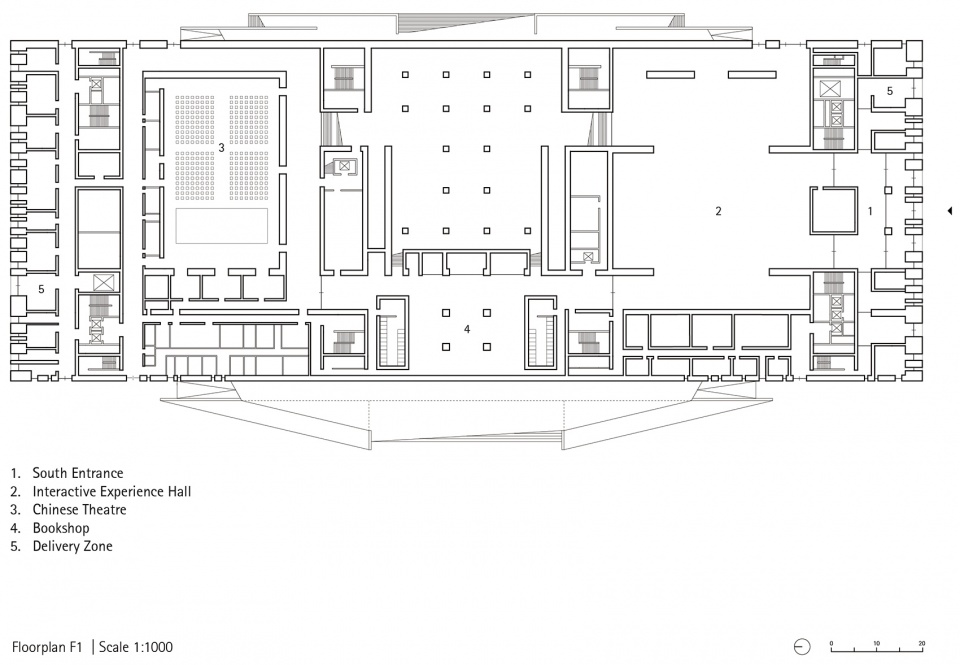

▼一层平面图，Plan F1 © gmp Architekten

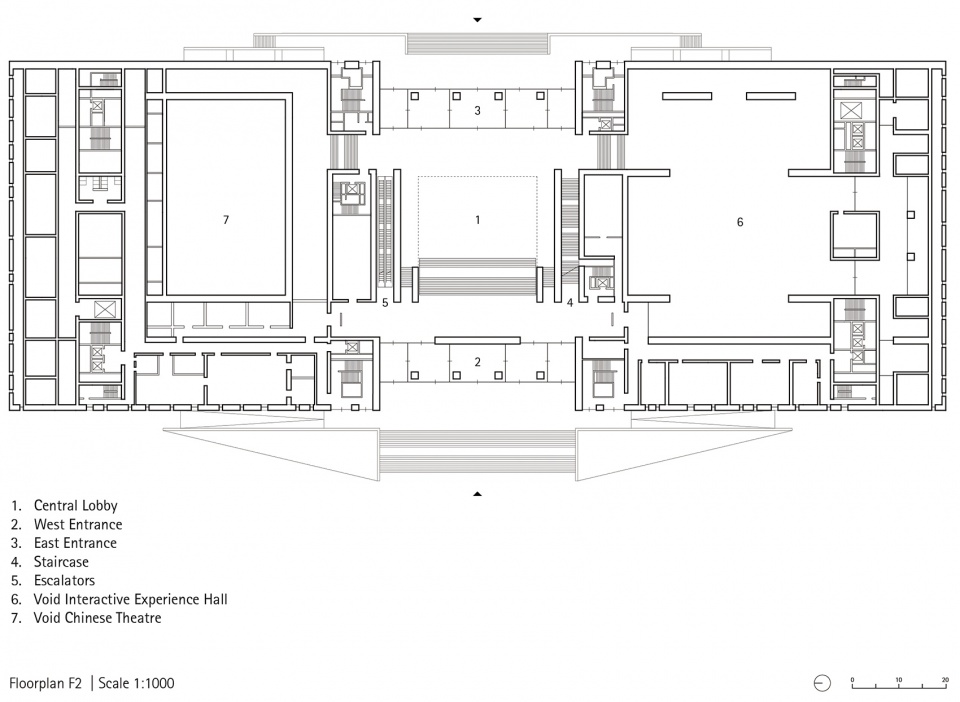

▼二层平面图，Plan F2 © gmp Architekten

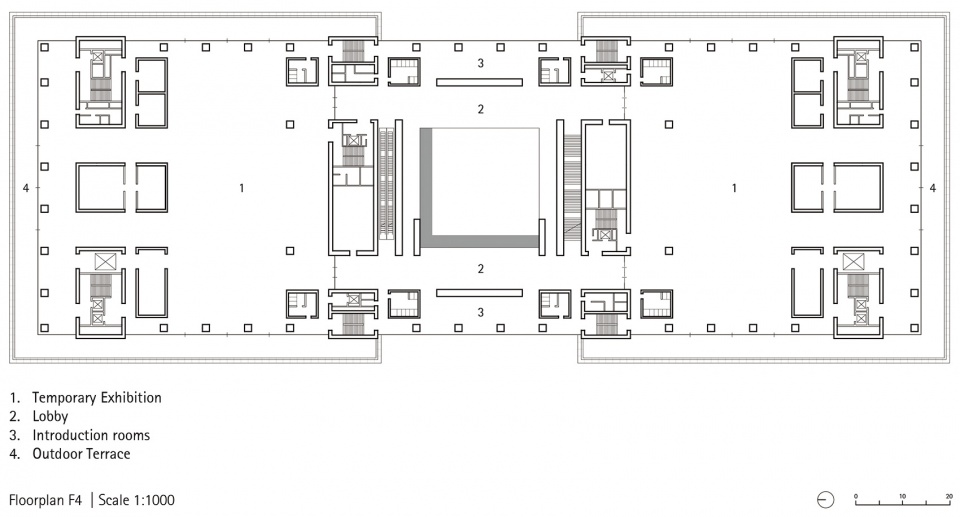

▼四层平面图，Plan F4 © gmp Architekten

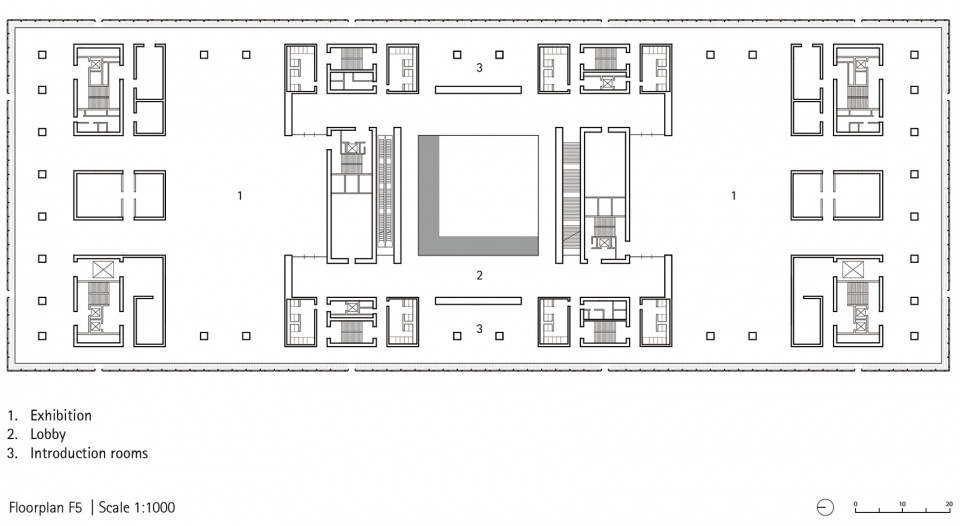

▼五层平面图，Plan F5 © gmp Architekten

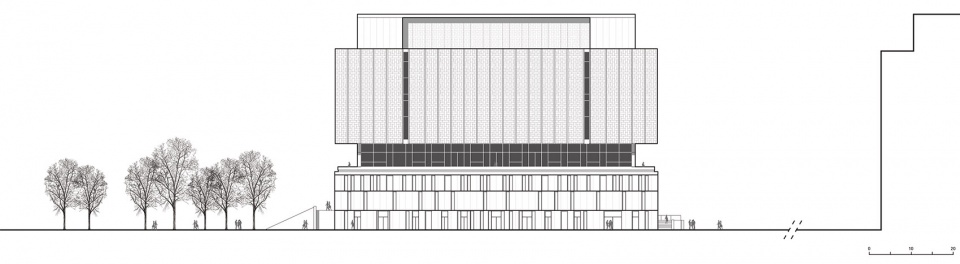

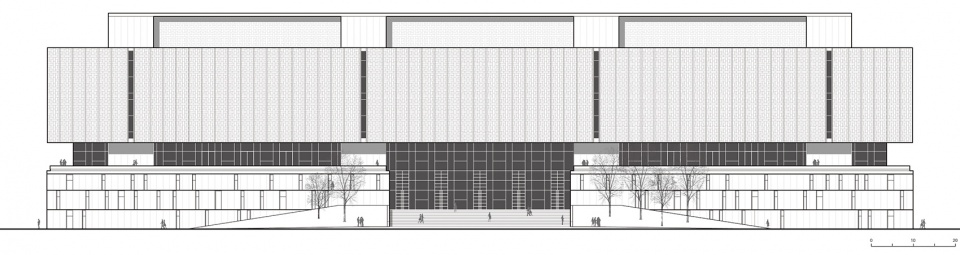

▼西立面图，West elevation © gmp Architekten

▼南立面图，South elevation © gmp Architekten

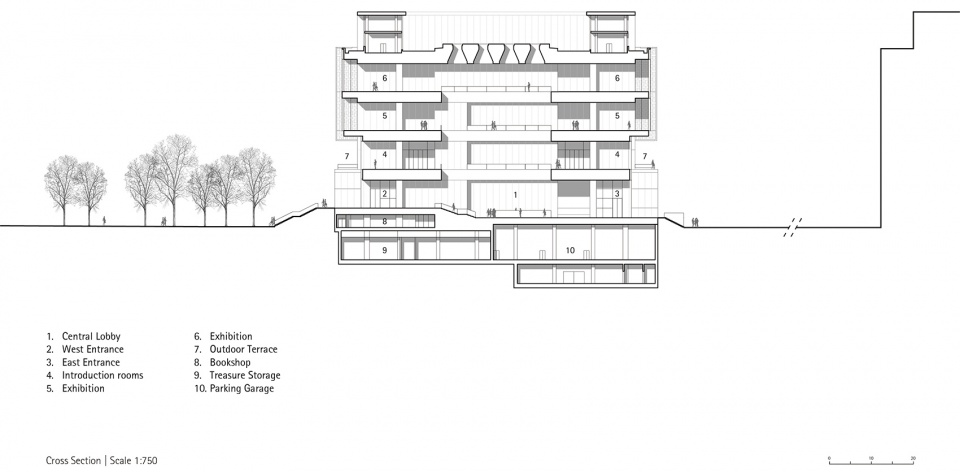

▼横剖面图，Cross section © gmp Architekten

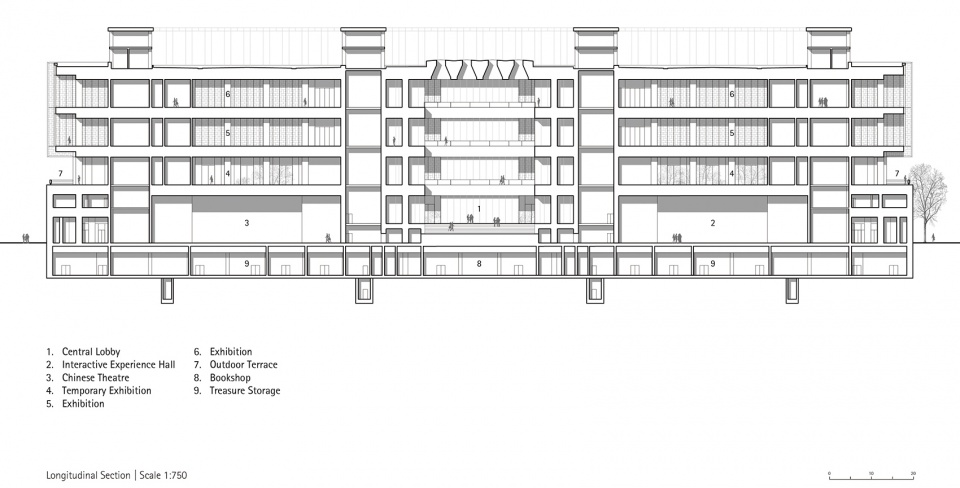

▼纵剖面图，Longitudinal section © gmp Architekten

设计竞赛：2013年，一等奖
设计：曼哈德·冯·格康与施特凡·胥茨及尼古拉斯·博兰克
竞赛阶段项目负责人：David Schenke，徐山，帕特里克·弗莱德勒
竞赛阶段中国项目管理：吴镝，王征，王珏，吴迪
竞赛阶段设计团队：Sebastian Brecht，Verena Coburger， Bernd Gotthardt，Martin Gänsicke，Stefan Hornscheidt，Michael Reiss，Plamen Stamatov，Elsa Tang，Katya Vangelova，解力，张旋，周斌，Jan-Peter Deml，Thilo Zehme，Florian Langer
实施阶段项目负责人：帕特里克·弗莱德勒，吴镝，马迪亚斯·魏格曼，李昕明
实施阶段中国项目管理：田雨欣，穆森
实施阶段设计团队：包望韬，Anvina Devi Canakiah，曹平， Fahriye Gürsoy，郭福慧， Hayashi Kohei，Stefan Hornscheidt，Charles Howard，Mauricio Müller，Filippo Ragusa，Nikolas Rekoutis，汤子泓，Immanuel Tashiro，解力，张弛，朱世游，Joanna Zielinska，Jan-Peter Deml，Thilo Zehme，摆健鹏，王珊，王亚增
业主：中国艺术研究院
中方合作设计：中国建筑科学研究院有限公司
照明设计：Conceptlicht GmbH
幕墙顾问：华纳工程咨询（北京）有限公司
建筑面积：91126平方米
展览面积：38400平方米
竣工时间：2022年

Competition: 2013 – 1st prize
Design: Meinhard von Gerkan and Stephan Schütz with Nicolas Pomränke
Project Lead, Competition: David Schenke, Xu Shan, Patrick Pfleiderer
Competition Project Management in China: Wu Di, Wang Zheng, Wang Jue, Wu Di
Competition Team: Sebastian Brecht, Verena Coburger, Bernd Gotthardt, Martin Gänsicke, Stefan Hornscheidt, Michael Reiss, Plamen Stamatov, Elsa Tang, Katya Vangelova, Xie Li, Zhang Xuan, Zhou Bin, Jan-Peter Deml, Thilo Zehme, Florian Langer
Project Lead, Detailed Design: Patrick Pfleiderer, Wu Di, Matthias Wiegelmann, Li Xinming
Detailed Design Project Management in China: Tian Yuxin, Mu Sen
Detailed Design Team: Bao Wangtao, Anvina Devi Canakiah, Cao Ping, Fahriye Gürsoy, Guo Fuhui, Hayashi Kohei, Stefan Hornscheidt, Charles Howard, Mauricio Müller, Filippo Ragusa, Nikolas Rekoutis, Tang Zihong, Immanuel Tashiro, Xie Li, Zhang Chi, Zhu Shiyou, Joanna Zielinska, Jan Peter Deml, Thilo Zehme, Bai Jianpeng, Wang Shan, Wang Yazeng
Client: Chinese National Academy of Arts
Partner Practice in China: China Academy of Building Research (CABR)
Lighting Design: Conceptlicht GmbH
Facade Consultant: SuP Ingenieure GmbH
GFA: 91,126 m²
Exhibition Area: 38,400 m²
Completion: 2022
