来自 Alejandro Martínez del Río 对gooood的分享。更多请至： Alejandro Martínez del Río on gooood
Appreciation towards Alejandro Martínez del Río for providing the following description:

这两座小型建筑的体量和镂空设计让人联想到秸秆焚烧器或小工具棚，呈现出粗犷且原始的空间氛围。这些开放式的户外“房间”与现存的灌溉渠痕迹严格对齐，这些渠道为瓦伦西亚北部田地提供灌溉，其历史可追溯至穆斯林时期。

Two pavilions, structures whose size and perforations evoke the forms of stubble burners or small tool sheds. Roughed out preliminary spaces. Open-air rooms squarely-aligned to the existing traces of the irrigation channels that form their base and water the northern fields of Valencia, of Muslim heritage.

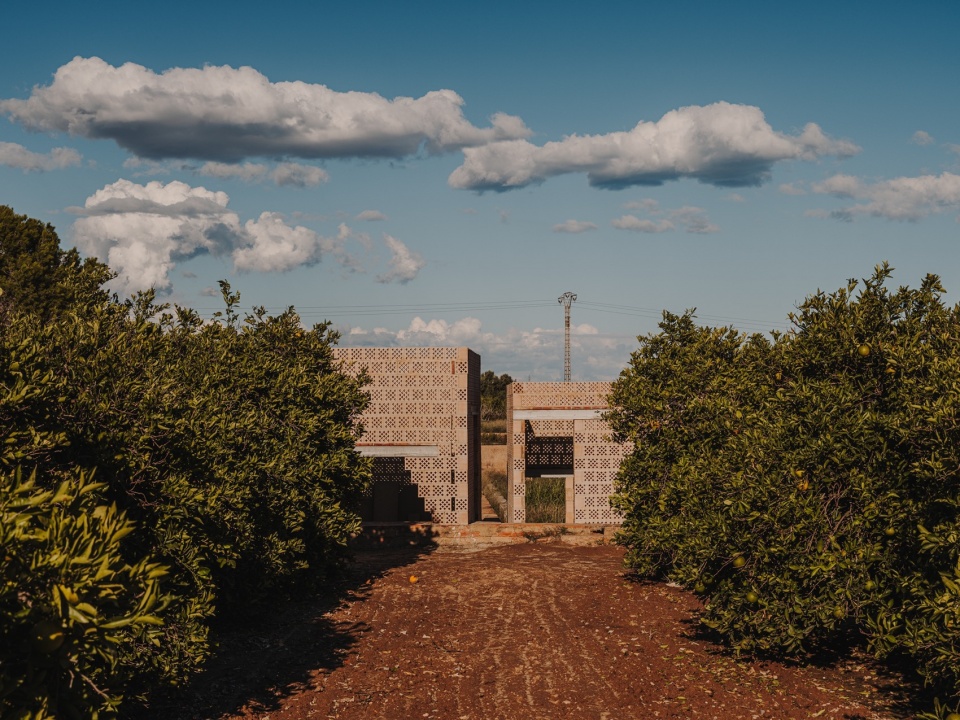

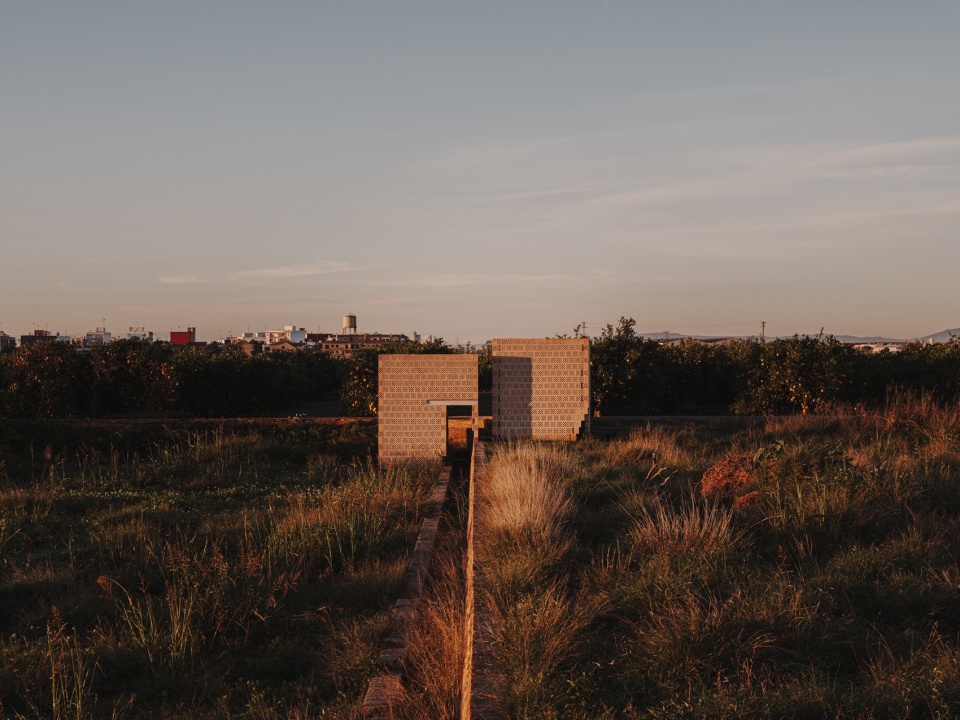

▼项目远观，viewing the project at distance © Oleh Kardash

▼建筑与环境，architecture and environment © Oleh Kardash

该项目旨在通过突出瓦伦西亚 l’Horta Nord 的文化与农业价值，与场地的历史遗迹展开深刻对话，并以陶瓷作为统一的设计元素。

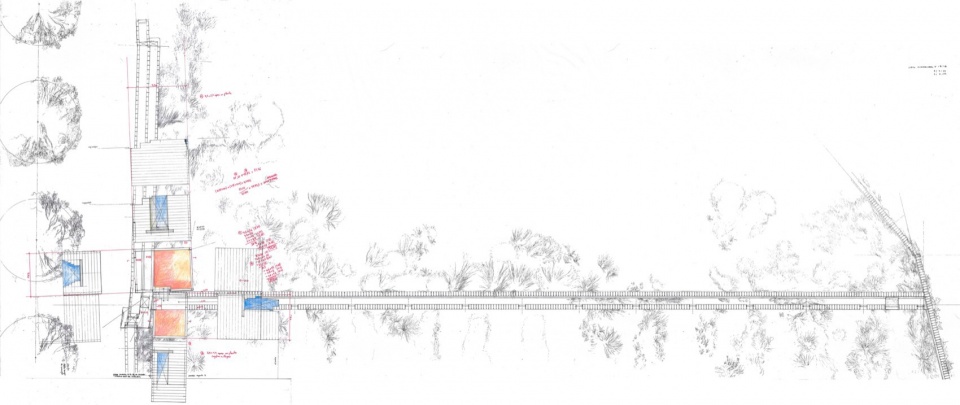

▼手绘总平面图，hand-drawn site plan © Alejandro Martínez del Río

This project is the result of an initiative to highlight the cultural and agricultural value of l’Horta Nord in Valencia, engaging in an intimate dialogue with the site’s historical traces and using ceramics as a unifying element.

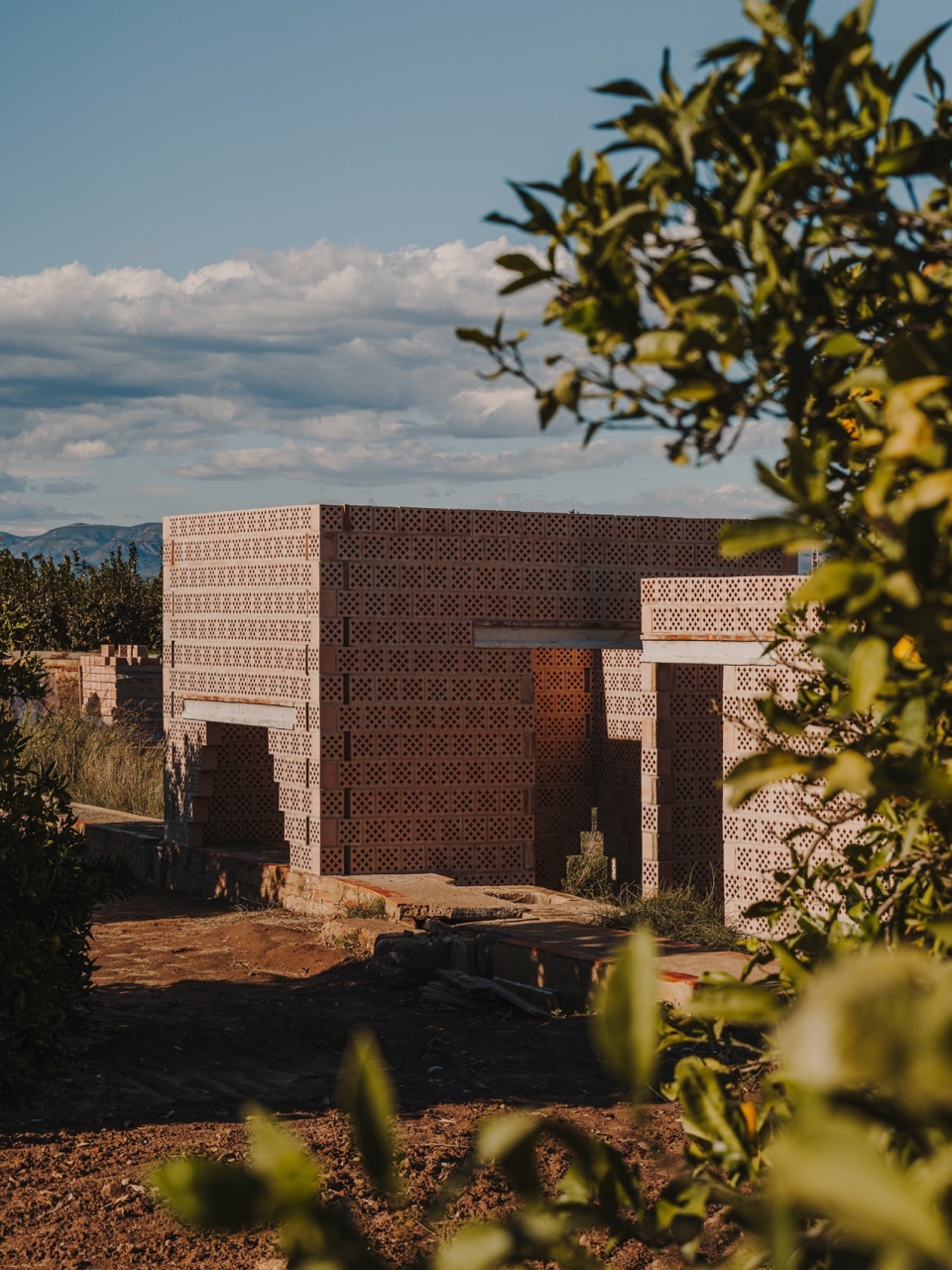

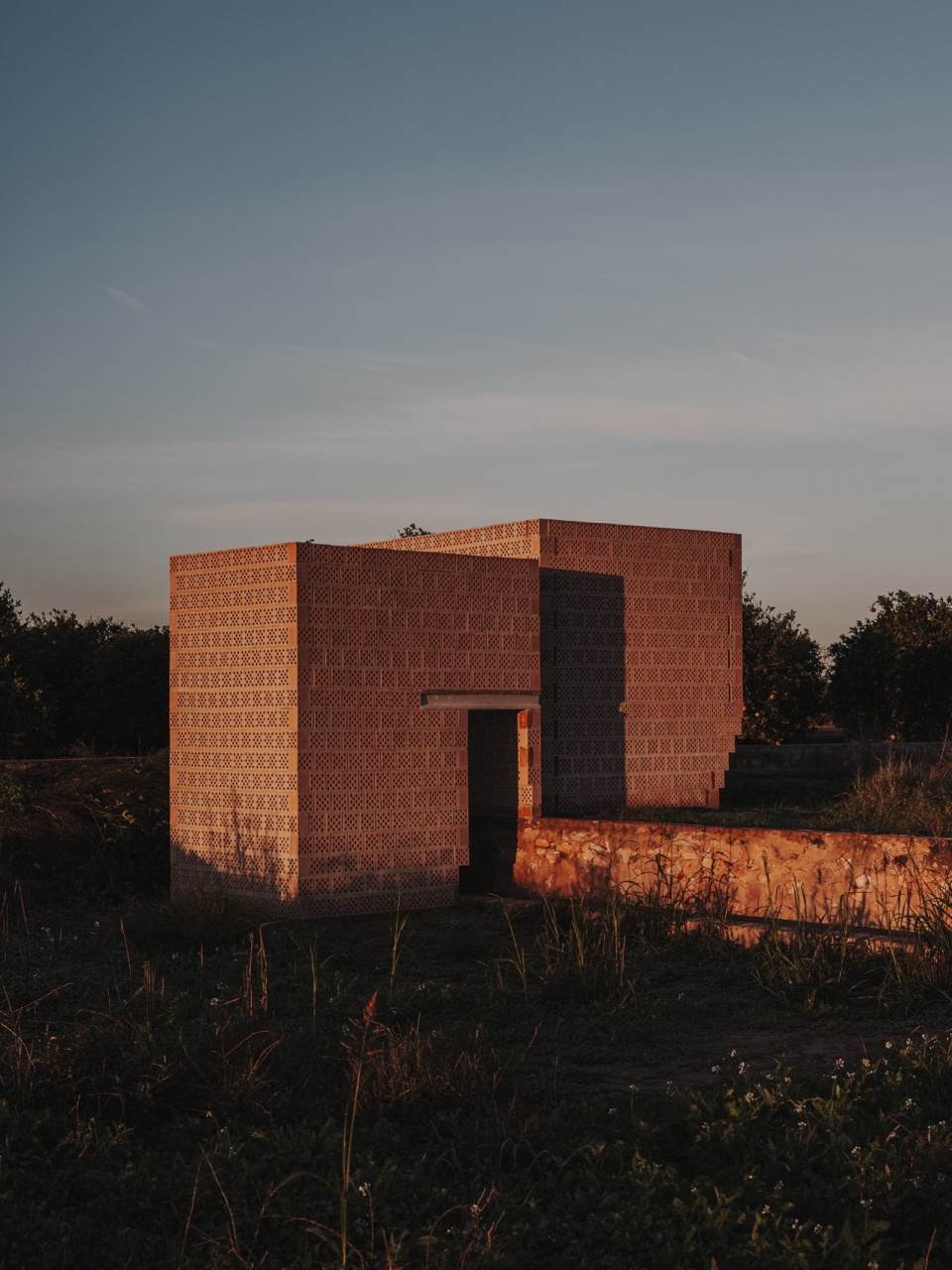

▼外观，exterior view © Oleh Kardash

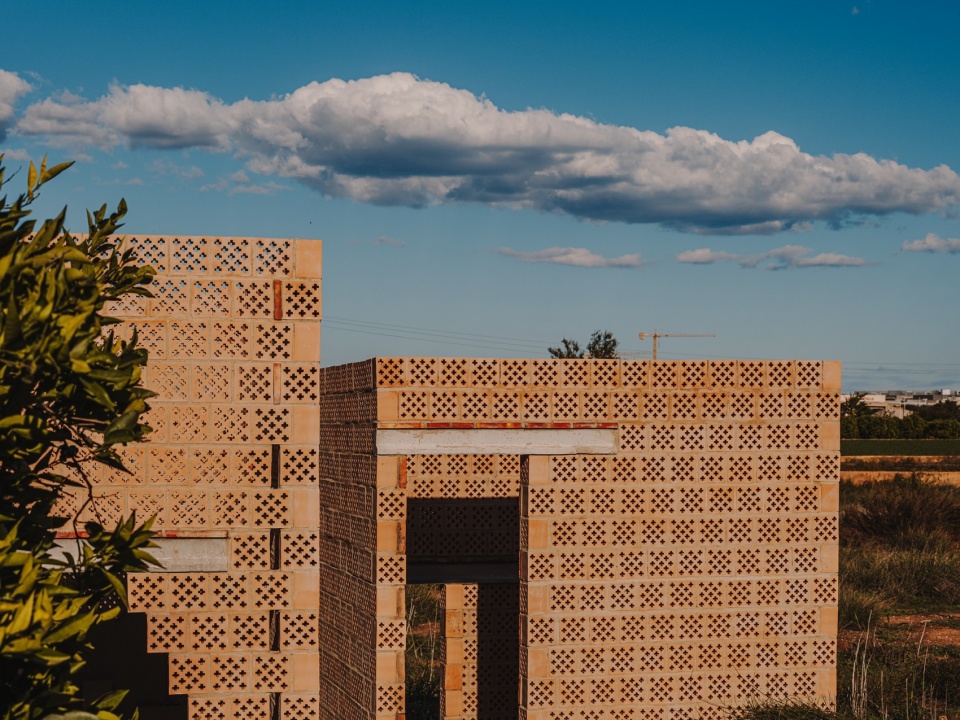

▼两座砖材“小房子”，two brick “little pavilion” © Oleh Kardash

▼近景，closer view © Oleh Kardash

在与Nuet Ceramica 密切合作下，项目中特别开发了一种陶瓷格栅砖。砖块上的十字形镂空图案过滤光线、空气与视线，并设计了两种不同密度的图案交替使用，形成变化丰富的效果。

The lattice ceramic block was developed specifically for this project in close collaboration with Nuet Ceramica. The cross-shaped perforations filter light, air, and sight, alternating in a set of two pieces of tighter and wider pattern.

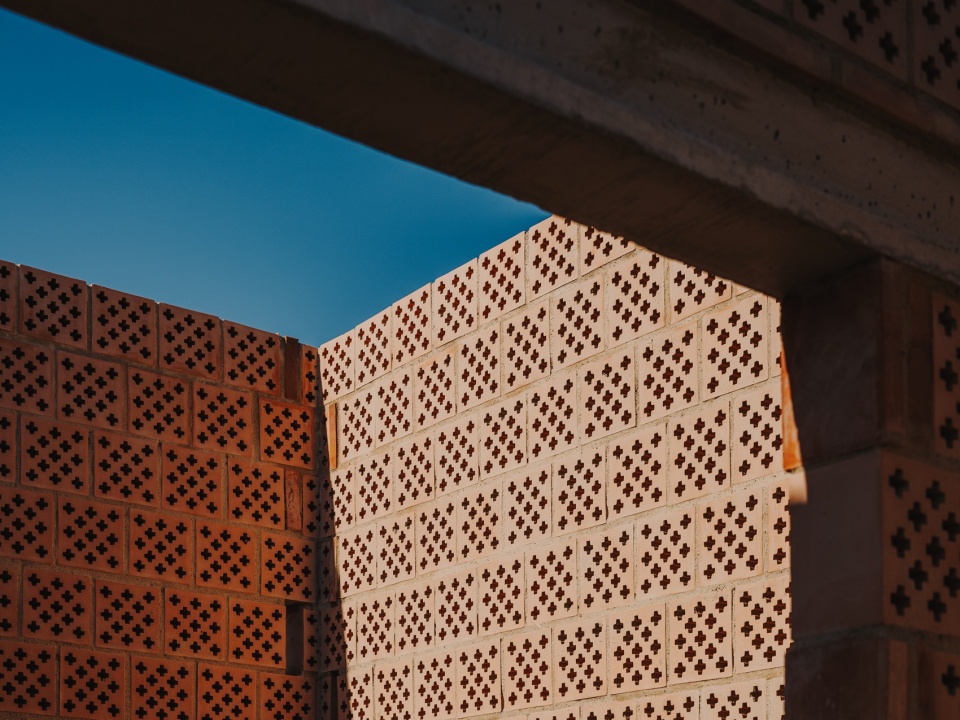

▼建筑由陶瓷格栅砖搭建，
the building is made of ceramic grid bricks © Oleh Kardash

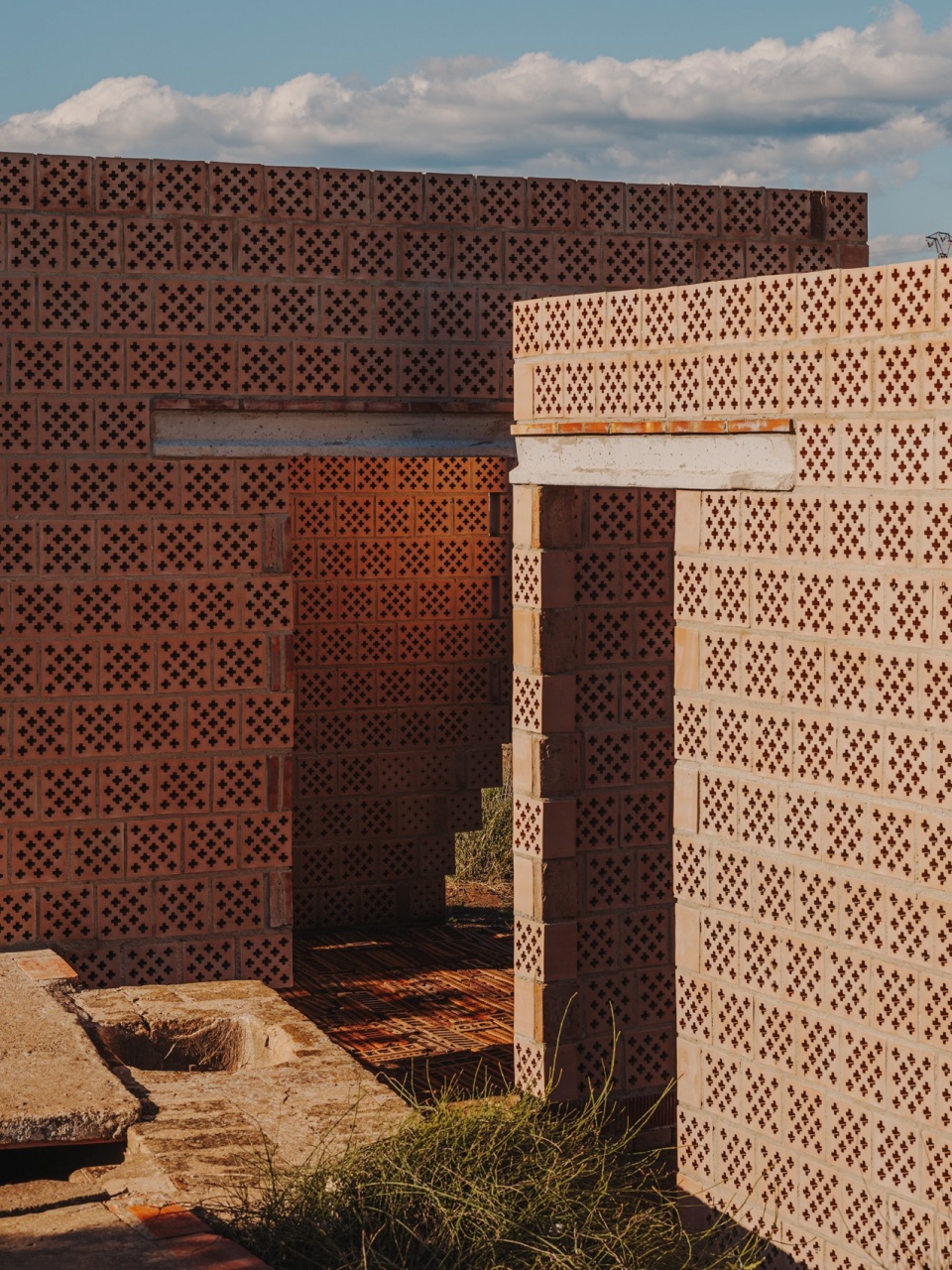

▼入口，entrance © Oleh Kardash

主要的陶瓷砖块通过布置与镂空形式塑造了墙体，同时辅以一系列次要陶瓷构件——如蜂窝砖、机加工砖和平板瓦。这些附加部件用于拼接门框、固定预制过梁、连接开放式格栅，或确保砖块排列与灌溉渠道保持一致。

The arrangement and perforations of the primary ceramic block shape the walls, complemented by a series of secondary ceramic elements—honeycomb blocks, mechanized bricks, flat tiles. These additional pieces stitch the jambs of openings, wedge the prefabricated lintel beams, bind the open latticework, or align the rows of blocks with the irrigation channels.

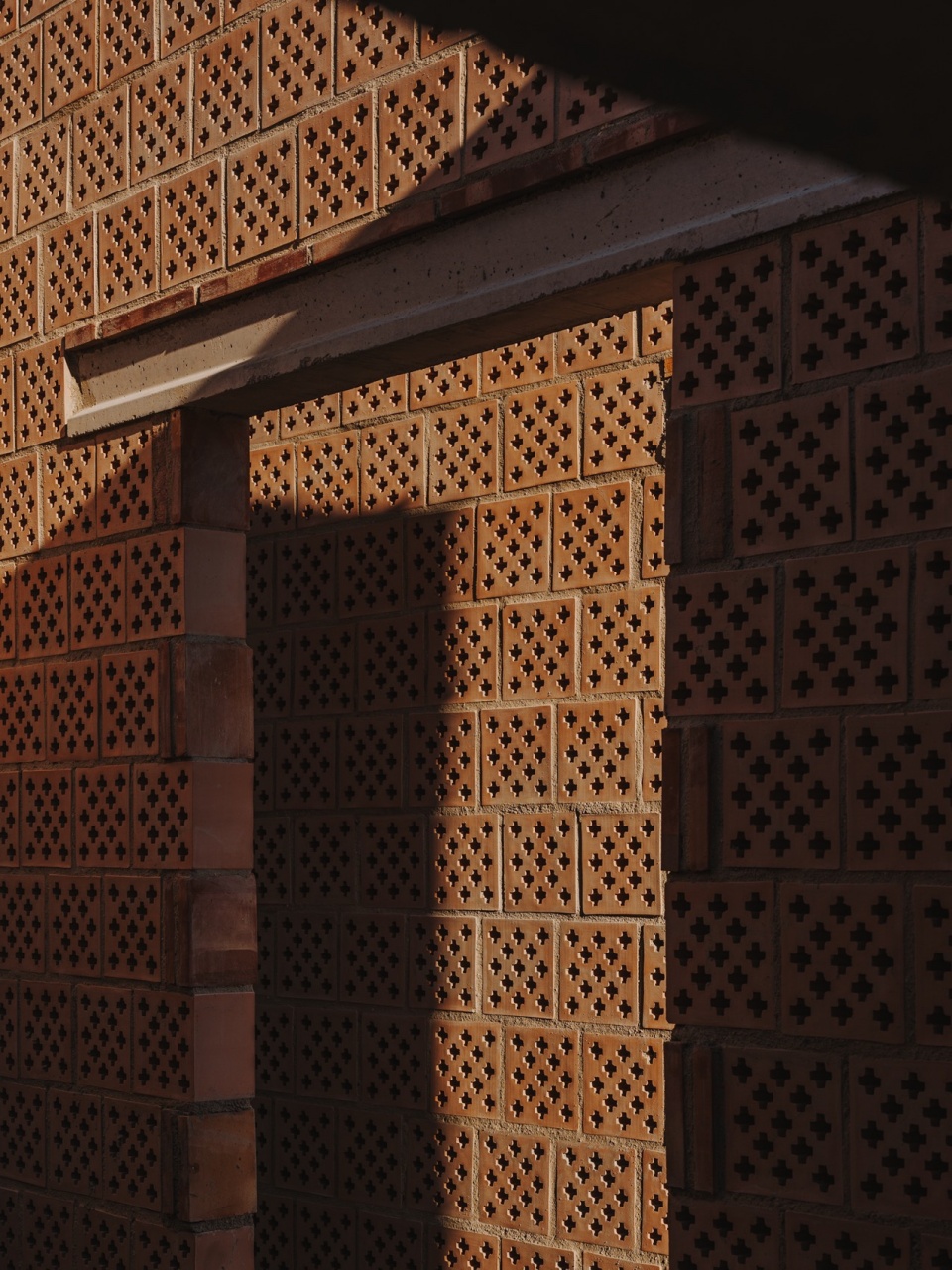

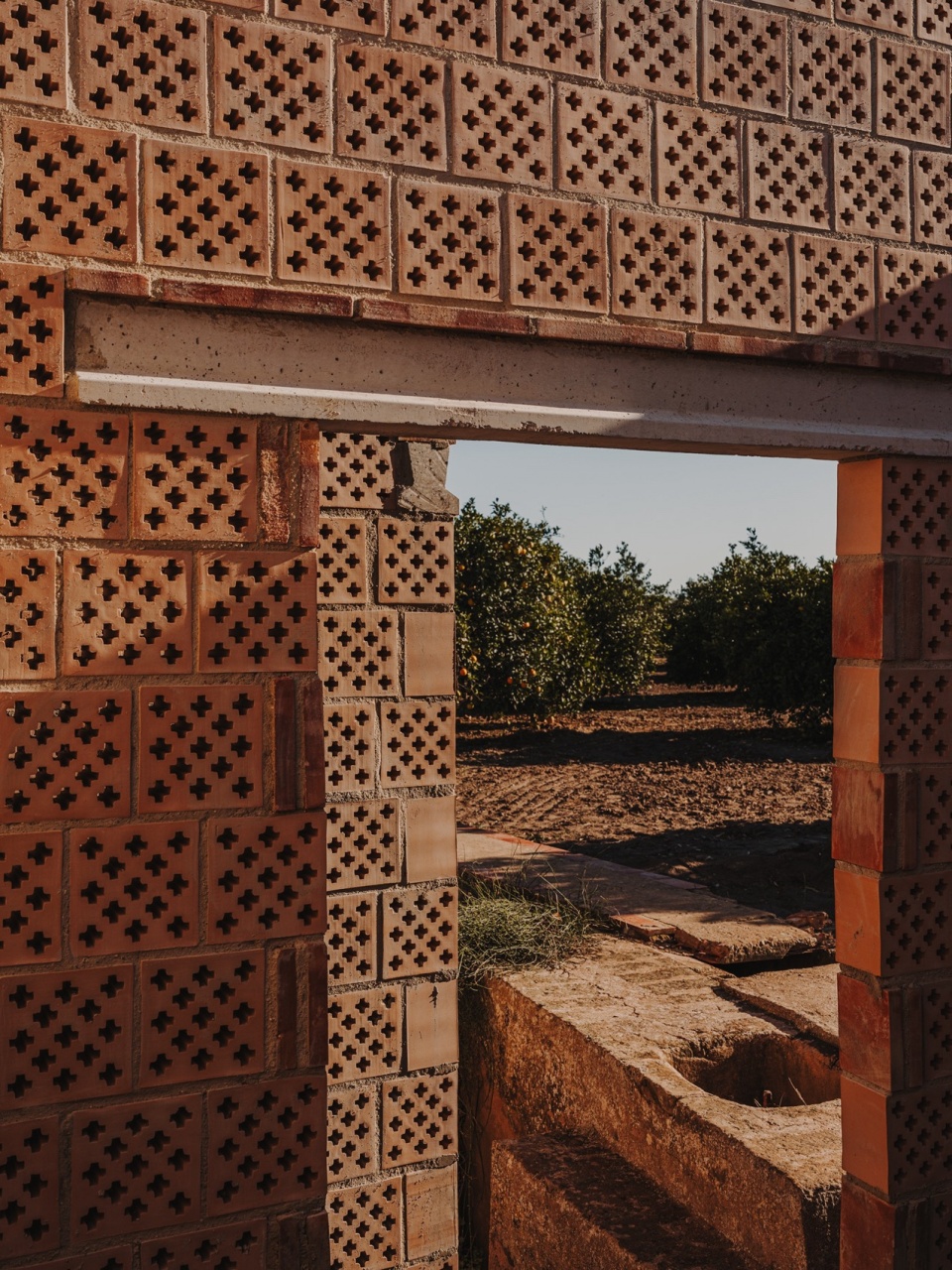

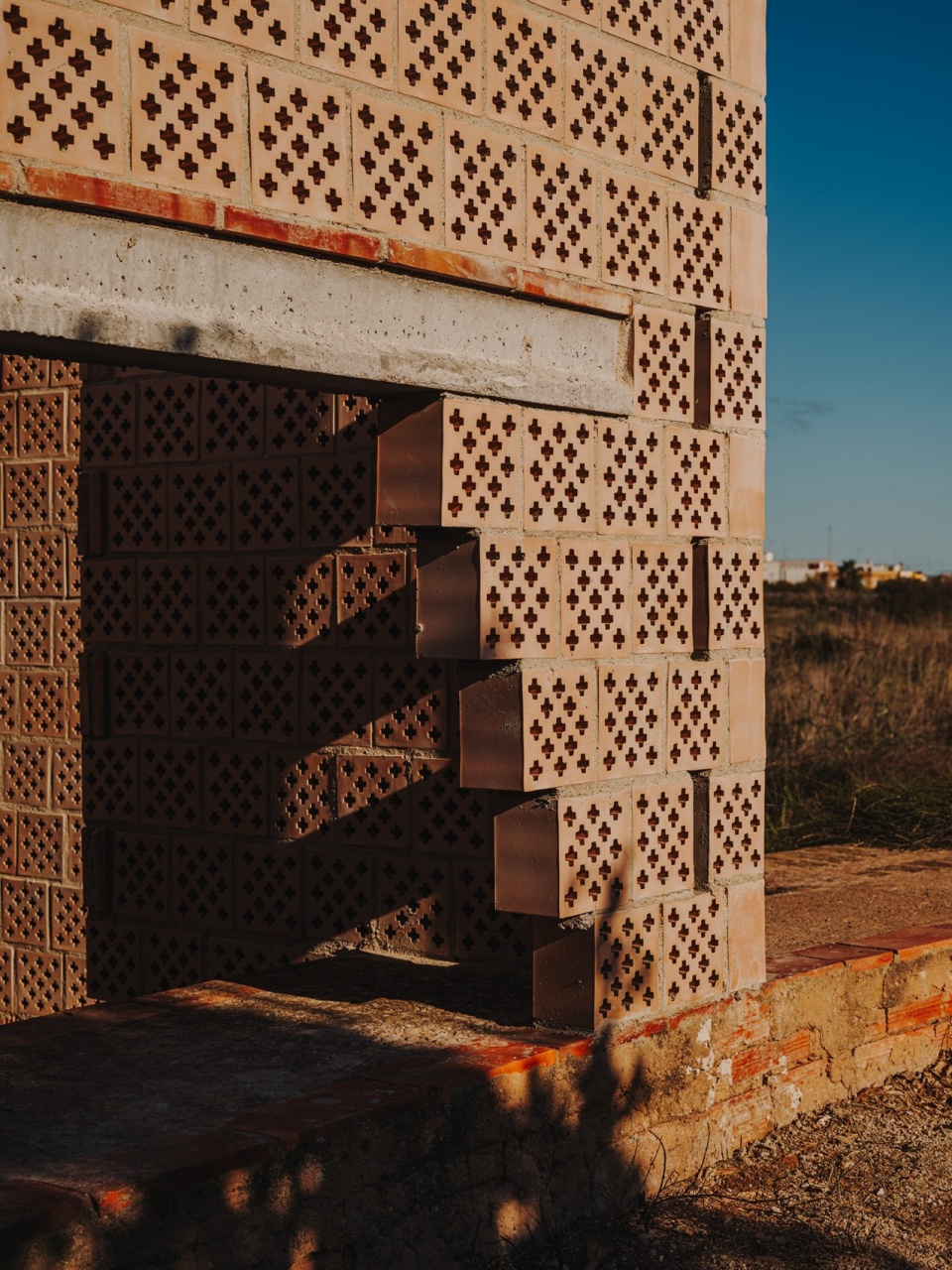

▼预制过梁，prefabricated lintel beams © Oleh Kardash

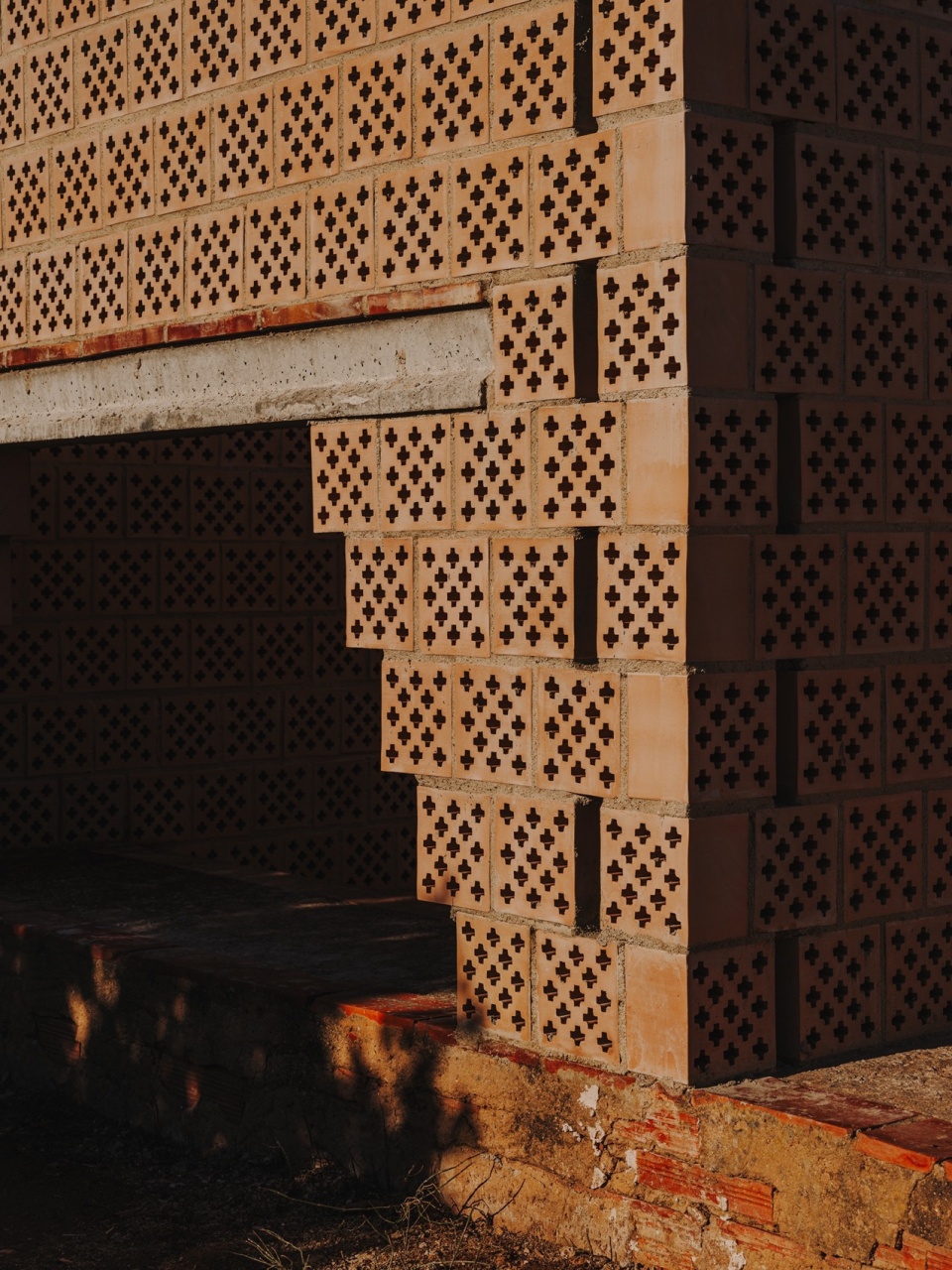

▼砖材交叠，overlapping of the brick © Oleh Kardash

▼建筑内部，interior views © Oleh Kardash

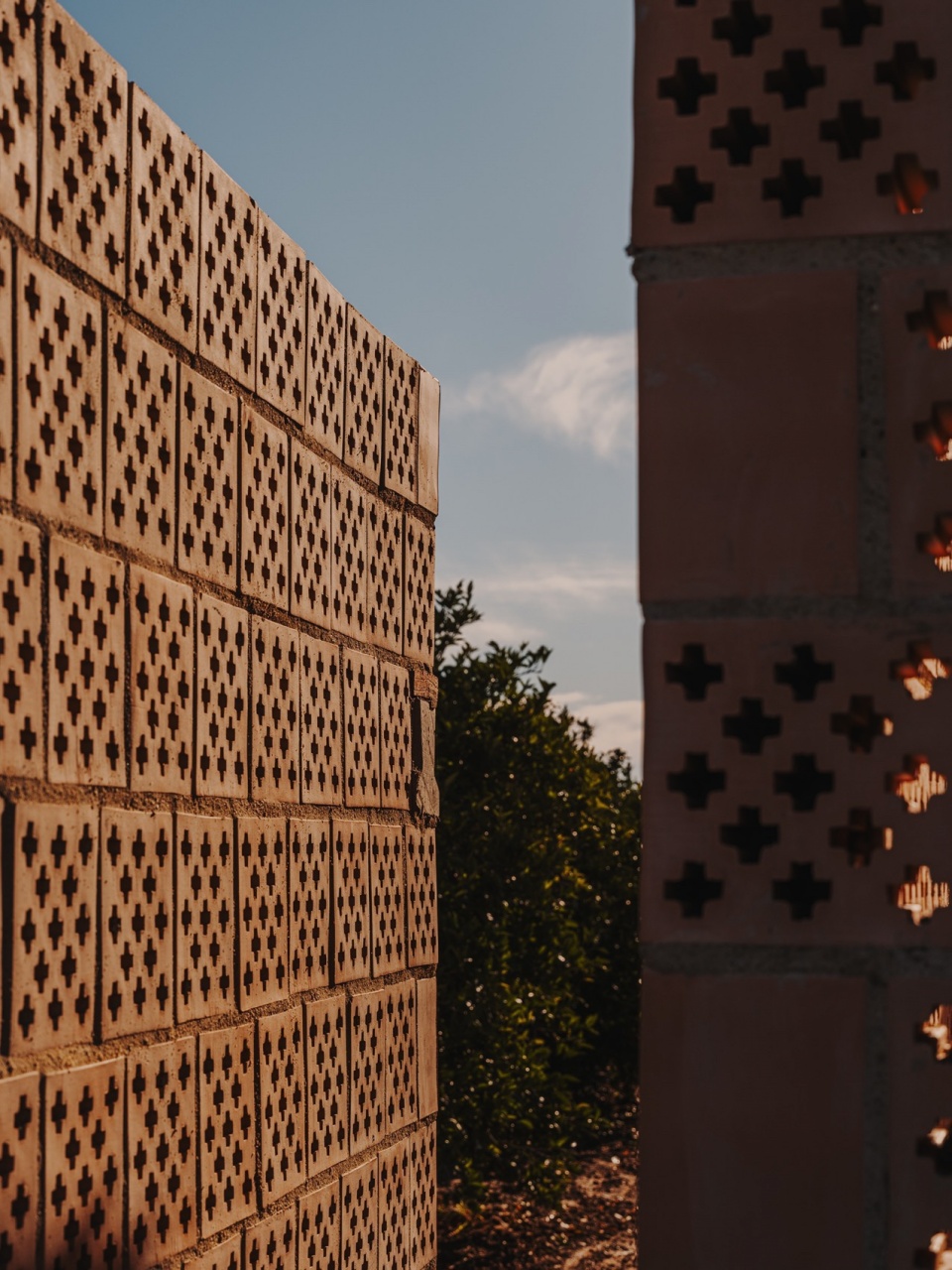

▼材料细部，details of the brick © Oleh Kardash

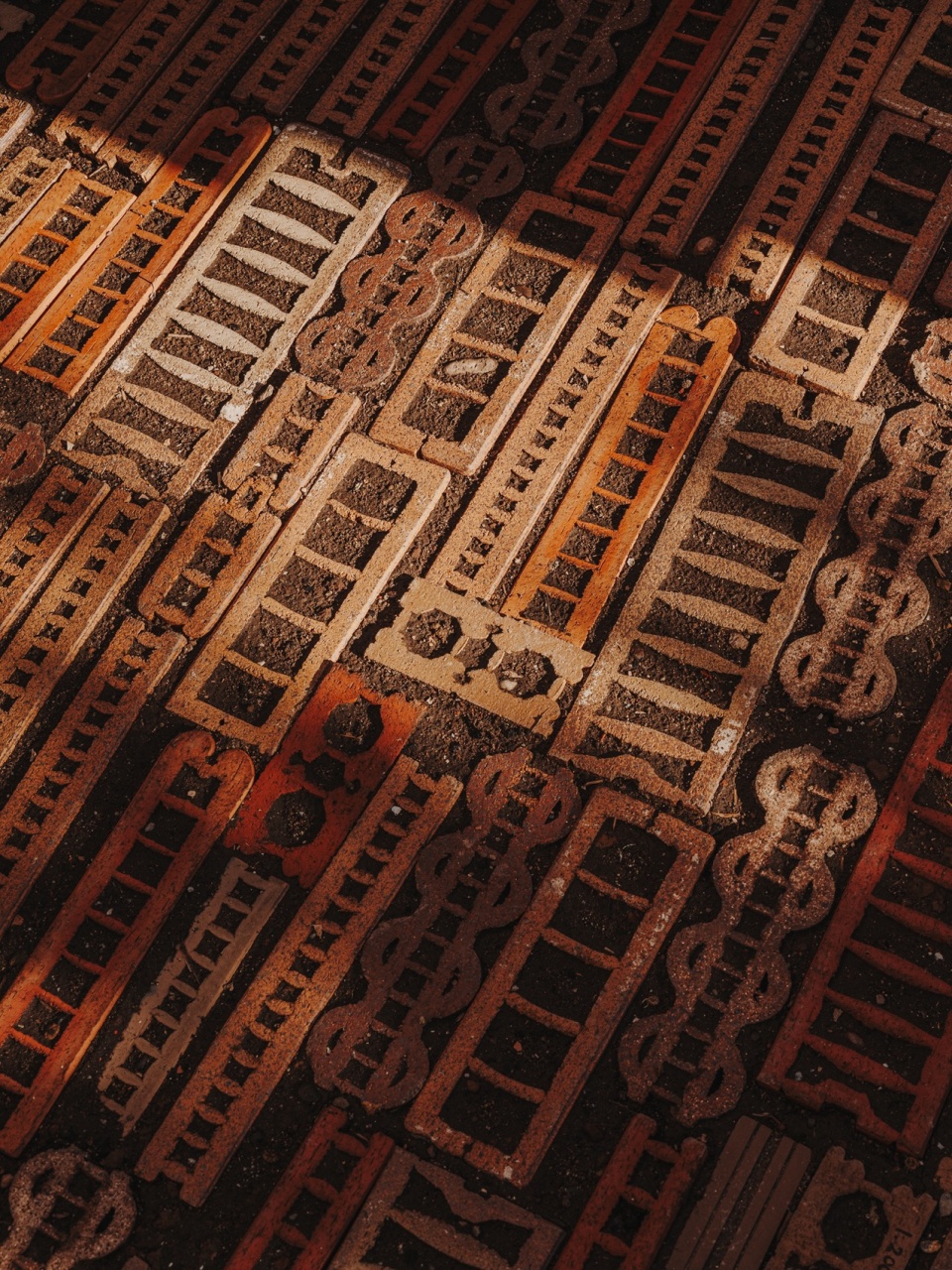

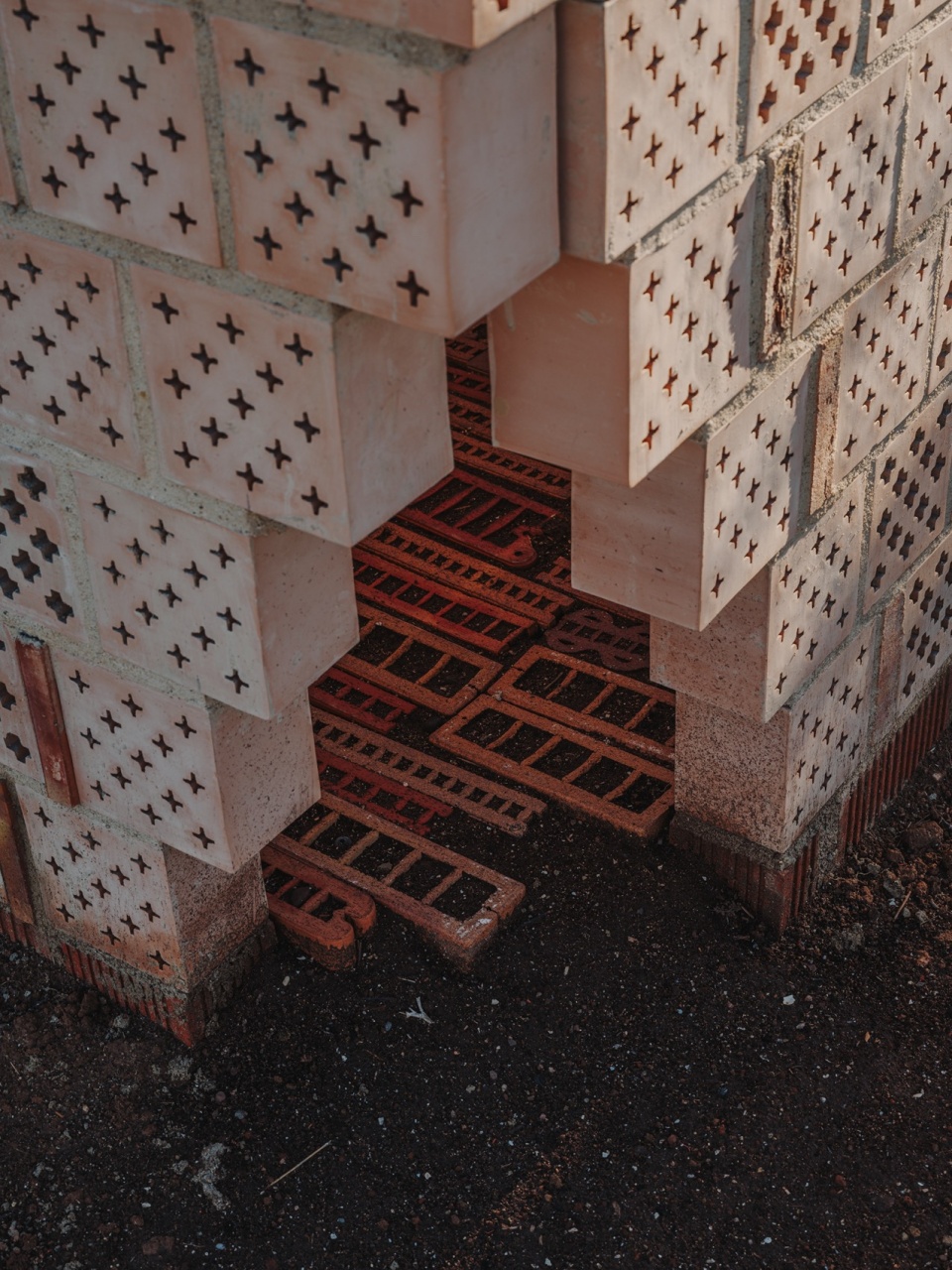

地面则采用了一种由陶瓷挤出模具形成的拼接图案，呈现复杂的几何形状。这些地砖展示了生产过程中的中间阶段，结合成对的剖面和辅助元素，确保了适当的搬运、干燥和烧制。这些“铺路砖”捕捉了制造过程中的独特美学价值。

Flooring shows a patchwork of ceramic profiles from the extrusion nozzles and display complex figures -an intermediate stage of production where paired profiles and auxiliary elements ensure proper handling, drying, and firing-. These “pavers” capture the aesthetic richness embedded in the manufacturing process.

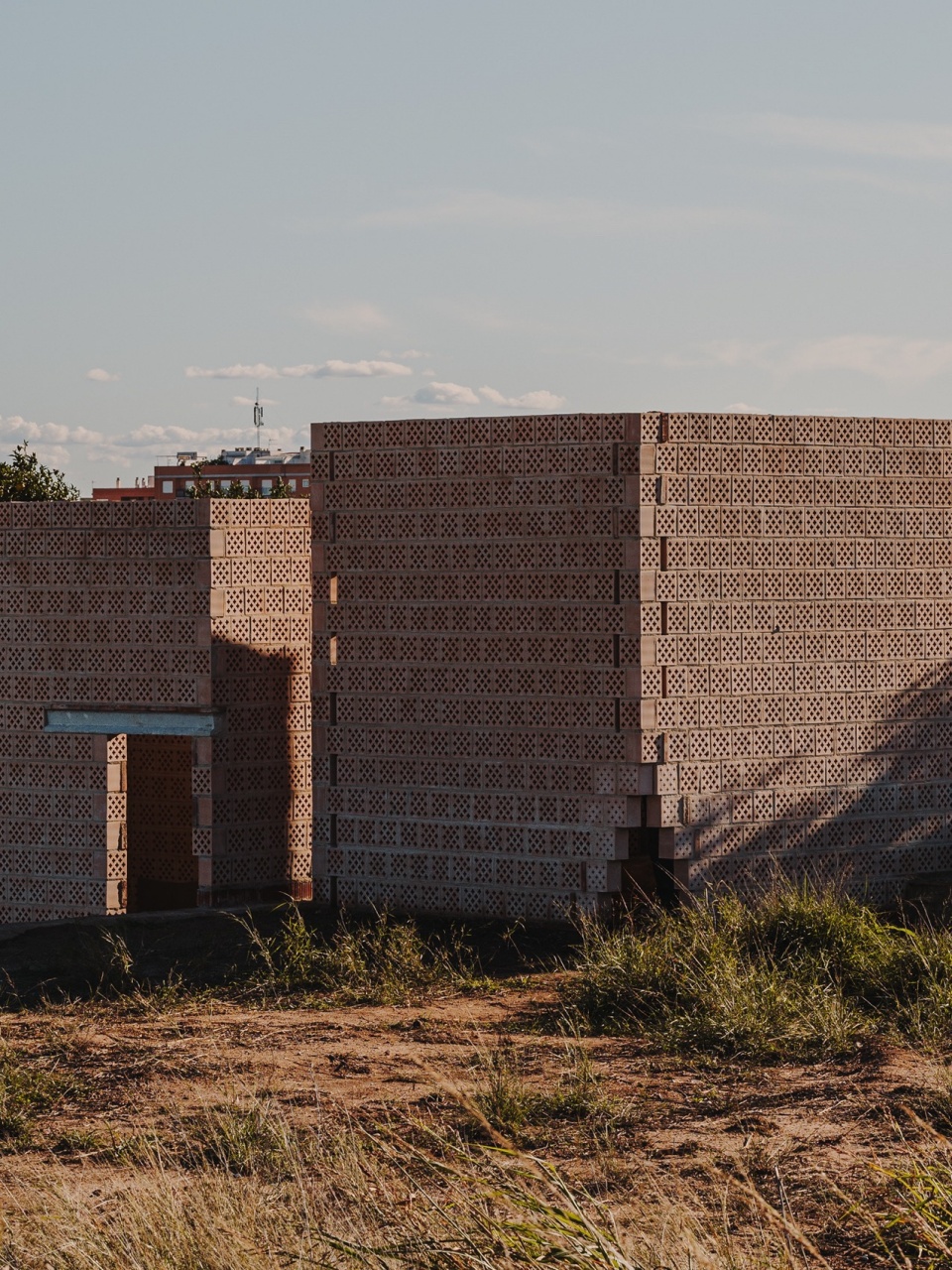

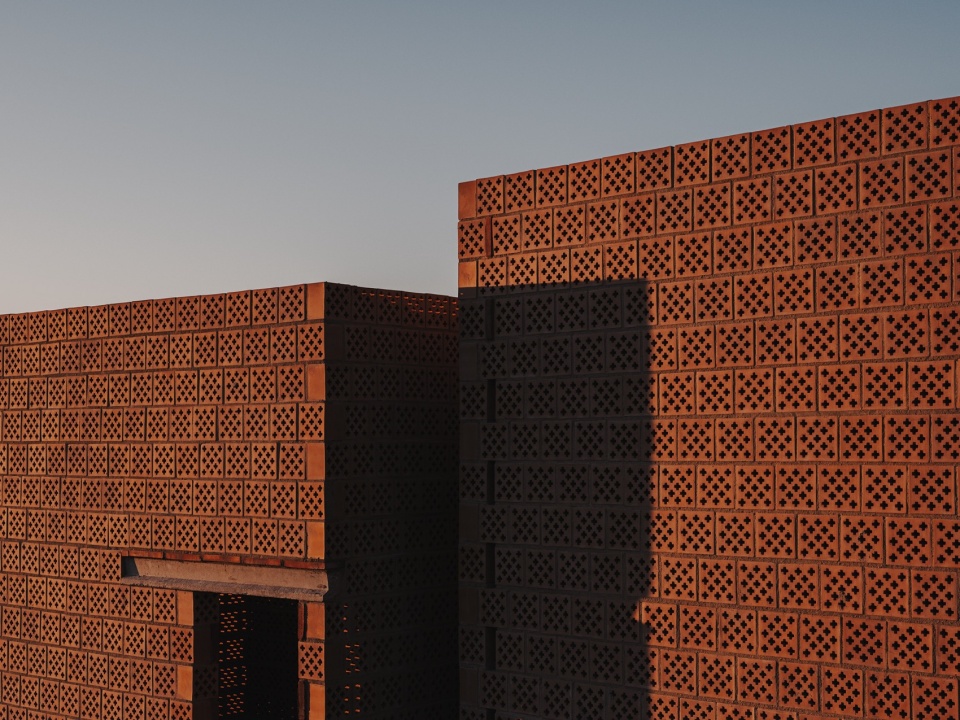

▼外观细部，details of exterior © Oleh Kardash

▼光影，light and shadow © Oleh Kardash

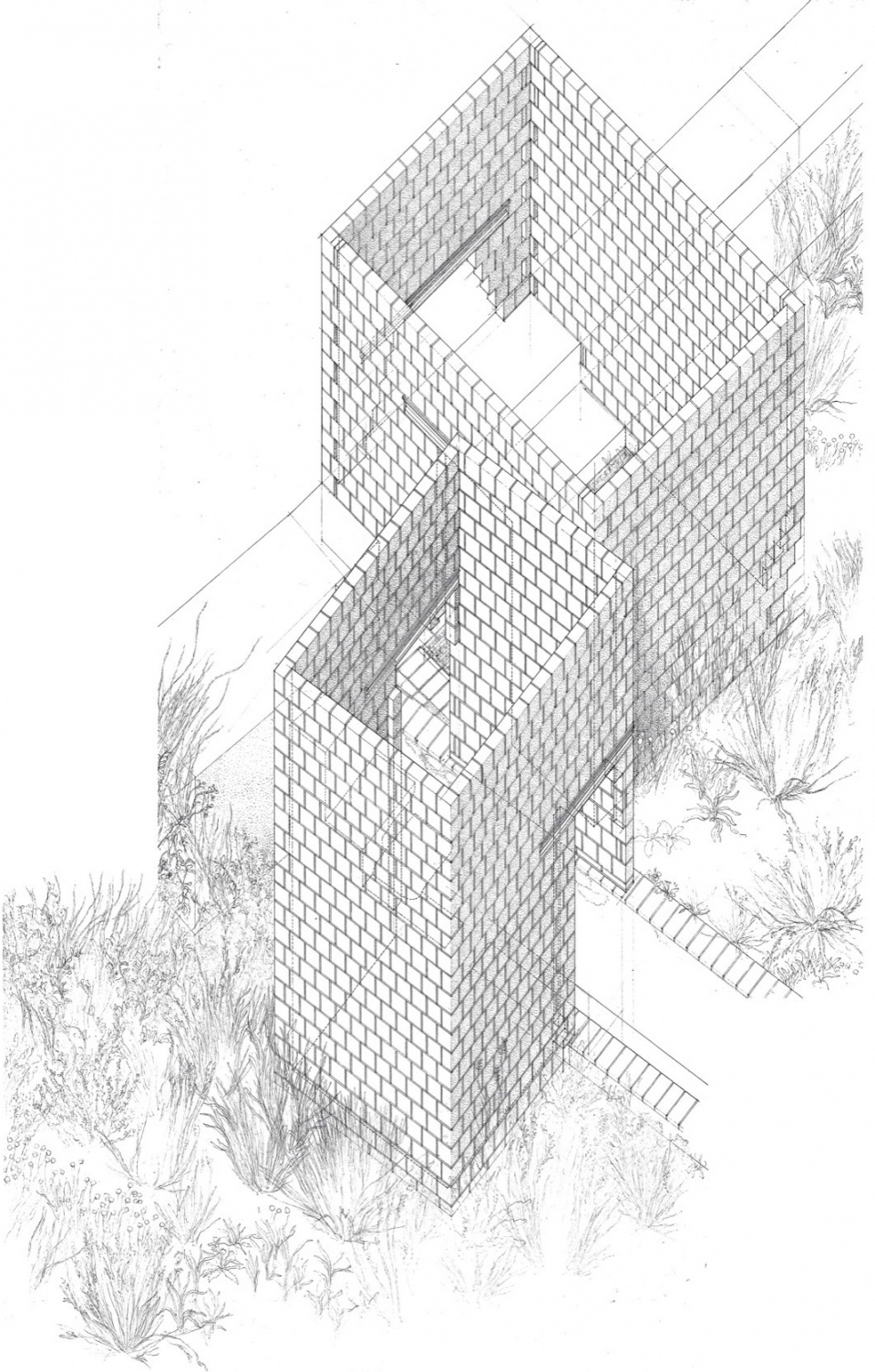

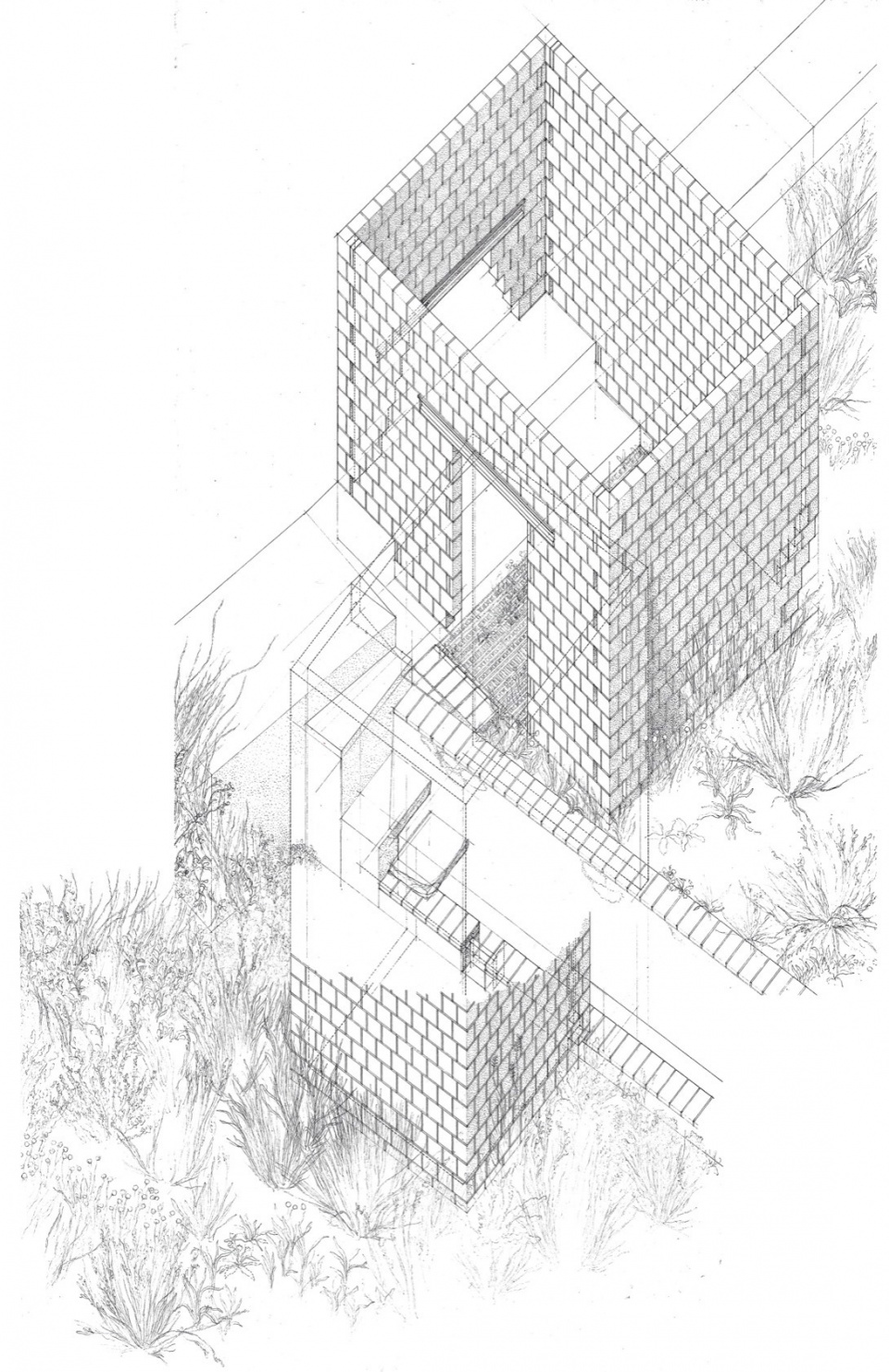

▼手绘轴测图，hand-drawn axonometric drawing © Alejandro Martínez del Río

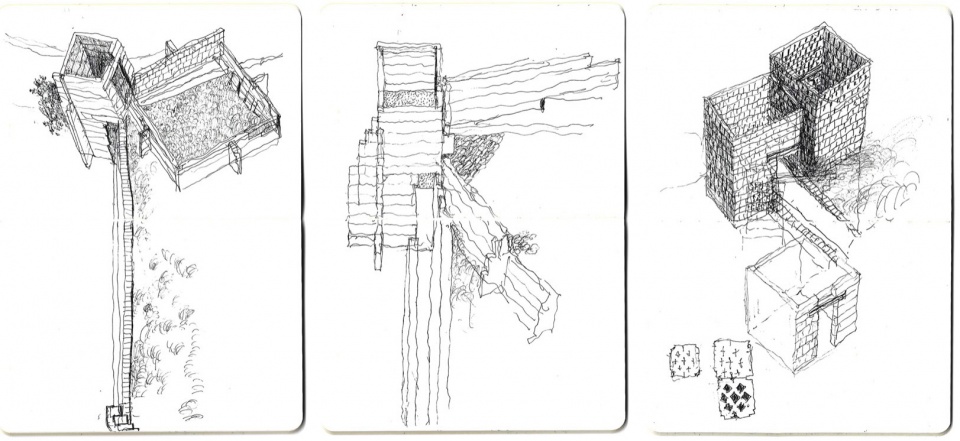

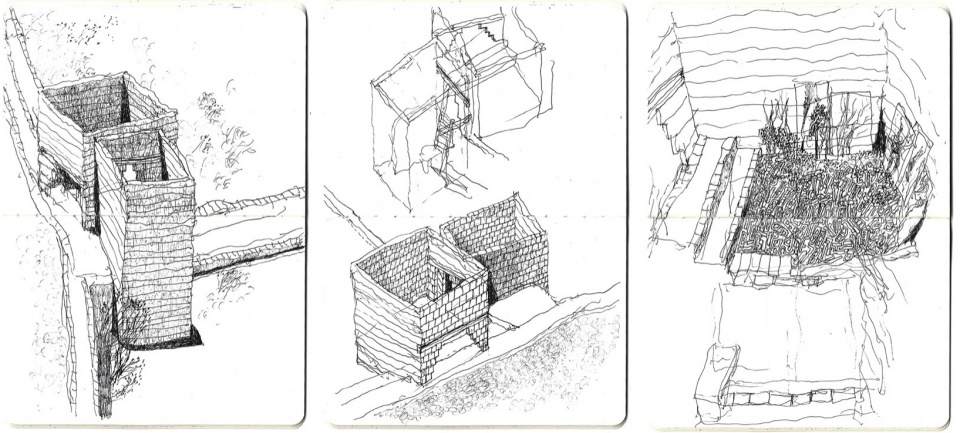

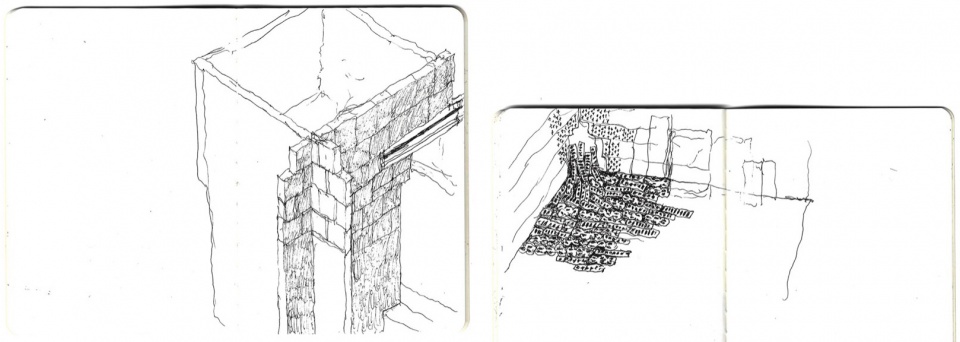

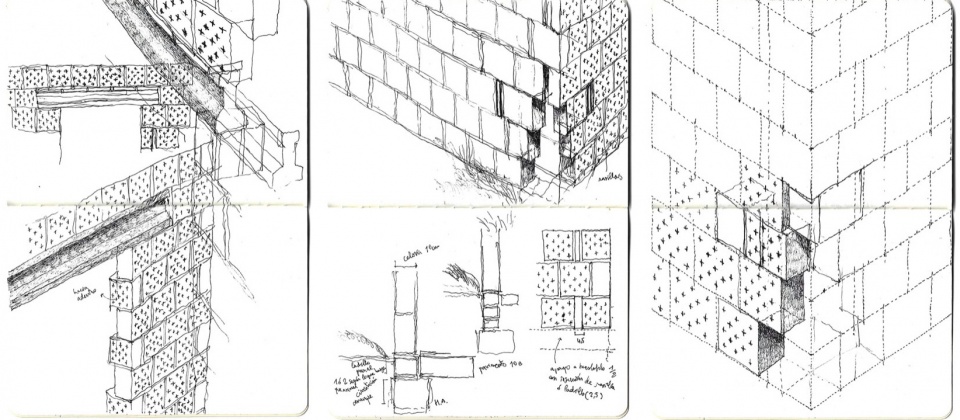

▼手绘稿，hand-drawings © Alejandro Martínez del Río

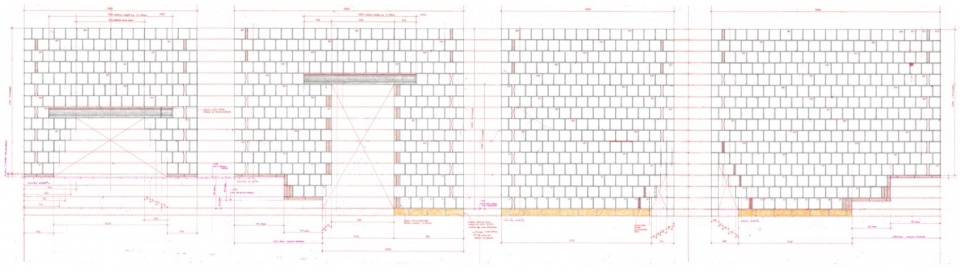

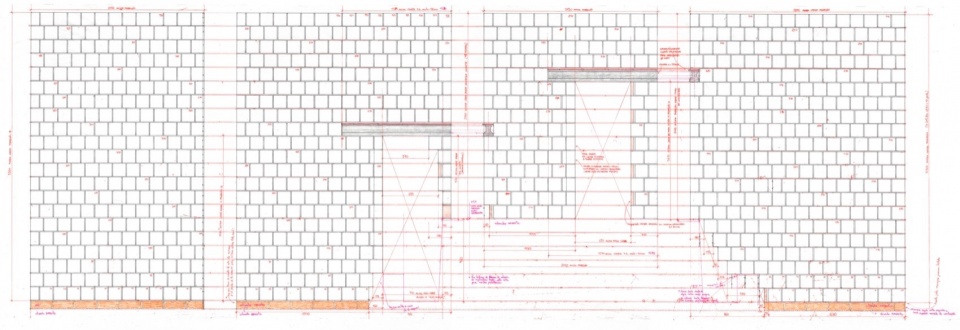

▼立面图，elevations © Alejandro Martínez del Río

More： Alejandro Martínez del Río 。更多请至： Alejandro Martínez del Río on gooood
