来自Benthem Crouwel Architects对gooood的分享。更多请至：Benthem Crouwel Architekten on gooood

Benthem Crouwel Architects在阿姆斯特丹中央车站Amsterdam Passages里为公交车司机创作了一个巴士司机之家。这座建筑一层有储藏间，技术区以及卫生间。二层是一个拥有180度全景视野的用餐区。

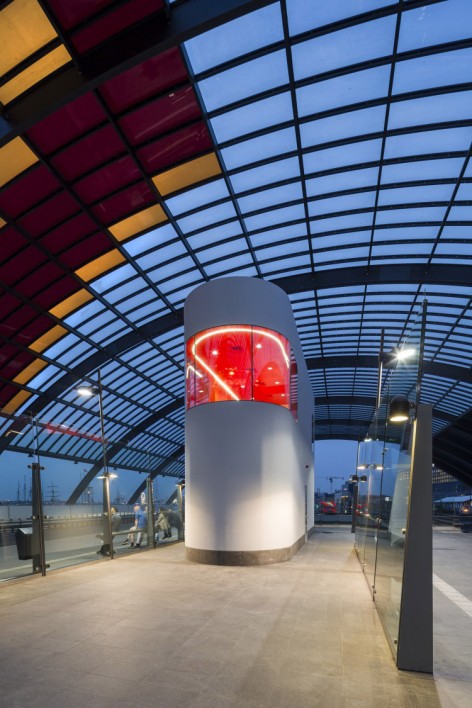

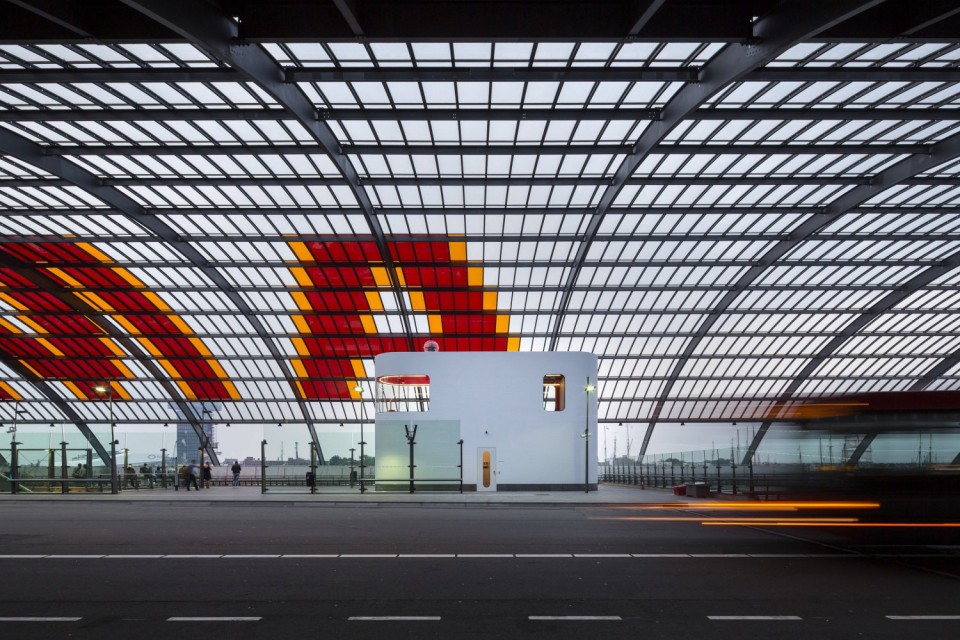

The striking white bus drivers building on the bus station at Amsterdam Central houses a workspace, pantry and a canteen for bus drivers on the first floor. Because the canteen is located on this higher level the drivers have a lot of privacy, with 180 degree views of the bus platform, the river IJ and Amsterdam North. On the ground floor there is space for storage, a technical area and toilets. The bus drivers building has been built in three months.

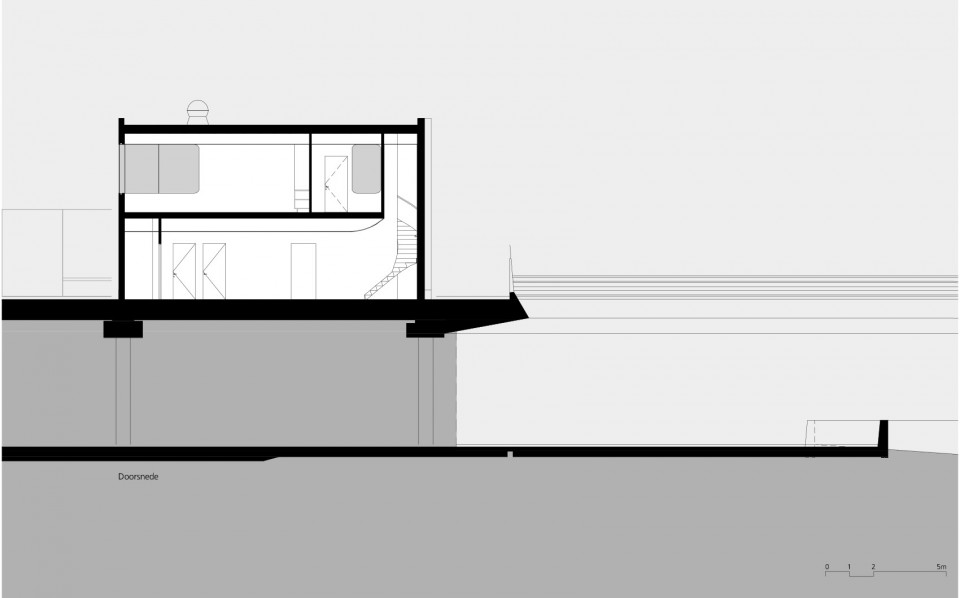

建筑位于中央车站的车道之间，因此采用直线与圆弧结合的细长平面布局，并精心的安排功能，位于建筑端头的旋转楼梯为建筑其它部分的自由布局争取了可能性。小楼窗户开在二层，因此无开窗的一层能承受涂鸦。

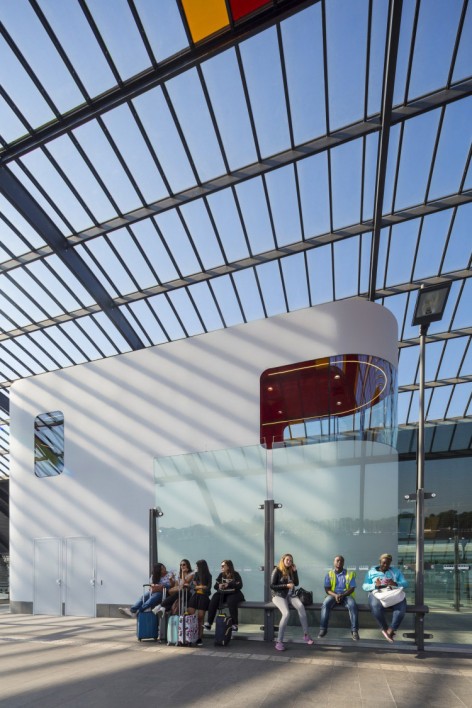

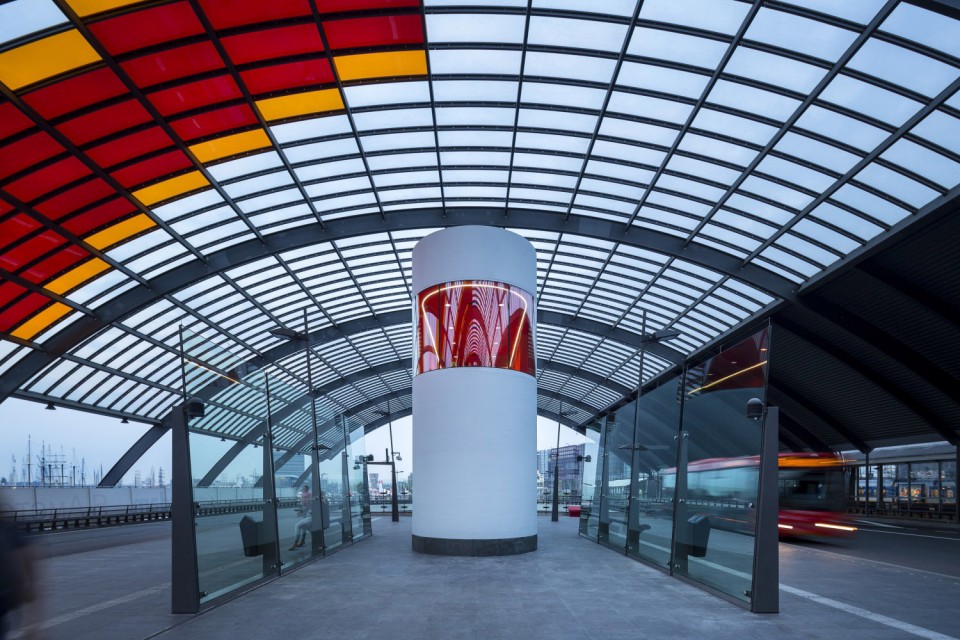

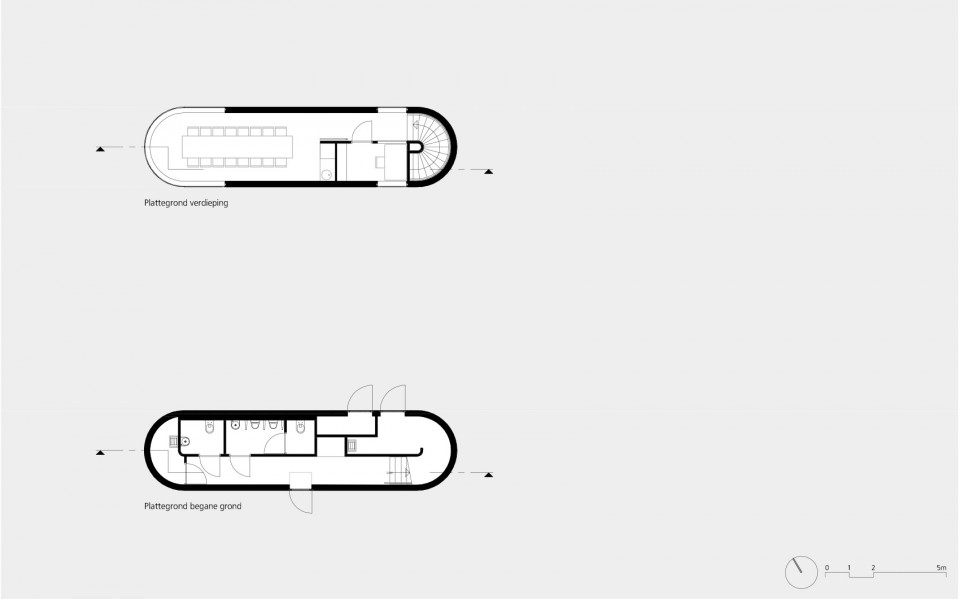

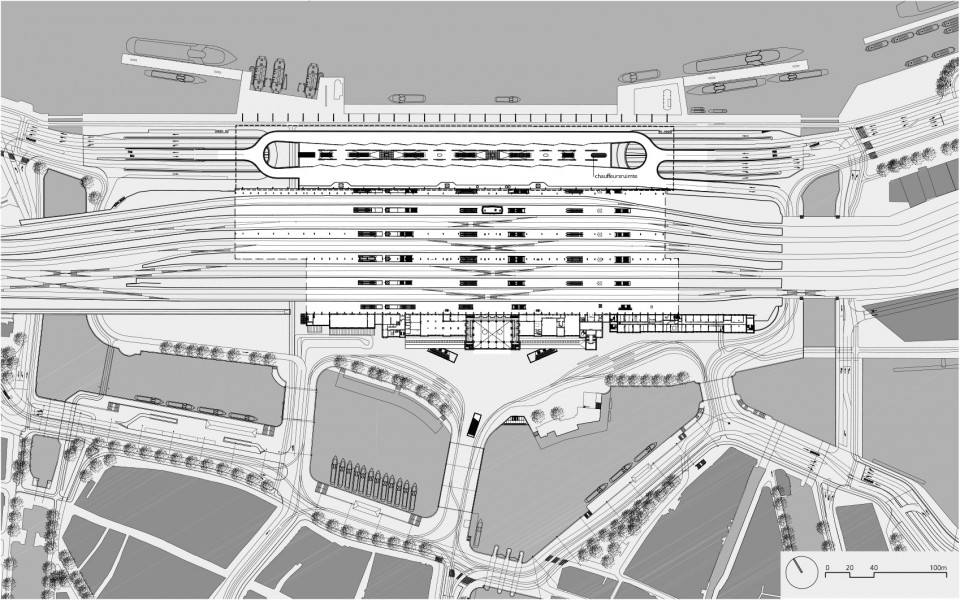

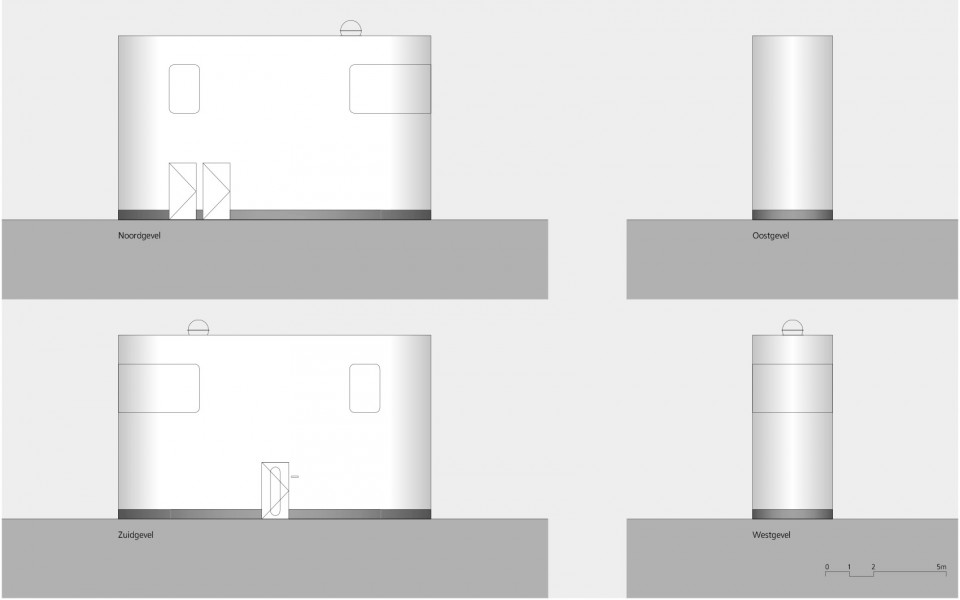

The position of the building, between two glass windscreens, has largely determined the proportions of the volume. The elongated, relatively narrow building of 80 m2 has been optimized in both design and function. By placing a spiral staircase on the eastern rounded end wall, freedom for designing the layout of both storeys became possible. In addition, because of the roundness and the linear character, the shape of the bus drivers building connects to the previously realized tubular supervisor building on the other side of the bus platform. The positioning of the facility areas ensures that on the ground floor the façade can be closed and can be made graffiti resistant.

建筑采用的外表皮涂层不仅十分耐用并且可以实现无缝造型。建筑拥有白色圆润的外观和醒目的红色室内空间。

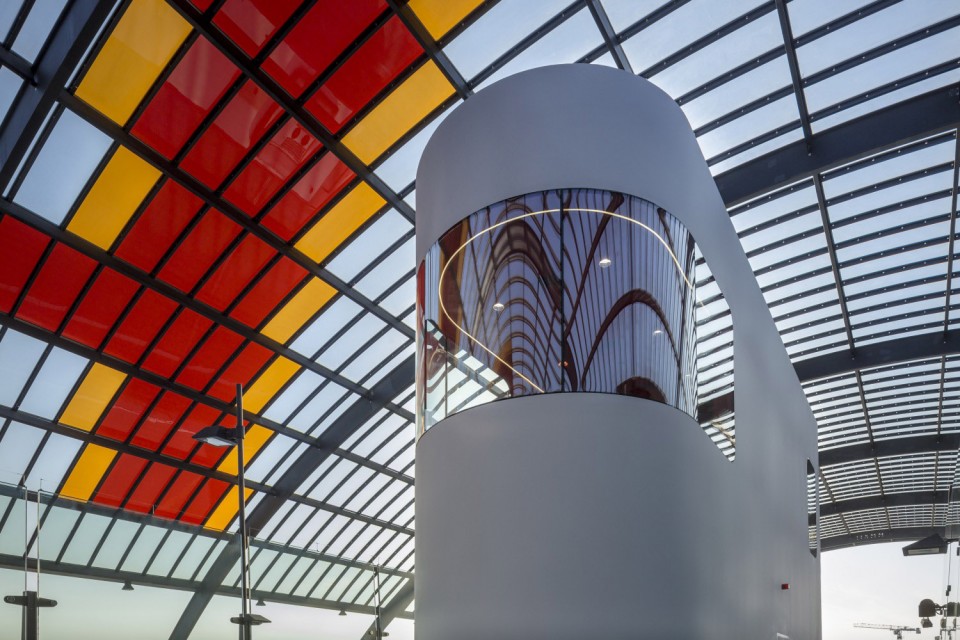

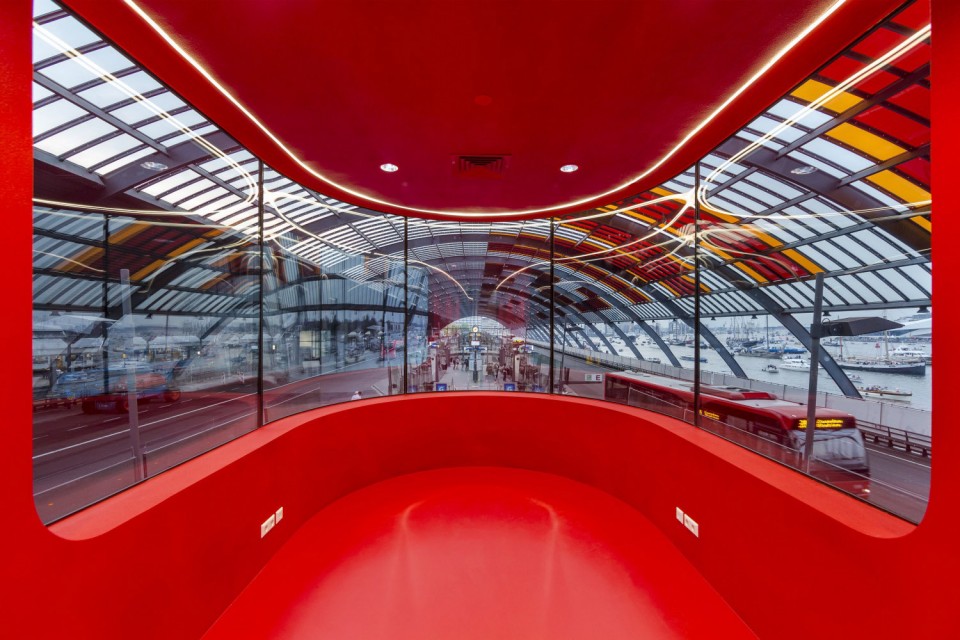

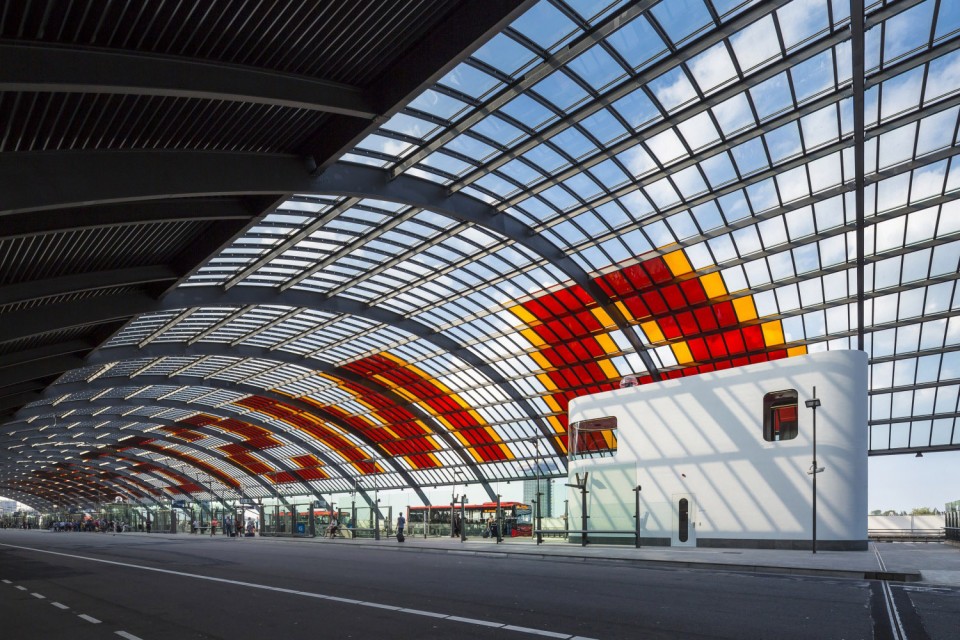

The bus drivers building has a timber frame construction and is finished on both the inside and outside with polyurea, a two-component spray that is very durable and that can be applied seamlessly. By using traffic light red on the inside and white polyurea on the exterior, the building has a sleek, yet playful appearance that matches the red lettering of the bus stations’ roof.

CLIENT
Munipicality of Amsterdam

ARCHITECT
Benthem Crouwel Architects

LOCATION
Bus station Amsterdam Centraal, The Netherlands

GROSS FLOOR AREA
80 m2

START DESIGN
2014

STARTCONSTRUCTION
2015

COMPLETION
October 2015

PROJECT TEAM
Joost Vos, Saartje van der Made, Peter Alberts

CONTRACTOR
Versteeg Utrecht BV

STRUCTURAL ENGINEERING
Versteeg Utrecht BV

MECHANICAL SERVICES
NIAG (Nederlandse Installatie Advies Groep)
