感谢 FRPO Rodriguez & Oriol 予gooood分享以下内容。更多请至：FRPO Rodriguez & Oriol on gooood
Appreciation towards FRPO Rodriguez & Oriol for providing the following description:

社交性与集体性
Social and collective

该项目为重新思考当代社会住房在灵活性与适应性方面的要求提供了契机。作为一个集体性项目，它通过嵌入建筑体量之中的共处空间，挑战了居民之间传统的交往方式。项目聚焦于“社交性”与“集体性”这两个核心议题，同时满足最严格的能源效率标准——实现零排放建筑，并成为城市与埃布罗河岸自然景观之间的一个城市地标。

The project offers an opportunity to rethink the conditions of flexibility and adaptability that contemporary types of social housing demand. As as a collective program, it allows challenging the usual formats of interaction between inhabitants through new spaces for coexistence integrated into the building. The project explores these two issues -social and collective-, while responding to the most demanding energy efficiency standards -zero emissions building- and standing as an urban milestone between the city and the landscape of the Ebro riverside.

▼项目概览，overall of the project © Luis Asín

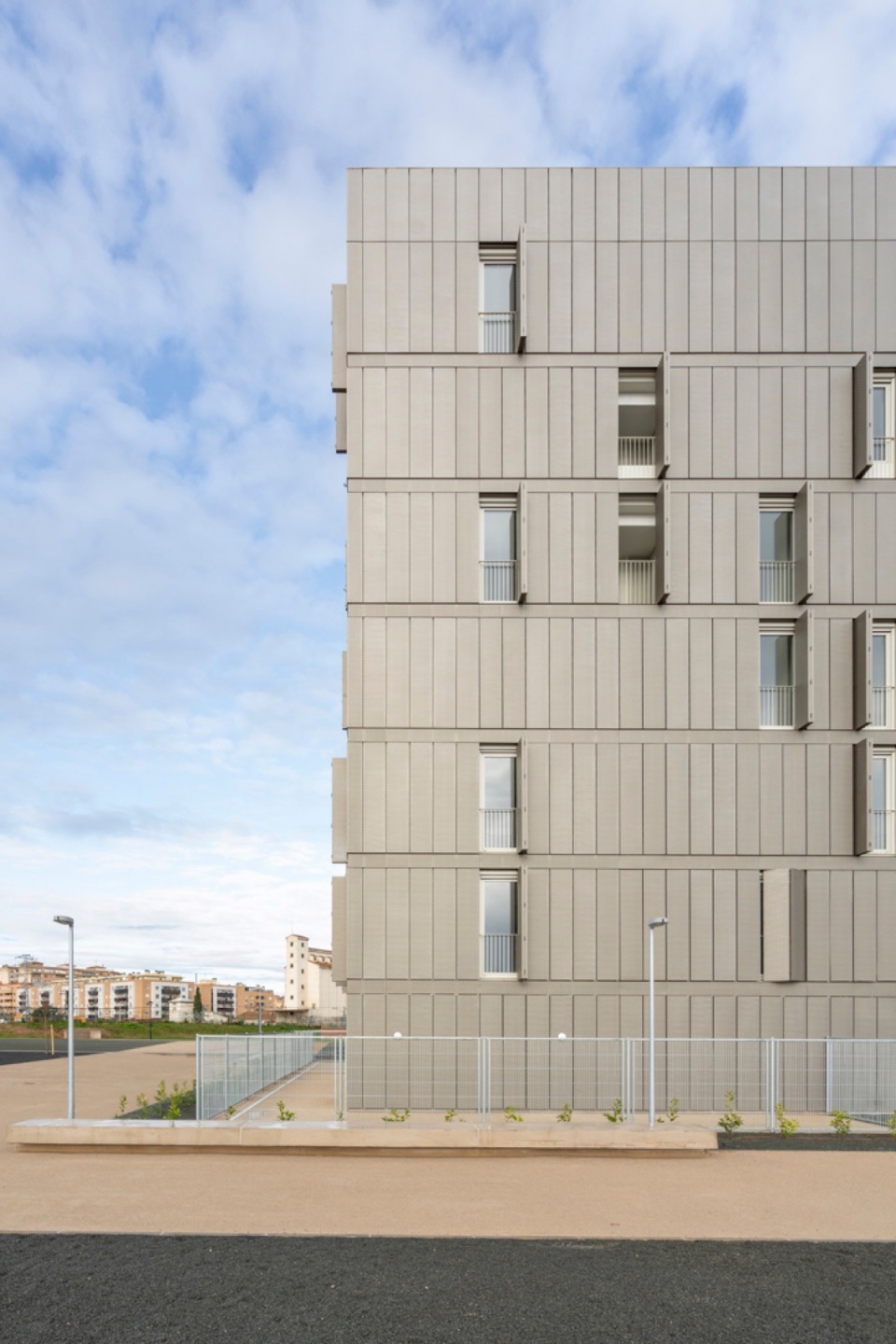

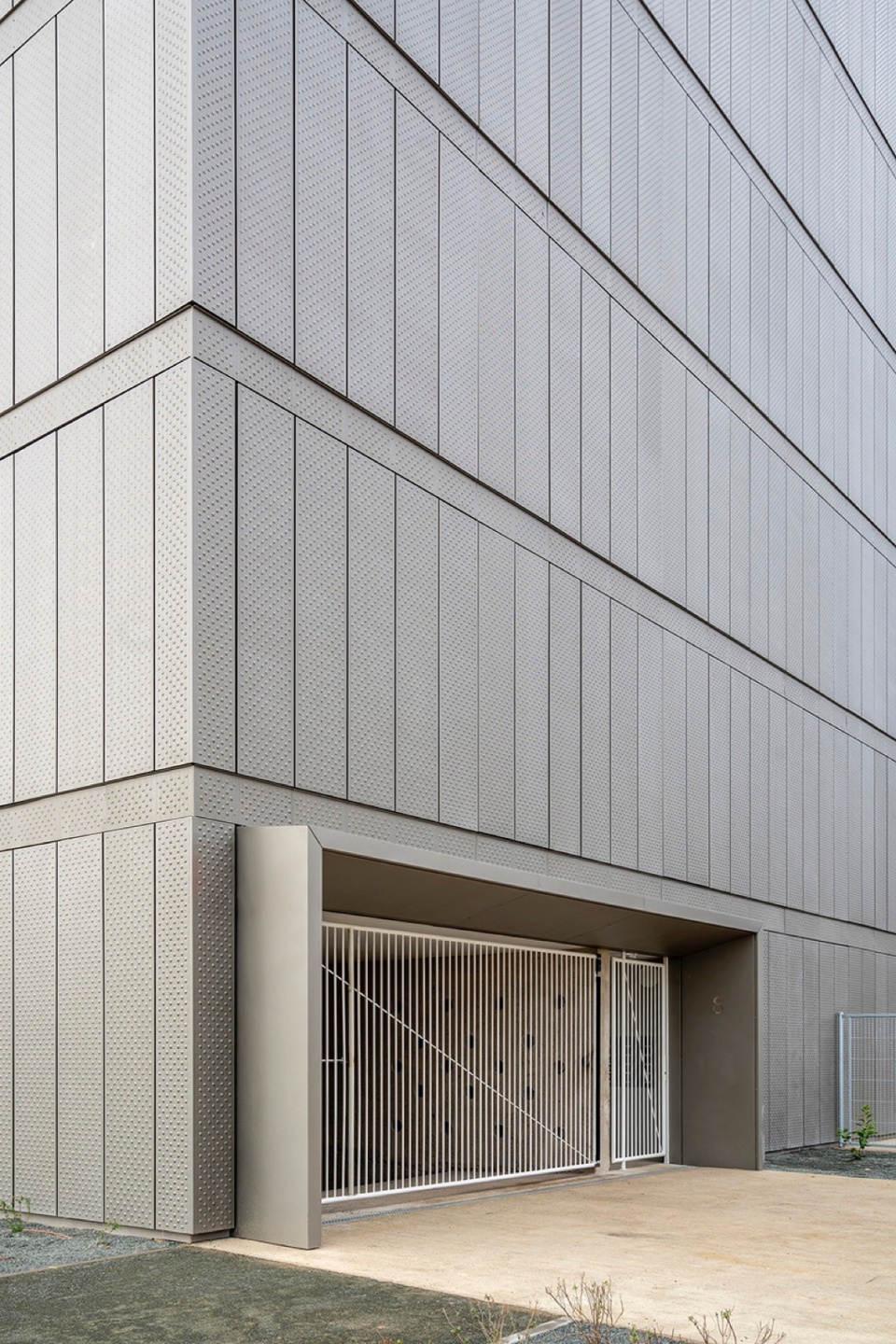

▼建筑立面，facade © Luis Asín

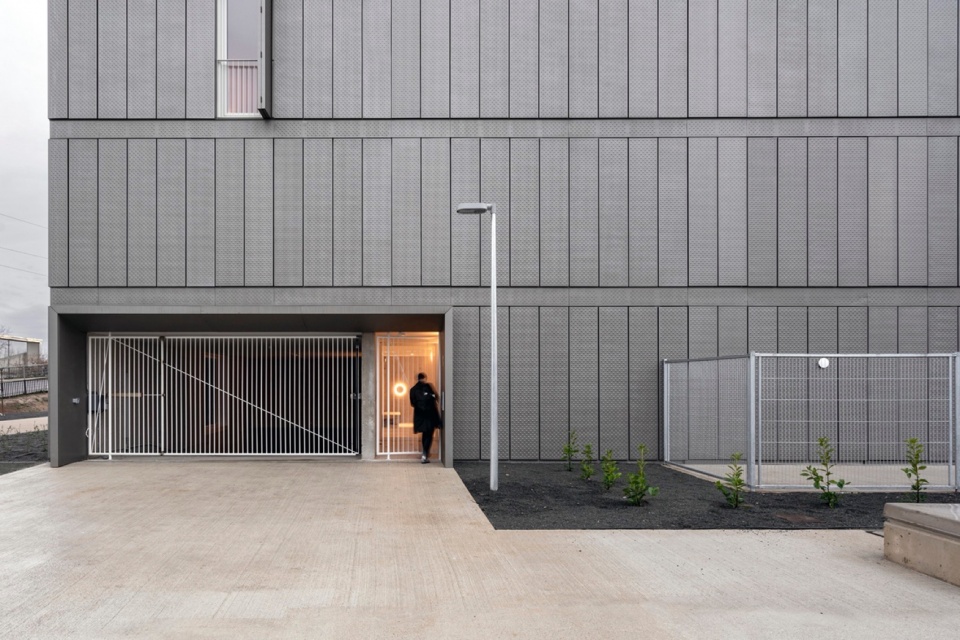

▼入口，entrance © Luis Asín

环境与体量
The context, the volume

项目选址位于城市肌理的边缘，与河岸的农业景观相对，这一地理位置暗示了其与地平线之间强烈的关系。这种“边界性”赋予建筑“瞭望塔”般的姿态，它以一种坚定的体量回应环境，同时试图将周边的色调与光影倒影纳入立面之中，如同镶嵌在河岸地带的锚点。

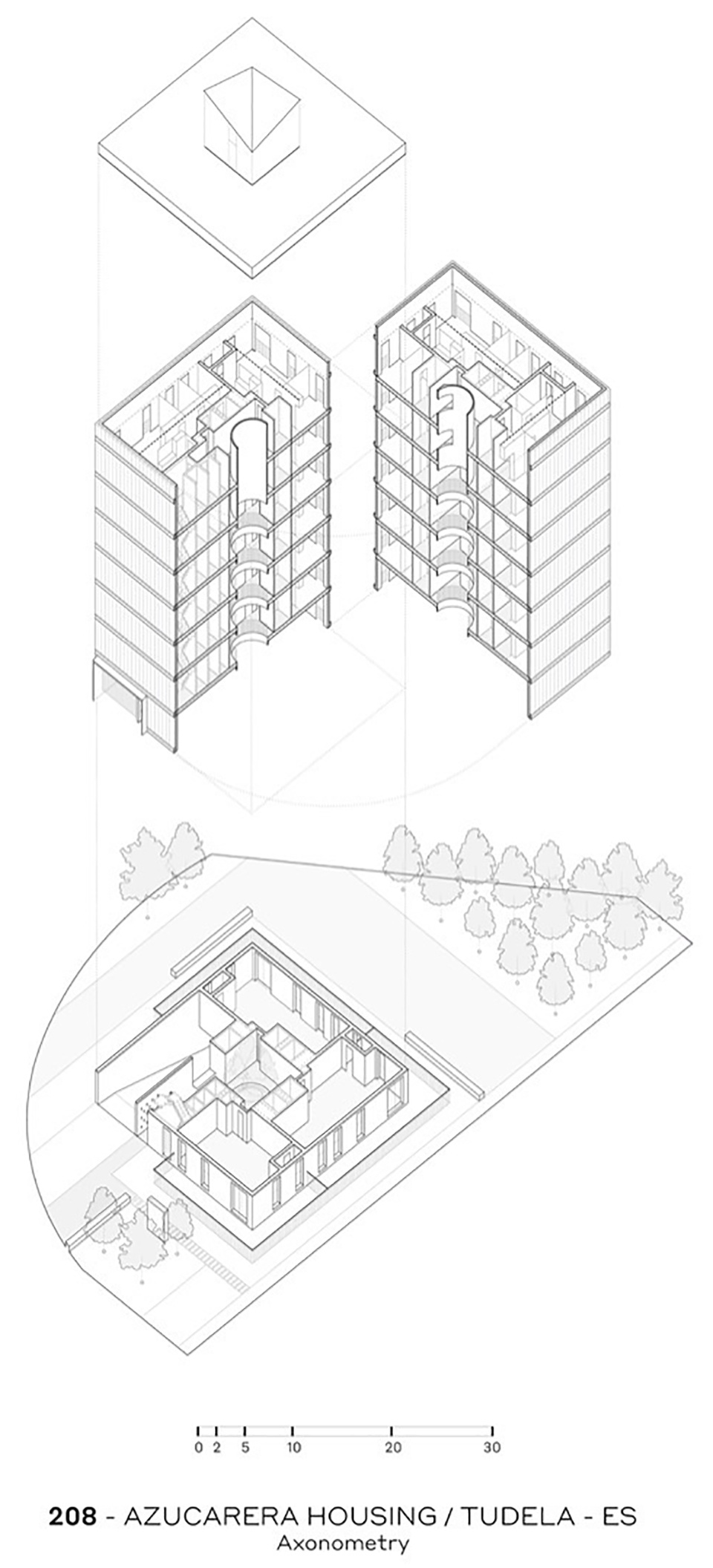

▼轴测图，axonometric drawing © FRPO Rodríguez & Oriol

The site limits with the city’s urban tissue, facing the riverside agrarian landscape, suggesting a bold relation with the horizon. This borderline condition provides a “watchtower condition” on the landscape, a bold volume that wants to incorporate the tones and reflections of its surroundings into its skin, as an anchor in the riverside region.

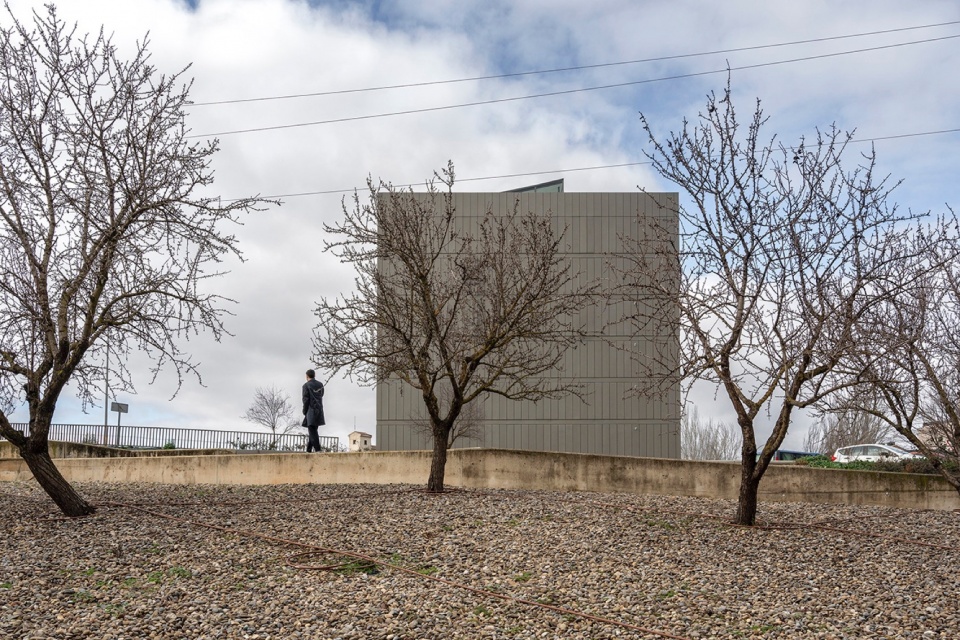

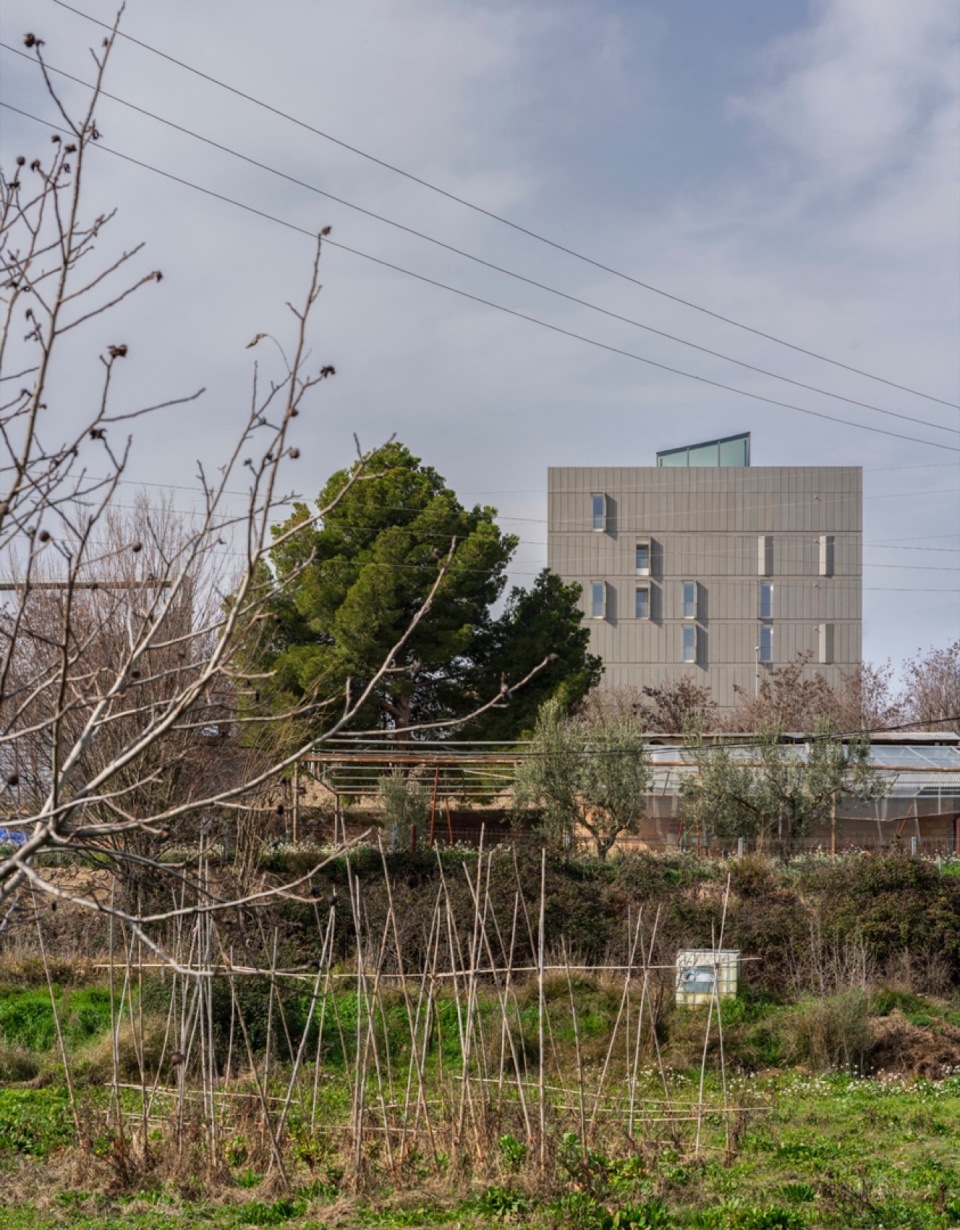

▼远观，distant view © Luis Asín

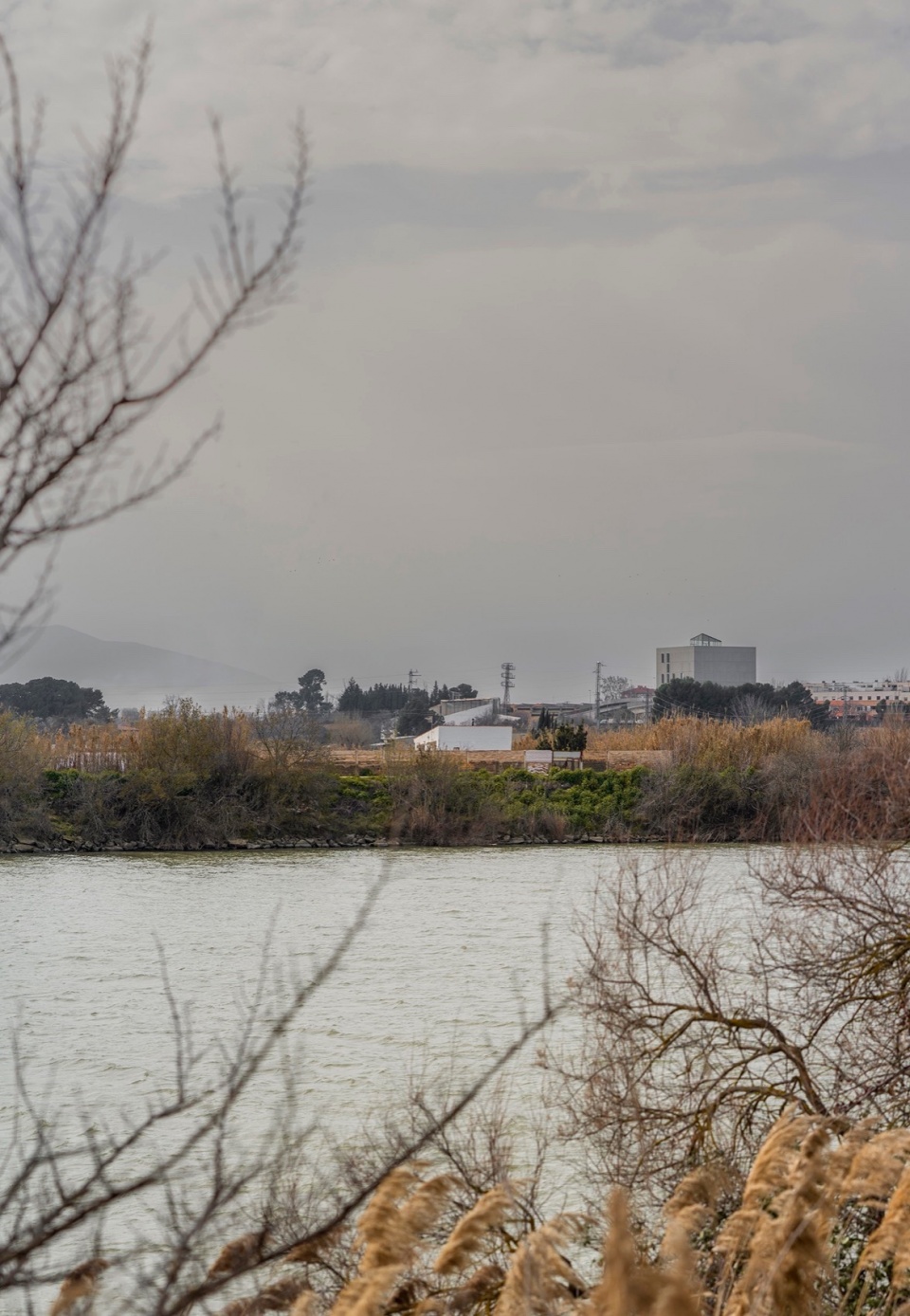

▼河岸景观，riverbank © Luis Asín

▼立面，facade © Luis Asín

nZEB：近乎零能耗建筑
nZEB: almost zero energy consumption

我们设计了一个近乎零能耗（nZEB）的建筑综合体，其基础是大幅减少能源需求和使用量。现场可再生能源的使用实现了供暖、制冷、生活热水及电力需求的100%自给。需求的降低通过被动策略实现，包括：对所有外墙进行超强隔热、高性能门窗系统、外部遮阳系统（用于夏季），以及冬季充分利用阳光直射。建筑的供暖、制冷和生活热水系统采用集中式方案，设有生物质锅炉房，提供可再生能源。制冷则通过设置于屋面的风系统实现。

We have designed an almost zero energy consumption (nZEB) building complex, based on the drastic reduction in energy demand and energy use. Renewable energy produced on-site covers 100% of the heating, cooling, DHW and electricity needs. The reduction of demand is achieved through passive measures, such as superinsulation in all exterior walls, high-performance carpentry, exterior solar protection systems (in summer) and direct radiation (in winter). A centralised production system for heating, cooling and domestic hot water services has been planned for the building with a biomass boiler room, a source of renewable energy. Cooling through an air system on deck.

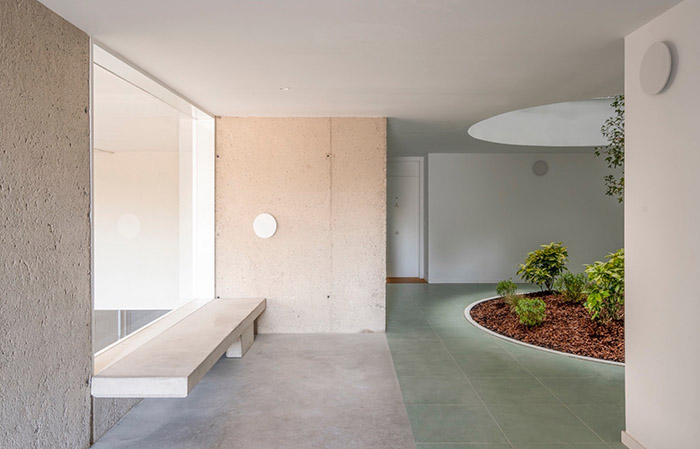

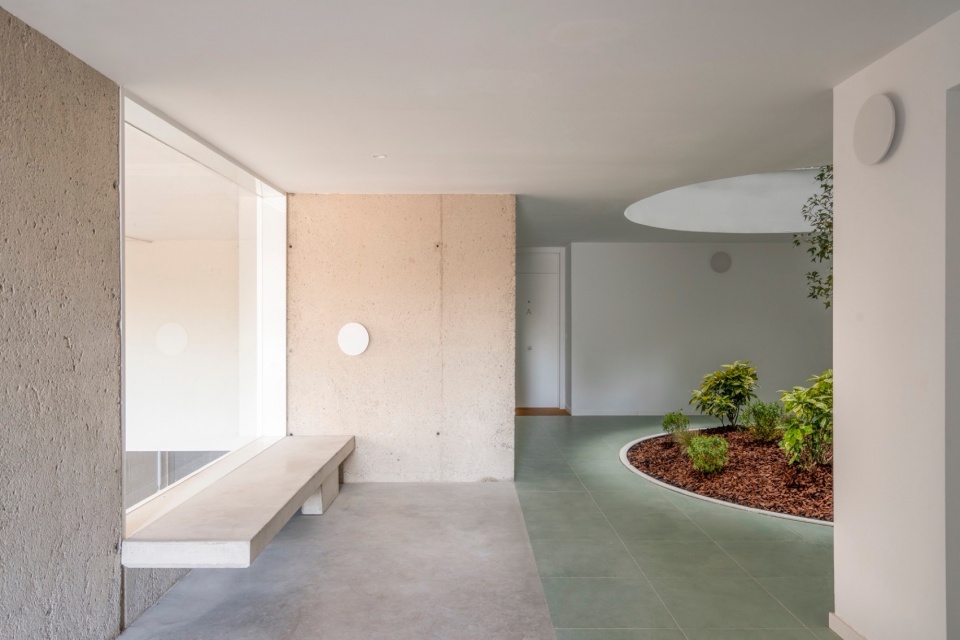

▼公寓楼底层公共空间，ground floor of the building © Luis Asín

▼公寓室内，interior of the apartment © Luis Asín

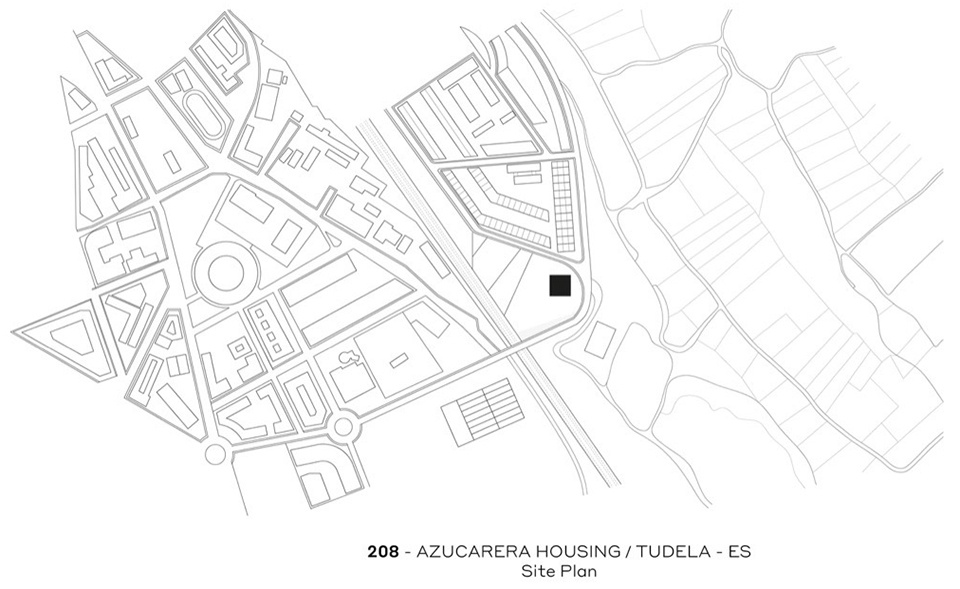

▼区位，location © FRPO Rodríguez & Oriol

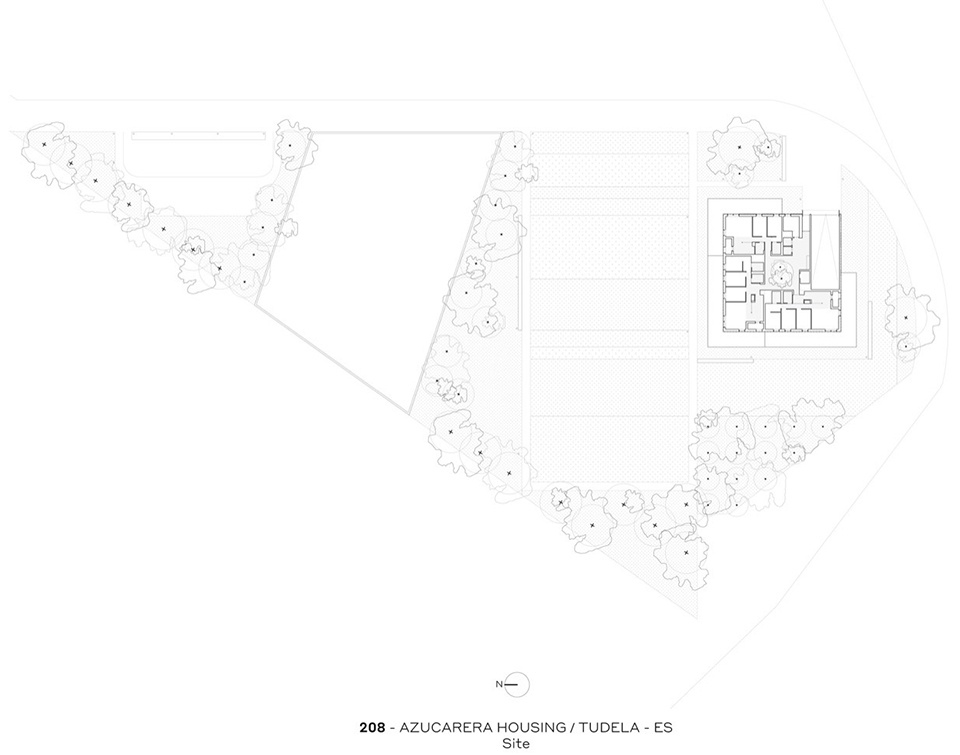

▼总平面图，master plan © FRPO Rodríguez & Oriol

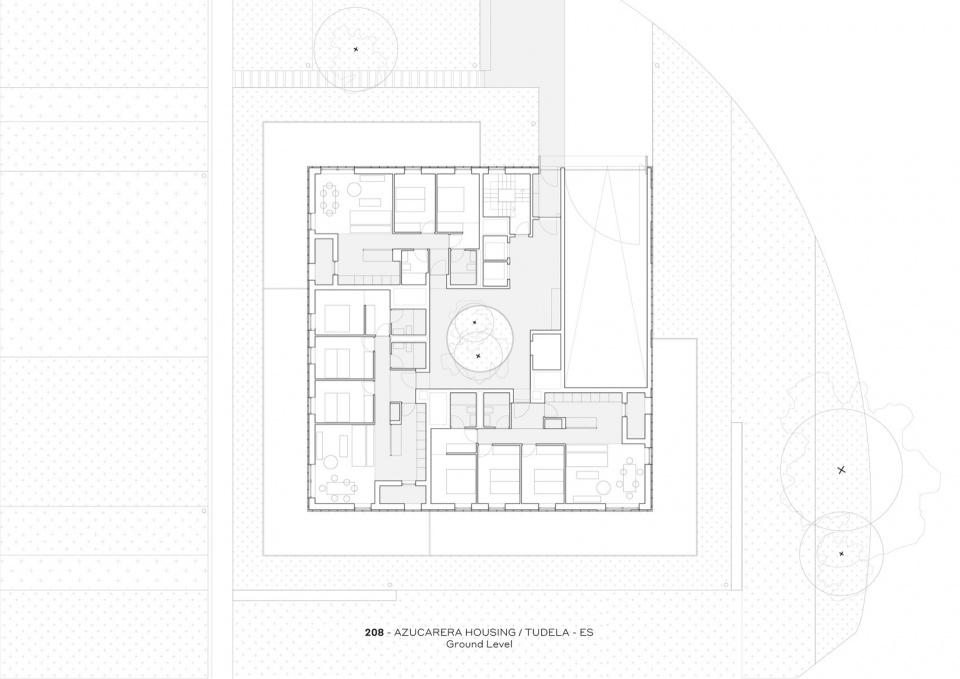

▼底层平面图，ground floor plan © FRPO Rodríguez & Oriol

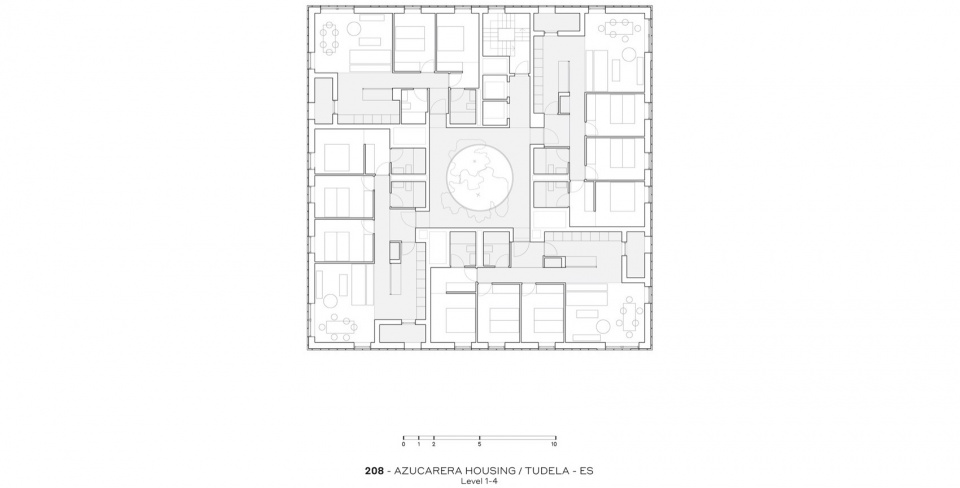

▼二至五层平面图，level 1-4 plan © FRPO Rodríguez & Oriol

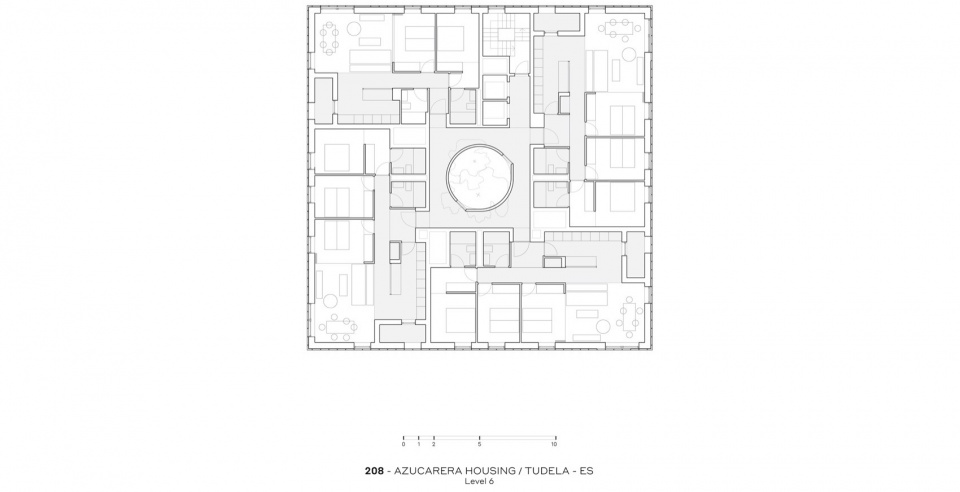

▼七层平面图，level 6 plan © FRPO Rodríguez & Oriol

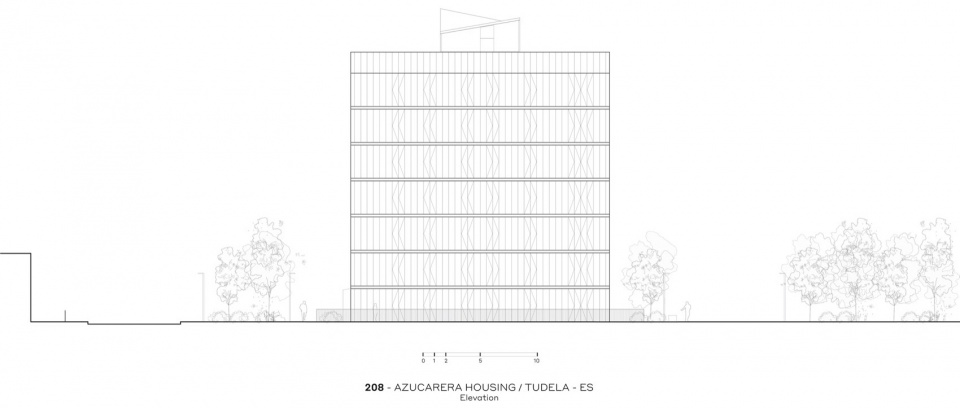

▼立面图，elevation © FRPO Rodríguez & Oriol

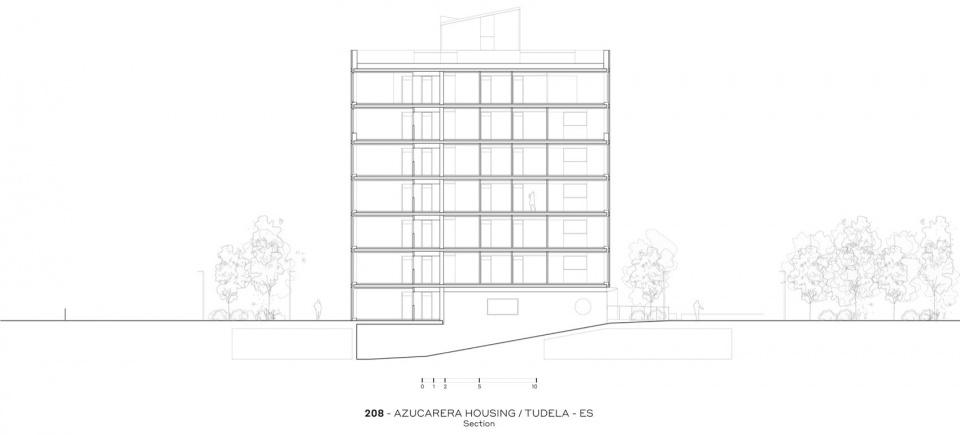

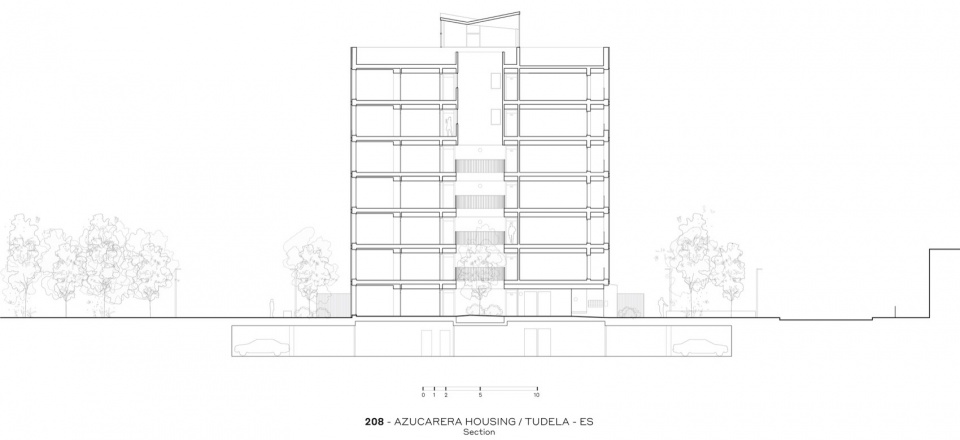

▼剖面图，sections © FRPO Rodríguez & Oriol

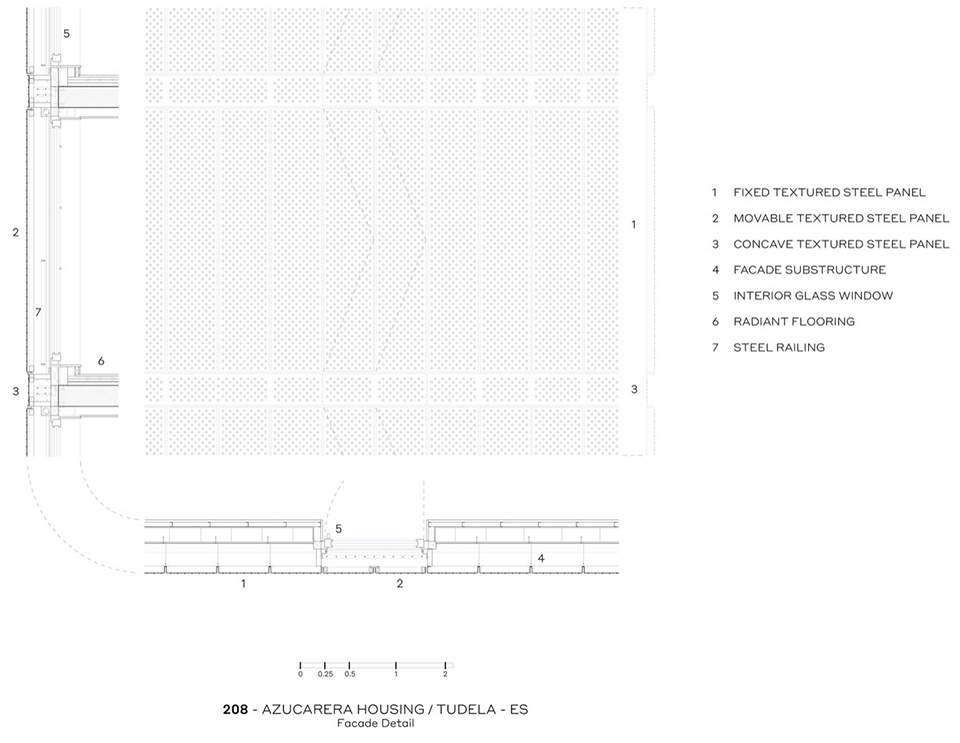

▼细部详图，construction details © FRPO Rodríguez & Oriol

AZUCARERA HOUSING
27 VPO Passivhaus, Tudela-Spain 2024
Client: NASUVINSA
Surface: 4970 m2
Location: Tudela-Spain
Competition first prize: 2018
Building start: 04-2021
Building end: 01-2024
Project leaders Pablo Oriol, Fernando Rodríguez, Maria Diaz
Collaborators Ricardo Fernández, Iñigo Palazón, Ignacio Navarro
Consultants Marc Buxó, AM Ingenieros, Mecanismo Ingeniería
Photography Luis Asín

More：FRPO Rodriguez & Oriol。更多请至：FRPO Rodriguez & Oriol on gooood
