感谢 Cruz y Ortiz Architects 对gooood的分享。更多关于: Cruz y Ortiz Architects on gooood
Appreciation towards Cruz y Ortiz Architects for providing the following description:

荷兰国家博物馆中的亚洲艺术珍品风格与这座19世纪的欧洲建筑大相径庭，也无法编入博物馆常规展览的年表中，因此业主委托建筑师为这些展品专门设计了一座独立的亚洲展馆。

The Asian Art housed in the Rijksmuseum forms an autonomous collection with splendid pieces, works of art that neither can easily be located within the chronological tour of the permanent collection of the Rijksmuseum, nor do they relate well to the architecture of the nineteenth century building. The goal was to design a separate building for the collection, the Asian Pavilion.

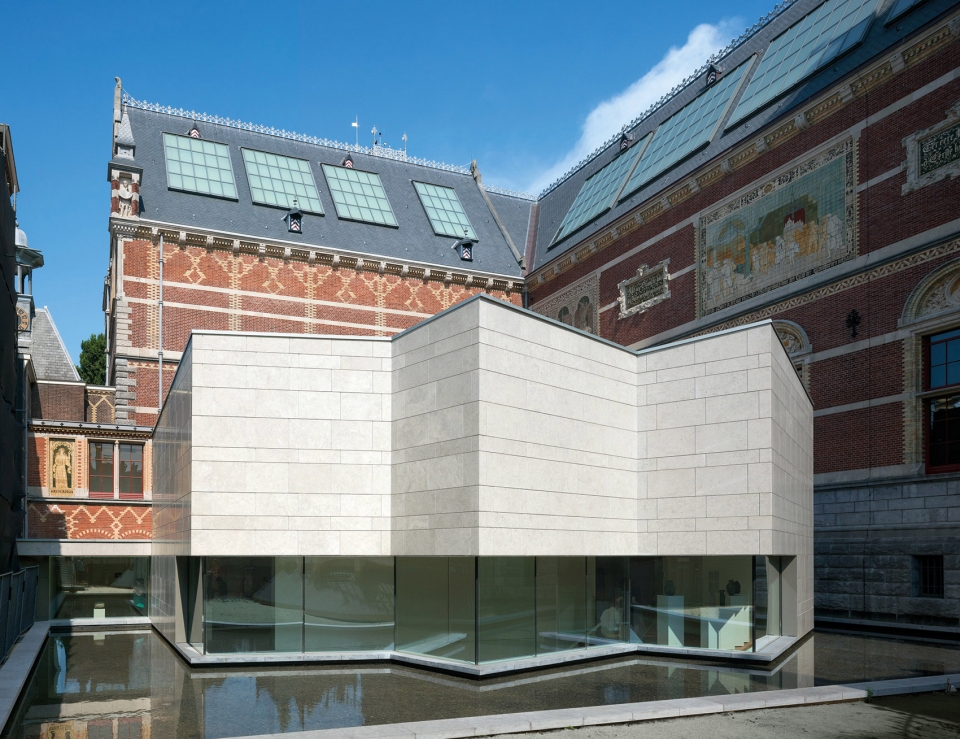

▼展馆外观，external view of the building

亚洲展馆位于博物馆南侧，Philips翼楼和主建筑之间几乎被人遗忘的花园中。由于空间有限，展馆平面呈不规则的形状，坡屋顶则与相邻建筑的立面呼应。

The Asian Pavilion is situated in the south, in a nearly forgotten part of the garden between the Philips wing and the main building. The irregular floor plan and sloped roof originate as a response to the lack of space and as a way of being related to the adjacent facades.

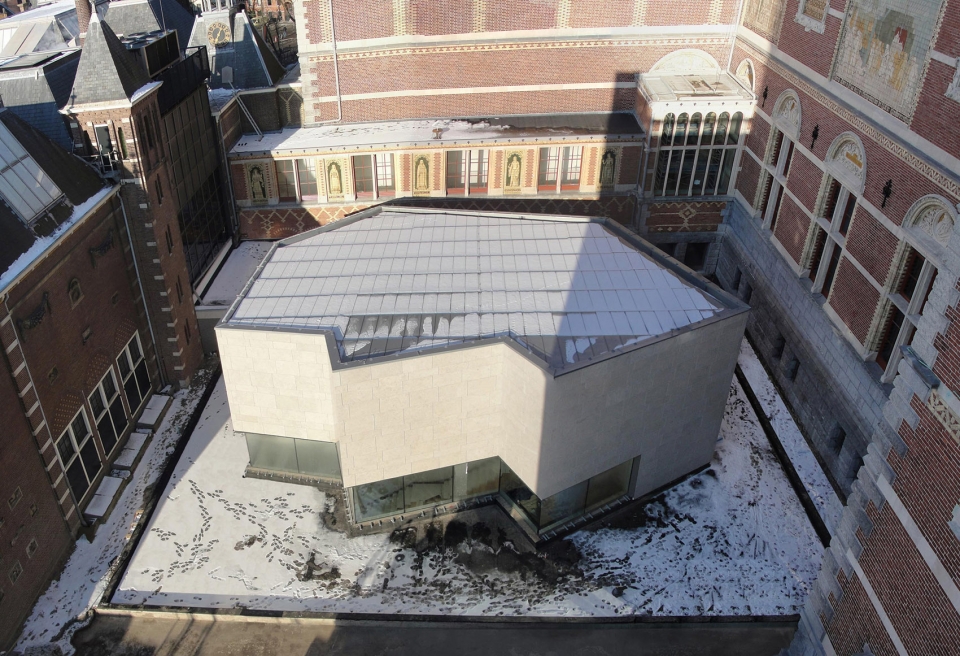

▼展馆鸟瞰，位于建筑之间，平面为不规则形状，bird view of the pavilion with irregular plan between buildings

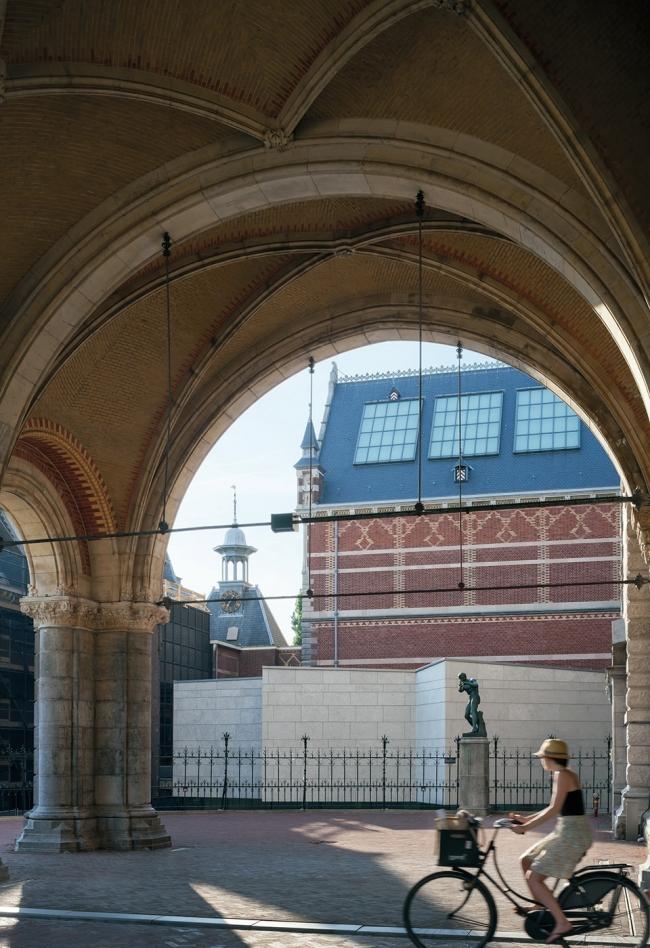

▼从街道看向展馆，view of the pavilion from the street

长方形水池中倒映着展馆的倒影，突显了其作为花园中一座独立建筑物的特殊性。建筑分为两层，上层面积较小，地下层屋顶与水面持平，可以容纳更多展品。人们可以透过建筑东立面上的开窗看到室内部分展品。展馆立面使用的石材和庭院以及主楼入口相同。

The building will be reflected in a rectangular pool, intending to emphasize its autonomy as a unique and independent piece in the garden. The pavilion has two floors, a smaller one above ground and an underground level that coincides with the floor of the pool. The east facade permits views from the exterior to parts of the collection inside. The facades of the Pavilion are made with same stone used in the interventions in the courtyards and in the Entrance Building.

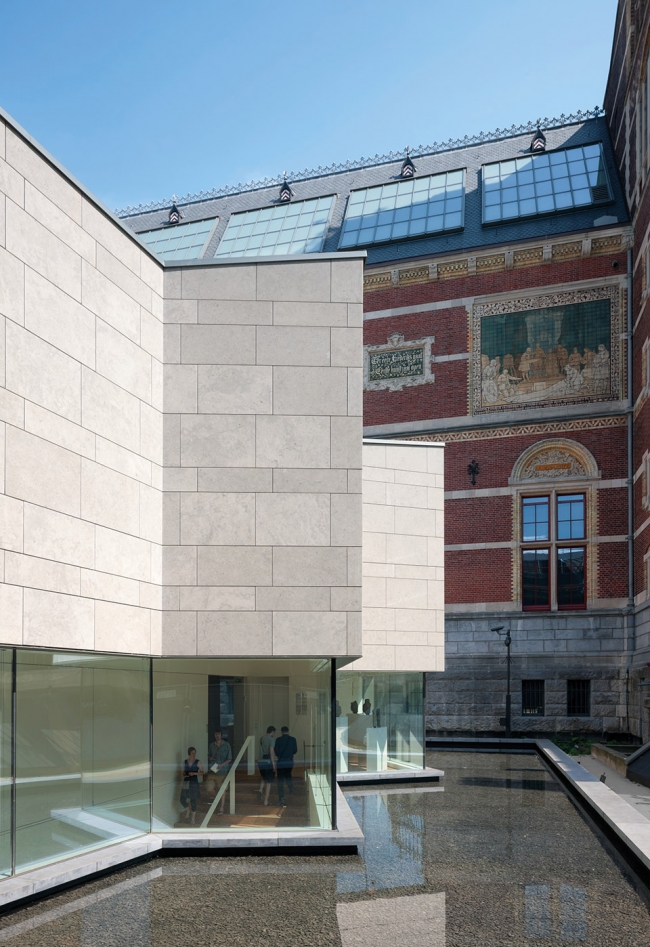

▼展馆倒映在水池中，人们可以透过玻璃看到部分展品，the pavilion reflected in the pool, people could see part of the collections through the glass wealls

▼展馆分为上下两层，下层屋顶与水面持平，the pavilion is of two floors, the underground floor corresponded with the pool level

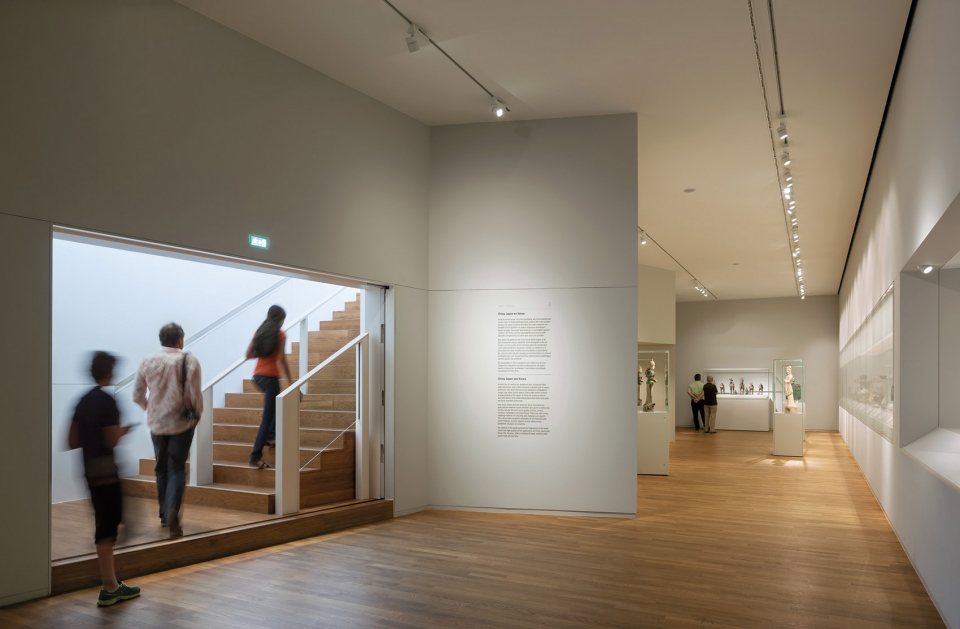

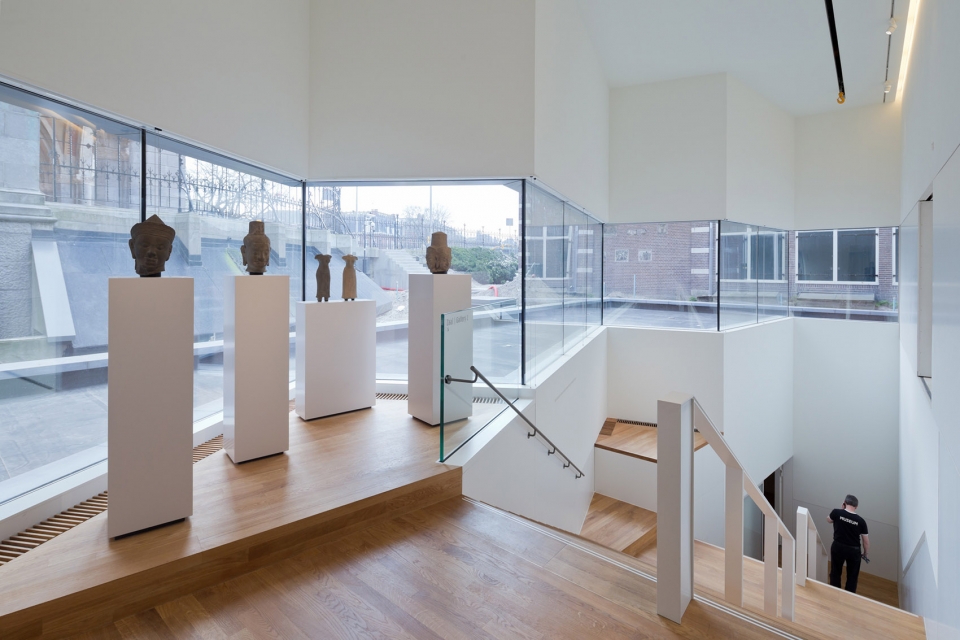

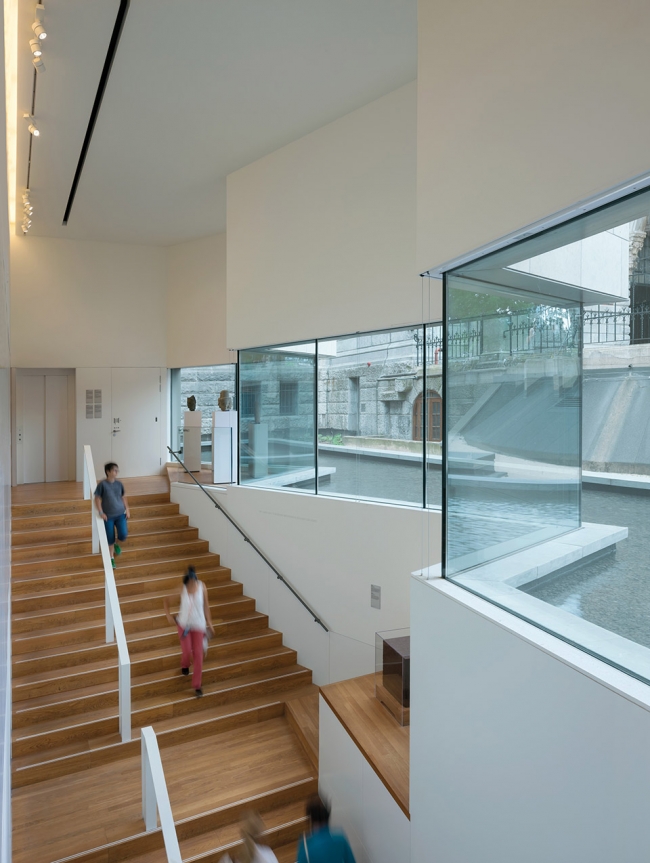

▼连接地面和地下两层的楼梯，stairs connecting the two floors

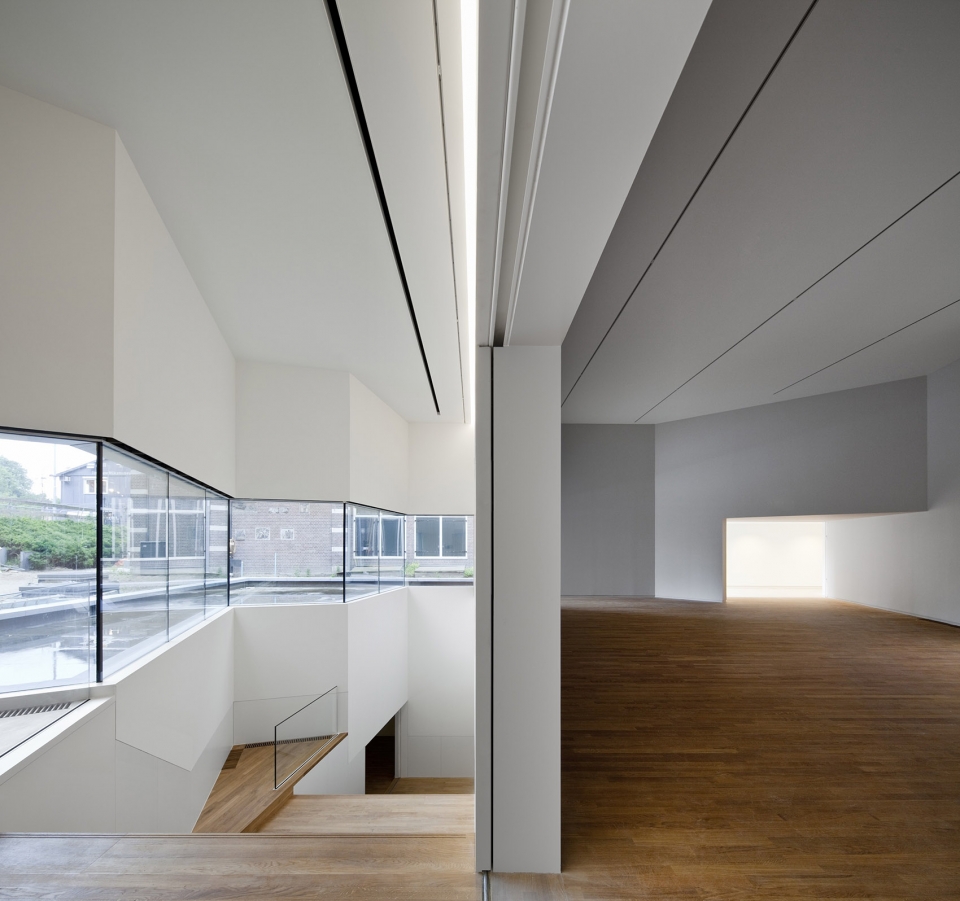

▼地面层展厅，exhibition hall on the ground floor

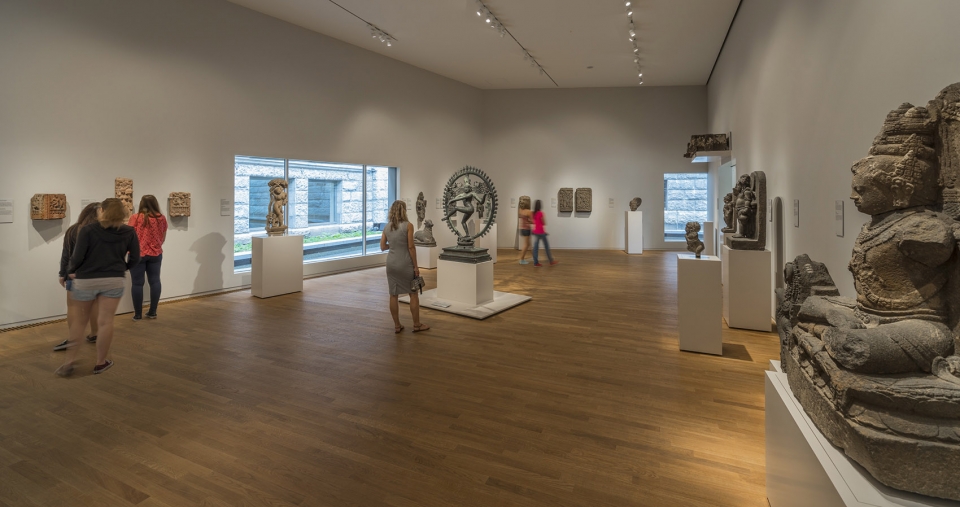

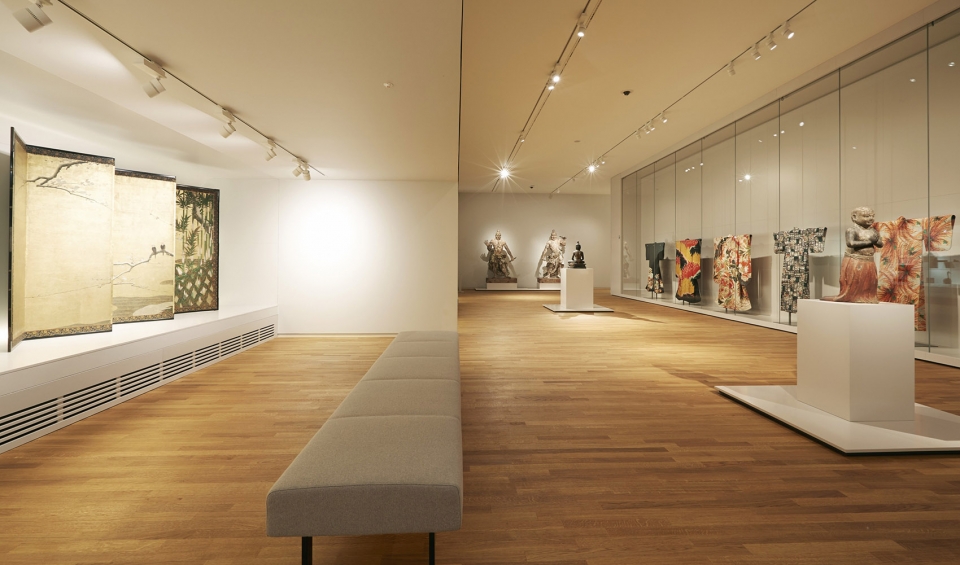

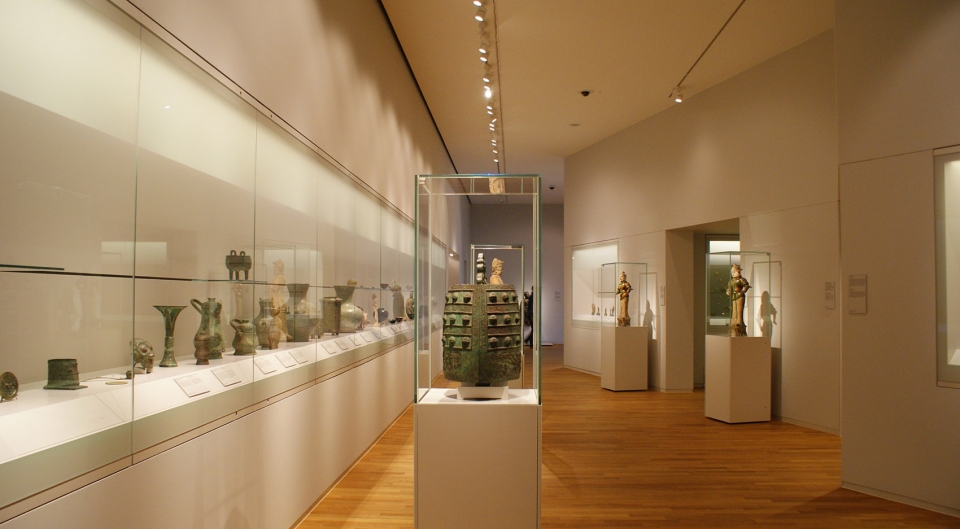

▼地下层展厅，exhibition halls on the underground floor

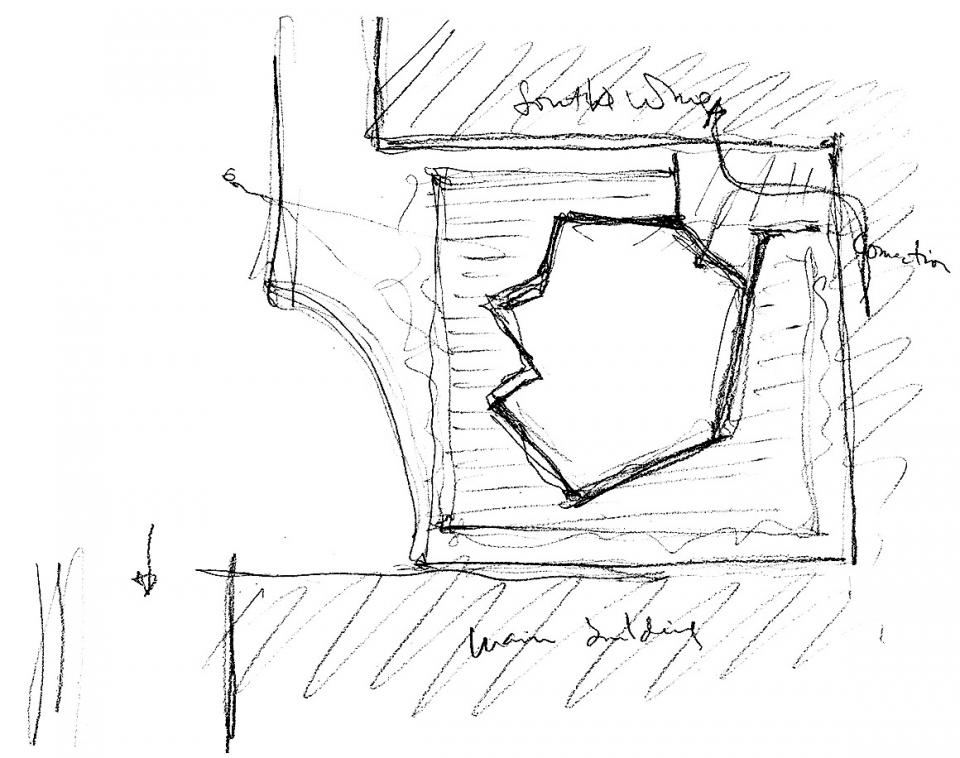

▼设计草图，design sketch

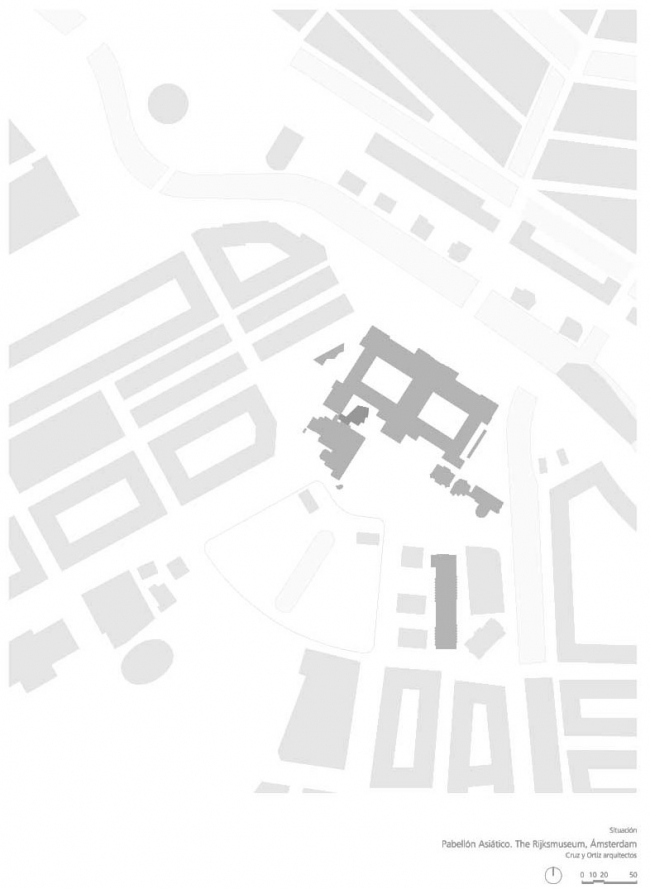

▼总平面图，site plan

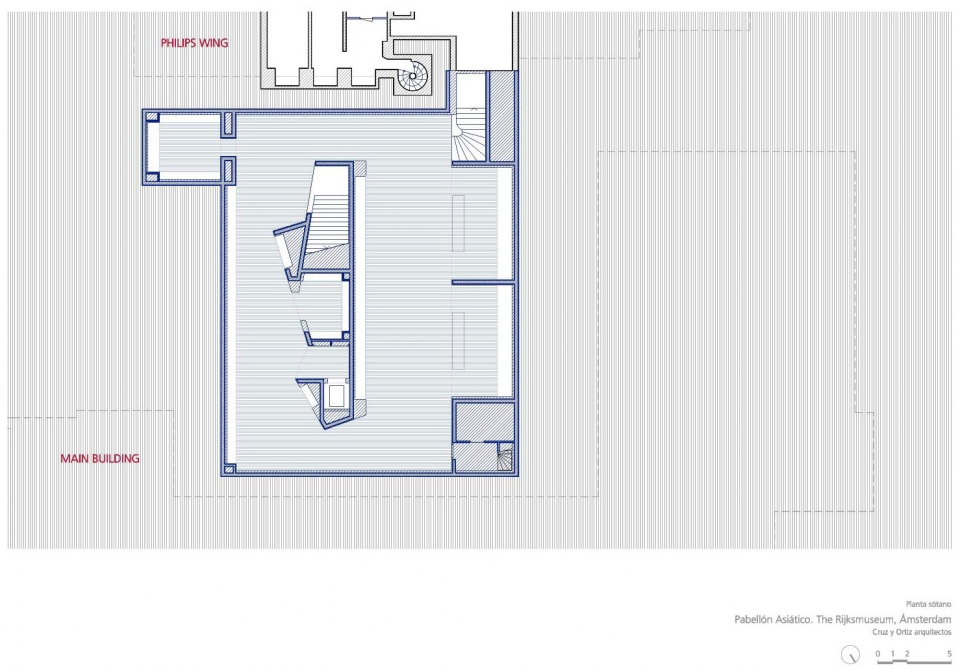

▼地下层平面图，underground floor plan

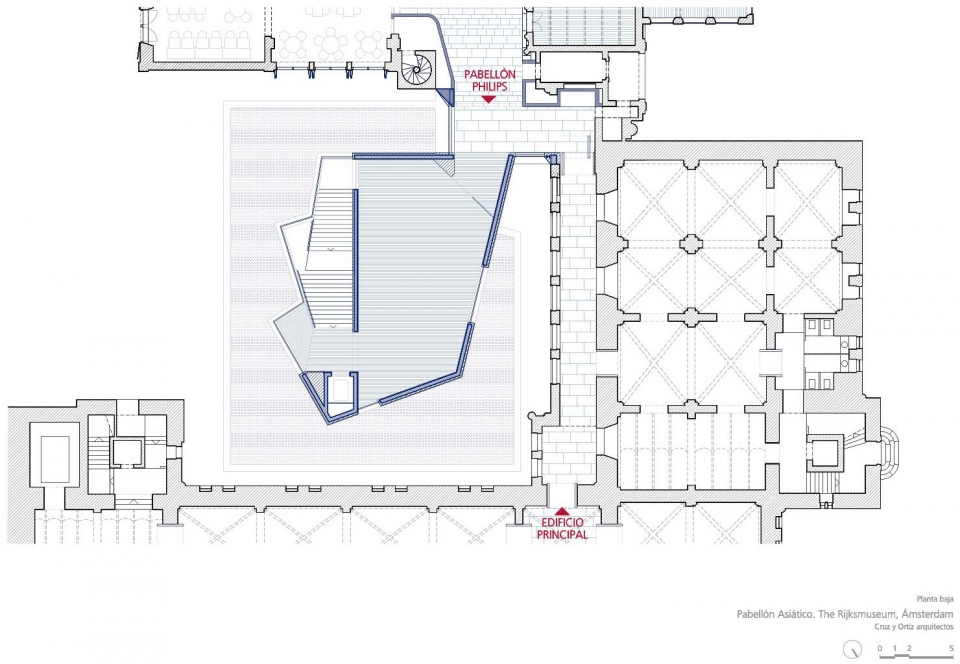

▼地面层平面图，ground floor plan

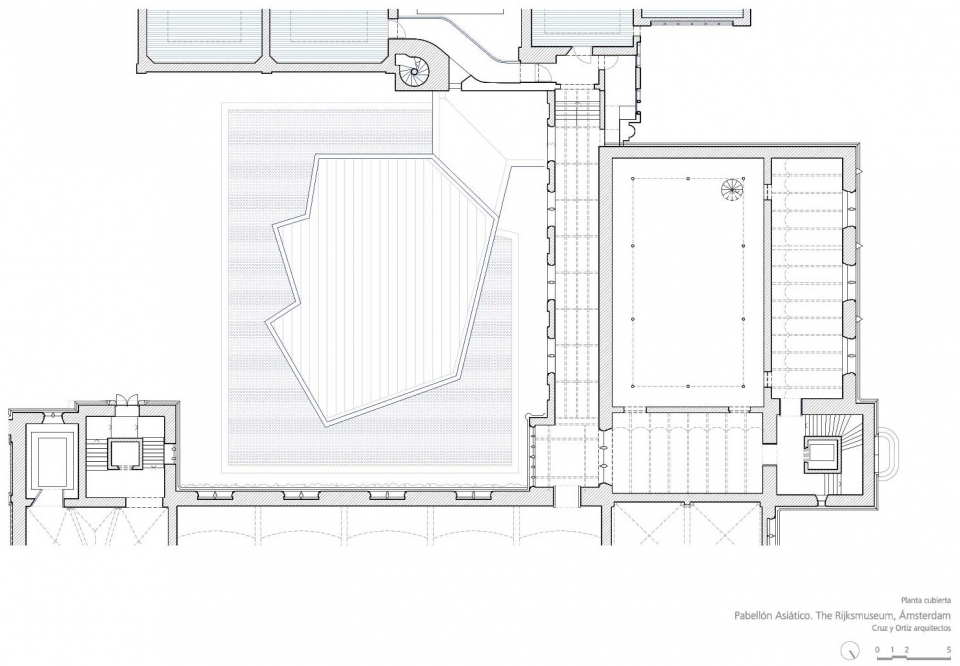

▼屋顶平面图，roof plan

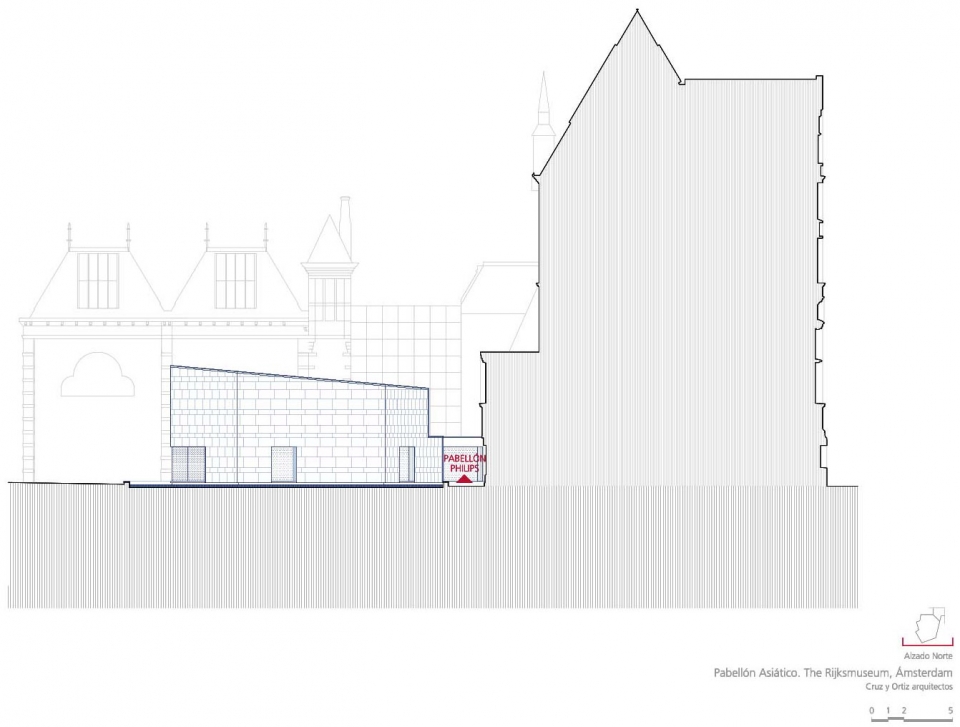

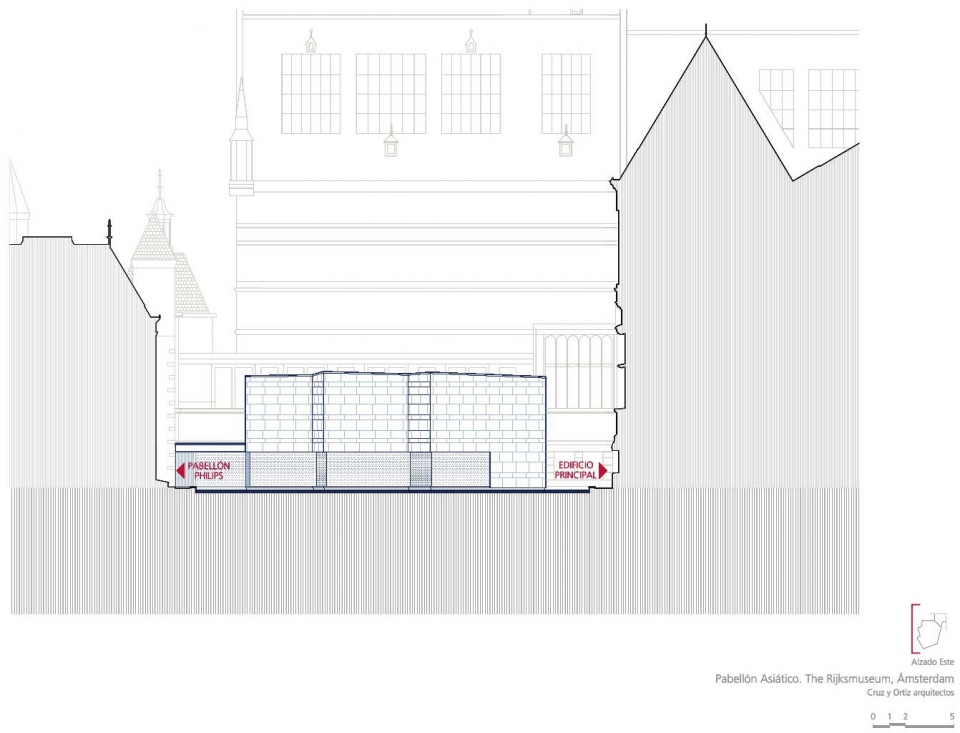

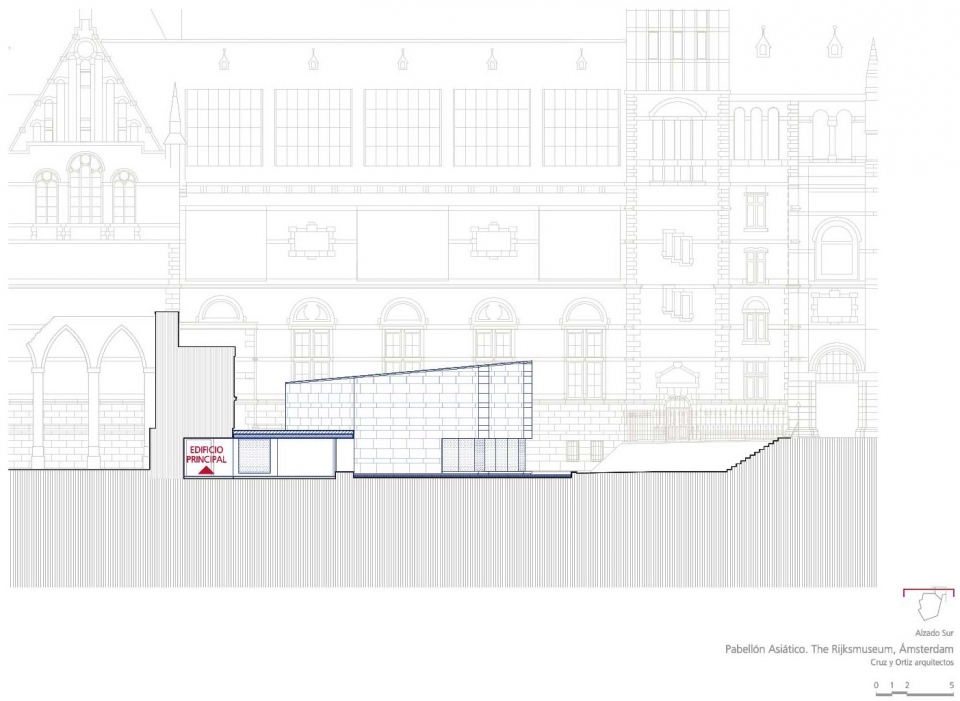

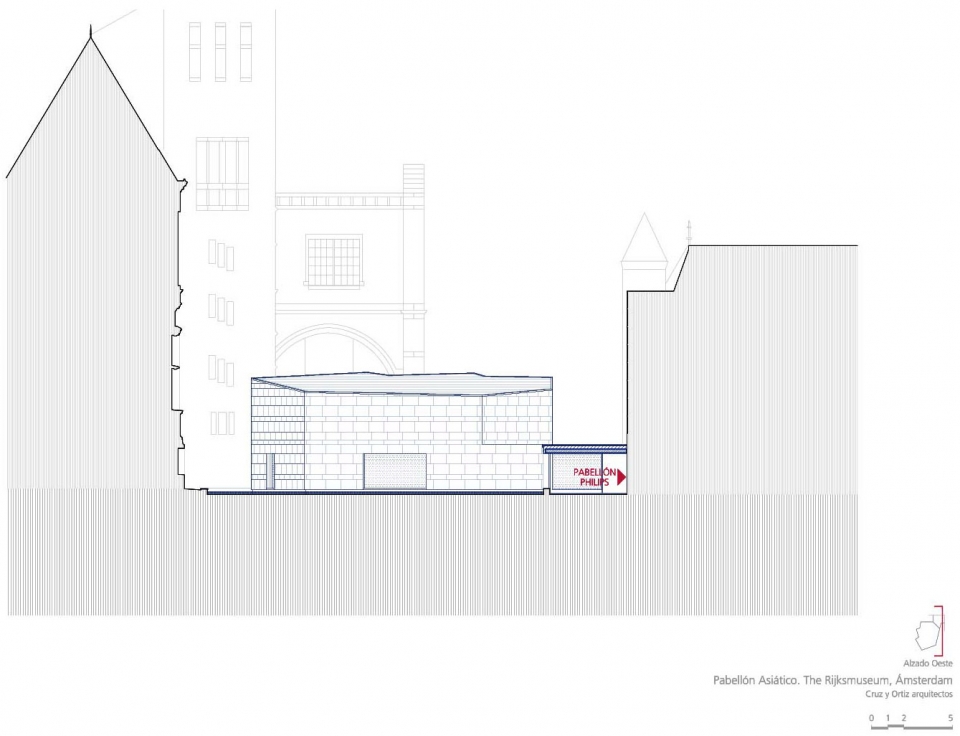

▼立面图，elevations

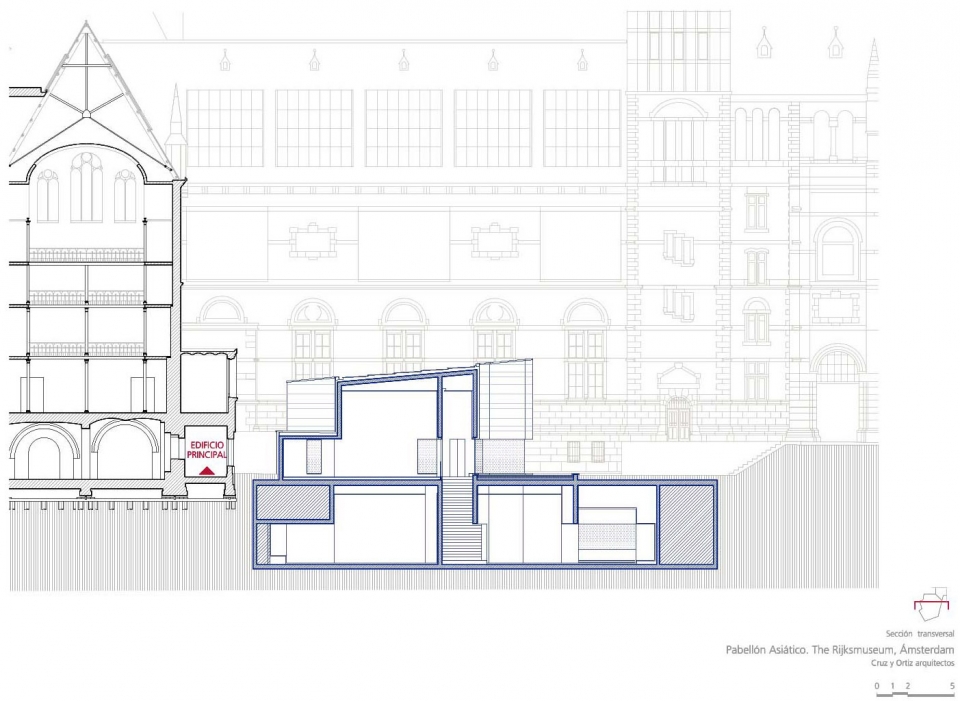

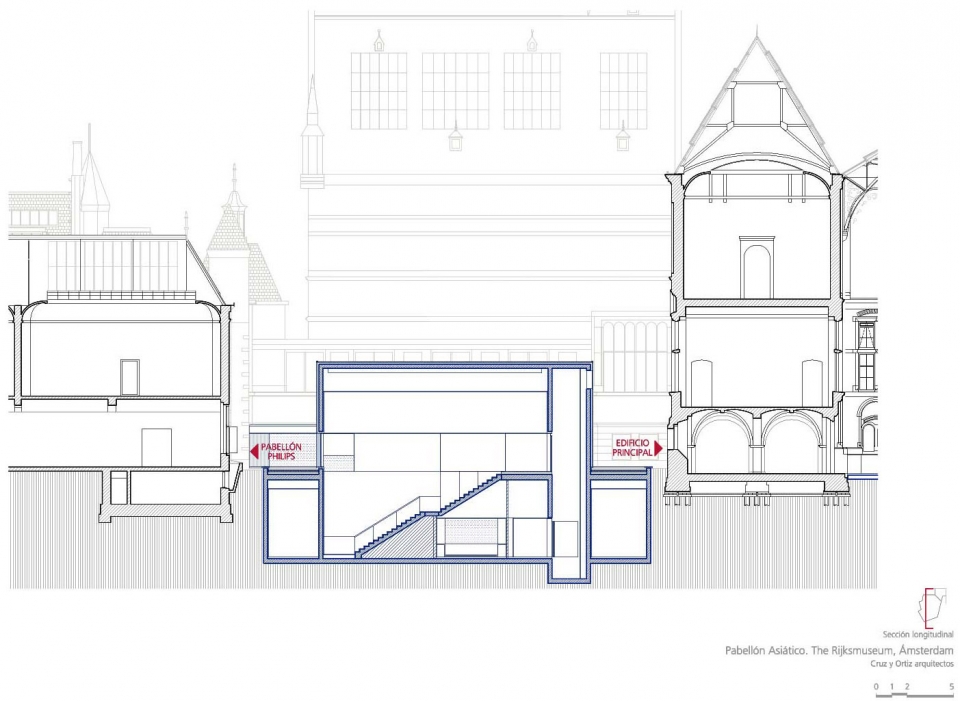

▼剖面图，sections

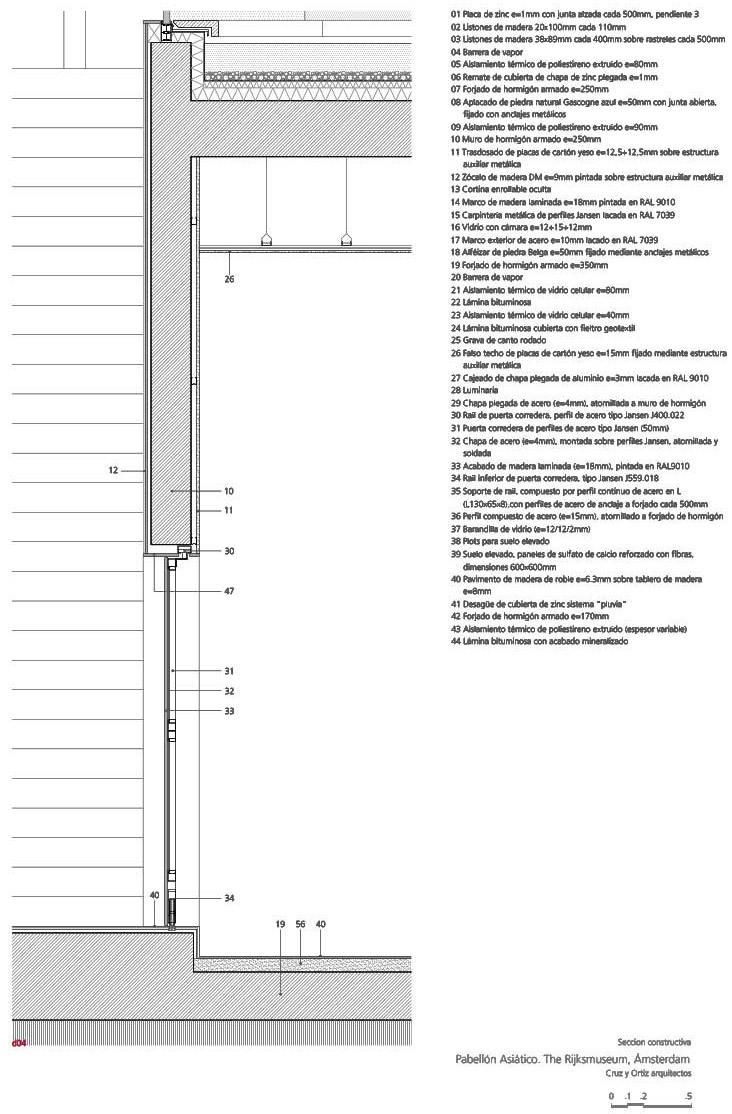

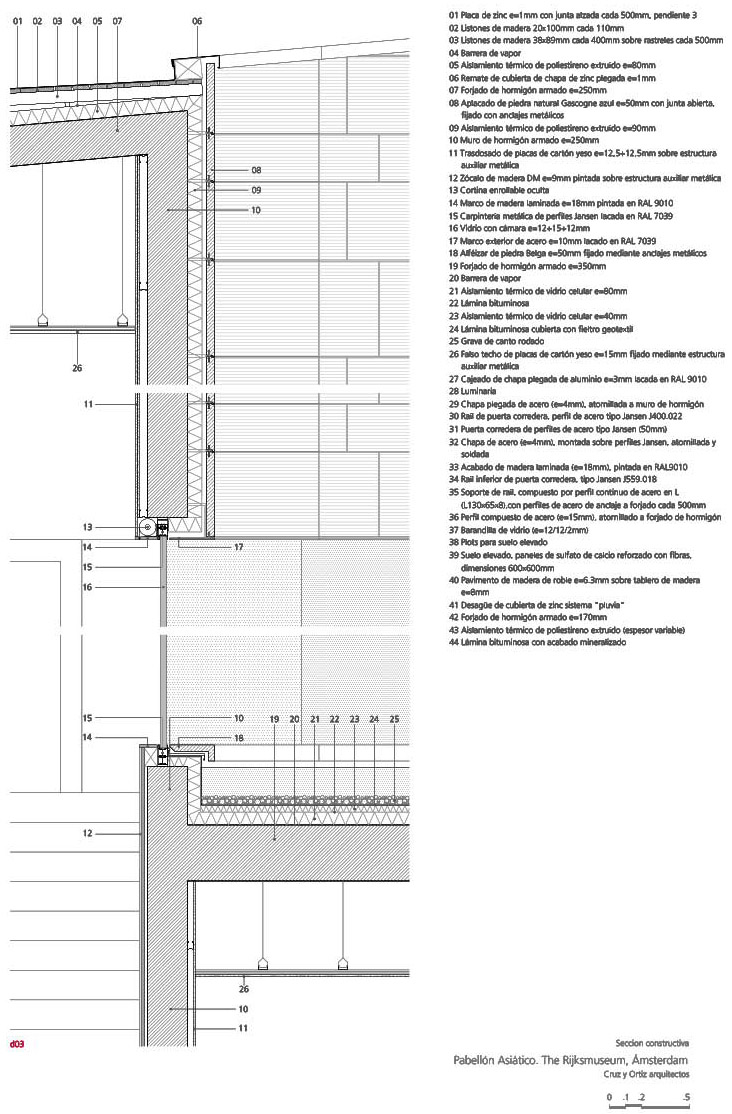

▼细部图纸，details

Client: Rijksmuseum
Address: Museumstraat, 1. 1071 Amsterdam, Netherlands
Typology: Museums & Galleries
Status: Built
Collaborators:Alicia López, Iko Mennenga, Jan Kolle, Joaquín Pérez-Goicoechea, José Luís Mayén, Marije Ter Steege, Marta Pelegrín, Muriel Huisman, Óscar García de la Cámara, Rocío Peinado, Sonia Gutiérrez, Thomas Offermans, Tirma Reventós
Architect local: ADP architecten
Lightning design: Arup
Landscape: Copijn
Model: Queipo Maquetas
Photographer: Arie de Leeuw, Cruz y Ortiz Arquitectos, Eran Oppenheimer, Erik Smits, Iwan Baan, Jannes Linders, Jose Manuel Ballester, Luuk Kramer, Pedro Pegenaute
Structural engineering: Arcadis
Climate engineering: DGMR, OVE Arup
Survey: Cruz y Ortiz Arquitectos
Work control: Rijksvastgoedbediÿf
Construction companies: BAM, JP van Eesteren
