非常感谢Beriot, Bernardini Arquitectos将以下内容授权gooood发行。更多关于他们：Beriot, Bernardini Arquitectos on gooood. Appreciation towards Beriot, Bernardini Arquitectos for providing the following description:

马德里一个1775年的老建筑被改建成为2400平米的集合公寓。每个公寓单元的核心是厨房，餐厅，起居室。每个单元的户型各不相同，但卧室多
安置在旁边的小房间或者核心空间的阶层中。紧凑又连续，低造价同时在保证生活质量的前提下最大化利用空间。

Rehabilitación de edificio para 16 viviendas y 4 locales comerciales.

Renovation of a 2400m2 building dating from1775 in Madrid’s historical quarter.

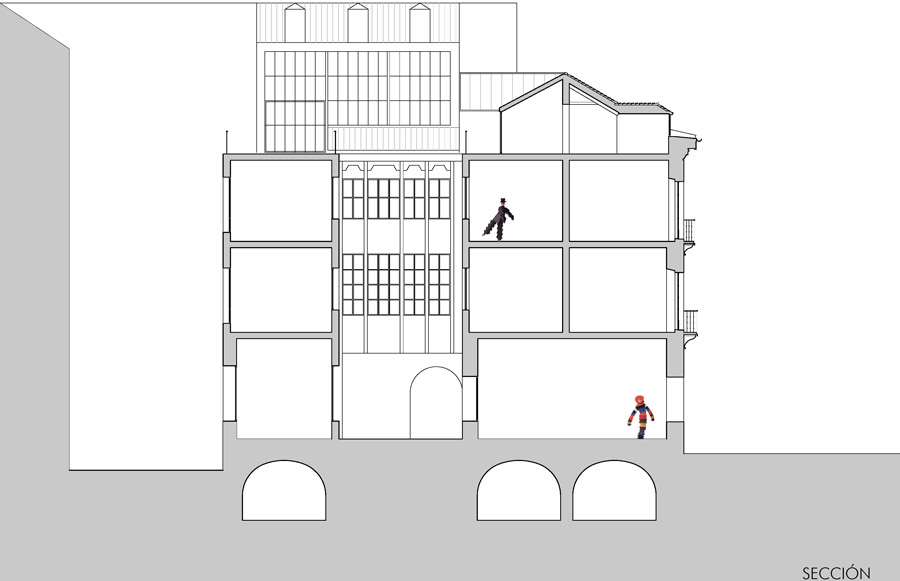

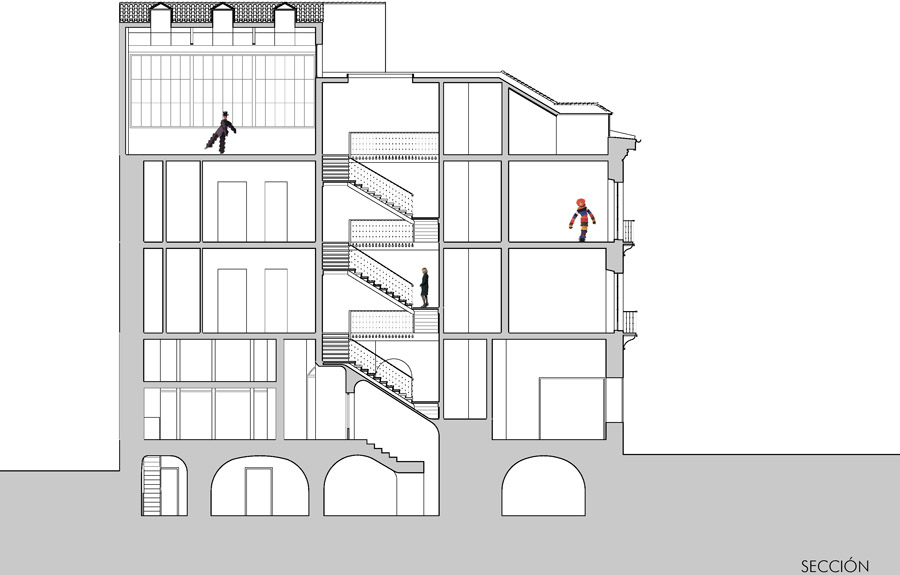

The main functional decision was the construction of a second staircase nucleus, which permitted an optimal arrangement of apartments

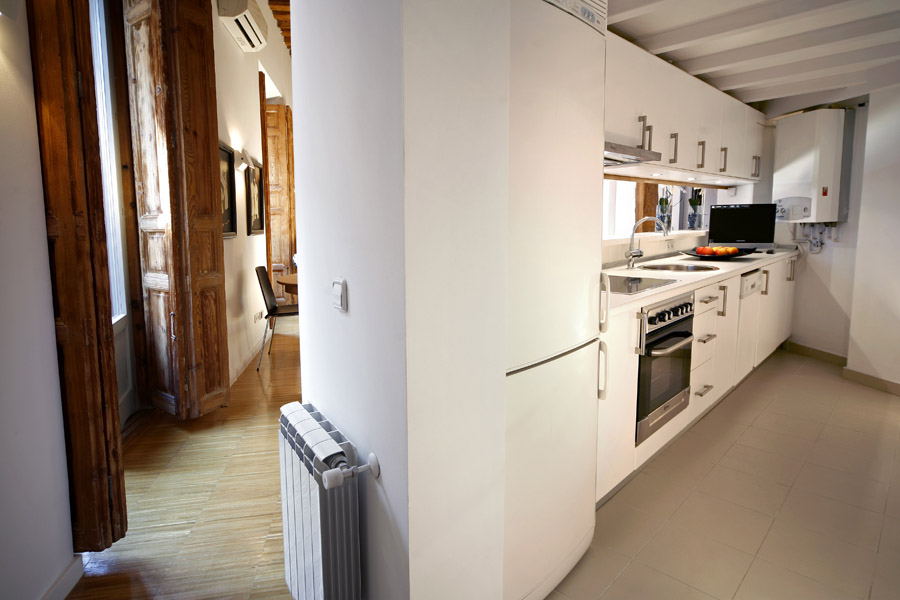

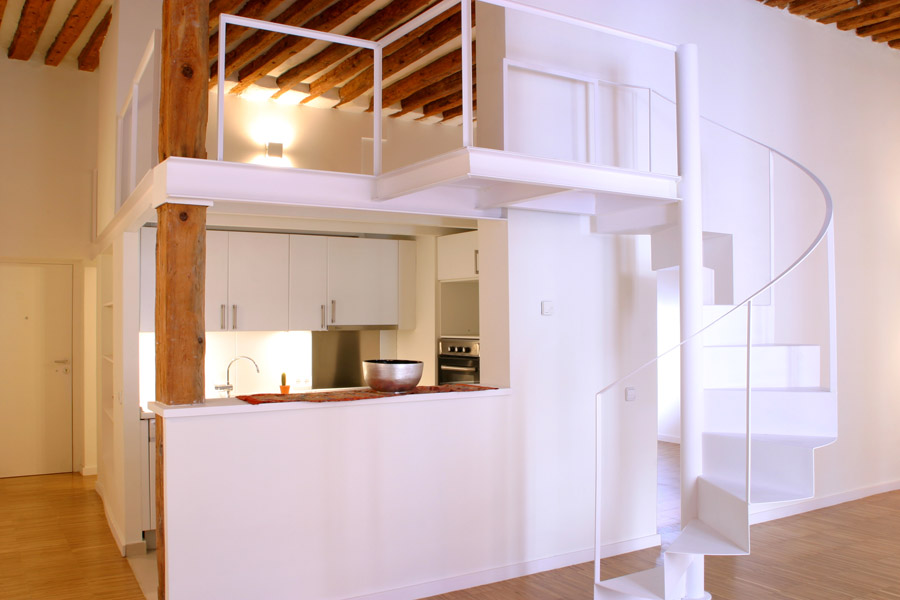

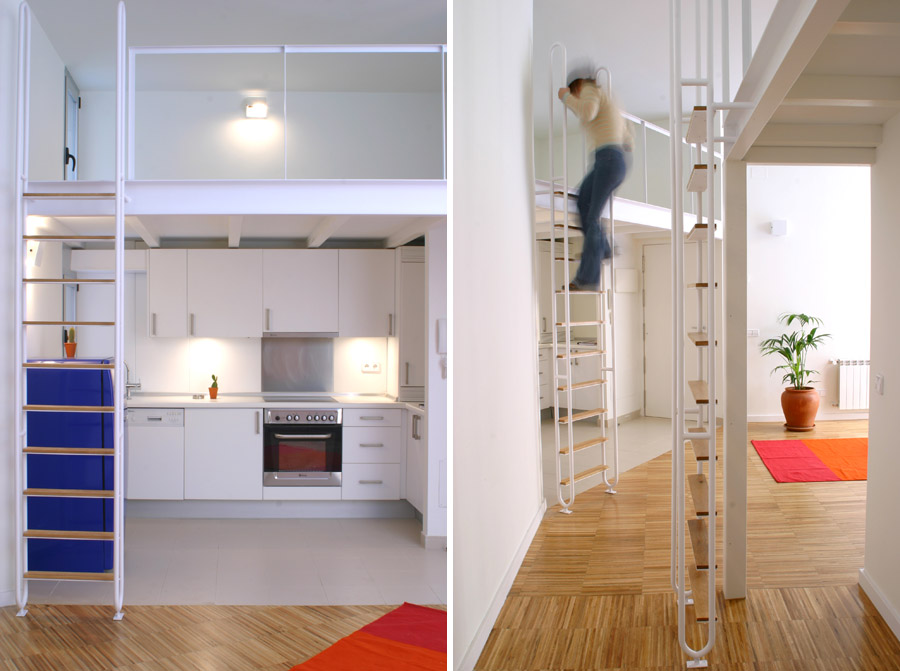

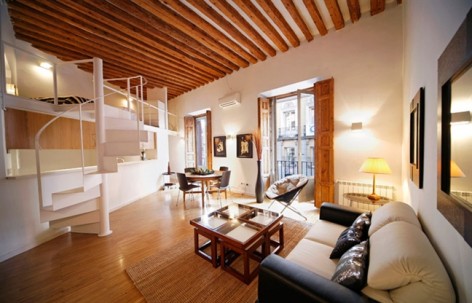

adjusted to the minimum size allowed by planning regulations. The apartments themselves are organized around a service nucleus (kitchen,
bathroom and storage) which simultaneously separates and relates the served spaces, and around which the house evolves as an open,
continuous space.

In the attic, a continuous roof section was suppressed to create terraces, relieving the interior character usual in these spaces.

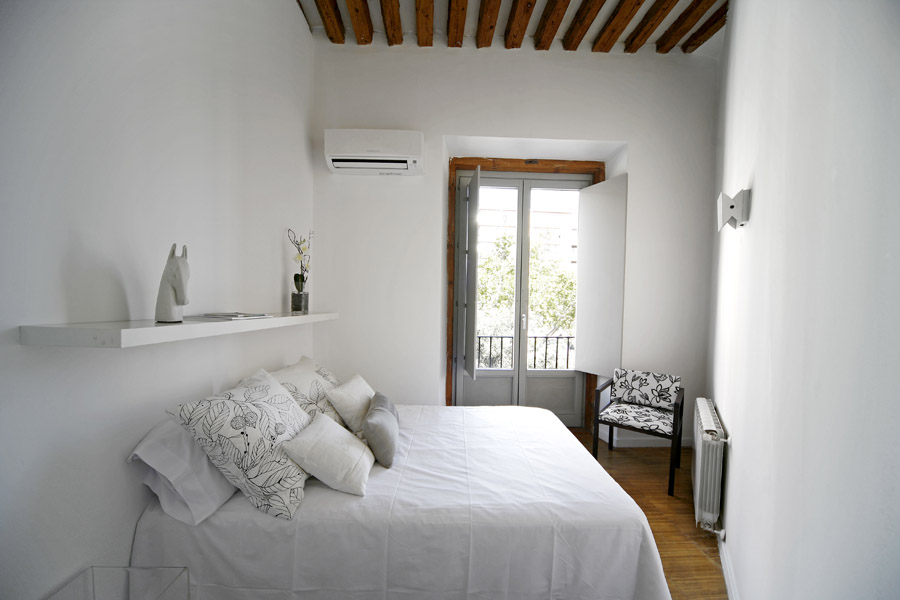

The floor structure, in good state but insufficient in resistance, was reinforced with a 5cm- thick light-concrete slab connected to the beams,

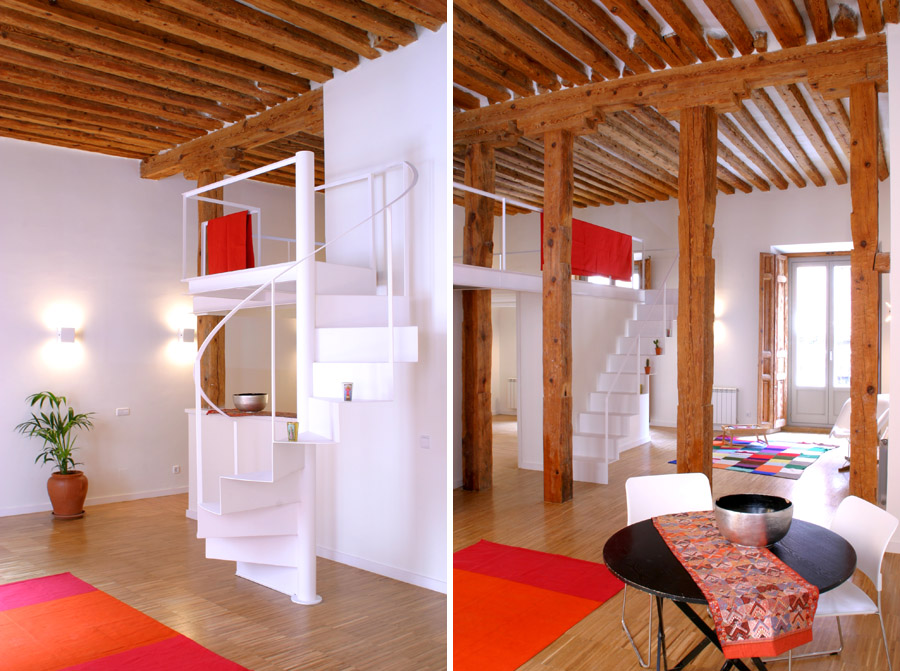

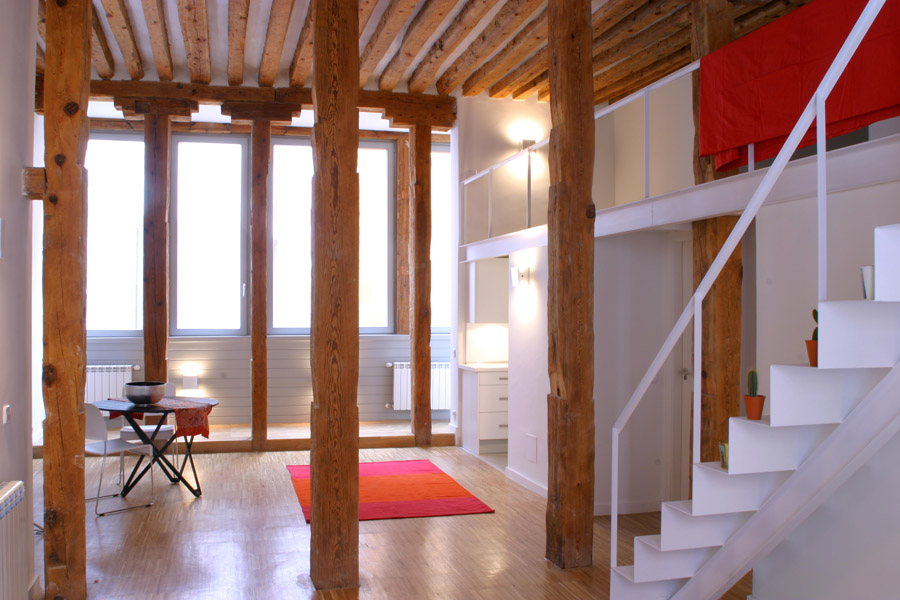

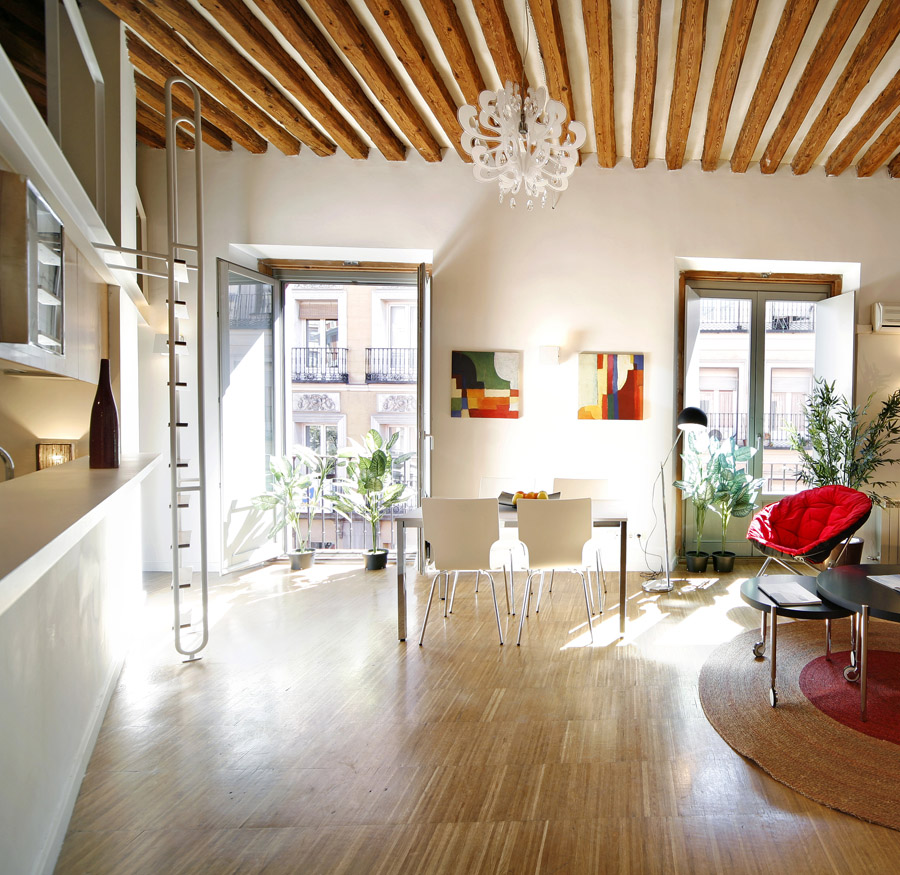

offering an inexpensive and effective solution which allowed to keep the beams visible and gain ceiling height.

Arquitectos: Beriot, Bernardini Arquitectos.
Fotografias: Yen Chen / Promotora Gavir

MORE: Beriot, Bernardini Arquitectos，更多关于他们：Beriot, Bernardini Arquitectos on gooood.

Project Specs

Beriot Bernardini Arquitectos
