非常感谢 氹边建筑工作室（联系方式：liuyang-atelier@qq.com）予gooood分享以下内容。更多关于他们：Atelier Waterside on gooood
Appreciations towards Atelier Waterside (contact: liuyang-atelier@qq.com) for providing the following description:

在人类的居住历史中，建筑形式往往随气候而演变。相较于气候寒冷干燥的地区重视厚实的墙体；气候高温多雨的亚洲则更在意屋顶在空间中的意义。倾斜的屋顶不仅能够防雨遮阳，更在无形中界定和组织着人们的生活空间。

In the history of human habitation, architectural forms have often evolved with climate. Compared to regions with cold and dry climates, emphasis is placed on thick walls; Asia, with its hot and rainy climate, is more concerned about the significance of roofs in space. A sloping roof not only provides rain and shade, but also invisibly defines and organizes people’s living space.

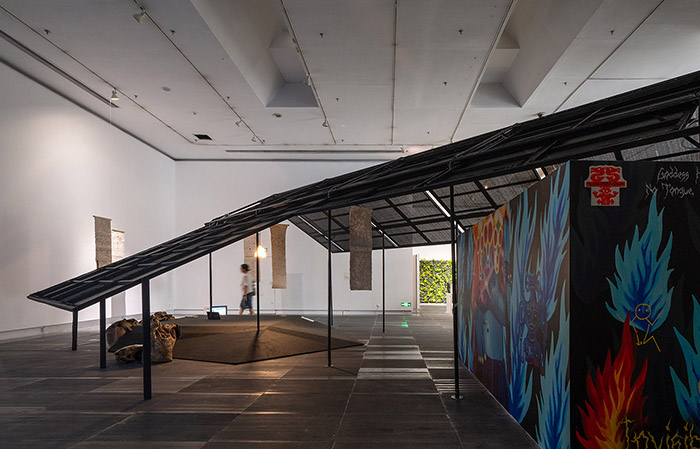

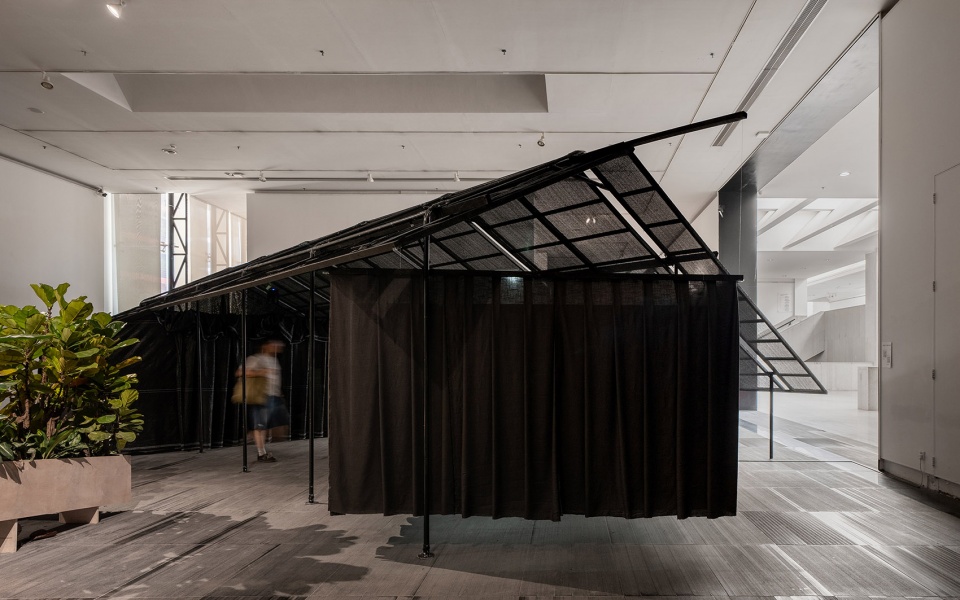

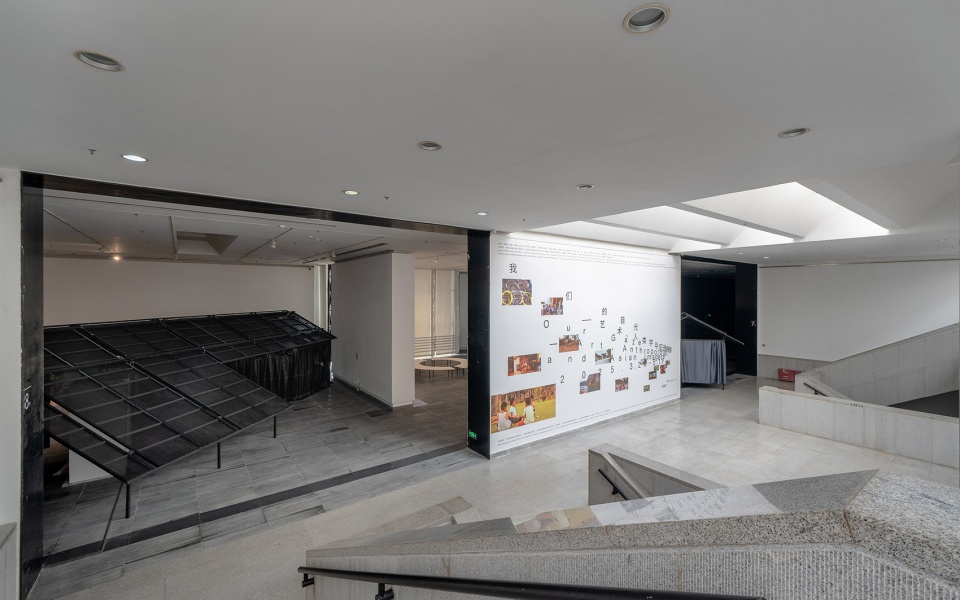

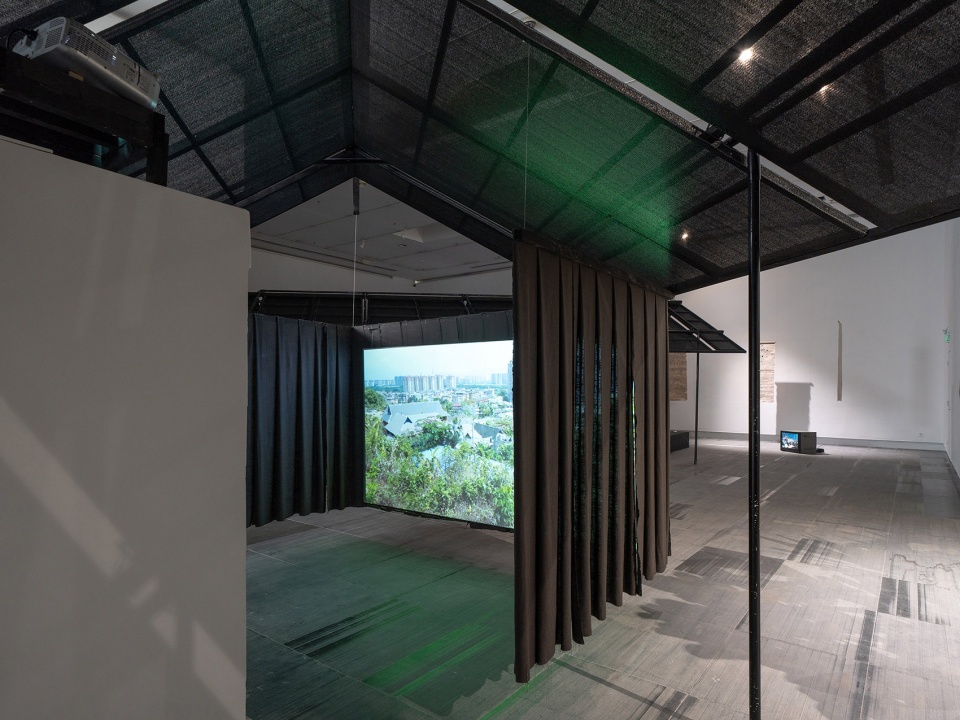

▼展览现场，exhibition ©广州美术学院美术馆

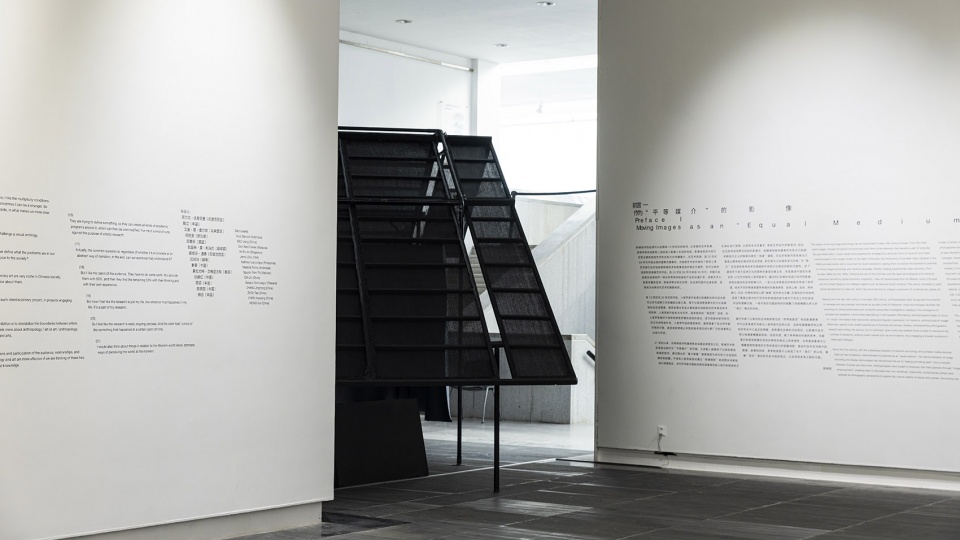

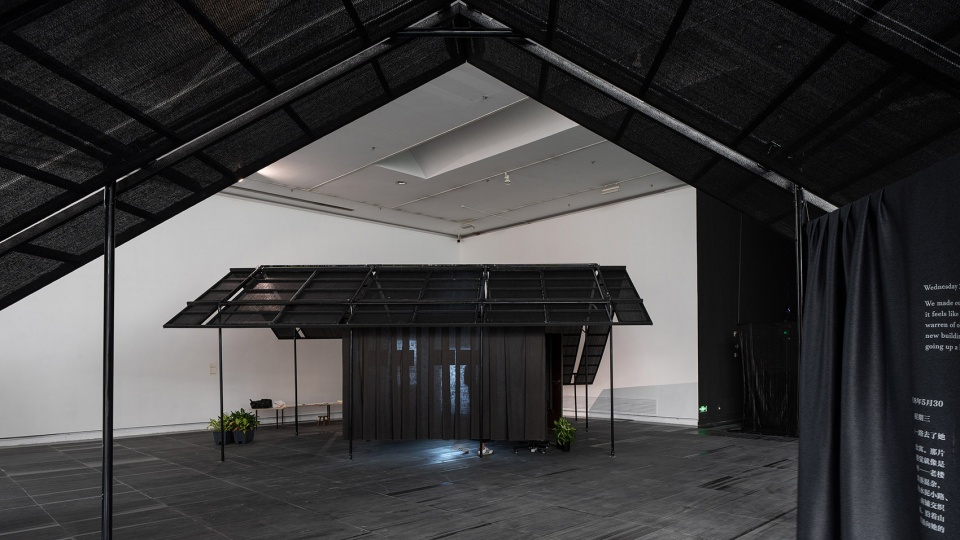

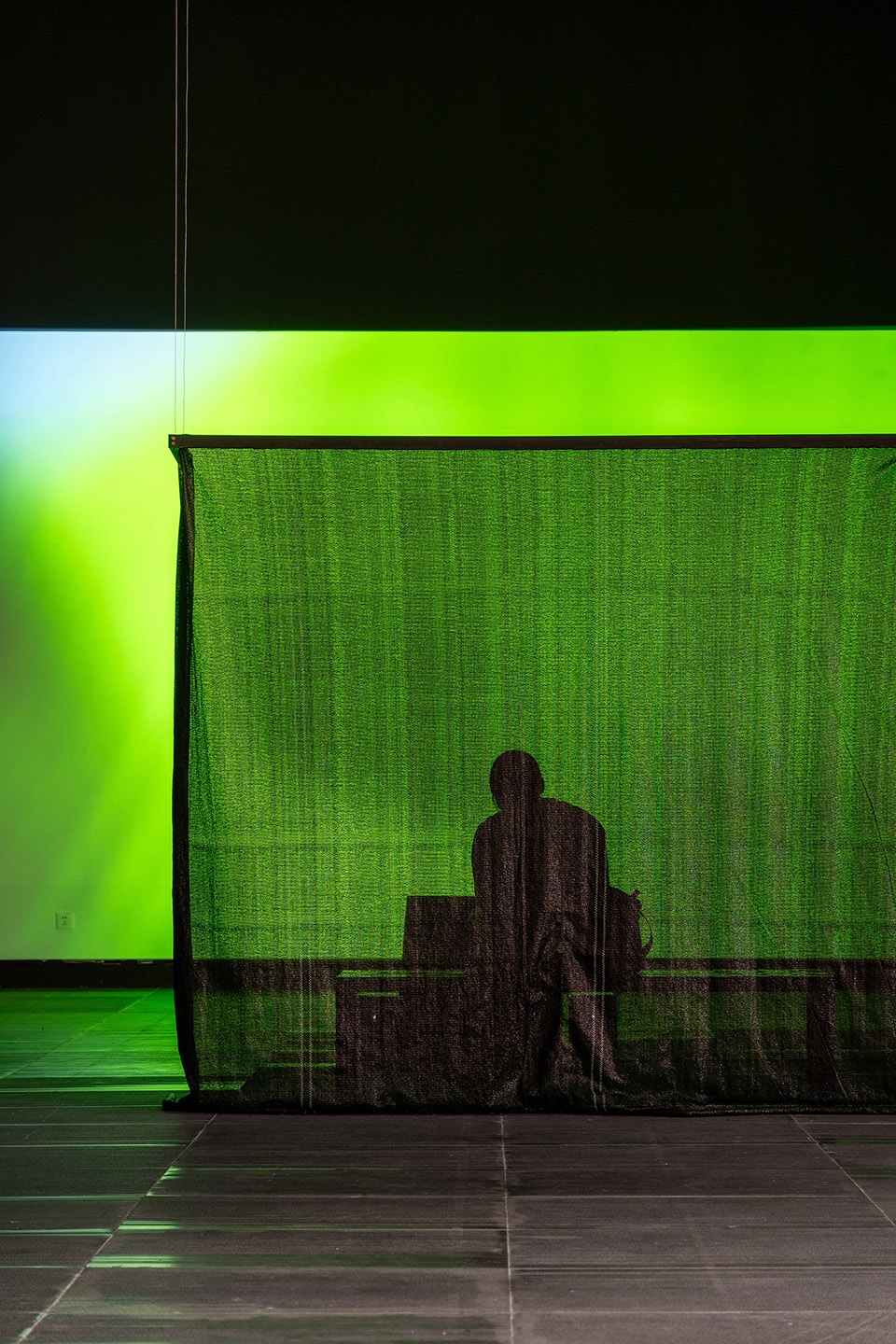

▼展览现场，exhibition ©张超

本次展览借用传统坡屋顶的建筑语汇，将其转化为空间展陈的语言。倾斜的屋顶可以优化挑高展厅中的自然光，为影像作品提供合适的展示条件；更通过布局的角度扭转和屋顶的形态变化，意图再现尺度多样、流动多变的亚洲现场。空间设计试图让艺术家与人类学家的田野工作在此中交汇，组成影像的“聚落”，引发观众进行跨文化、跨领域的观看、理解与对话。

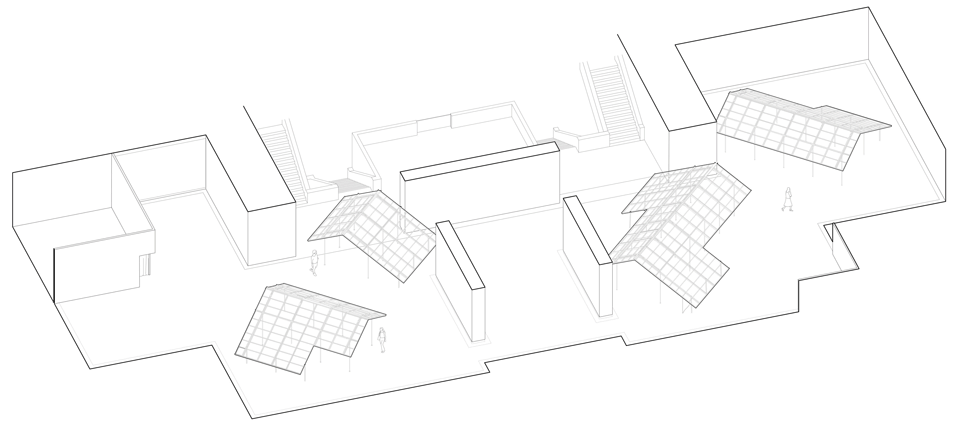

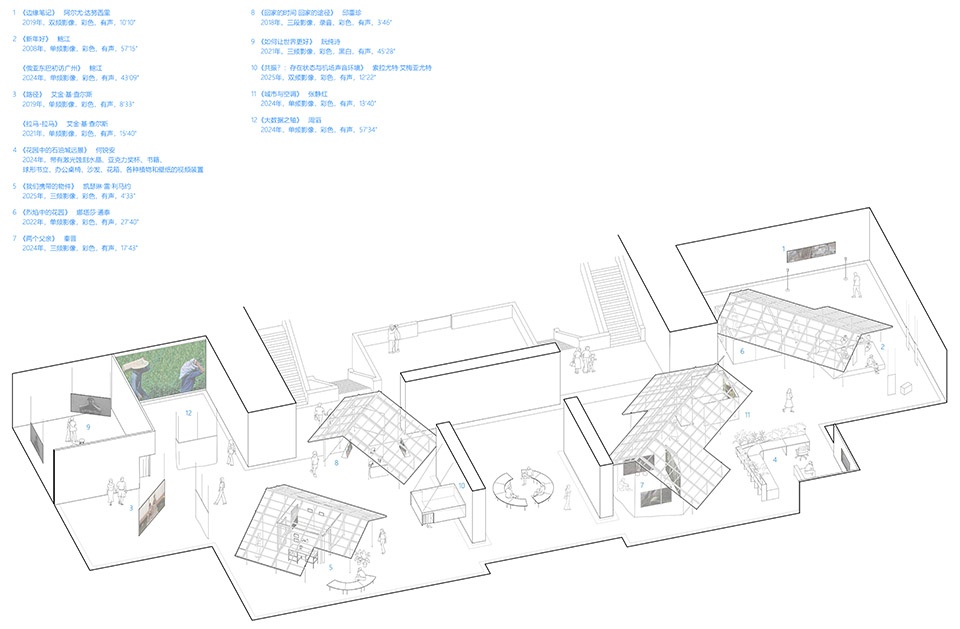

▼展览布置轴测图，exhibition axonometric ©氹边建筑

This exhibition borrows the architectural vocabulary of traditional sloping roofs and transforms it into the language of spatial exhibition. The sloping roof can optimize the natural light in the elevated exhibition hall, providing suitable display conditions for visual works; By twisting the layout angles and changing the shape of the roof, the intention is to recreate the diverse and fluid Asian scene. Space design attempts to allow the fieldwork of artists and anthropologists to intersect here, forming a “settlement” of imagery that triggers audiences to engage in cross-cultural and cross disciplinary viewing, understanding, and dialogue.

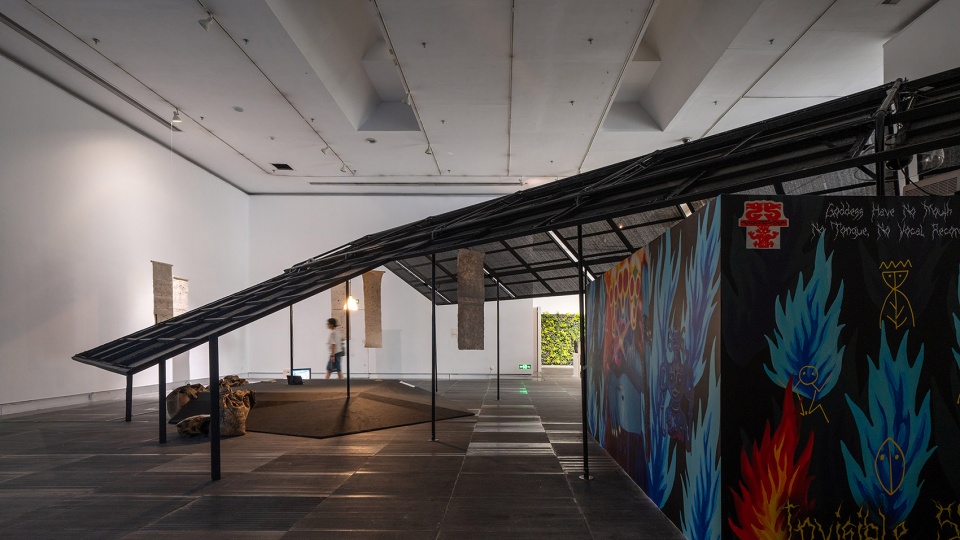

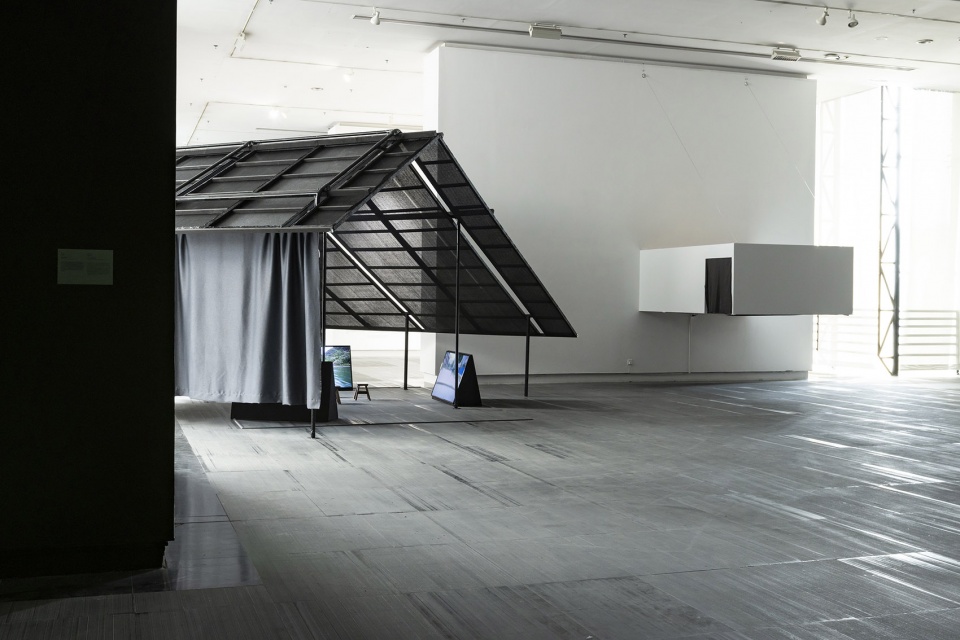

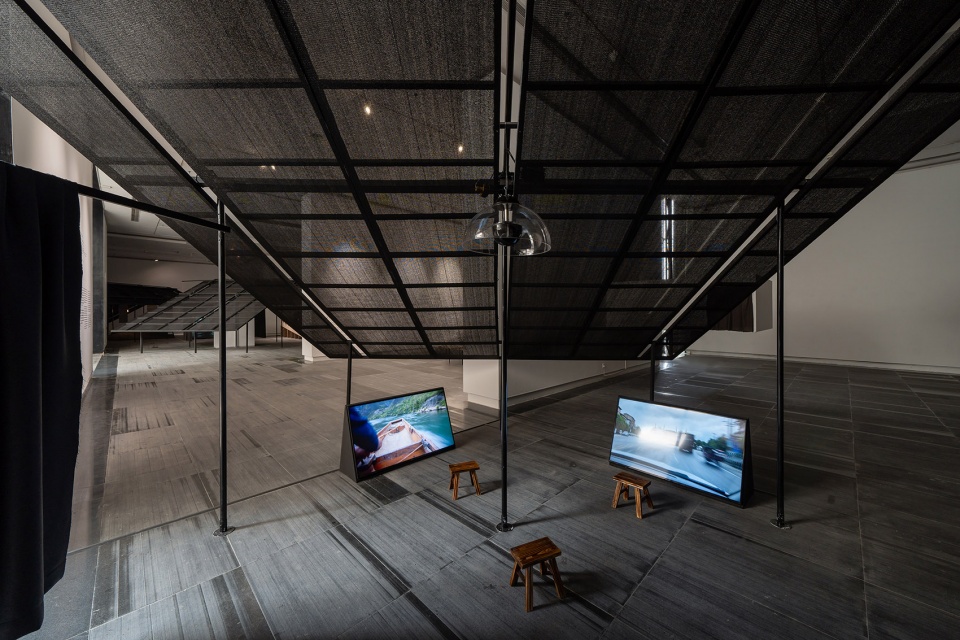

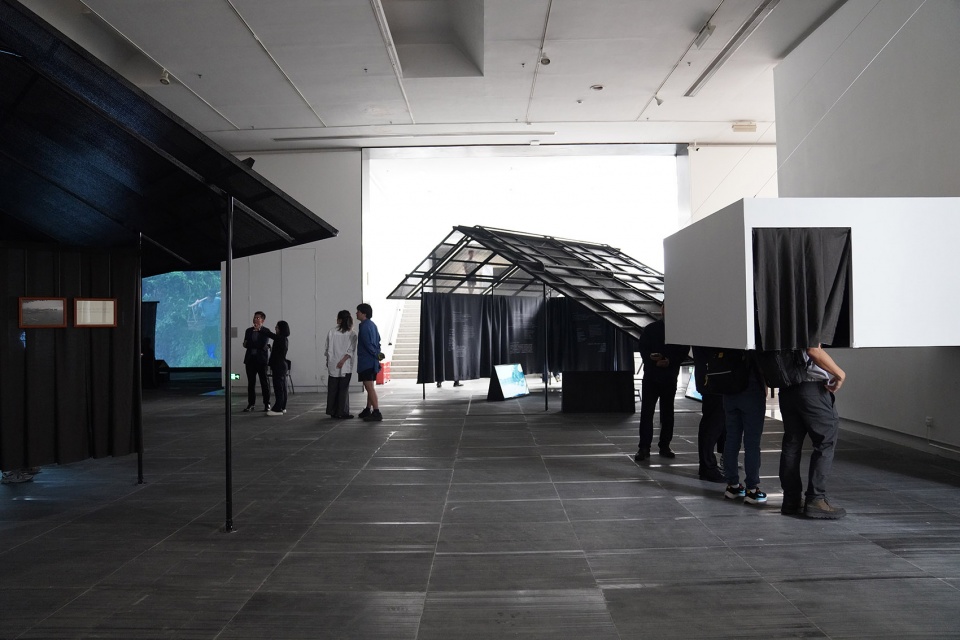

▼展览现场，exhibition ©张超

在建造方面，展览采用了工业化构件作为结构主体，屋顶使用轻质的松木方和农用遮阳网，实现了展览搭建的轻量化、预制化。并且，其中主要构件可拆卸重复使用，整个坡顶的结构后续亦可转为户外展亭继续使用。

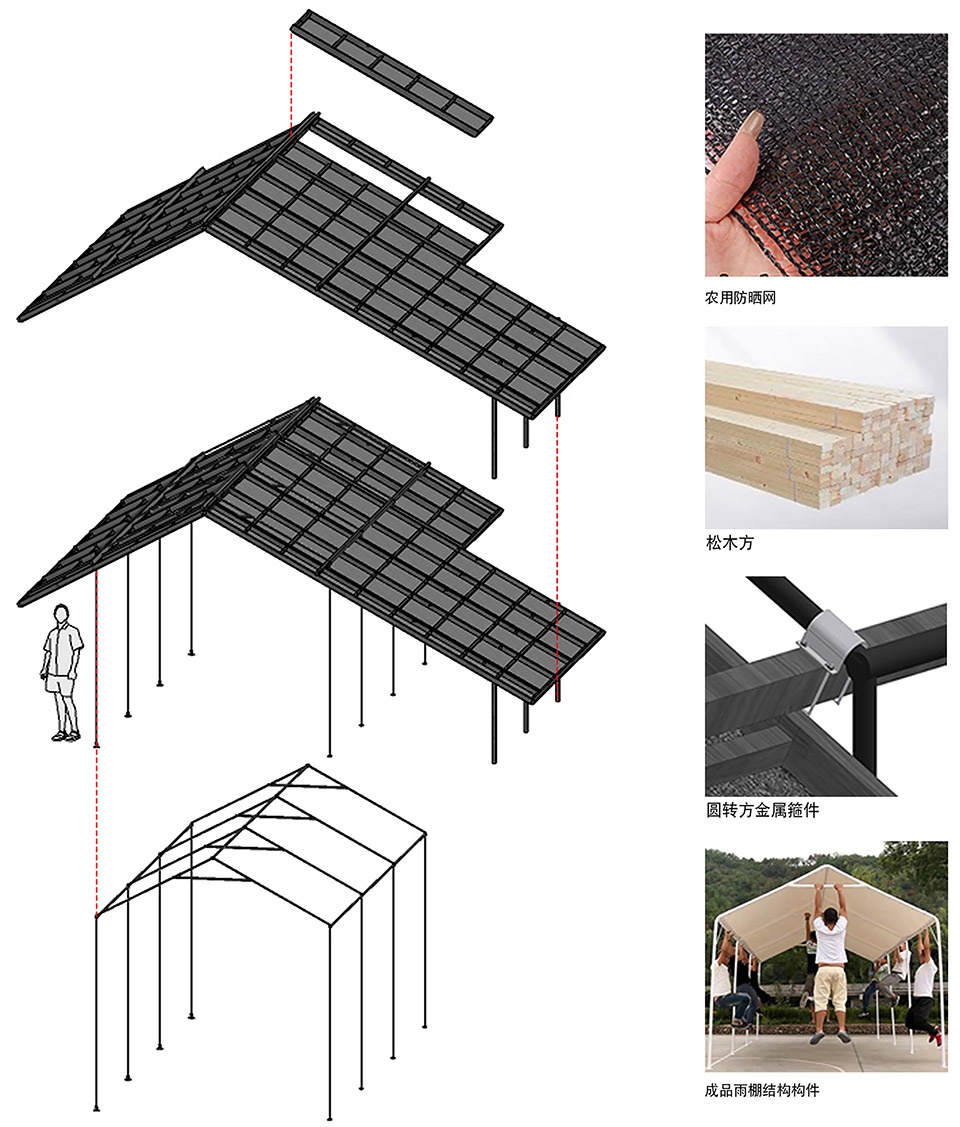

▼材料轴测图，material axonometric ©氹边建筑

In terms of construction, the exhibition adopts industrialized components as the main structural body, and the roof uses lightweight pine wood and agricultural shading nets, achieving lightweight and prefabricated exhibition construction. Moreover, the main components can be disassembled and reused, and the entire structure at the top of the slope can also be converted into an outdoor exhibition pavilion for continued use.

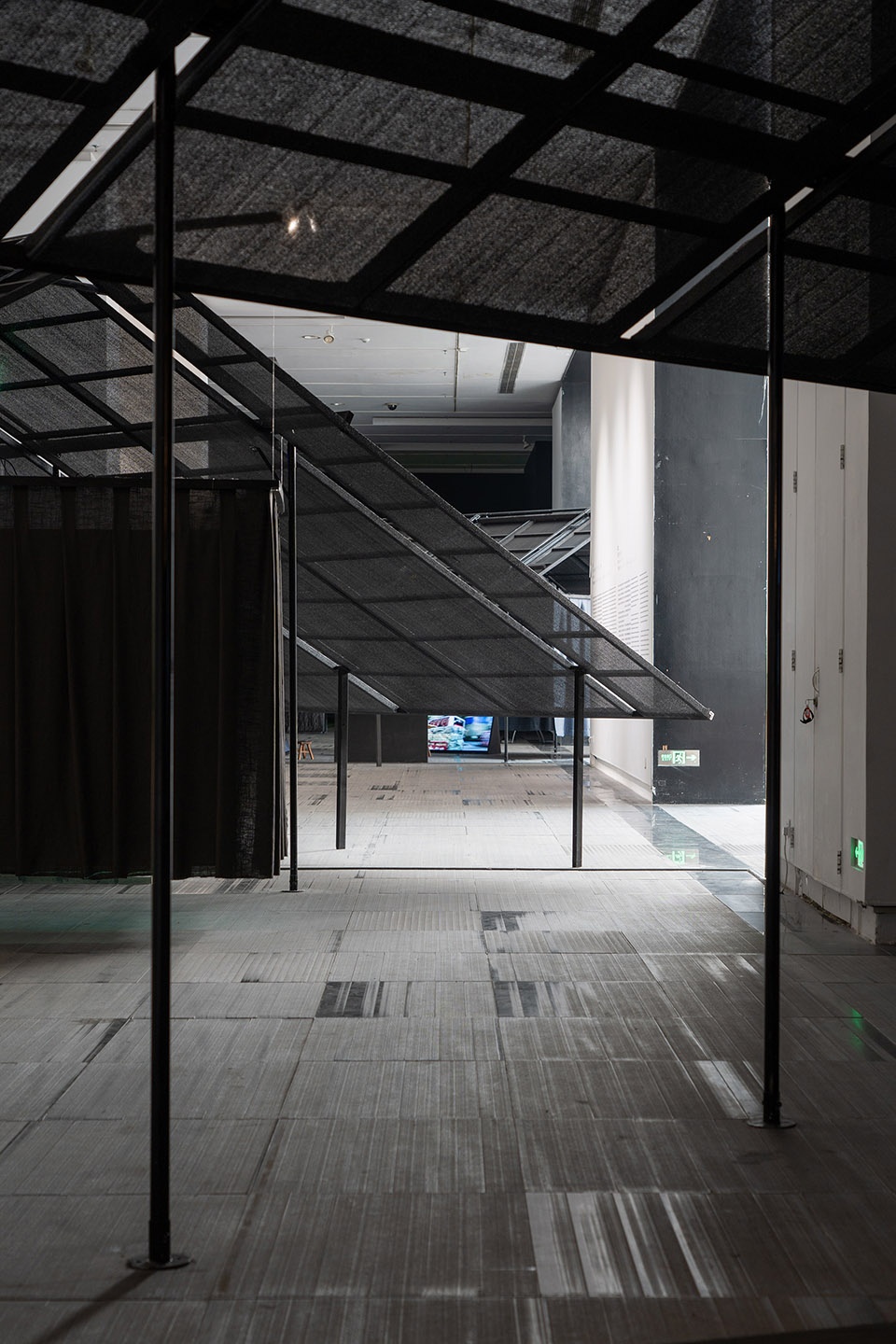

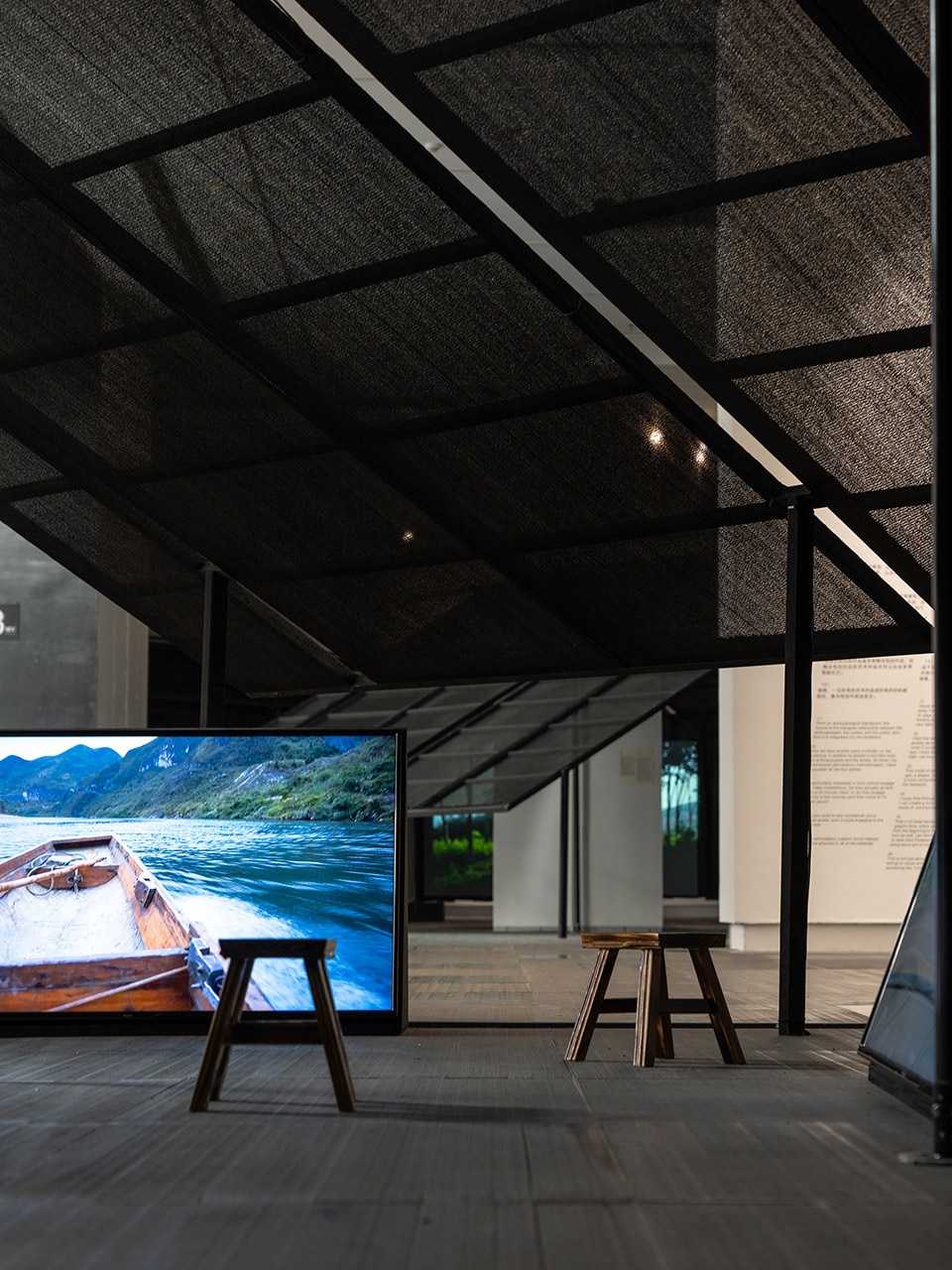

▼屋顶构造，roof structure ©张超

▼屋顶使用轻质的松木方和农用遮阳网，
the roof uses lightweight pine wood and agricultural shading nets ©张超

▼展览布置轴测图，exhibition axonometric ©氹边建筑

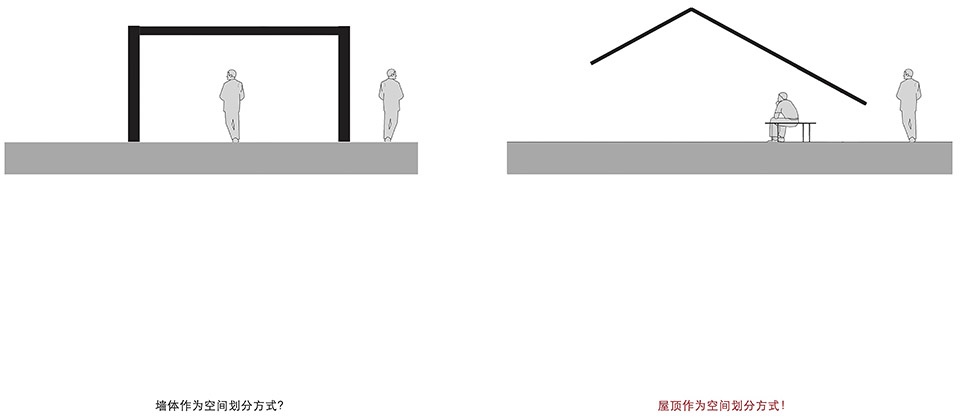

▼墙体形成的空间与屋顶形成的空间对比，wall enclosed space and roof form space ©氹边建筑工作室

项目名称：屋顶聚落/我们的目光：艺术、人类学与亚洲映像空间展陈设计
项目时间：2025年
项目所在地：广州
项目类型：空间展陈设计
面积：860㎡
空间展陈设计：氹边建筑工作室
建筑师：刘洋、邓豪威
材料: 成品雨棚型材、松木方、农用遮阳网
摄影：张超
展览名称：第二届泛东南亚三年展 #1 | 我们的目光：艺术、人类学与亚洲映像
展览时间：2025年3月20-5月11日
展览地点：广州美术学院美术馆（大学城美术馆）7、8号厅
策展人：陈晓阳、熊迅
策展助理：赵凡、朱千悦
视觉设计：TEN BUTTONS
展览施工：广州壹叁展览服务有限公司
*部分图片致谢广州美术学院美术馆
特别鸣谢董书音、林颖群对本项目的支持！

Project name: A settlement with sloping roofs\ Space Exhibition Design Our Gaze-Art, Anthropology, and Asian Imagery
Year: 2025
Address: Guangzhou
Project: Space Exhibition Design
Area: 860㎡
Design team: Atelier Waterside
Architects: LIU Yang, DENG Haowei
Materials: Finished canopy profiles, pine wood square, agricultural sunshade net
Exhibition： The Seconed Trans-Southeast Asia Trennial #1 Our Gaze-Art, Anthropology, and Asian Imagery
Duration: 20th March 2025 -11th May 2025
Venue: Exhibition Hall 7 & Hall 8, Art Museum of Guangzhou Academy of Fine Arts, University Town
Curators: CHEN Xiaoyang, XIONG Xun
Curatorial Assistants: ZHAO Fan, ZHU Qianyue
Visual Design: TEN BUTTONS
Construction: Guangzhou Yisan Exhibition Service Co., Ltd.
*Partial image thanks Art Museum of Guangzhou Academy of Fine Arts
Thank you to DONG Shuyin and LIN Yingqun for their support in this project!
