感谢 有余建筑（联系邮箱：yuzizhi@hotmail.com）予gooood分享以下内容。更多关于：Studio YO-U on gooood
Appreciation towards Studio YO-U (contact: yuzizhi@hotmail.com) for providing the following description:

概况
General

A Clinic是一个新创立的医疗美容品牌，旨在为患者提供私密的会员制预约服务。我们受邀设计其位于杭州钱江新城的首家医疗诊所。

A Clinic is a newly established aesthetic medical brand aimed at providing patients with a private, membership-based appointment service. We have been invited to design its first medical clinic located in Qianjiang, Hangzhou.

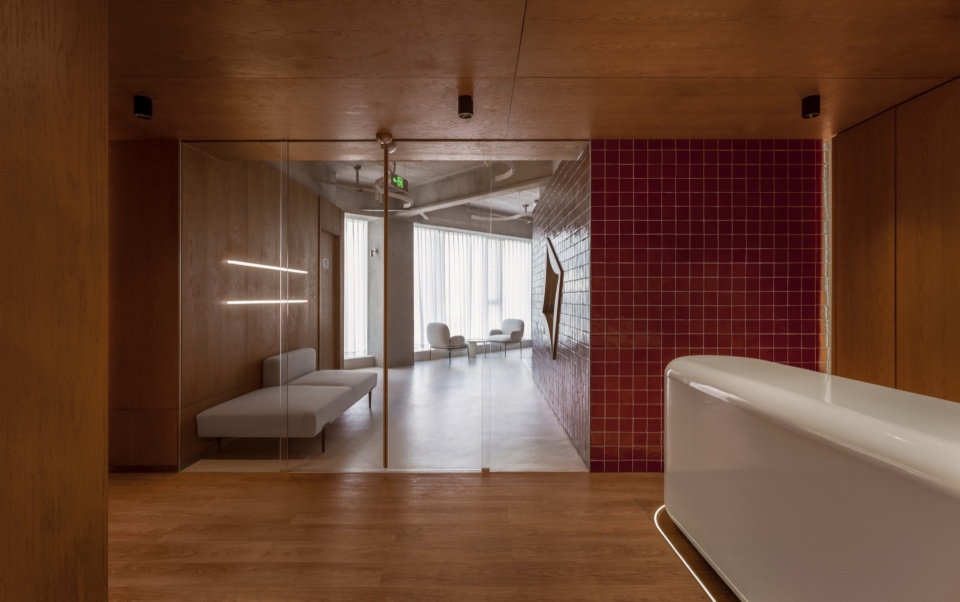

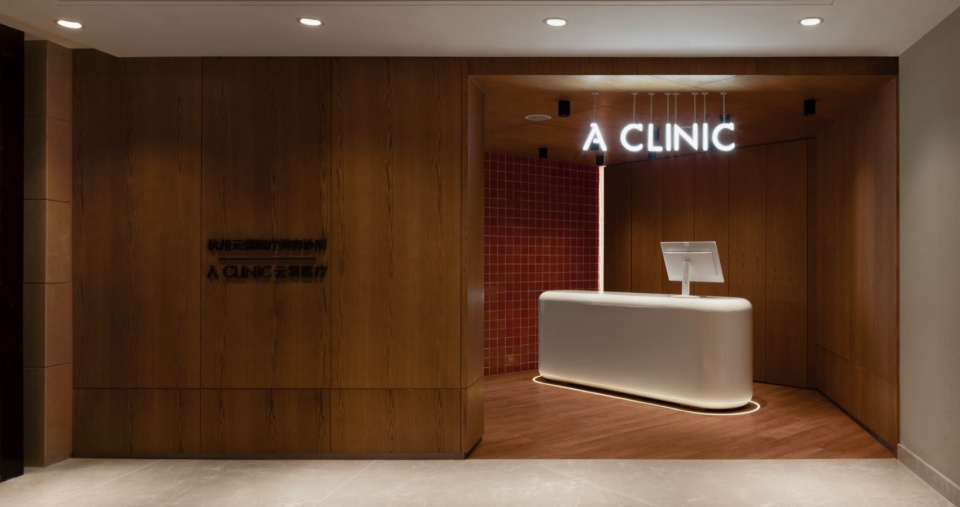

▼前台区域，reception area © half.half.photography

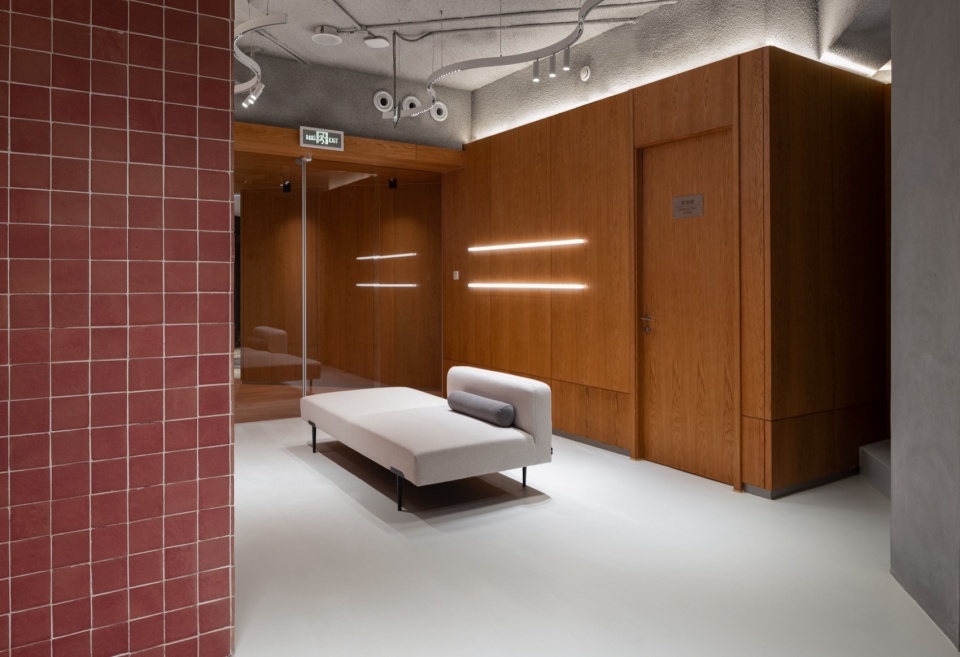

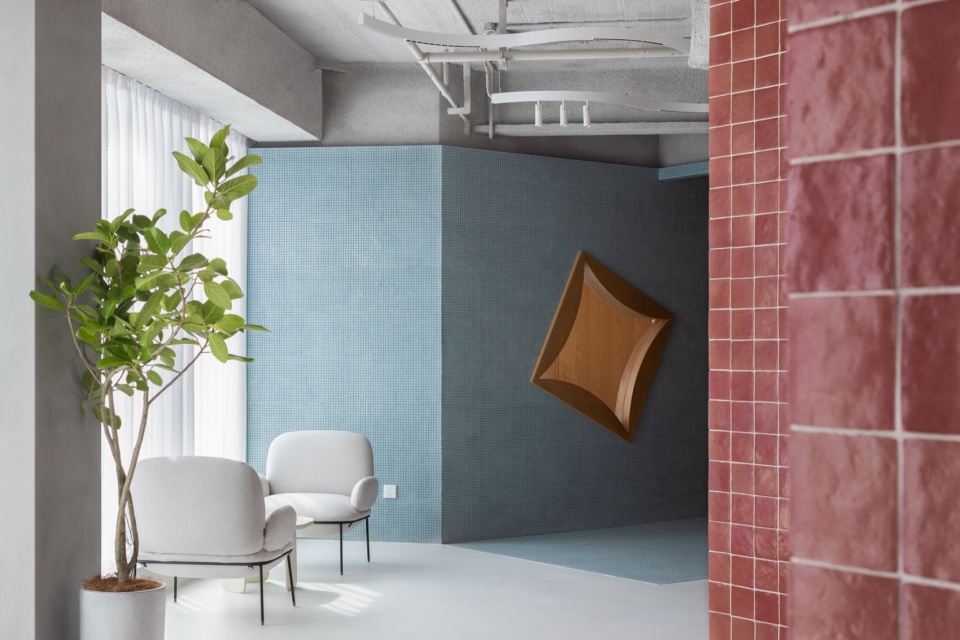

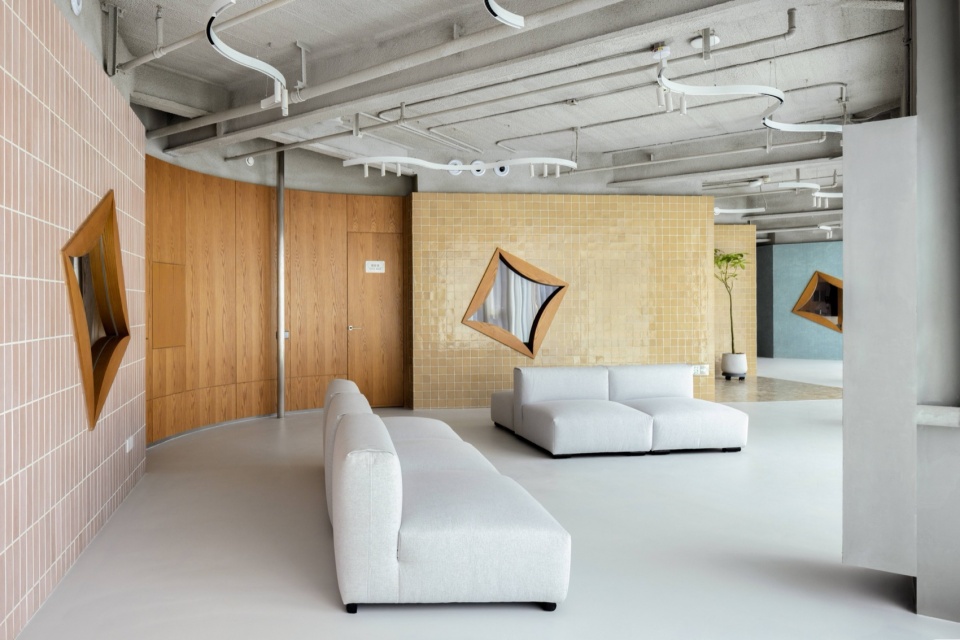

▼等候区，waiting area © 诹 Wan Qianshan

场地
Site

场地位于一座原始按酒店标准设计的塔楼的七层，柱网密集且层高受限，如何在此设计符合医疗诊所规范的空间是一大挑战。同时，诊所位于塔楼的西半侧，围绕中心核心筒呈现U字型线性平面，唯一出入口位于线性平面的一端。因此，合理处理70米长的动线是另一个挑战。

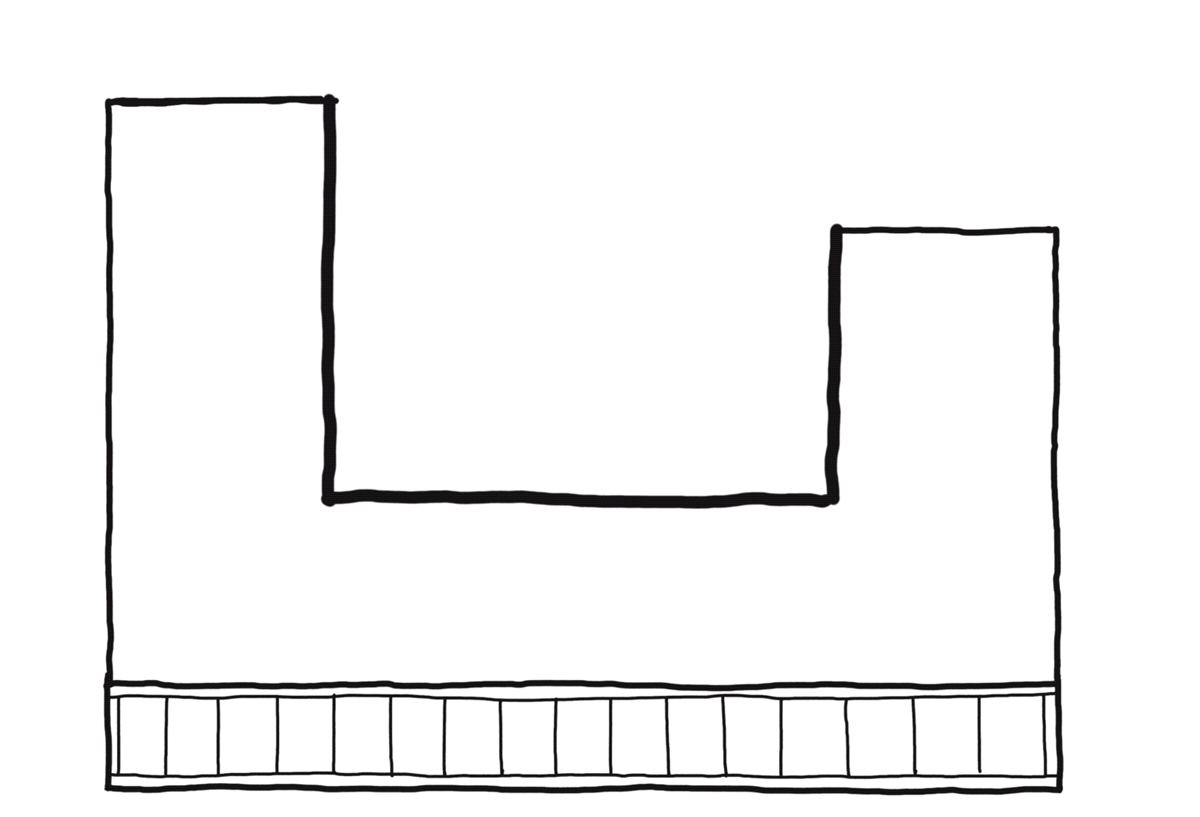

▼空间概念，spatial concept © Studio Yo-U

The clinic is situated on the seventh floor of a tower designed to hotel standards originally, characterized by a dense column grid and limited ceiling height. Designing a space that complies with medical clinic regulations poses significant challenges. Furthermore, the clinic occupies the western half of the tower, featuring a U-shaped linear plan around a central core, with the sole entrance at one end of this linear configuration. Effectively managing a 70-meter-long circulation path is another critical challenge.

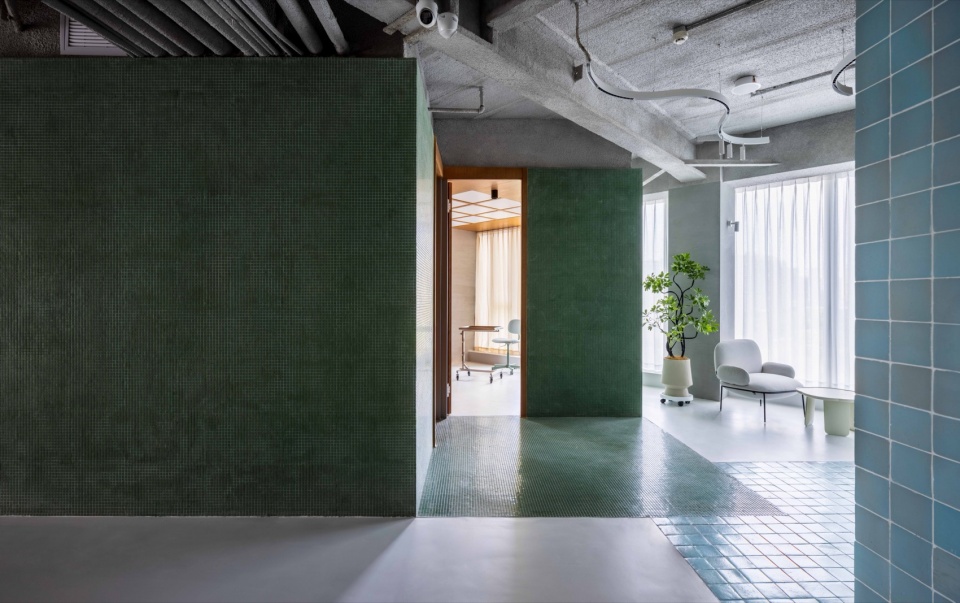

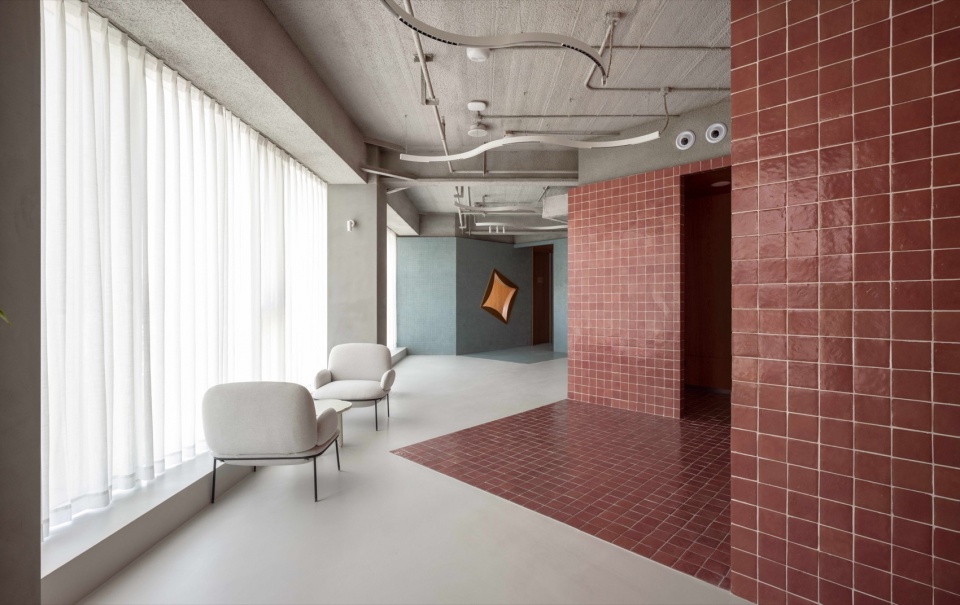

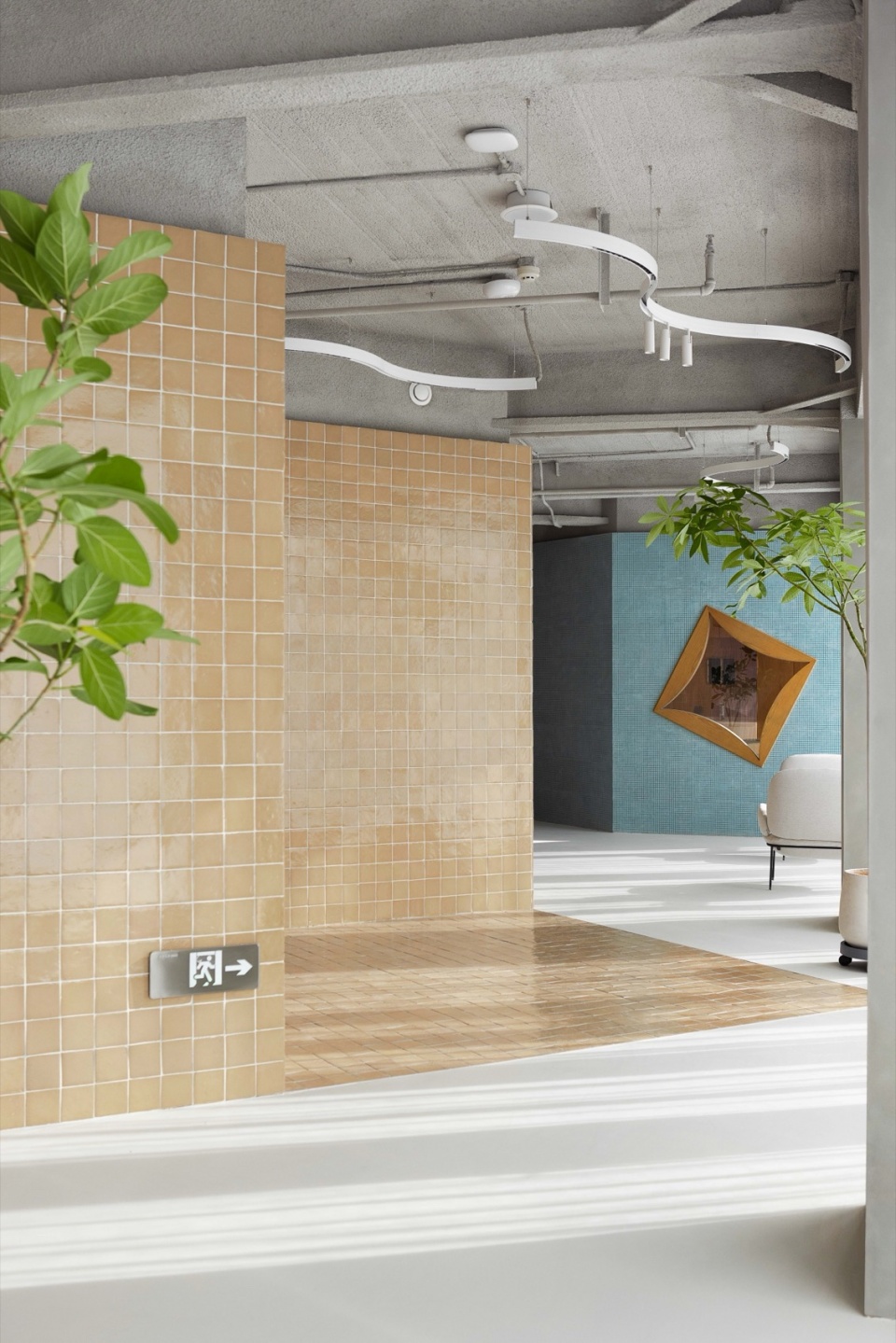

▼医疗组团，medical cluster © half.half.photography

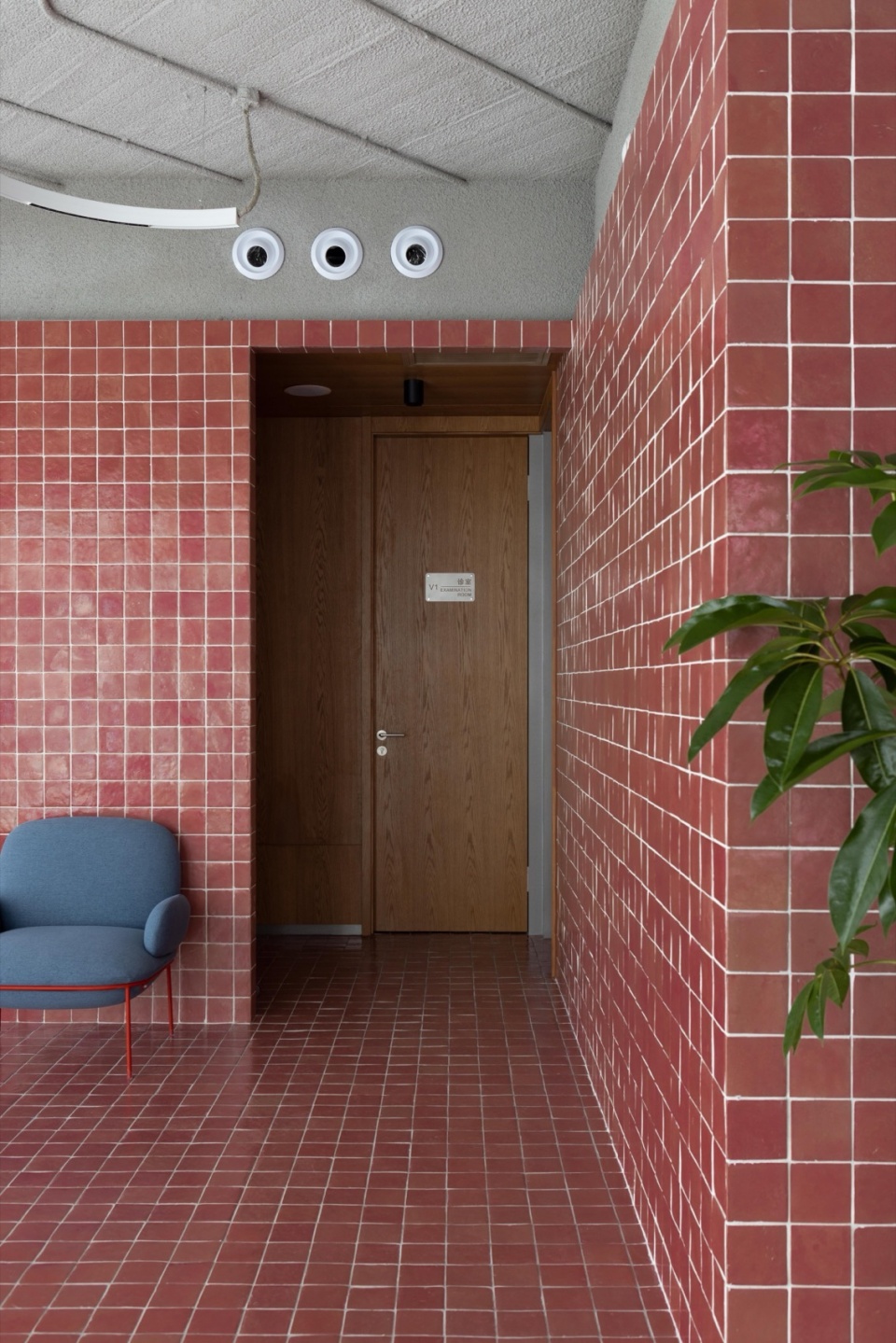

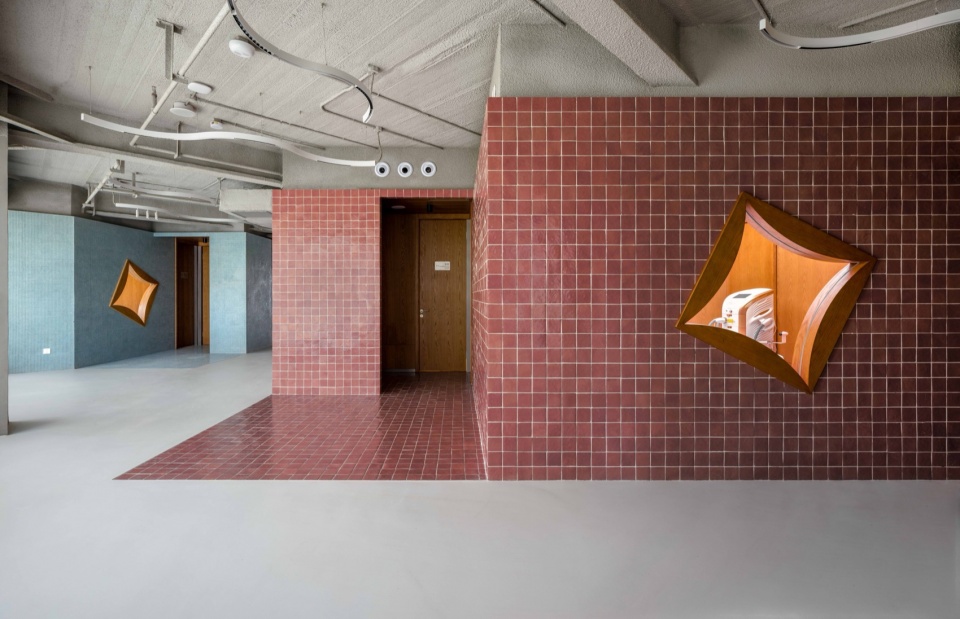

▼组团入口，cluster entrance © half.half.photography

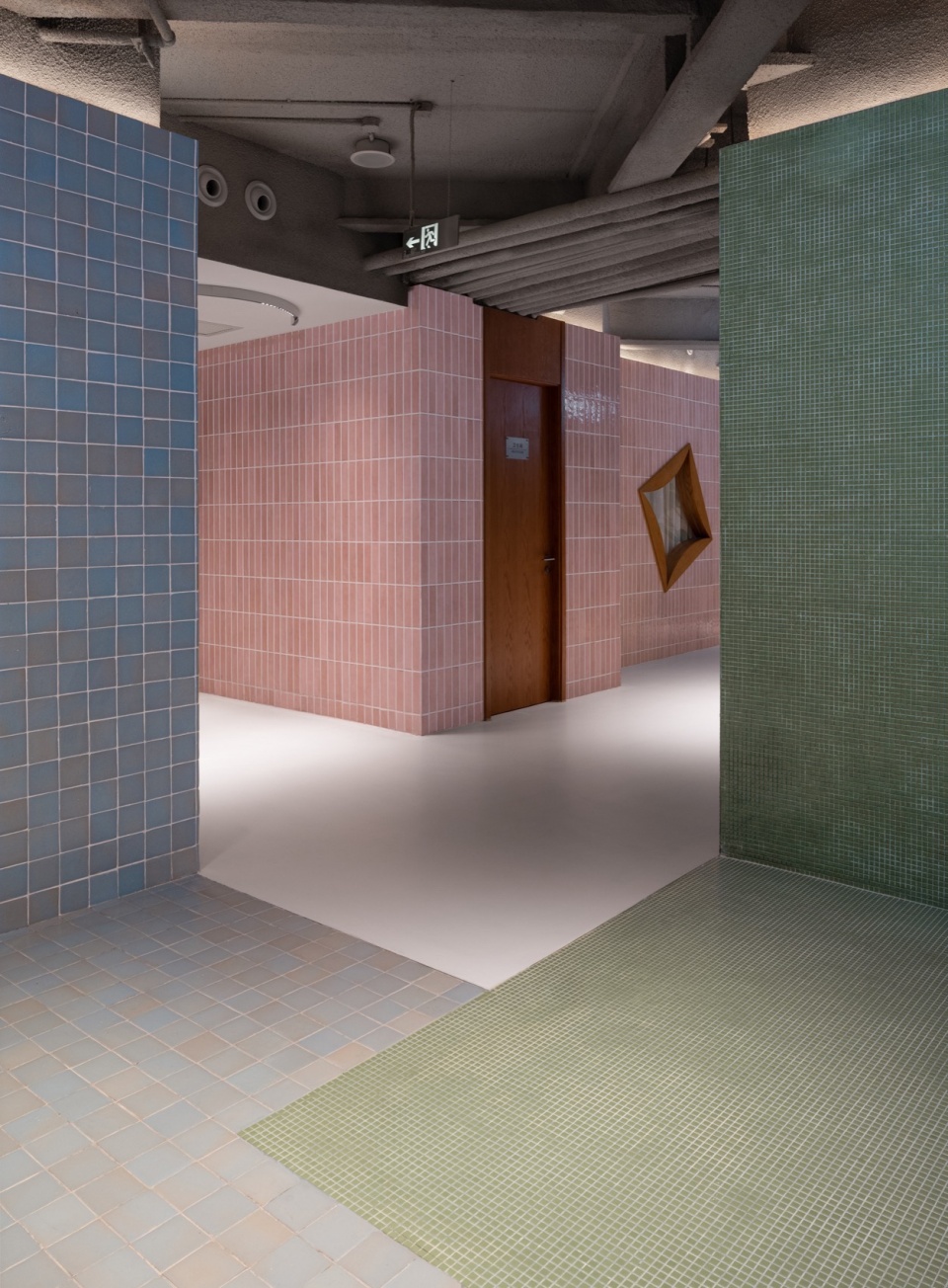

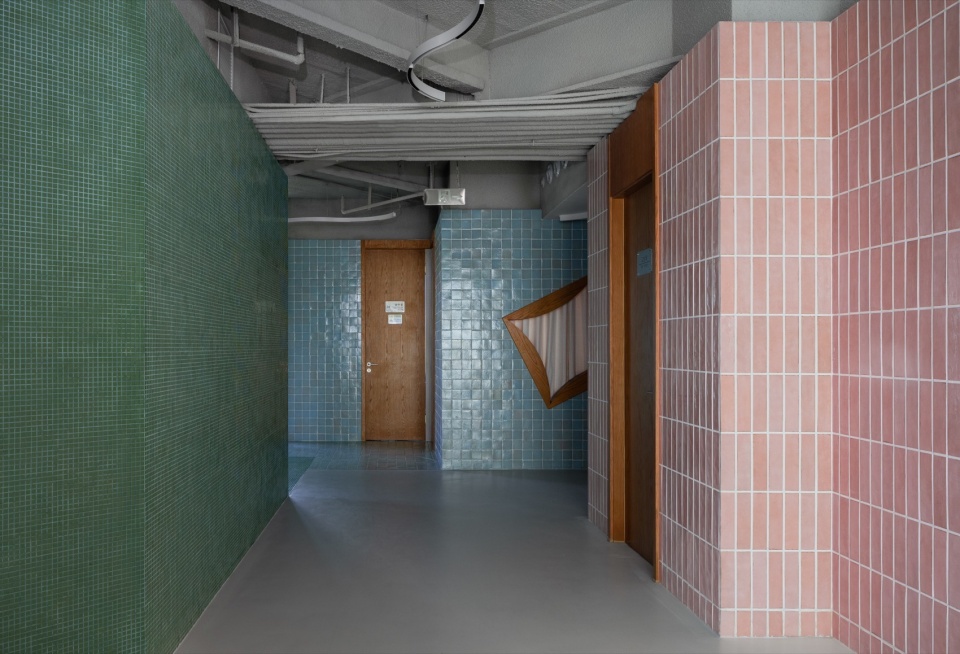

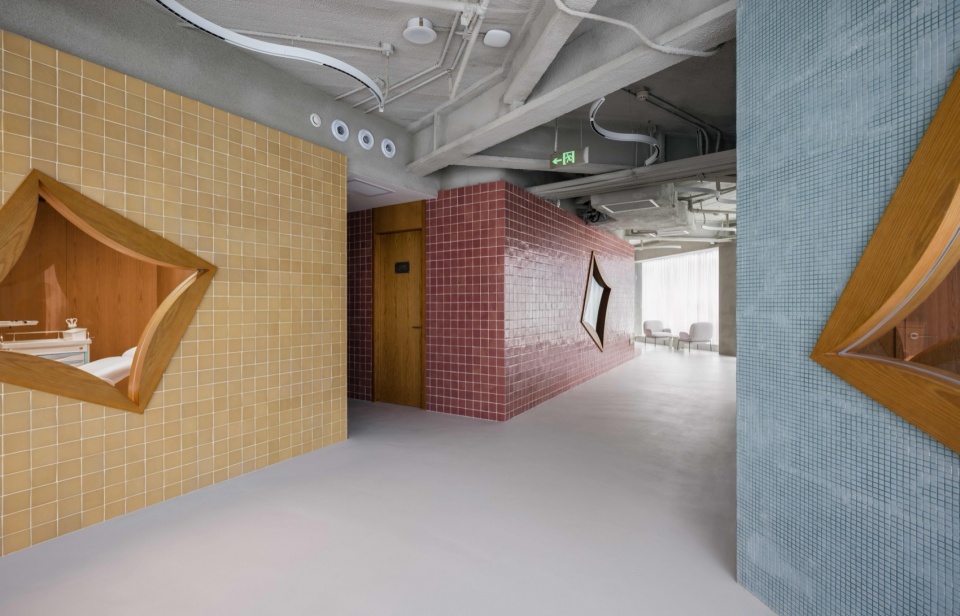

▼医疗组团之间的走廊，corridor between the medical clusters © 诹 Wan Qianshan

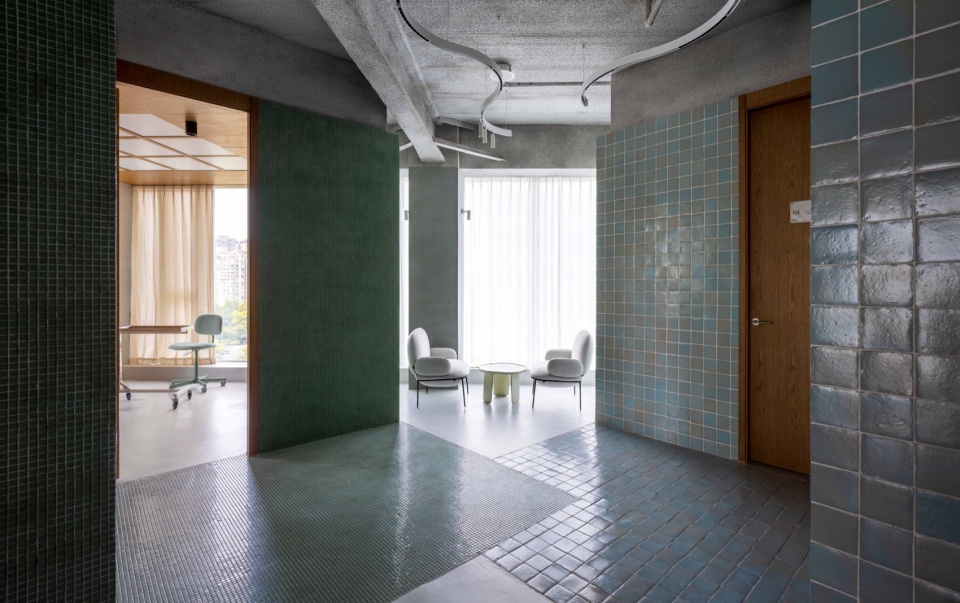

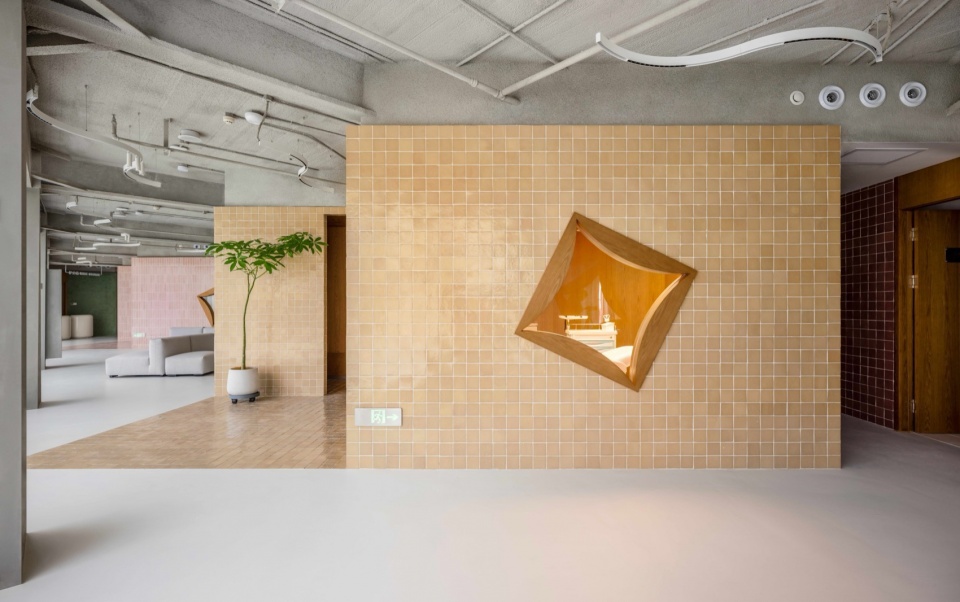

▼不同颜色的医疗组团，medical clusters in different colors © half.half.photography

设计概念
Concept

常见的医美就诊动线为：咨询室、影像室、面诊室、治疗室，观察等待区。我们发现，这种动线常常导致就诊者缺乏隐私，动线交叉且效率低下。设计概念从优化就诊者的动线出发，将空间类型合并简化为三类：等候区（兼顾咨询室和观察区功能）、诊室（兼顾面诊和影像记录功能）和治疗室。这三类空间以组团形式分布，共有独立的六个组团。场地前端为就诊空间，后端为后勤空间。这一动线设计提高了就诊效率，同时保护了就诊者的隐私。

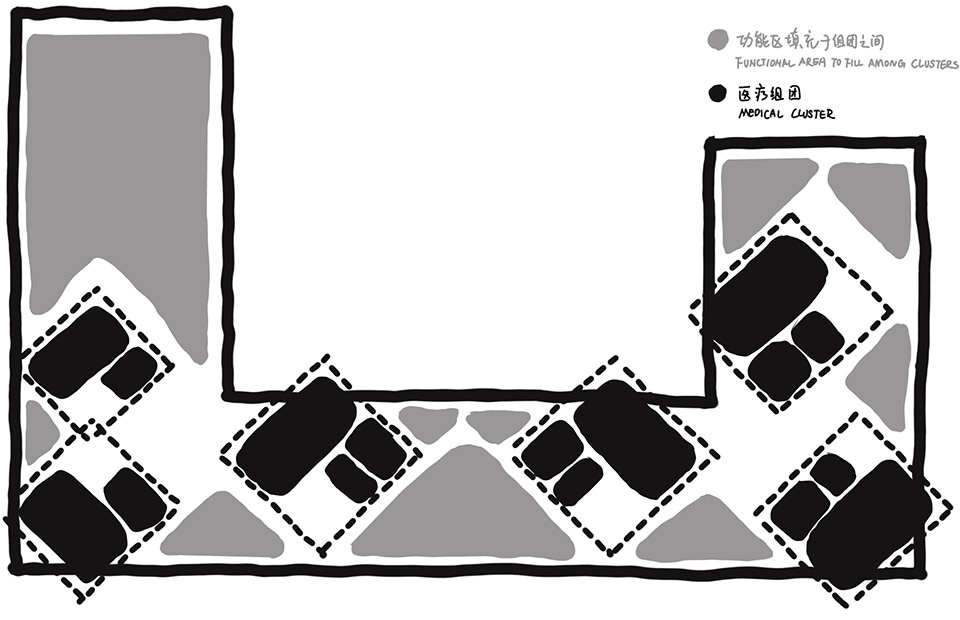

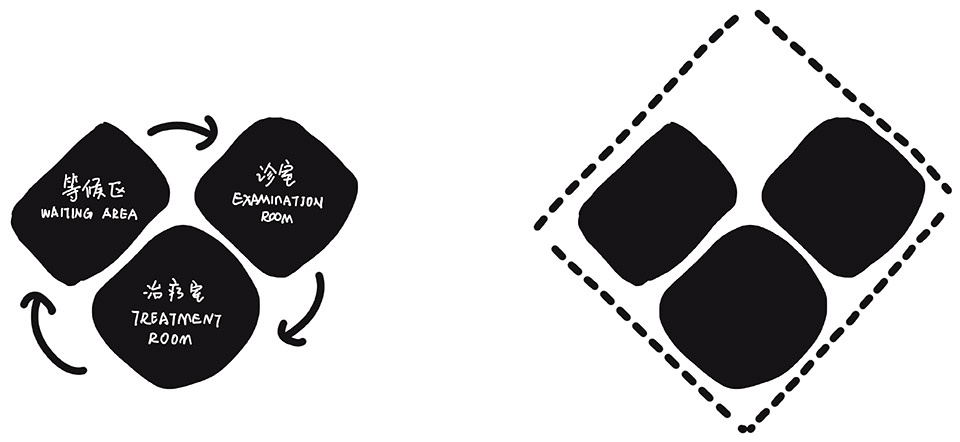

▼组团概念，cluster concept © Studio Yo-U

▼功能图解，function diagram © Studio Yo-U

The typical flow in medical aesthetics includes consultation rooms, imaging rooms, examination rooms, treatment rooms, and observation/waiting areas. We observed that this flow often compromises patient privacy and leads to inefficient, overlapping paths. The design concept aims to optimize patient circulation by consolidating space types into three categories: waiting areas (serving both consultation and observation functions), examination rooms (integrating consultation and imaging functions), and treatment rooms. These three space types are distributed in clusters, resulting in six independent groups. The front end of the site is dedicated to patient areas, while the rear accommodates logistical support. This circulation design enhances efficiency while safeguarding patient privacy.

▼室内概览，interior overview © half.half.photography

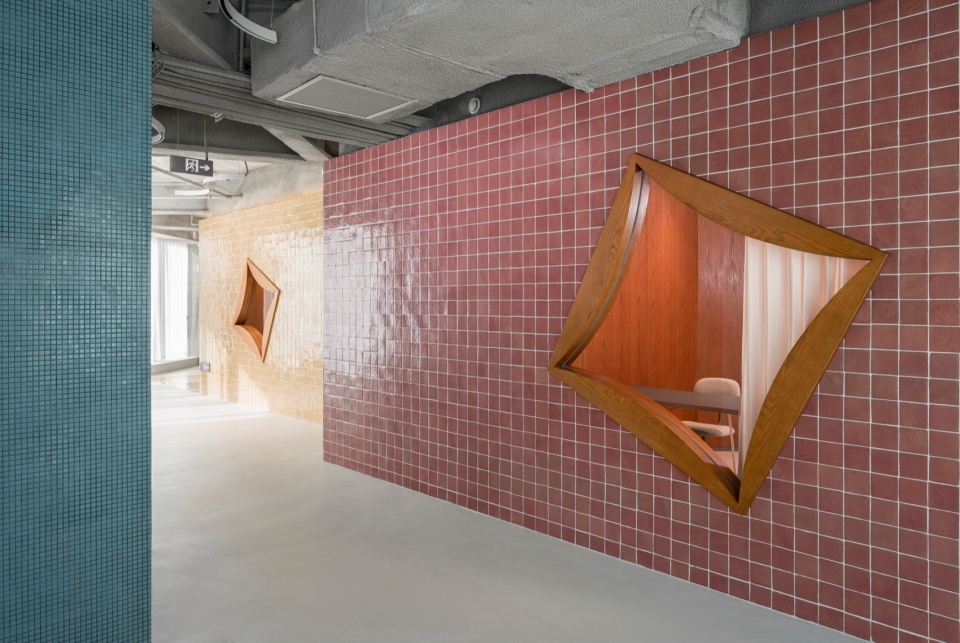

▼花型窗户，flower pattern windows © half.half.photography

▼45度的柱网空间，45-degree angle column grid © half.half.photography

▼一角，a corner © 诹 Wan Qianshan

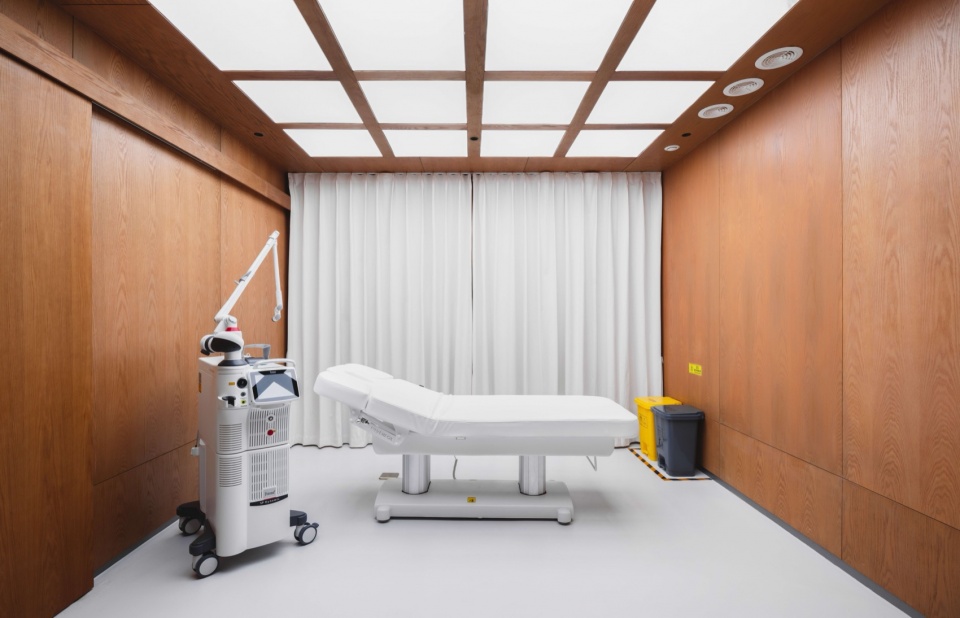

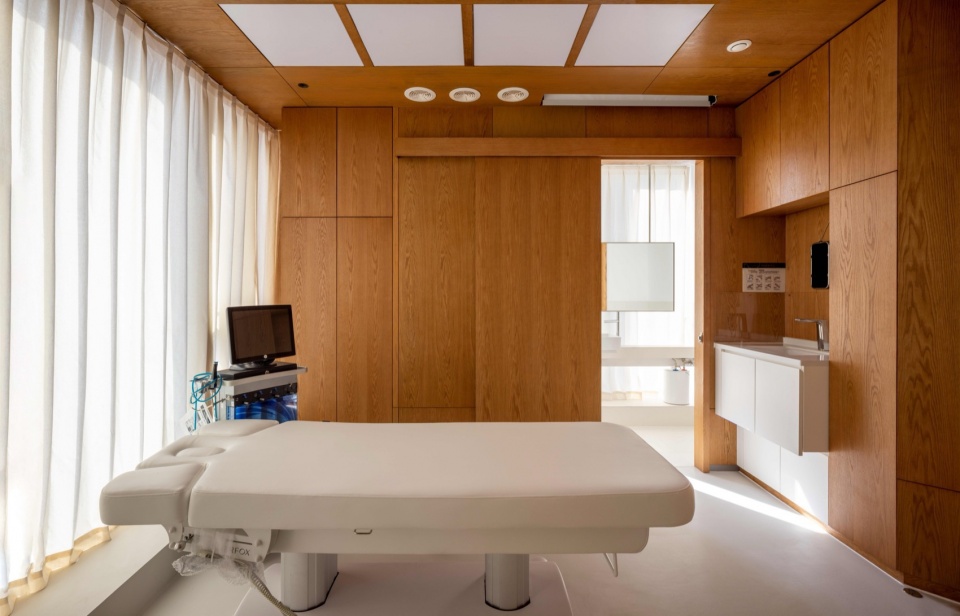

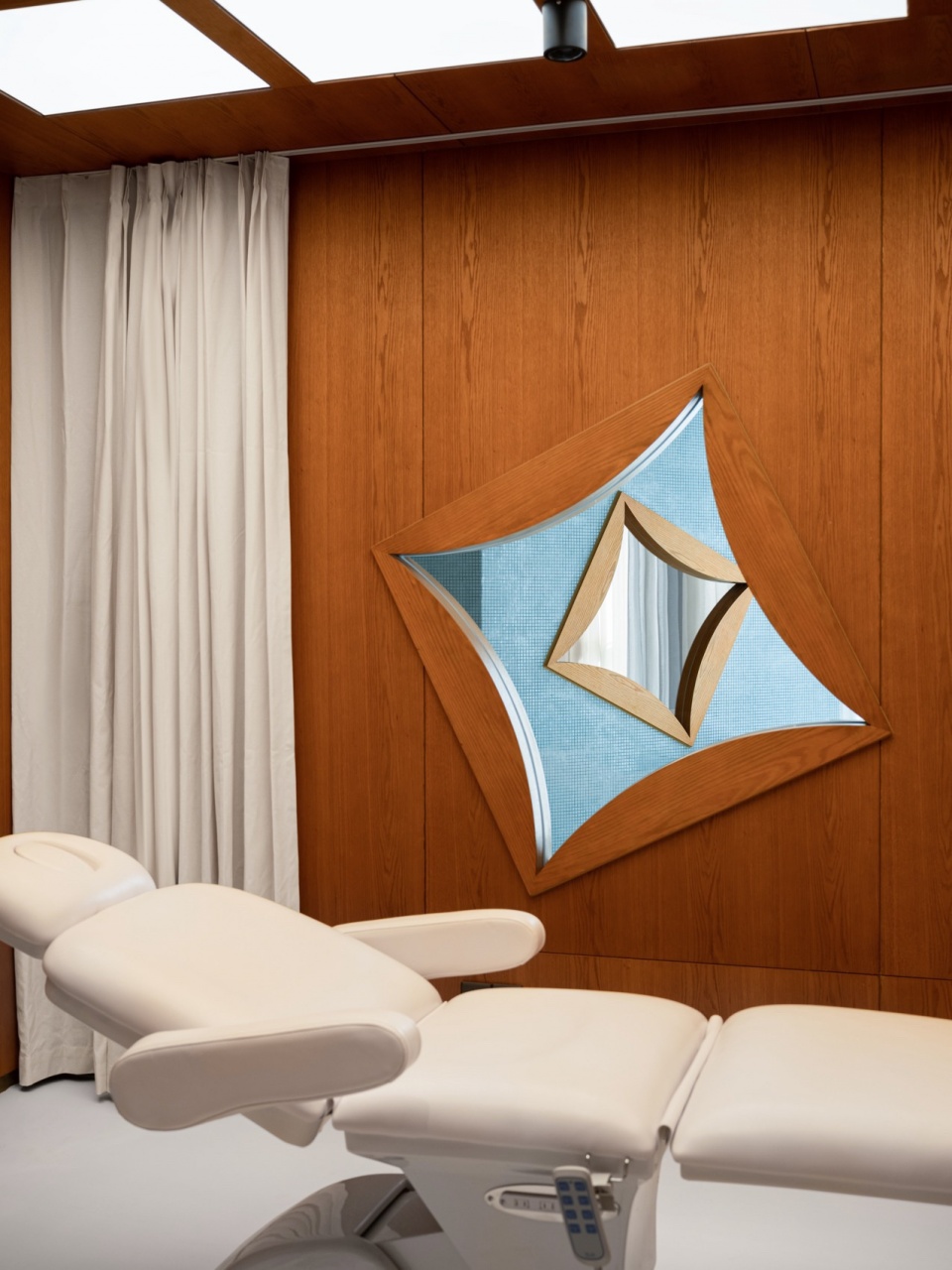

▼治疗室内部，treatment room © half.half.photography

▼治疗室一角，a corner in the treatment room © half.half.photography

方案在原有柱网基础上，引入与其成45度的新柱网。组团设计遵循新的柱网，形成明确和独立的边界和出入口，确保了组团之间的独立性和私密性，同时避免了线性场地可能带来的刻板路径。组团间的衔接处，在进退之间，未被界定的空间则被填充为等候区、休闲区、活动区和护士站等必备功能空间。

The proposal introduces a new column grid at a 45-degree angle to the existing one. Cluster designs adhere to this new grid, establishing clear and independent boundaries and entrances, ensuring independence and privacy among clusters, and circumventing the rigid paths often associated with linear spaces. The transitional areas between clusters are defined by essential functional spaces such as waiting areas, leisure zones, activity spaces, and nursing stations.

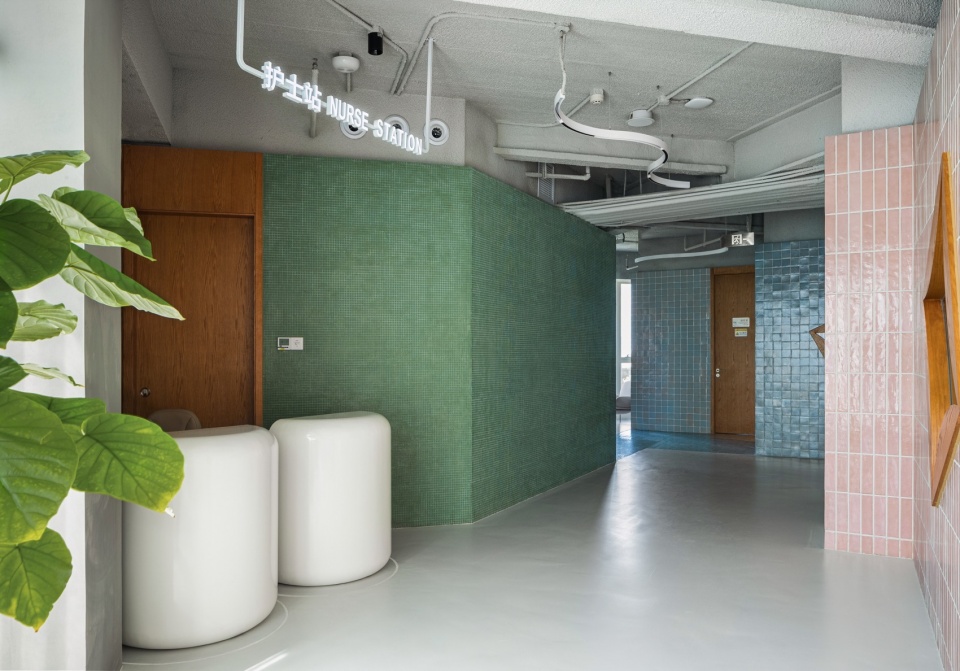

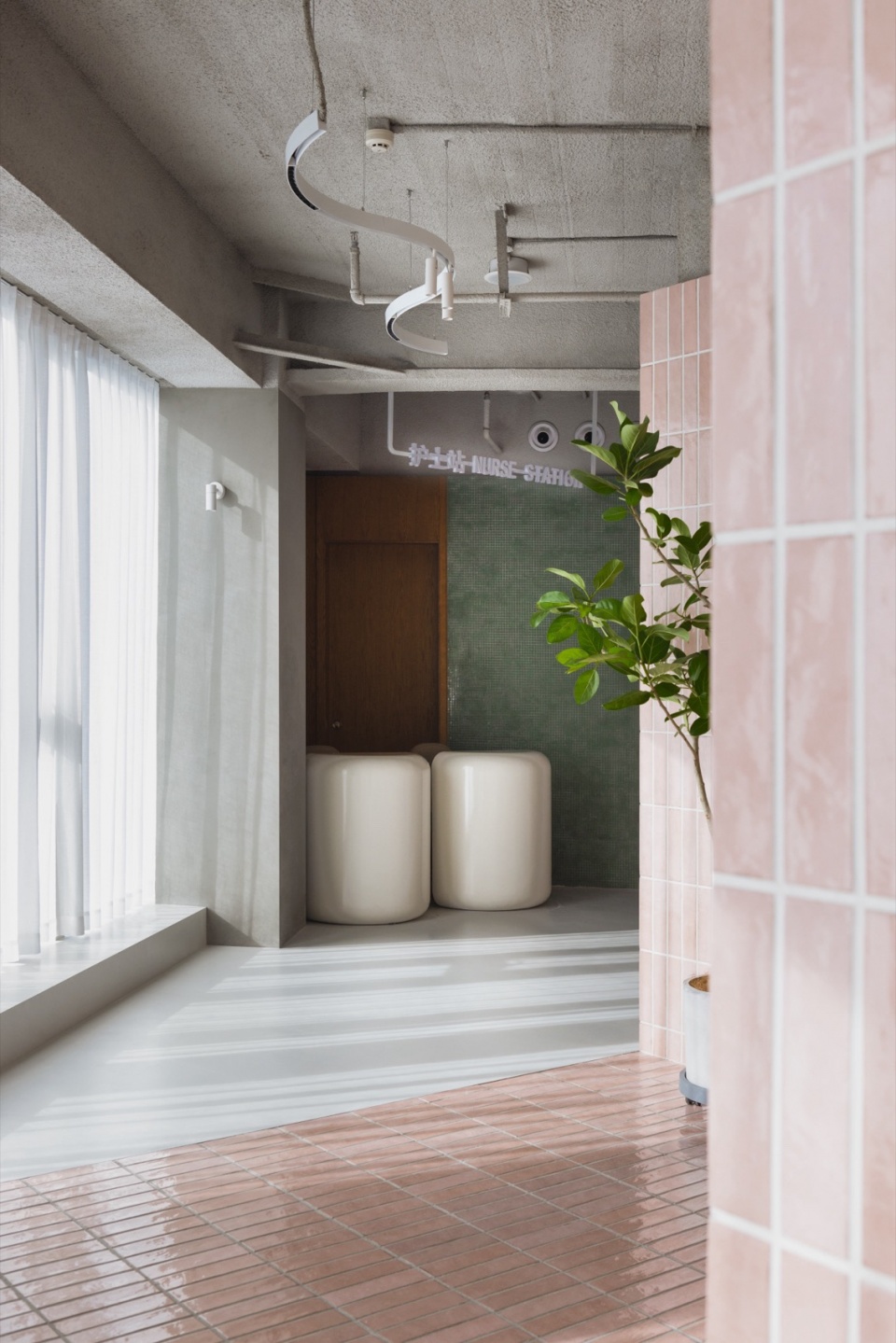

▼护士站，nurse station © half.half.photography

▼组团之间的独立性和私密性，independence and privacy among clusters © 诹 Wan Qianshan

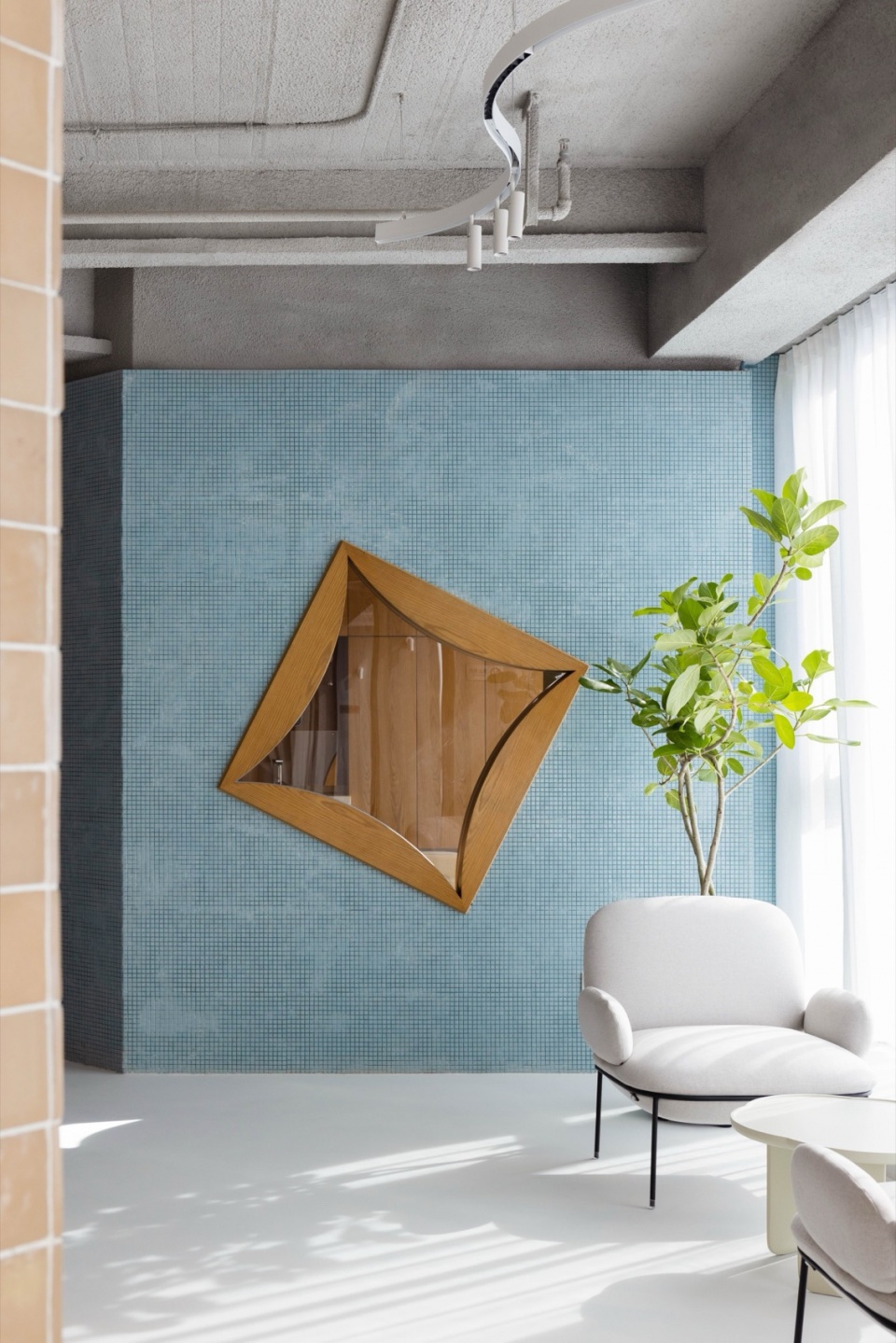

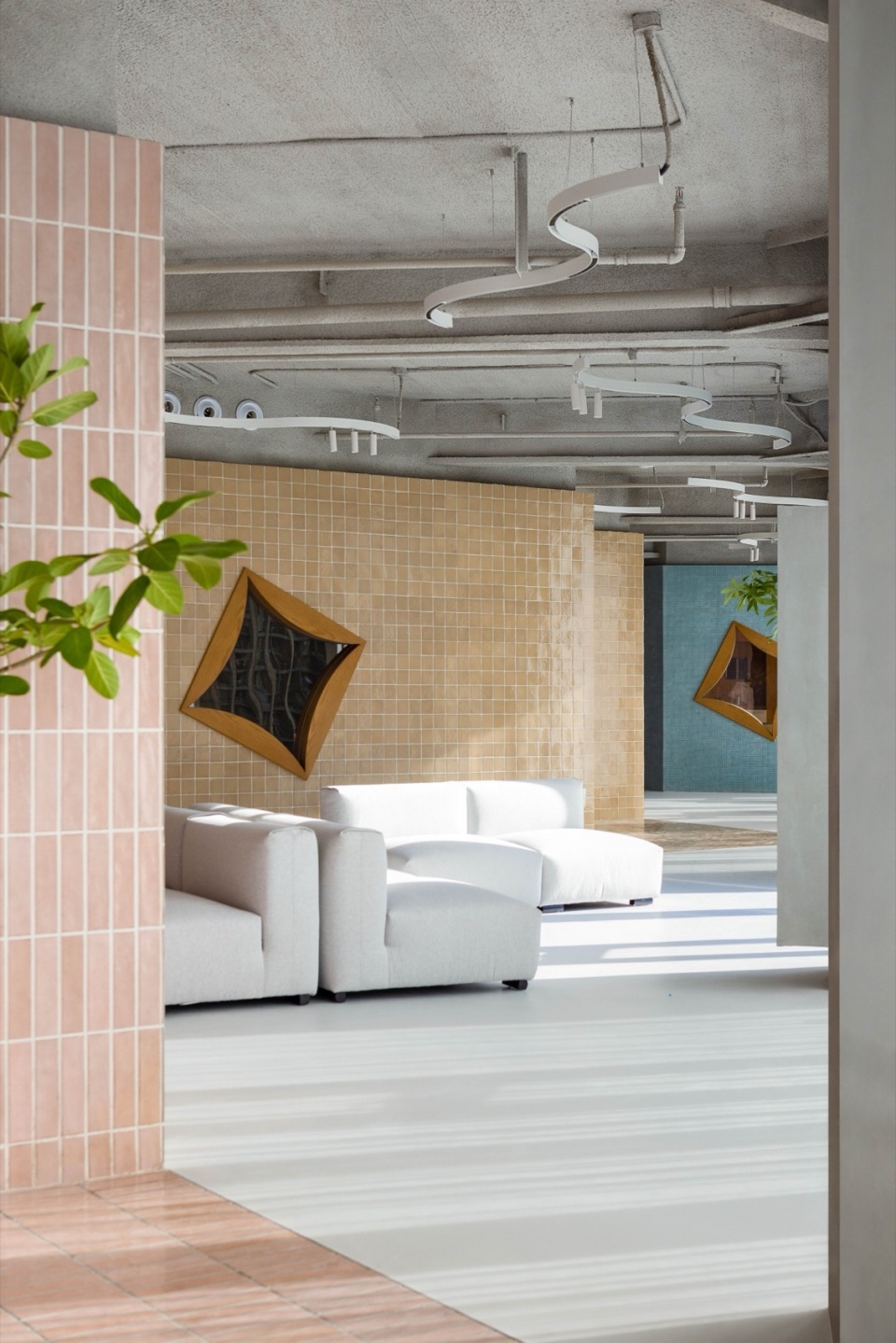

▼等候区，waiting area © half.half.photography

▼立面，facade © 诹 Wan Qianshan

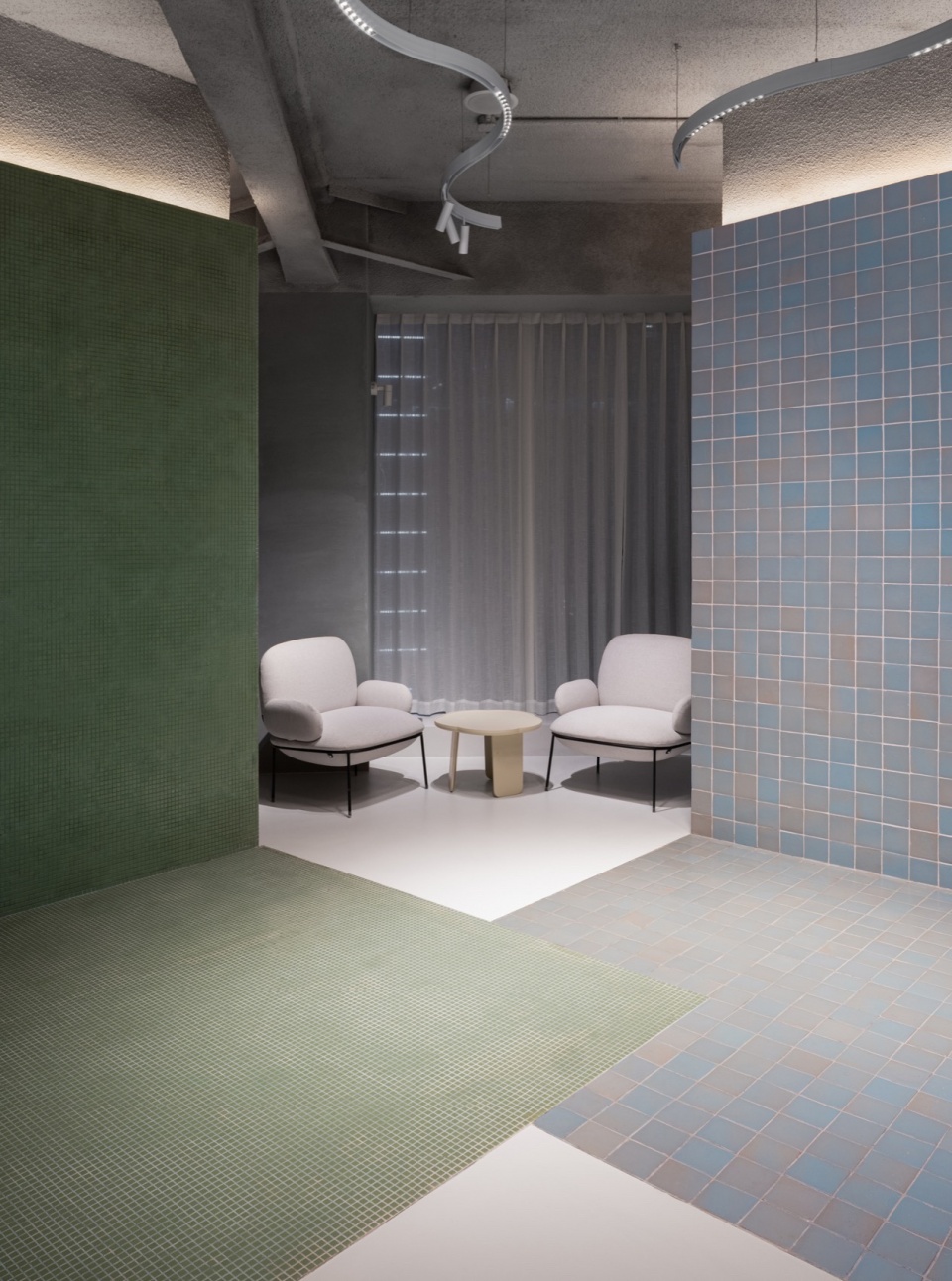

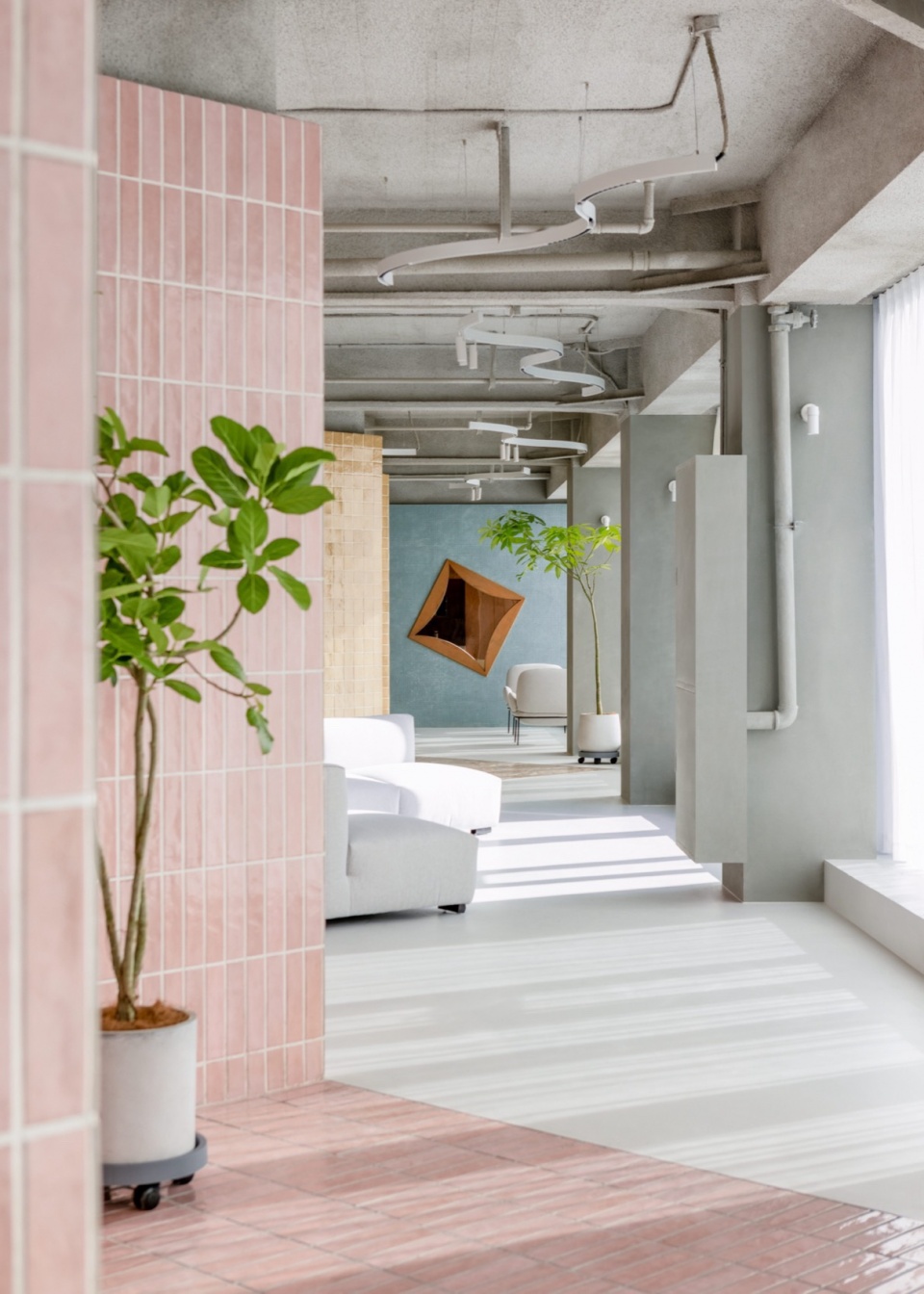

▼组团间的衔接处，
transitional areas between clusters © 诹 Wan Qianshan

材料和色彩
Material and Color

在材料选择上，方案主要采用常见于医疗空间的易于清洁且防滑的小块瓷砖。六个组团分别附以不同颜色，以直观的方式实现空间导视功能。组团内部以木饰面为主，表面设计有品牌特有的花型窗户，引入自然光线，同时为医疗空间增添柔和的气息。

▼六个组团不同立面颜色，six colors applied on different facade © Studio Yo-U

The material selection emphasizes easy-to-clean and slip-resistant small tiles that often seen in medical spaces. Each of the six clusters is assigned a distinct color, providing an intuitive spatial orientation. The interiors of the clusters primarily feature wood finishes, adorned with the brand’s unique floral-patterned windows, which allow natural light to enter and add a gentle ambiance to the medical space.

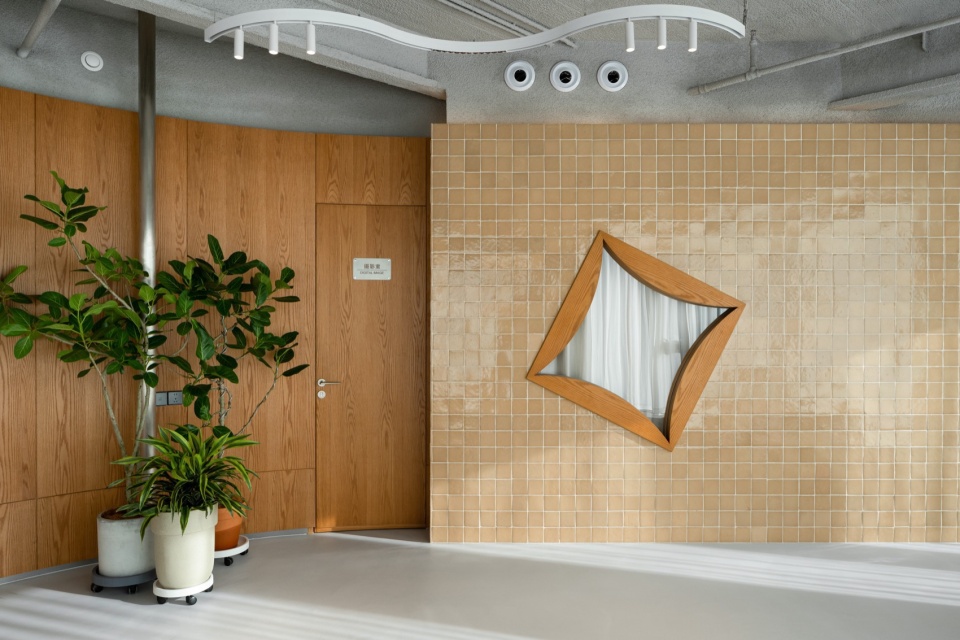

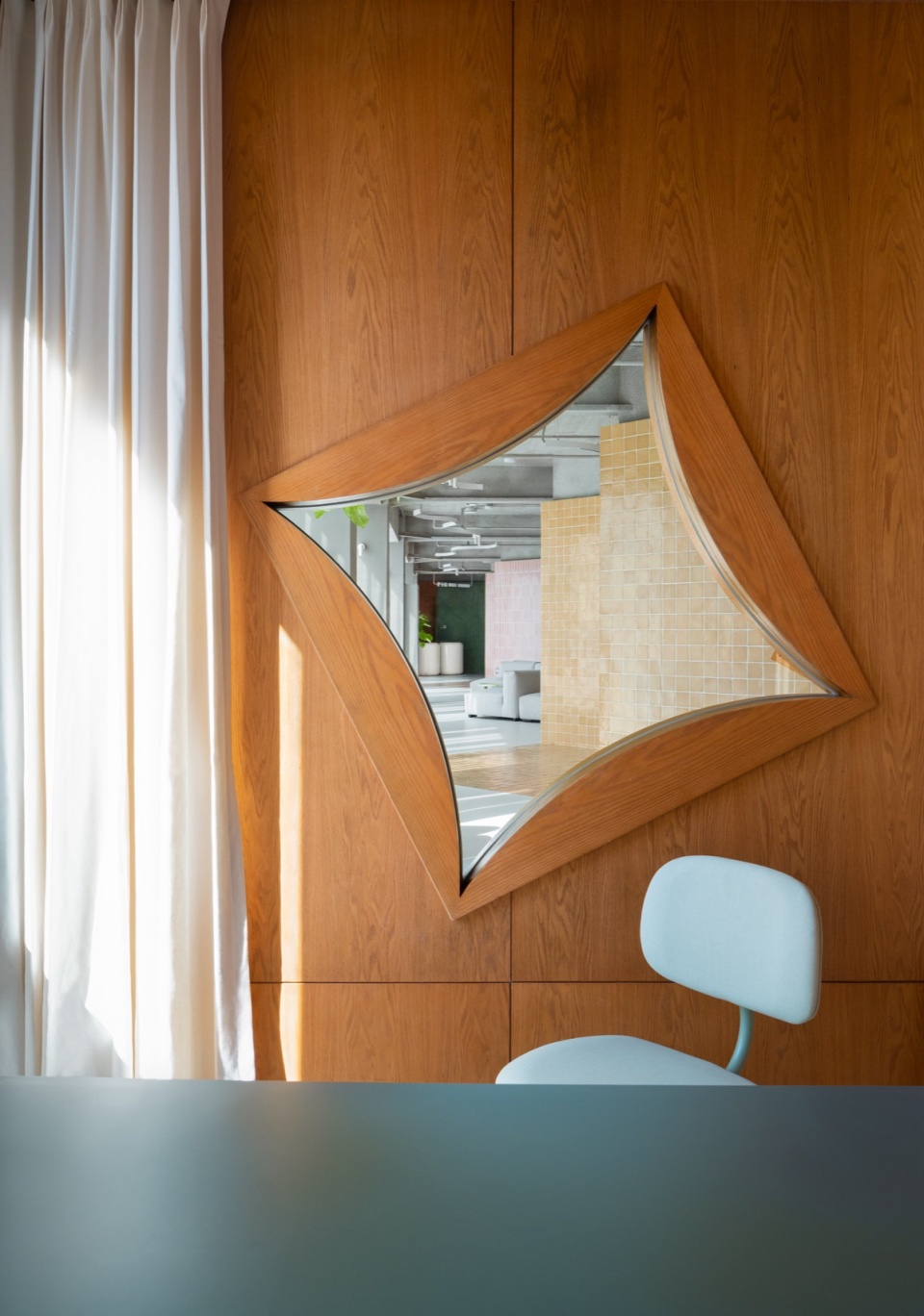

▼花型窗户引入自然光线，
floral-patterned windows bring in natural light © 诹 Wan Qianshan

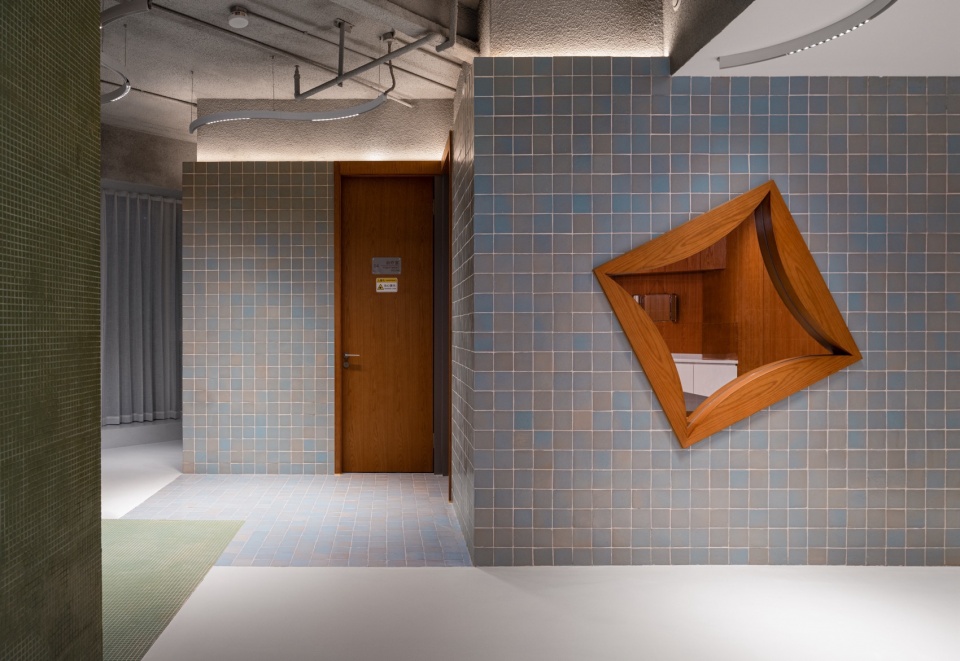

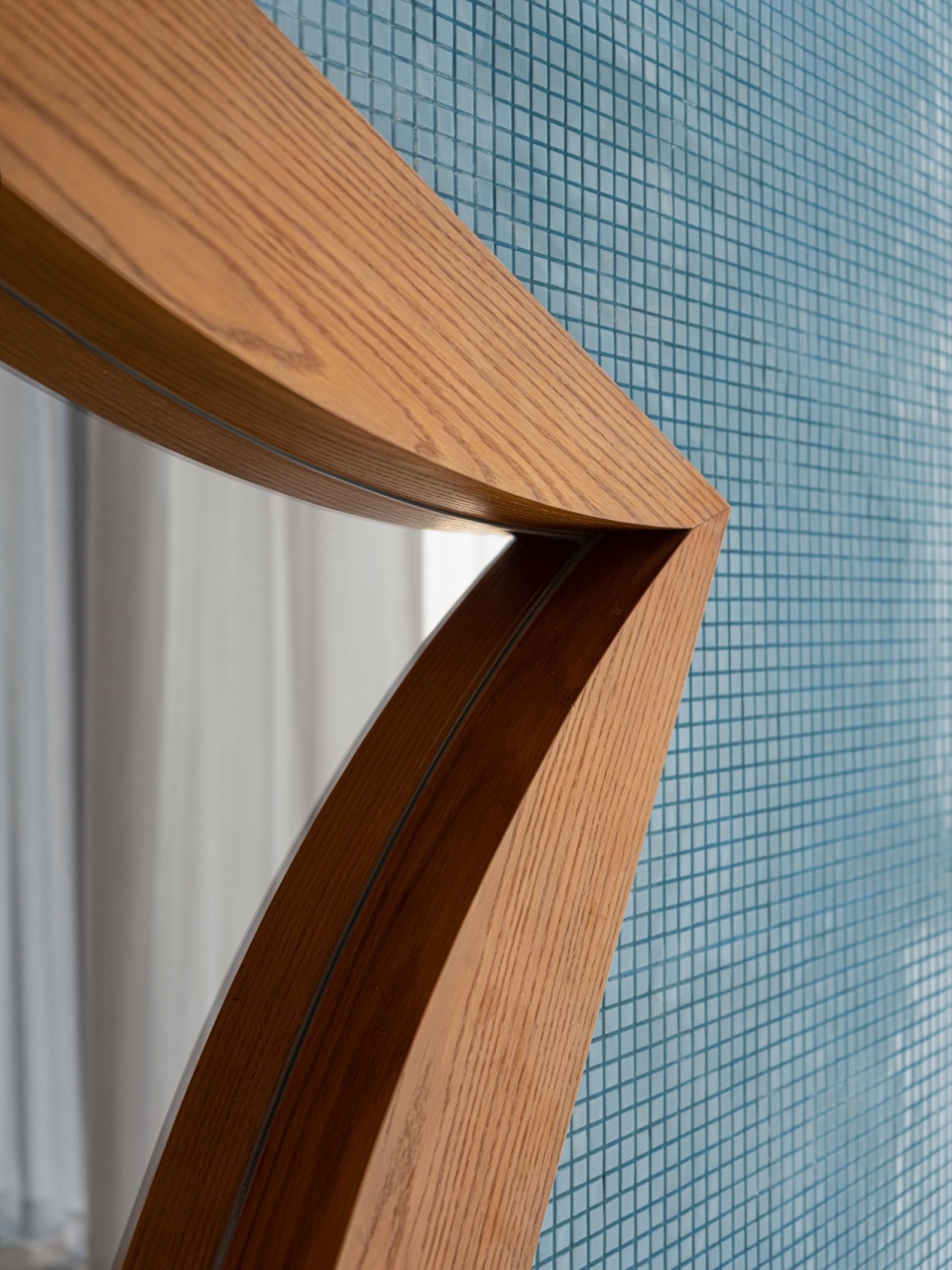

▼花型窗户细部，floral-patterned windows detail © 诹 Wan Qianshan

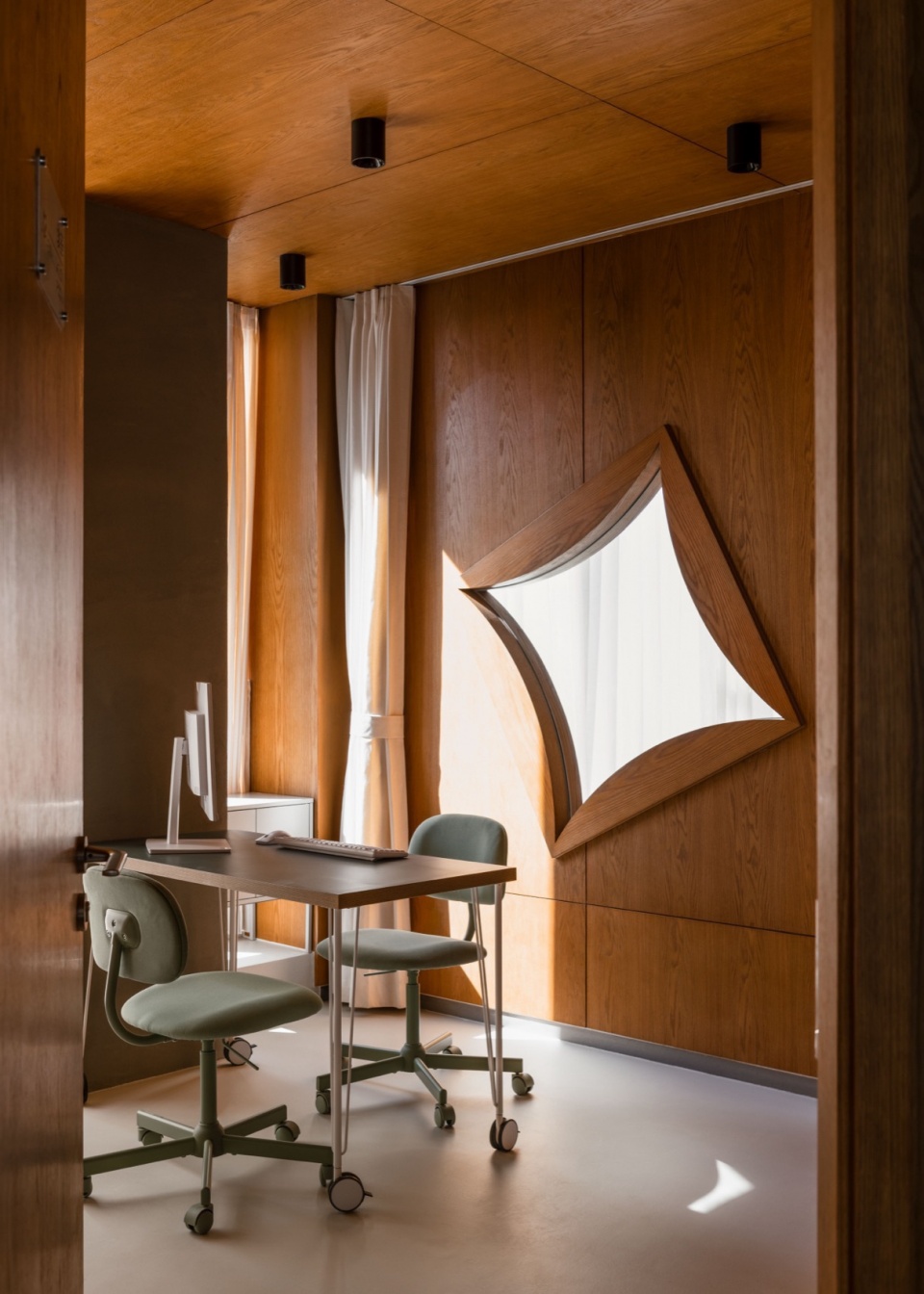

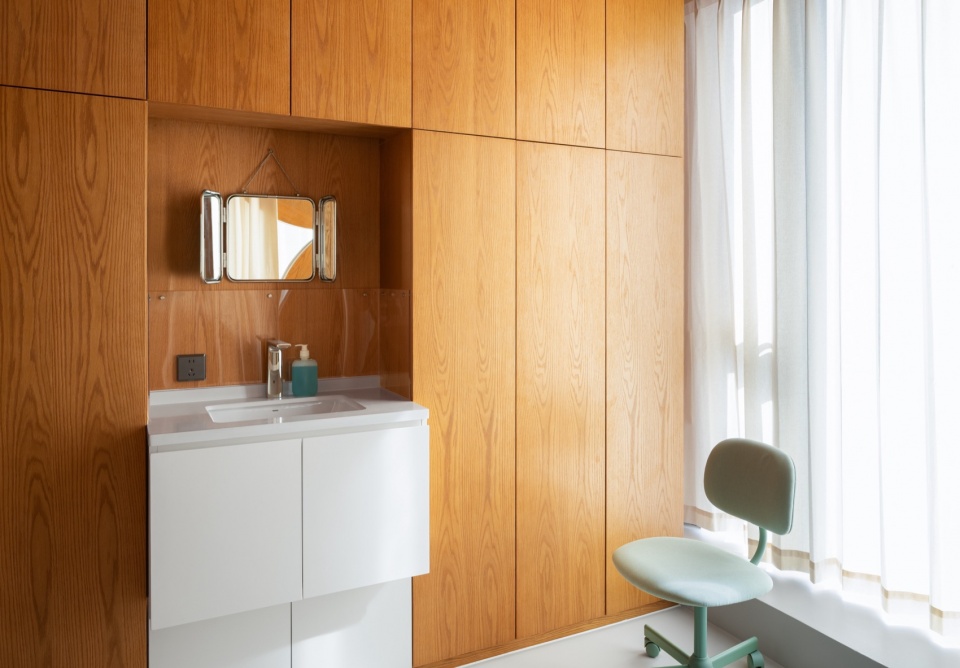

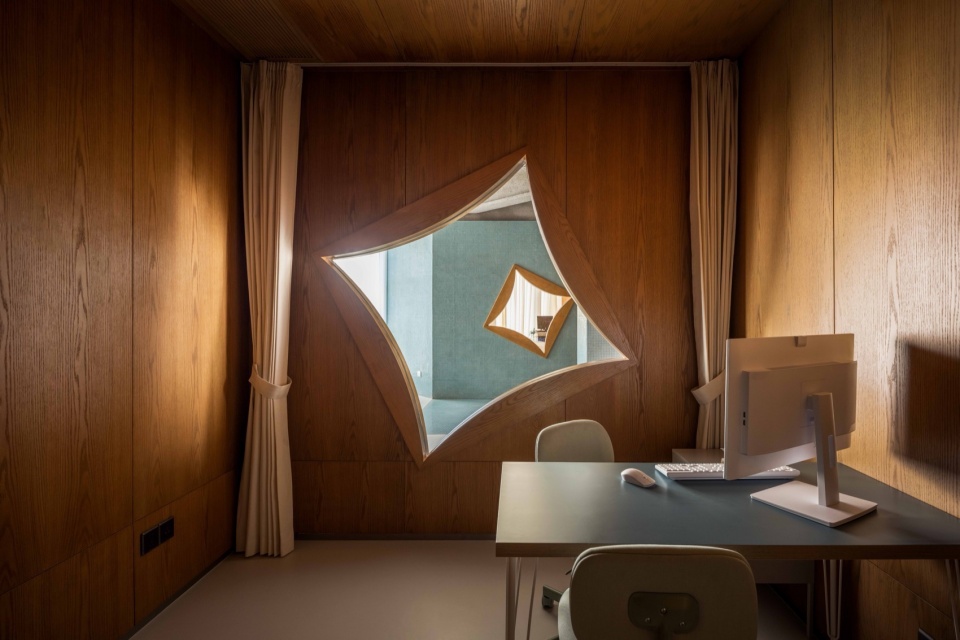

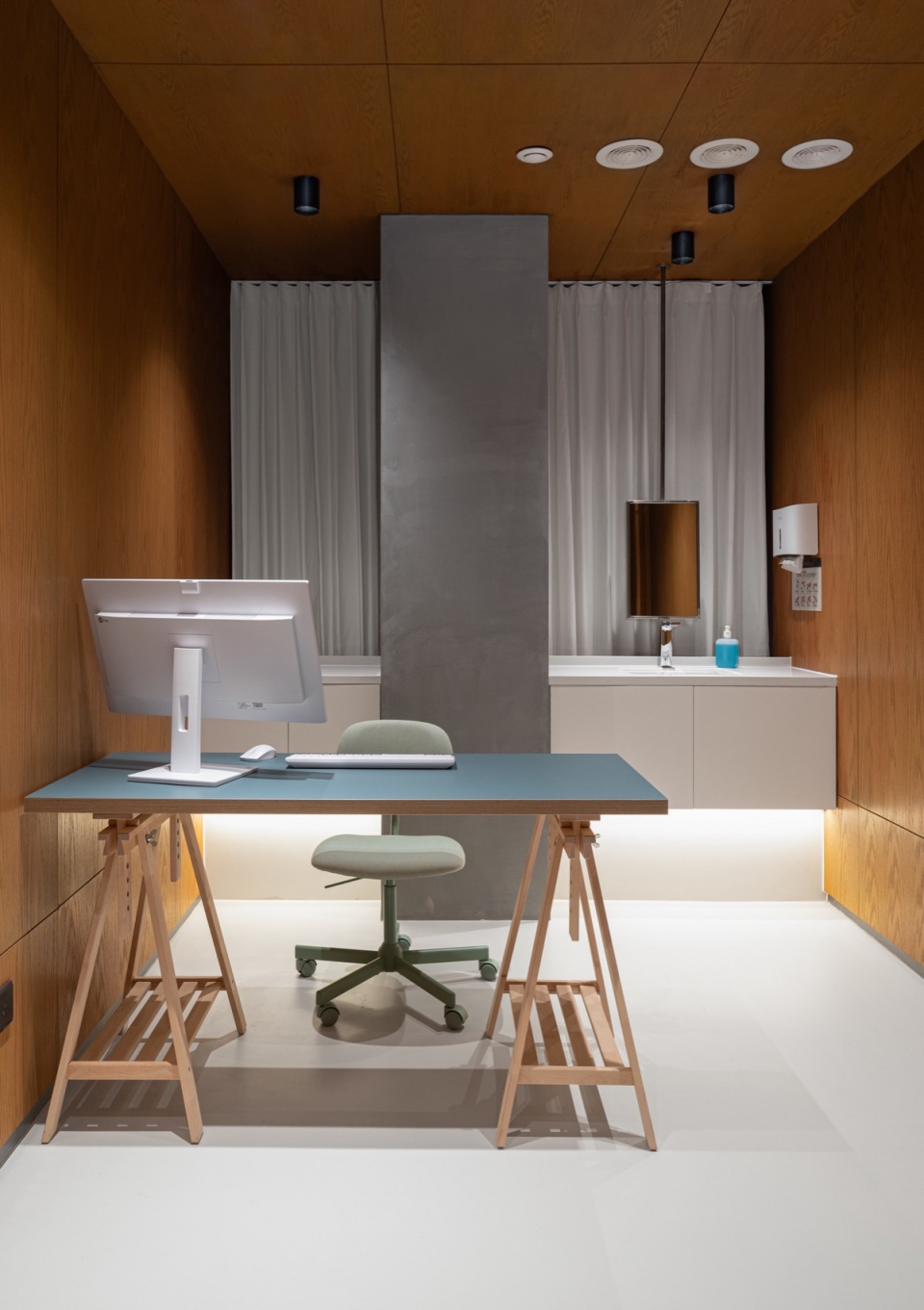

▼诊室，examination room © half.half.photography

▼诊室，examination room © half.half.photography

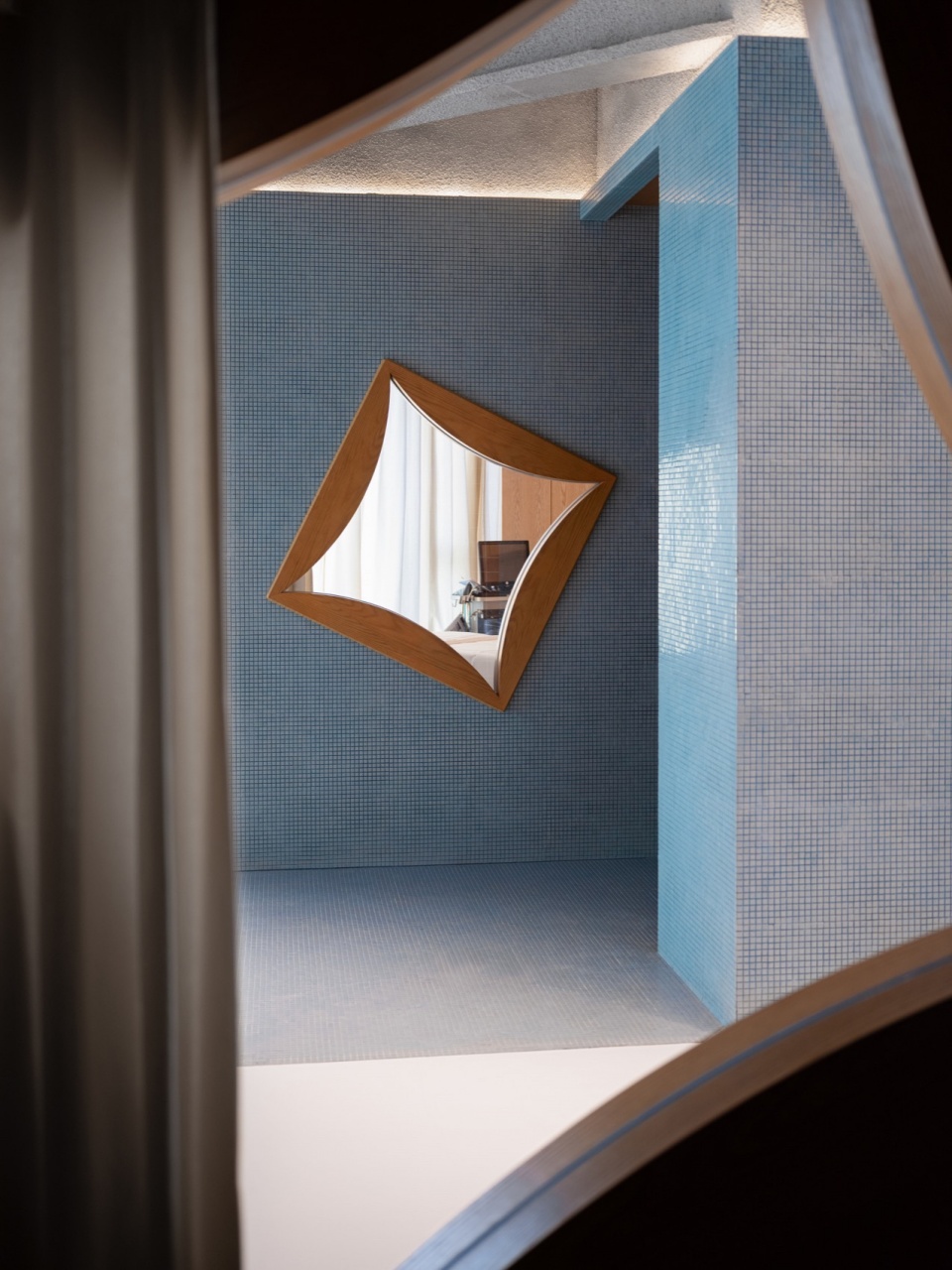

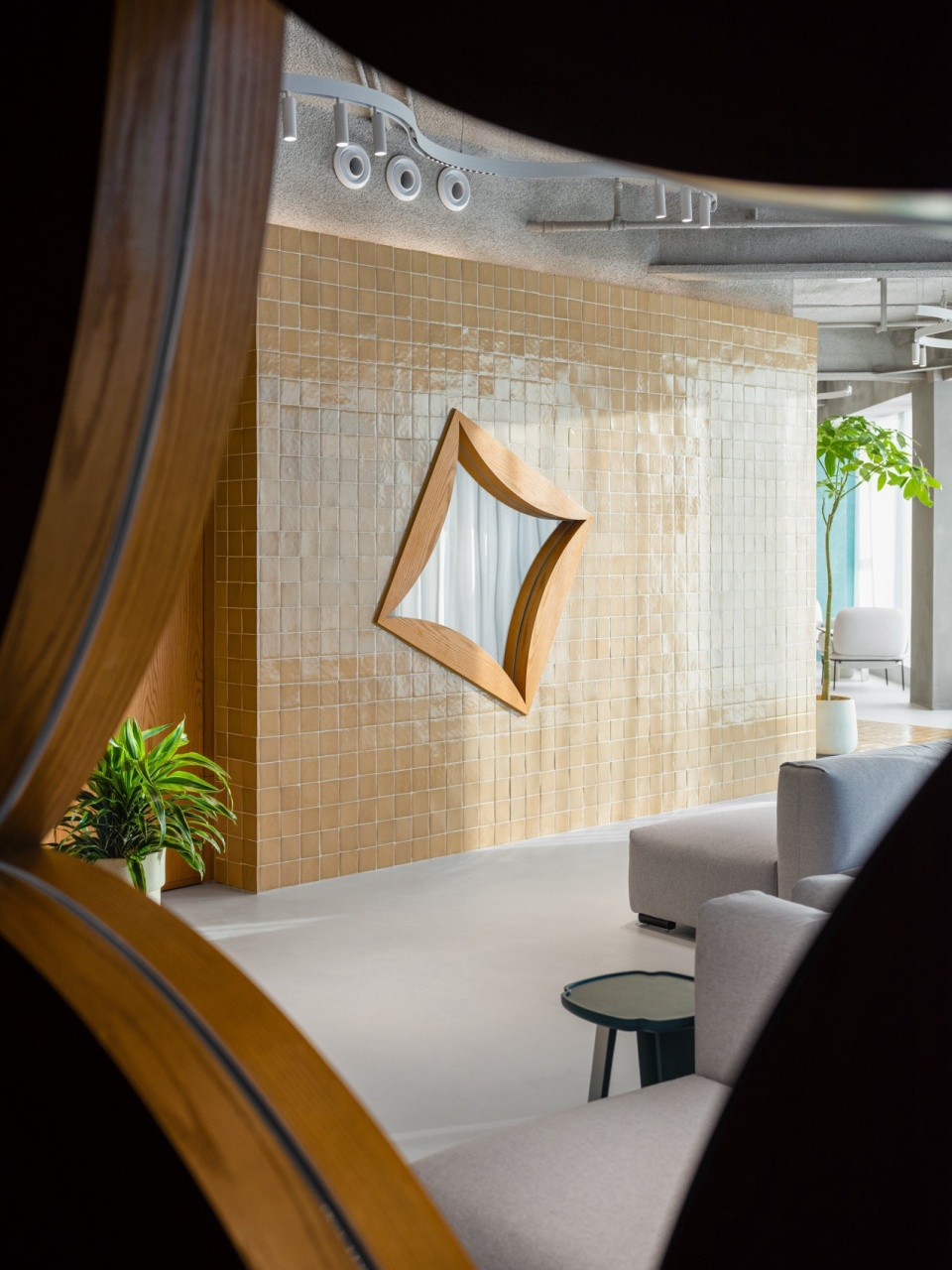

▼花窗限定视野，
view framed by the floral-patterned windows © 诹 Wan Qianshan

▼室内，interior © 诹 Wan Qianshan

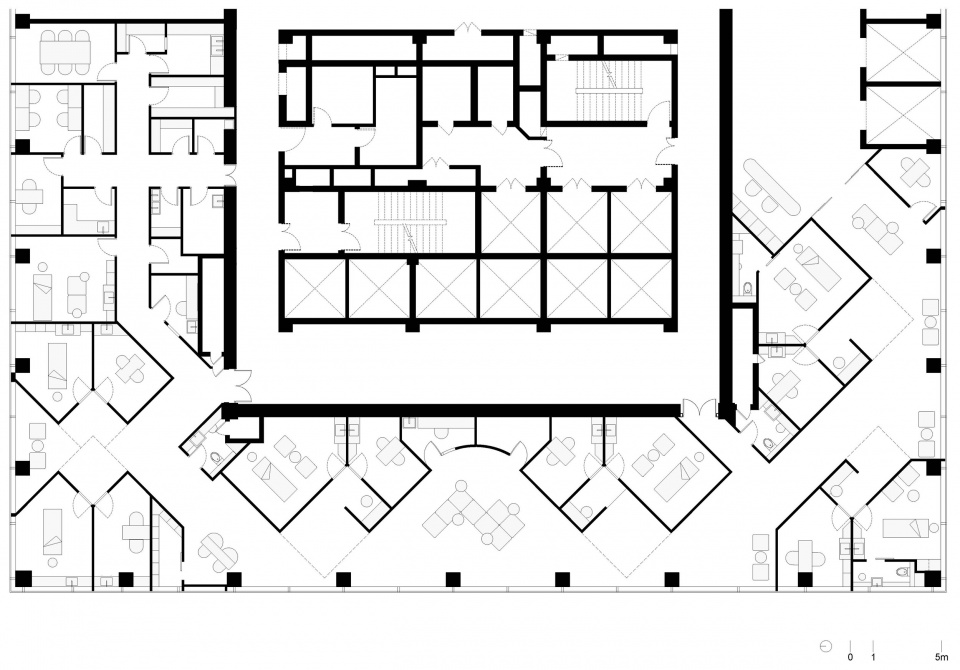

▼平面图，plan © Studio Yo-U

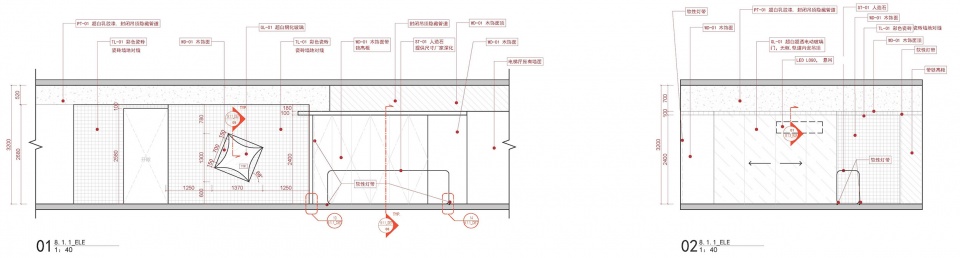

▼立面图，elevations © Studio Yo-U

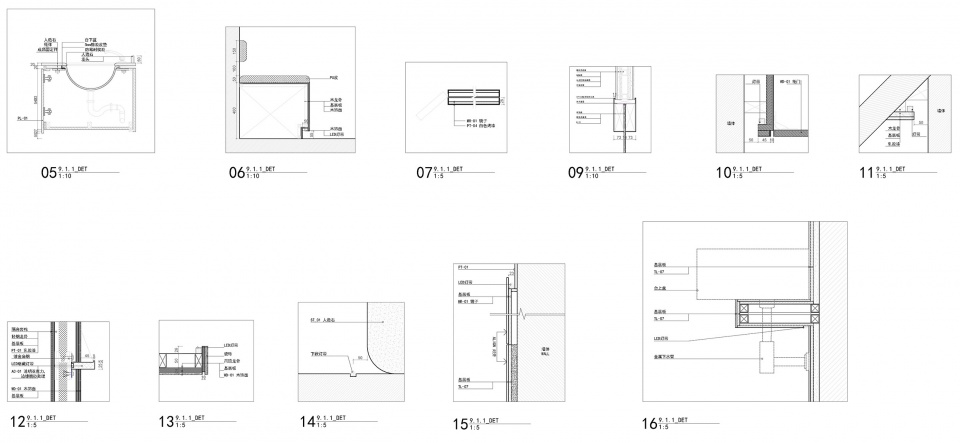

▼节点，details © Studio Yo-U

项目名称：A Clinic医疗诊所，杭州｜有余建筑
项目类型：室内设计
项目地址：杭州
场地面积：600㎡
设计时间：2023.11-2024.02
施工时间：2024.02-2024.06
设计单位：有余建筑
设计团队：余紫芝，何寅
灯光顾问：闵月波
施工单位：上海孝龙建筑装饰工程有限公司
摄影摄像：胡彦昀, 余舒扬 @HALF.HALF.PHOTOGRAPHY/ 诹 Wan Qianshan
主要材料：手工砖，木饰面，自流平

Project Name: A Clinic, Hangzhou｜Studio Yo-U
Project Type: Interior Design
Project location: Hangzhou, China
Area: 600㎡
Design Period: 2023.11-2024.02
Construction Period: 2024.02-2024.06
Architects: Studio Yo-U
Design Team: Zizhi Yu, Yin He
Lighting Consultant: Yuebo Min
Contractor: Shanghai Xiaolong Architectural Decoration Design Co., Ltd
Photo Credit: Yanjun Hu, Shuyang Yu @half.half.photography/ Wan Qianshan
Materials: handmade tiles, wood veneer, Self-Leveling Compound
