来自 众产品 /众建筑 对gooood的分享。更多关于众建筑/众产品：PIDO / PIDO on gooood.
Appreciation towards PIDO / PAO for providing the following description:

3D扫描舱是一个用于三维扫描的摄影棚。它的与众不同之处在于，可以即时完成对大小规格不等物体的数字化三维扫描。拍摄物被置于一个由一百多台定焦单反相机构成的球面阵当中，该结构受到霍伯曼球（hoberman sphere）的启发，每个节点上都有一台相机，可实现等速运动。

The 3D Copypod is a 3d scan booth that can instantly digitize subjects of a wide range of sizes. Objects are surrounded by a spherical array of over one hundred fixed focal length DSLR cameras. Each camera is attached to a node of the Hoberman-inspired, isokinetic structure.

▼3D扫描舱视频，Video of the 3D Copypod

仅需微调，3D扫描舱即可收缩扫描小型物品；也可展开同时扫描多人。内侧受光的可折叠板材将扫描舱围合起来，创造出一个无影的拍摄环境。

With minimal adjustment, the 3D Copypod can contract to scan small objects and expand large enough to scan a group of people. Folding panels that are lit from the interior enclose the structure of the 3d Copypod to ensure a shadowless photography environment.

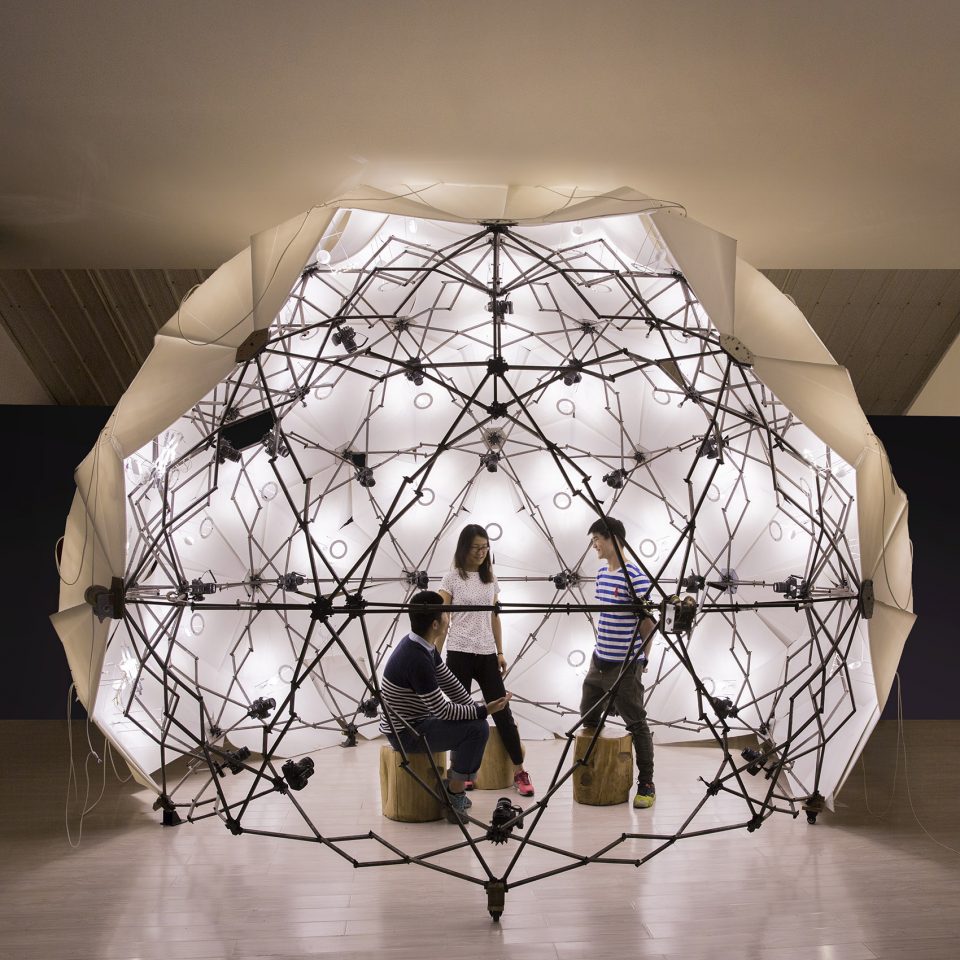

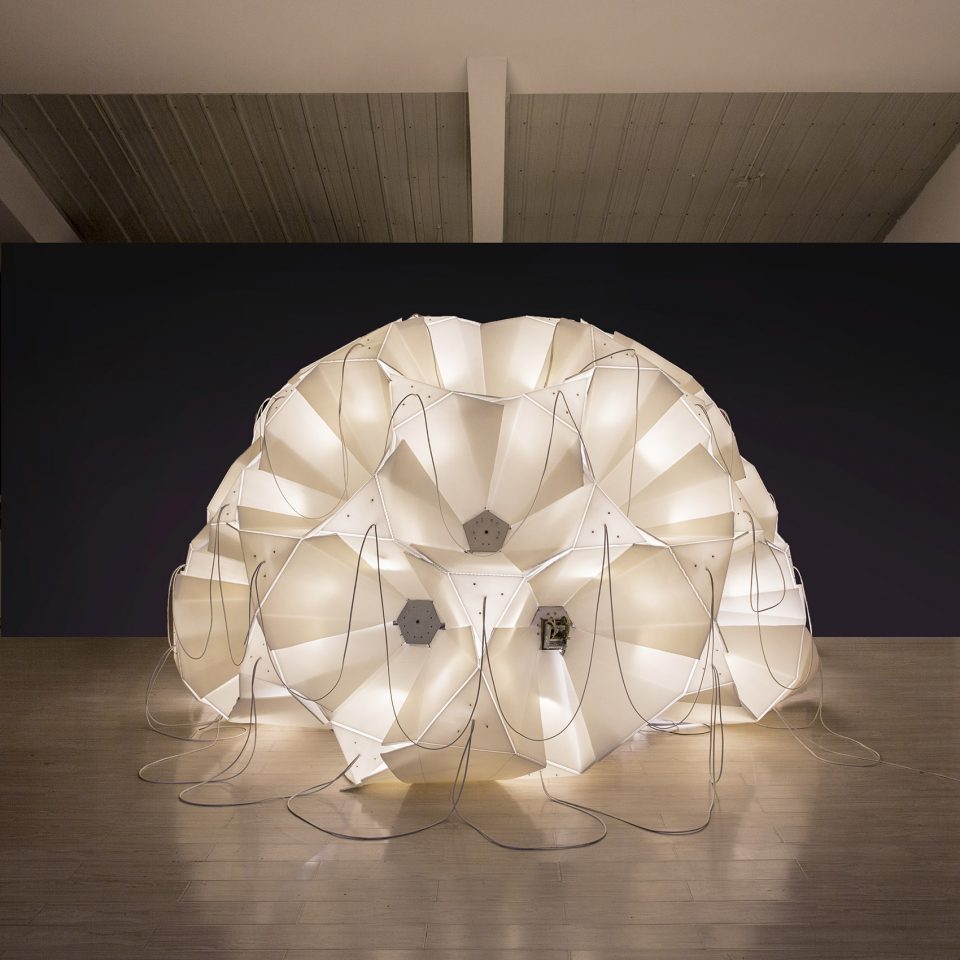

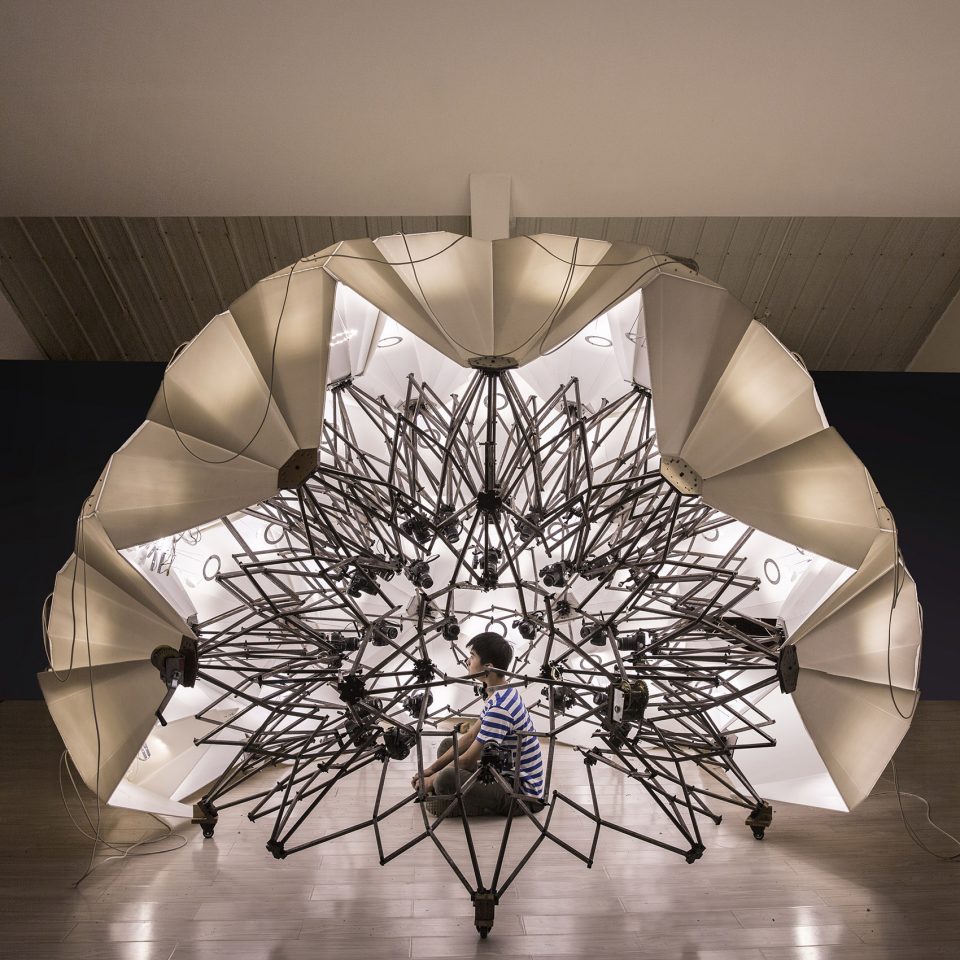

▼可伸缩的设计适合各种尺寸的扫描，the flexible design could adapt to wide range of scales

只需按下相机快门，哪怕是动态的物体，拍摄所得的数据也能建出高分辨率全彩色的数字模型，直接用于高清3D打印。

Digital models are constructed from the photographic data to produce high resolution 3d prints. With the snap of a camera even subjects in motion can be captured in high quality and full color.

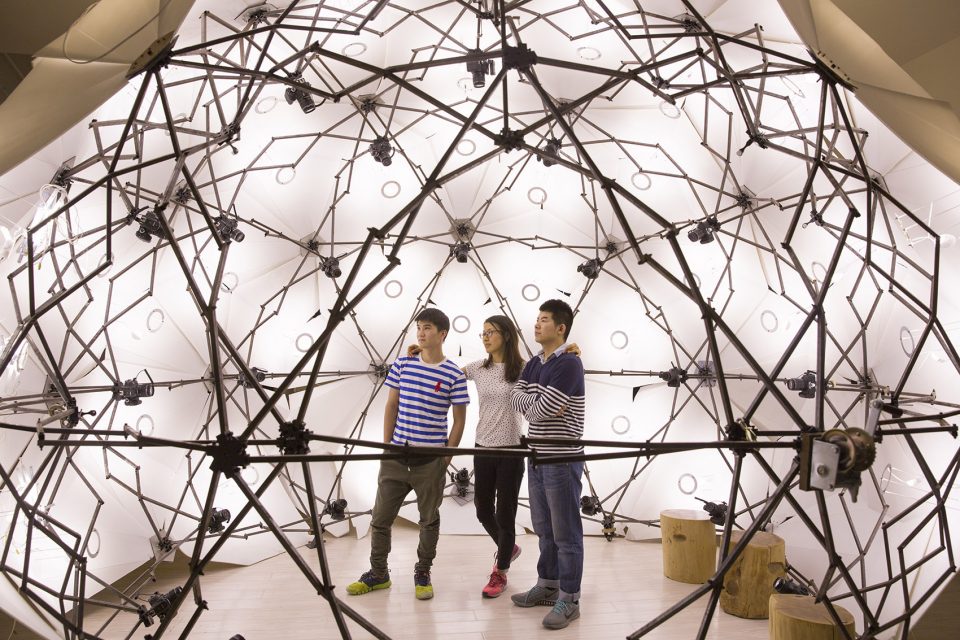

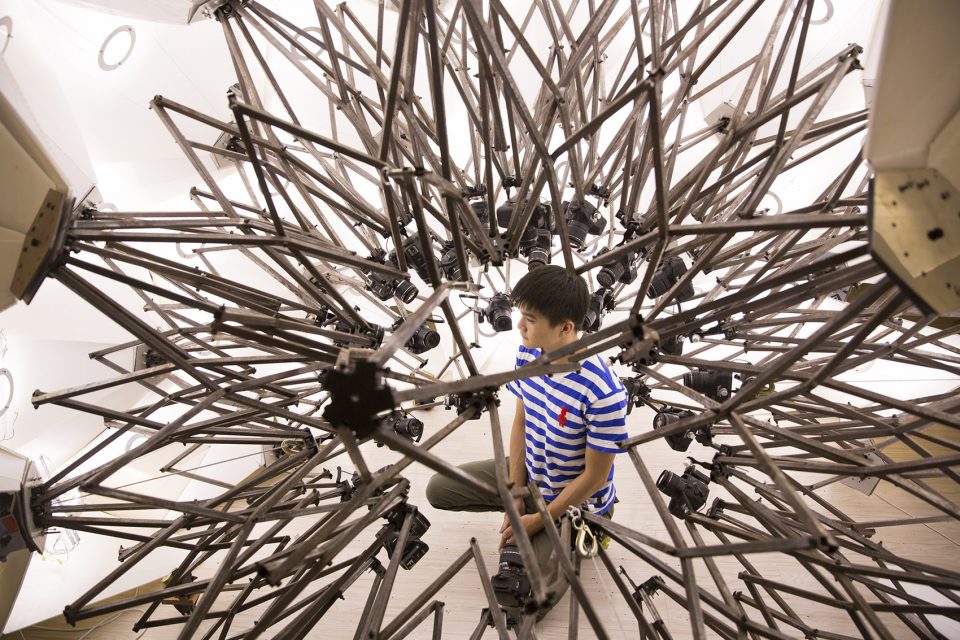

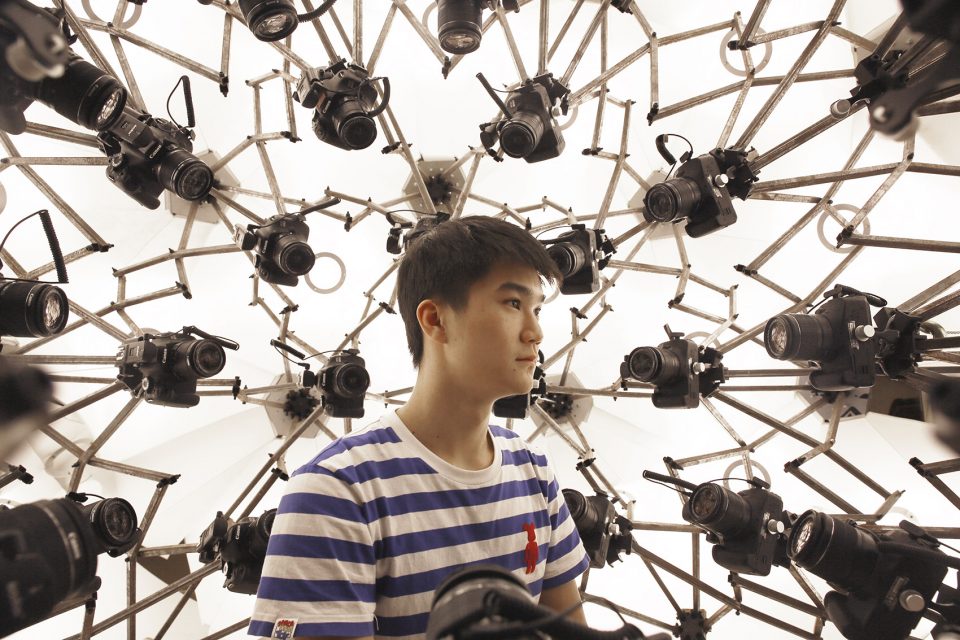

▼工作中的3D扫描舱，the 3D copypod in working states

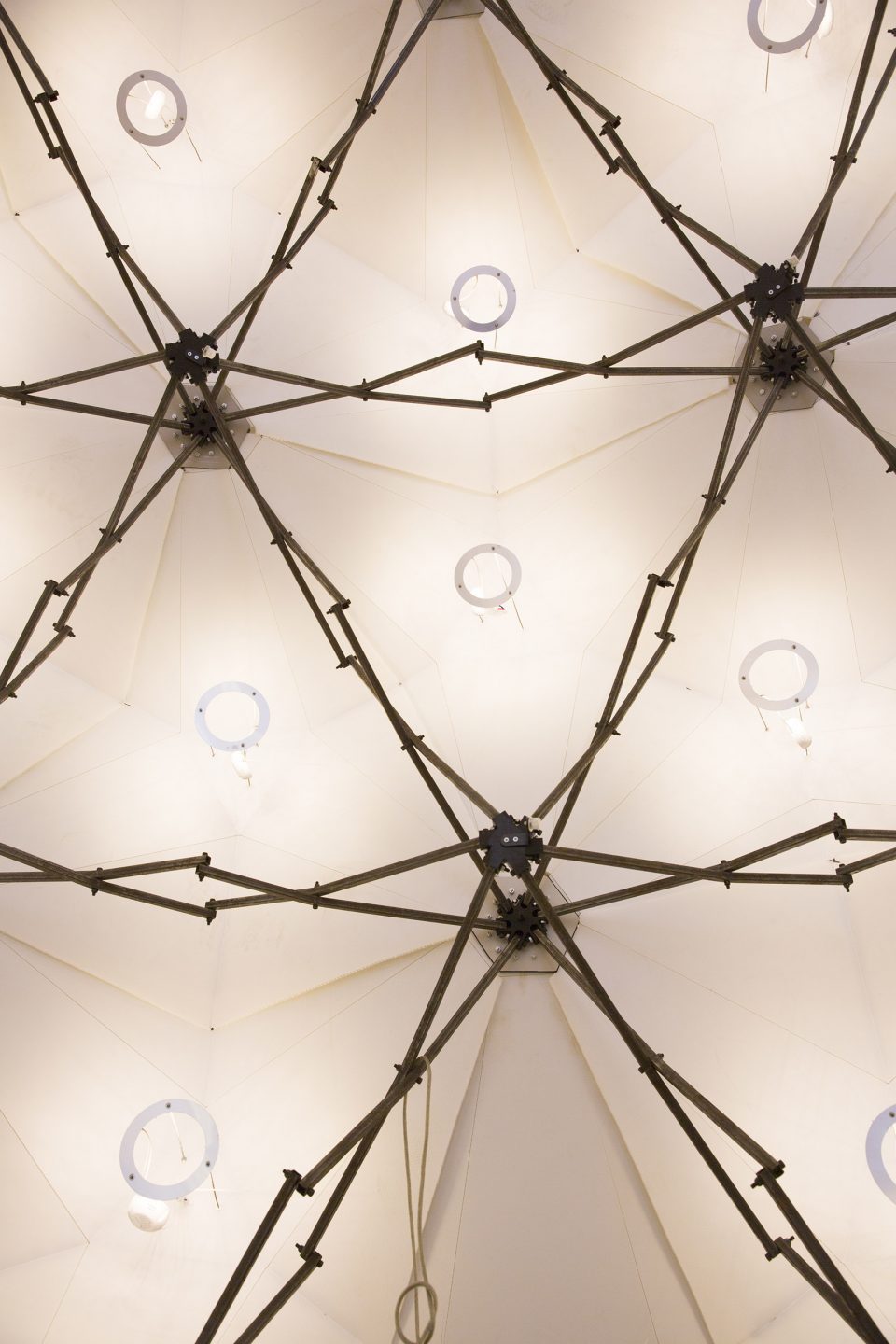

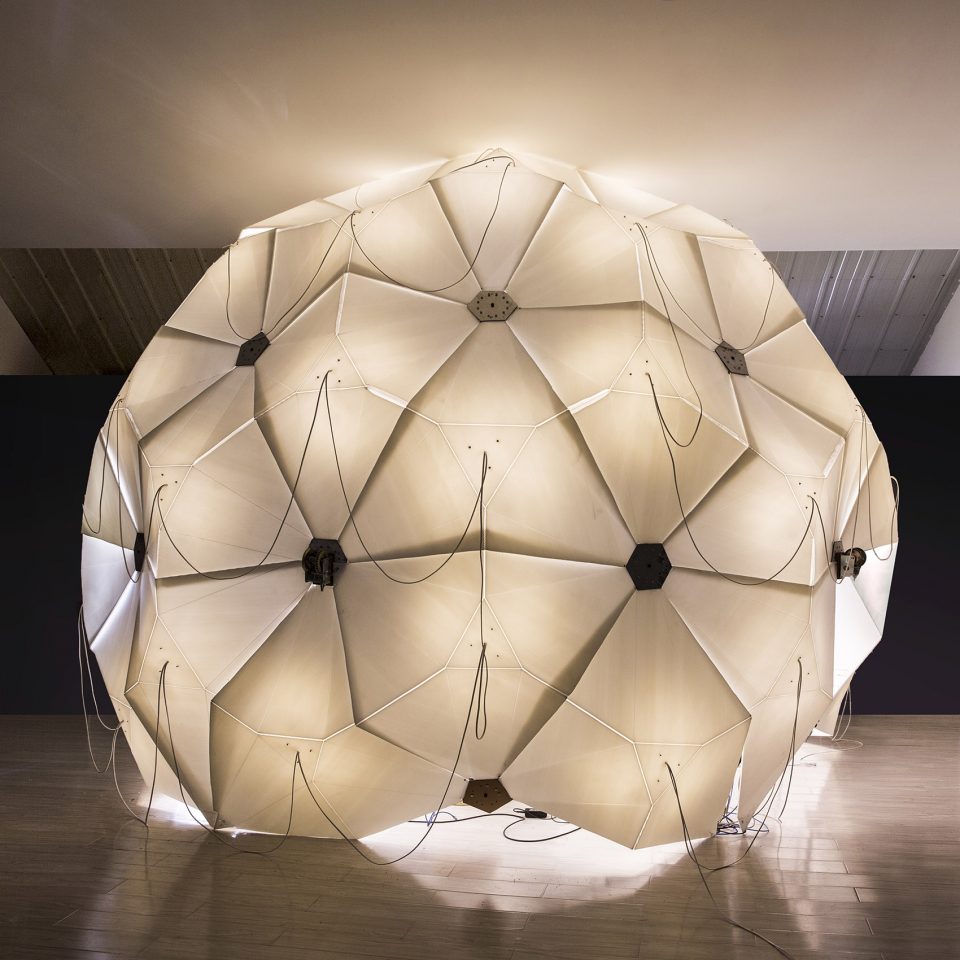

▼设计的细节，detail of the product

完成时间：2016年8月
设计主持：何哲，James Shen（沈海恩），臧峰
项目团队：相未星，谢军，冯紫晴，张朕，Pablo Herraiz Garcia de Guadiana (何西王)
摄影：众产品

Date of Completion: August, 2016
Principal: He Zhe, James Shen, Zang Feng
Project Team: Xiang Weixing, Xie Jun, Feng Ziqing, Zhang Zhen, Pablo Herraiz Garcia de Guadiana
Photographer: People’s Industrial Design Office (PIDO)
