“由粗糙石块构成的雕塑般的花池将中央庭院里丰富的多肉植物围合起来，展现了房屋主人的艺术趣味。隔水的屋顶花园种植着本地草类和野花，将棚屋式的建筑与场地融合为一个整体。评审团称赞该项目为‘景观保护、设计以及将草地过渡至林地的园艺的非凡组合’。”
– 2022年评审委员会

“Reflecting the client’s artistic interests, a sculptural planting bed of rough-hewn stone frames an extensive succulent collection in the central courtyard. An insulating roof garden of native grasses and wildflowers blends the shed-style architecture to the site. The jury called it a remarkable mix of conservation, design, and horticulture as a transition from meadows to woodlands.”
– 2022 Awards Jury

来自 ASLA 对gooood的分享。
Coast Ridge Residence | Scott Lewis Landscape Architecture

项目陈述
Project Statement

这栋坐落于山坡上的住宅唤起了与之毗邻的90英亩橡树林保护区的自然特征。设计摒弃了围栏和草坪，在一个由相互联系的住宅及工作室组成的现代院落中种植了本地植物，营造出丰富且细腻的质感。作为园艺师的业主构想了一个对野生动物友好的景观，能够在提供栖息地的同时，留出用于试验区域种植多样性的机会。雨水收集系统、透水表面、耐旱植物和灰水灌溉系统共同实现了节约资源的目标，使景观灌溉的用水量仅为县政府规定的33%。种植着本地草和野花的隔水屋顶花园将棚屋式的建筑与场地融为一体。由粗糙石块构成的雕塑般的花池将中央庭院里丰富的多肉植物围合起来，展现了房屋主人的艺术趣味。基于深思熟虑的选址，该项目保留了一片石兰科常绿灌木林，同时保护了既有的橡树，并借助蜿蜒的小路和室内空间引入了广阔的视野。如今，这座建筑得以同时从地面和屋顶上与周围的壮观环境融为一体，尊重并延伸了附近的自然保护区及其充满原始气息的的加州景观。

This hillside property evokes the natural character of an adjoining 90-acre oak woodland regional preserve. Eschewing fencing and lawn, the highly-textured design uses native plantings throughout a contemporary compound of interlinked residence and studios. The horticulturist-owner envisioned a landscape that welcomed wildlife, provided habitat and offered an opportunity to experiment with the diversity of regional plantings. Rainwater harvesting, permeable surfaces, drought-tolerant plants and a greywater irrigation system enforce the goal of conserving resources, resulting in landscape irrigation that uses only 33% of its county-mandated allotment. An insulating roof garden of native grasses and wildflowers blends the shed-style architecture to the site. Reflecting the client’s artistic interests, a sculptural planting bed of rough-hewn stone frames their extensive succulent collection in the central courtyard. Thoughtful siting preserved a manzanita grove, safeguarded existing oaks, and framed wide views from both winding paths and interior spaces. This property now seamlessly blends with its majestic surroundings at both ground and roof levels, respecting and extending the qualities of the neighboring nature preserve and its pristine California landscape.

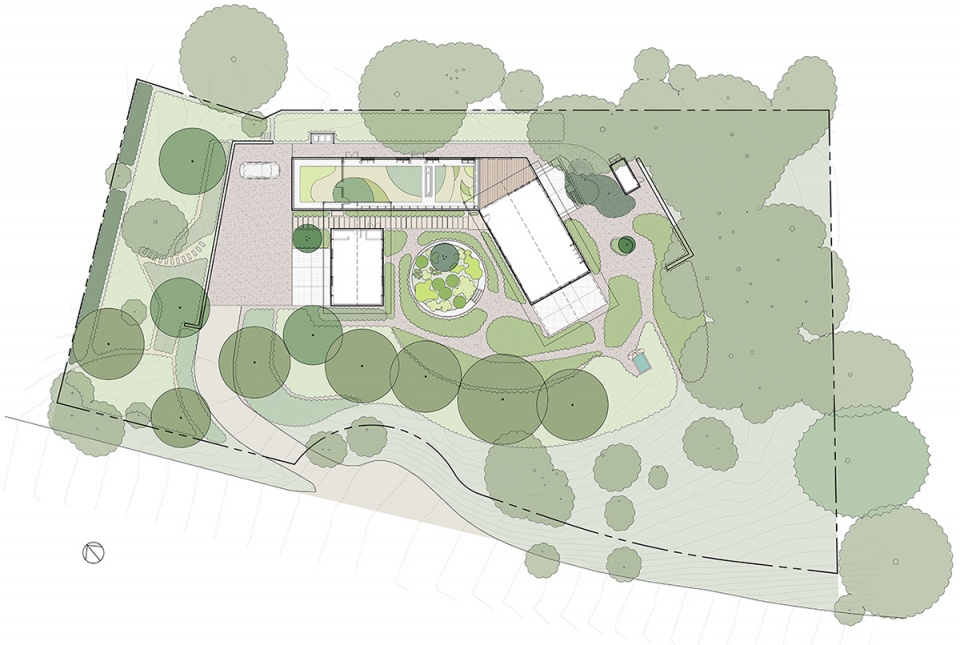

▲场地平面图。景观设计师将本案选址于场地北面和西面的陡坡之间，东面是区域保护地，南面是既有的橡树林。建筑体块和车辆通道设置在北角，以最大限度地增加花园的阳光。Site Plan. The landscape architect sited the structures between steep slopes at north and west, the Regional Preserve to the east and existing oaks to the south, placing buildings and vehicular access in the north corner to maximize sunlight to the garden. © Scott Lewis Landscape Architecture

项目说明
PROJECT NARRATIVE

设计要求和场地范围

这处占地一英亩的场地，其设计与房屋的拆除工作以及新独栋住宅的建造共同进行，最终呈现为三座相互联系的建筑。场地位于一个缓坡上，在旧金山湾区中半岛西部的一片90英亩的保护区的边缘，这里分布着绵延的橡树林。从前的房屋占地面积较大，包含一条沥青车道和数个水泥平台。业主希望建造一座具有高环境敏感度的房屋以回应场地特征。身为富有创造力的艺术家、技艺熟练的制造者和经验丰富的园艺师，他们要求建筑师为其提供专门用于创作的空间，包括工作室、工作车间、画廊以及内容广泛的图书室；房屋外部则期望建造一个能够与周围开放空间和保护区相融合的本地花园，并在设计和运作上展现可持续性。

设计方案和目标

该项目包含三个主要目标。

1. 将附近橡树林地的空间特征反映在建筑的外观上

作为关键性的第一步，景观设计师和建筑师共同确定了建筑的朝向，旨在填补并保护宏伟的橡树林，同时允许从房屋的两个楼层的玻璃外墙看到开阔的细部景观。这种有意的安排使花园空间得以与庄园内的橡树树冠在水平方向上同时扩展，并将主要的起居楼层包裹起来。景观设计师选用了自然主义的种植组合，使木质建筑的方直轮廓与周围的橡树融为一体。原生的地被植物和灌木为蜿蜒的碎石小路带来丰富的纹理，粗糙的石墙划定出建筑空间，并将其延伸至景观当中，其鹅卵石的质地使人联想到从场地中露出的天然岩石。场地上未使用任何围栏，以帮助林地生物在花园中寻找到合适的栖息环境。

景观设计师还在屋顶线上设计了自然的外观。中央建筑的平屋顶上有一个草地花园，选种了8个草种、本地野花和球茎植物，以显示冬季和夏季的交替变化。从主卧室的平台上可以直接望见屋顶花园，从地面层，以及住宅双层入口门厅的景窗也都可以看见这处独特的景观。屋顶花园的植物采用了深度为9英寸的托盘系统，由景观设计师按照植物的色彩和质地精心布置。为了让房主能够从主卧室的平台上获得观察植物多样性的最佳视野，距离平台最近的位置种植了最矮的植物，越往远端，植物的高度越高。屋顶本身是低维护性的，仅需在夏季使用滴灌（当地温度可达到约32.2度以上）。

2. 该场地将为园艺师业主提供植物实验和收藏展示的场所，体现其在园艺慈善事业和教育方面的承诺

业主自己拥有大量的多肉植物收藏，它们曾经被置于独立的花盆中。如今，这些收藏可以以动态的方式展示出来。走出停车场后，经过一条狭窄的道路进入开阔的中央庭院，这时候便可以看见种植在大型花池中的多肉植物，它们种类繁多，令人过目难忘。这座石砌的圆形花池是由雕塑家兼石匠用粗糙的Tufa石灰岩塑造而成，完美地捕捉到了客户对于园艺和艺术的兴趣点。

景观设计师还为业主培育的本土植物创造了一个实验区域。在场地南侧，盆栽大棚与一堵宽大的石砌座位墙（同样由Tufa石灰岩打造）结合在一起，给人以厚重的观感，可以作为放置盆栽和工具的工作台。该区域均以碎石铺设，业主可以在任何地方进行挖掘，为新的本地品种建立种植岛。这样设计的目的是为实验性的种植活动创造更多可能，种植成功的物种将被移植到场地西面开阔的花园区域。在这个“植物实验室”区域内，一个烹饪花园和户外烧烤空间被整合至厨房外部的板状混凝土露台上。

3. 保护场地中的资源至关重要

可替代的水供应：该场地以灰水和雨水收集系统作为灌溉用水的重要来源。家庭产生的灰水将被收集到一个容量为250加仑的地上水箱，经过筛选和过滤之后被泵入灌溉系统。雨水将被收集到5100加仑的地下水箱，过滤之后被输入灌溉系统。该项目在第一年大约收集了25355加仑的水，覆盖了该场地约13%的灌溉需求。经过细致考量的种植设计将灌溉的耗水量减少至San Mateo县规定消耗量的48%；加上灰水和雨水后，消耗量将减少至规定量的33%。

最小的地势变化和周到的选址：房屋的战略性选址为场地提供了尽可能平整的地势。在构想住宅的位置时，景观设计师与建筑师进行了密切合作，最终为三座建筑选定了最有利的布局：一组太平洋曼撒尼塔树被保留下来，与原生的橡树林建立了安全且清晰的距离；此外，场地南面还创建了以低矮石墙为边界的实验性种植区。这座石墙同时还构成了“设计空间”与既有橡树林之间的显著视觉边界。场地对侧的北山建造了一座4英尺（约1.2米）高的挡土墙。最终，这片广阔的土地为打造独特且显著的圆形花池创造了可能性。

患病的蒙特雷松树被移除并重新种植了十棵橡树，以补全住宅周围由橡树构成的弧线。场地中既有的岩石和小石块还被用于制作散水装置。

植物的栖息地

业主和景观设计共同挑选了近40种本地植物，能够为毗邻的保护区中的常驻动物提供栖息地。蜂鸟们可以享受到七个品种的莎草；树丛间的加州烟斗藤为脆弱的马兜铃凤蝶提供了栖息环境；各类鸣禽可以停留在六个不同品种的曼撒尼塔树、柠檬水漆树、加州咖啡浆果、西部紫荆和野草莓树上；

鼠李吸引了珠颈翎鹑和雀鸟。地面层的丰富草种能够为越冬的昆虫提供庇护、为鸣禽提供种子，同时为蝴蝶的幼虫提供栖息地。景观设计师将这些耐旱且防止鹿食的植物品种以适宜的规模集合在林地环境中。

房屋的主人对于当地的生态系统有着深入的了解，并且乐于带领他们的客人体验花园之旅。他们所传达出的信息是：在区域性的植物、战略性的选址、水资源保护和园艺栖息地的共同作用下，这处场地得以与周围环境丰富的生物多样性连接在一起。

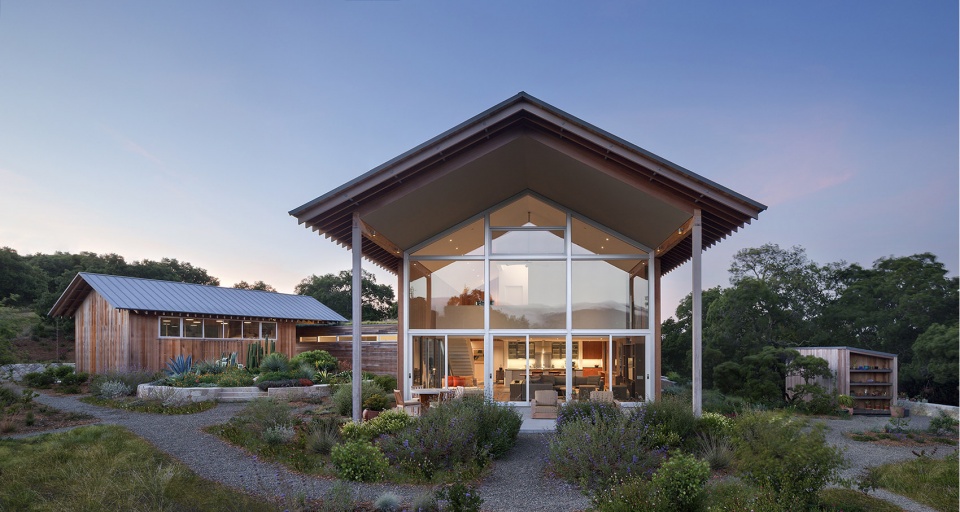

▲建筑群组：住宅由多栋建筑组成，主要的起居空间带有一定角度，以捕捉开阔的西部景观。相连的体量容纳了工作室和工作车间。盆栽大棚紧靠着曼撒尼塔树群。各类植物和小径贯穿整个场地。Building Compound. The residence is a cluster of buildings, with the main living space angled to capture the wide western view. Connected structures hold studios and a workshop. A potting shed tucks beside a Manzanita cluster. Plantings and paths wind throughout. © David Wakely

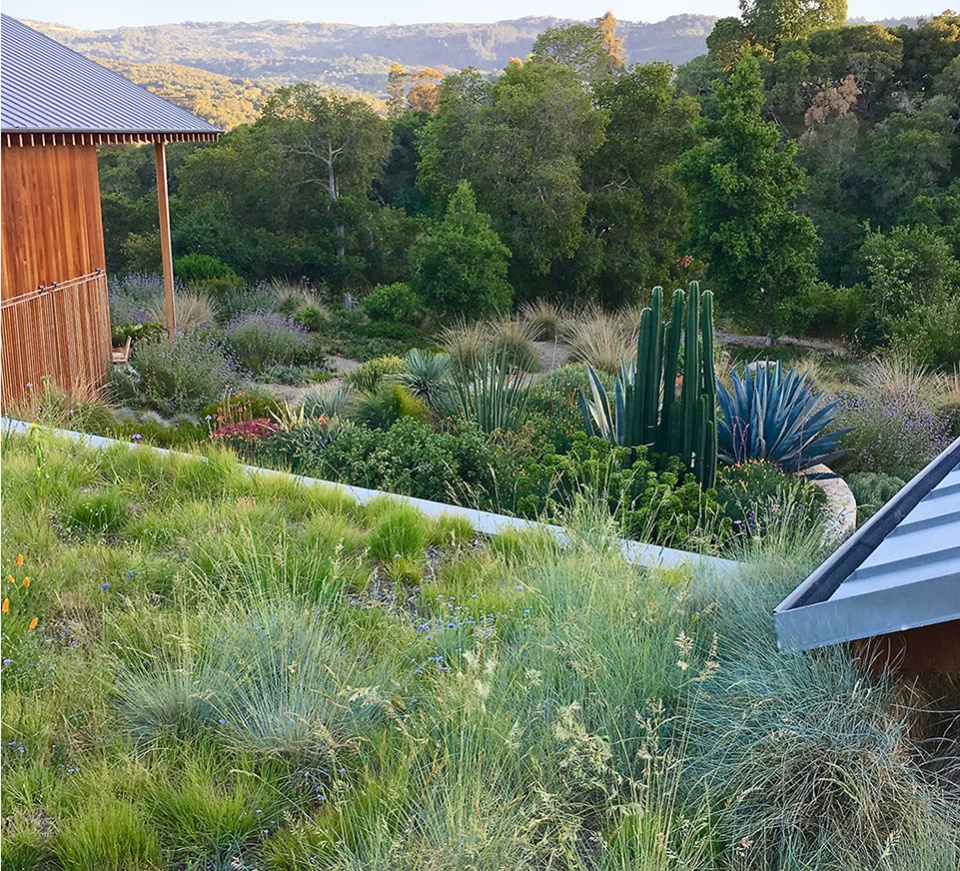

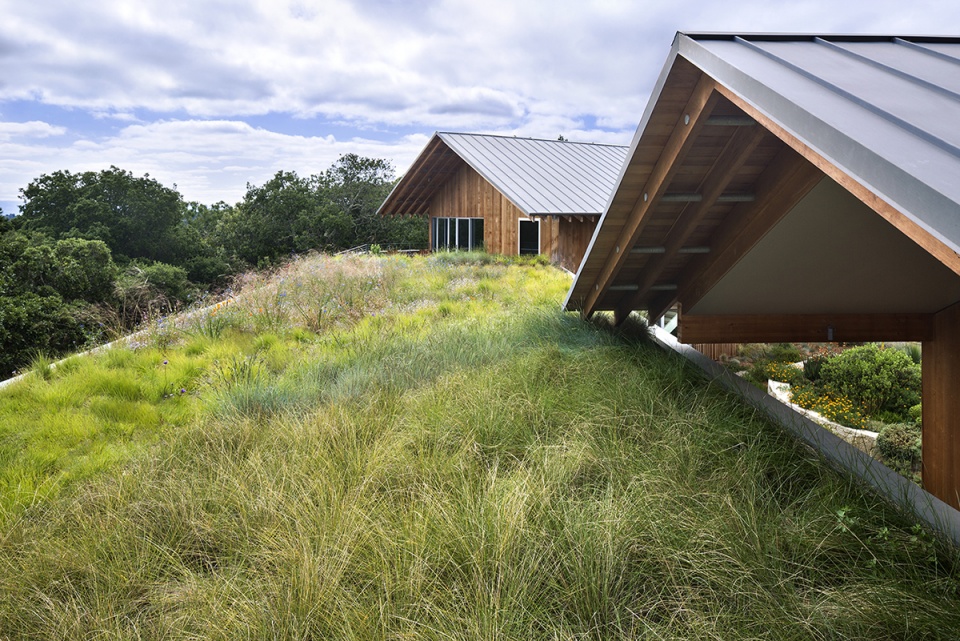

▲屋顶花园南向视野：屋顶花园位于工作室建筑上方，远端是主卧室的露台。一只大雕鸮时常栖息在远处的屋脊上。本地和耐旱的草种分布在松散的纹理与色彩中。Roof Garden, South View. The roof garden sits on the studio building, with the master bedroom deck at the far end. A Great Horned Owl frequently perches on the far gable. Native and drought-tolerant grasses are placed in loose swaths of texture and color. © David Wakely

▲屋顶花园北向视野：屋顶花园还种植了罂粟、野花和多种本地球茎植物，从视觉上将屋顶轮廓与远处的山丘融为一体。这些植物可以吸收雨水，并从倾斜的坡屋顶收集雨水径流，缓慢地使水分向下渗透。Roof Garden, North View. The roof garden also uses poppies, wildflowers and native bulbs, visually blending the roof line to the hills beyond. The plantings absorb rainfall and also capture storm water runoff from the angled gabled roofs, providing slow-release infiltration. © Scott Lewis Landscape Architecture

▲从屋顶花园望向地面层：场地未设任何围栏，因而允许野生动物通过。这种做法也让新的植物得以与既有景观实现无缝衔接。景观方案选择了适合于场地的植物，其灌溉用水量仅为县政府规定用量的三分之一。Roof Garden to Ground Level. The property is unfenced to allow wildlife passage. This results in a seamless blending of new plantings with the existing landscape. The selection of site-appropriate plants uses only 1/3 of the irrigation water allocated to the project by the County. © Scott Lewis Landscape Architecture

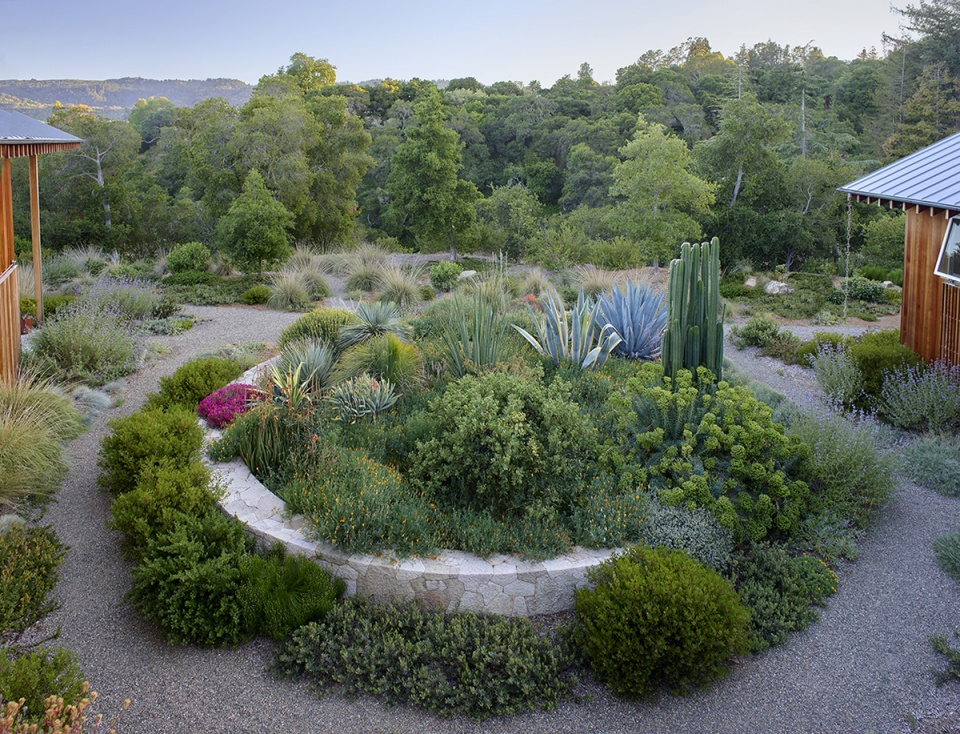

▲石砌花池与多肉植物收藏：圆形的花池由来自北加州的雕塑家专门打造，用于容纳业主丰富的多肉植物收藏。这处焦点空间凝聚了业主对艺术与园艺的热爱。Stone Circle with Succulent Collection. A northern California sculptor was commissioned to create the circular planter that holds the owner’s extensive succulent collection. This focal point combines the client’s love of art and horticulture. © Marion Brenner

▲石砌花池与墙体细节：中央的圆形花池和场地上的墙壁均由Tufa石灰石打造，在经过精确雕刻后形成了紧密结合的图案。在将石头运送至现场组装之前，雕塑家对每块石头进行了切割与编号。Stone Circle Planter and Wall Detail. The central circular planter and site walls are composed of Tufa Limestone, precisely carved for a tightly-jointed pattern. The sculptor cut and numbered each stone piece before bringing the stones to the site for assembly. © Scott Lewis Landscape Architecture

▲地面层花园路径西向视角：碎石小路围绕着圆形花池和整个原生花园。道路两侧未设置封边，以创造具有扩散性的边界。Ground Level Garden Paths, West View. Gravel paths wind around the stone circle and throughout the native garden. Path edging was avoided in order to create a diffused edge. © Marion Brenner

▲地面层花园与圆形石砌花池：景观设计师、建筑师与业主建立了合作，将轮廓清晰的建筑植入到多层次的植物景观当中，使其形成和谐的并置关系。Ground Level Garden with Stone Circle Planter. Collaboration between the landscape architect, architect and owner resulted in a harmonious juxtaposition of the crisply-defined architecture nestled in swaths of layered plantings. © Marion Brenner

▲三个层次的景观：景观设计氛围本地植物、多肉植物和季节性草种三个层级，为当地的野生动物提供了不同的栖息环境。屋顶花园的草坪在地面植物与橡树树冠之间建立了视觉连接。Three Levels of Landscape. The landscape architecture layers native plantings, succulents, and seasonal grasses – all providing varied habitant for local wildlife. The roof garden meadow provides a visual link between the ground plane plantings and the oak canopy. © David Wakely

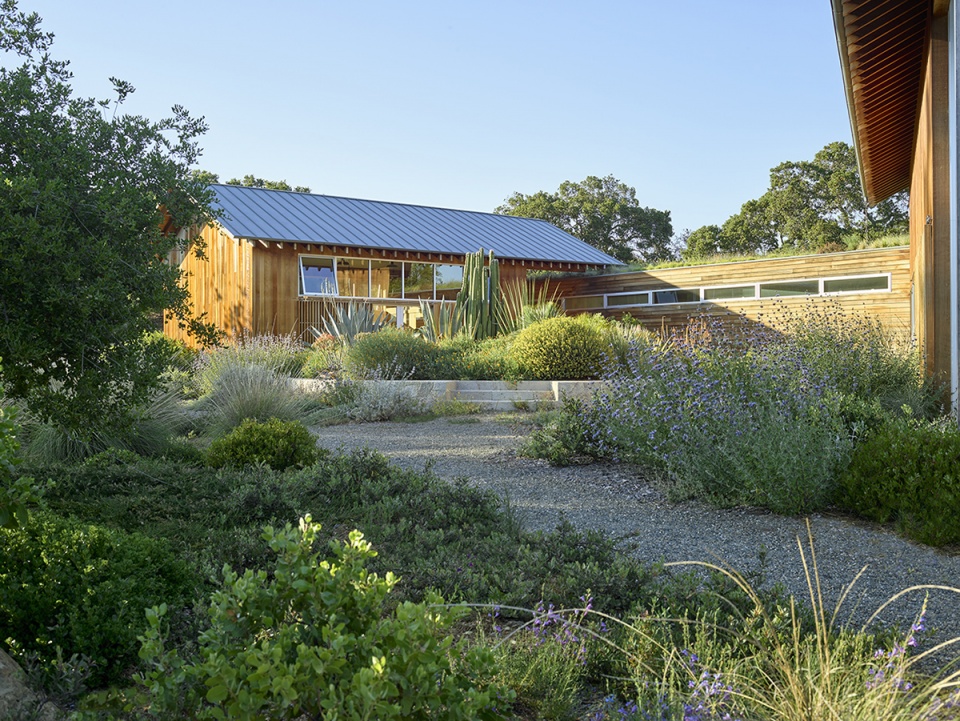

▲地面层花园路径，北向视野：在充满阳光的原生花园，植物的色调保持了简单，以提供整体视觉的和谐度。色彩与纹理的平衡主要通过种植有限的同属物种并尽量减少颜色种类来实现。Ground Level Garden Paths, North View. In the sunny native garden, the plant palette is kept simple to provide an overall visual harmony. Color and textural balance is achieved by using a limited number of species within a genus and by minimizing color varieties. © Marion Brenner

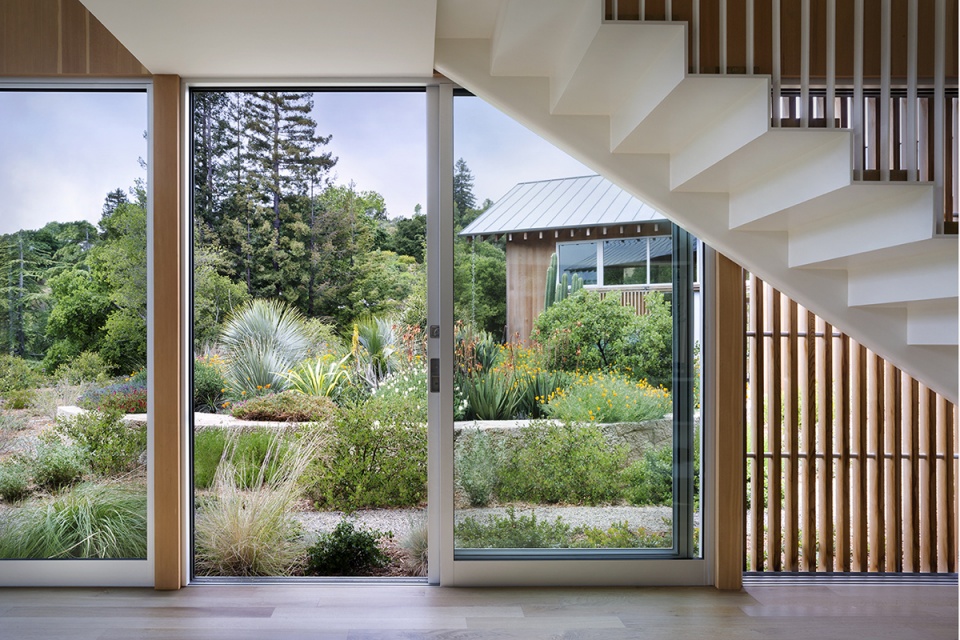

▲从餐厅望向石砌花池：在餐厅外部，圆形花池为多肉植物收藏提供了一个显著的容器，它包含着不同质地的植物和季节性的花卉，并且具有强烈的形式感。在底座处，鹿草和曼萨尼塔树强调出本地的环境特征。View from Dining Area to Stone Circle. Seen outside the dining area, the stone circle is an impactful container for the succulent collection, with its varied textures, seasonal blooms and strong form. At the base, Deer Grass and Manzanitas provide native context. © David Wakely

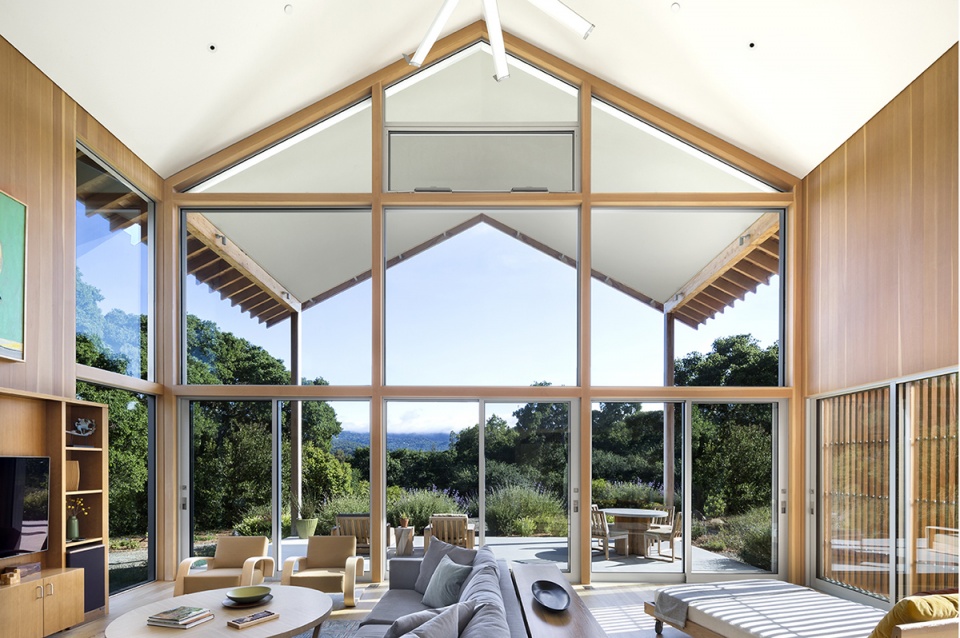

▲从客厅望向花园：客厅的双层高玻璃墙和伸出的屋顶增强了周围景观的即时性。室内空间流向宽阔的混凝土基座，并延伸至一个隐藏的浸泡池。View from Living Room to Garden. The immediacy of the surrounding landscape is heightened by the two-story glass wall and extended roof at the living room. The interior space flows out to a broad concrete plinth that leads to a hidden soaking pool. © David Wakely

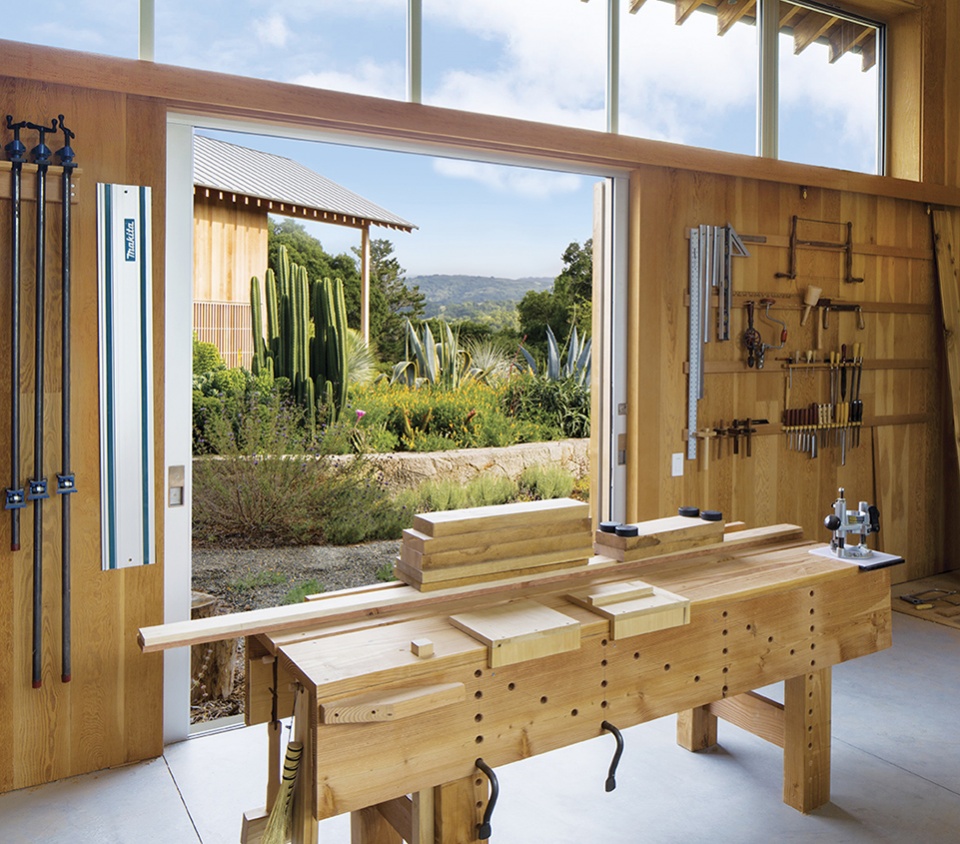

▲从木工车间望向花园：业主的木工车间向庭院敞开。不论在家还是在外，他们都是熟练且富有创造力的“制造者”。View to Garden from Wood Workshop. The owner’s wood workshop opens to the courtyard. The creative clients are skilled “makers” – both inside and outside their home. © David Wakely

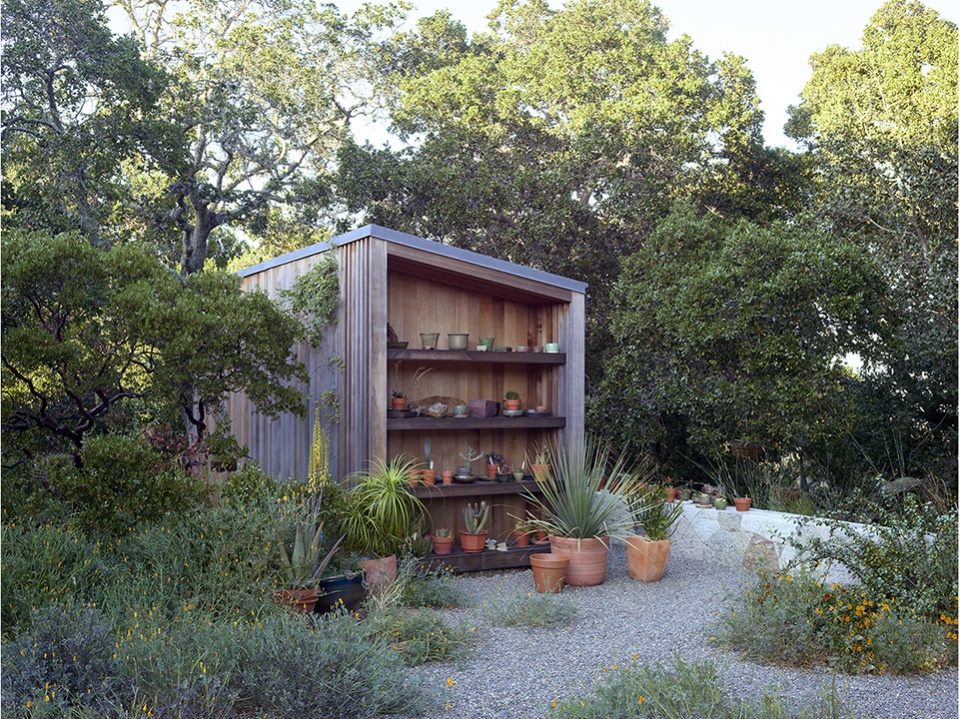

▲花园边缘的盆栽大棚：“植物实验室”区域包含了带有展示架的盆栽大棚，它在橡树间划定了花园的边界。右边的宽阔座位墙可以作为工作台面使用。砾石的表面可用来试验新植物品种的栽培。Potting Shed at Garden Edge. A “plants lab” zone includes a potting shed with display shelves. Delineating the garden edge at the oak canopy, a wide seat wall at right doubles as a work bench. The gravel surface allows for trial plantings of new cultivars. © Marion Brenner

▲南侧花园：考虑周全的功能布局、敏感的选址以及非正式的种植方案使住宅与其所在的自然环境融为一体，同时与附近的自然保护区建立有机的连接。Garden on South Side. The responsible program, sensitive siting and informal planting scheme blend this residence to its natural context, fusing organically with the surrounding regional nature preserve. © David Wakely

Project Narrative

REQUIREMENTS AND SCOPE:

A one-acre property was designed in conjunction with the demolition of an existing home and the construction of a new single-family residence, designed as three connected buildings. The site is on a gentle slope, on the edges of a 90-acre regional preserve of rolling oak woodlands in the San Francisco Bay Area’s western mid-peninsula. The previous home had a larger footprint and contained an asphalt driveway and cement terraces. The owners wanted to construct a home with high environmental sensitivity that responded to the site character. The clients are inventive artists, skilled makers and experienced horticulturalists. Inside their new home of three shed-like structures, the owners asked the architects for spaces dedicated to creativity: studios, a workshop, galleries and an extensive library. Outside, the client desired a native garden, one that would blend with the surrounding open space preserve and be sustainable in design and operation.

DESIGN PROGRAM AND INTENT:

The project had three main goals.

1. The character of the surrounding oak woodlands open space was to be reflected in the appearance of the property.

As a key first step, the landscape architect and architect collaborated on orientating the buildings to both complement and safeguard the majestic oaks, while allowing a wide western view from the home’s two-story glass façade. This deliberate placement allowed the garden space to expand parallel to the oak grove canopy on the property and wrap around the main living level. The landscape architect used naturalistic plant groupings that blend the rectilinear lines of the wood-clad architecture into the surrounding oaks. Textured massings of native ground covers and shrubs spill over winding gravel paths. Rough-hewn stone walls define and extend the architectural space out into the landscape, their pebbly texture evoking natural rock outcrops on the site. The property does not use any fencing, encouraging woodland creatures to find habitat in the garden.

The landscape architect designed a naturalistic look at the roofline, as well. A grass garden rests on the central building’s flat roof. Eight grass varieties, native wildflowers and bulbs were selected to show rotating variety in winter and summer months. This roof feature is viewed from the master bedroom deck, glimpsed from ground level, and framed in a focal window in the home’s double-height entry foyer. The roof garden plants, used in a 9-inch-deep tray system, were laid out by the landscape architect in swaths of color and texture. To help the client best observe the plant diversity from the master bedroom deck, the shortest materials are nearest the deck, progressing to the tallest grasses at the furthest end. The roof selections are low maintenance, with drip irrigation used only in summer months, when the temperatures in the area can reach over 90 degrees.

2. The property was to provide the innovative gardener-client places for plant experimentation and collection displays, reflecting the client’s commitment to philanthropy and education in support of horticulture.

The client had cultivated an extensive succulent collection, formerly housed in individual pots. Now the collection is showcased in dynamic fashion. From the auto court, the compound is entered through a narrow passageway, which gives way to a dramatic reveal of the succulents in riotous variety, housed in a large, raised sculptural planter in the wide central courtyard. Carved from rugged Tufa Limestone by a sculptor-mason, this stone circle planting bed perfectly captures the client’s interest in both horticulture and artistry.

The landscape architect created a zone for the client’s experimentations with native plants. At the property’s southern side, a potting shed is combined with a wide stone seat wall (also in Tufa), designed in wide proportions to serve as a work bench to hold pots and tools. This area is all gravel, enabling the client to dig anywhere to establish planting islands for new native varieties. The intention is for these experimental planting outposts to come and go, with successful trials being transplanted to established garden areas at the site’s broad western side. Nestled in this “plants lab” area, a culinary garden and outdoor grill are incorporated in a board-form cast concrete narrow terrace off the kitchen.

3. The conservation of resources on the property was paramount.

Alternative water supplies: The property uses grey water and rainwater harvesting systems for a significant source of irrigation water. Greywater from the home is collected in a 250-gallon above-ground tank, screened, filtered, then pumped into the irrigation system. Rainwater is harvested into a 5,100-gallon underground tank, filtered, then fed to the irrigation system. The first year estimate is 25,355 gallons collected, which covers approximately 13% of irrigation needs for the property. The thoughtful planting design reduced the irrigation consumption to 48% of the total allowed by the County of San Mateo; the addition of the greywater/rainwater reduces the use to 33% of allowed.

Minimal grading and thoughtful siting: Due to the strategic siting of the home, grading on the property was minimal. The landscape architect worked closely with the architect when envisioning the placement of the home. The final location of the three structures allowed for key benefits: preservation of a group of Pacific Manzanita trees; establishment of a safe, clear distance from a native oak grove; and creation of the southern experimental planting area, bounded by the low stone seat wall. This wall also serves as a distinct visual boundary between ‘designed space’ and the established southern oak grove. At the property’s opposite side, the north hill required a 4-foot-high retaining wall. This expanse became another opportunity to commission the stone circle’s sculptor-mason to craft a pronounced edge to the constructed landscape.

Ailing Monterey Pines were removed, and ten new live oaks were added to complete an arc of oak trees around the home. Existing rocks and small boulders on the site where re-used in water dissipaters.

PLANTS FOR HABITAT:

The client and landscape architect collaborated on almost 40 native plant selections, selecting species that offer habitat to resident animals of the adjoining open space reserve. Hummingbirds enjoy the seven varieties of salvias. California Dutchman’s Pipe trails in the tree understory, providing habitat for the vulnerable California Pipevine Swallowtail. Song birds visit six varieties of manzanitas, Lemonade Berry, California Coffeeberry, Western Redbud and wild strawberries. Ceanothus attract California Quail and finches. Numerous grasses at ground level give shelter to overwintering insects, provide seeds for songbirds and larval habitat for butterflies. The landscape architect massed these drought tolerant and deer resistant selections in broad drifts at appropriate scale to the woodland surroundings.

The owners, knowledgeable stewards of their local ecosystem, enjoy hosting tours of their garden. Their message to visitors: regional flora, strategic siting, sculpted stone, water conservation, and horticultural habitats combine to connect this property to the rich biodiversity of its surroundings.

More：ASLA；Scott Lewis Landscape Architecture
